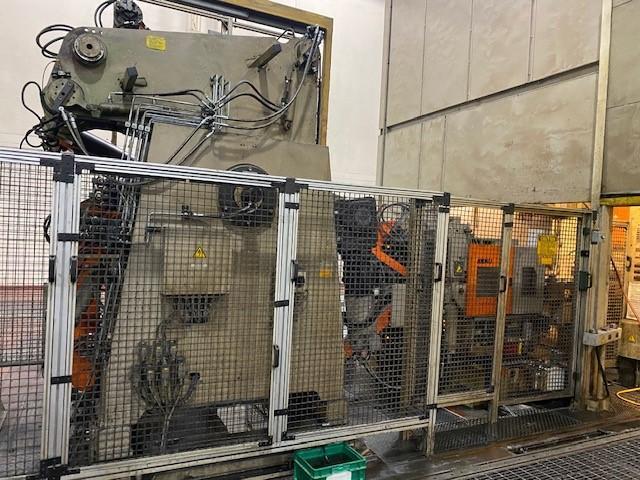

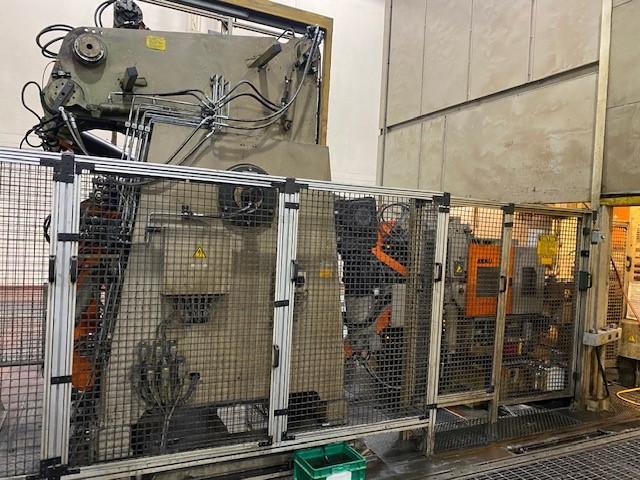

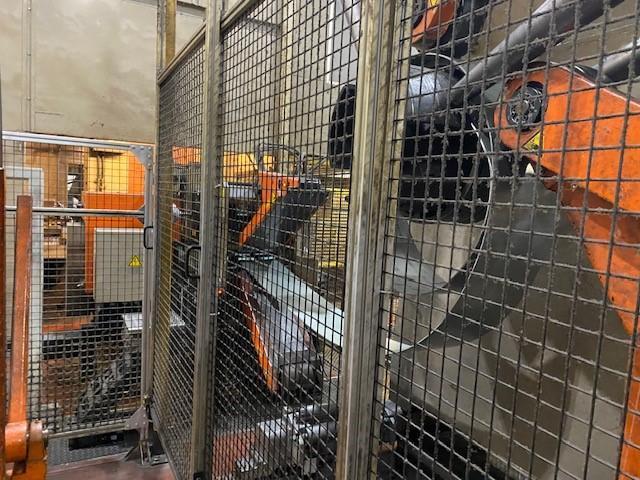

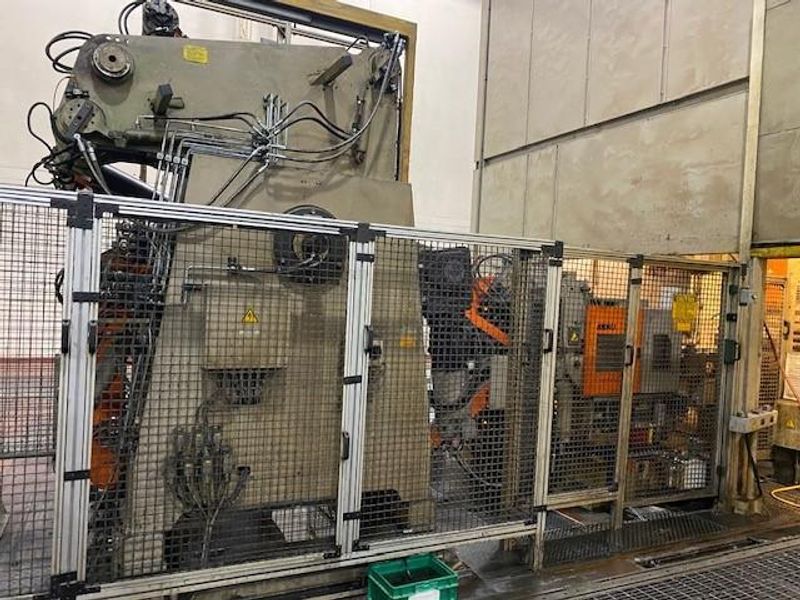

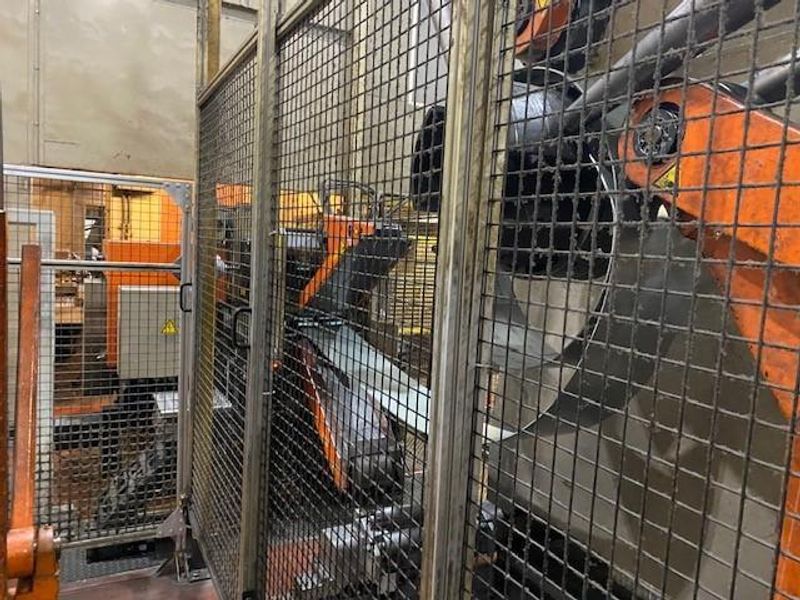

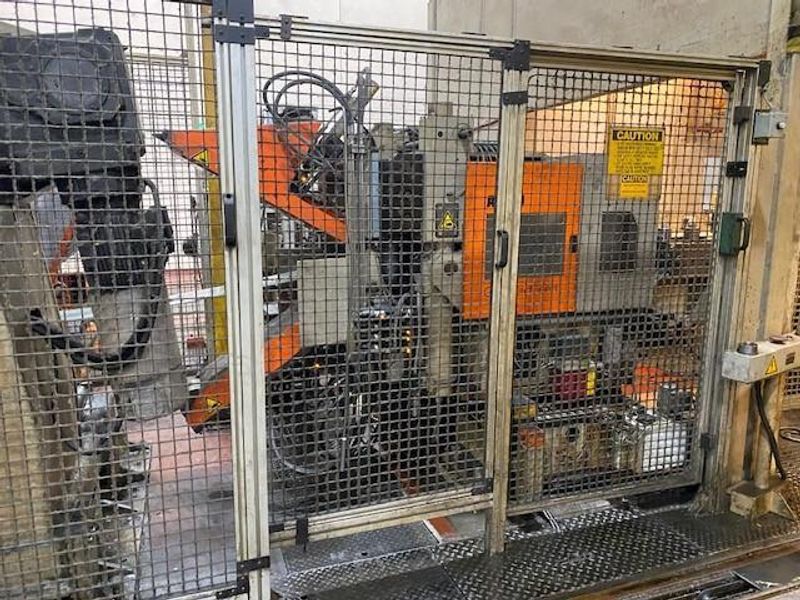

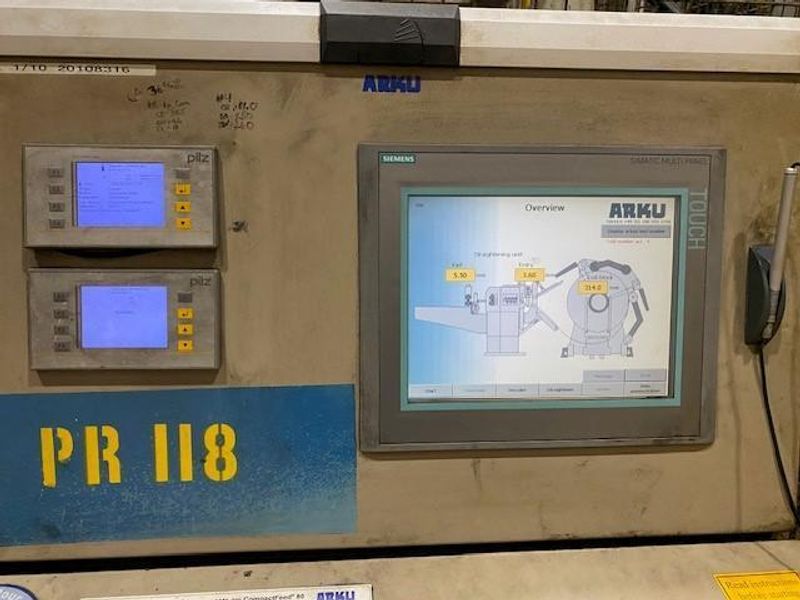

USED ARKU FEED / STRAIGHTEN "ZIGZAG" COIL LINE, Stock# 11067, Year: 2010

Manufacturer

ARKU

Category

Coil Processing Equipment

Type

COIL STRAIGHTENERS

Stock

11067

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Brand: Arku


Consists Of:

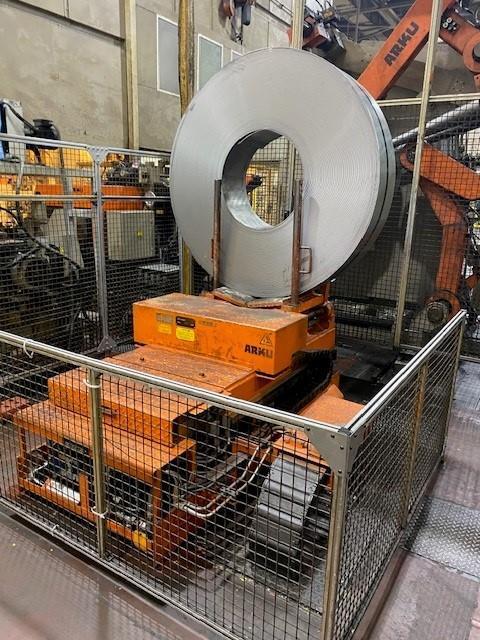

Laweco Coil Loading Station

Load Capacity: 6,000 lbs.

Maximum Coil Width: 20”

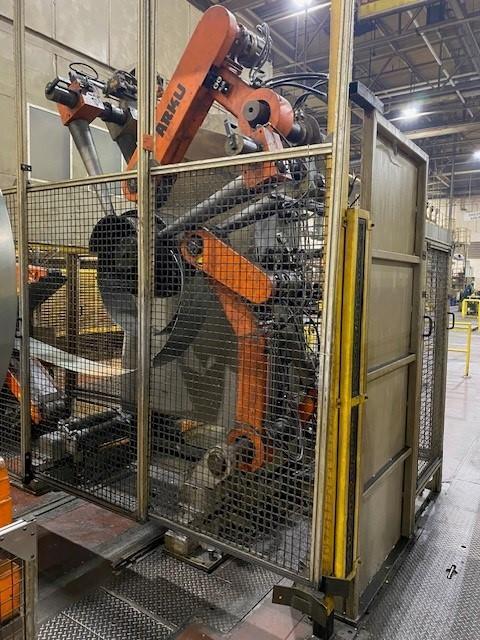

Arku Single-End Coiler

Expansion Range: 18.5” – 20.86”, 22.44”-24” (with screw on segments)

Coild OD: 40” – 71.81”

Maximum Coil Width: 20”

Maximum Coil Width: 6,000 lbs.



Equipped With:

-       Hydraulic Expansion

-       Automatic Re-Expansion

-       Front/Back Coild Guides

-       Hydraulic Restrictor Arms (Both Top & Bottom) with Driver

-       Strip Sensing uses Ultrasound for Loop Control

-       Laser Measuring for Coil Diameter

-       Roller Conveyor for Loop Guide



Arku Threading Unit

Maximum Coil Width: 20”

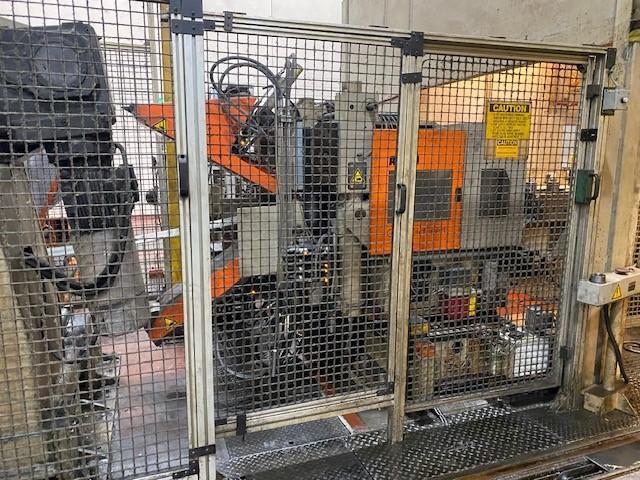

Arku Feeder / Straightener

Maximum Coil Width: 20”

Diameter of Straightening Rolls: 3.46”

Number of Straightening Rolls: 7 (Hardened & Ground)

Diameter of Exit Pinch Rolls: 6”



Zigzag Punch – 1 out of 5-out patterns

Zigzag Side Stroke – Maximum 4.72” from Centerline of Coil



 Arku Strip-End Feeder

Maximum Coil Width: 20”

Diameter of Feed Rolls: 6”

-    Electronically Driven

-    Upper Roll Opens Hydraulically



 Machine sold  “AS-IS, WHERE-IS”

 Inspect Under Power in Mid-West Plant – Available June 2024



*Specifications Subject to Verification
