Rambaudi 5-Axis, X-315". Y-177", Z-57", 177" x 470" Table, 2-Axis Gimbel Head, 3000 RPM, Fidia C-20 CNC, #43037

Manufacturer

RAMBAUDI

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

43037

Model

VAR-107 5-Axis Bridge

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43037

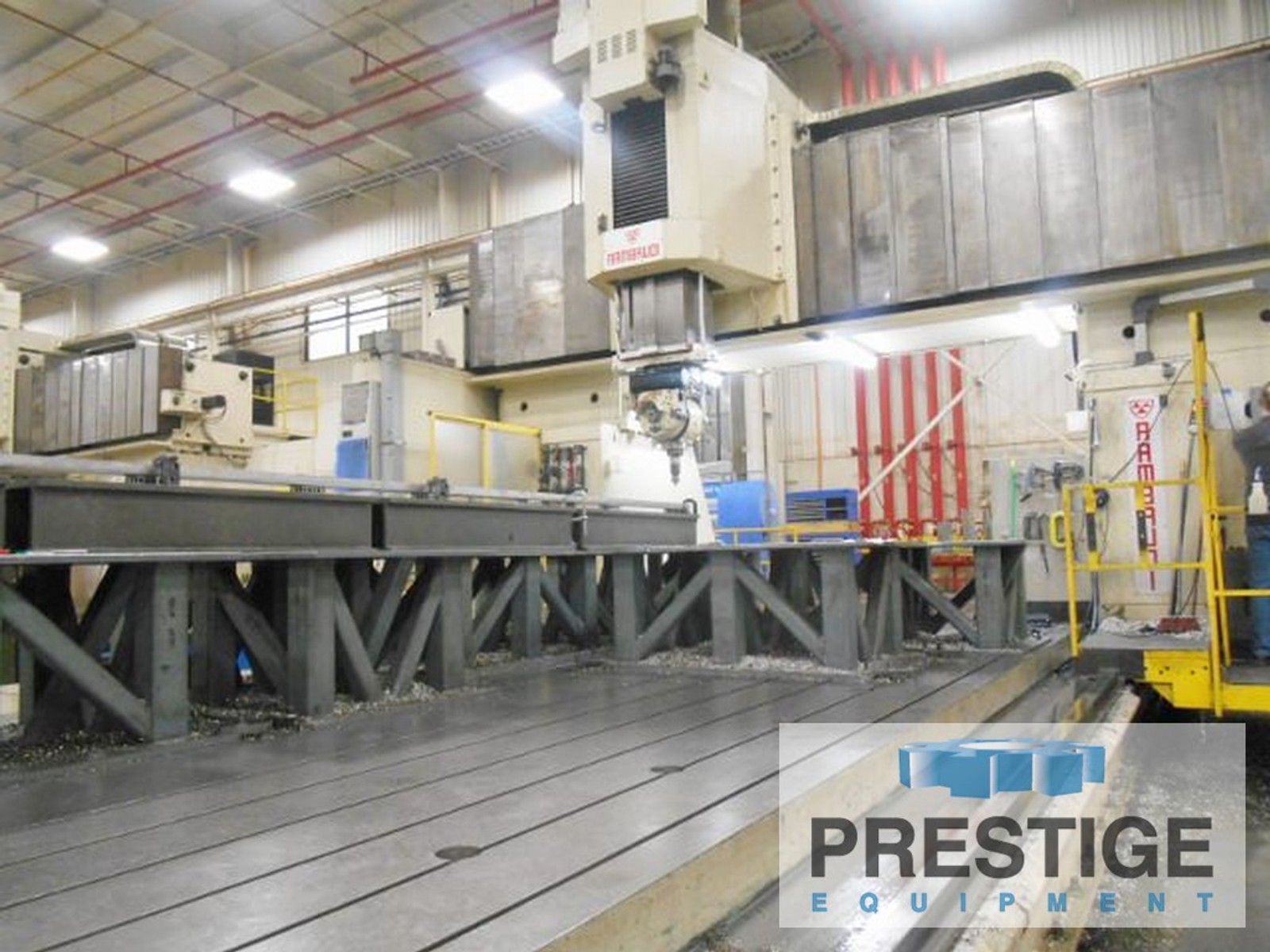

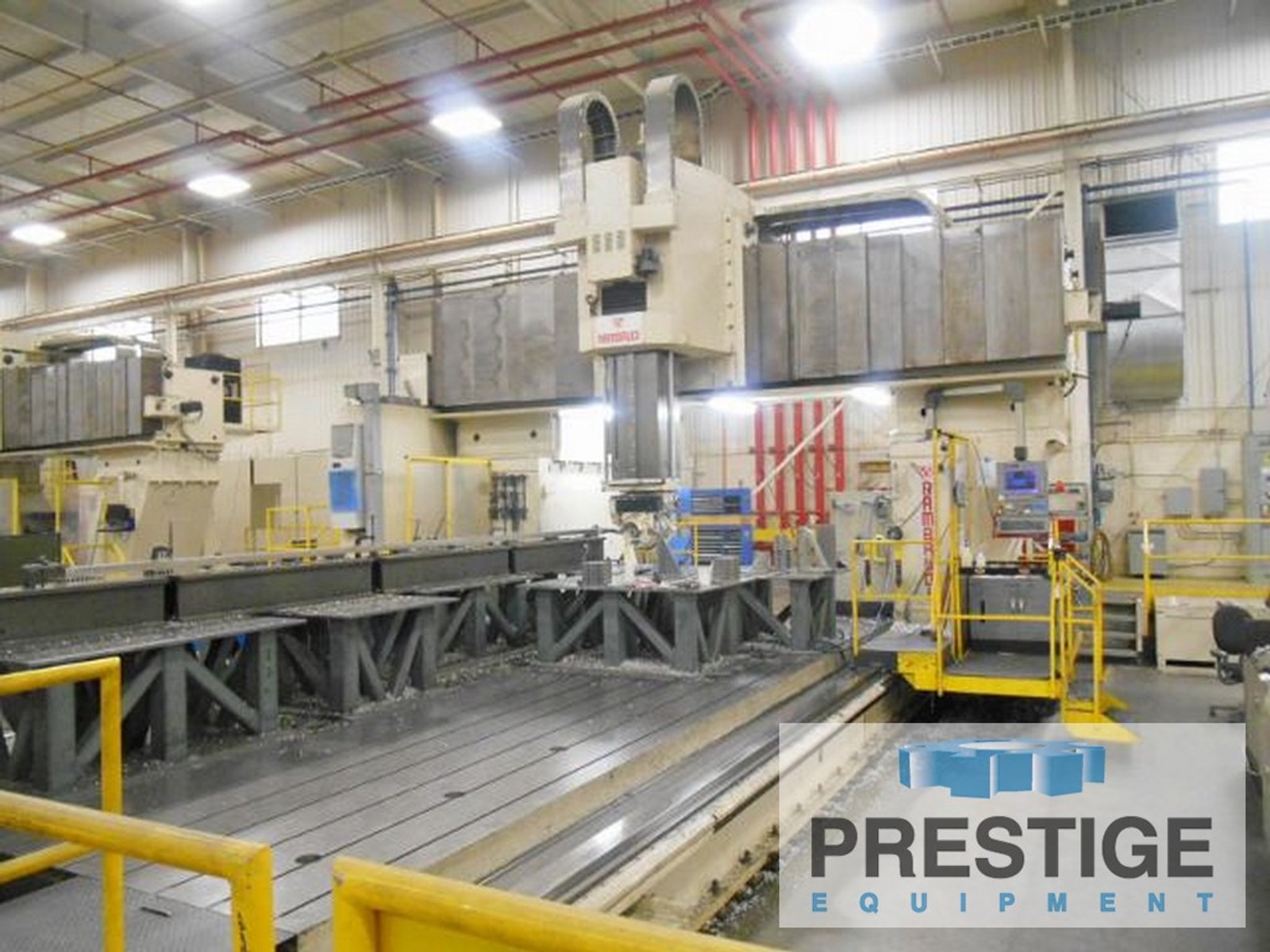

Rambaudi VAR-107 5-Axis CNC Gantry Type Vertical Milling Machine

FEATURES:

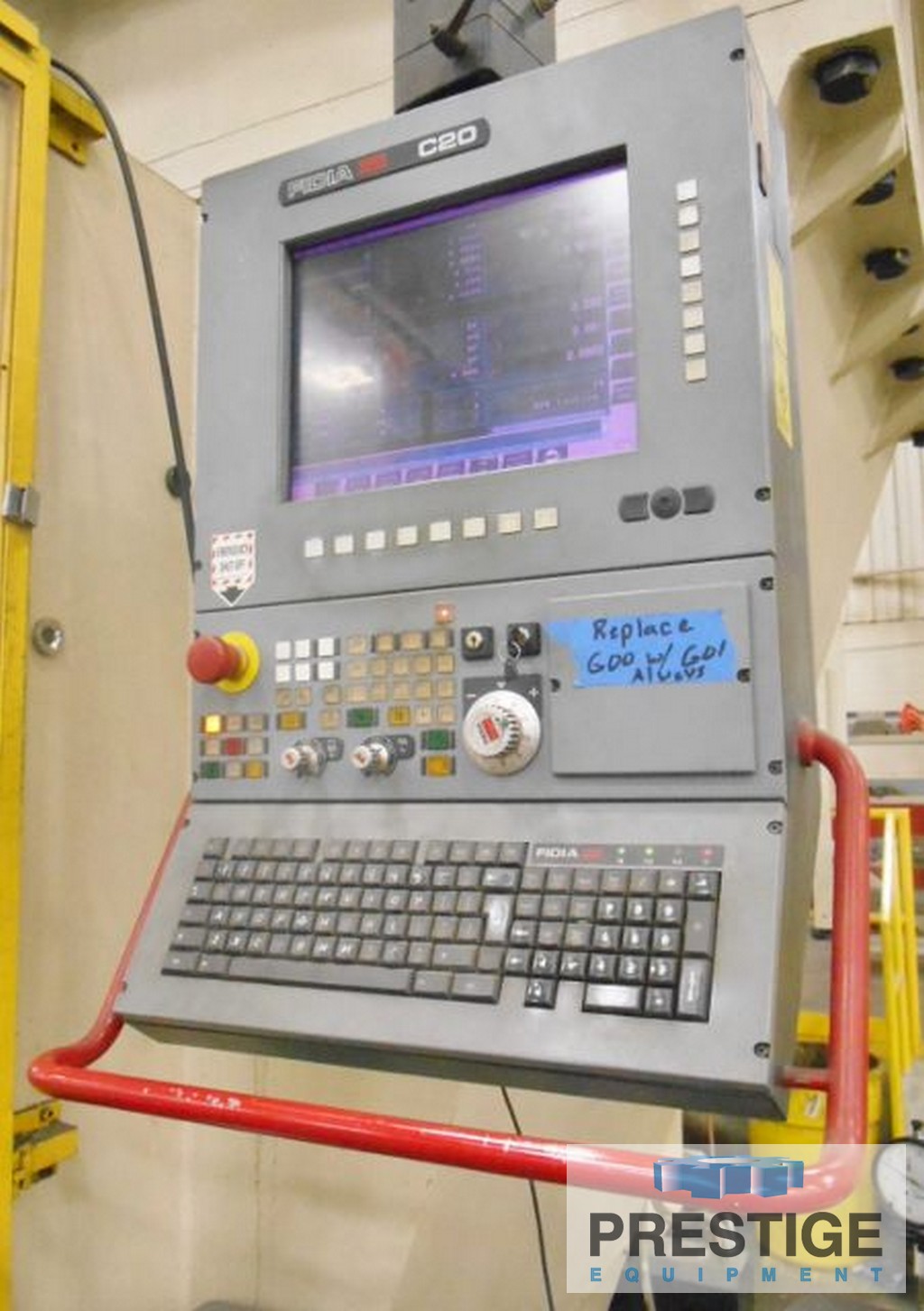

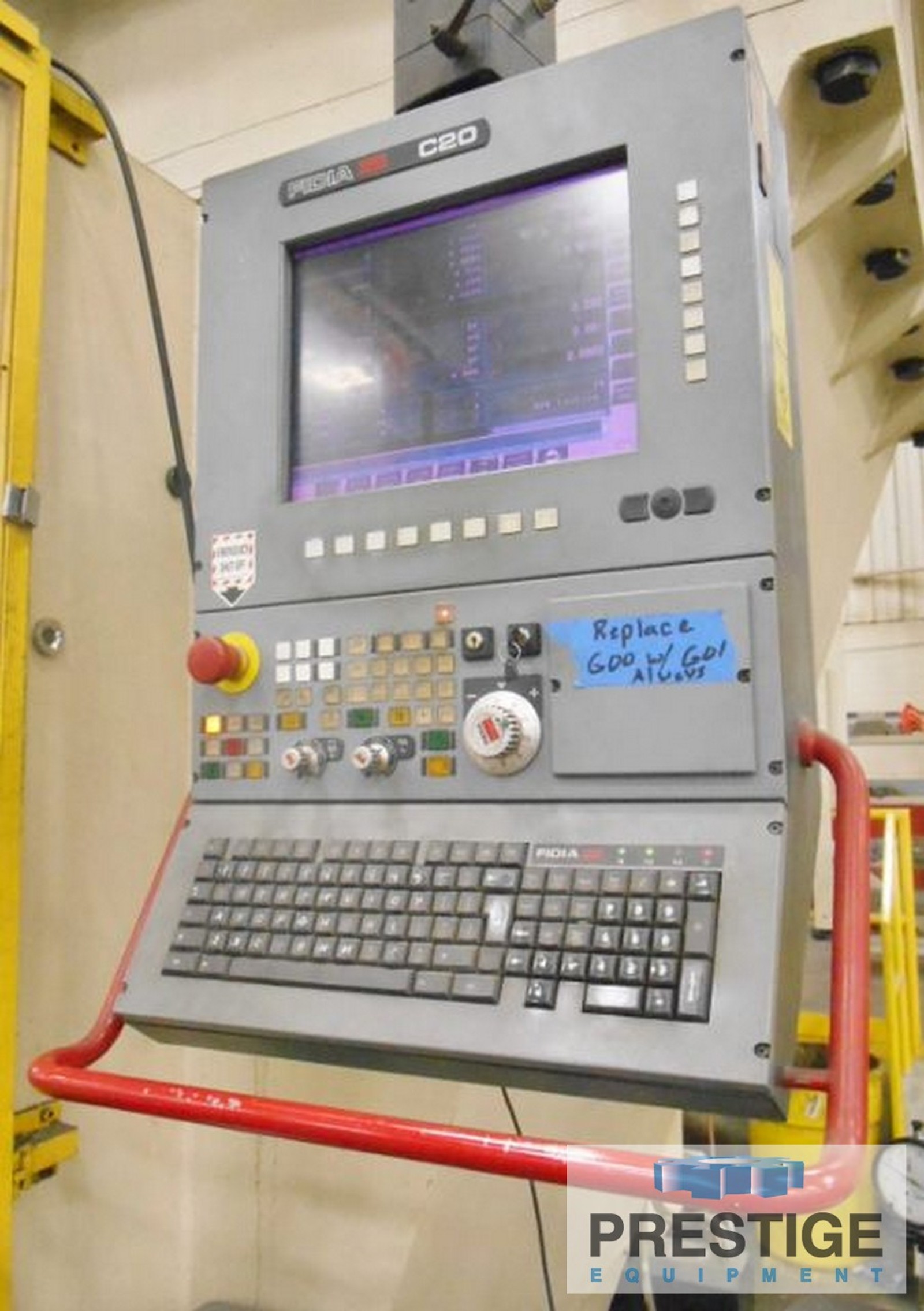

Fidia C-20 CNC Control (Retrofit 2002)

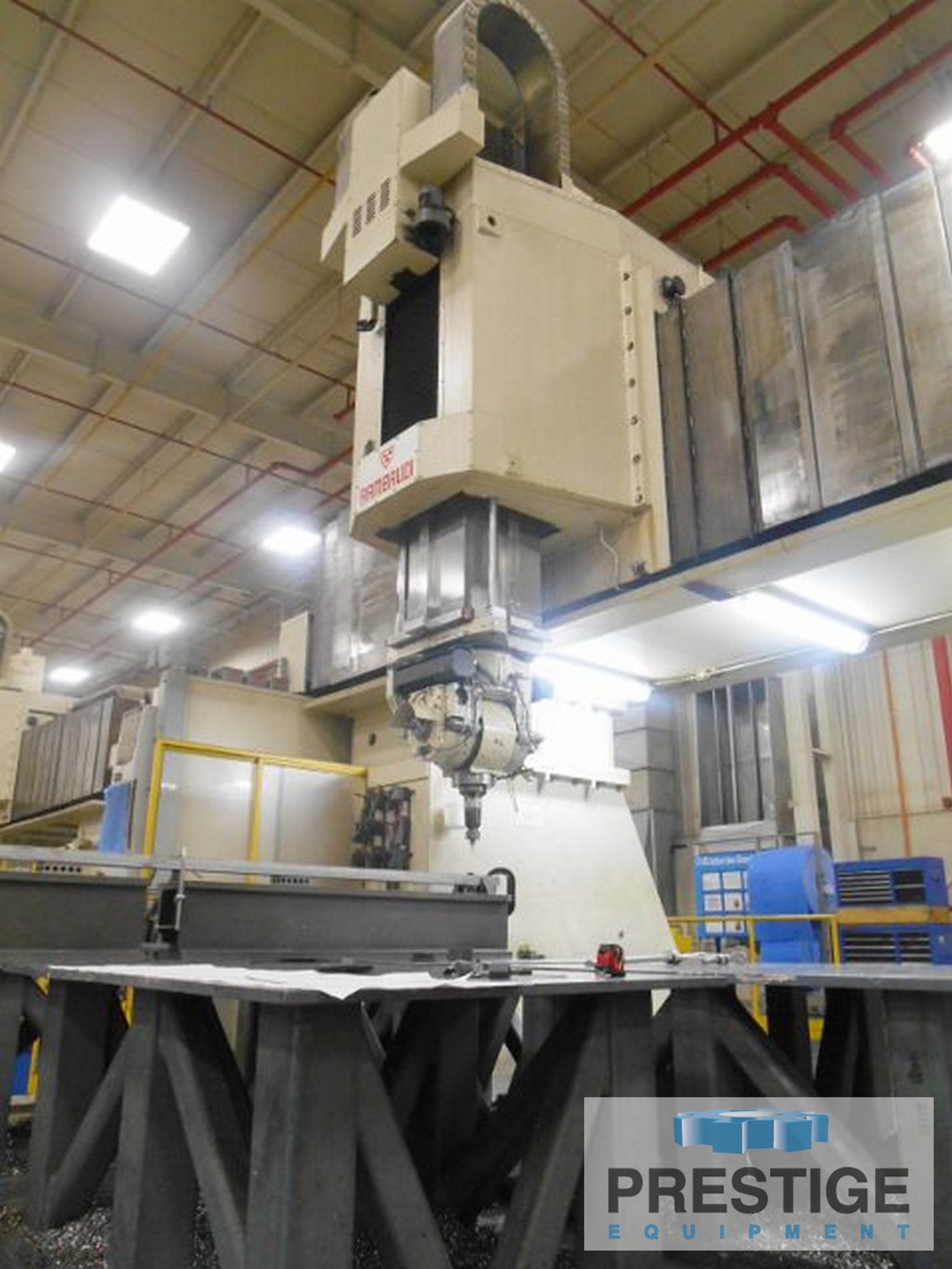

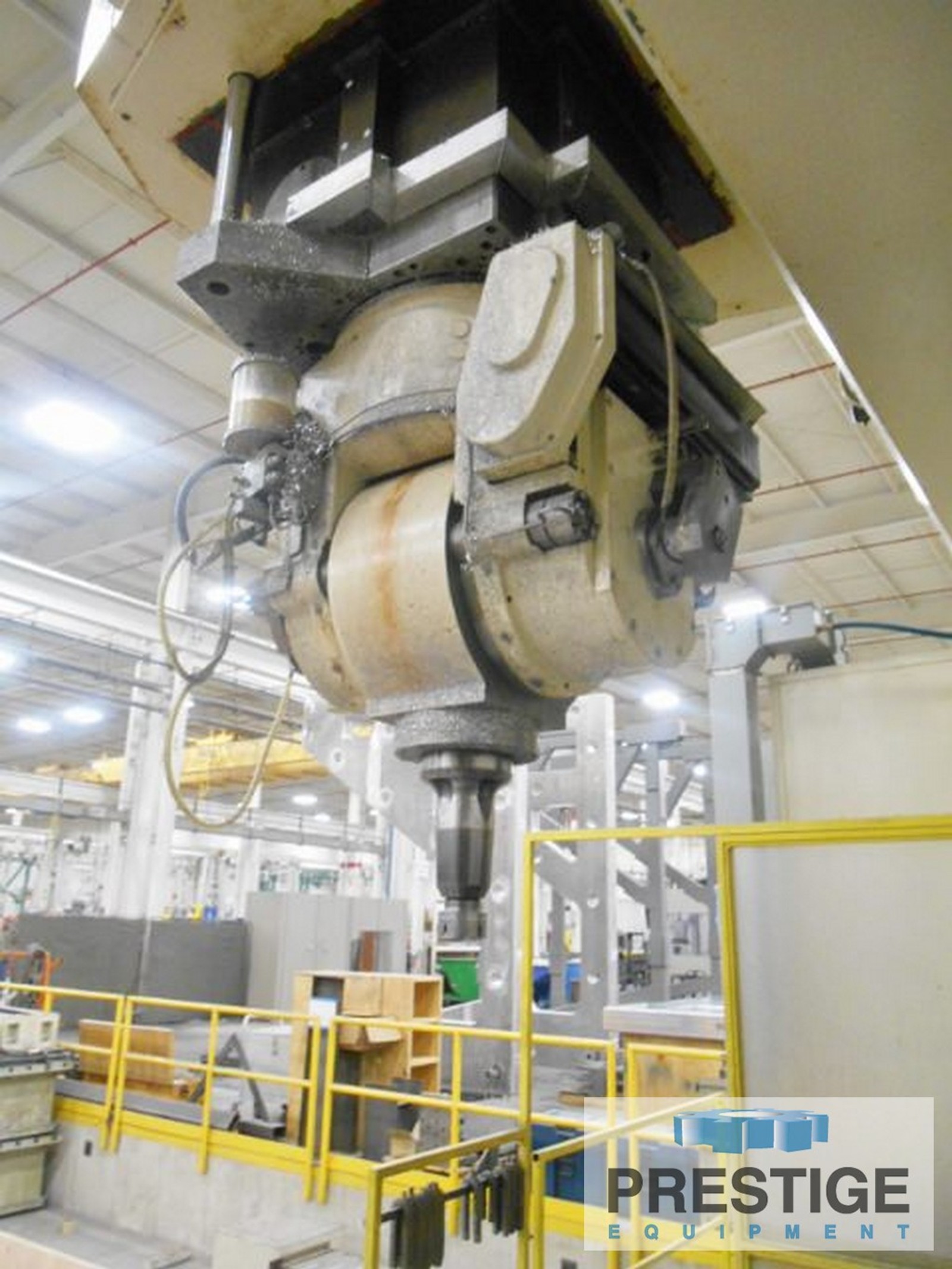

2-Axis Nutating Head

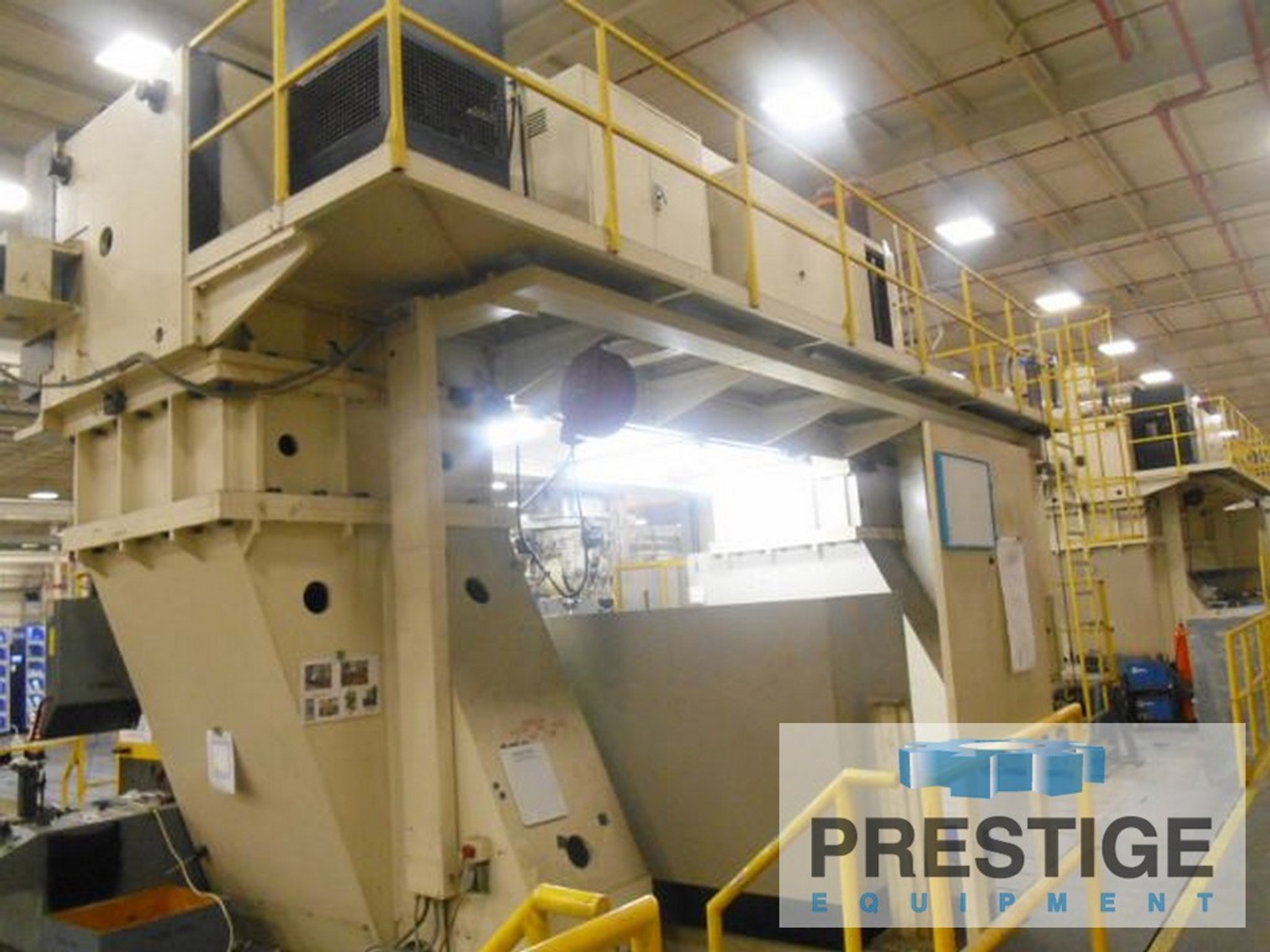

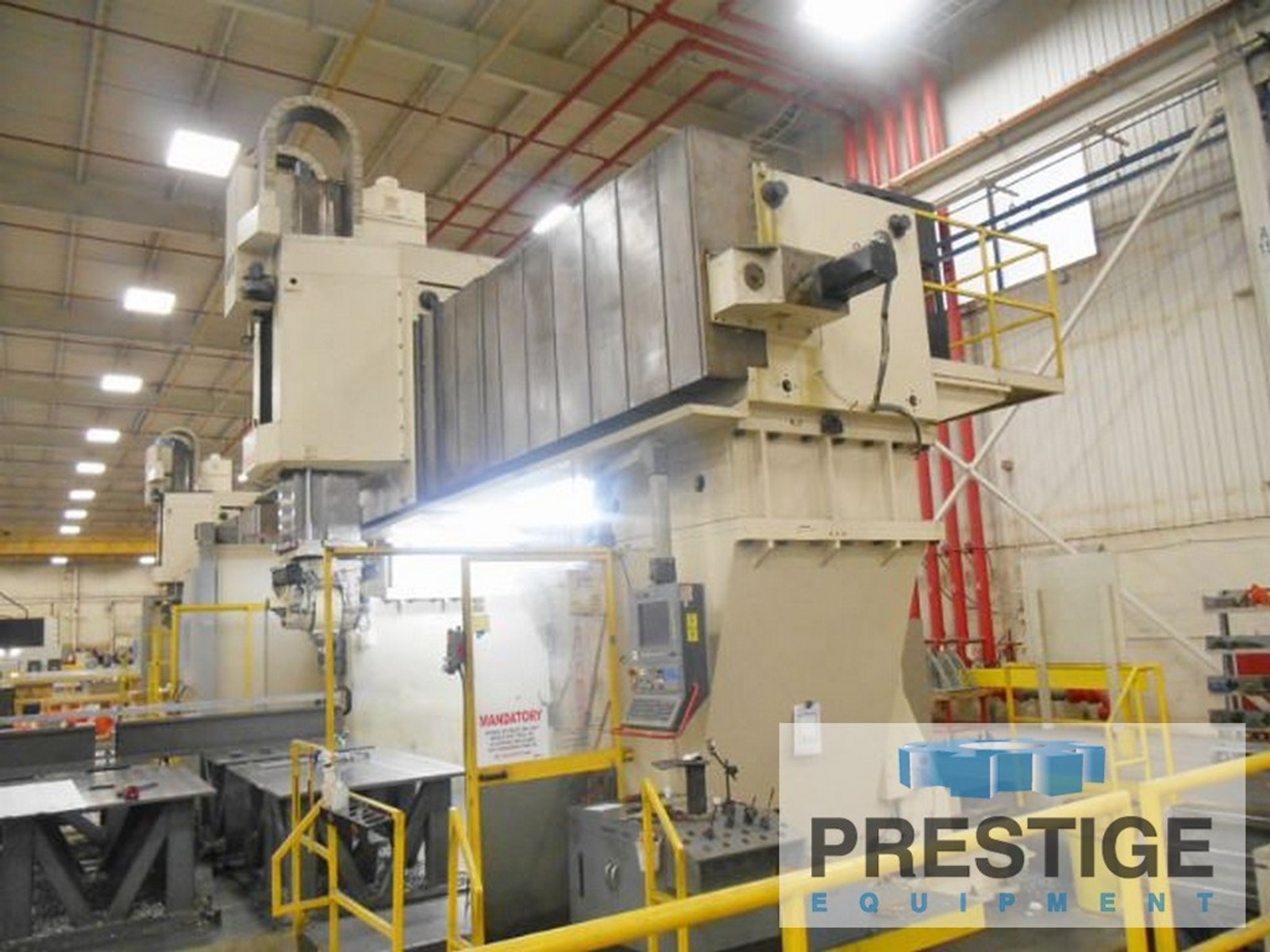

Travelling Gantry Type

CAPACITY:
Longitudingal Travel, X-Axis .. 314.96"
Head Travel, Y-Axis ........... 177.16"
Ram Stroke, Z-Axis ............ 57"
Head Oscillation, A-Axis ....... +/- 105°
Head Rotation, C-Axis ......... 360°
Height Under Cross Rail ....... 107"
Distance Between Columns ...... 175"
Ram Size ...................... 23.62" x 23.62"

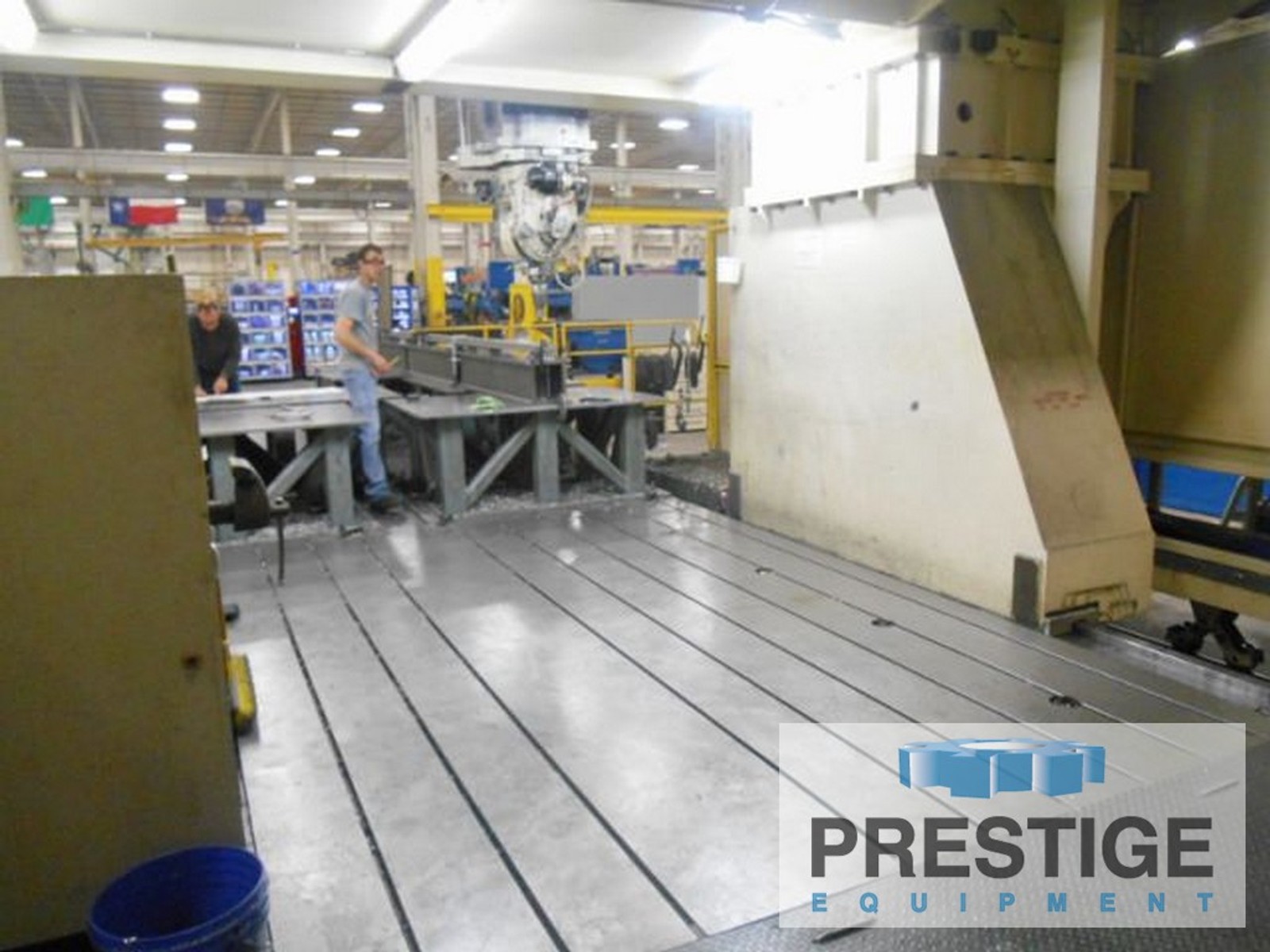

Table Size .................... 177" x 470"
Rapid Traverse X & Y Axes ..... 394 IPM
Spindle Taper ................. ISO 50
Spindle Speed ................. 3000 RPM
Spindle Motor ................. 60 HP

EQUIPPED WITH:
Fidia C-20 5-Axis CNC Control (New 2002)
2-Axis Nutating Head
Ball Screws on Y & Z Axes
Anti-Backlash Rack on X-Axis
Dual 20 HP X-Axis AC Drive Motors
Steel Way Covers on Cross Rail
Coolant System

NOTE:
Retrofit In 2002 With New CNC Controls
