AWEA HVM-5032, 5-Face, X-197", Y-153", 126" B/C, Fanuc 18i, 60 ATC, Rt. Angle Head, Universal, Hd, TSC, 2012, #43071

Manufacturer

AWEA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43071

Model

HVM-5032

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43071

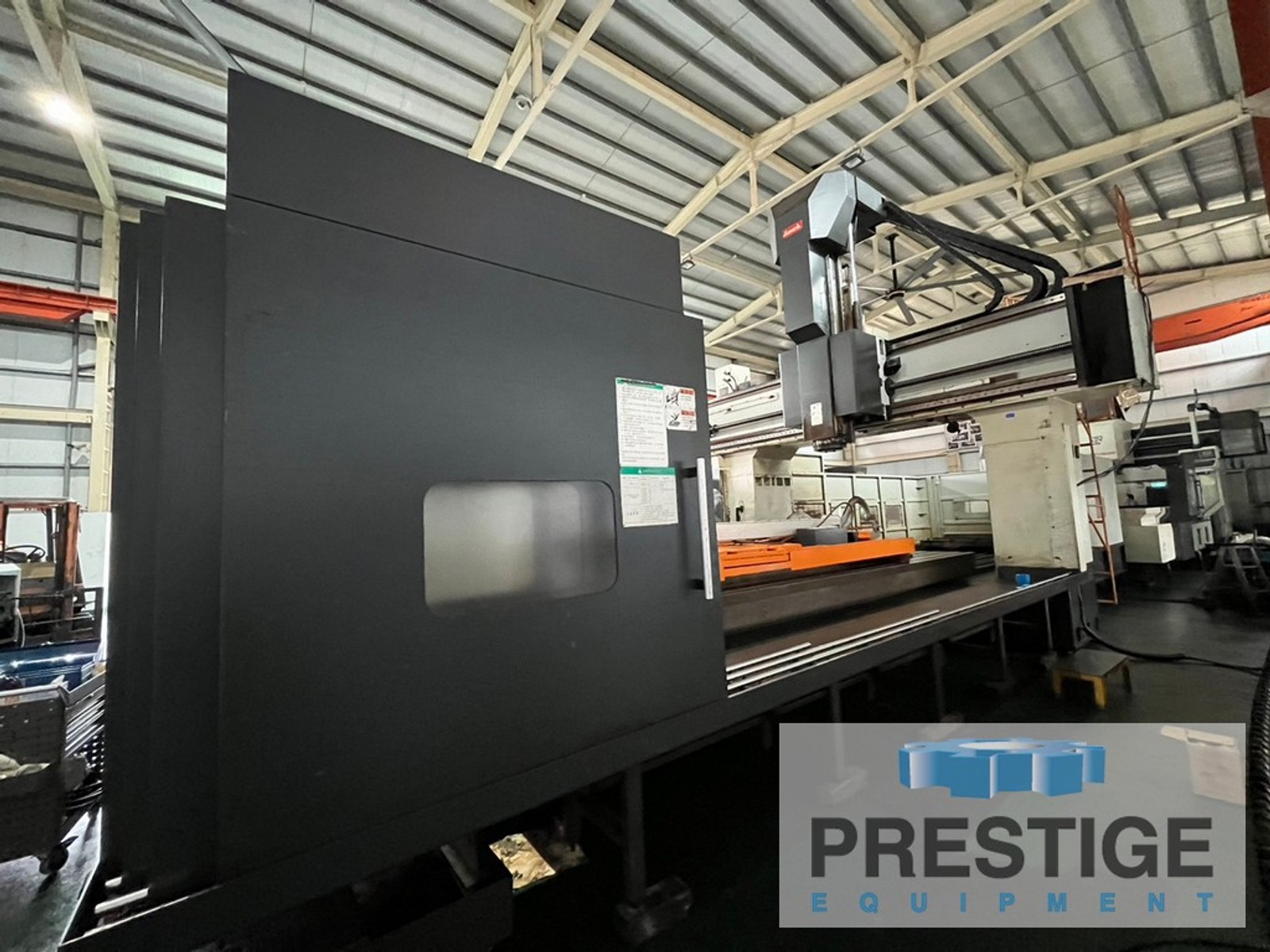

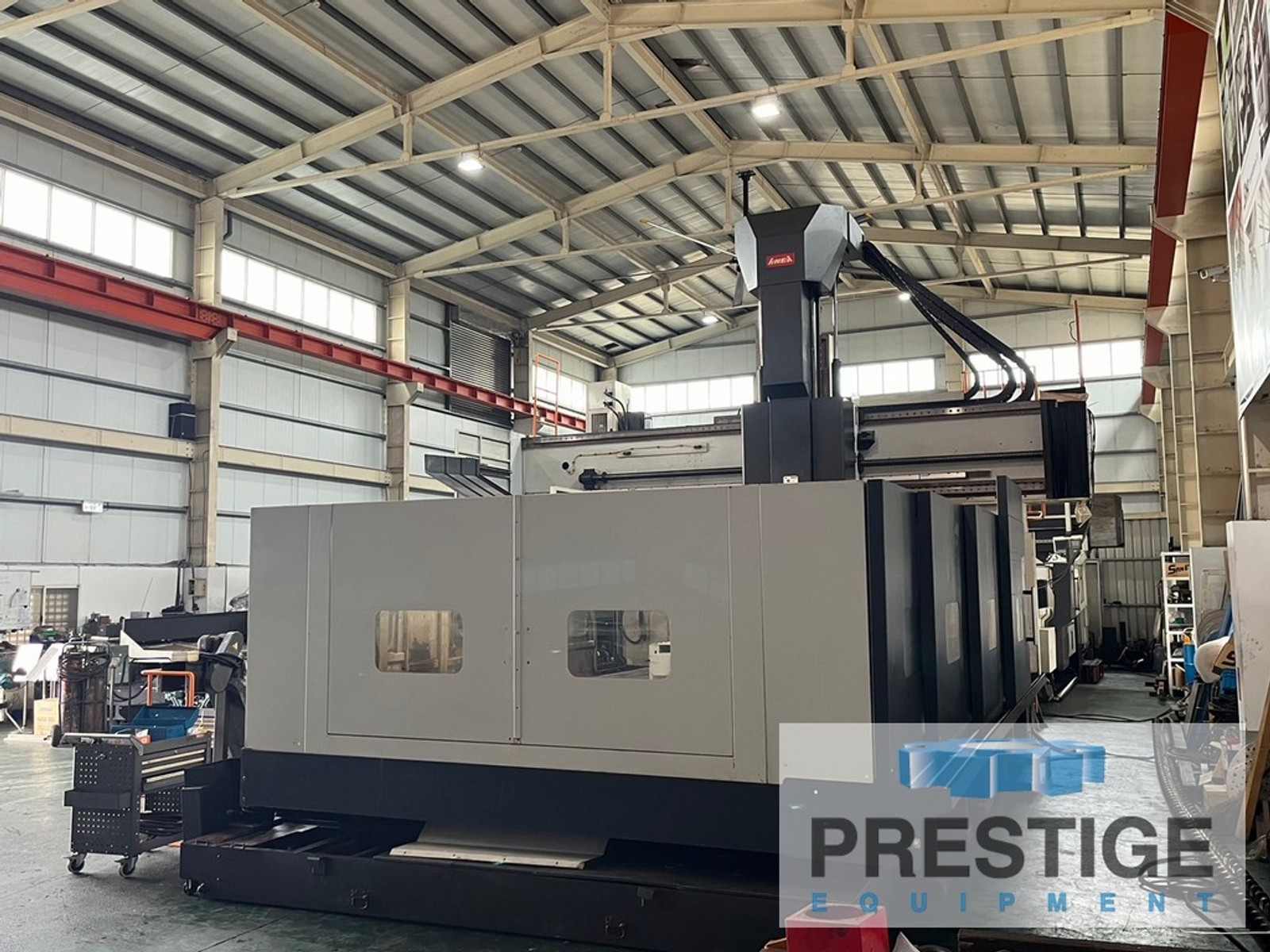

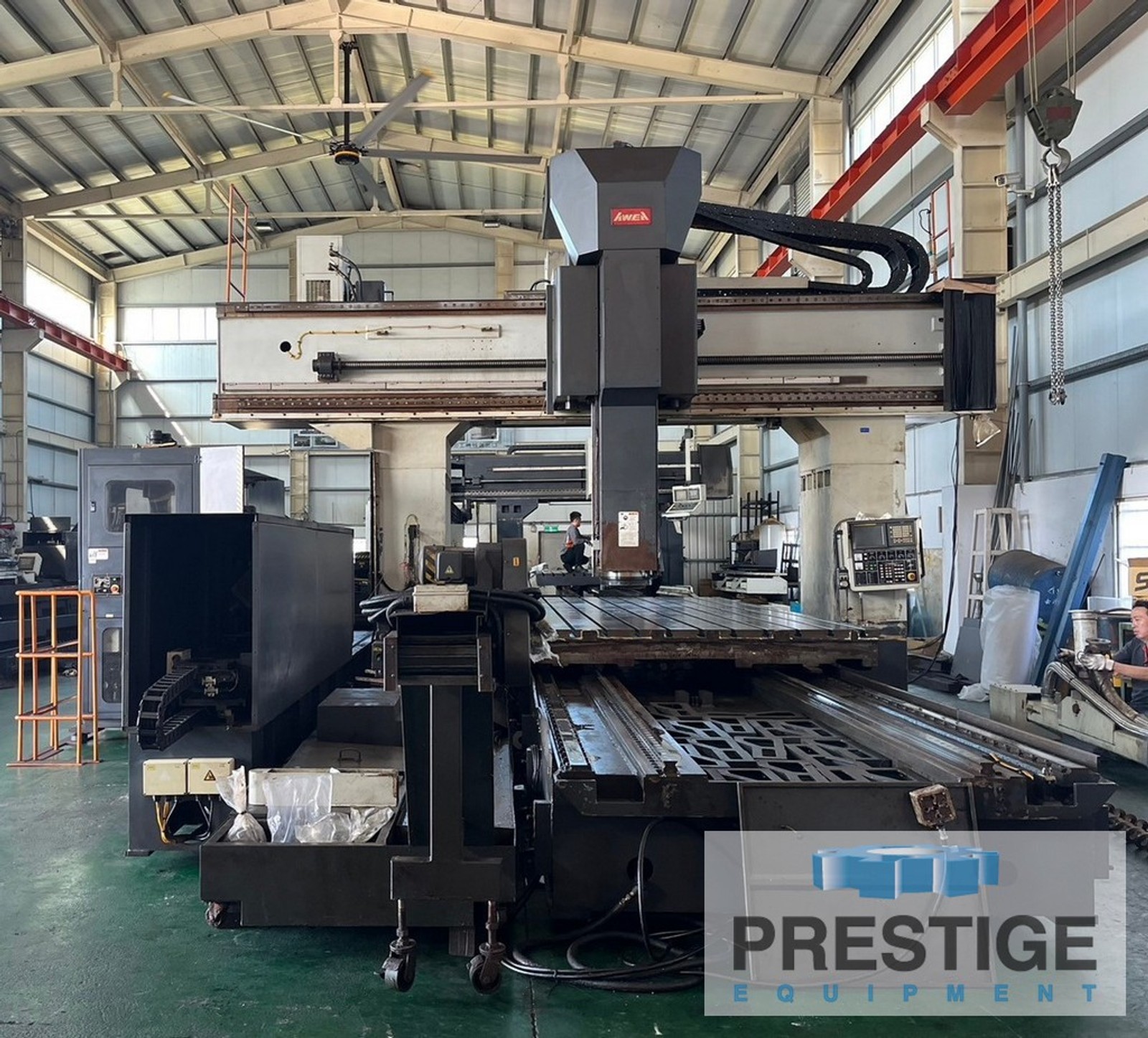

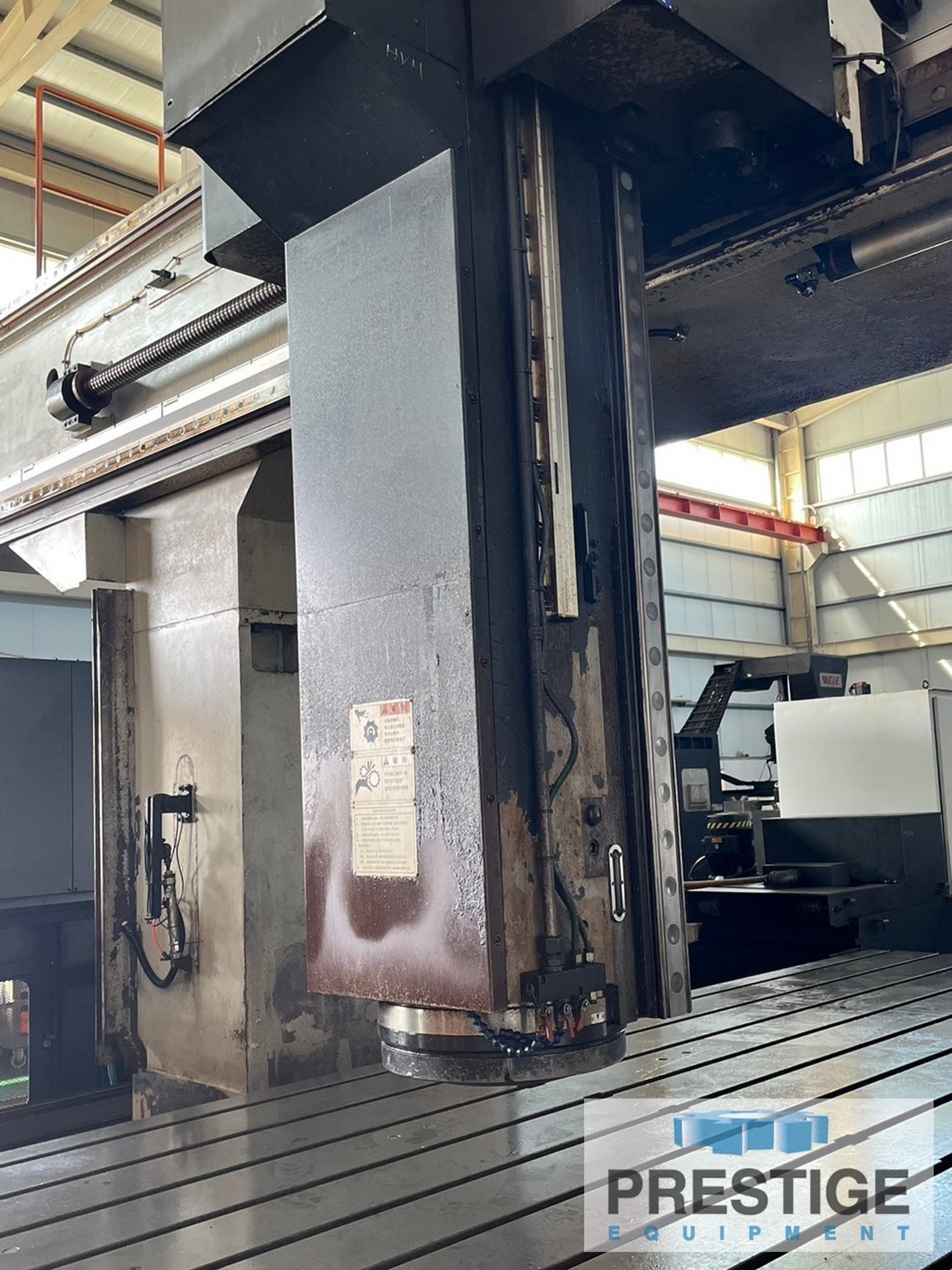

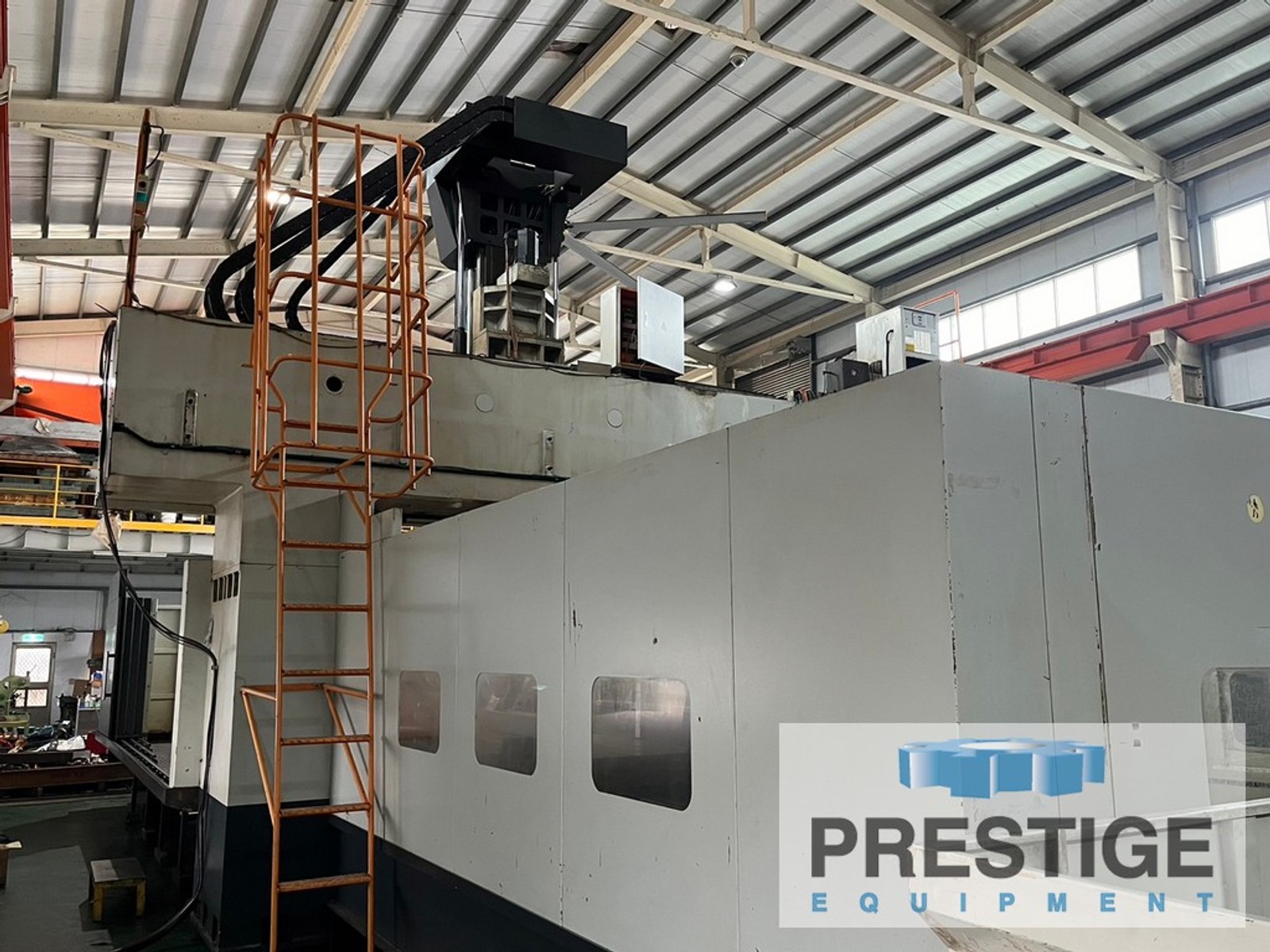

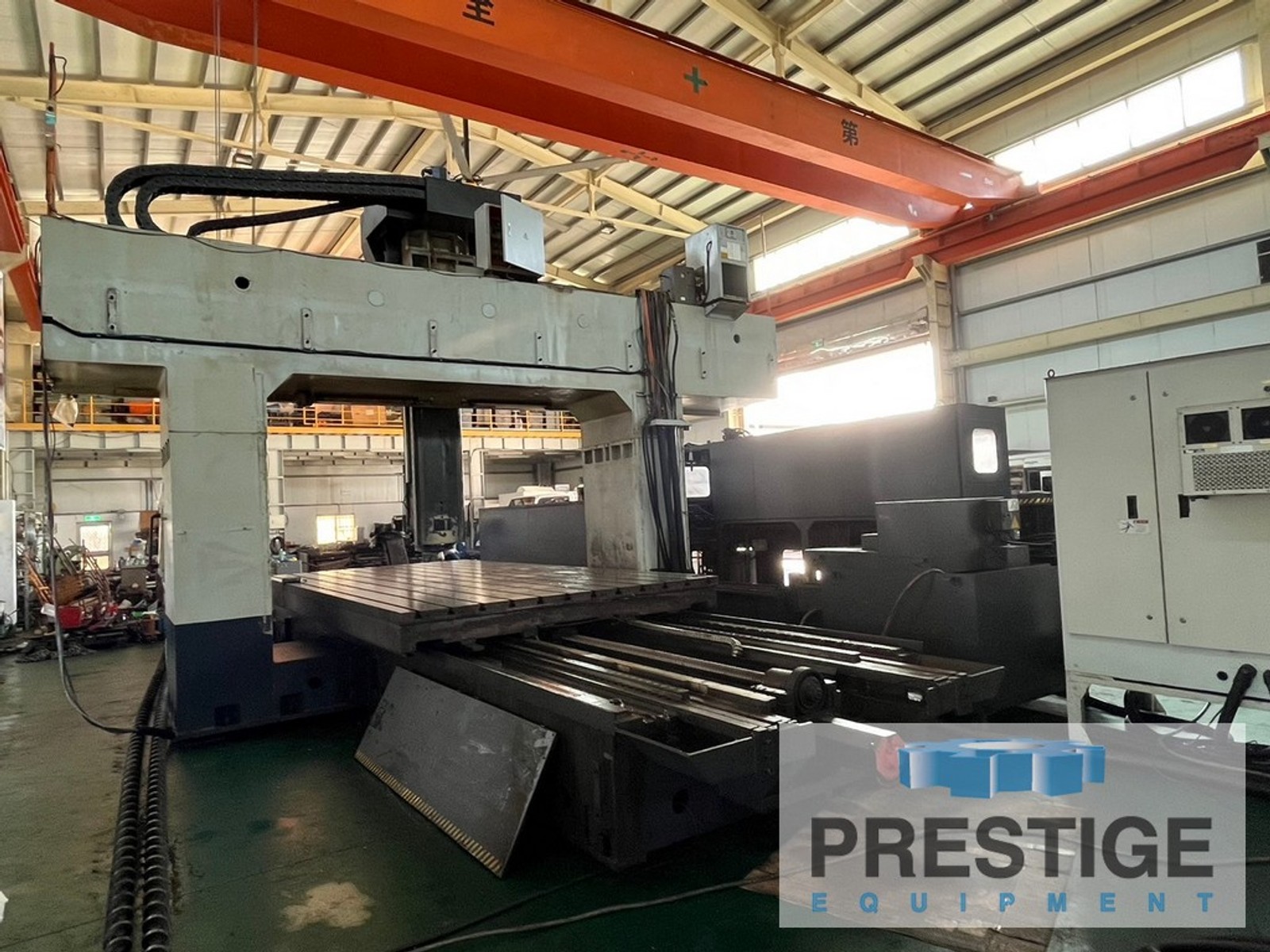

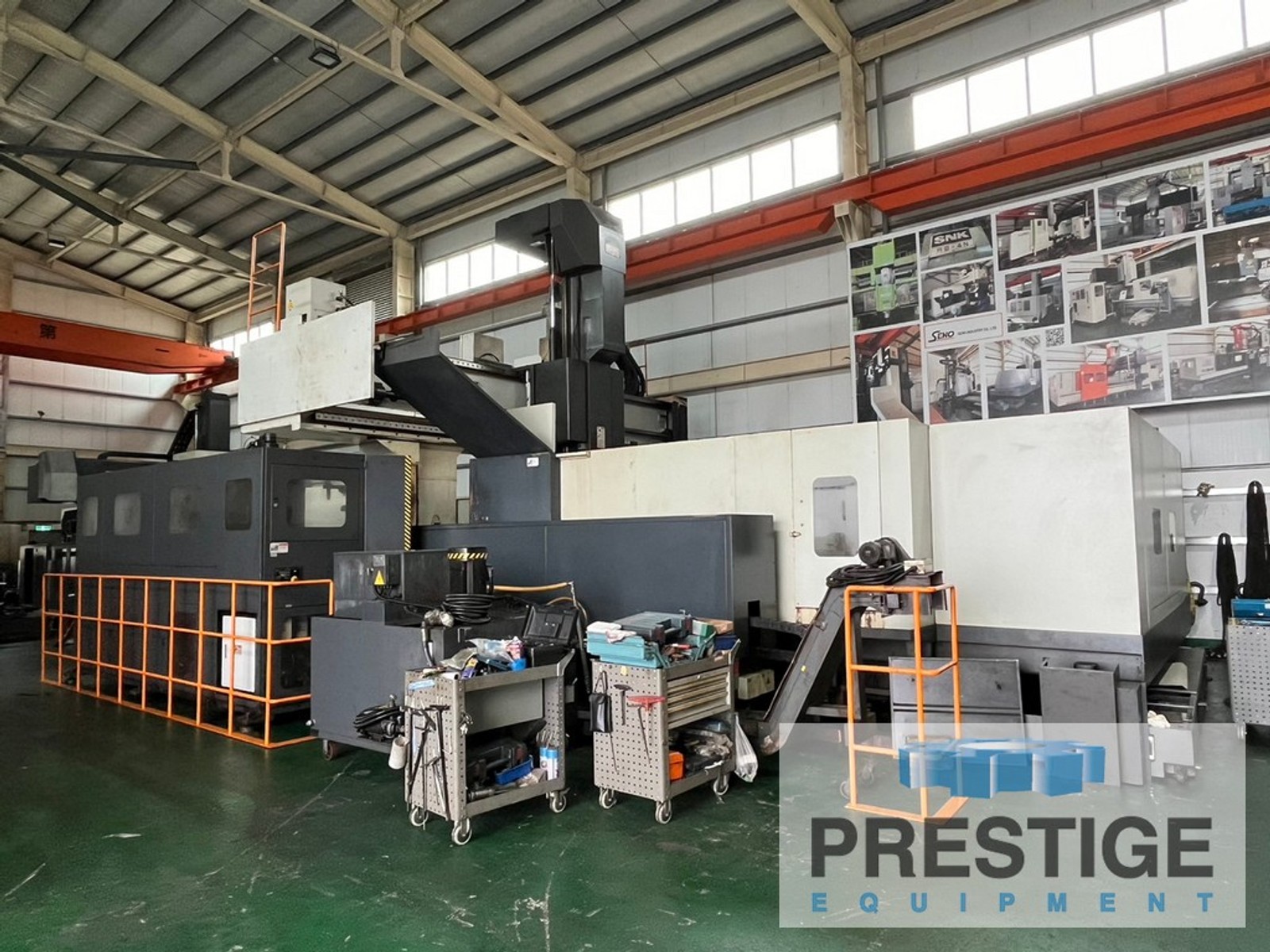

Awea HVM-5032 CNC Bridge Type 5-Face Machining Center

FEATURES:
Fanuc 18iMB CNC Control
60-Station Automatic Tool Changer
Auto Indexing Right Angle Head
5-Face Machining

SPECIFICATIONS:
X-Axis Travel ......................... 196.85"
Y-Axis Travel ......................... 153.54"
Z-Axis Travel ......................... 55.11"
Distance Between Columns .............. 125.98"
Distance Spindle Nose to Table ........ 7.87"-62.99"

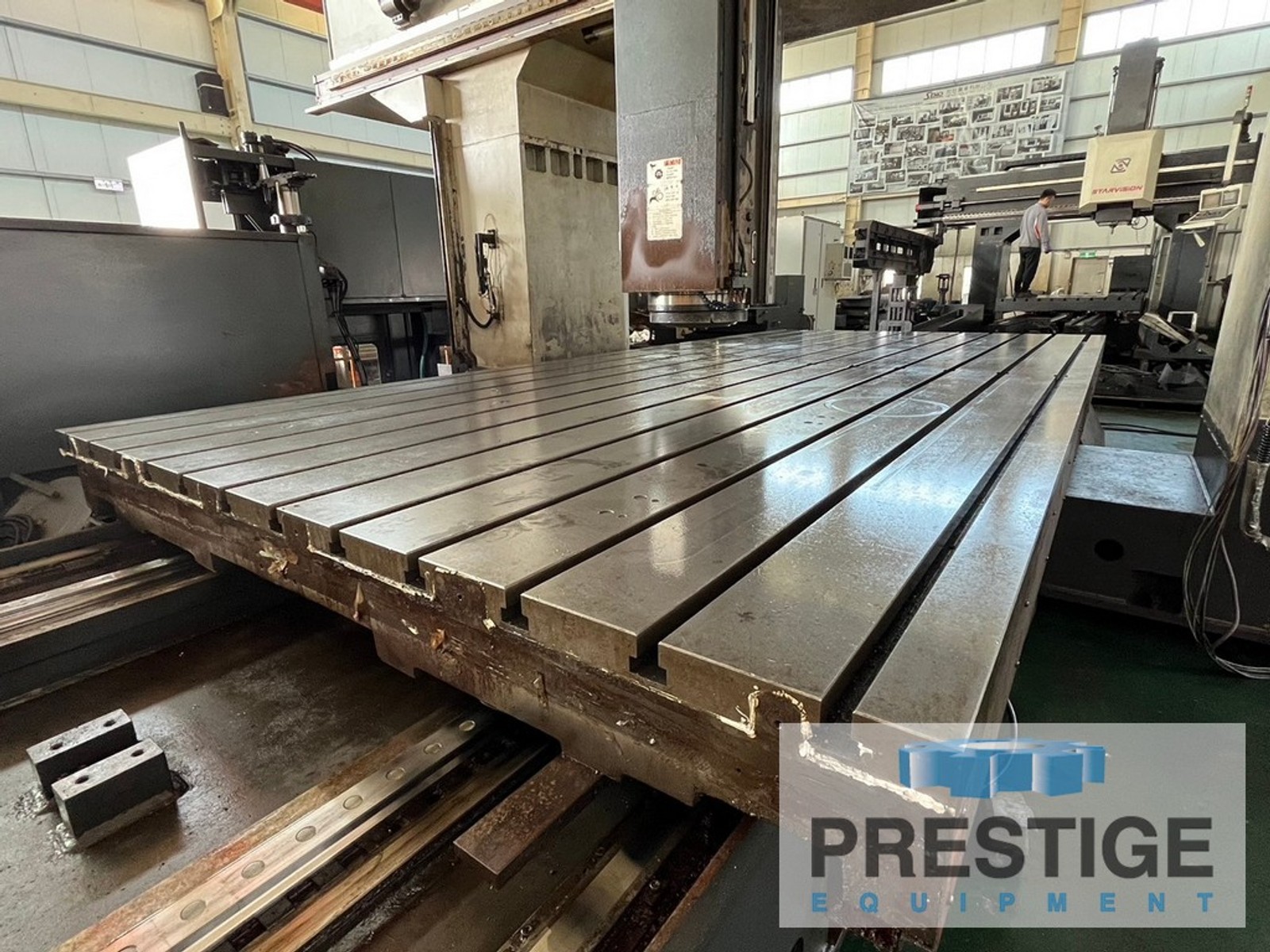

Table Size ............................ 197.63" x 94.48"
Table Capacity ........................ 39,600 lbs
Spindle Speed (Geared) ................ 6000 RPM
Spindle Drive Motor ................... 35 HP
Spindle Taper ......................... BT #50
Approximate Machine Dimensions ........ 551" x 315" x 276"
Approximate Weight .................... 121,000 Lbs

EQUIPPED WITH:

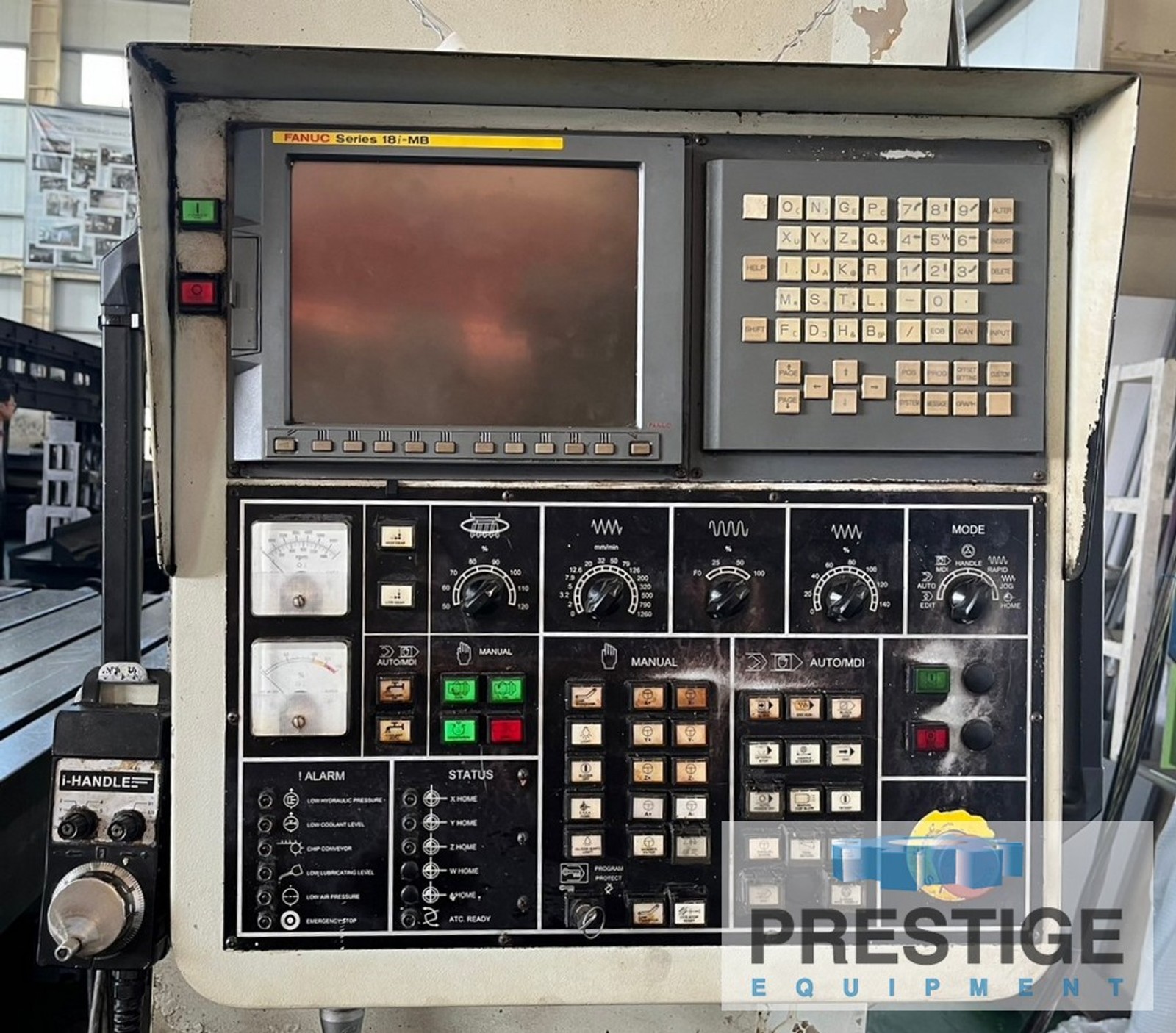

Fanuc 18iMB CNC Control
60 ATC (Vertical/Horizontal ATC System)
3-Axis Linear Scales
Auto Head Storage: 90 Degree Head with 5 Degree Indexing
Universal Haed (A-Axis 5 Deg (Manual), C-Axis 5 Deg (Auto))
Extension Head
Coolant Thru Spindle
Oil Skimmer
Air Conditioner for Electrical Cabinet
35 HP Spindle Motor
Chip Conveyor
