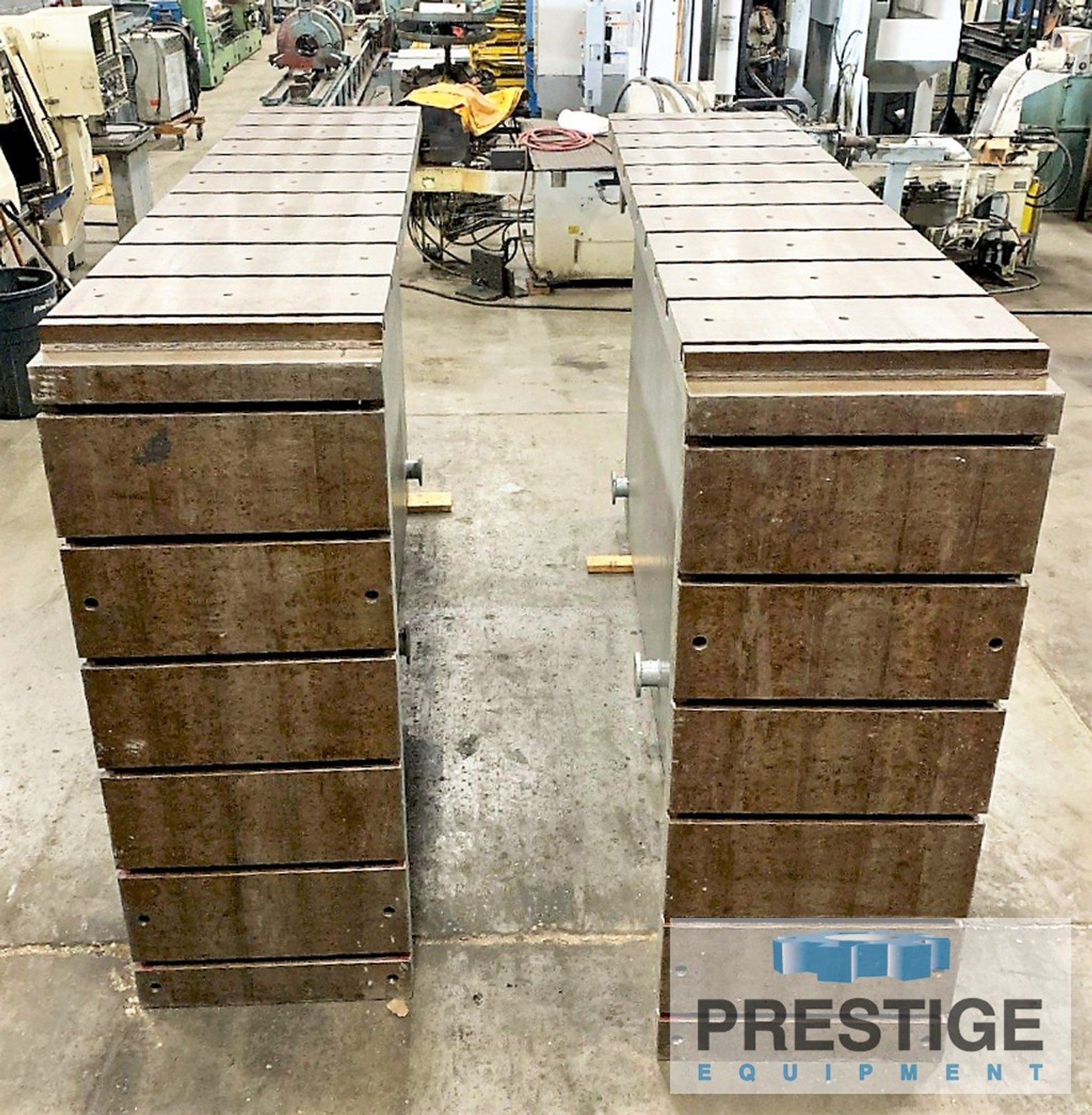

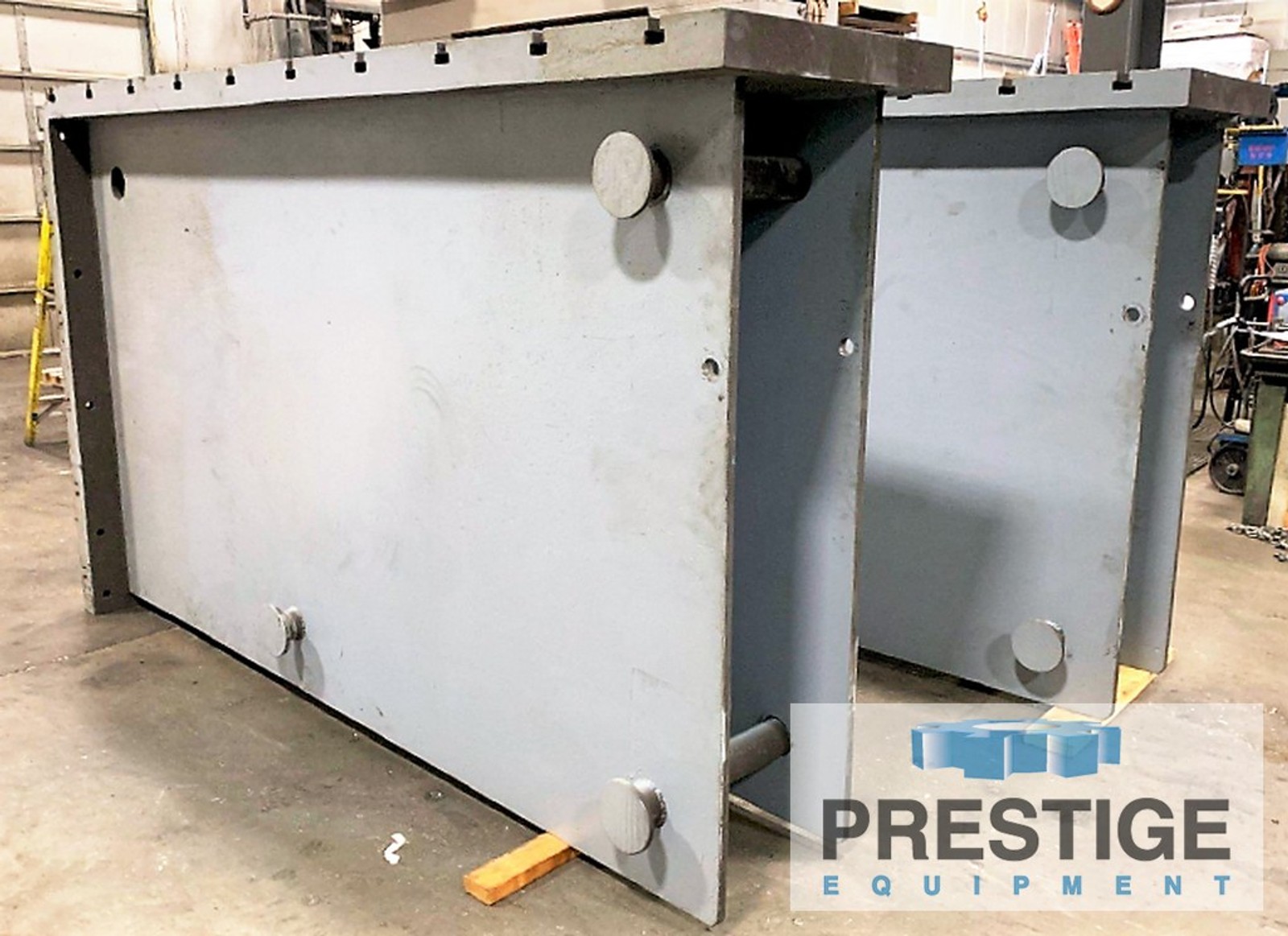

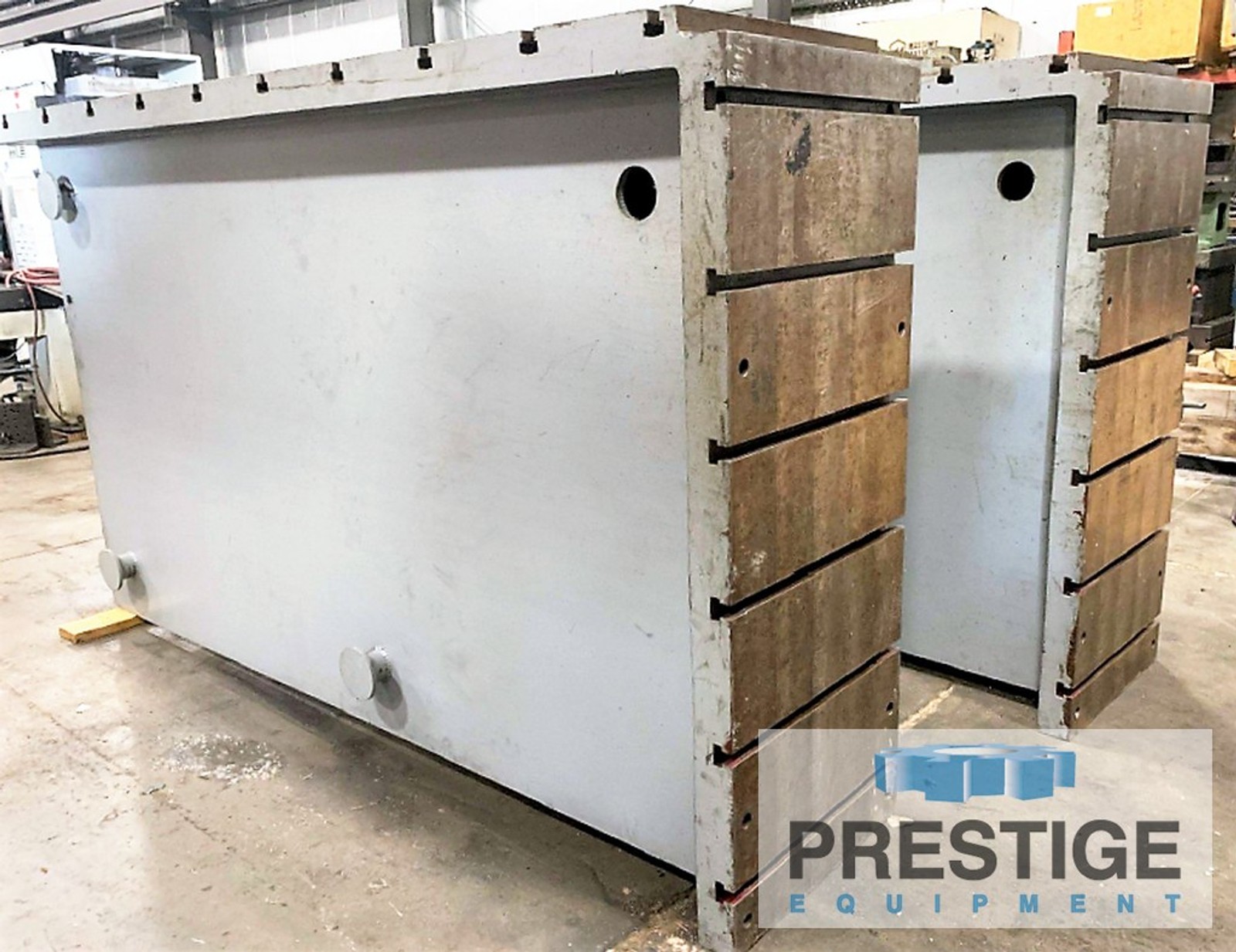

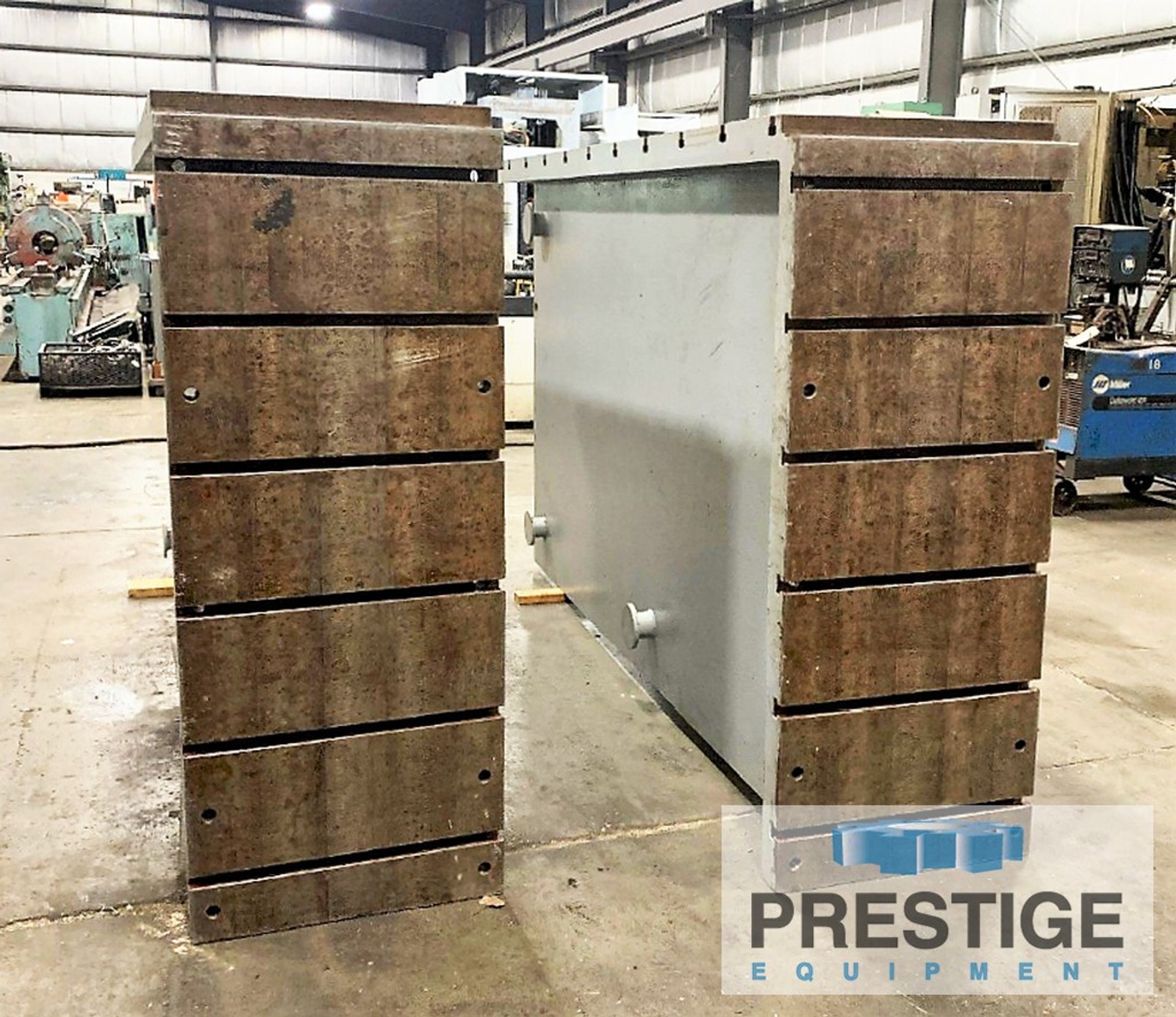

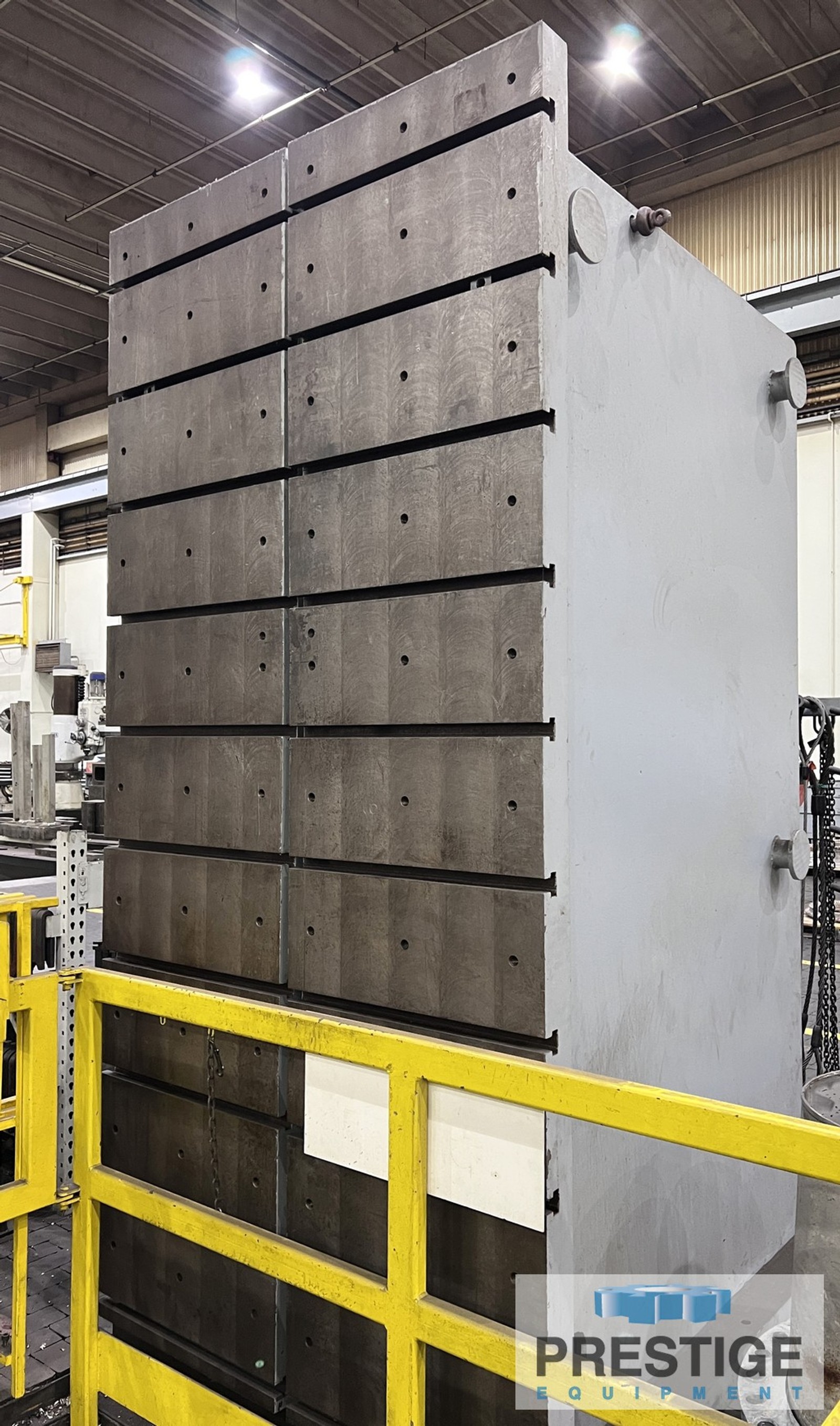

120" x 27.75" x 71.75" T-Slotted Angle Plates, 12" Centers, 1" x 1.75" T-Slot Dimension, Qty. 2, #32106

Manufacturer

Category

Tooling & Accessories

Type

ANGLE PLATES

Stock

32106

Model

None listed

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32106
120" x 27.75" x 71.75" T-Slotted Angle Plates

FEATURES:
T-Slots on 2 Faces
Vertical/Horizontal Orientation

SPECIFICATION:
Vertical Height ....................... 120.375"
Vertical Width ........................ 27.75"
Vertical Depth ........................ 71.75"
# of T-Slots, Vertical Face ........... 10
Horizontal Height ..................... 47.5"
Horizontal Width ...................... 27.75"
Horizontal Depth ...................... 120.375"
# of T-Slots, Horizontal Face ......... 6
T-Slot Center Distance ................ 12"
T-Slot Dimensions ..................... 1" x 1.75"
Approximate Weight .................... 10,000

EQUIPPED WITH:
T-Slots on 2 Faces
Vertical/Horizontal Orientation
Lifting Lugs
