Guruptze Super-BT, 63" Swing, 75" in Gap, 314" CC, 400 RPM, 39.37" 4-Jaw Chuck, Threading, Taper Attach., 50HP, #31649

Manufacturer

GURUTZPE

Category

Lathes

Type

LATHES, ENGINE

Stock

31649

Model

Super-BT 8000/800

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31649

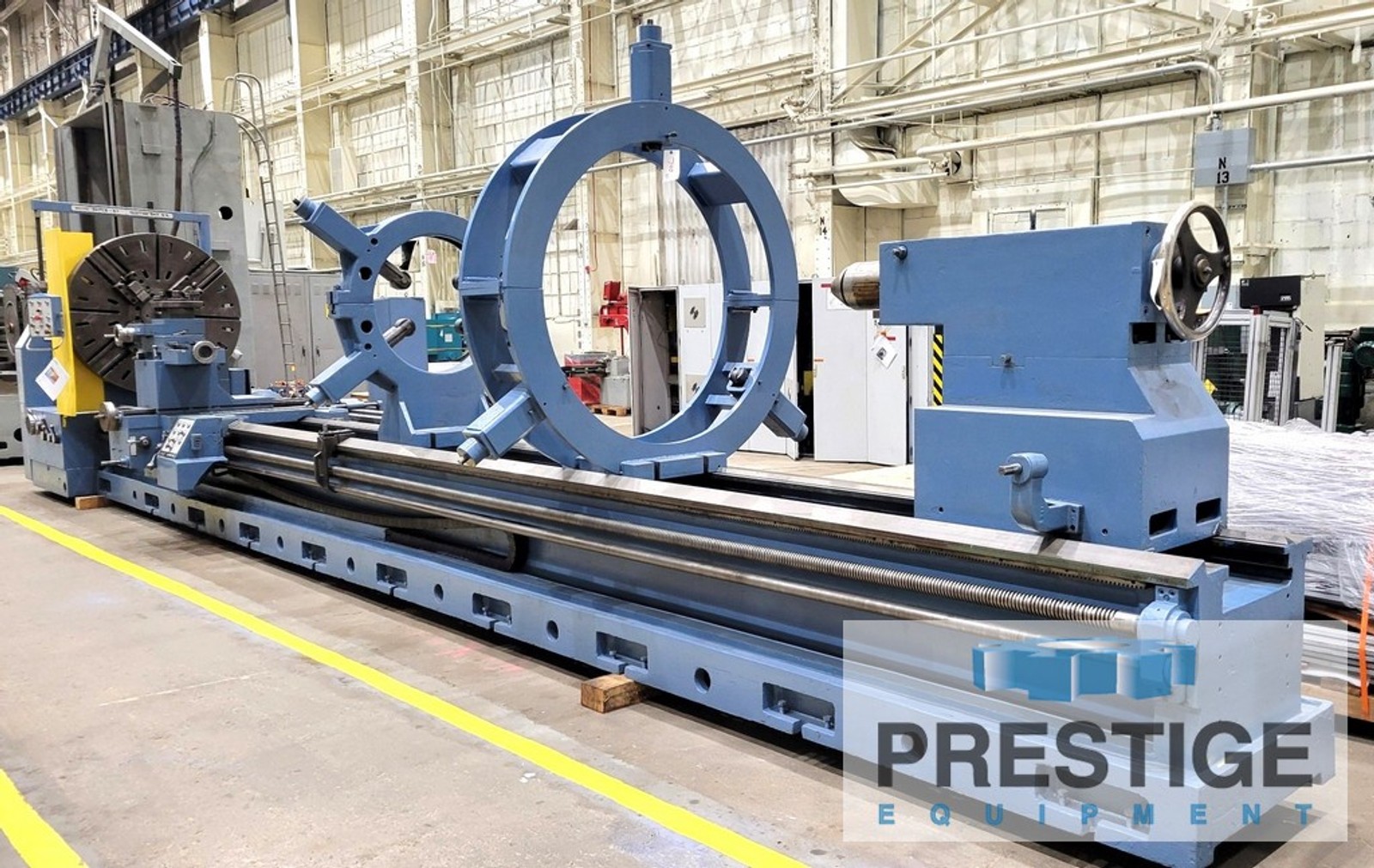

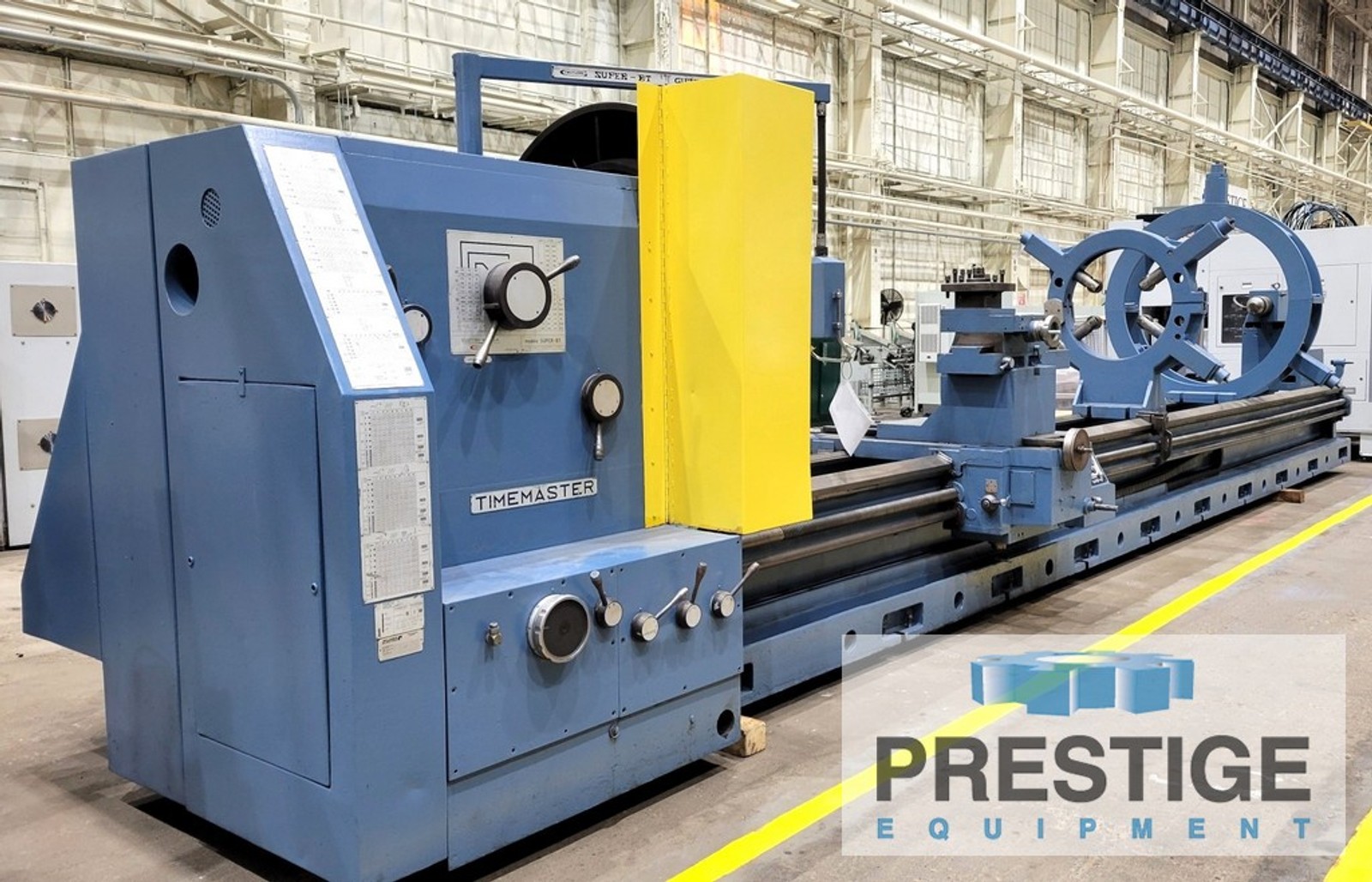

Gurutzpe Super-BT 8000/800 63" x 314'' Gap Bed Engine Lathe with Taper Attachment

FEATURES:

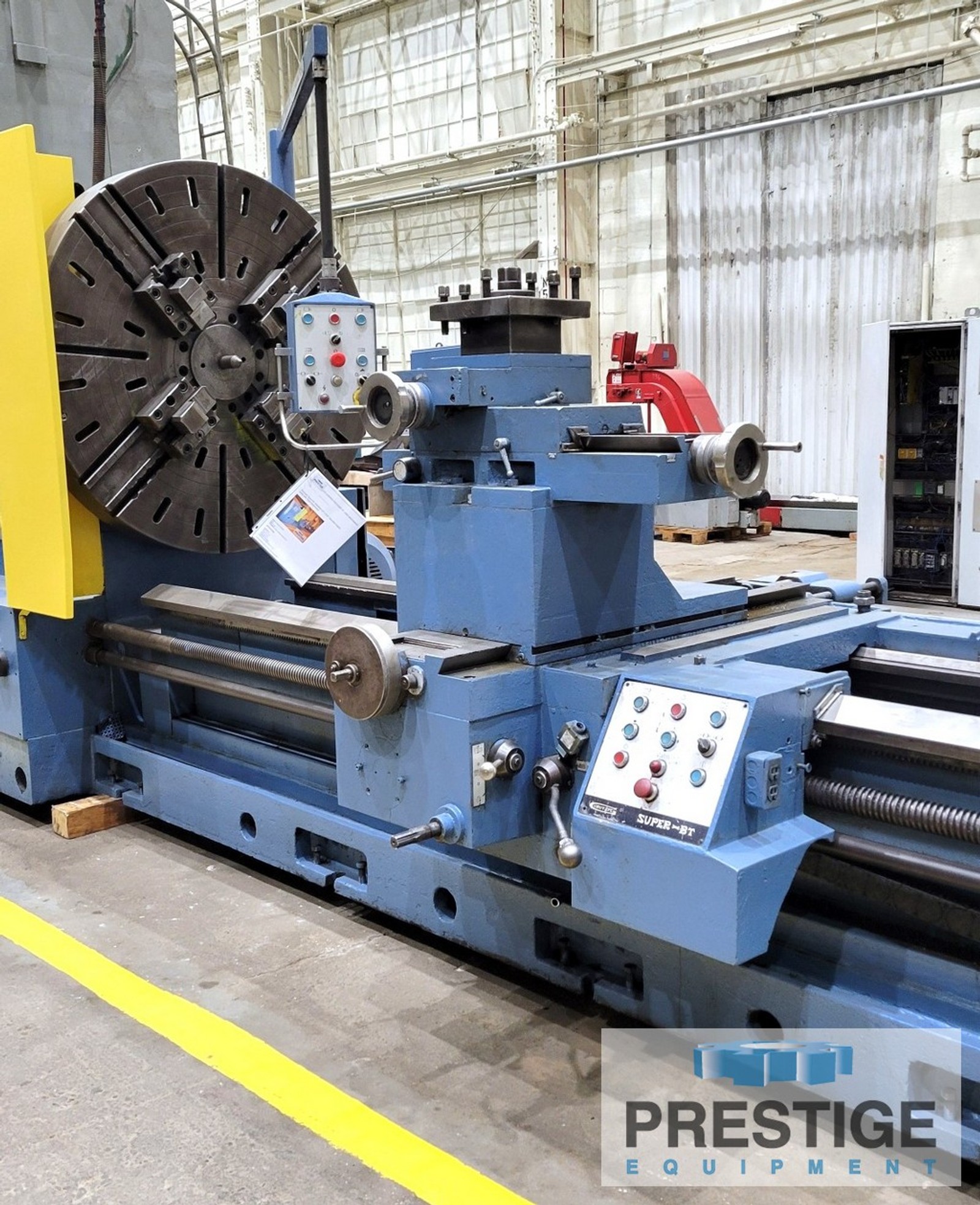

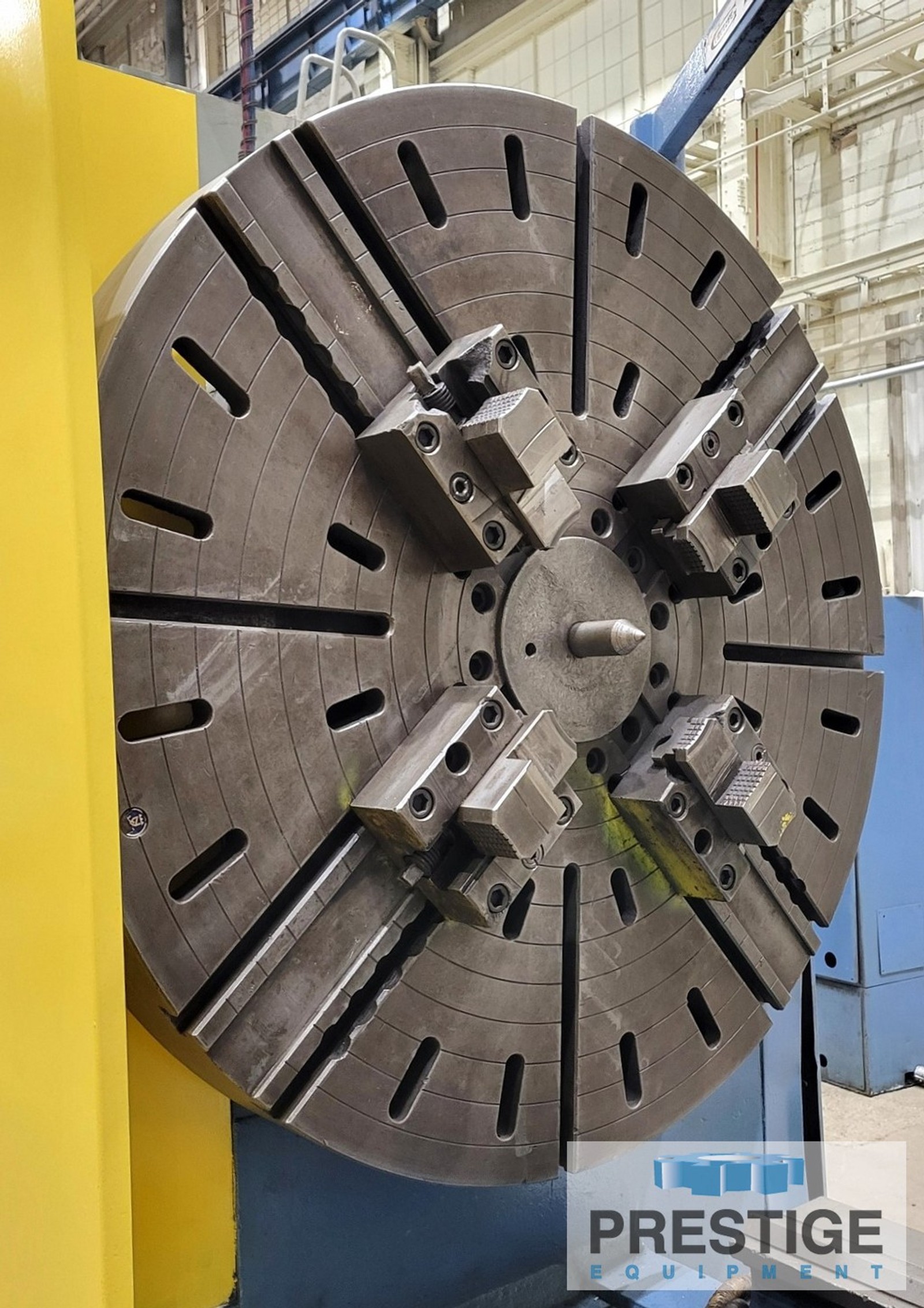

55" 4-Jaw Chuck

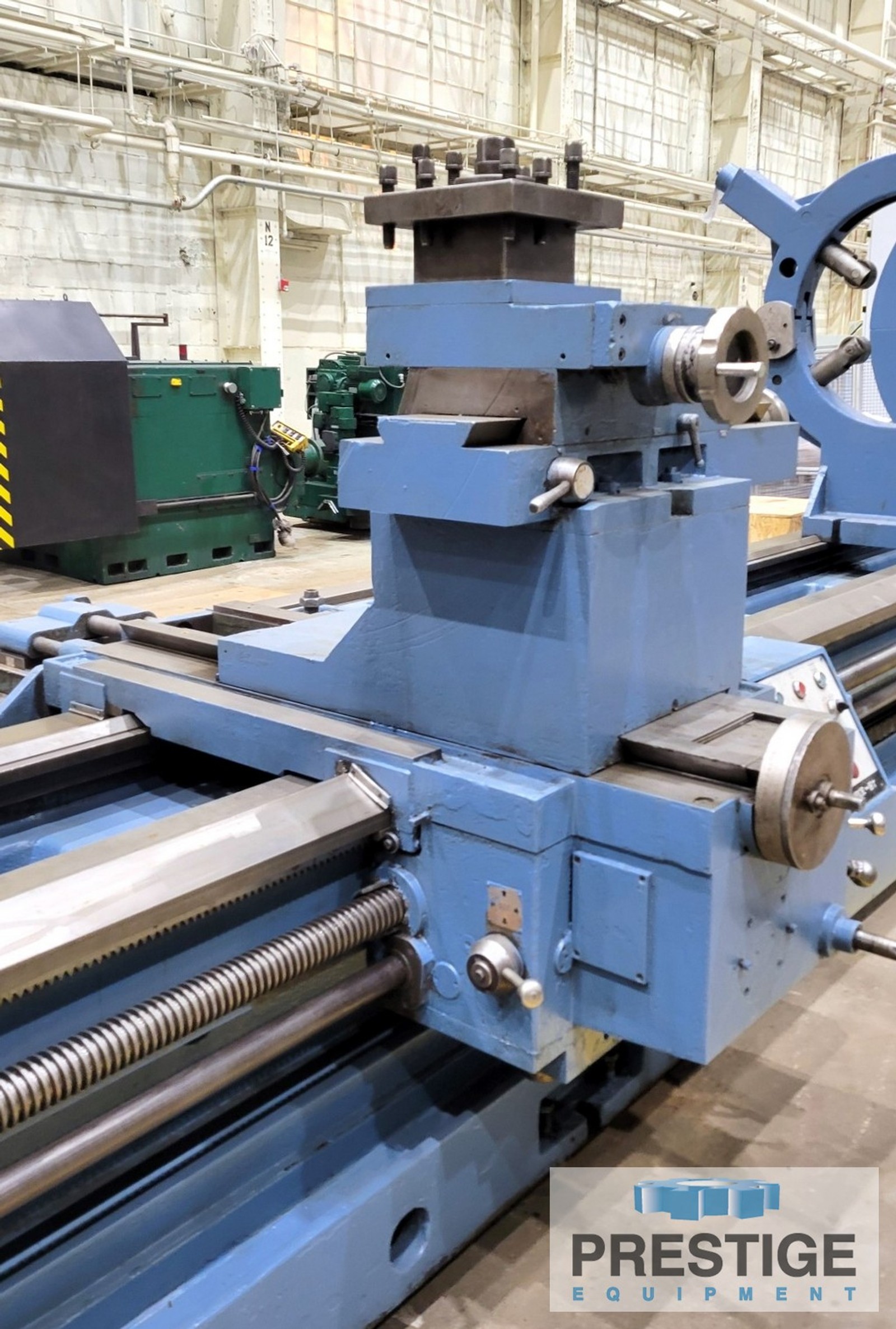

4-Way Tool Post

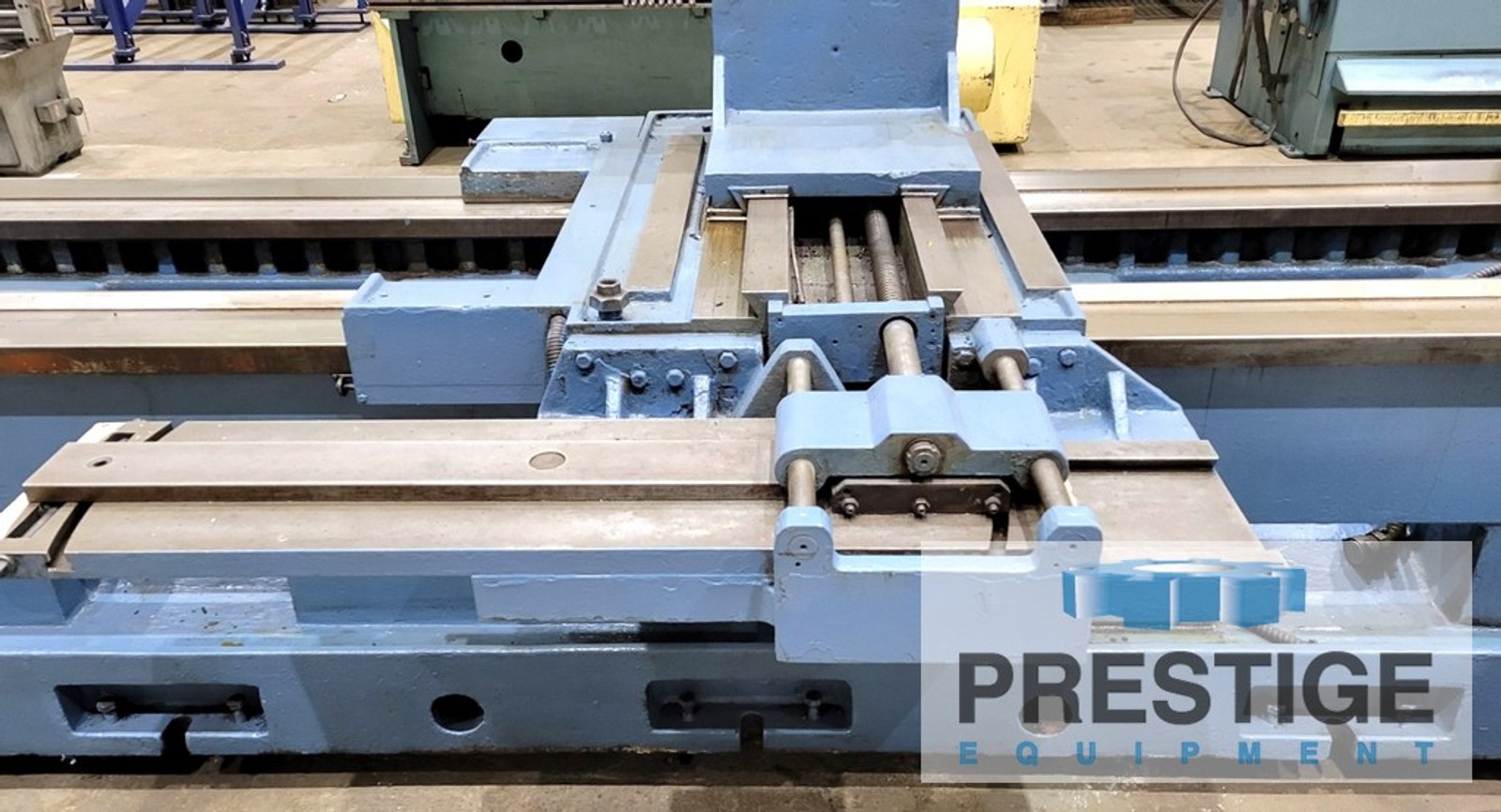

Taper Attachment
Inch/Metric Threading

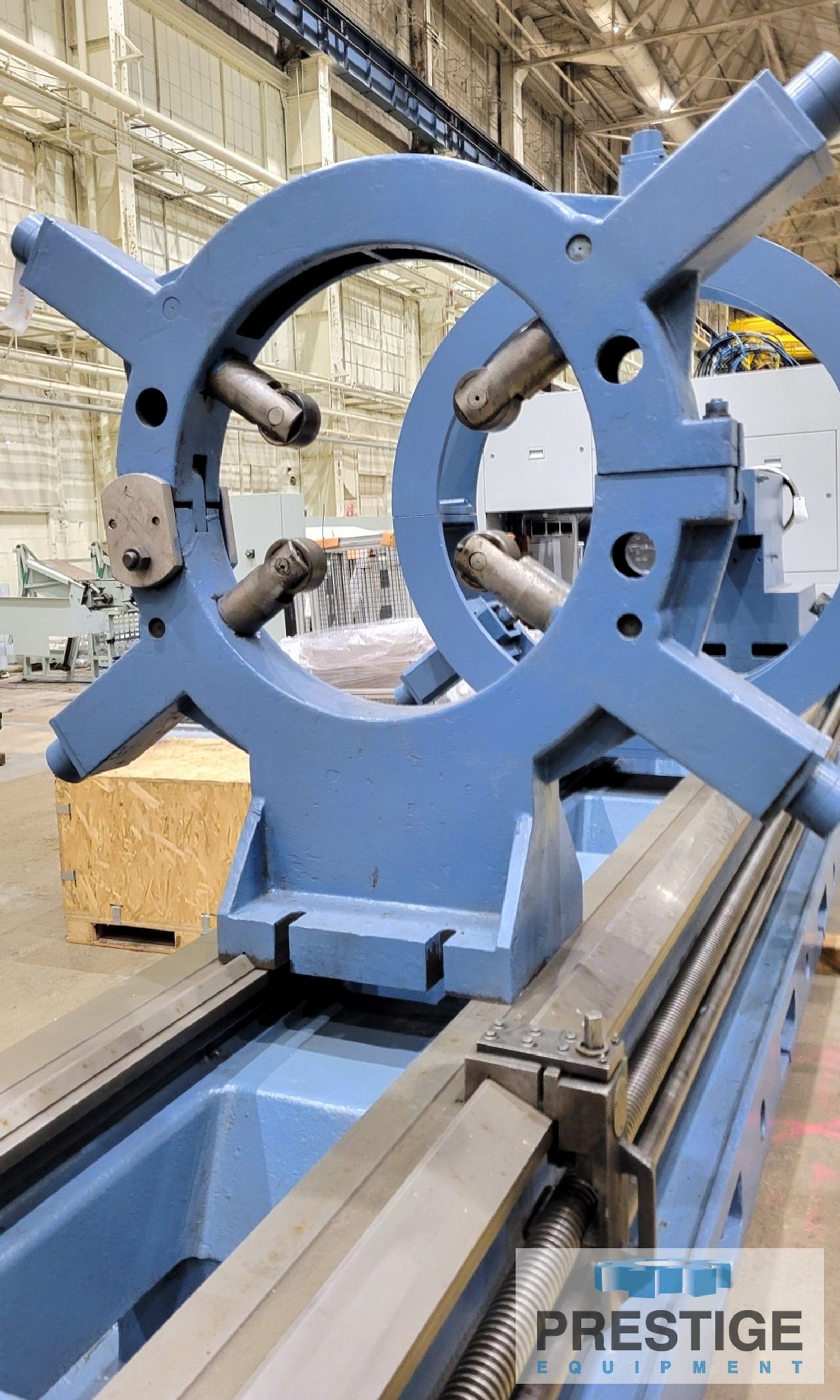

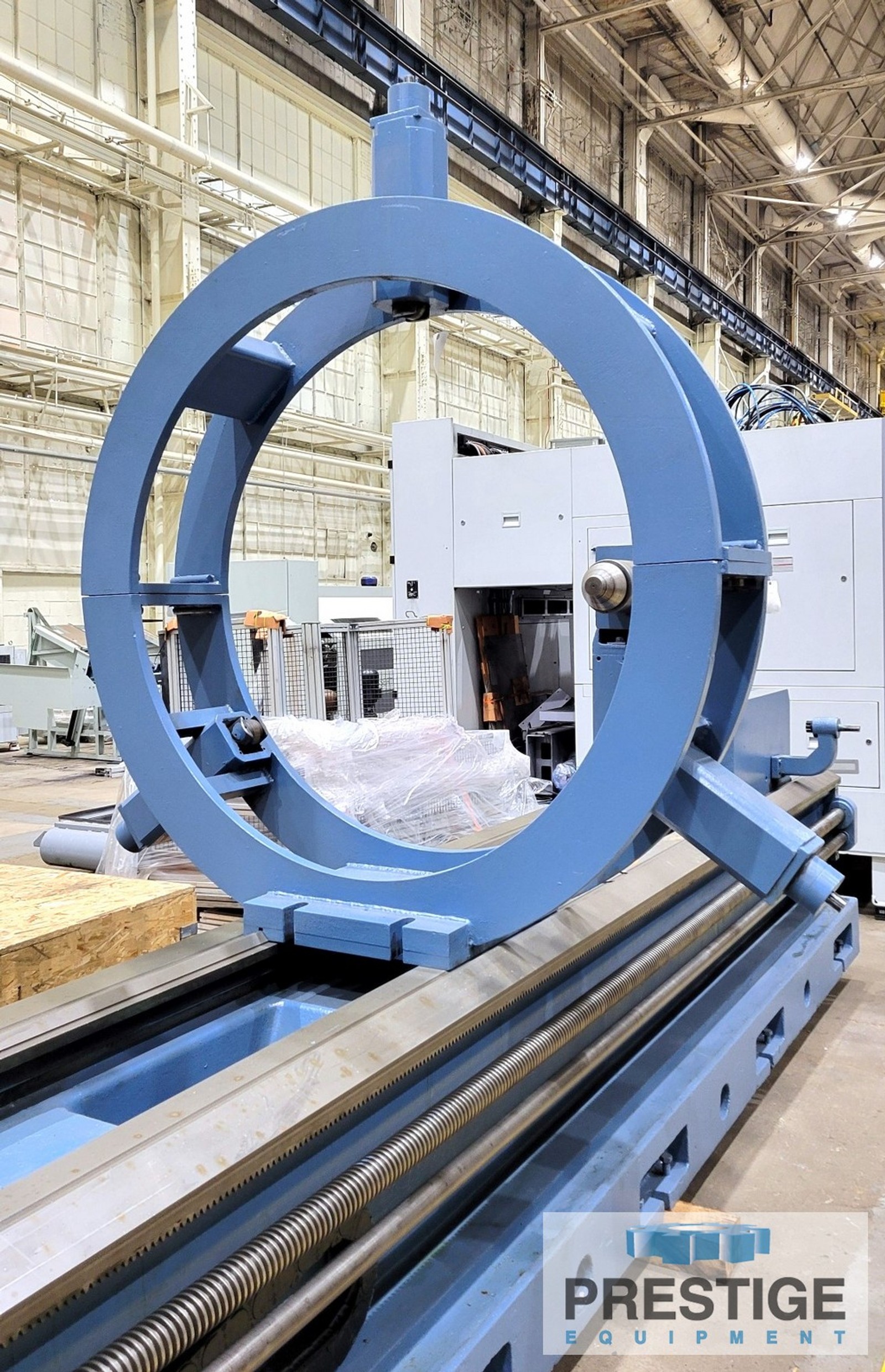

(2) Roller Type Steady Rest: 52" & 30"

CAPACITY:
Swing Over Bed ........................ 62.99"
Swing Over Cross Slide ................ 43"
Swing in Gap ......................... 75"
Gap Length ........................... 23"
Distance Between Centers .............. 314.96"
Max. Workpiece Weight, Unsupported .... 30,000 Lbs
Spindle Speeds ........................ 2.8 - 400 RPM
Spindle Bore .......................... 4.01"

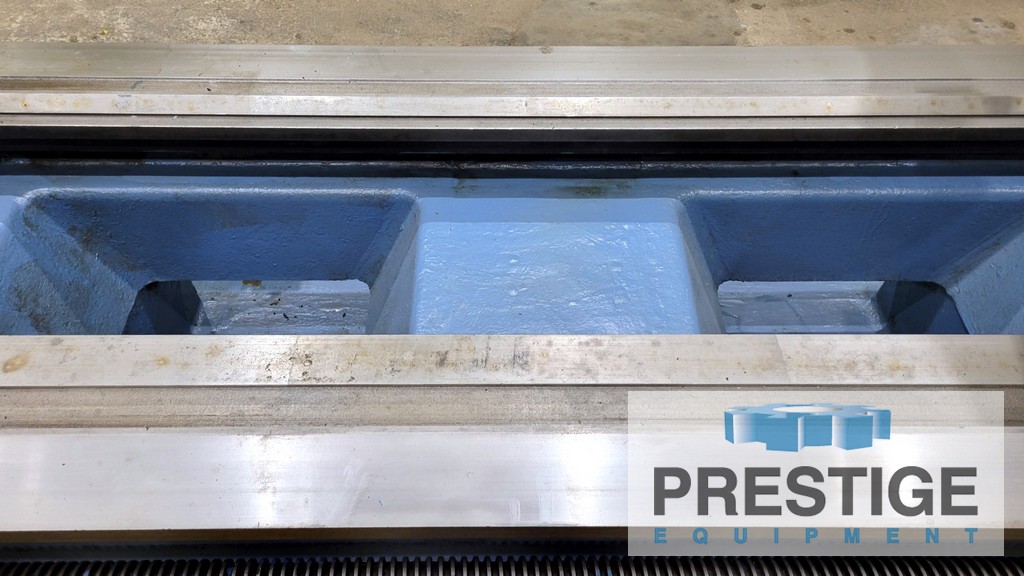

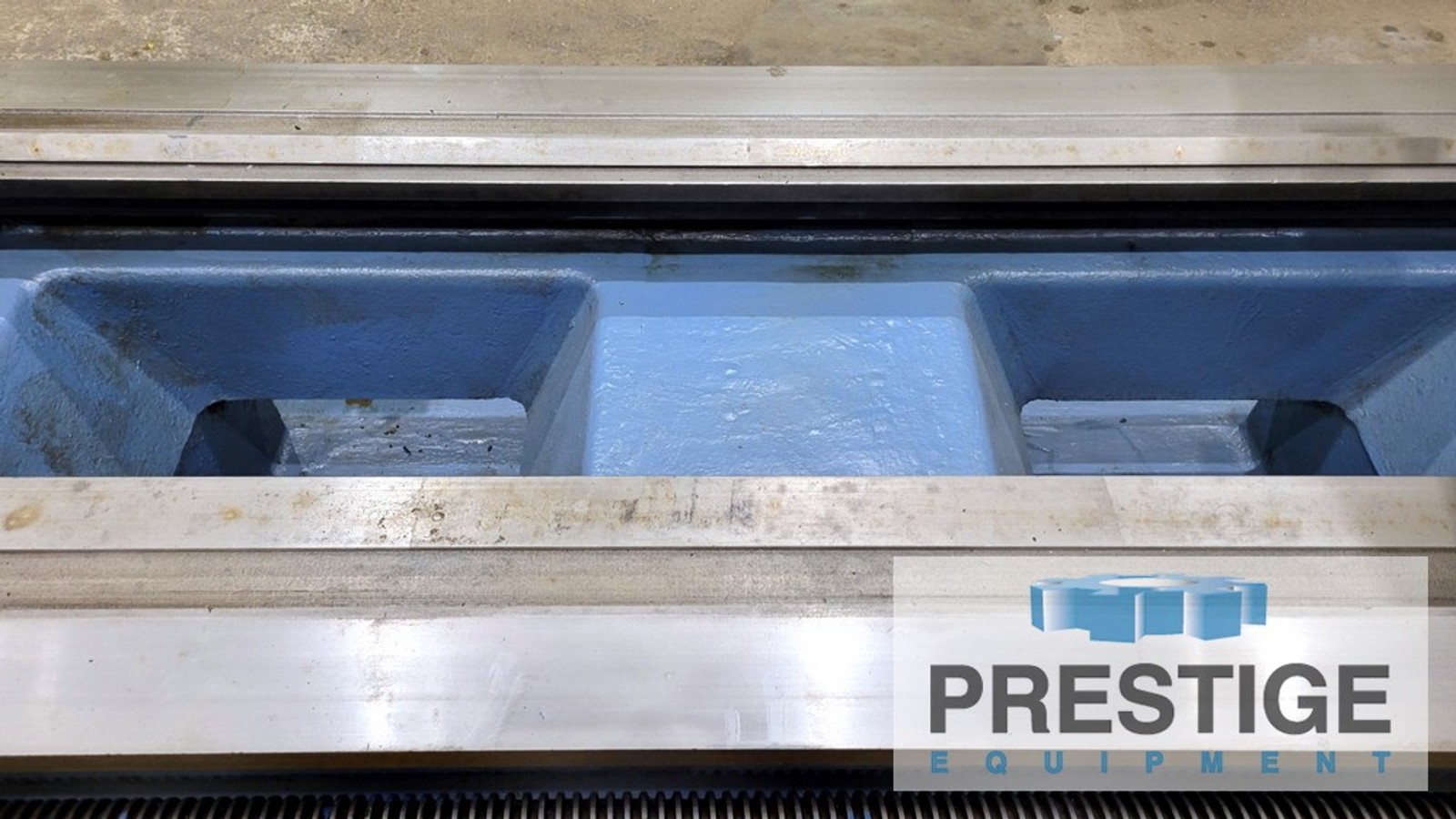

Bed Width ............................. 31.5"
Longitudinal Feed Rate ................ .0031 - .23 IPR
Cross Feed ............................ .0015 - .11 IPR
Metric Threading, 96 .................. 1 - 300 mm
Inch Threading, 108 ................... .0625 - 30 TPI
Spindle Motor ......................... 50 HP
Approx. Machine Weight ................ 51,400 Lbs
Machine Electrics .................... 230/3/60
Machine Footprint .................... 447" x 108"
Machine Height ....................... 100"

EQUIPPED WITH:
55" 4-Jaw Chuck
4-Way Tool Post
Taper Attachment
Inch/Metric Threading
(2) Roller Type Steady Rest, 52" & 30"

NOTE:
Inspect In our Philadelphia PA warehouse
