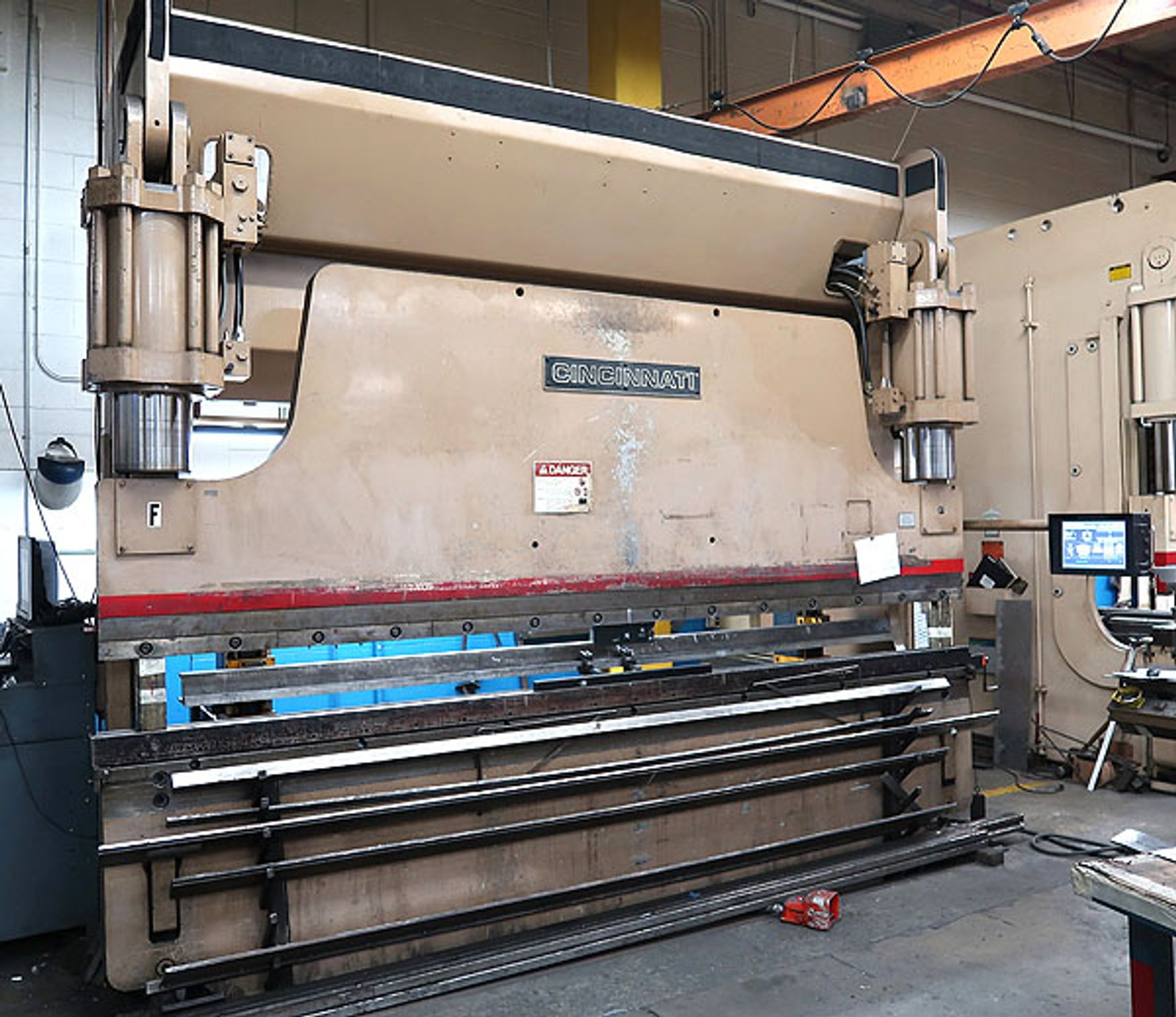

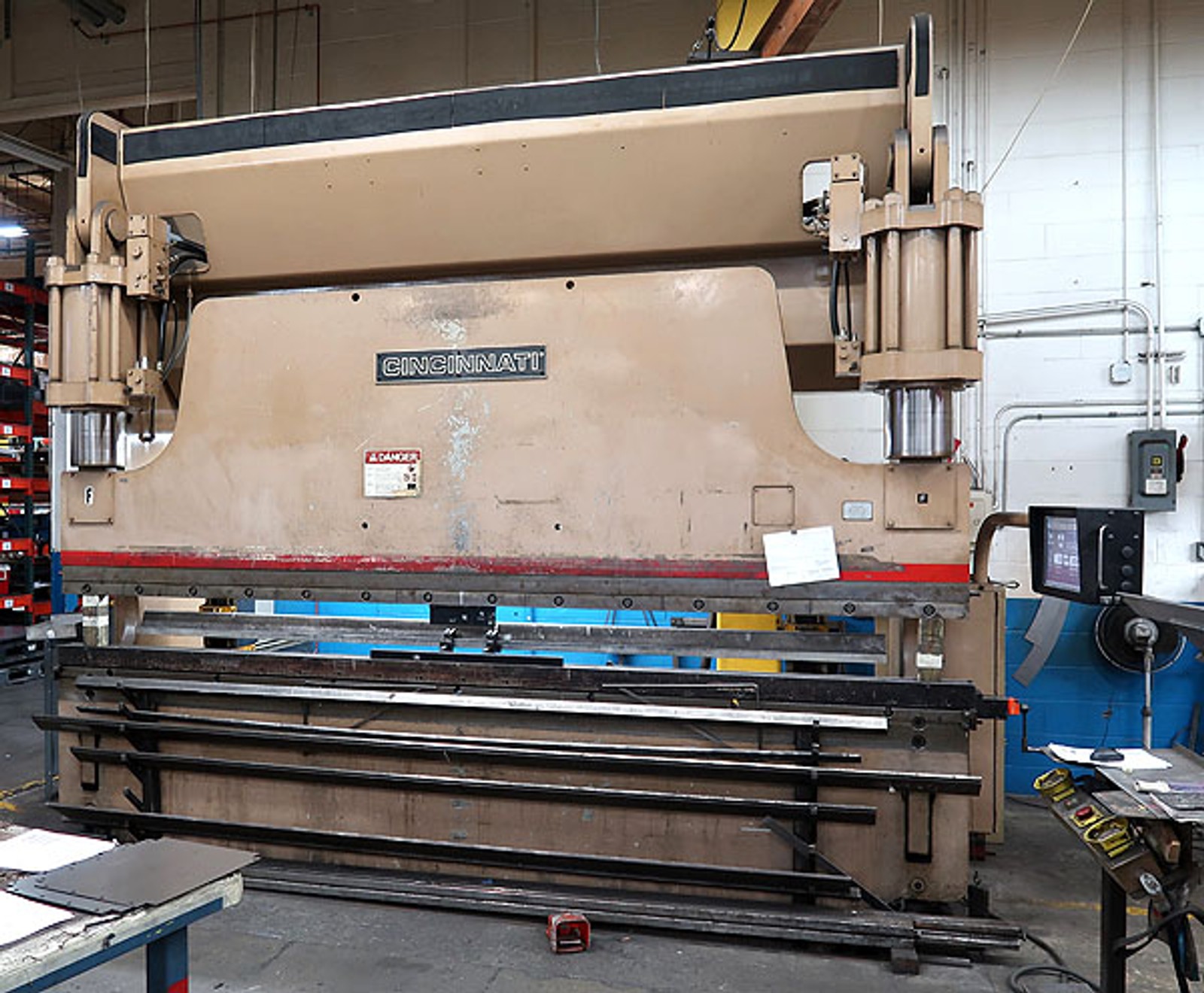

Cincinnati CBII350 Ton x 12' - 14' Overall, 3 Axis, CNC Press Brake w/2015 PC Based Cntrl Upgrade, 1997- 3187

Manufacturer

CINCINNATI

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, CNC, (Including Hyd/Mech)

Stock

3187

Model

CB II 350 ton

Dealer Location

Connecticut

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

CAPACITY:
TONNAGE CAPACITY 350 TONS
OVERALL LENGTH OF BED & RAM 14'
DISTANCE BETWEEN HOUSINGS 12'6"
THROAT DEPTH 10"
BENDING CAPACITY .375" X 12'5"
STROKE LENGTH 16"
OPEN HEIGHT 24"
CLOSED HEIGHT 8"
MOTOR 15 HP
MACHINE WEIGHT 44,000 LBS.
APPROX. MACHINE DIMENSIONS 170" L X 64" F-B 146" H
EQUIPPED WITH:

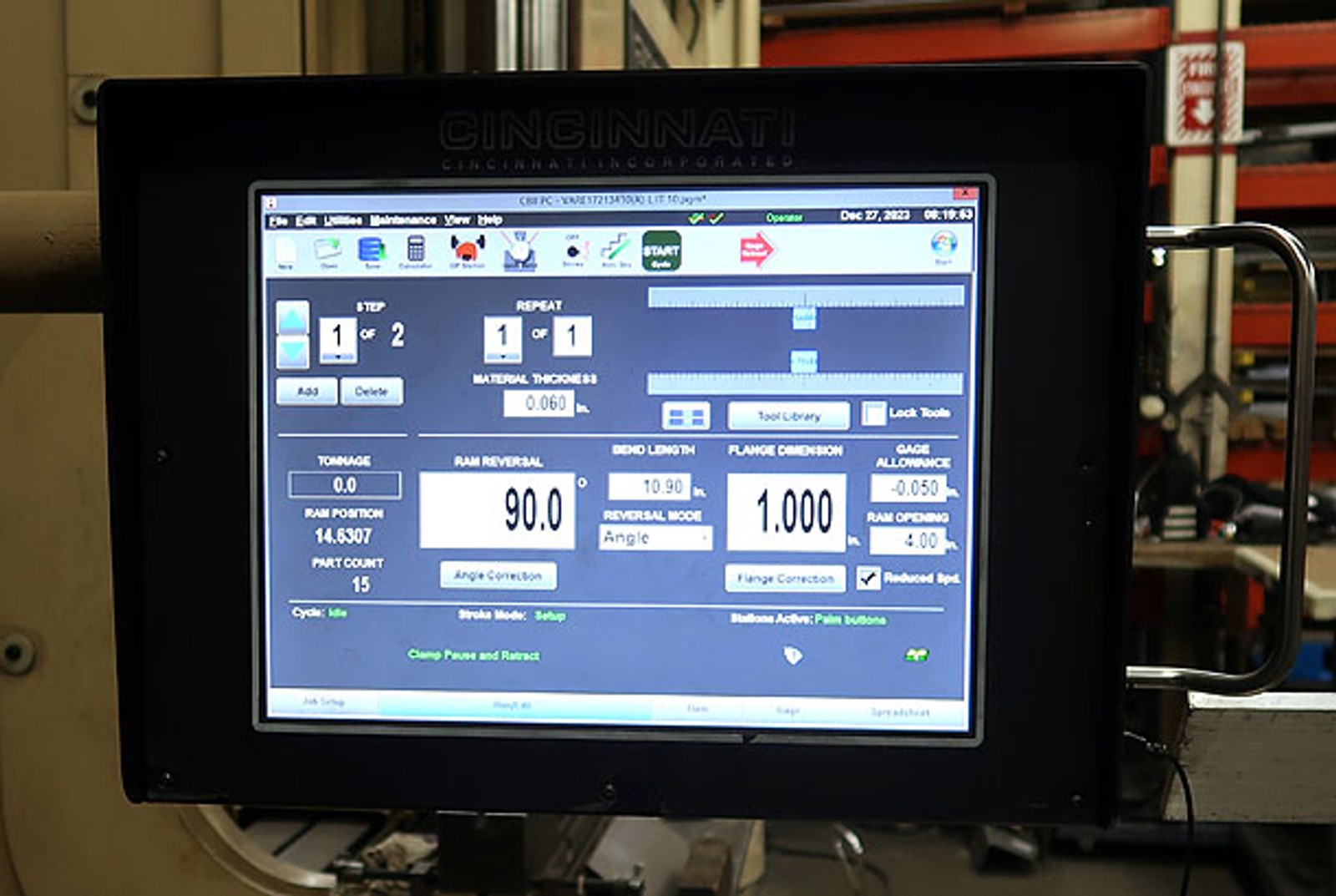

CINCINNATI PC BASED 3-AXIS CNC TOUCH SCREEN CONTROL (2015 UPGRADE)

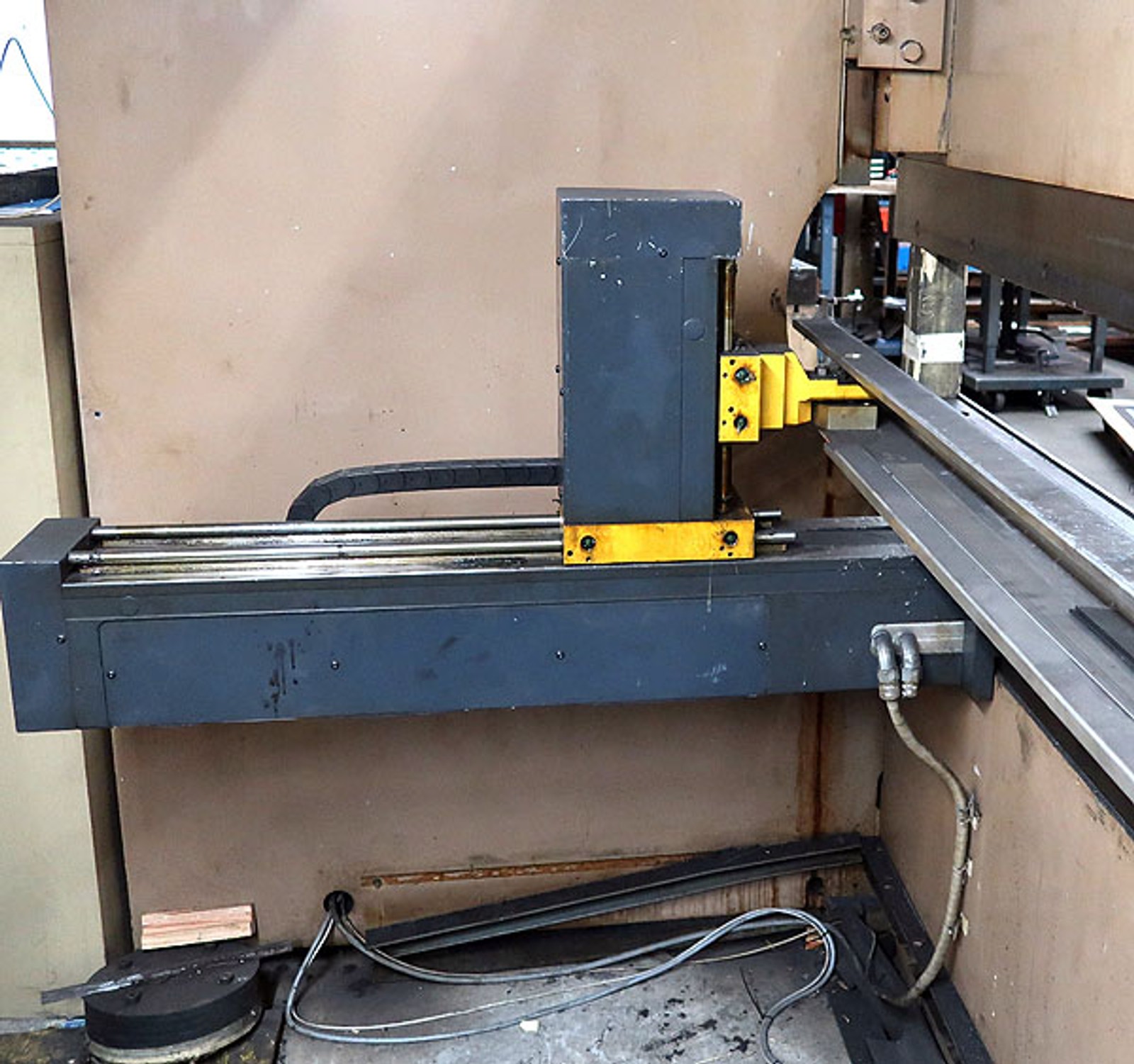

2-AXIS CNC BACK GAUGE
LOWER CROWNING DIE

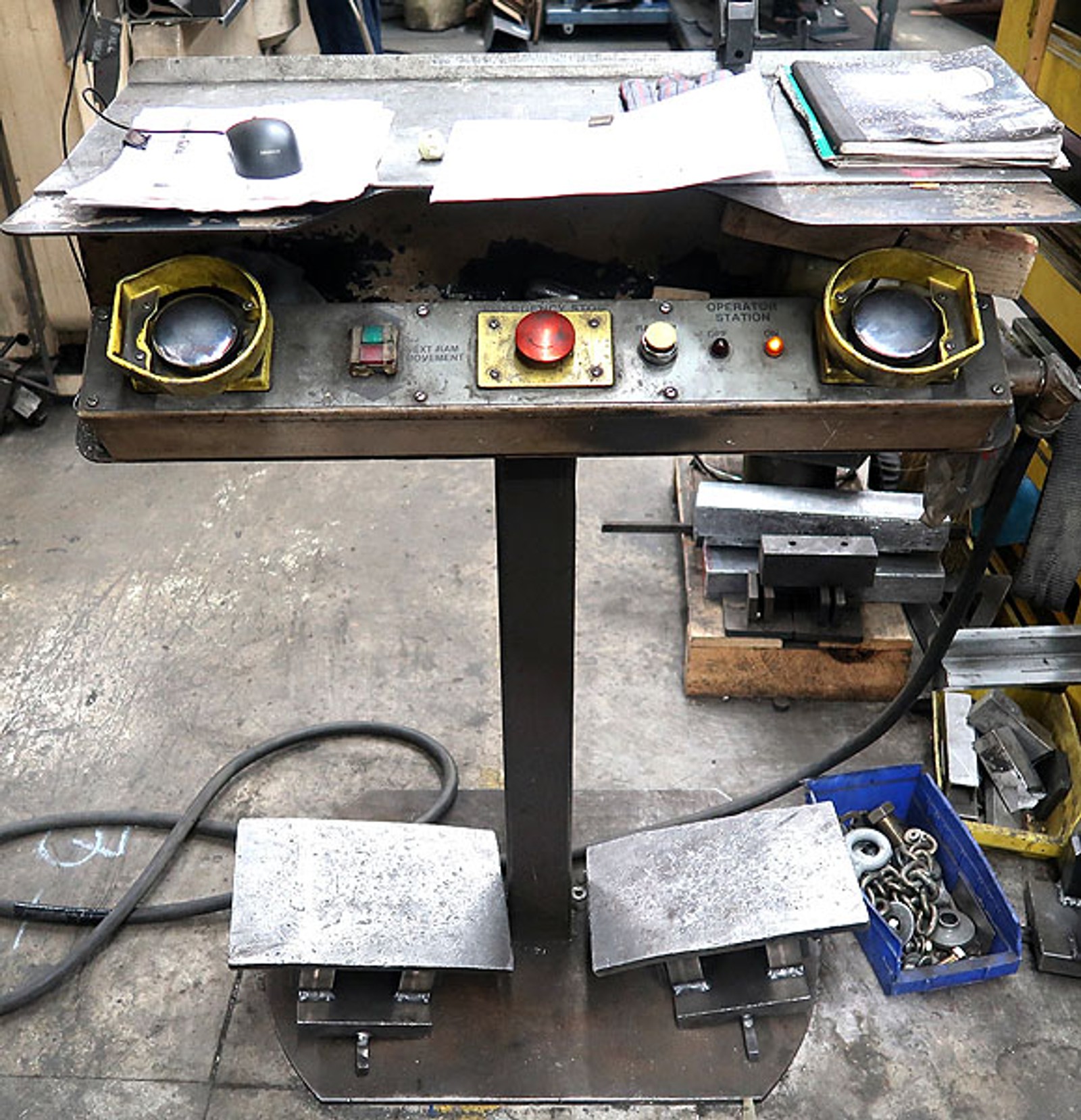

PEDESTAL PALM BUTTONS
ELECTRIC FOOT SWITCH
