1500 Ton Cincinnati 1500H, 36' OA, 22'5-3/4" BH, 18" stroke, 30" open height, 24" wide bed, 1974 #30176

Manufacturer

CINCINNATI

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

30176

Model

1500H

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30176

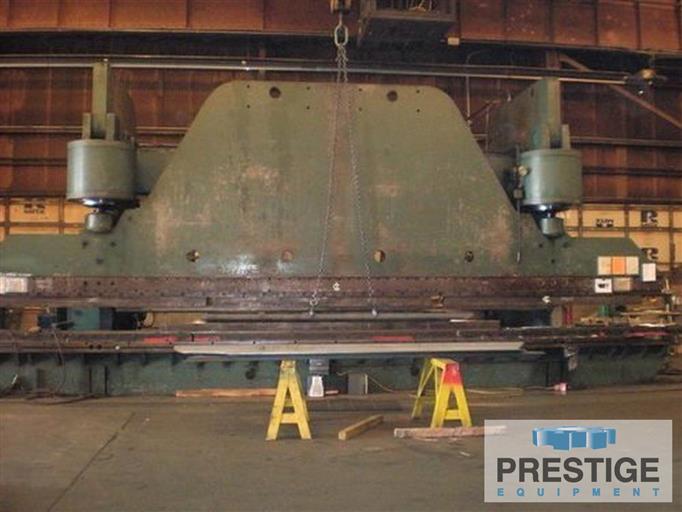

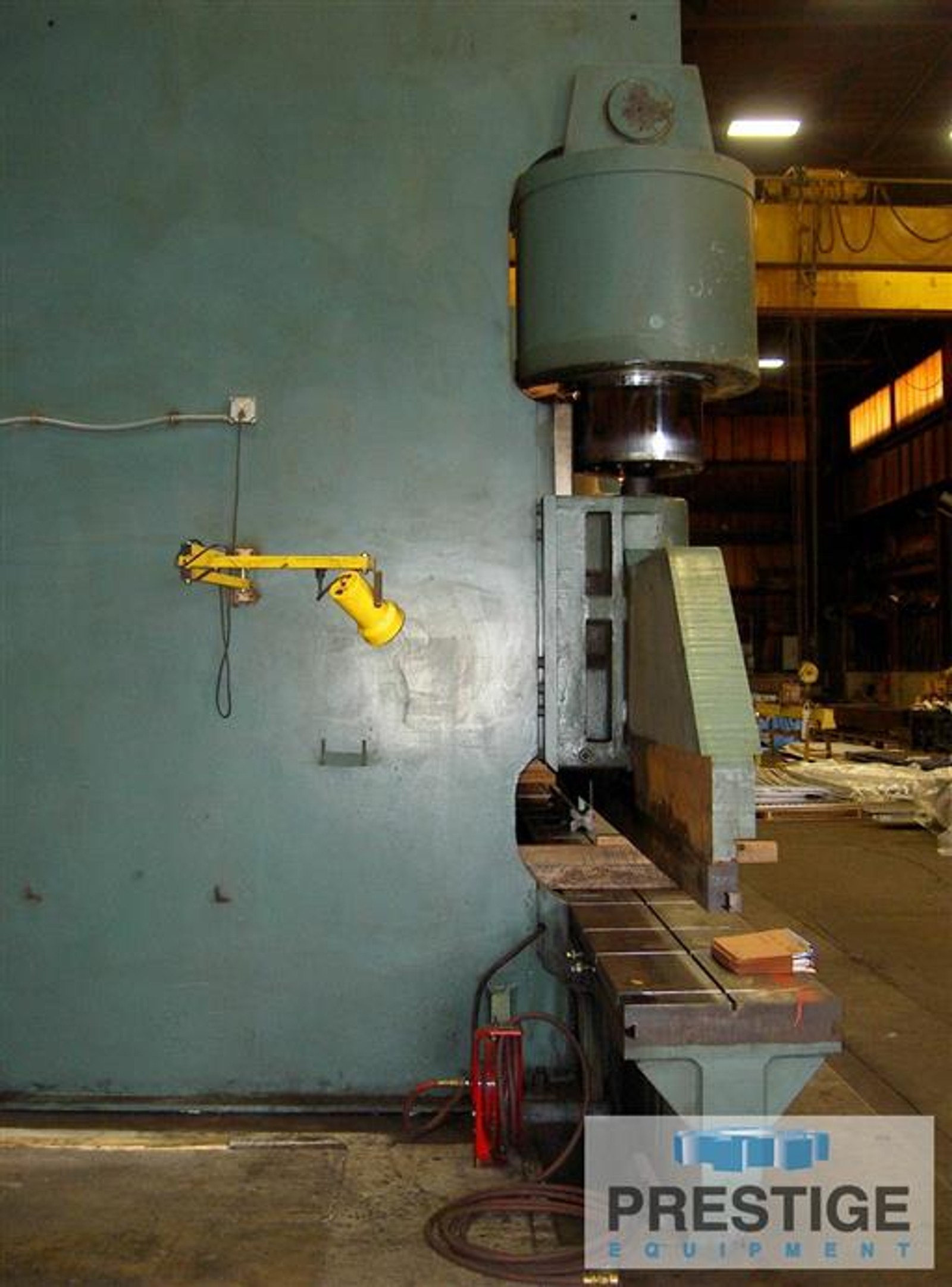

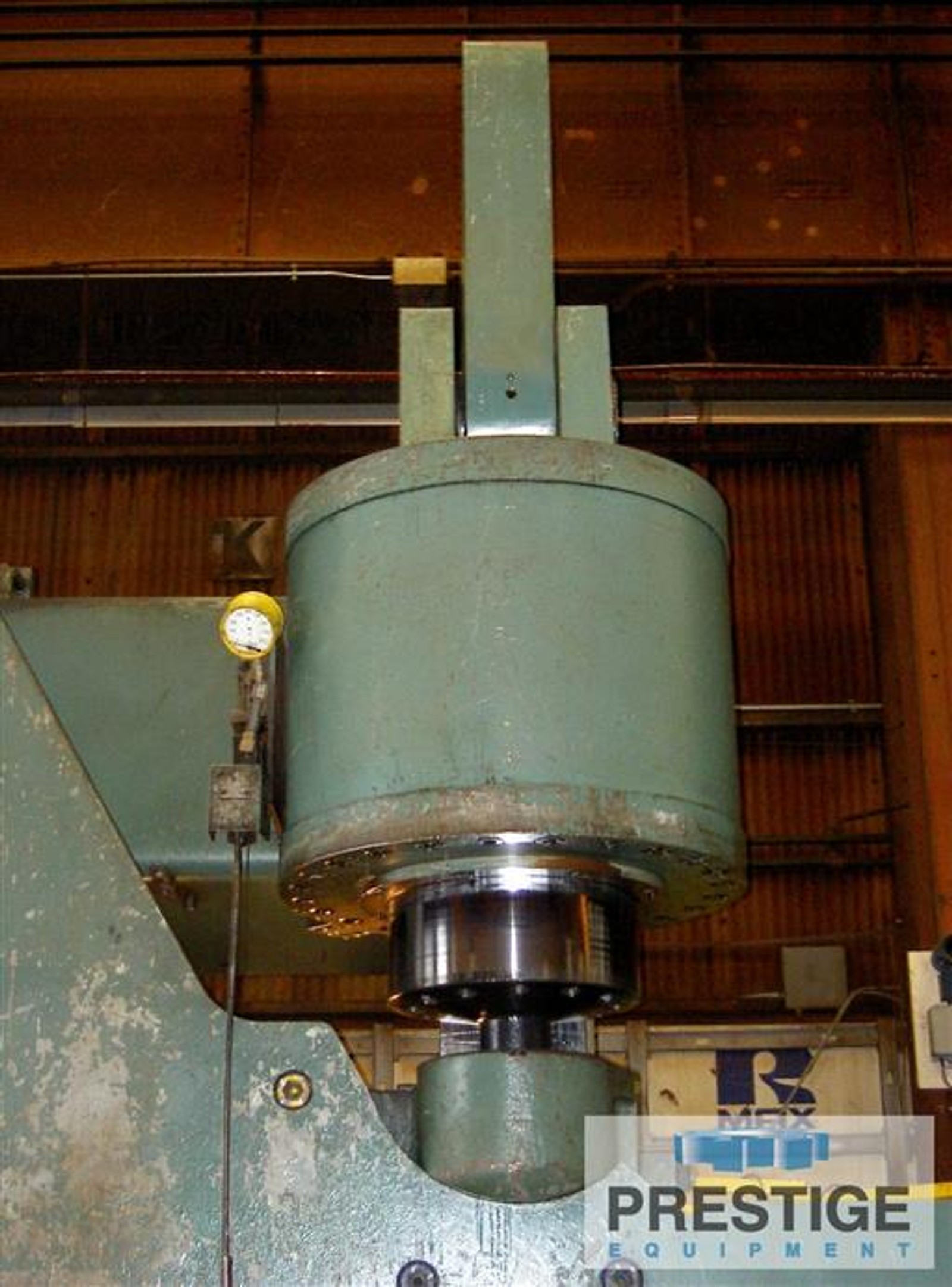

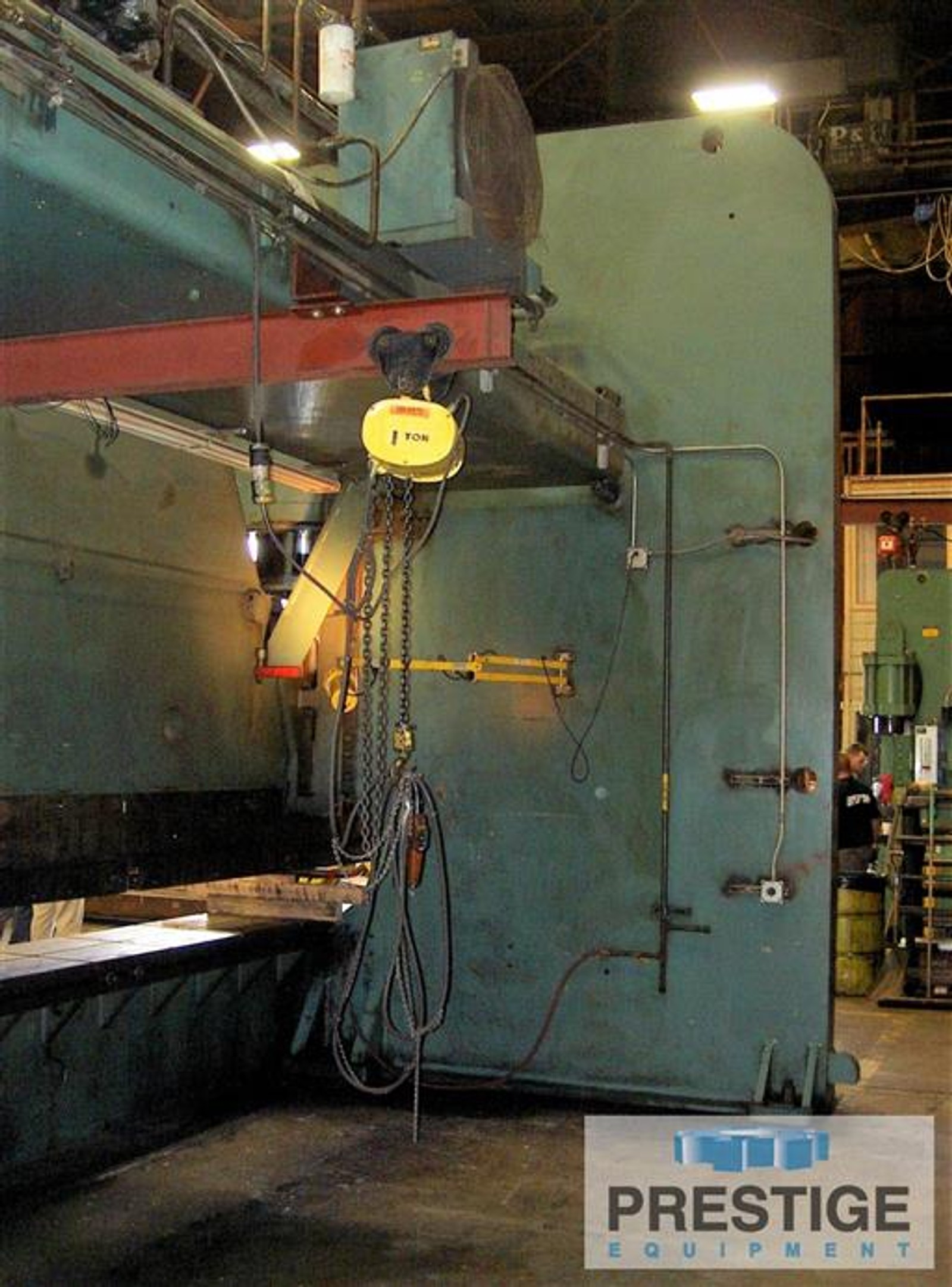

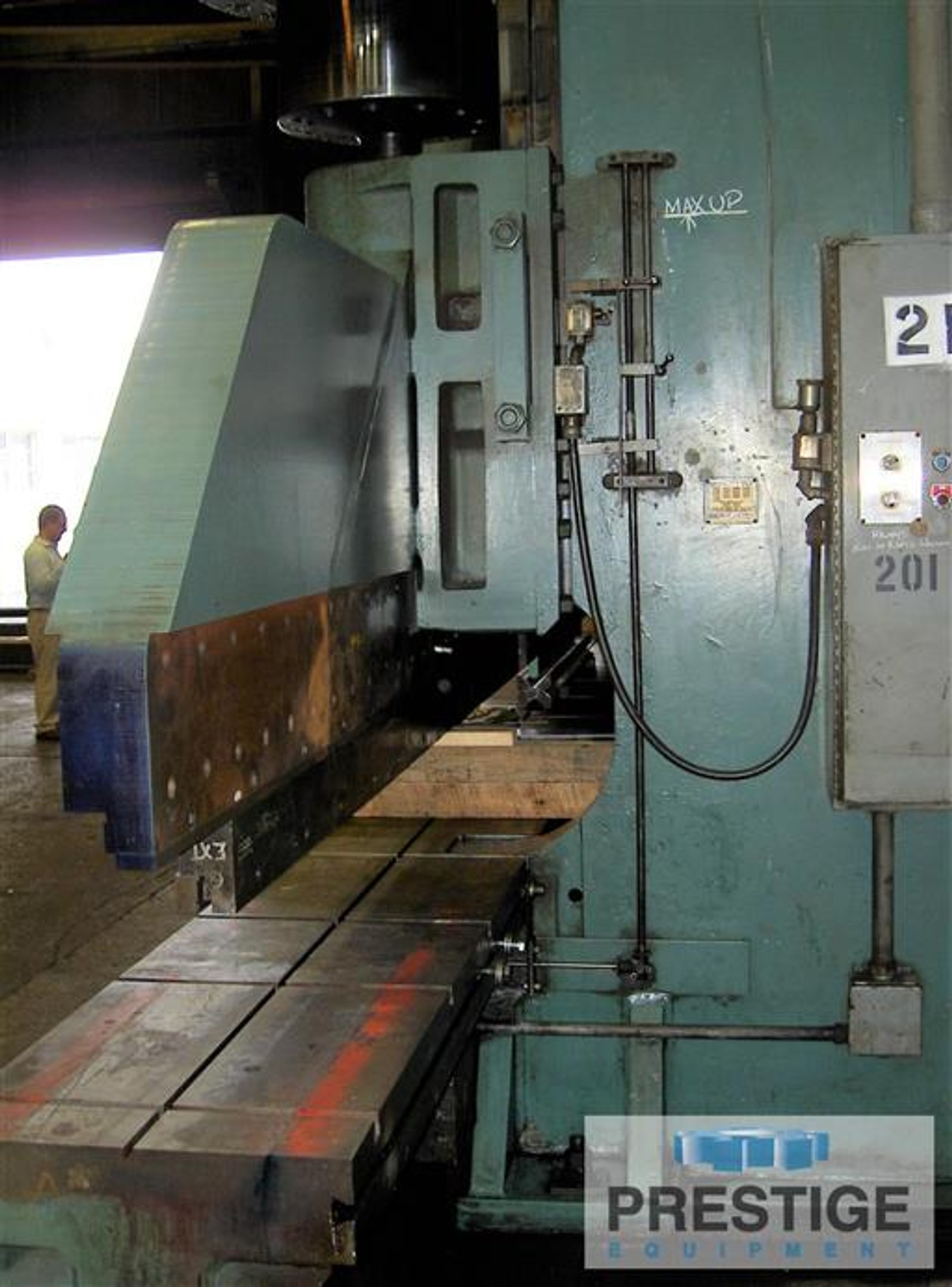

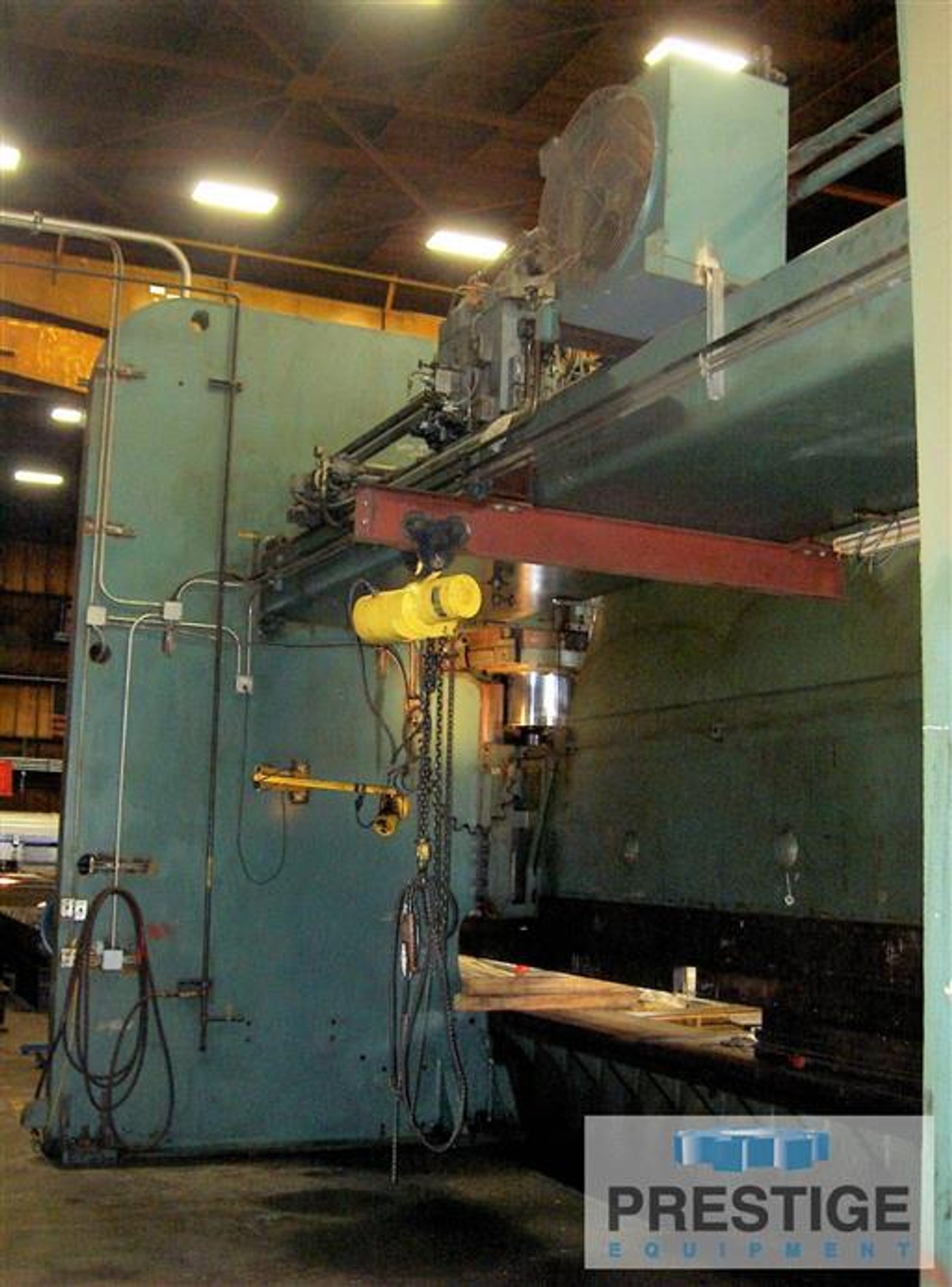

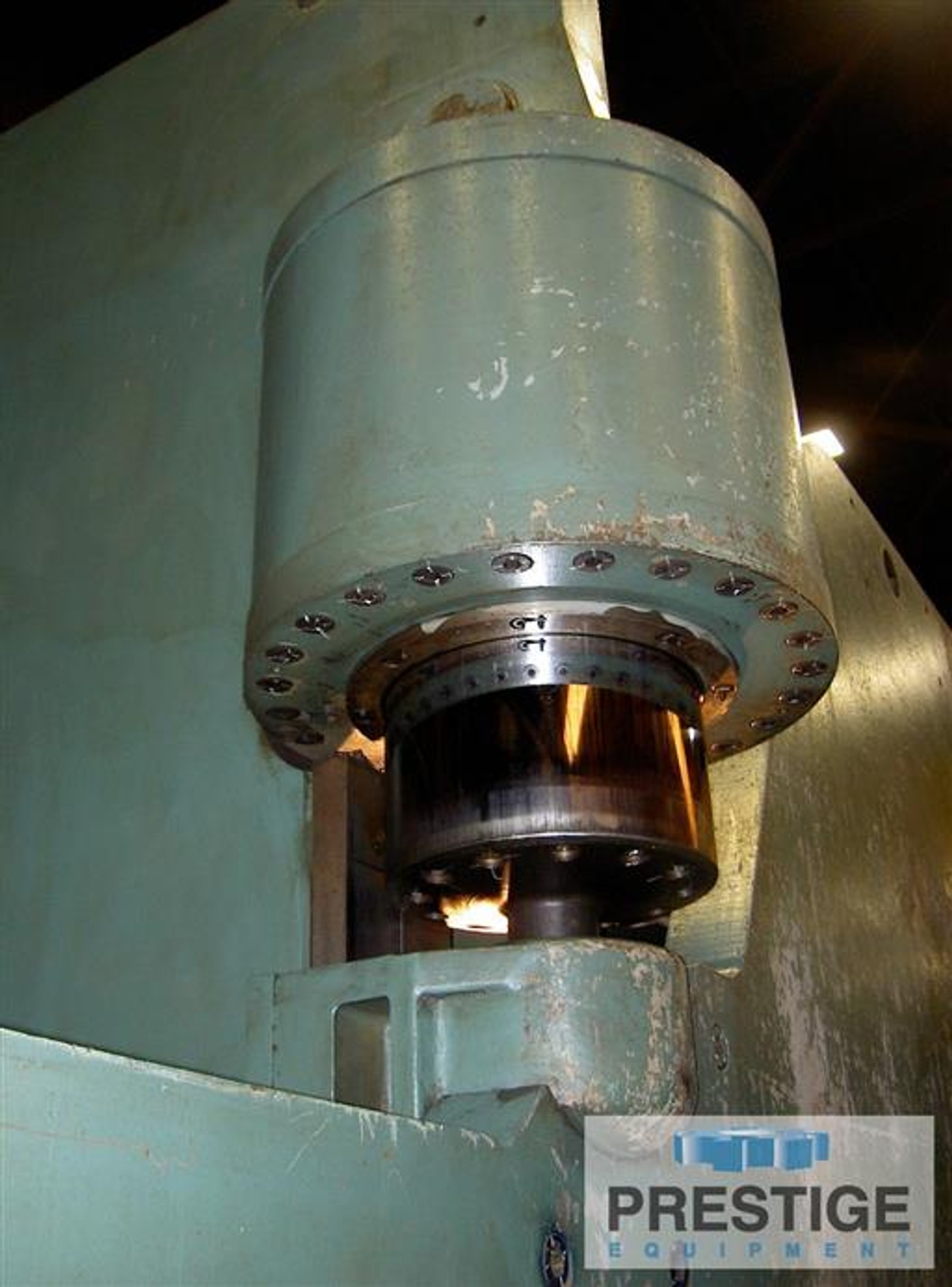

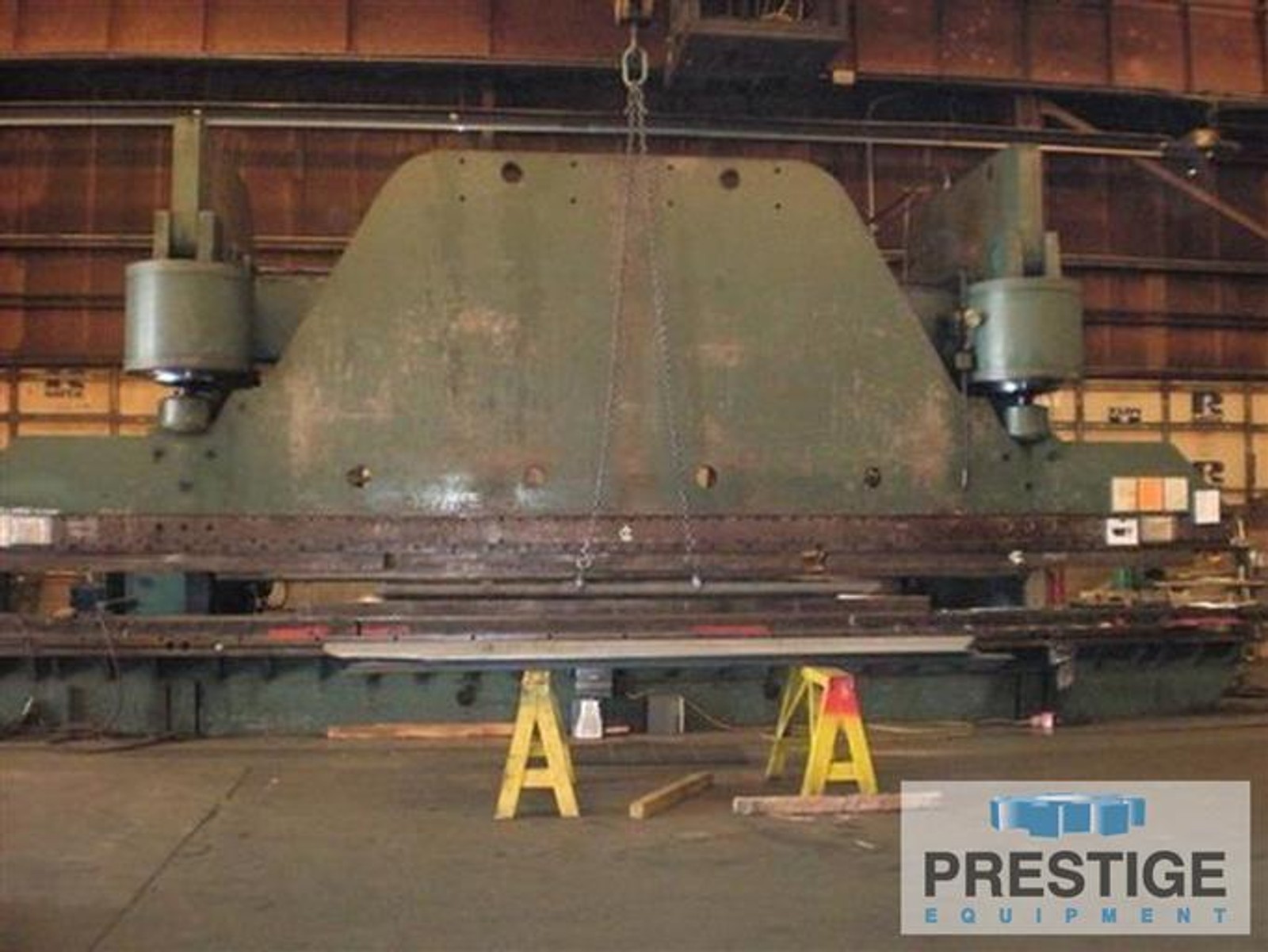

Cincinnati 1500H 36' x 1,500 Ton Hydraulic Press Brake

FEATURES:
24" Horn Extension on Left & Right Hand Sides
36" Additional Bed and Ram Extensions Left and Right Side
Electric Foot Switch Operation
Tonnage Control and Gauge Indicator
Full Length Dovetail Slot Across Bed Face, Front & Rear

CAPACITY:
Tonnage Capacity ...................... 1500 Ton
Overall Length Of Bed & Ram ........... 36'
Distance Between Housings ............. 22'5"
Bending Capacity (16" Die Opening) .... 1-1/2" x 16'
Throat Depth .......................... 20"
Stroke Length ......................... 18"
Open Height ........................... 30"
Closed Height ......................... 12"
Bed Width ............................. 24"
Motor ................................. 60 HP
Speeds:
Fast Press ............................ 46 IPM
Form .................................. 19/10 IPM
Fast Return ........................... 25 IPM
Approximate Shipping Weight ........... 326,500 Lbs

EQUIPPED WITH:
24" Horn Extension on Left & Right Hand Sides
36" Additional Bed and Ram Extensions Left and Right Side
Electric Foot Switch Operation
Tonnage Control and Gauge Indicator
Full Length Dovetail Slot Across Bed Face, Front & Rear

NOTE:
Current owner purchased this machine from major fabricator in Ohio and hired Cincinnati, Inc. to disassemble and prepare for trucking. It was never reinstalled.

Price reduced, seller will load components onto trucks and no additional cost.
