4.3" Toshiba BTD-110H.R13, X-63", Y-49", Tosnuc 999, 44" x 49" B-Axis Table 38 ATC, CTS, Tosnuc 999, 2013, #32885

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32885

Model

BTD-110H.R13

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32885

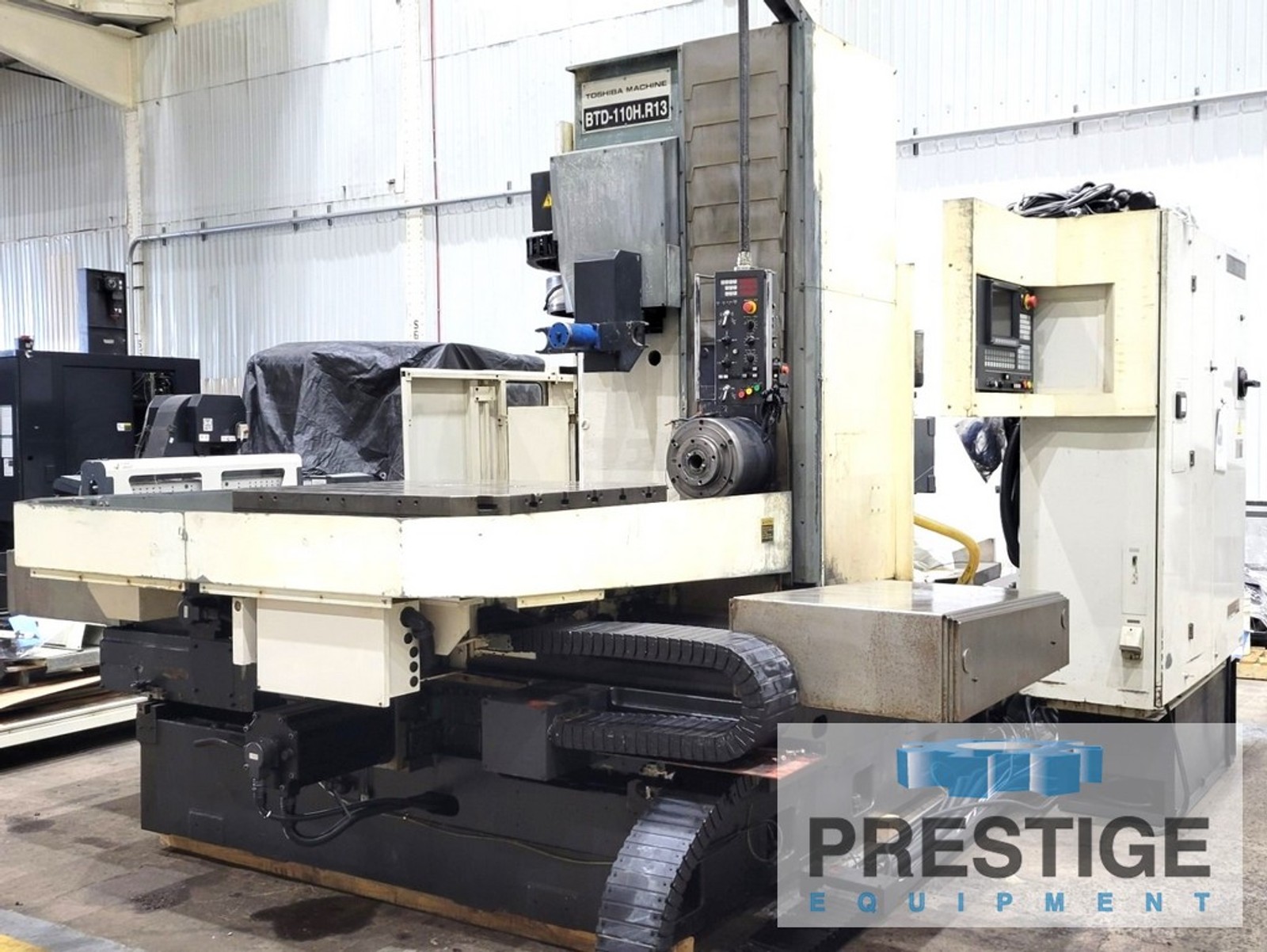

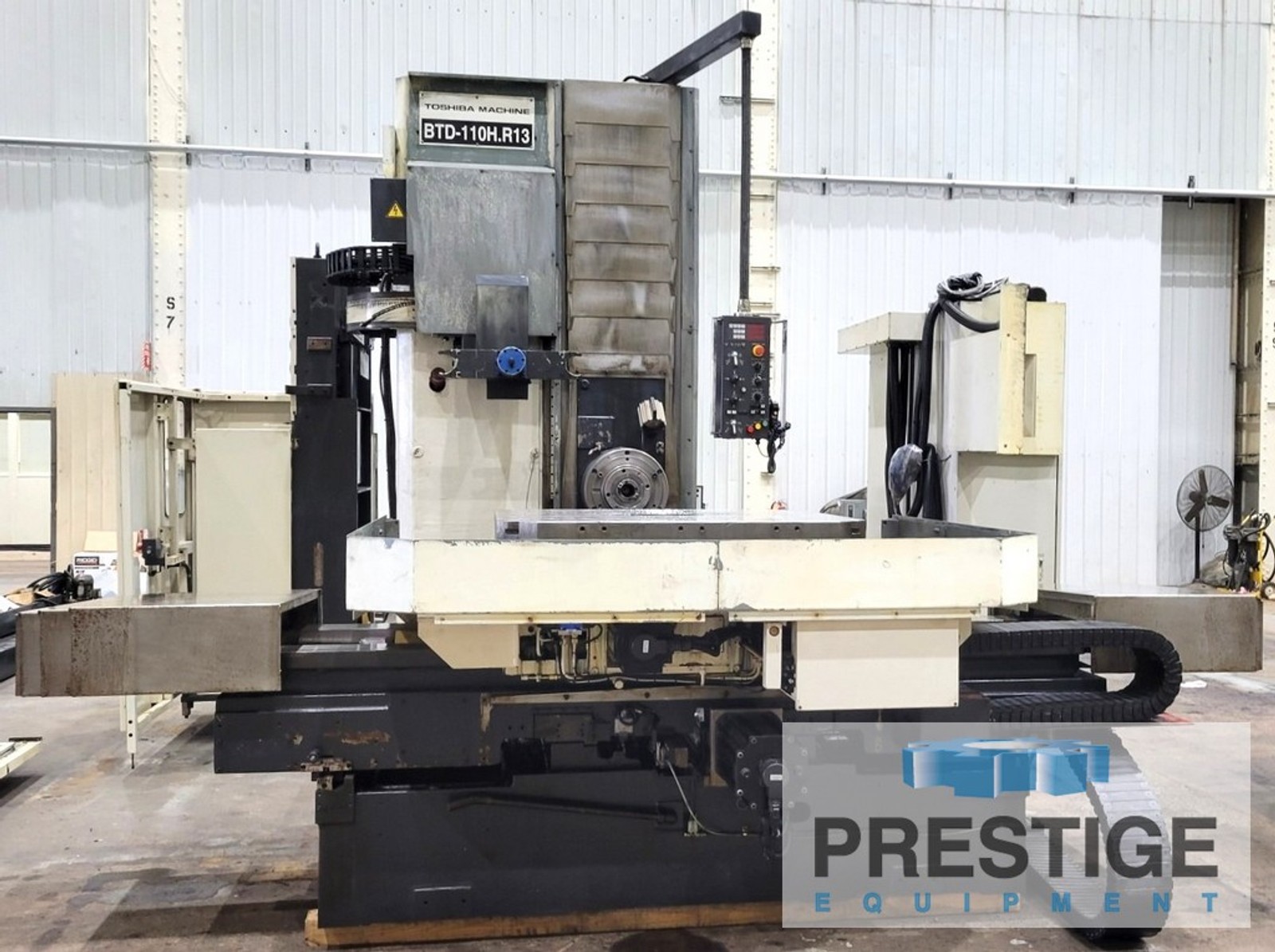

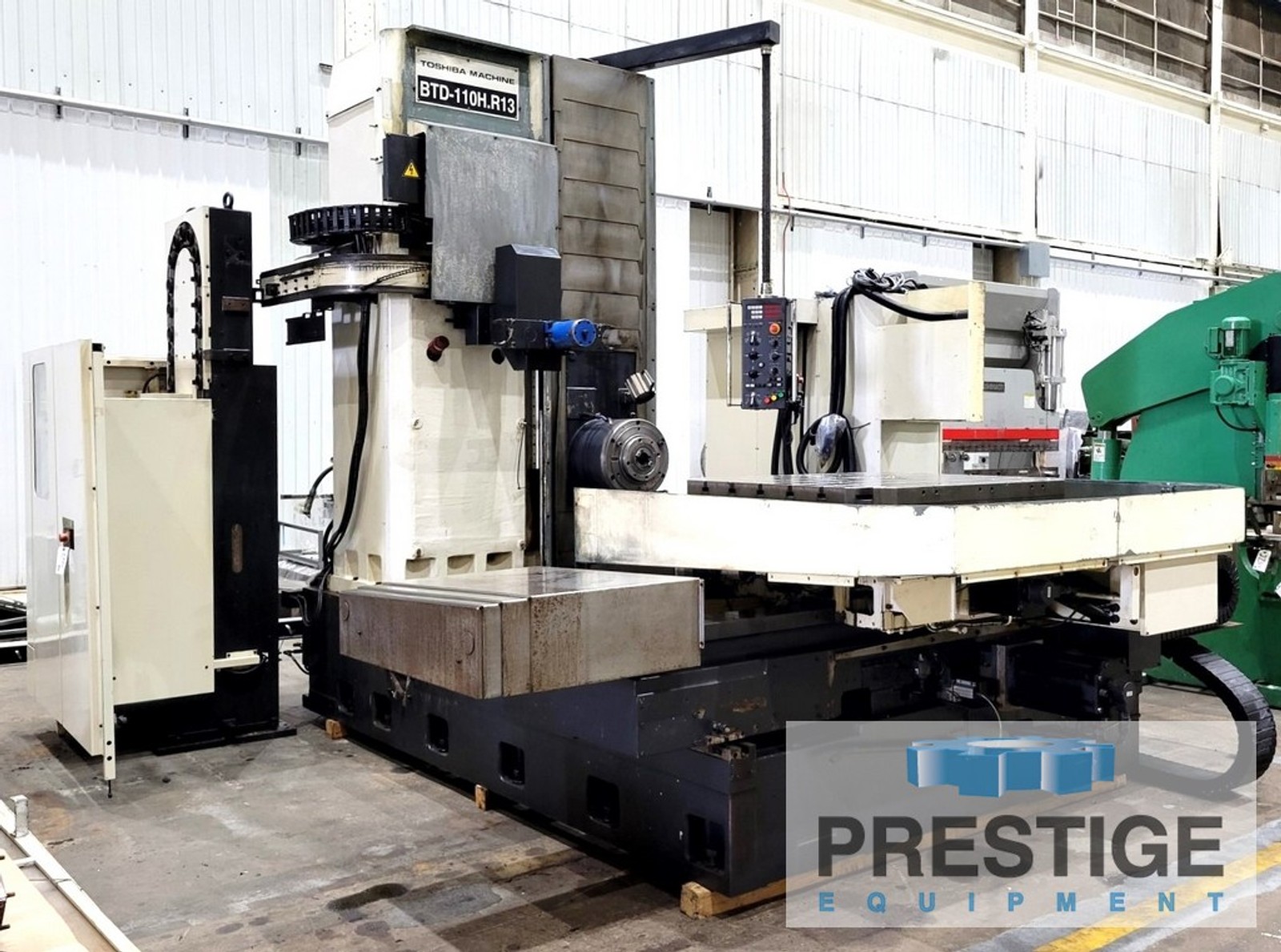

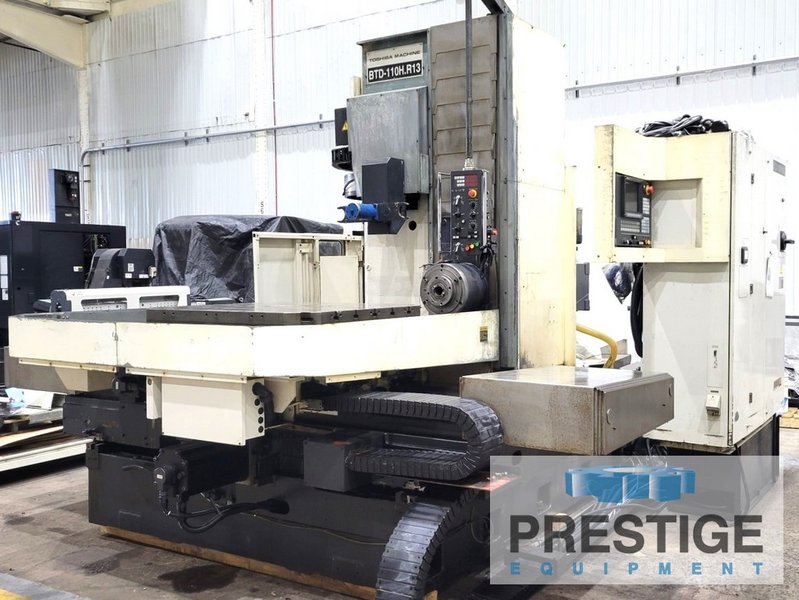

Toshiba BTD-110H.R13 CNC Table Type Boring Mill

FEATURES:

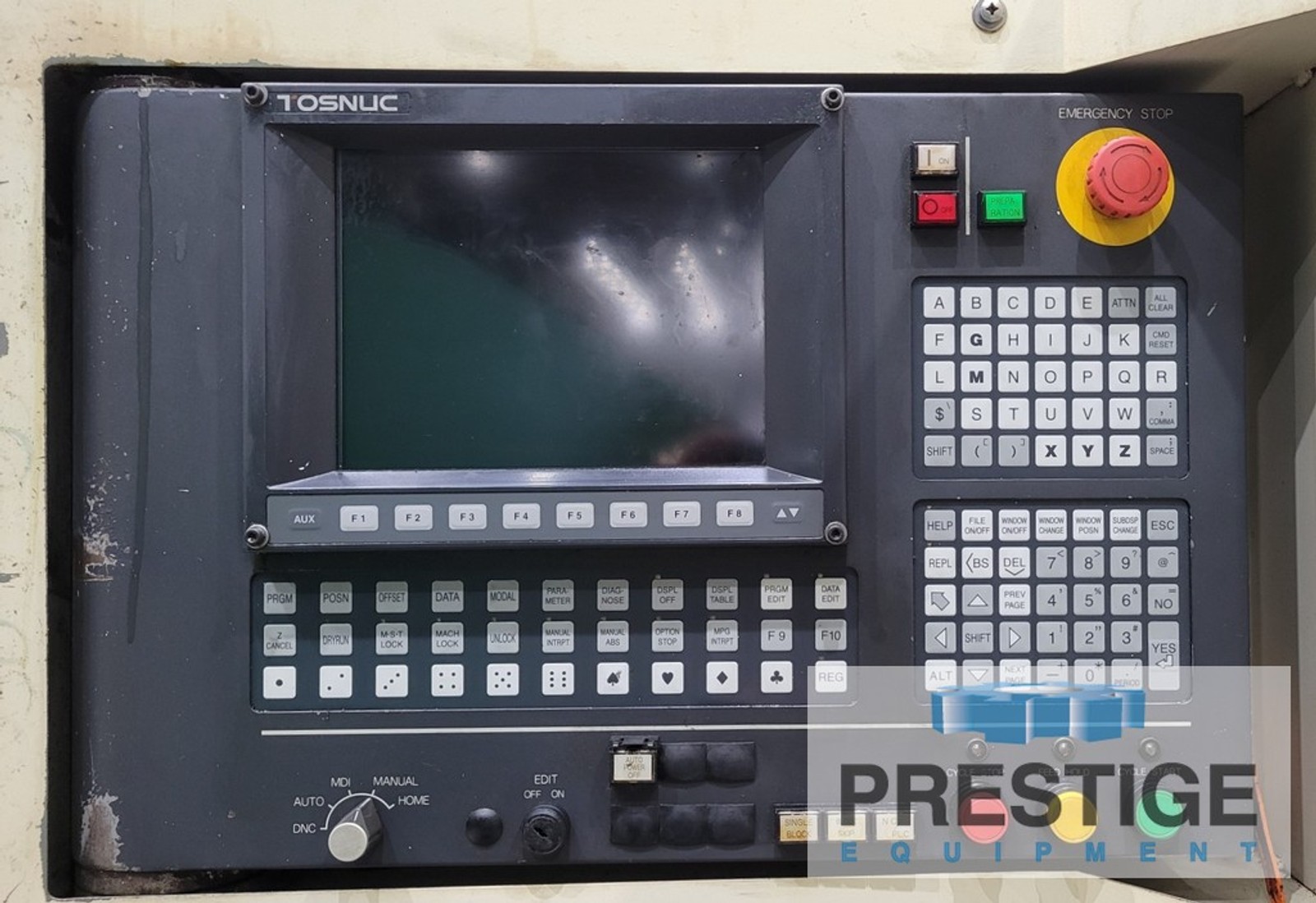

Tosnuc 999 CNC Control
49.2 x 44.1" Full B-Axis Rotary Table

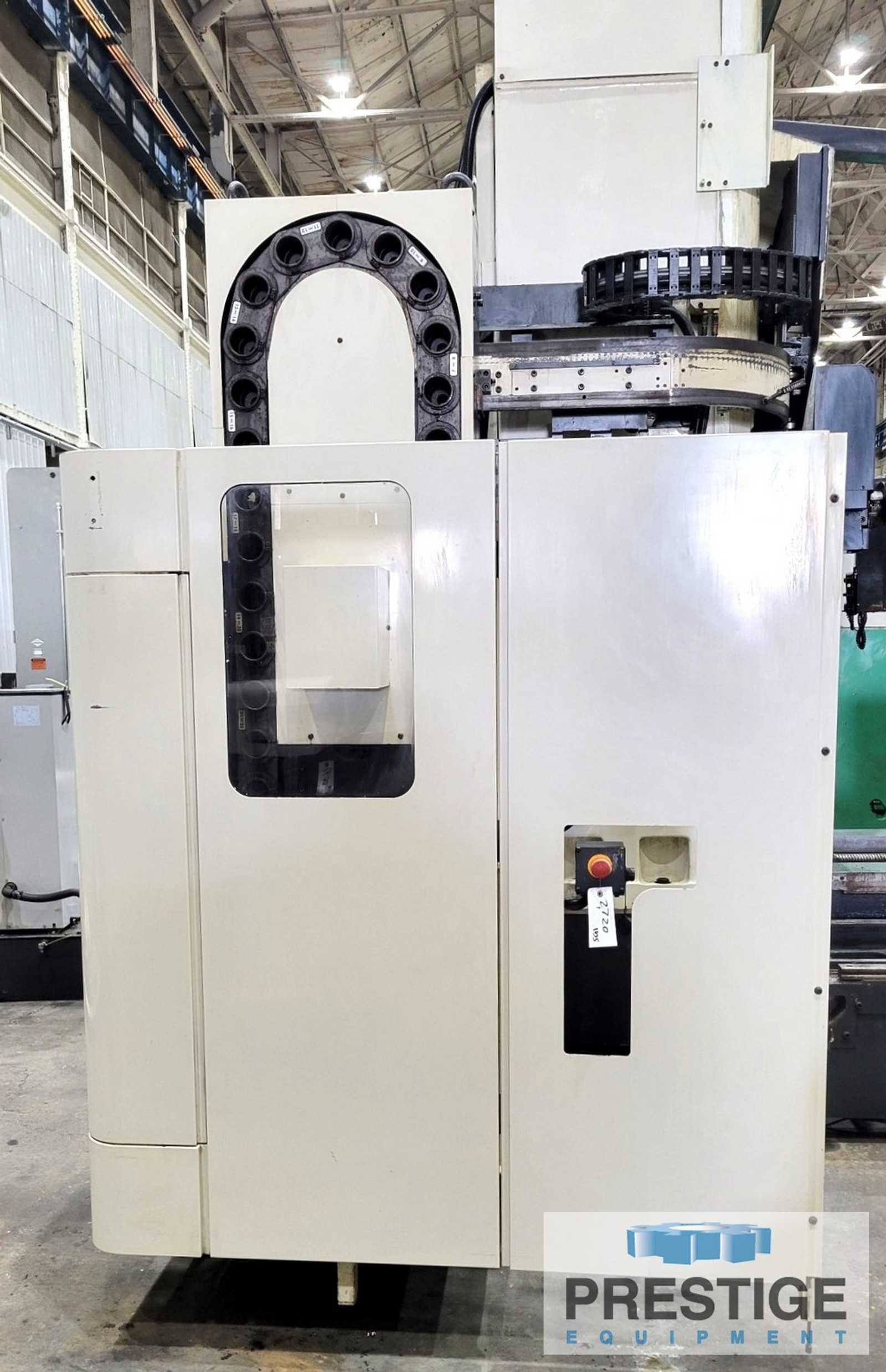

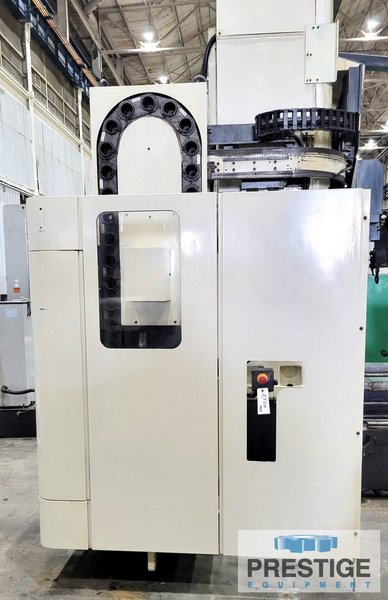

38-Station Automatic Tool Changer
Renishaw RMP-60 Probe
Through Spindle Coolant
Chip and Splash Enclosure

CAPACITY:

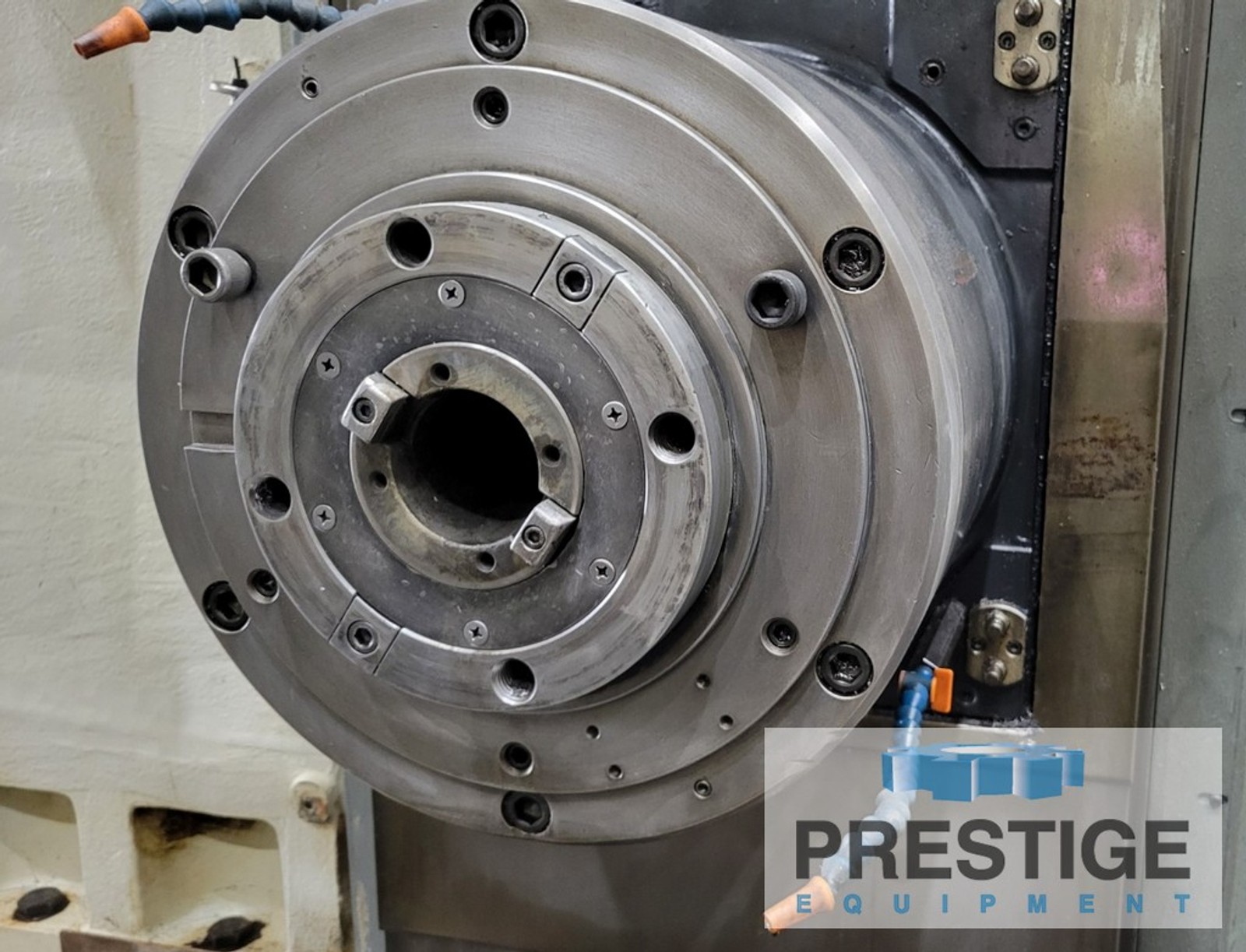

Spindle Diameter ...................... 4.33"
Taper In Spindle ...................... #50
Vertical Head Travel, Y-Axis .......... 49.2"
Table Cross Travel, X-Axis ............ 63"
Spindle Travel, Z-Axis ................ 19.7"
Saddle Travel, W-Axis ................. 44.5"

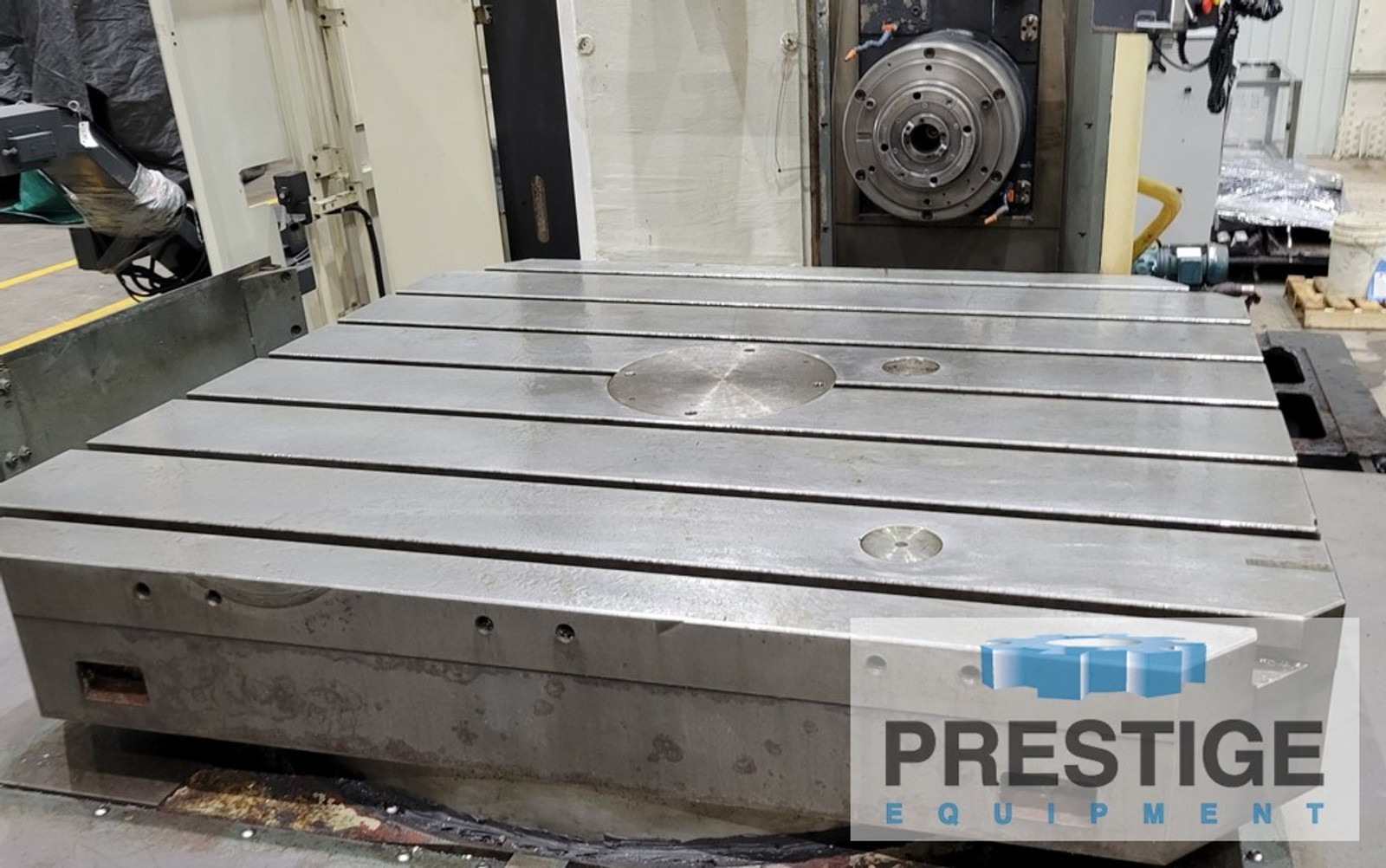

Table Size, Built-In Rotary ........... 49.2" x 44.1"
Table Indexing ........................ 0.001 Degree
Table Load Capacity ................... 8.800 LBS
Max. Spindle Speed .................... 5-3000 RPM
Spindle Motor ......................... 20 HP

EQUIPPED WITH:
Tosnuc 999 CNC Control
49.2 x 44.1" Full B-Axis Rotary Table
38-Station Automatic Tool Changer
Renishaw RMP-60 Probe
Through Spindle Coolant
Chip and Splash Enclosure
Steel Sliding Way Covers
Chiller
Chip Conveyor
