(2) 40" x 20.5" x 22" Devlieg Stackable Angle Plates 8 T-Slots, Ref #43168

Manufacturer

DEVLIEG

Category

Tooling & Accessories

Type

ANGLE PLATES

Stock

43168

Model

T-Slotted

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43168

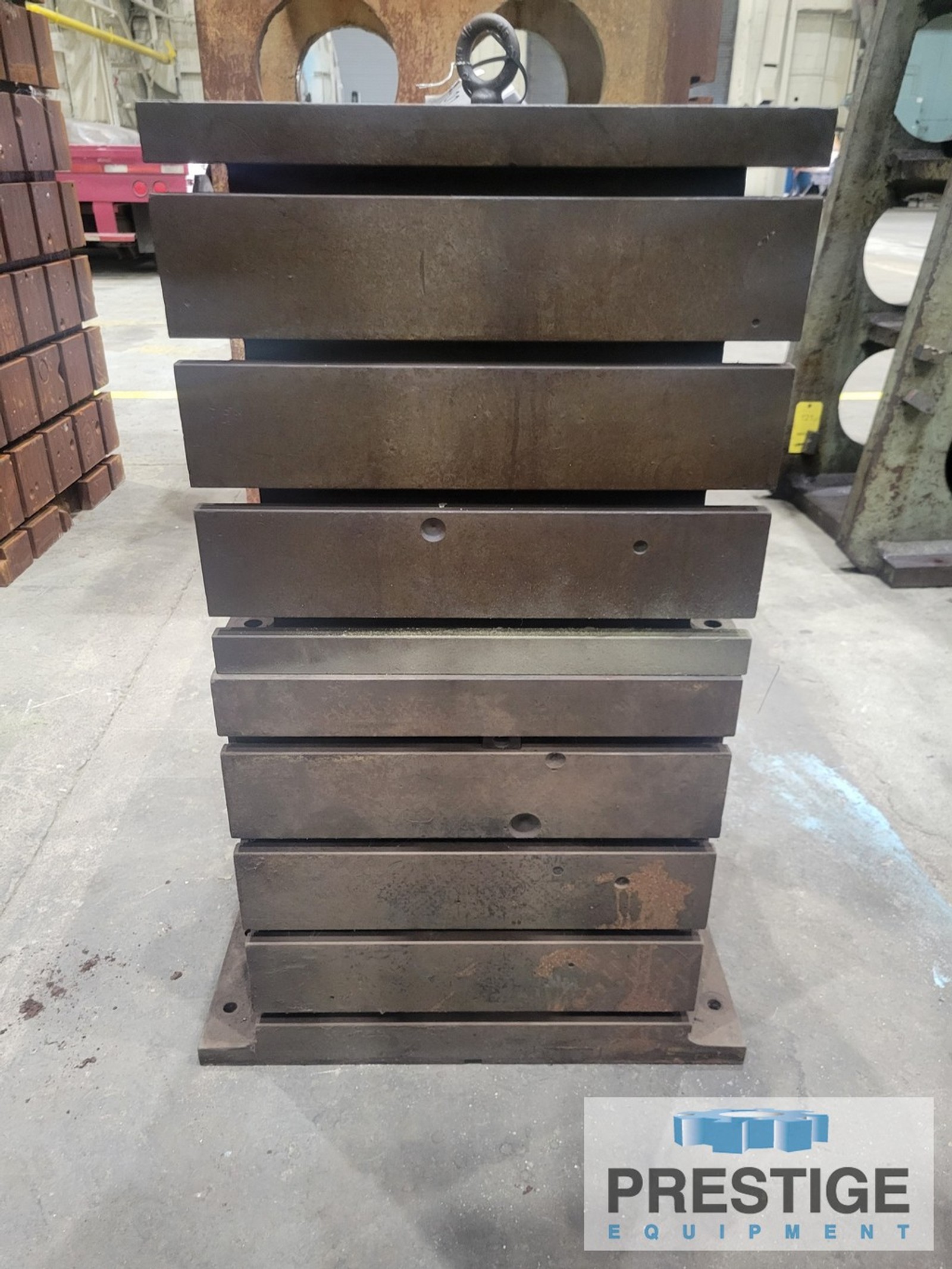

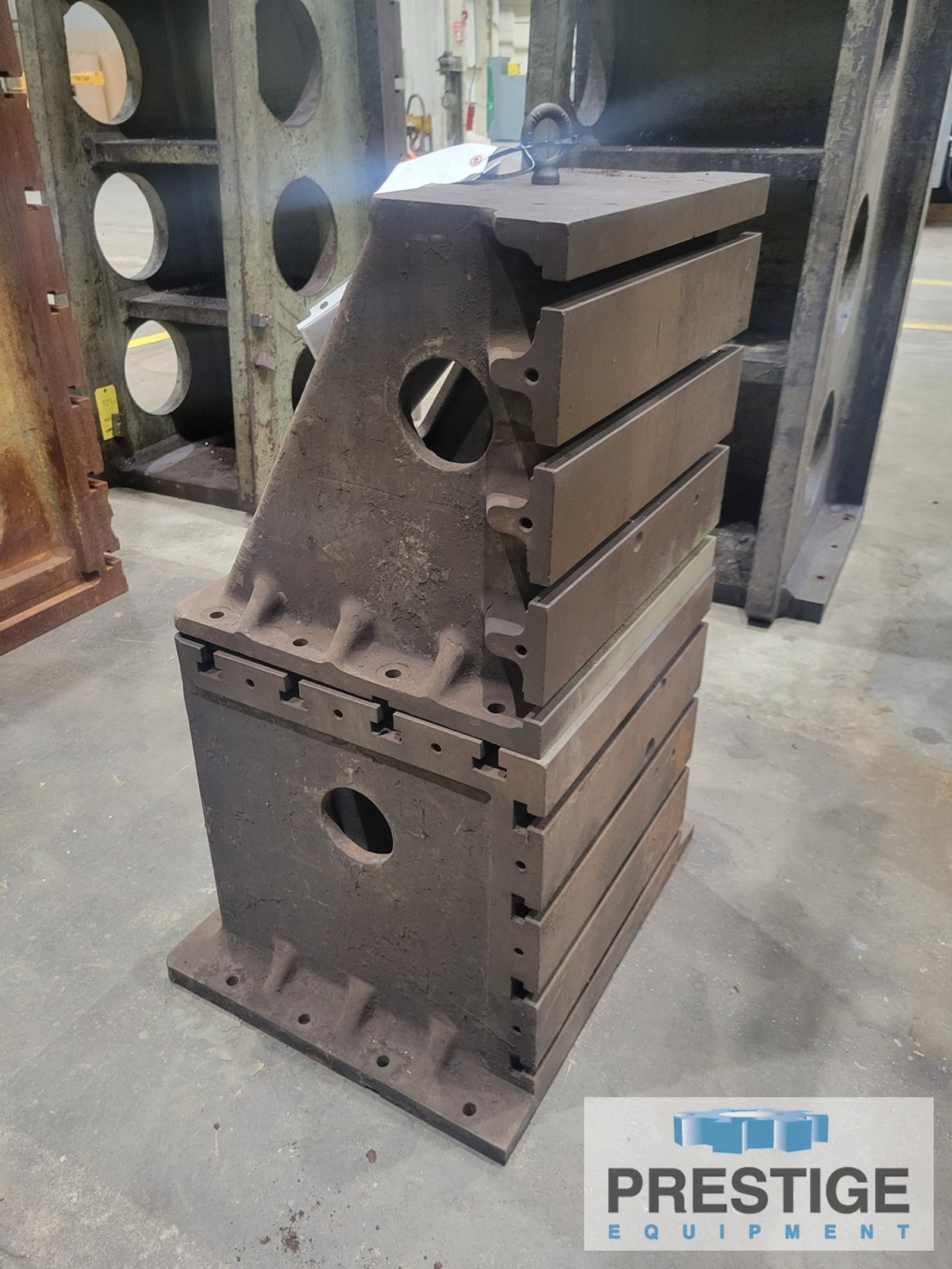

(2) 40" H x 20.5" W x 22" D, Devlieg Stackable Angle Plate, T-Slotted 2 Piece Stackable

FEATURES:
T-Slotted
Stackable
2-Piece Design
Cast Iron Construction

SPECIFICATION:

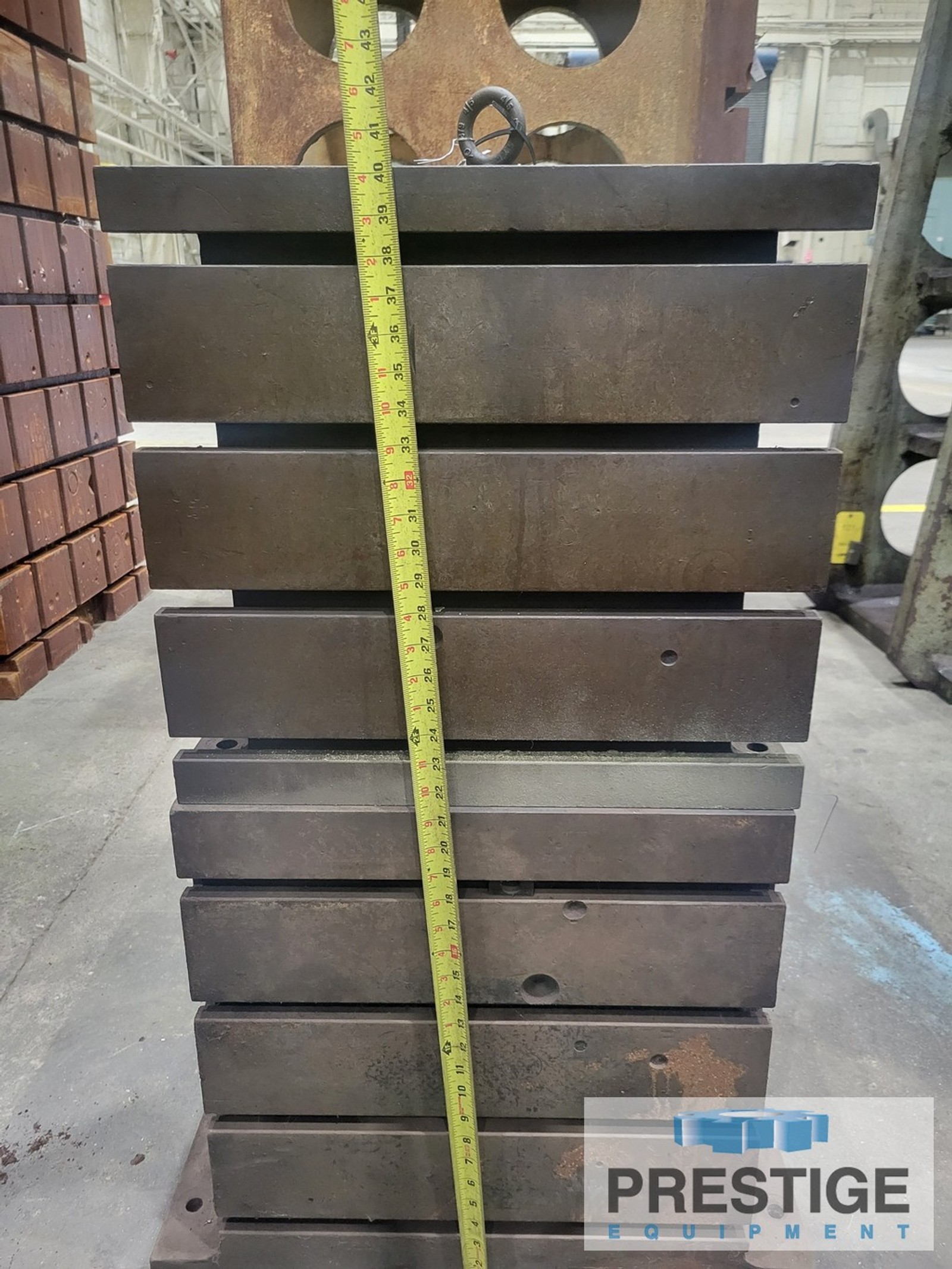

Total Height .......................... 40"

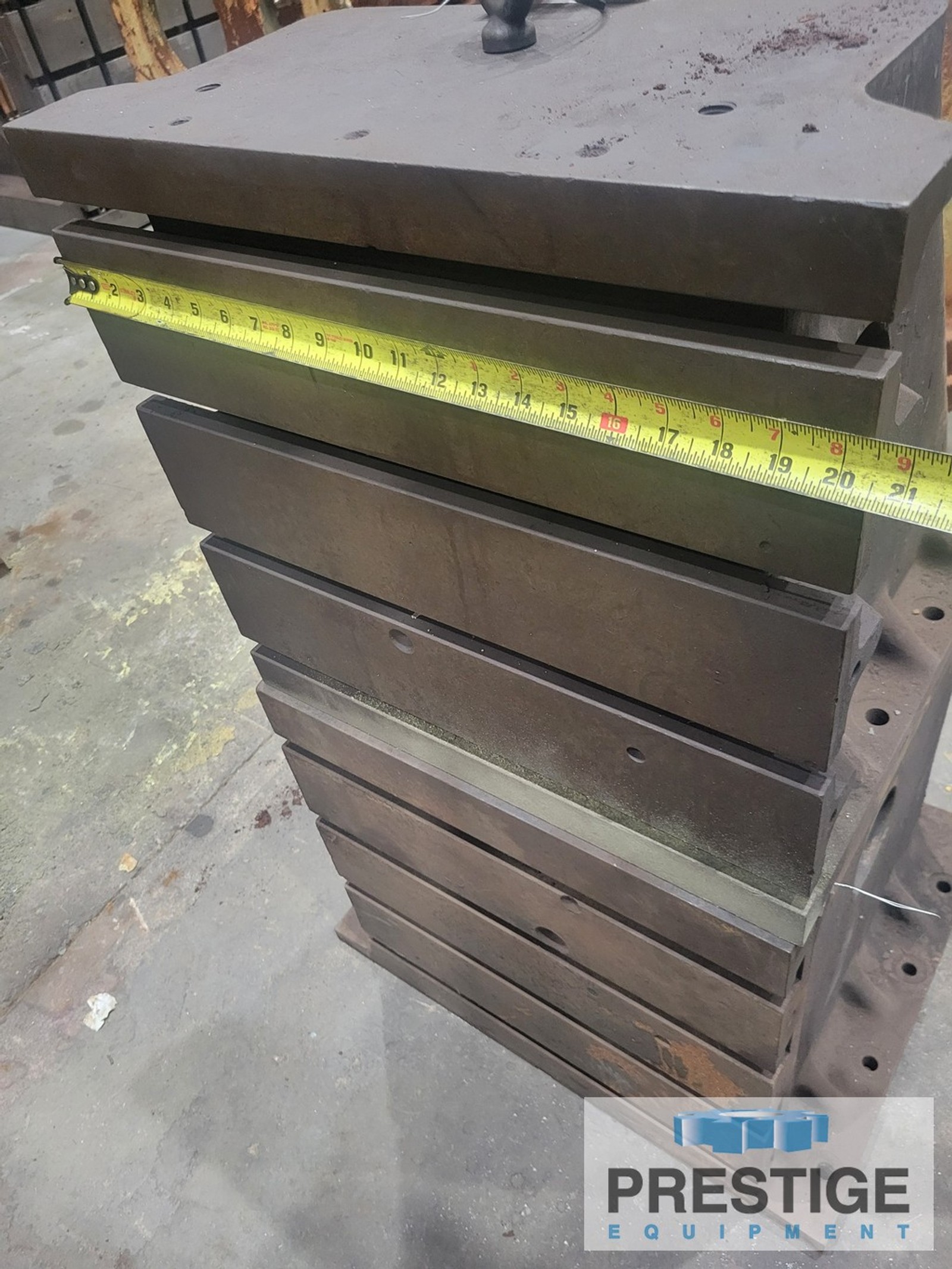

Width Face............................. 20.5"
Width Base............................. 26"
Depth Face............................. 20"

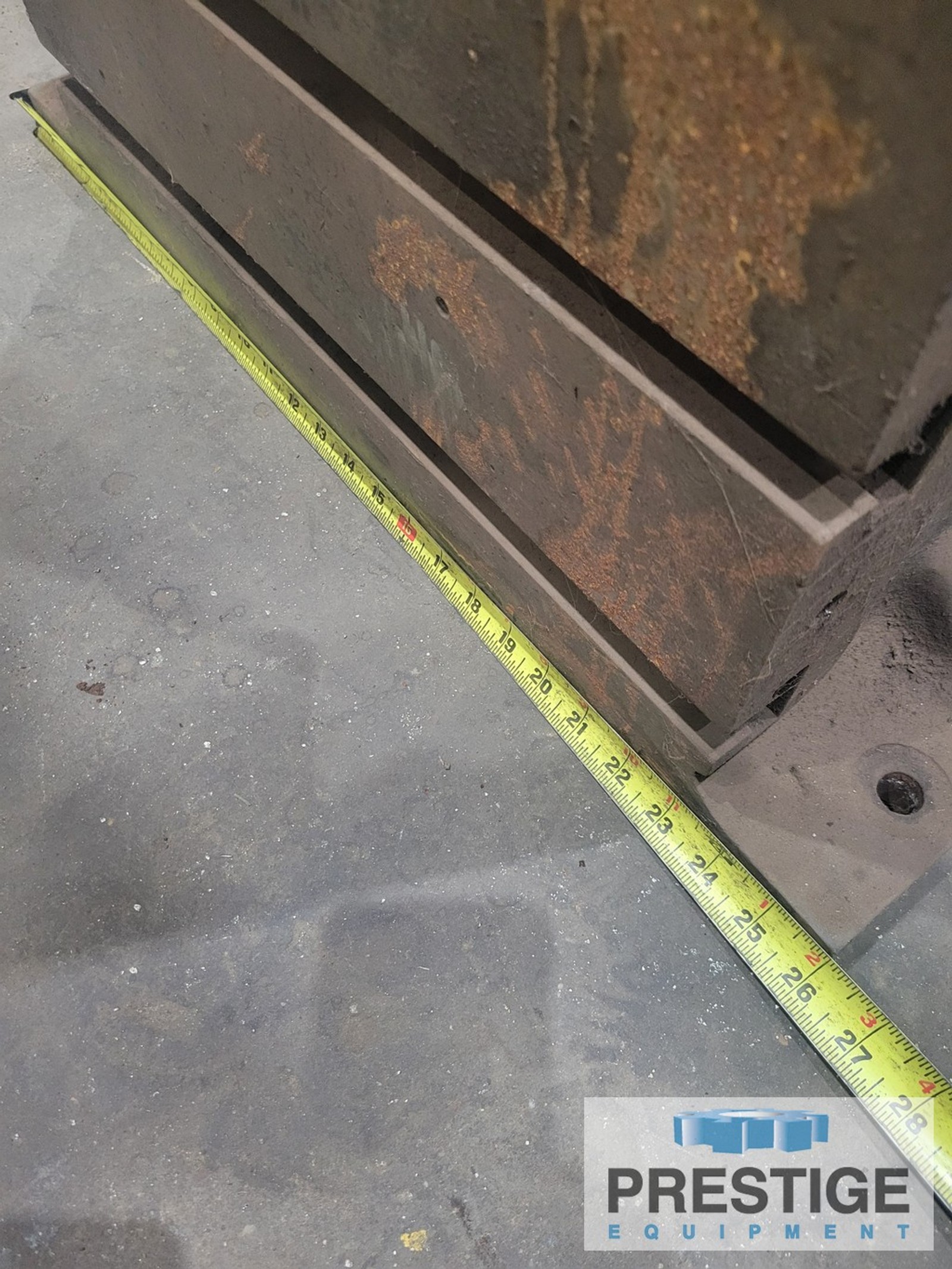

Depth Base............................. 22"
Number of T-Slots ..................... 8
T-Slot Center Distance ................ 5"
T-Slot Dimensions ..................... .75" x 1.5" x 1.25"
Top Plate Height ...................... 19"
Bottom Plate Height ................... 21"
Approximate Weight .................... 1000 Lbs Each
Overall Dimensions..................... 40"H x 26"W x 22"D

EQUIPPED WITH:
T-Slotted
Stackable
2-Piece Design
Cast Iron Construction

NOTE:
Inspect In Our Philadelphia PA warehouse
