Rafamet KCF 200 80" Table Dia., 96" Swing, 65" U/R, (2) Swivelling Rams, 45 HP, Full Pendant Controls, #43351

Manufacturer

Rafamet

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

43351

Model

KCF 200

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43351

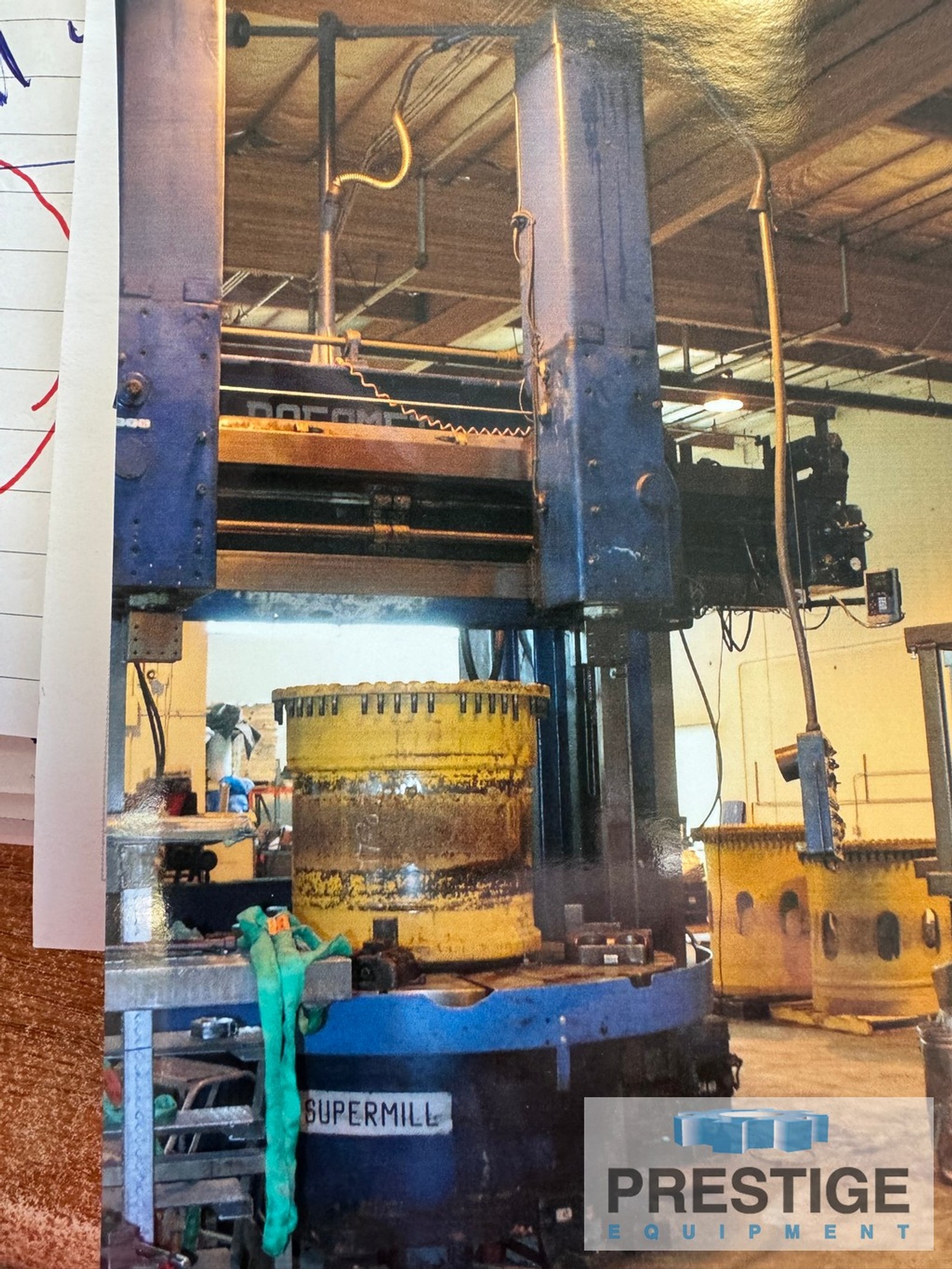

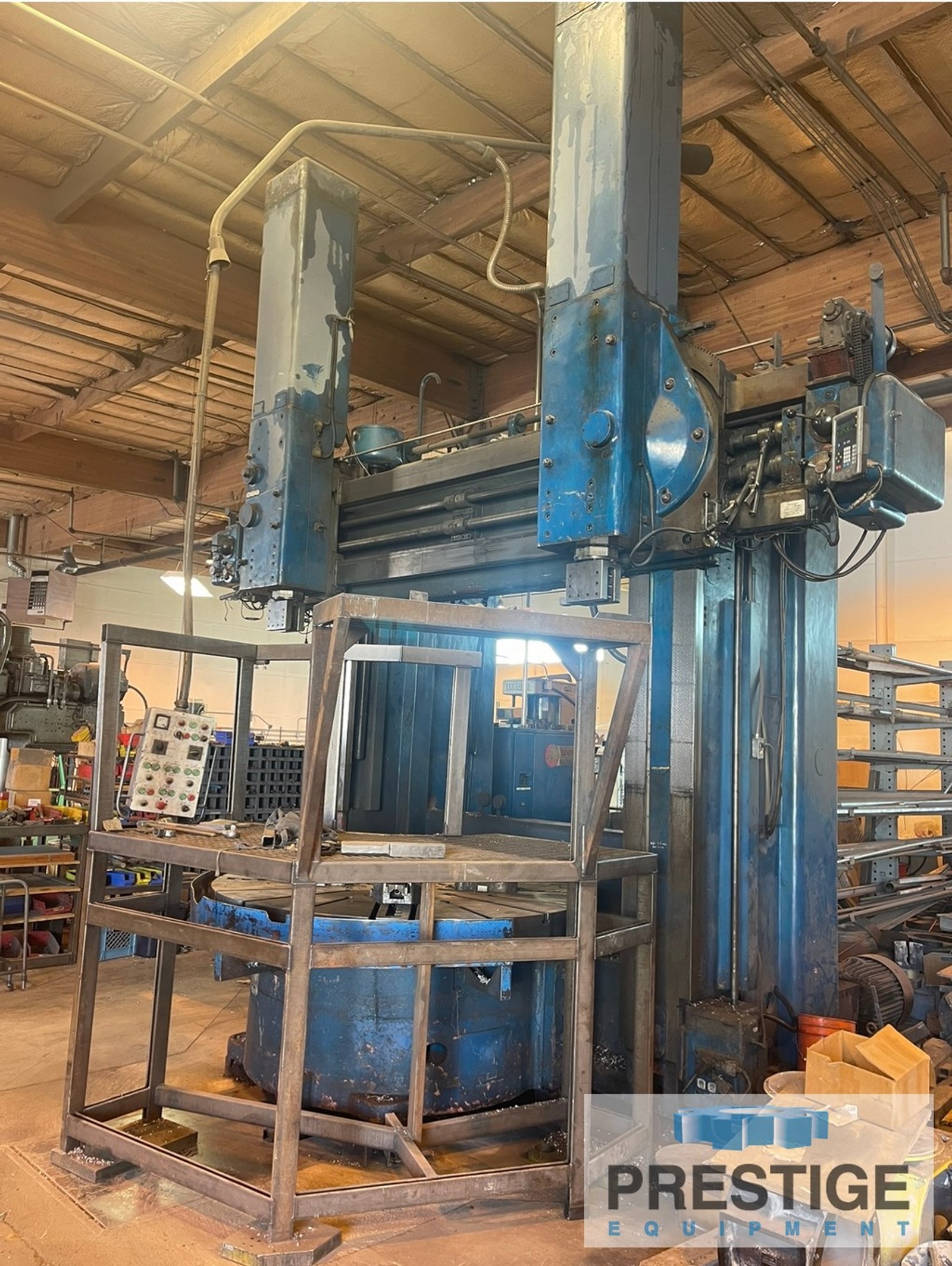

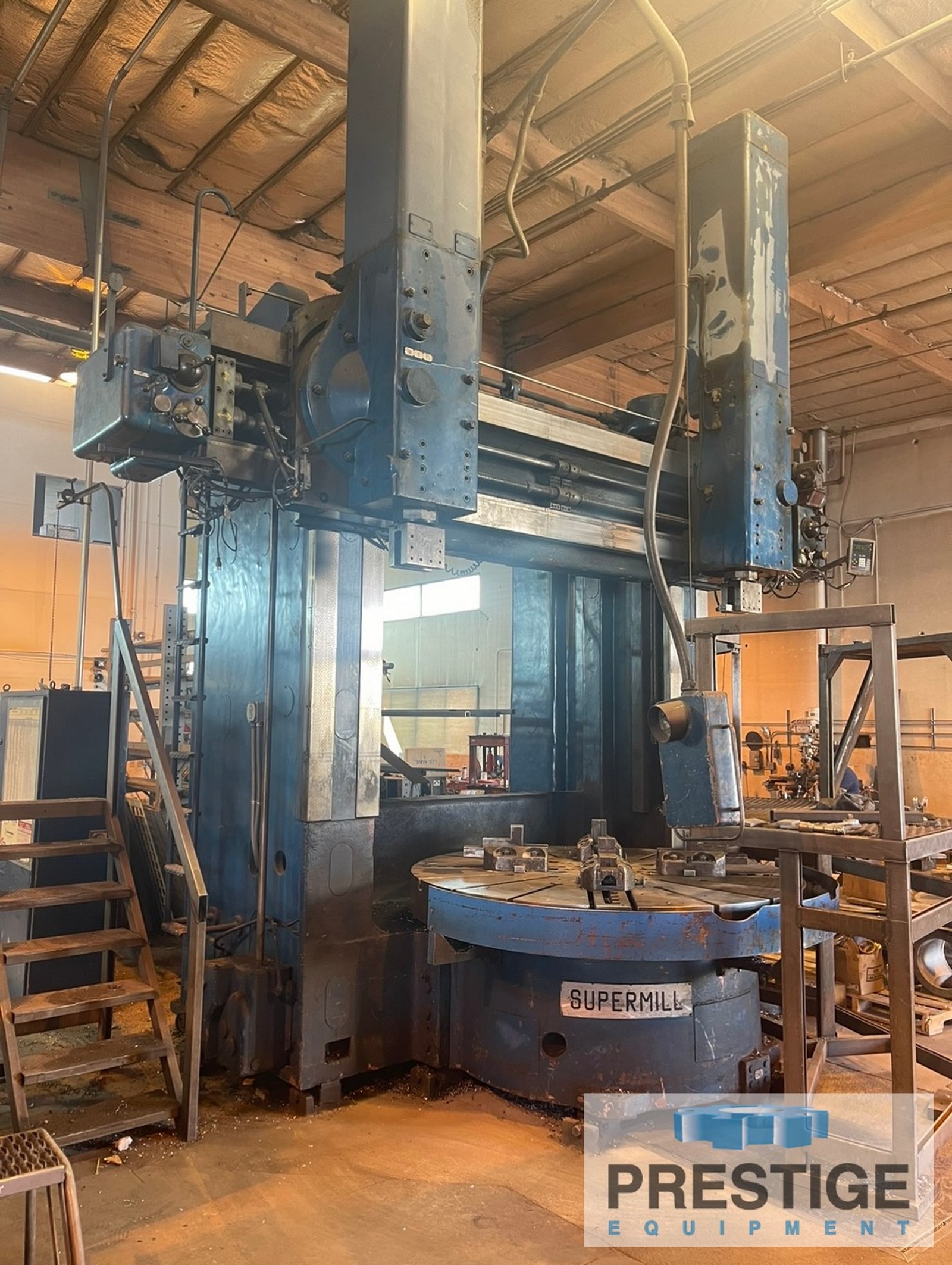

Rafamet KCF 200 78" Vertical Boring Mill

FEATURES:
Full Pendant Controls
80" 4-Jaw Chuck with Jaws
2-Swivelling Vertical Rams
Digital Readouts for Each Ram

CAPACITY:
Table Diameter ....................... 80"
Max Swing............................. 96"
Height Under Rail .................... 65"
Vertical Ram Stroke .................. 51"
Ram Swivel (+/-) ..................... 30 Degrees
Max. Table Load Capacity ............. 22,000
Table Speeds (18) .................... 2-100 RPM

EQUIPPED WITH:
Full Pendant Controls
80" 4-Jaw Chuck with Jaws
2-Swivelling Vertical Rams
Digital Readouts for Each Ram
45 HP Table Motor 220/480 (Currenlty wired for 480)

NOTE:
Inspect In Plant Under Power
