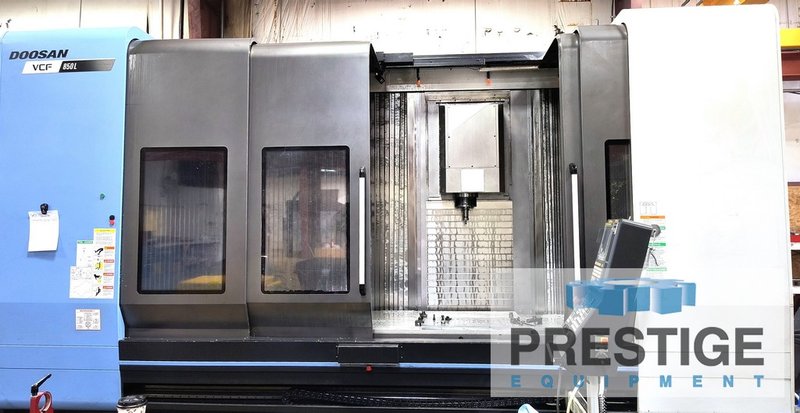

Doosan VFC850LII , Fanuc i Series CNC, X-118" , Y-33", Z-31", 40 ATC, 12K RPM, CAT 40, Chip Conv, 2015 #43218

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43218

Model

VCF 850 LII

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43218

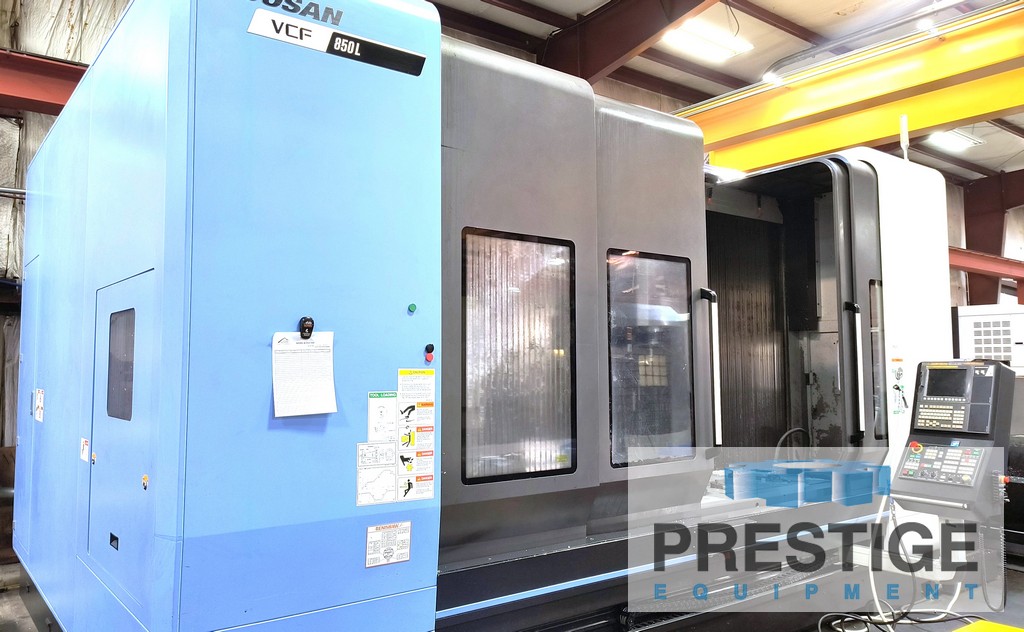

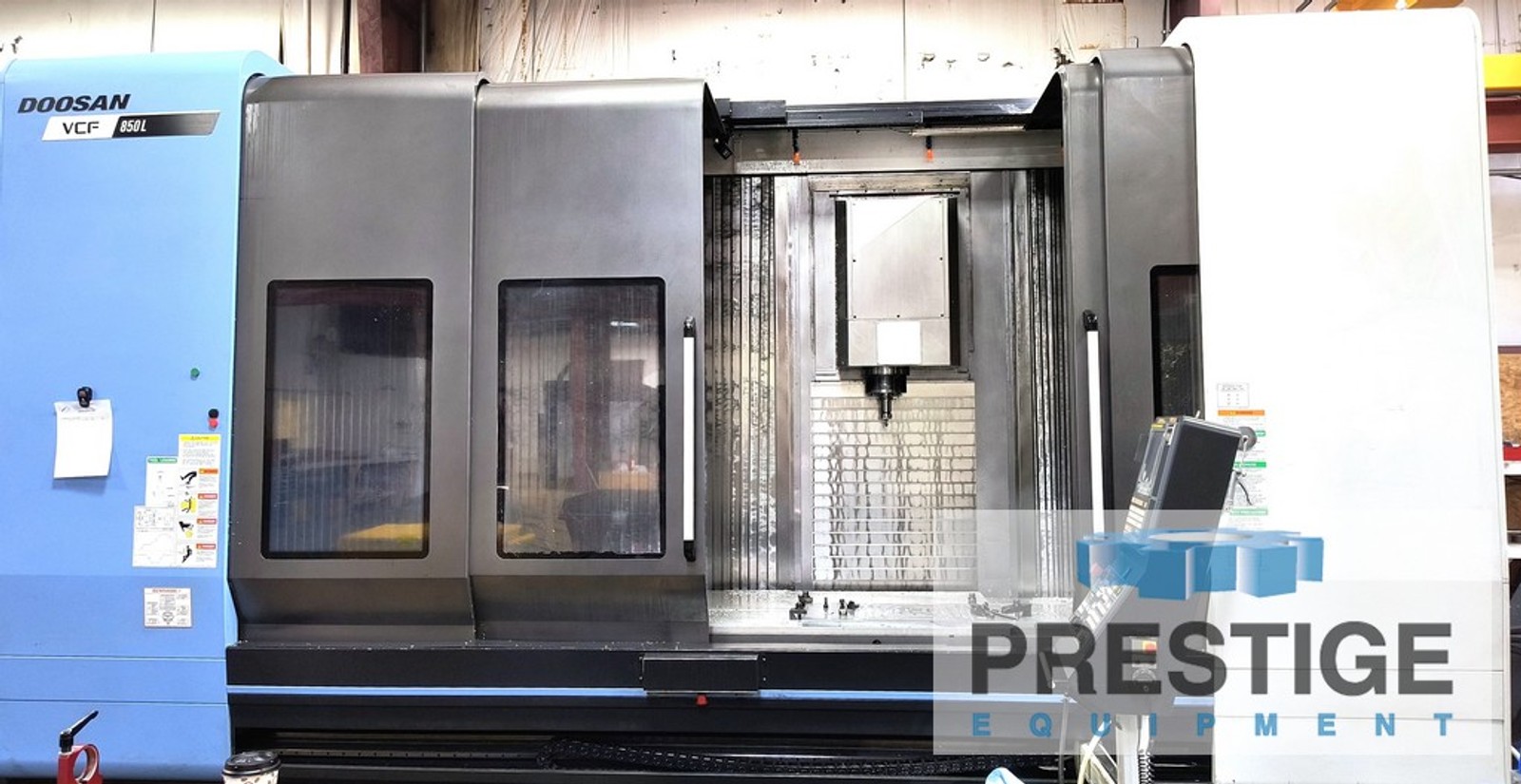

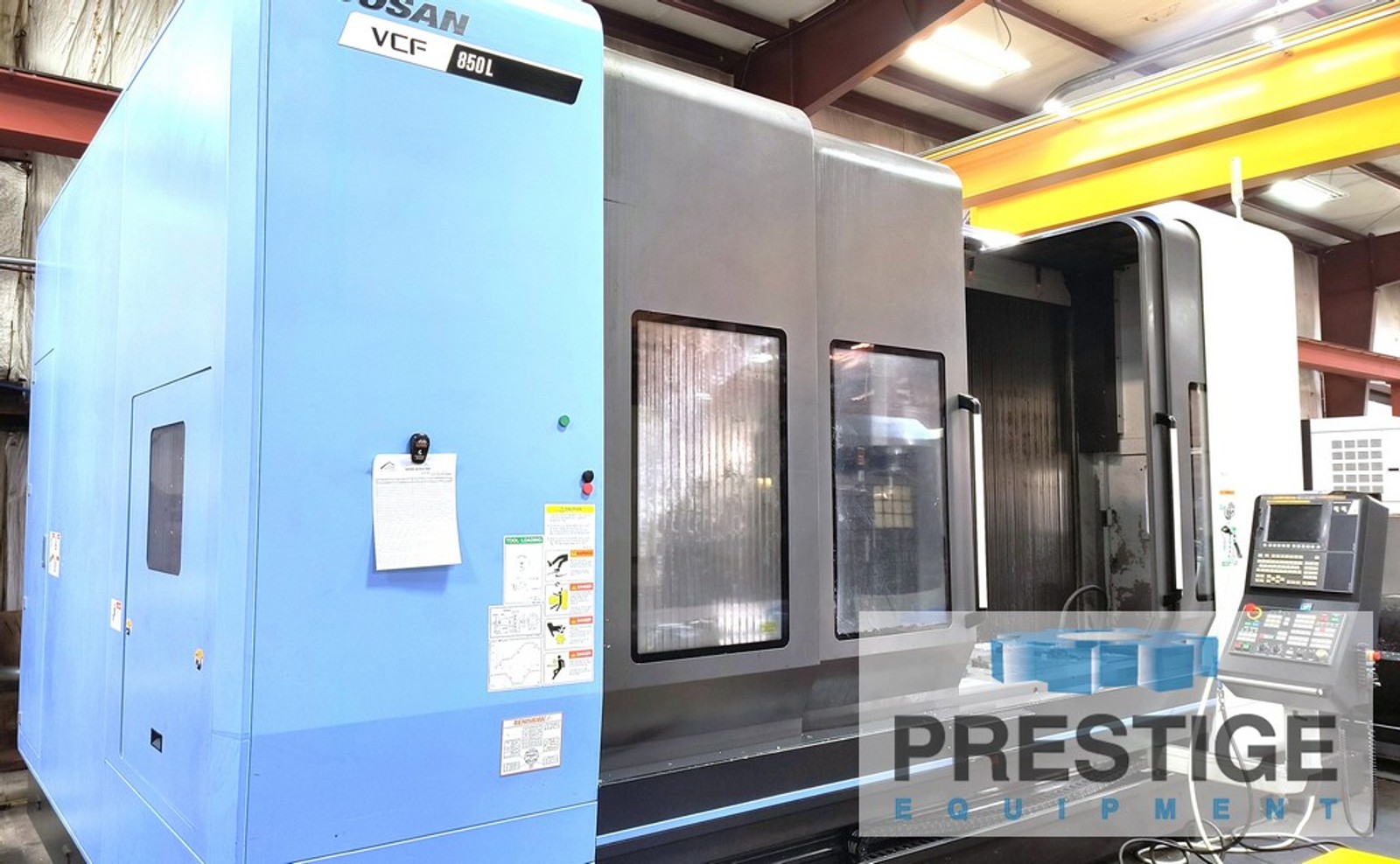

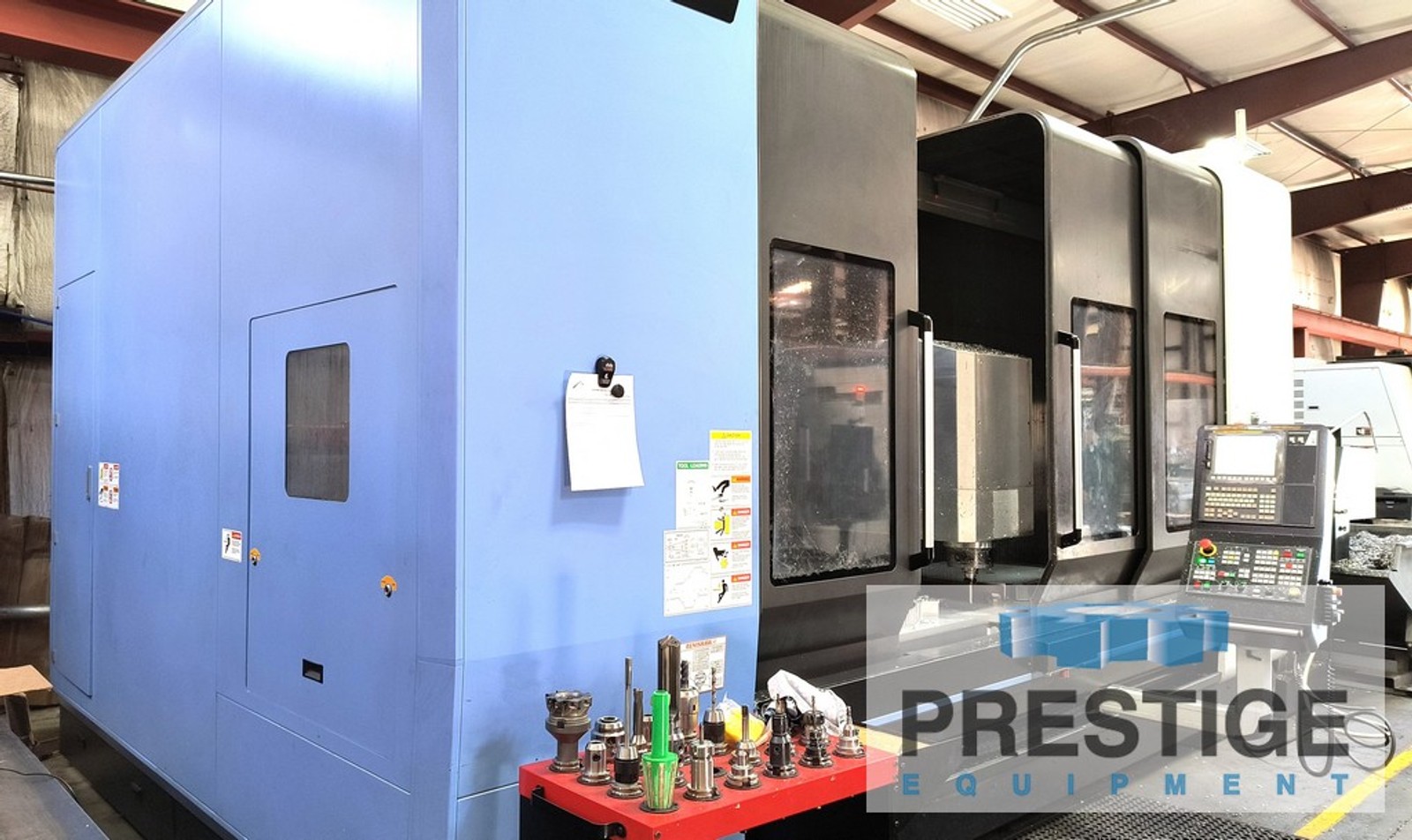

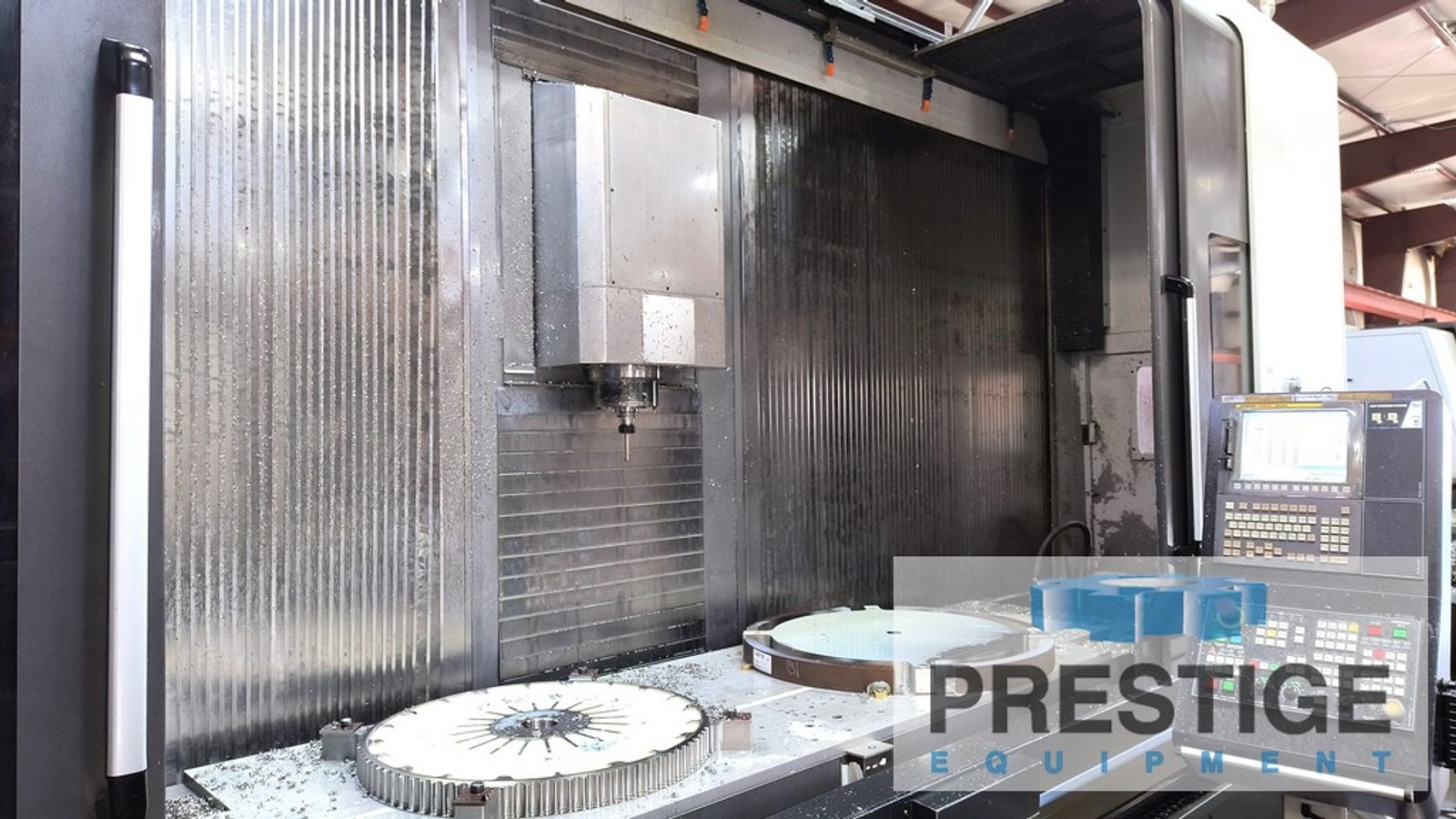

Doosan VCF 850 LII CNC Vertical Machining Center

FEATURES:

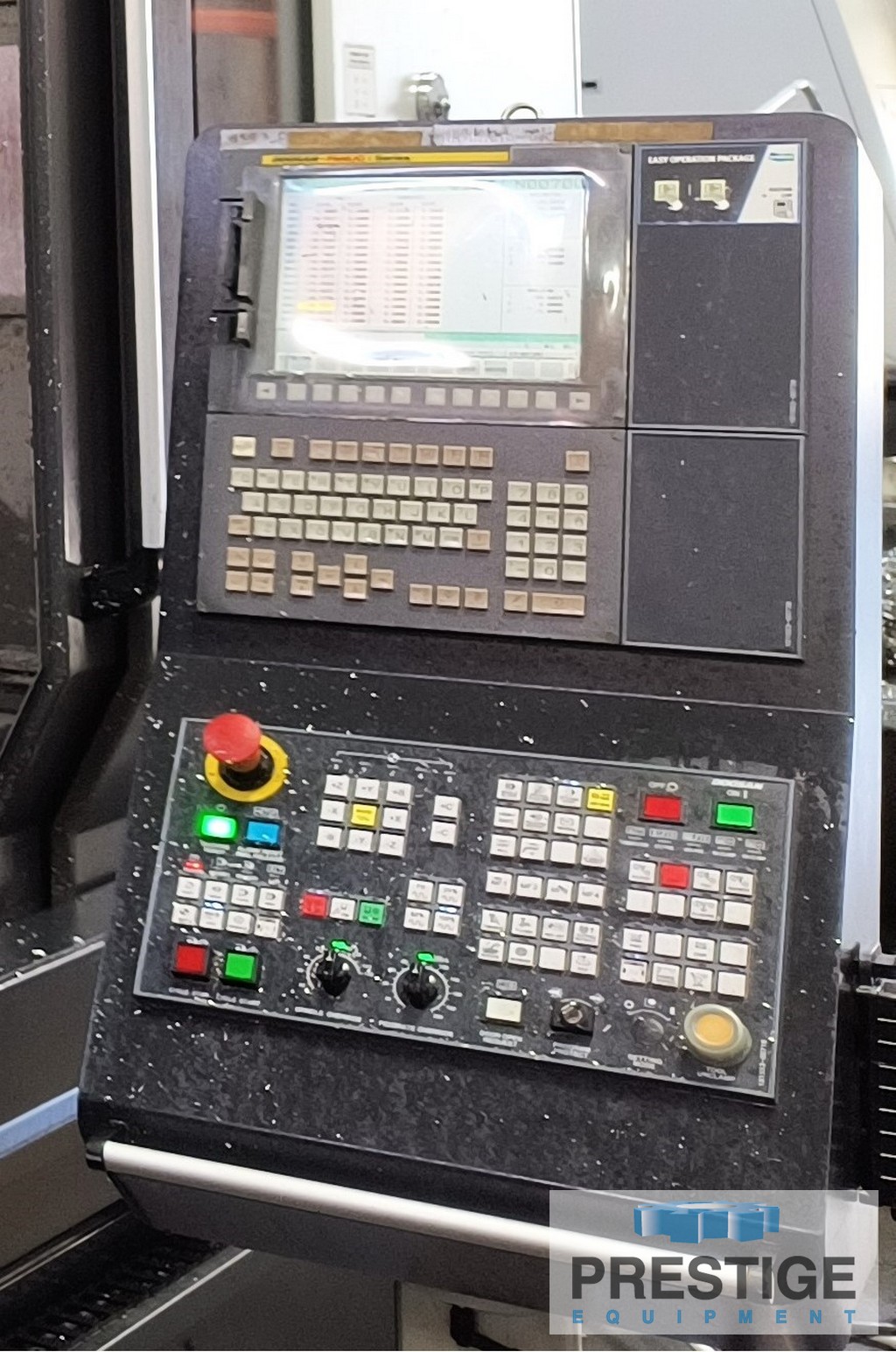

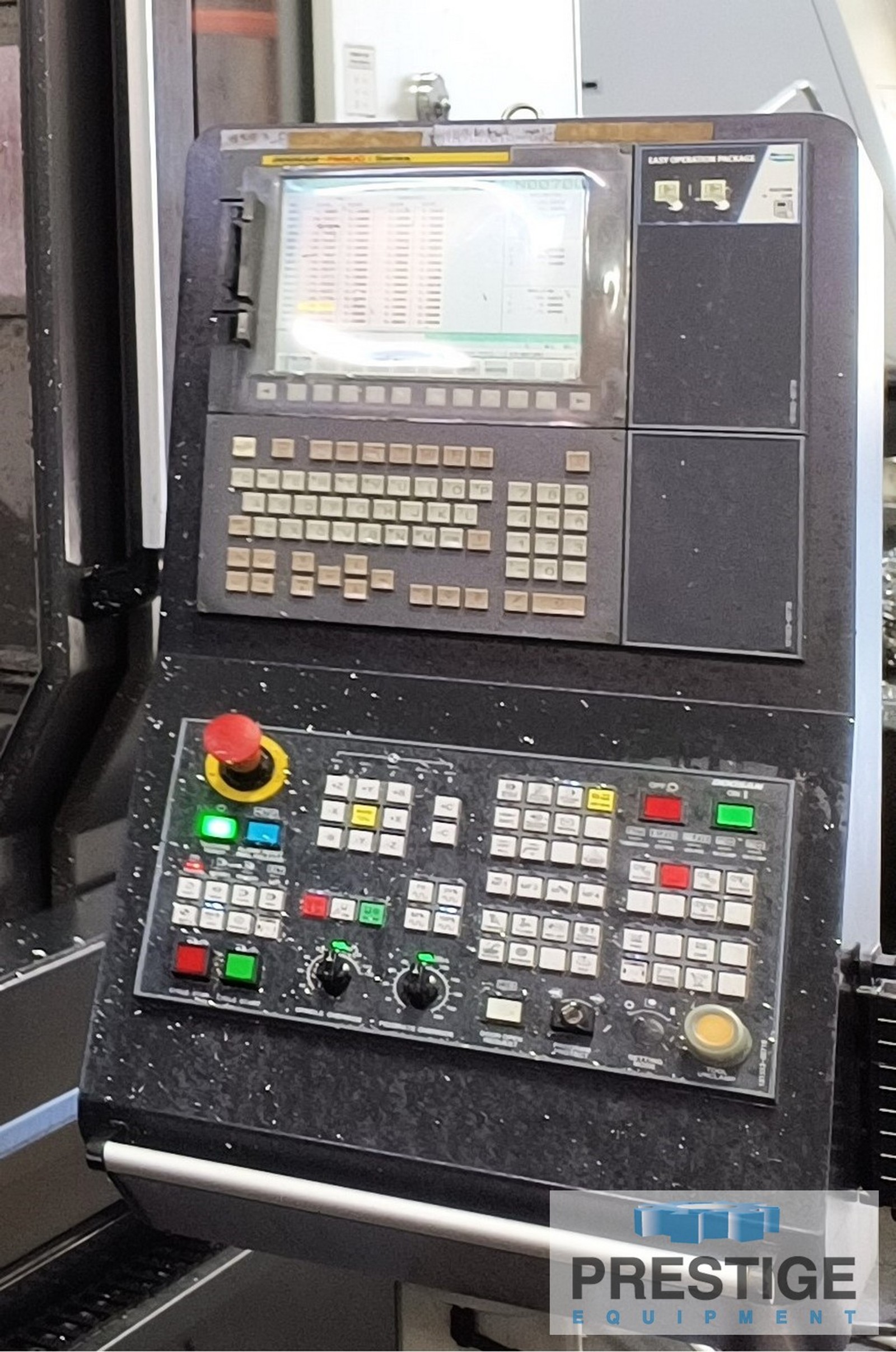

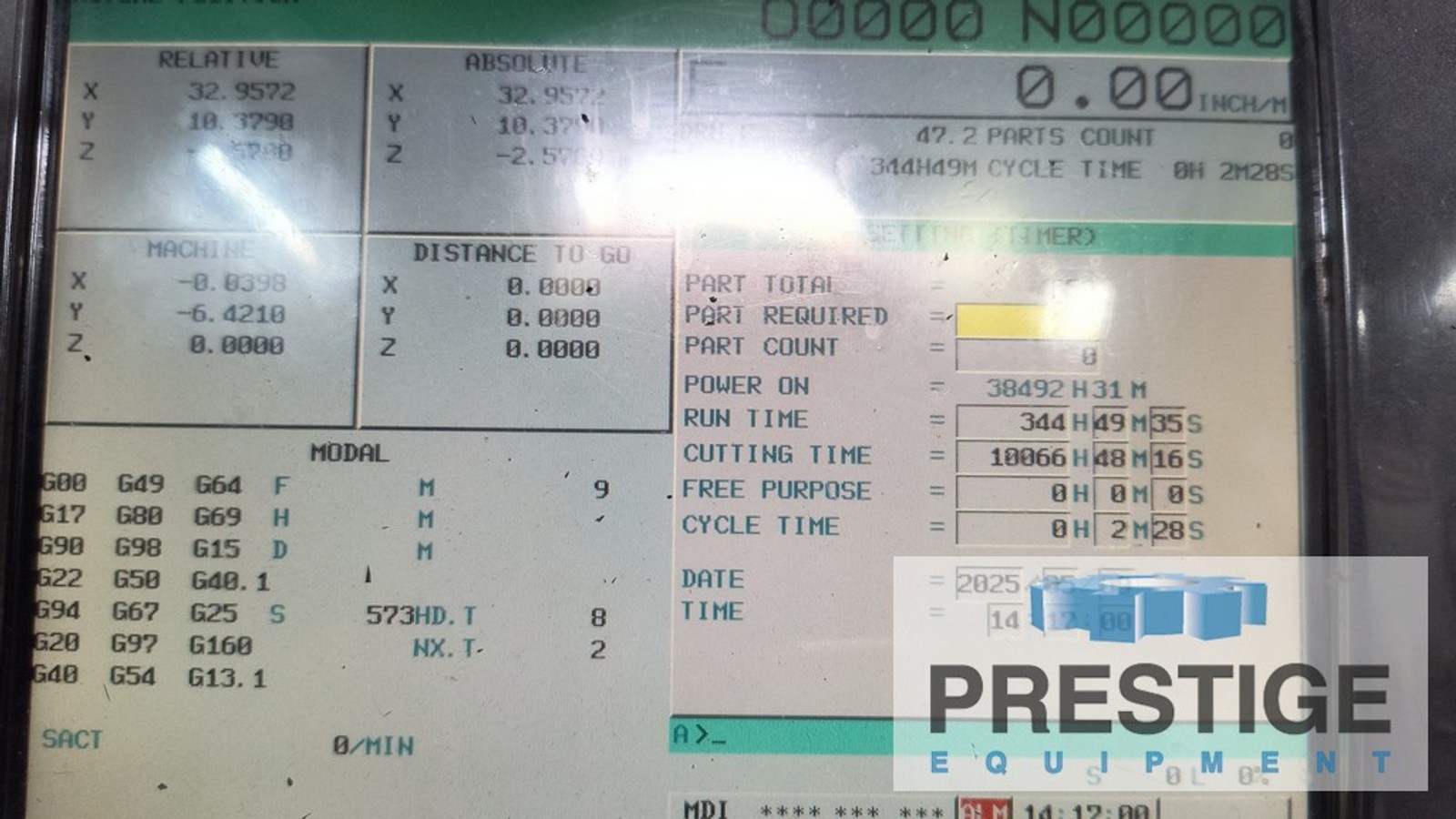

Fanuc i Series CNC Control
CAT 40, 12,000 RPM Spindle
60-ATC Automatic Tool Changer

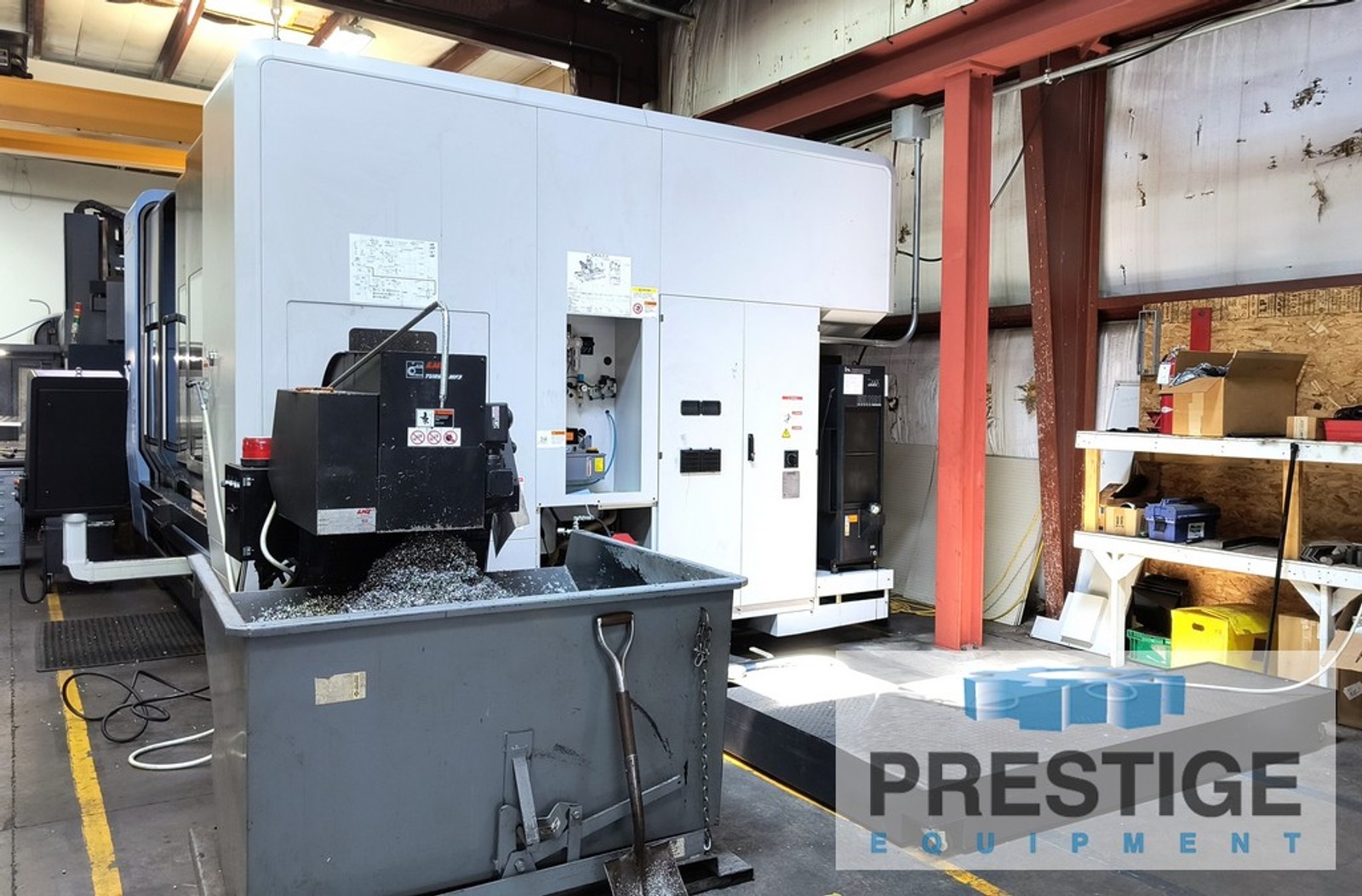

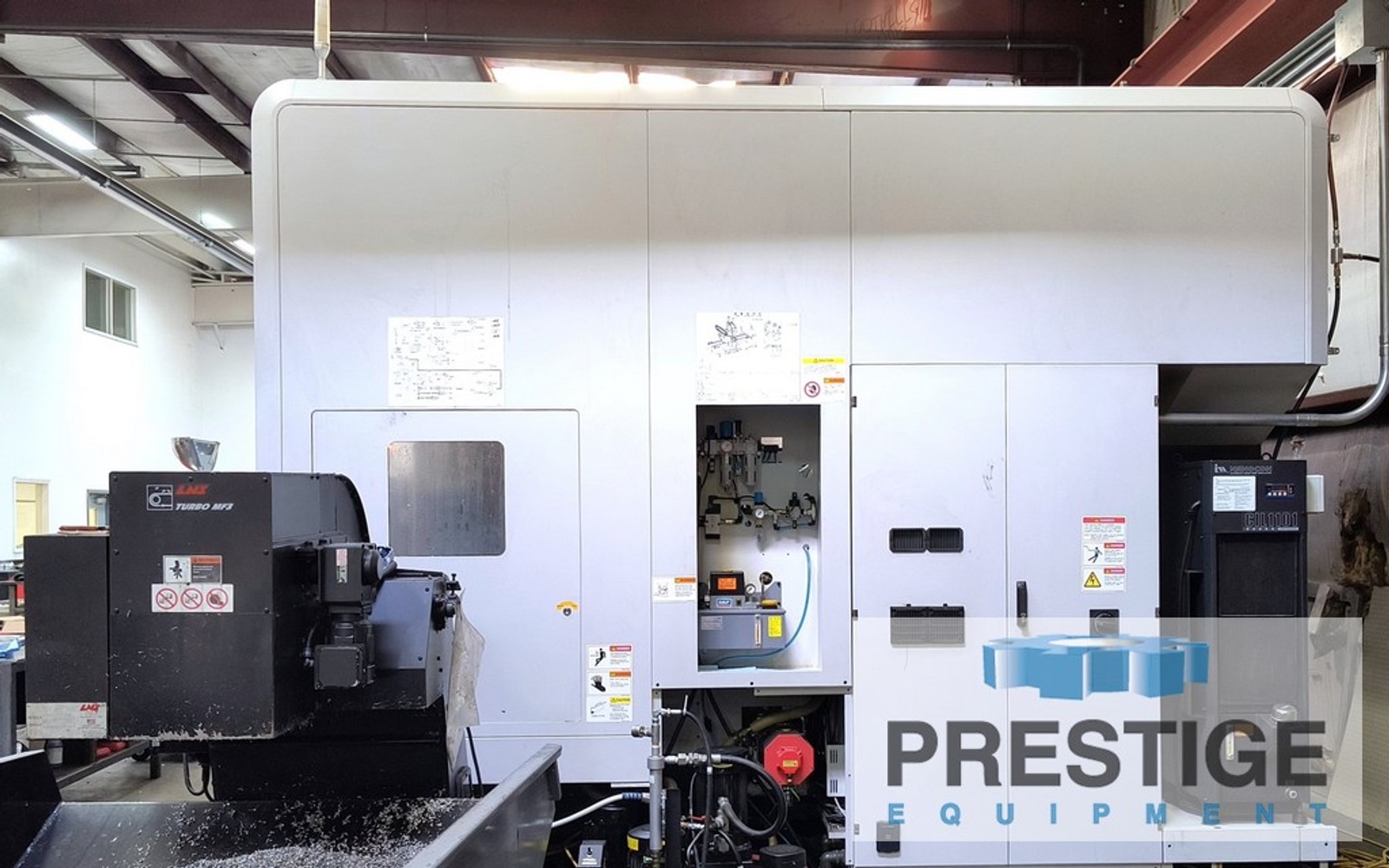

Chip Conveyor
Coolant System
Full Enclosure

CAPACITY:
X-Axis Travel ......................... 118"
Y-Axis Travel ......................... 33.5"
Z-Axis Travel ......................... 31.5"
Table Size ............................ 137.8" x 34.2"
Table Weight Capacity ................. 7,716 Lbs
Spindle Nose to Table Top ............. 3.9" - 35.4"
Spindle Taper ......................... CAT 40
Spindle Speed ......................... 12,000 RPM
Spindle Motor ......................... 30 HP
Tool Changer .......................... 60 ATC
Rapid Traverse,(X/Y/Z) ................ 1575 IPM
Cutting Feed Rate ..................... 787.4 IPM
Approx. Machine Dimensions ............ 149" x 174"
Approx. Machine Height ................ 126.2"
Approx. Machine Weight ................ 53,000 Lbs

EQUIPPED WITH:
Fanuc i Series CNC Control
12,000 RPM Spindle

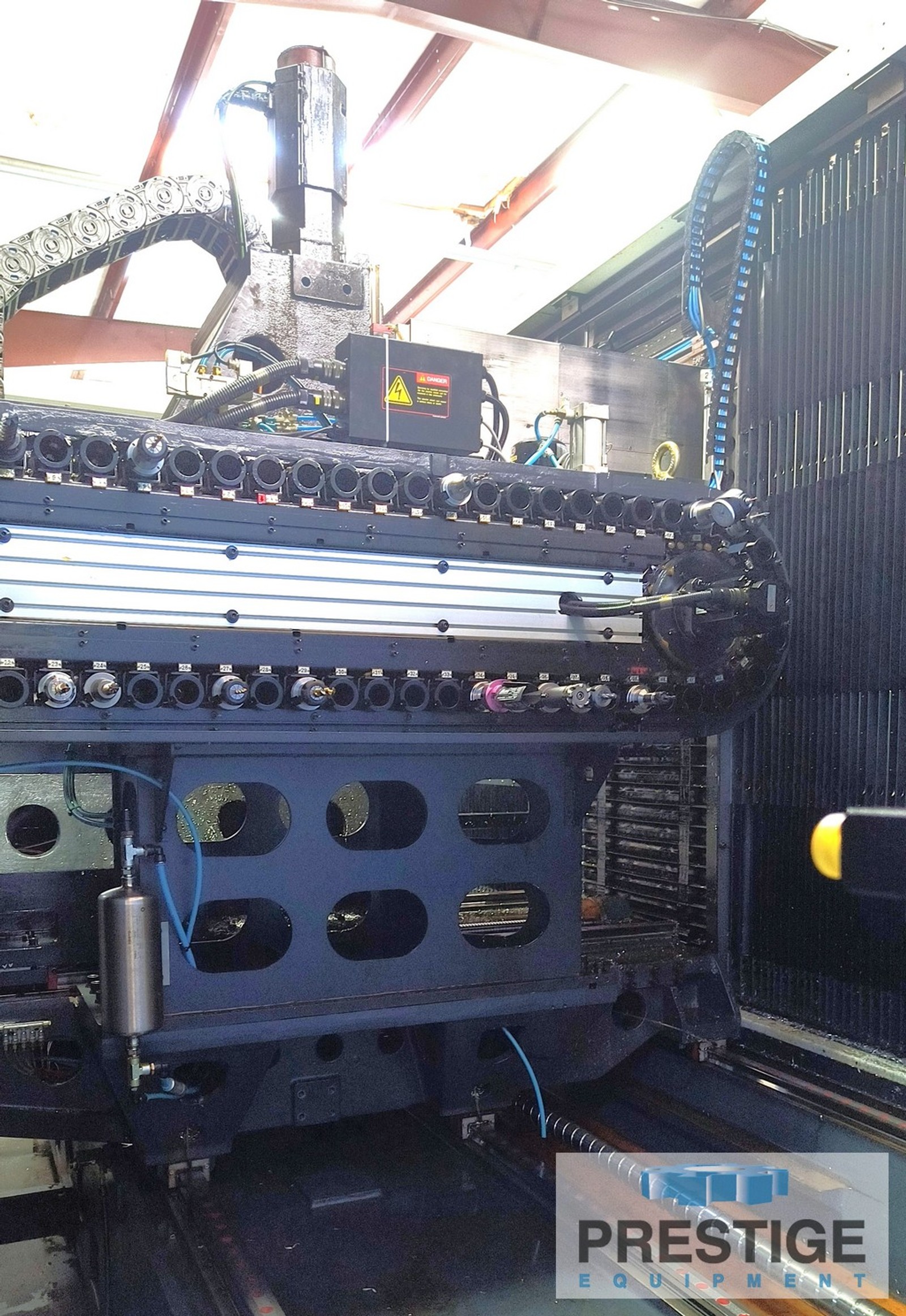

60-ATC Chain Type Automatic Tool Changer
Chip Conveyor
Coolant System
Coolant Tank
Full Enclosure

NOTE:
Inspect In Under Power In Plant
