157" O-M TMD44/55, 216" Swing, 145" U.R, 160,000Lb. Tbl Cap. .23 - 60 RPM, 2- Ram, Fanuc 21i-T, 127 HP, #43349

Manufacturer

O-M

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43349

Model

TMD44/55

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43349

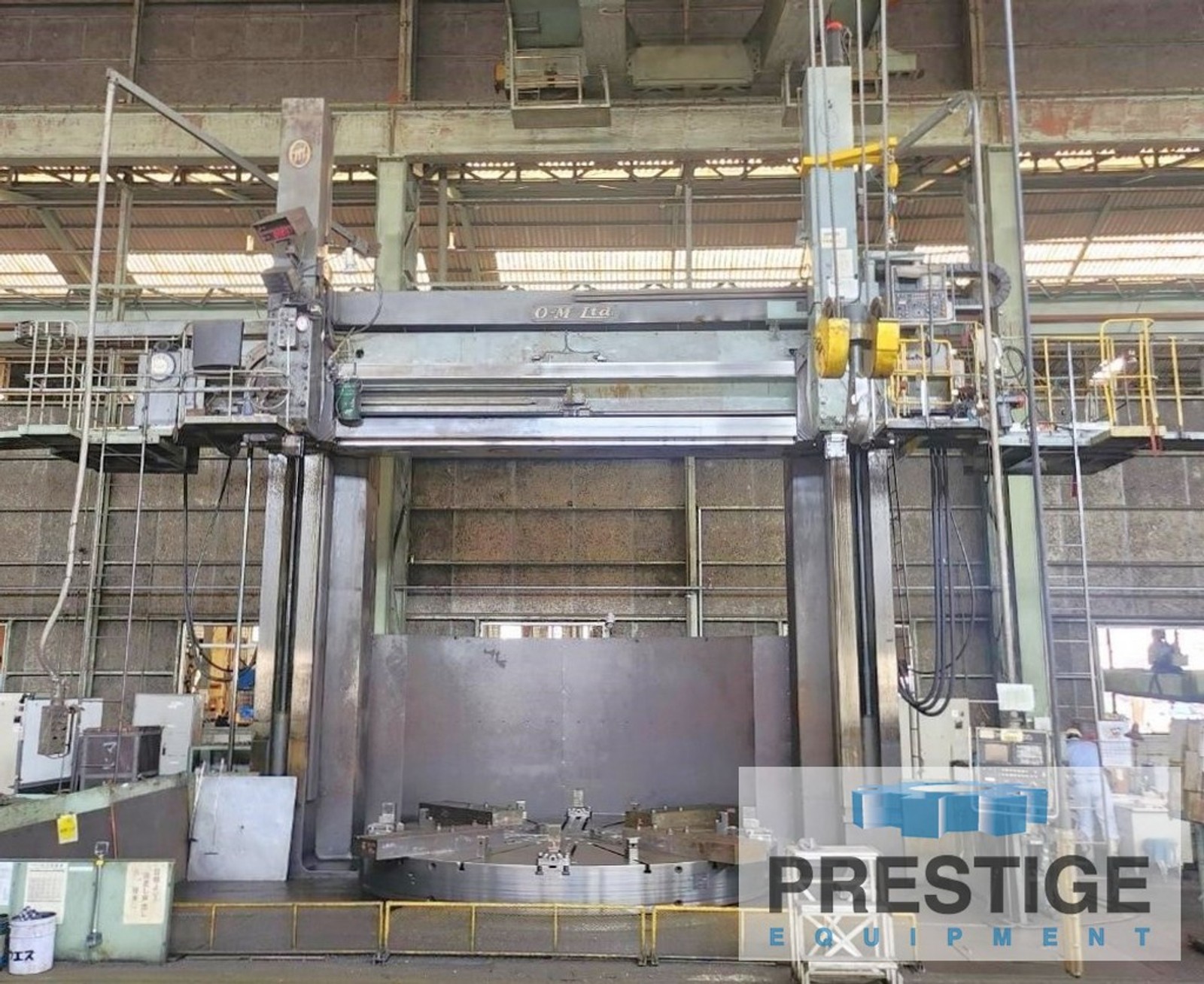

157" O-M LTD TMD44/55 CNC Vertical Boring Mill

FEATURES:

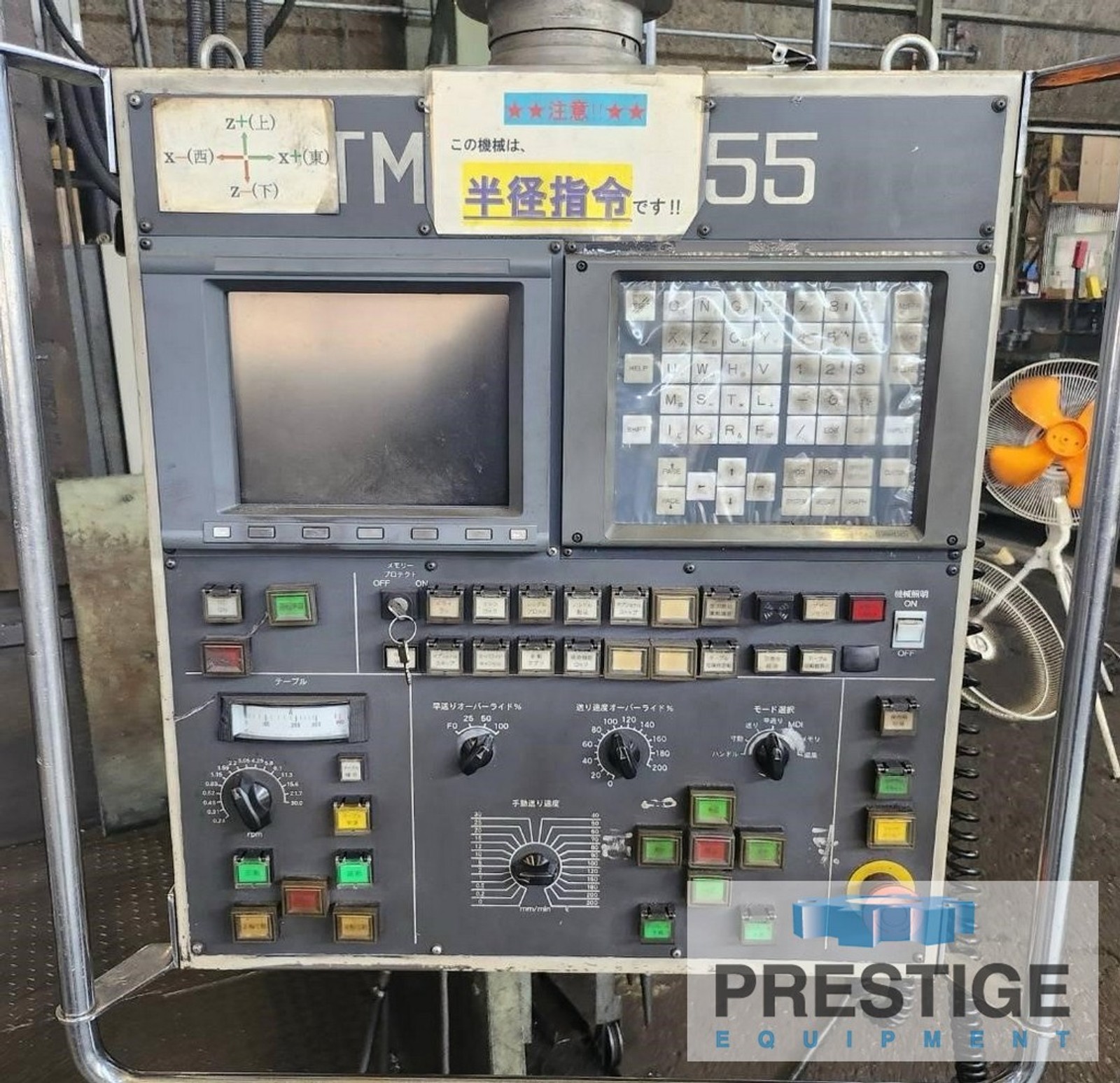

Fanuc 21i-T CNC Control (Retrofit 2002)
Elevating Cross Rail

SPECIFICATION:
Table Diameter ........................ 157.48"
Maximum Turning Diameter .............. 216.53"
Maximum Turning Height ................ 145.66"
Table Speed ........................... .23 - 60 RPM
Table Weight Capacity ................. 160,000 Lbs
Table Motor ........................... 127 HP

EQUIPPED WITH:
Fanuc 21i-T CNC Control (Retrofit 2002)
Elevating Cross Rail
127 HP Table Motor
