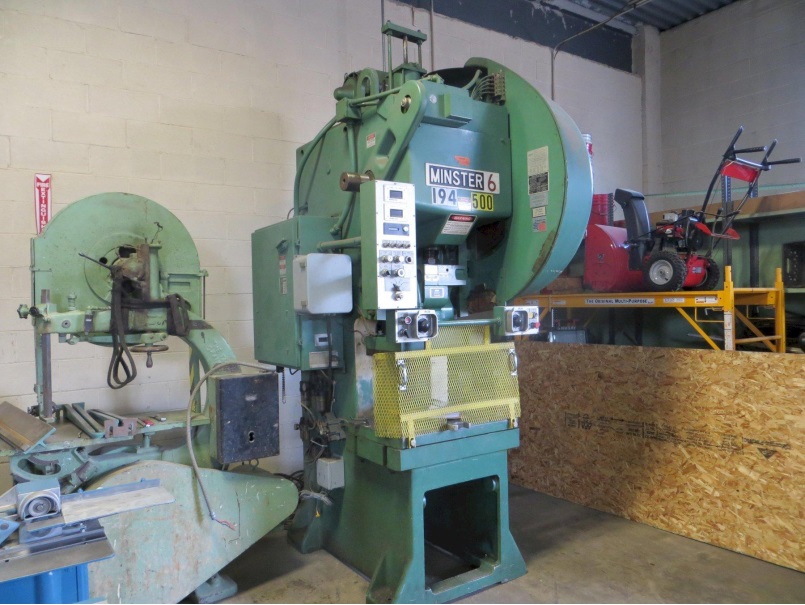

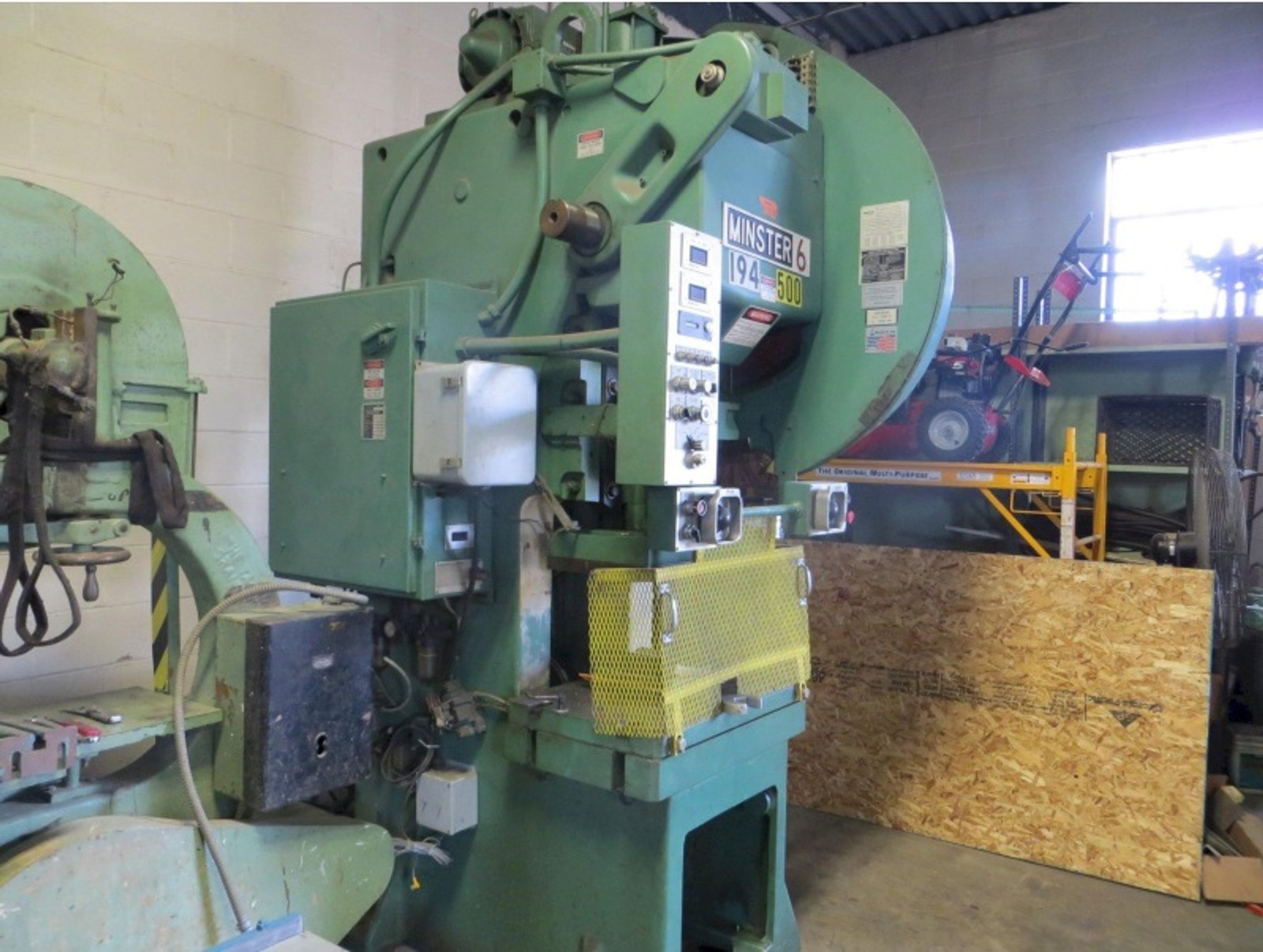

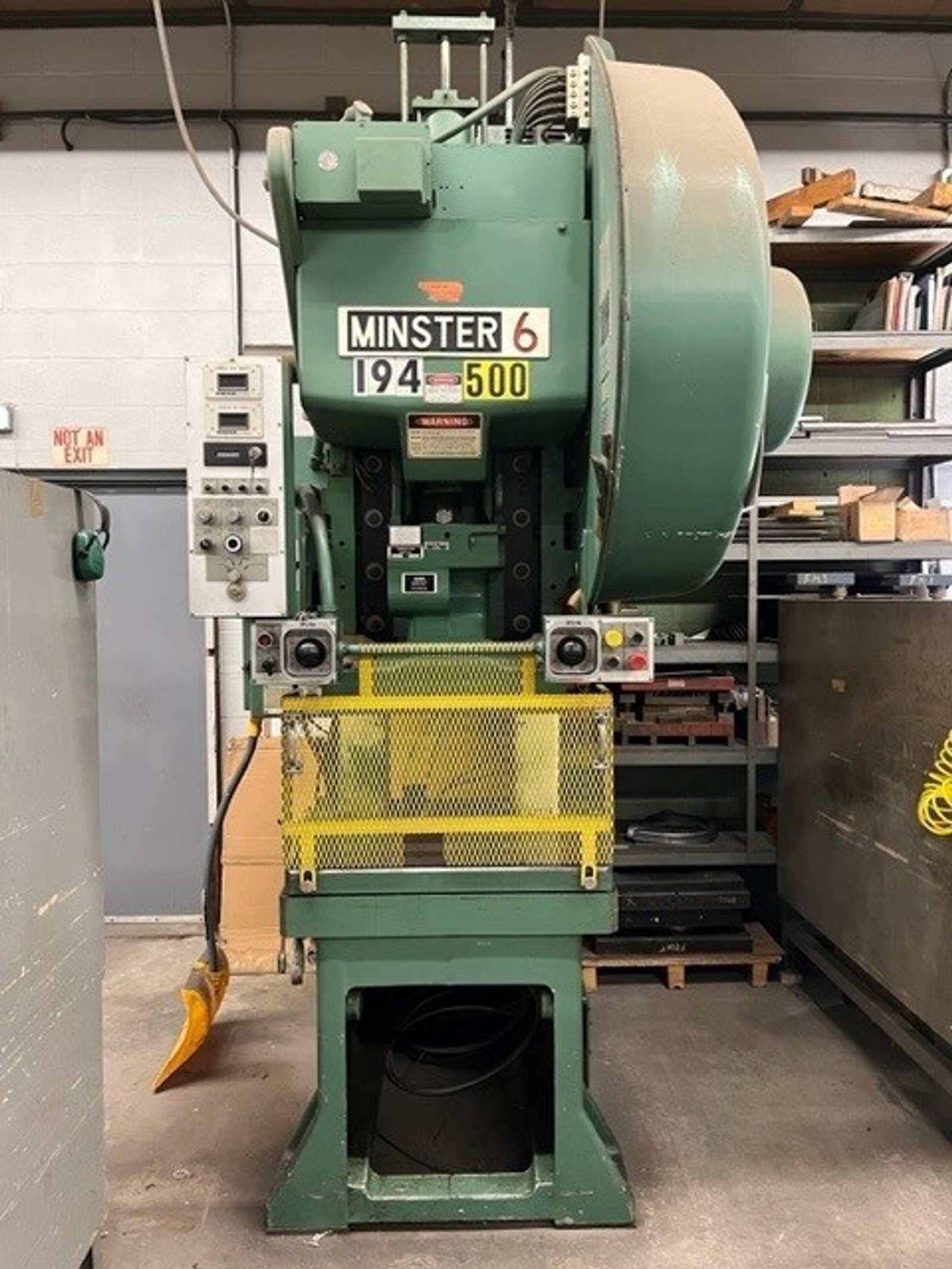

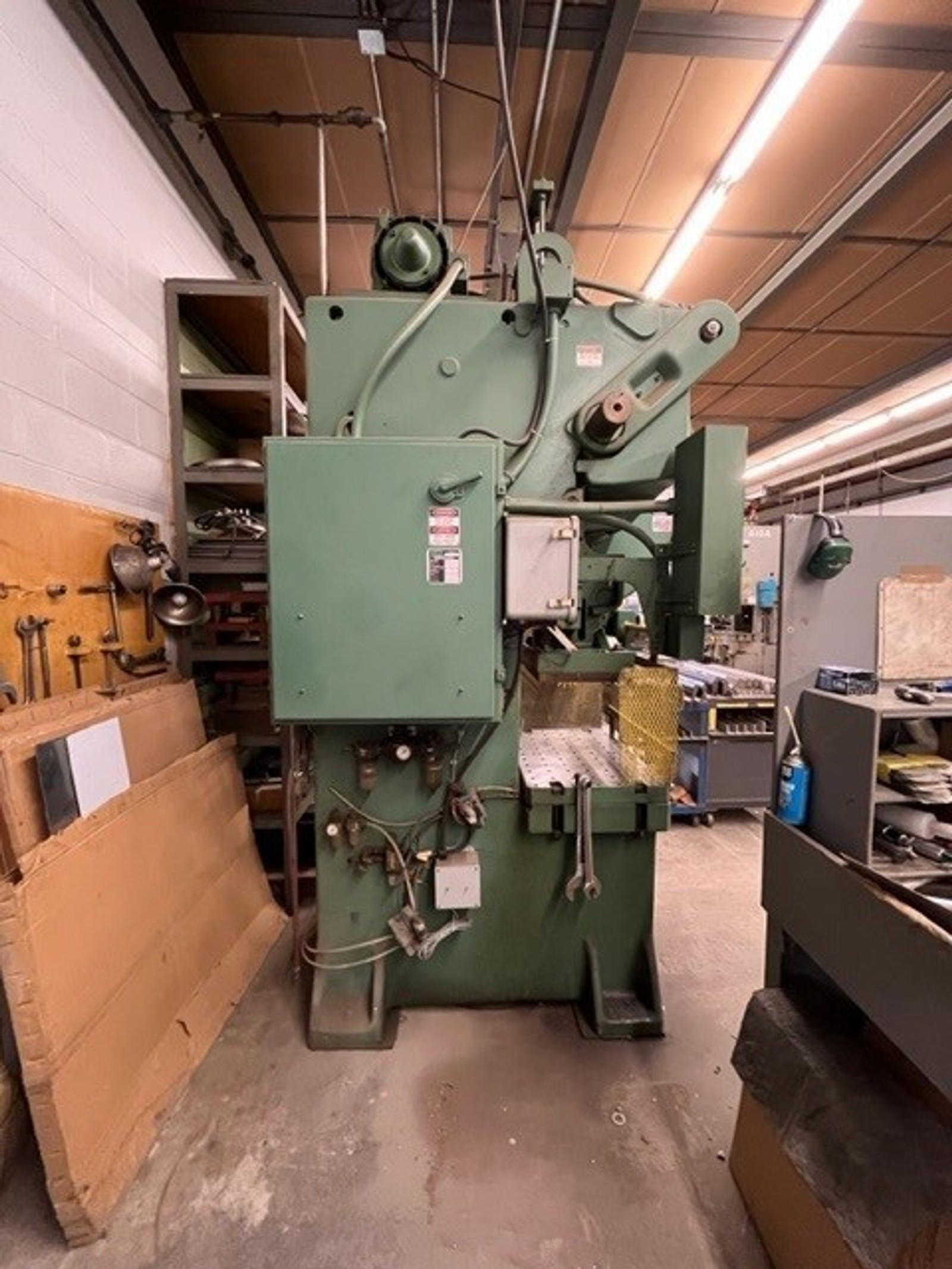

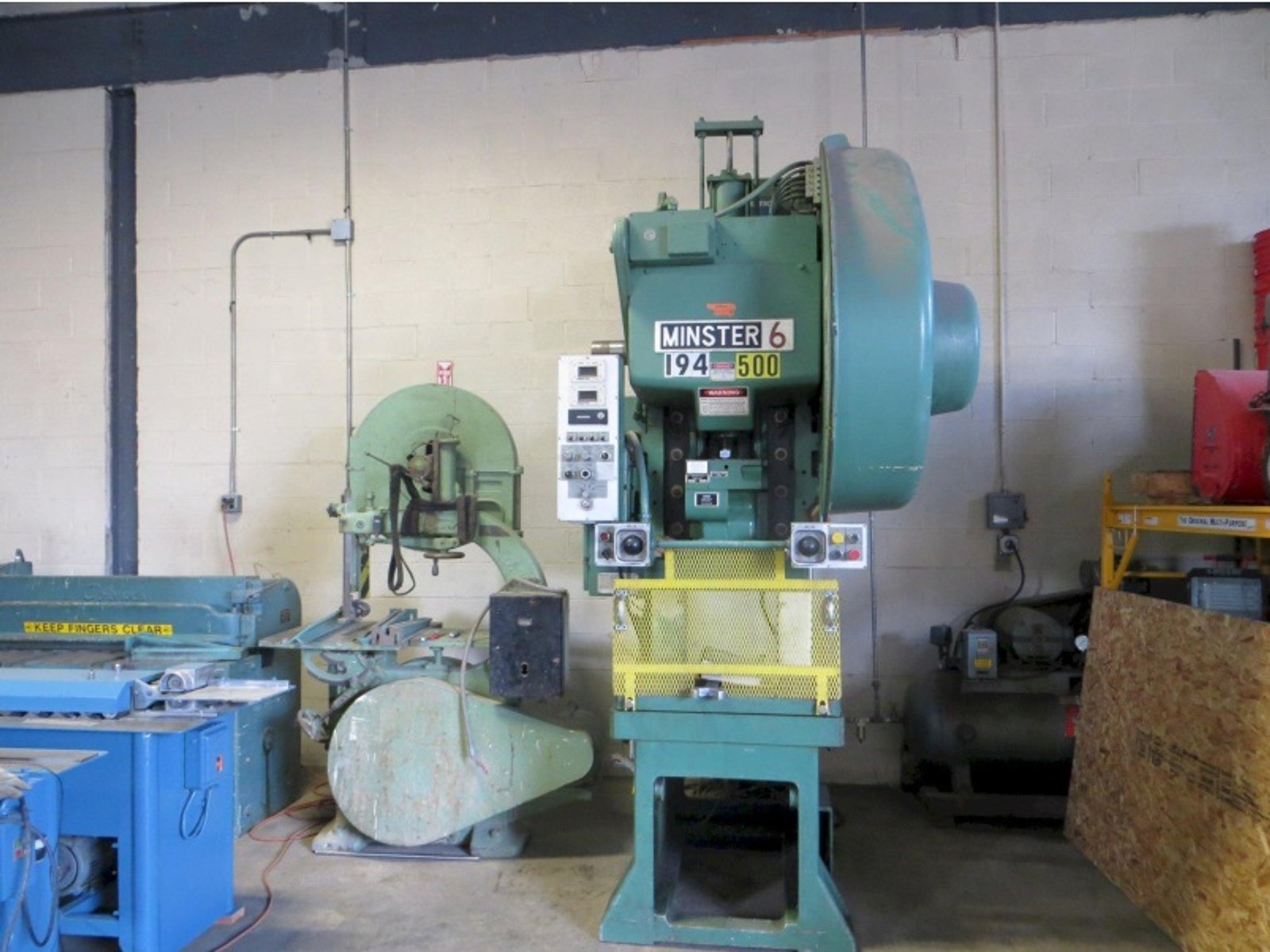

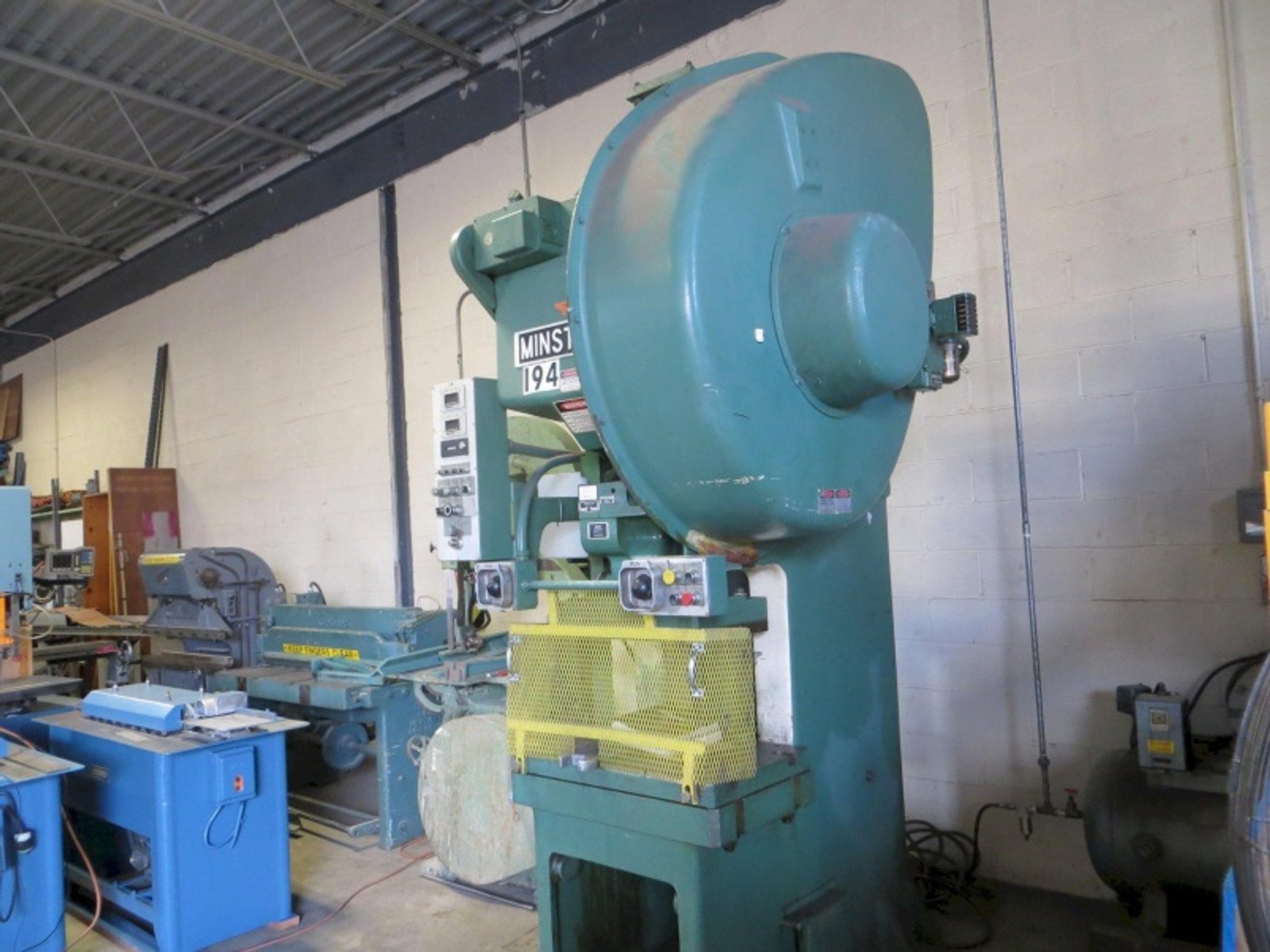

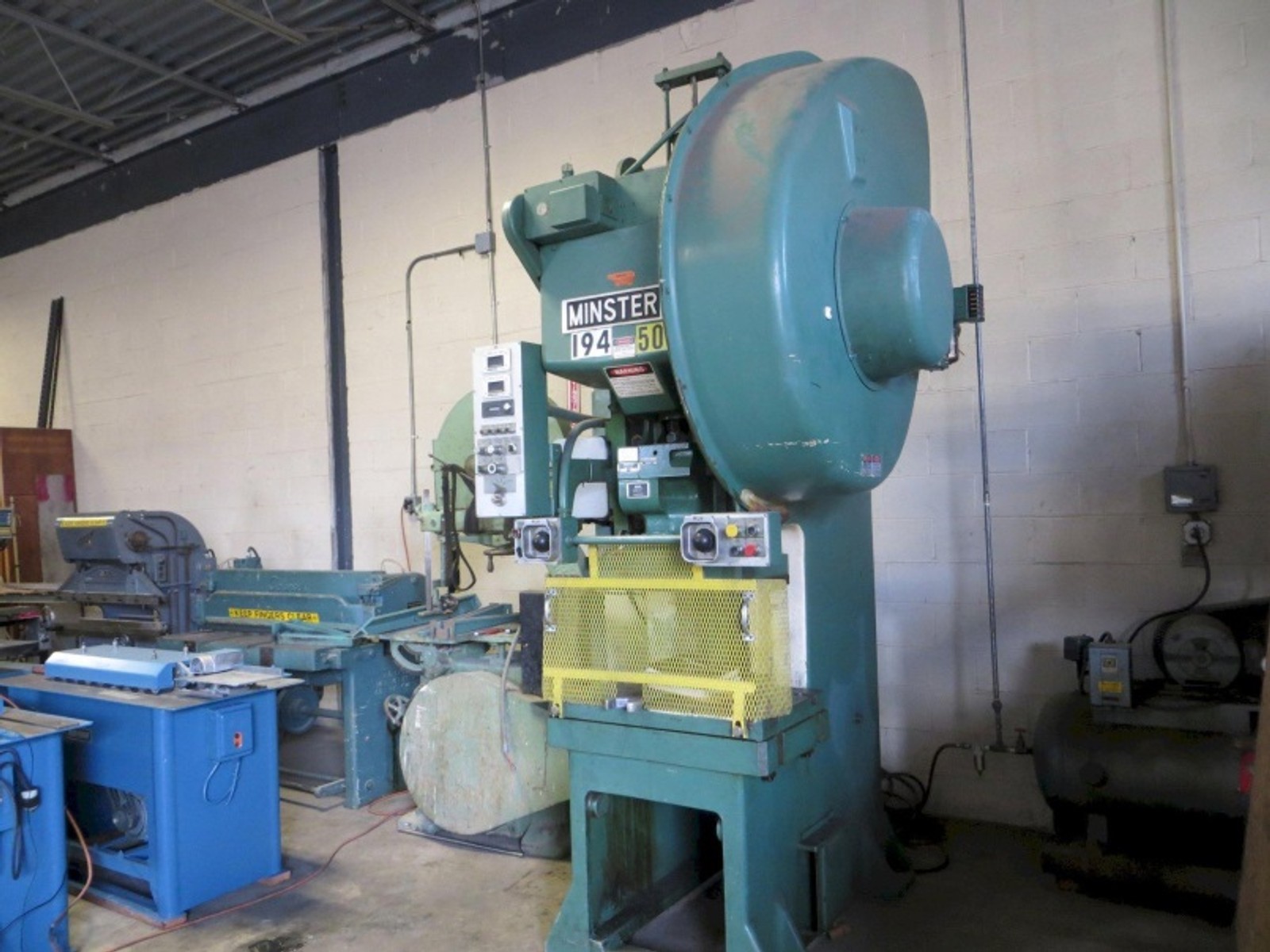

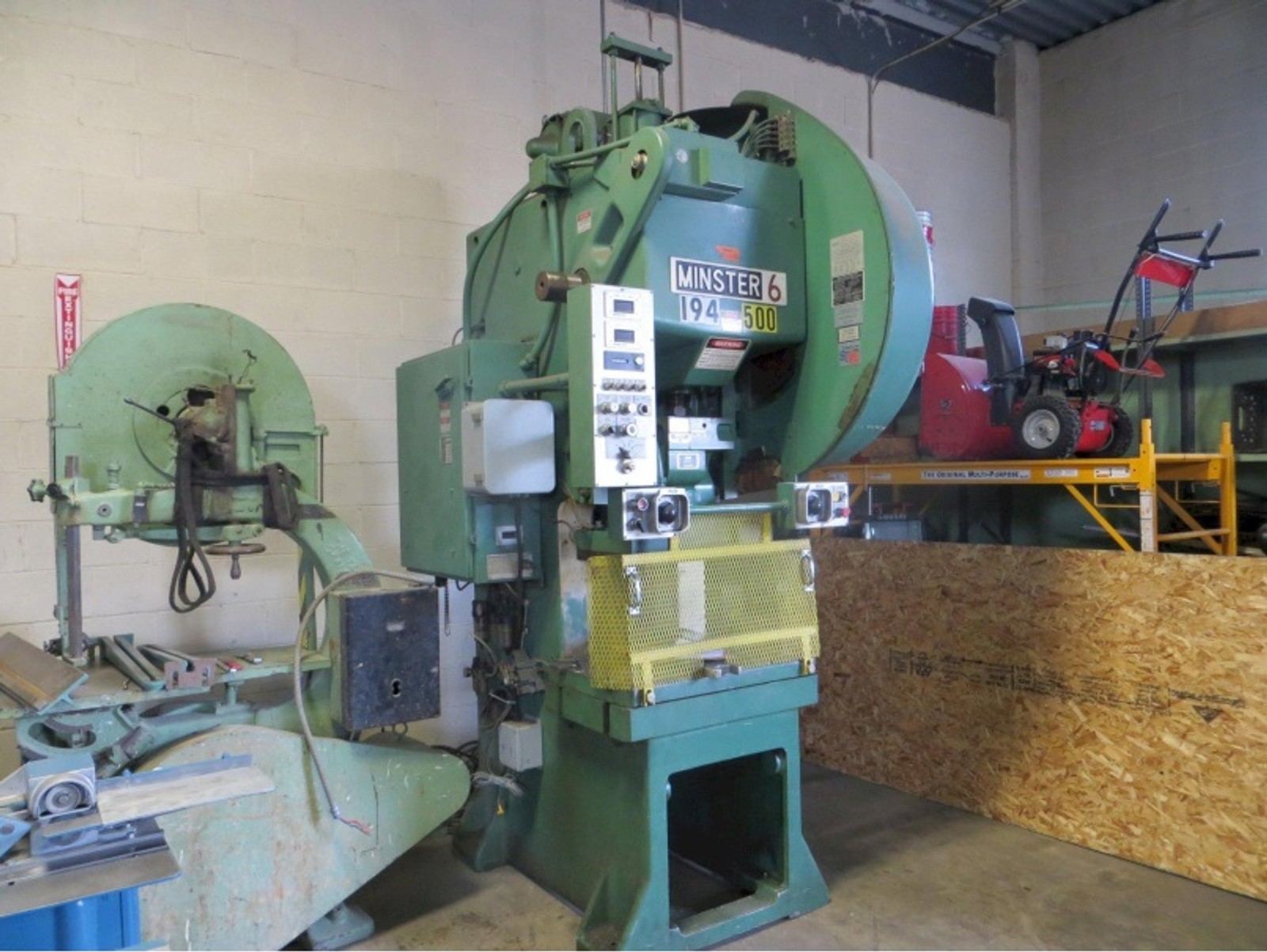

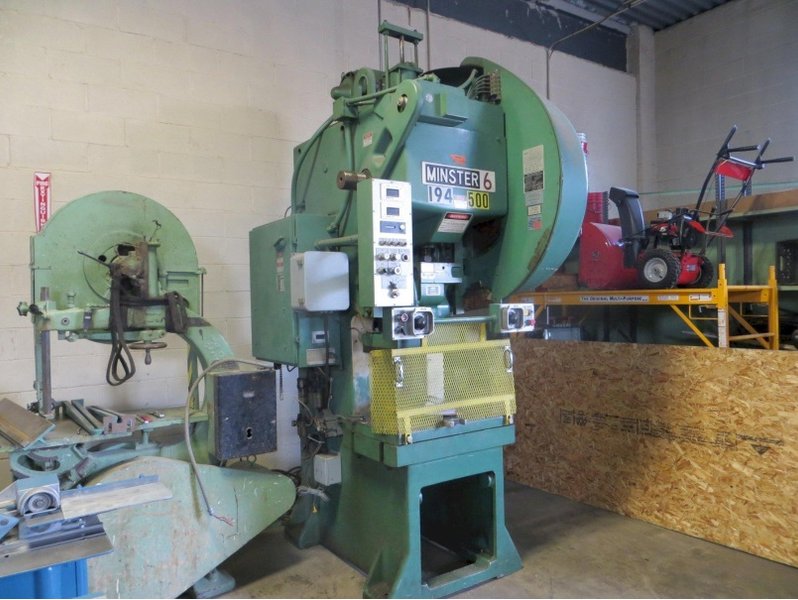

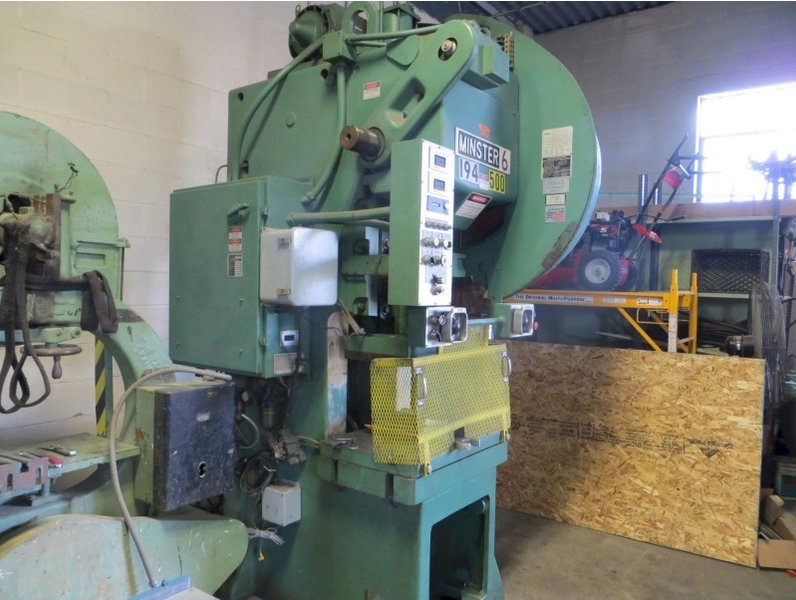

Minster Super Speed OBS 60 ton OBI press, 32" x 21" Bolster, Model 6SS-FB, 1991, 4" Stroke, 90 to 180 SPM

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, O.B.I., FLYWHEEL, (Double Crank)

Stock

68907

Model

6SS-FB

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

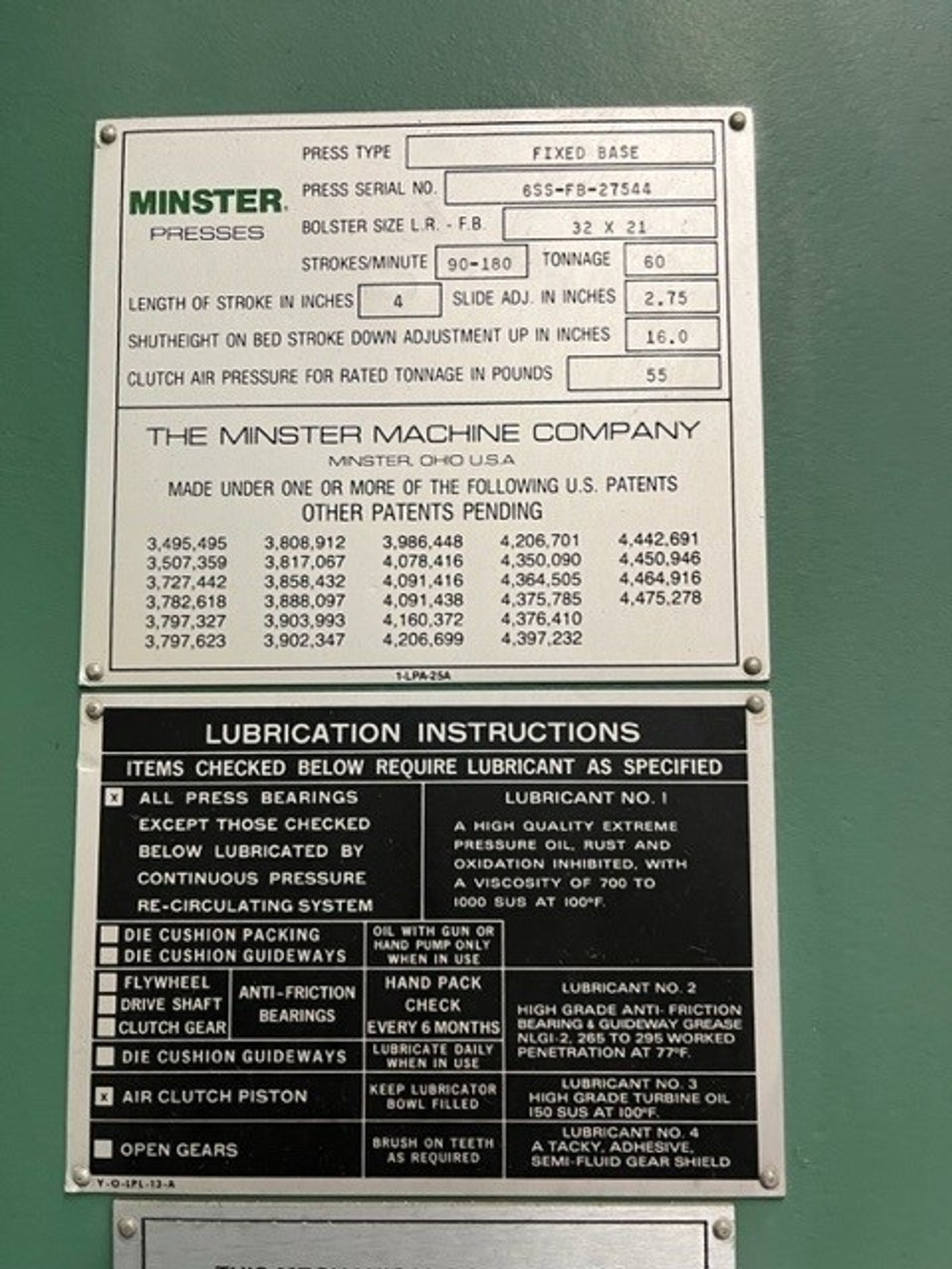

Capacity ............................................. 60 Ton
Stroke ................................................. 4 in.
Speed ................................................. 90 - 180 SPM Variable
Shut Height ..................................... 16 in.
Slide Adjustment ........................... 2.75 in
Bed Area ........................................... 32" LR x 21" FB
Bolster Thickness .......................... 2.5 in.
Slide Area ........................................ 21" LR x 14" FB
Opening in Bed ............................ 18" LR x 14" FB
Throat Depth ................................. 11 in.
Width of Opening in Back ........ 15 in.
Shank hole diameter ................... 2 in.

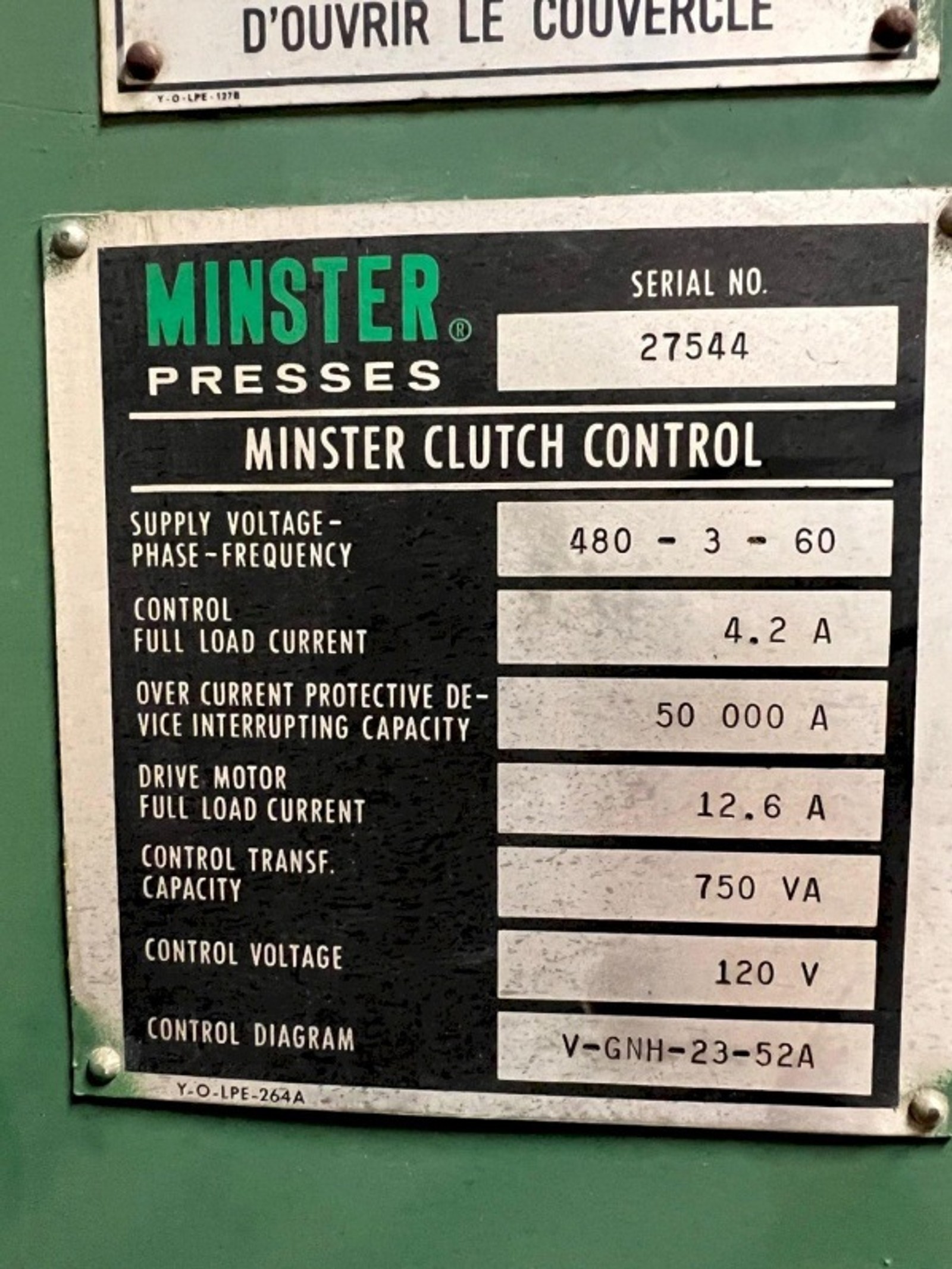

Electrics: 480 Volt, 3 Phase

Approx. Dimensions: 66" x 70" x 128" (l x w x h)
Approx. Weight: 13,000 lbs.


Equipped With
Air Clutch & Brake
Variable Speed Drive

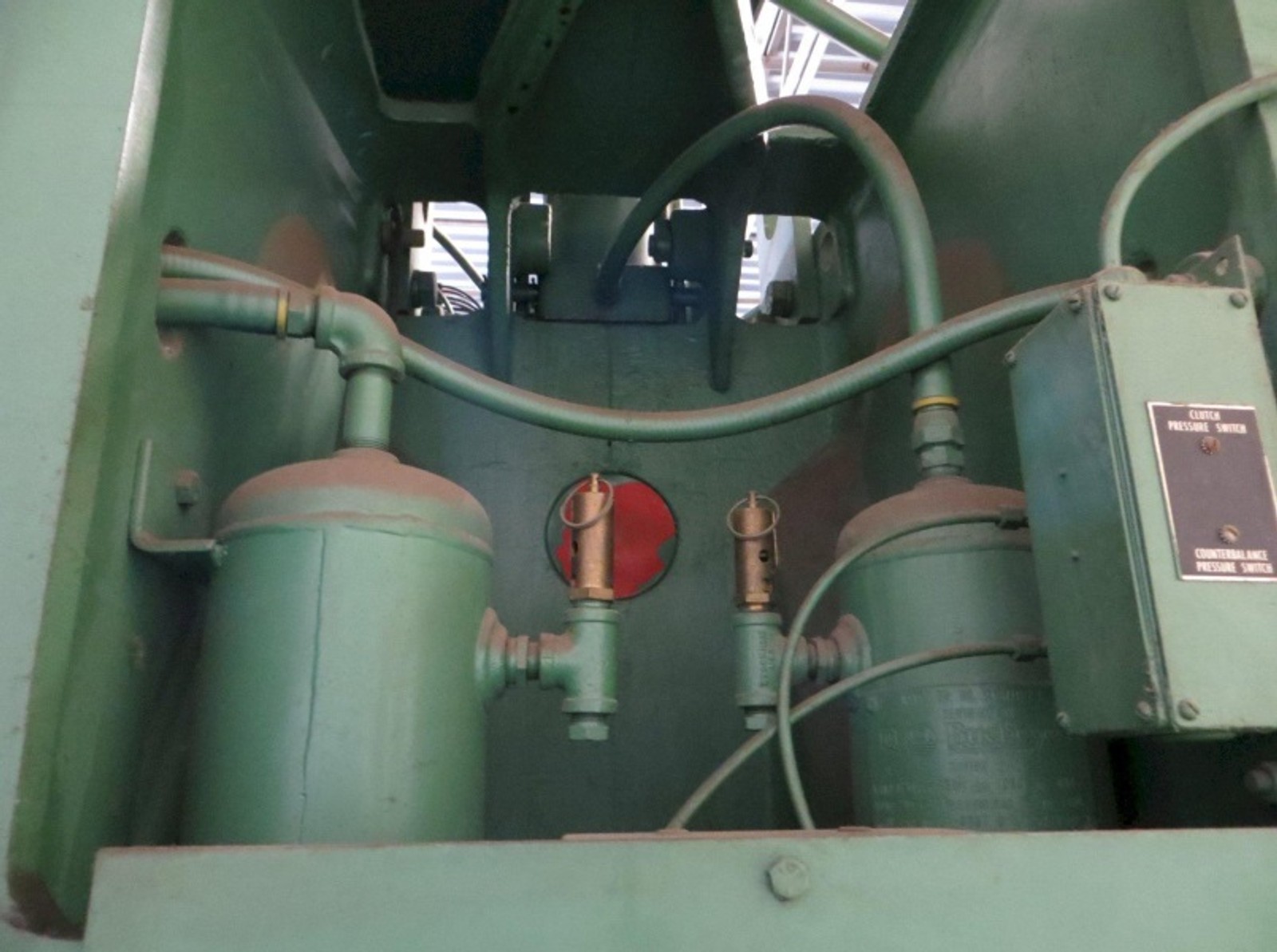

Air Counter Balance

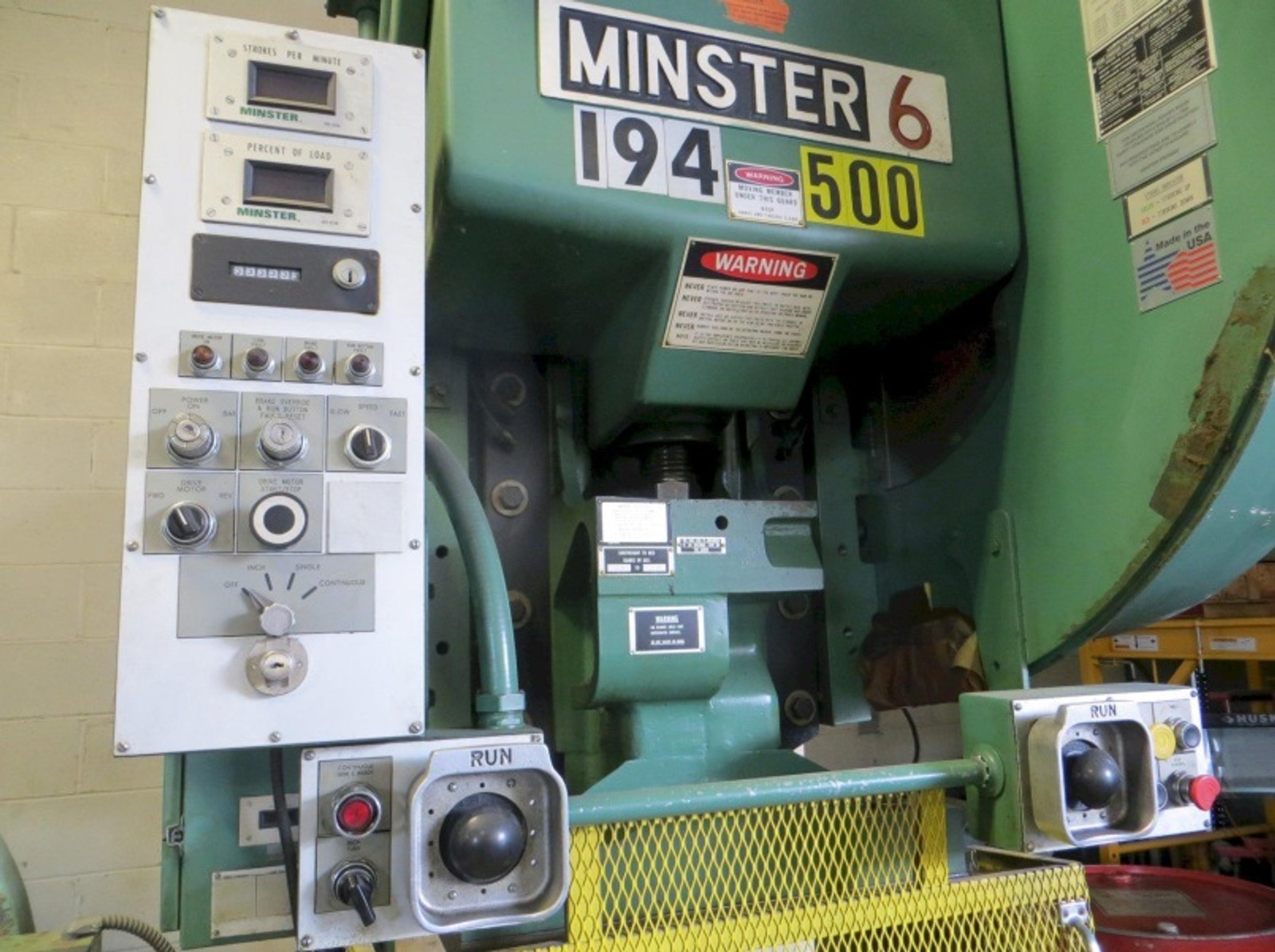

Inch / Single / Continuous
Digital SPM Indicator

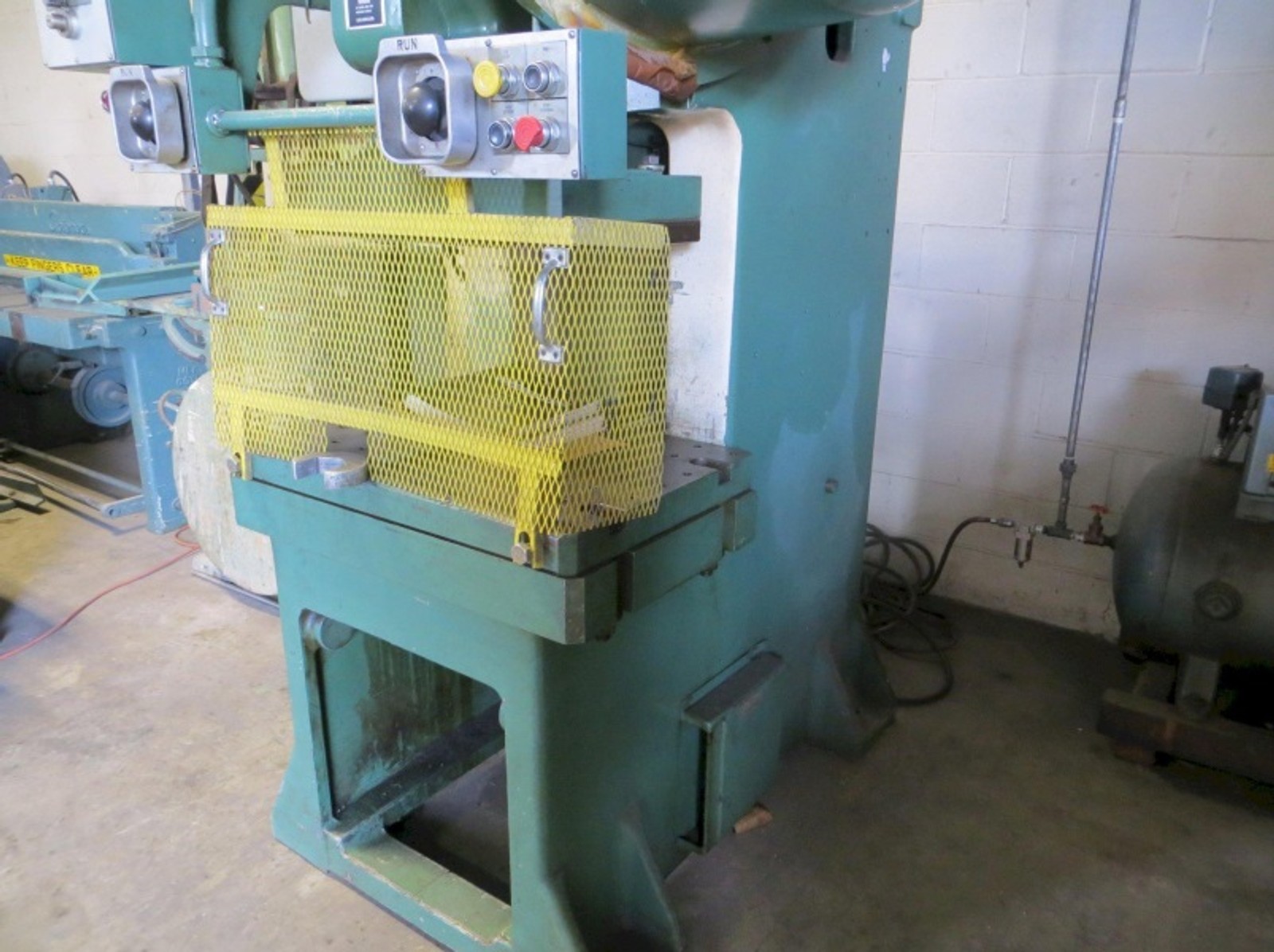

Press Mounted Dual Palm Buttons w/ E-Stop & Top Stop
Recirculating Lubrication System
Ram Equipped for Knock-Out

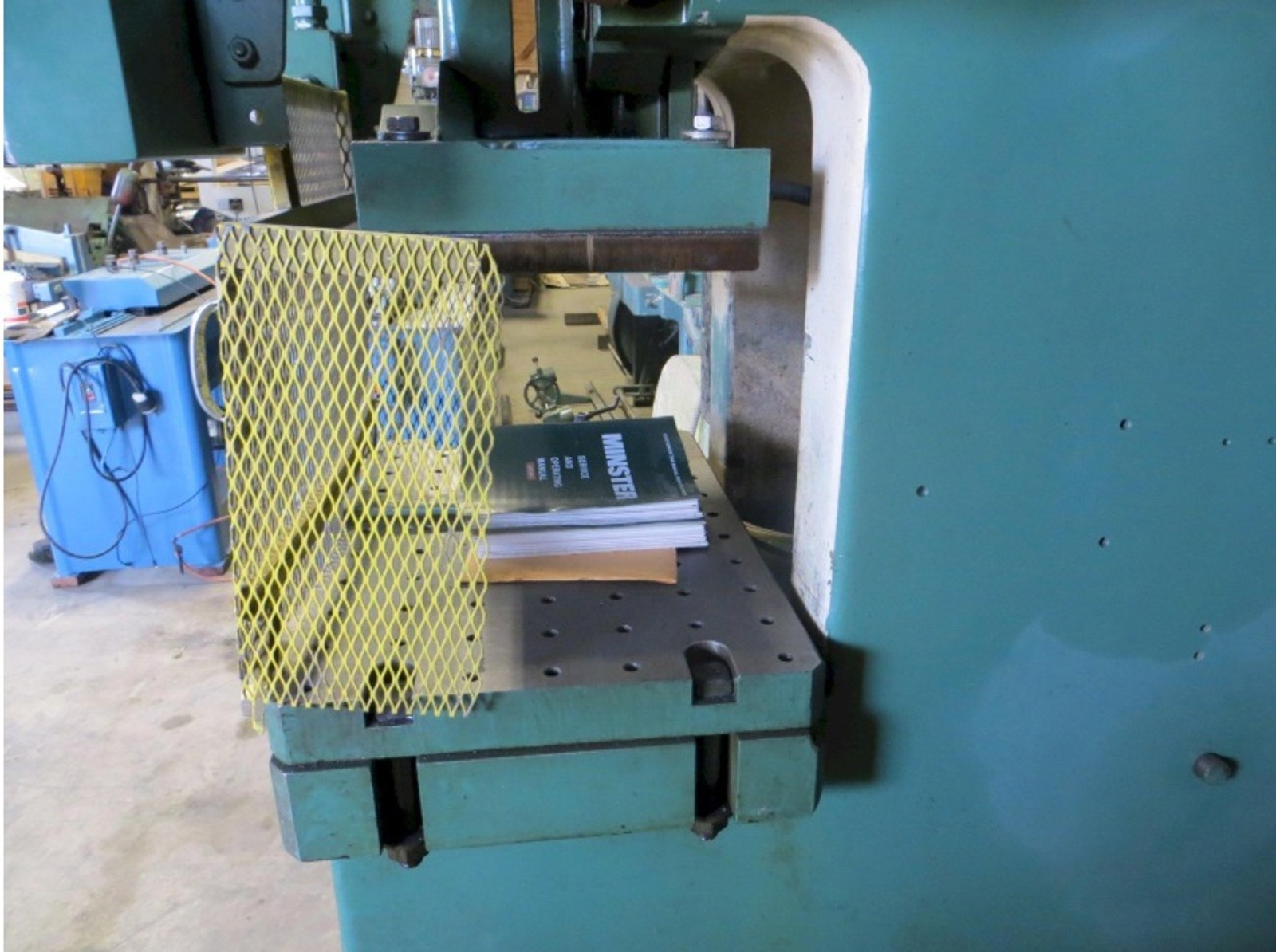

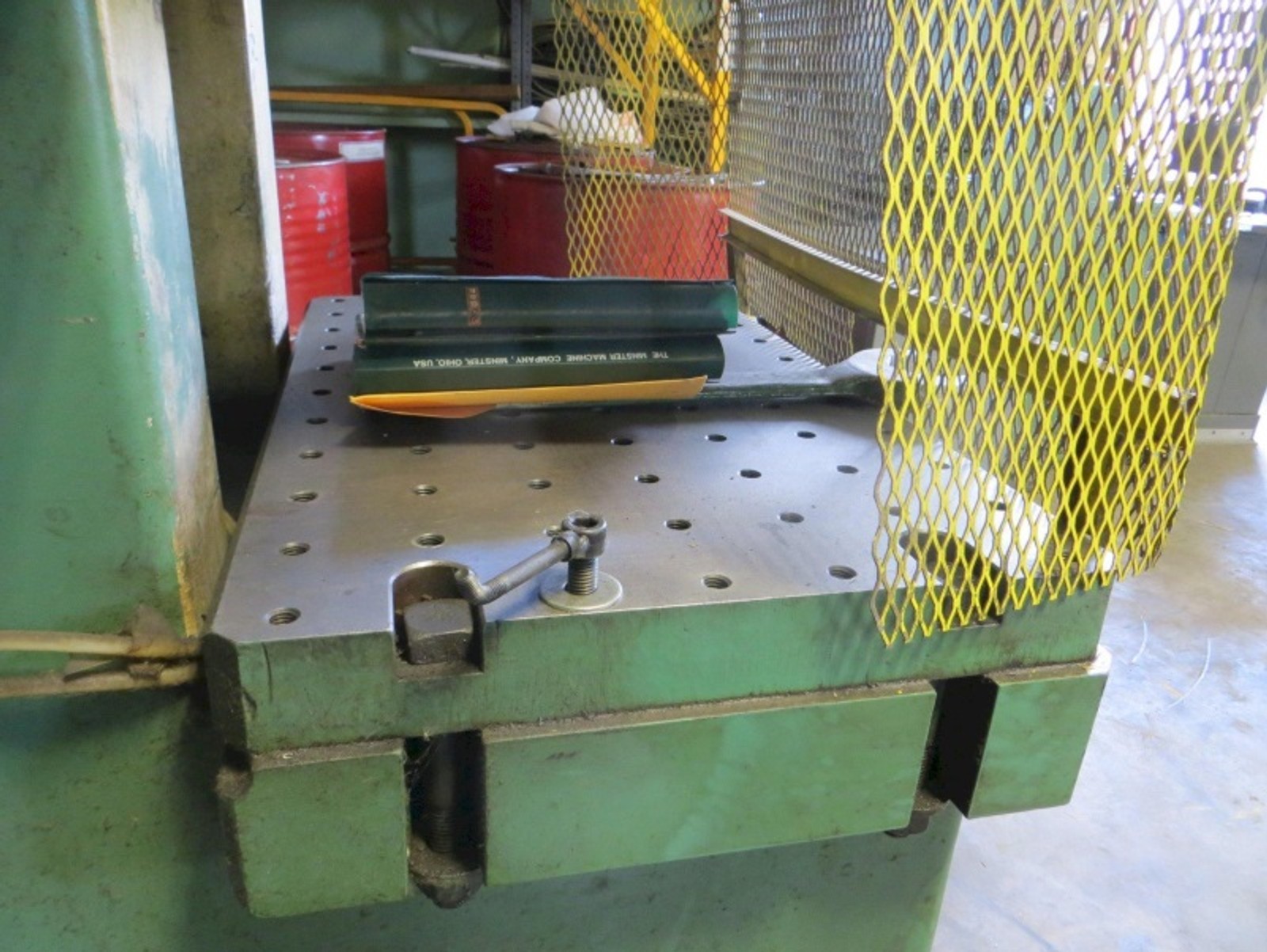

Drill & Tap Pattern in Bolster
Stroke Counter
