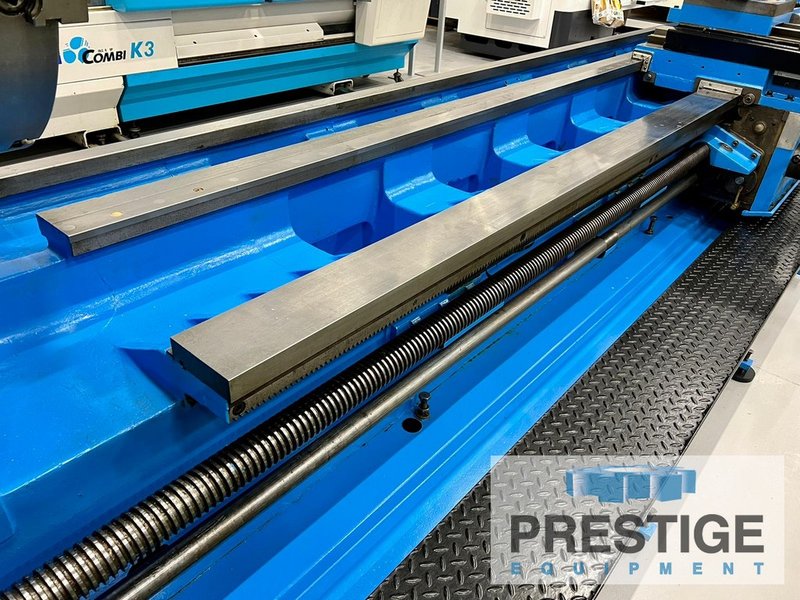

Binns & Berry Trident L850, 33" Swing, 472" C.C, 4 - 1,250 RPM, 4" Spdl Hole, Newall DRO, 30 HP, Rebuilt 2008, #43391

Manufacturer

BINNS & BERRY

Category

Lathes

Type

LATHES, ENGINE

Stock

43391

Model

Trident L850

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43391

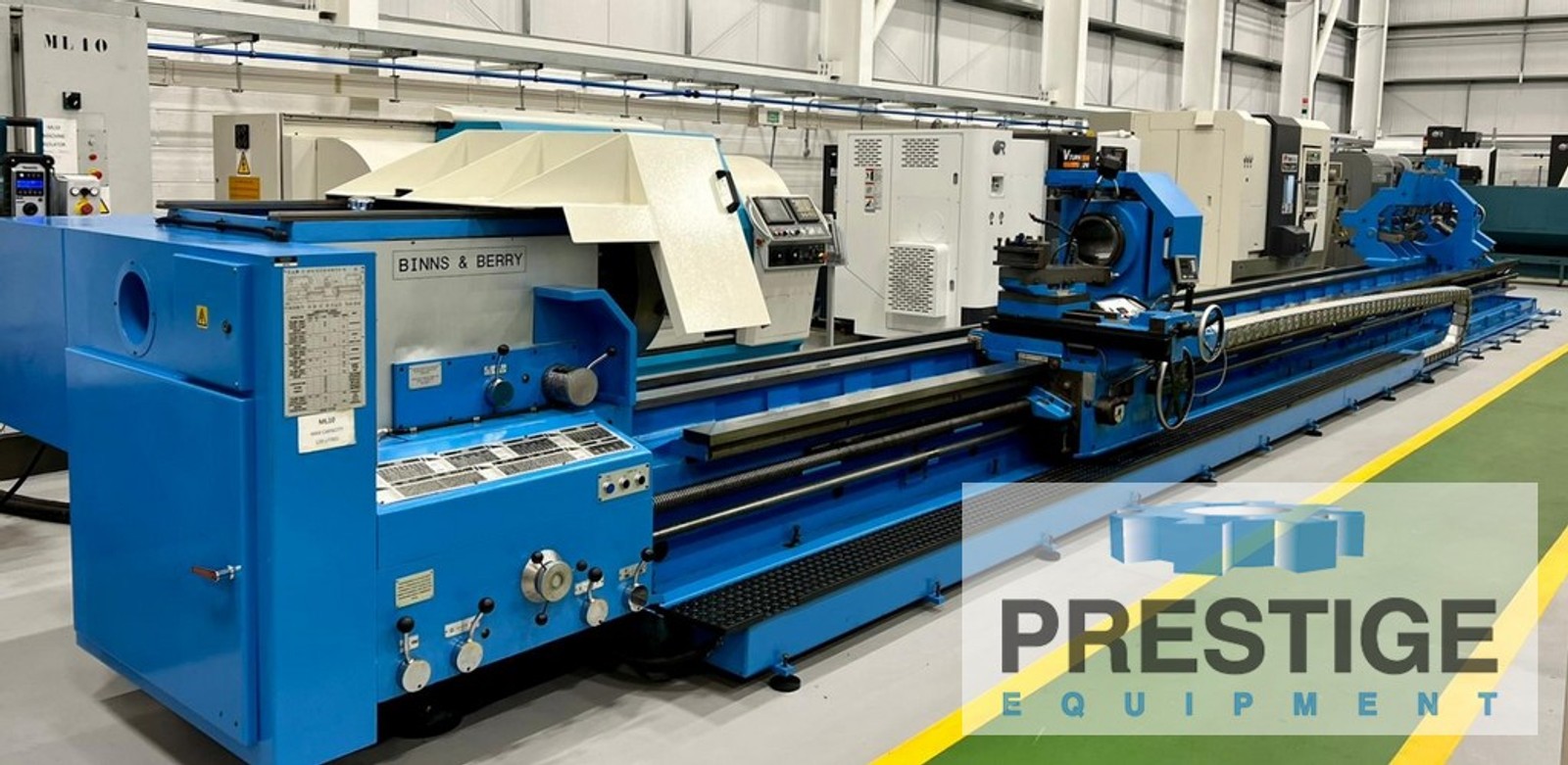

Binns & Berry 33" x 472" Trident L850 Hollow Spindle Lathe

FEATURES:
Newall Topaz Digital Readout

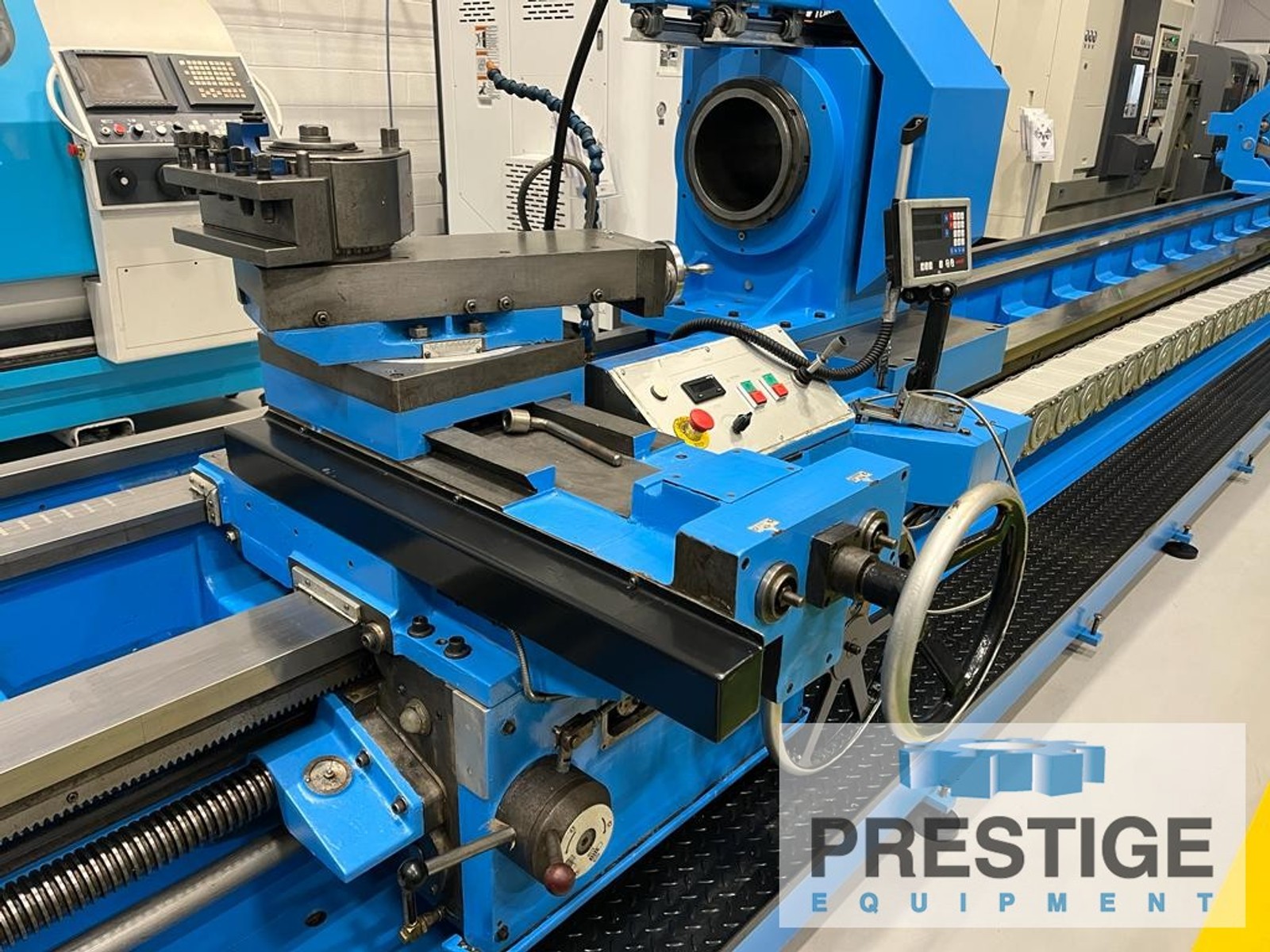

Quick Change Tool Post
3 - Open Roller Steady Rests
Tailstock

SPECIFICATION:
Swing Over Bed ........................ 33.46"
Swing Over Carriage ................... 27.55"
Distance Between Centers .............. 472.44"
Bed Width ............................. 28.54"
Spindle Speed Range ................... 4 - 1,250 RPM
Spindle Bore .......................... 4.09"
Spindle Nose .......................... D1-11
Longitudinal Feedrate ................. .4 - 44.4 IPR
Cross Feedrate ........................ .0005 - 32.25 IPR
Cross Slide Travel .................... 19.68"
Compound Slide Travel ................. 11.81"
Tailstock Quill Diameter .............. 5.47"
Tailstock Quill Taper ................. #6MT
Tailstock Quill Travel ................ 11.02"

EQUIPPED WITH:
Newall Topaz Digital Readout
Quick Change Tool Post

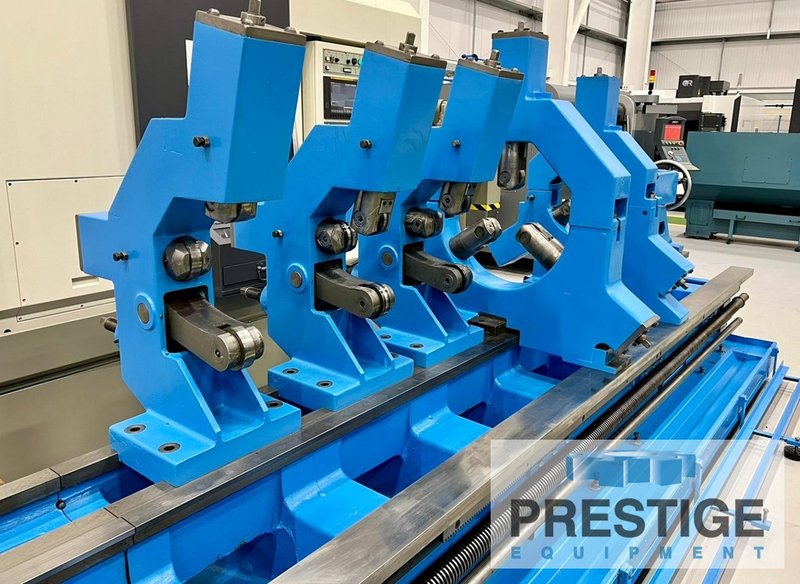

3 - Open Roller Steady Rests
1 - 11.81" Roller Steady Rest
1 - 19.68" Roller Steady Rest

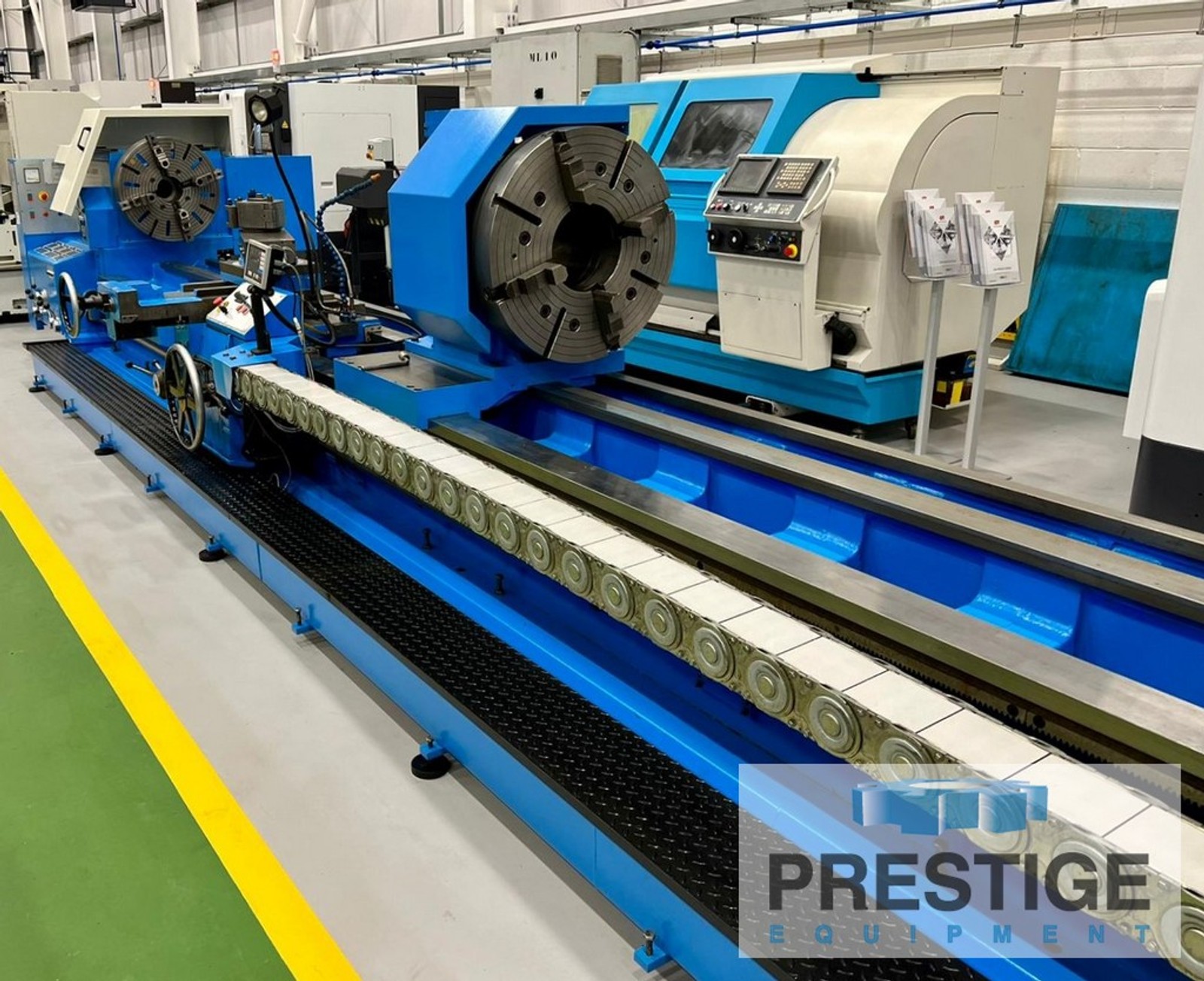

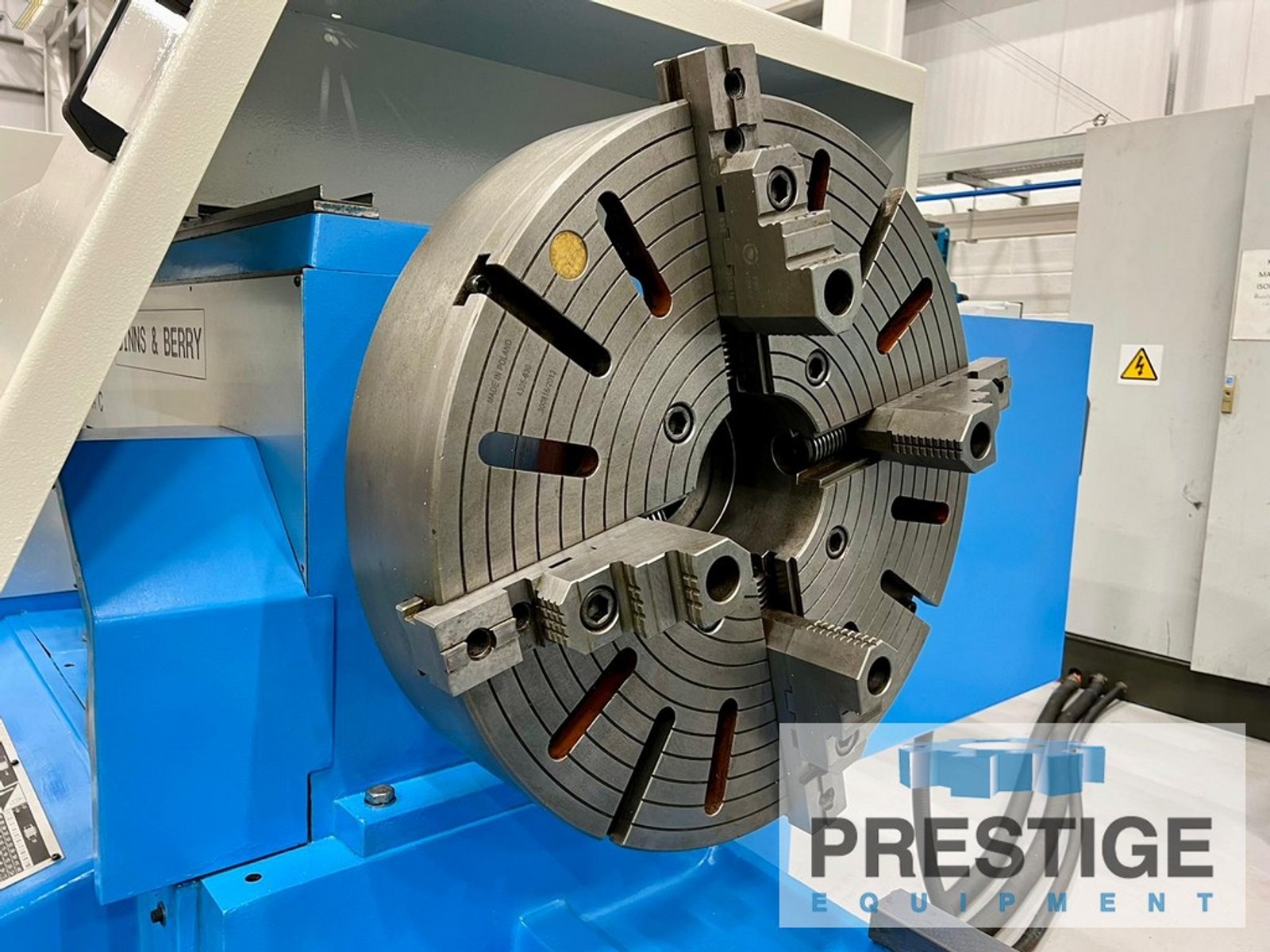

Windmill Steady w/ 9.8" Bore & 27.5" 4-Jaw Chuck
2 - Coolant Pumps
Tailstock
