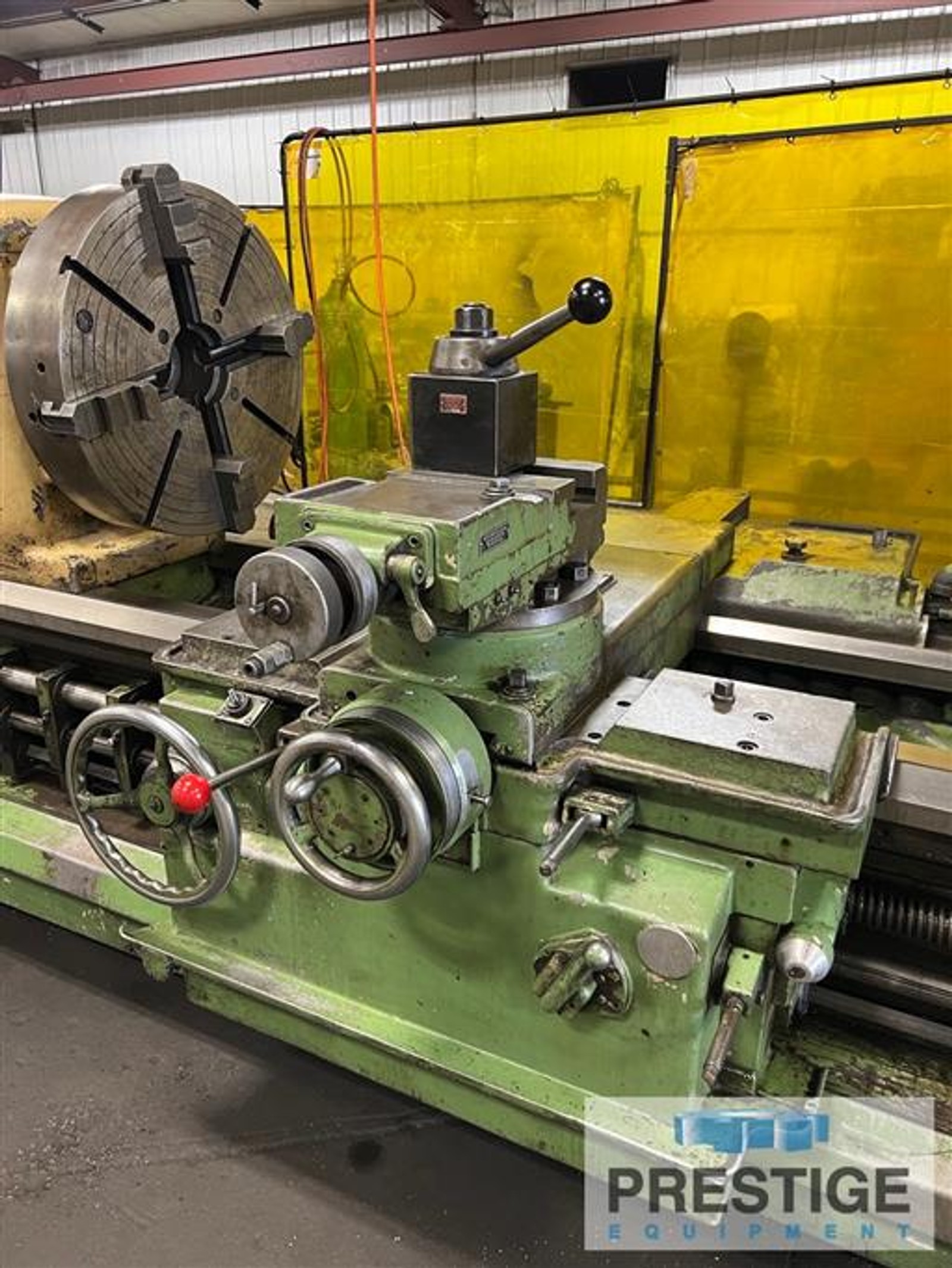

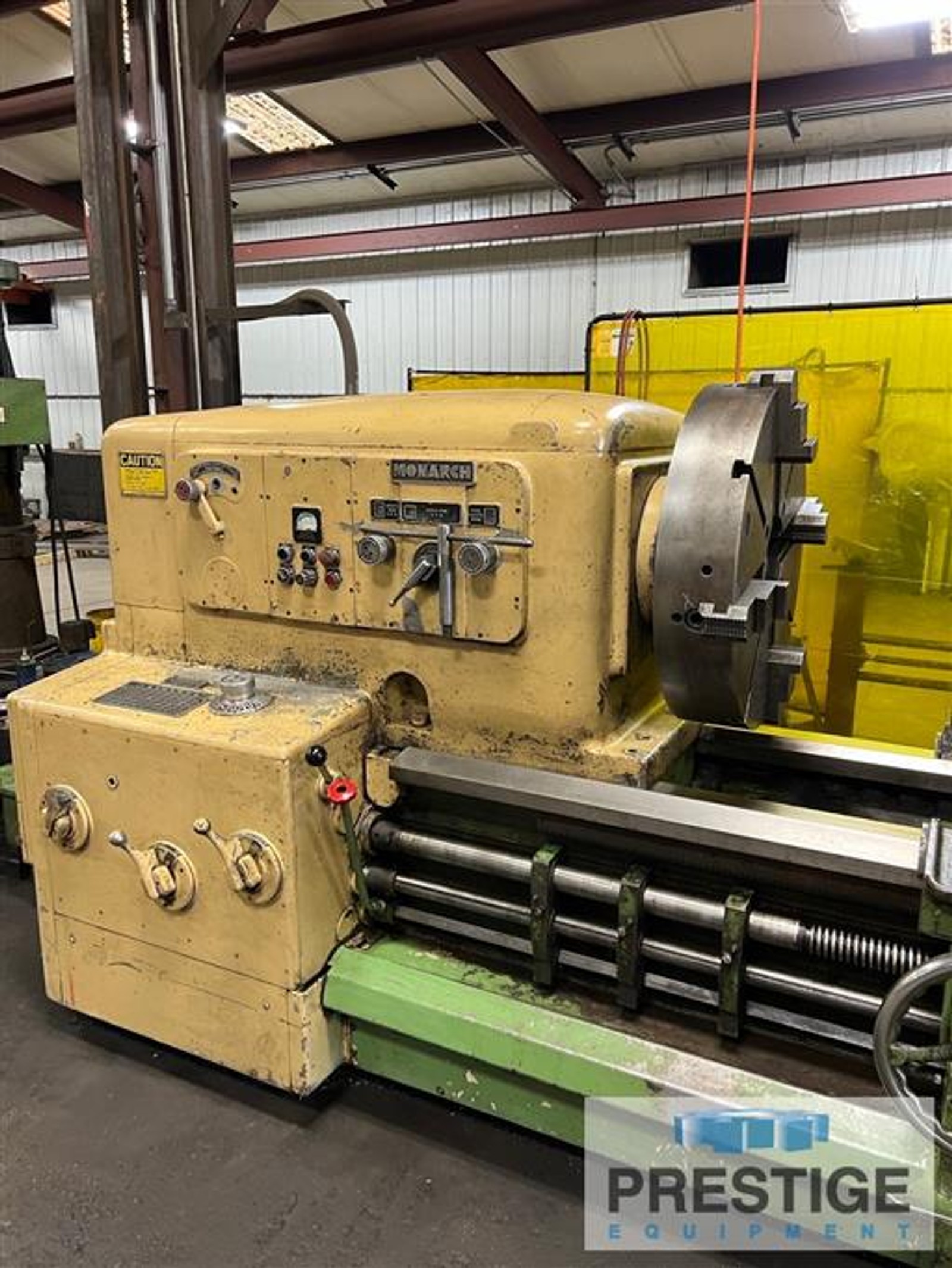

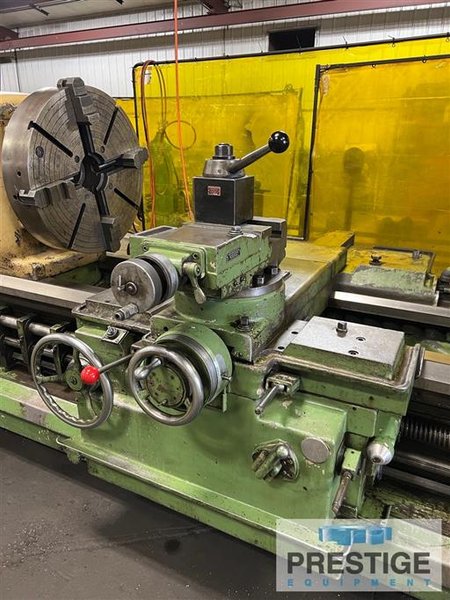

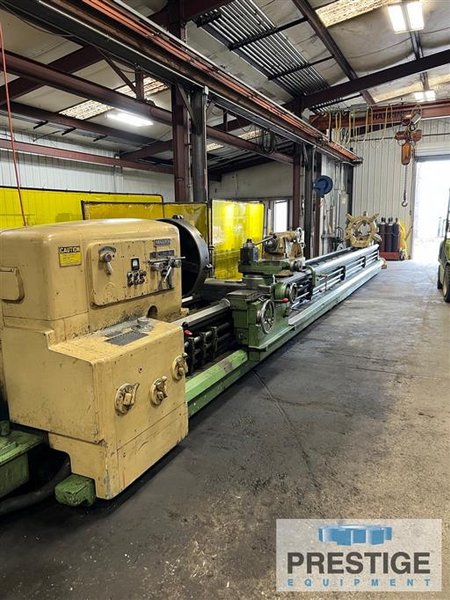

Monarch 3220, 36" Swing, 360" Centers, Taper Attachment, Threading, 28" 4-Jaw Chuck, 40 HP, (2) Steady Rests, #43328

Manufacturer

MONARCH

Category

Lathes

Type

LATHES, ENGINE

Stock

43328

Model

Series 80 3220

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43328

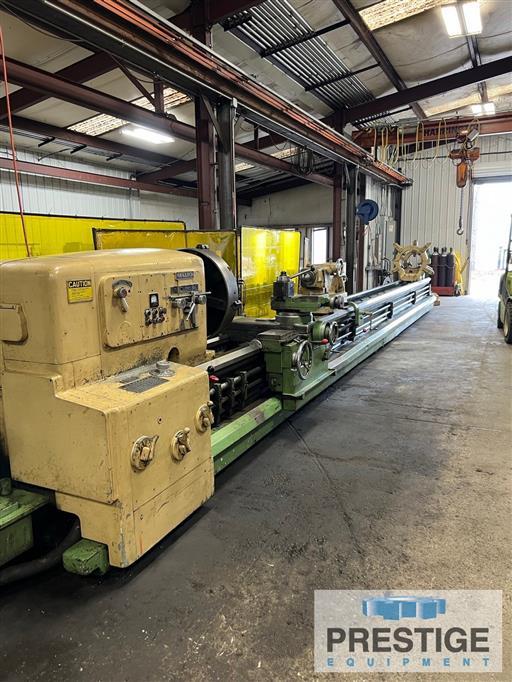

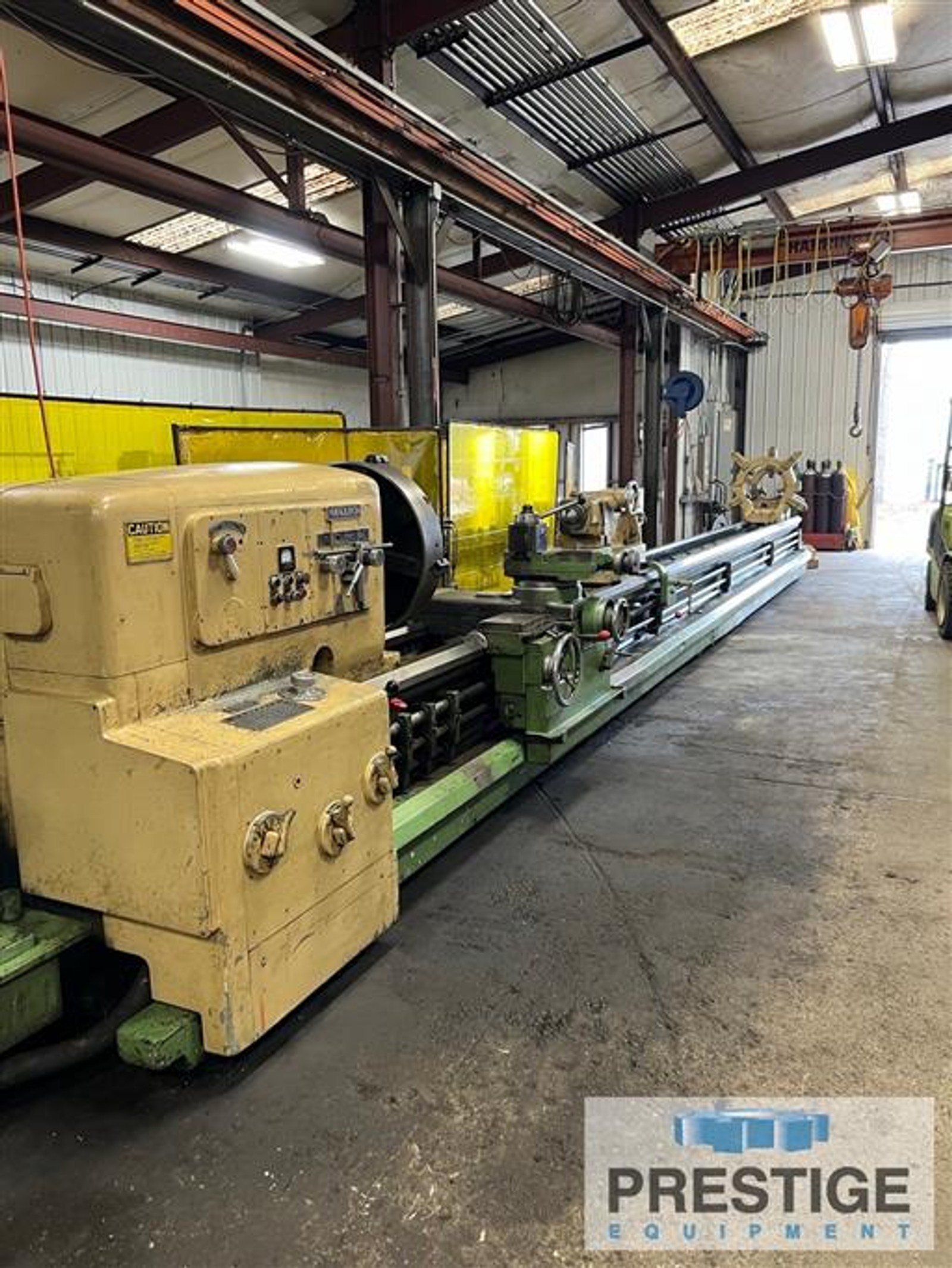

Monarch 3220 36" X 360" Engine Lathe

FEATURES:
28" 4-Jaw Chuck
Aloris Tool Post
Threading
Taper Attachment

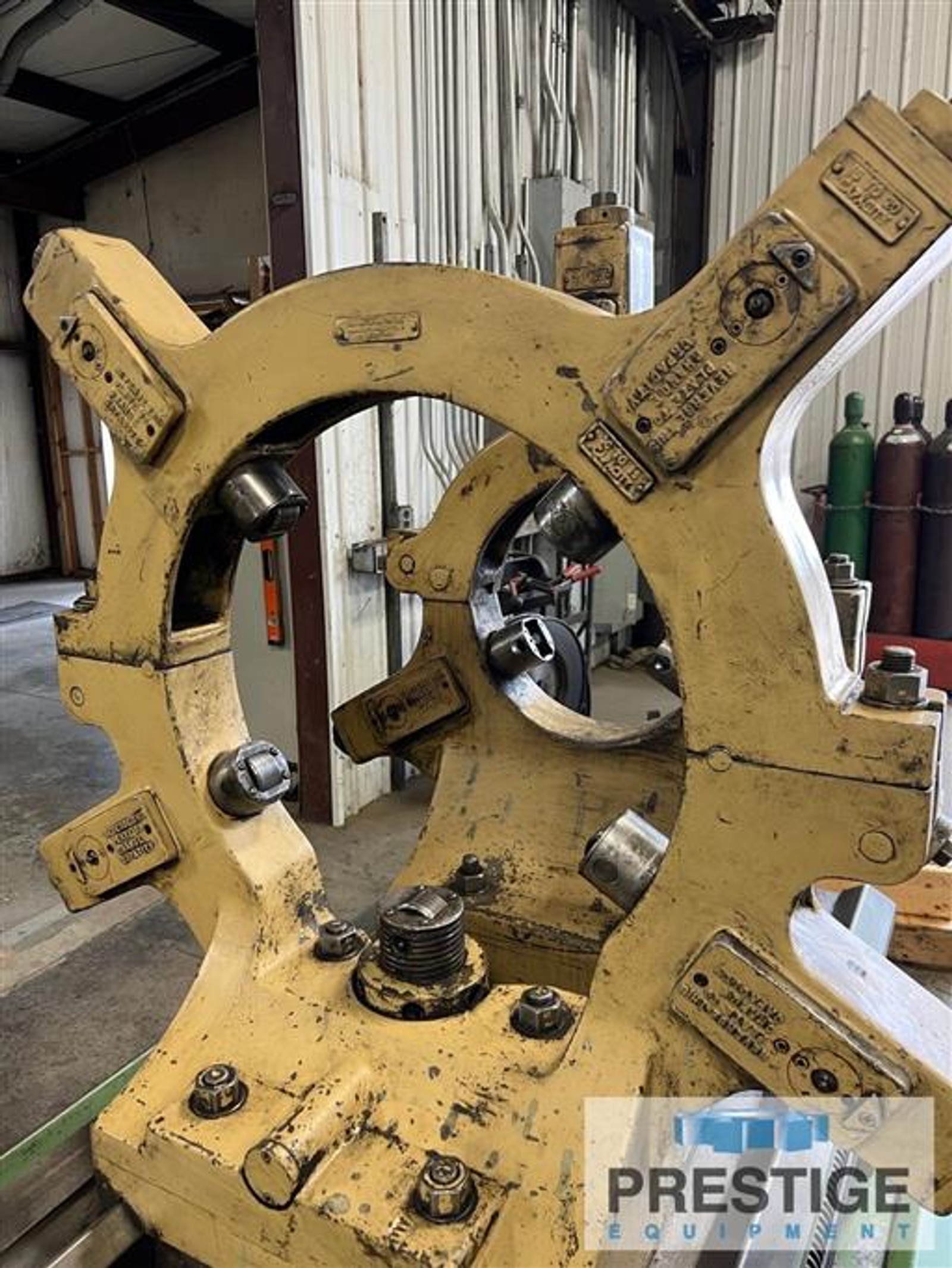

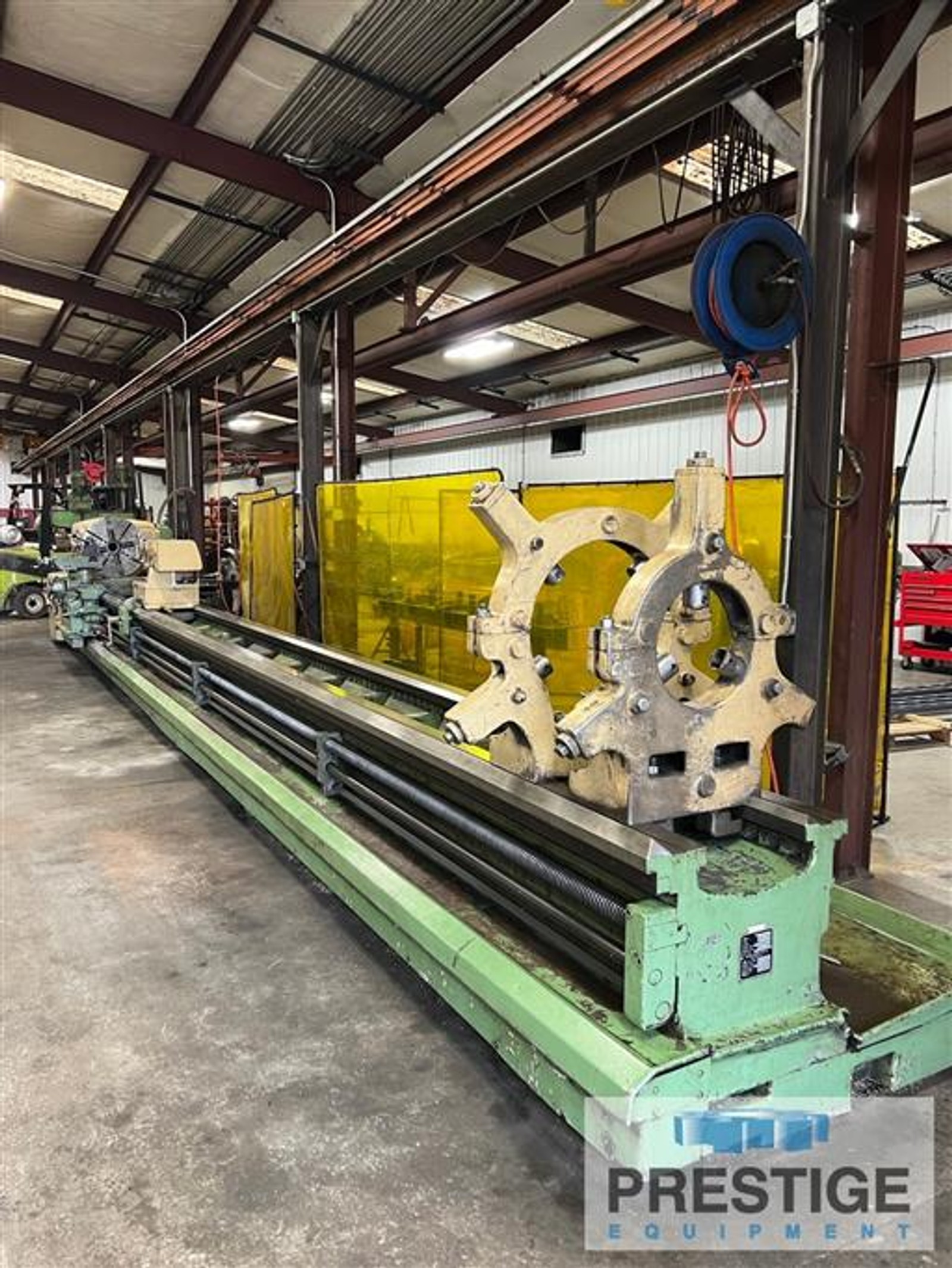

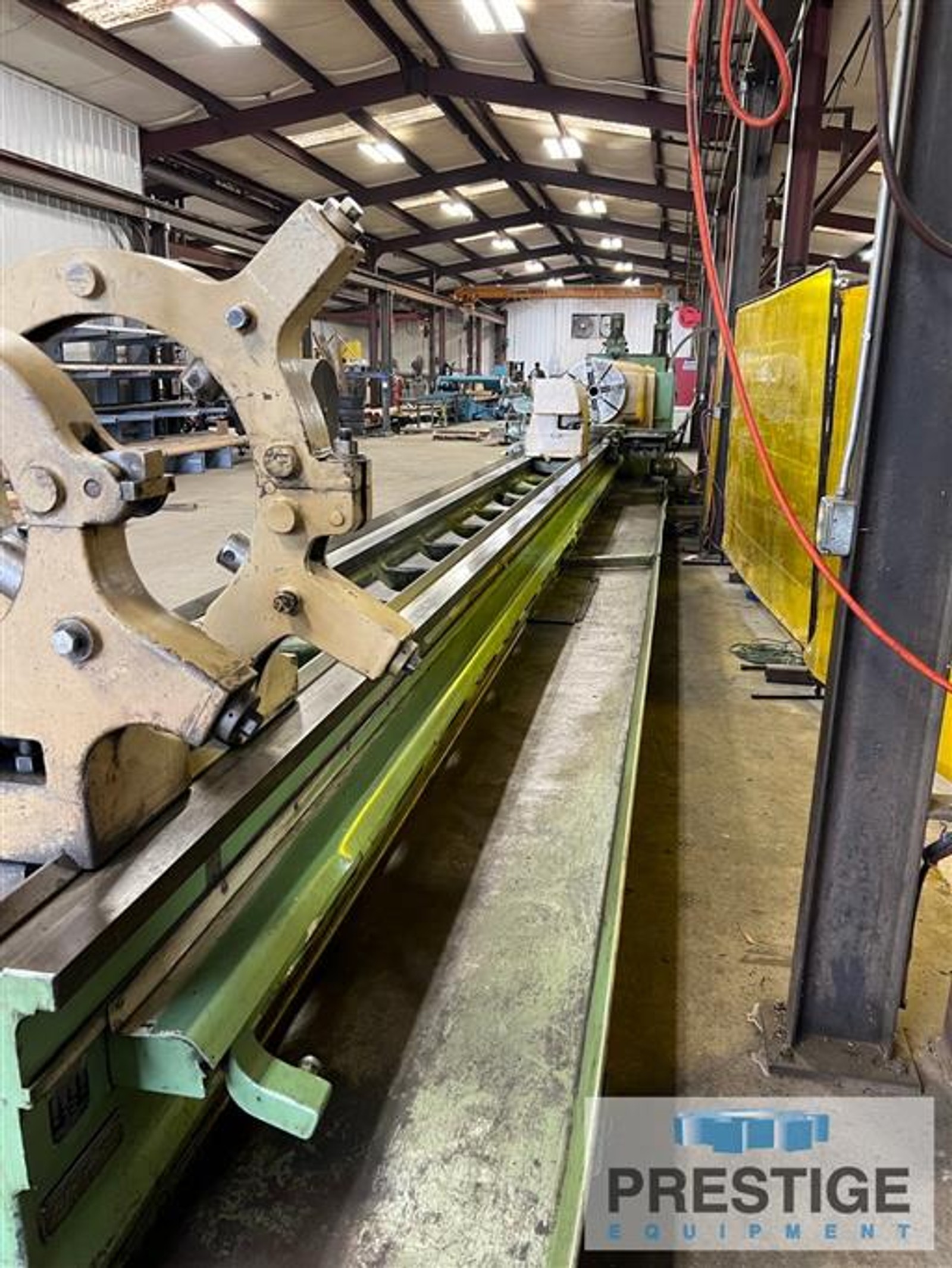

(2)Steady Rest

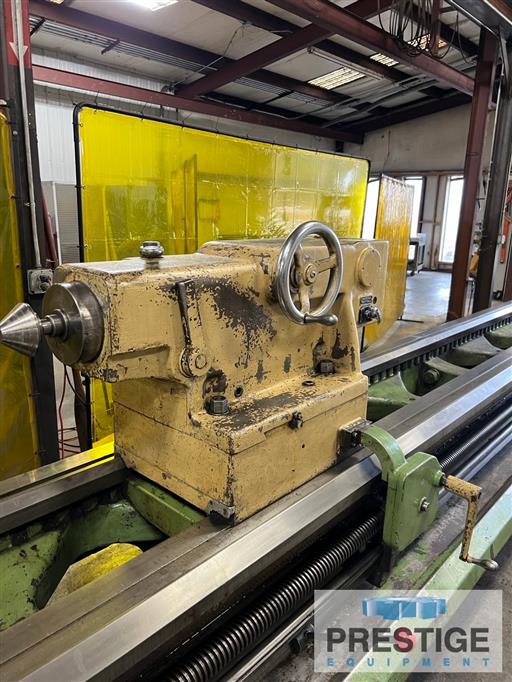

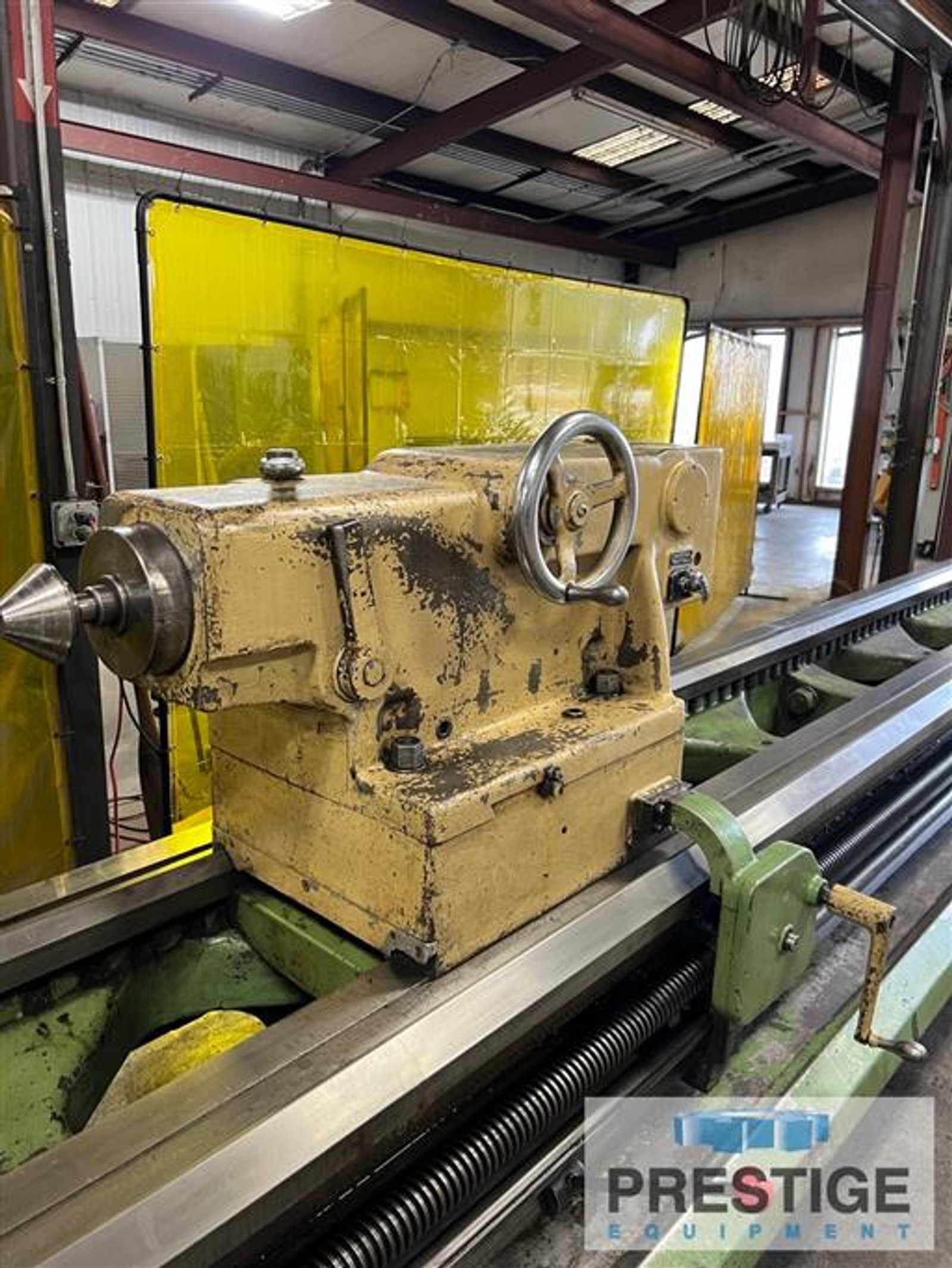

Tailstock

CAPACITY:
Maximum Swing Over Bed Ways ............. 36"
Maximum Swing Over Cross Slide .......... 25"
Distance Between Centers ................ 360"
Spindle Speeds (36) ..................... 10-1300 RPM
Spindle Bore ............................ 3.5"
Spindle Nose ............................ D1
Threading: (48) ......................... 1/2-28 TPI
Weight Capacity Between Centers ......... 20,000 LBS

EQUIPPED WITH:
28" 4-Jaw Chuck
Aloris Tool Post
Coolant
Threading
Taper Attachment

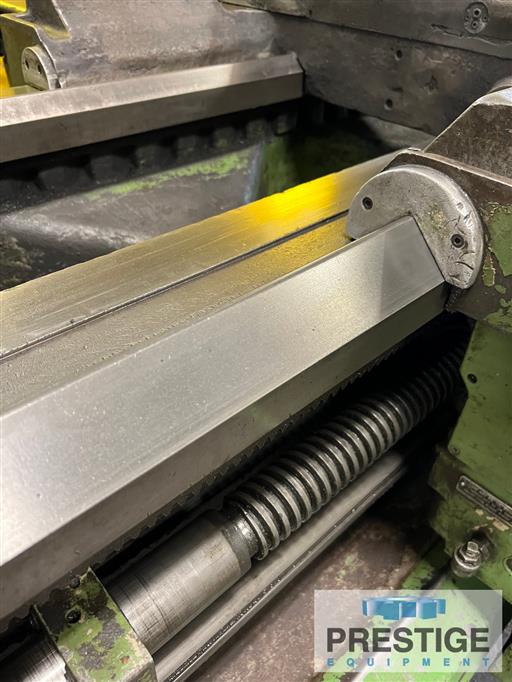

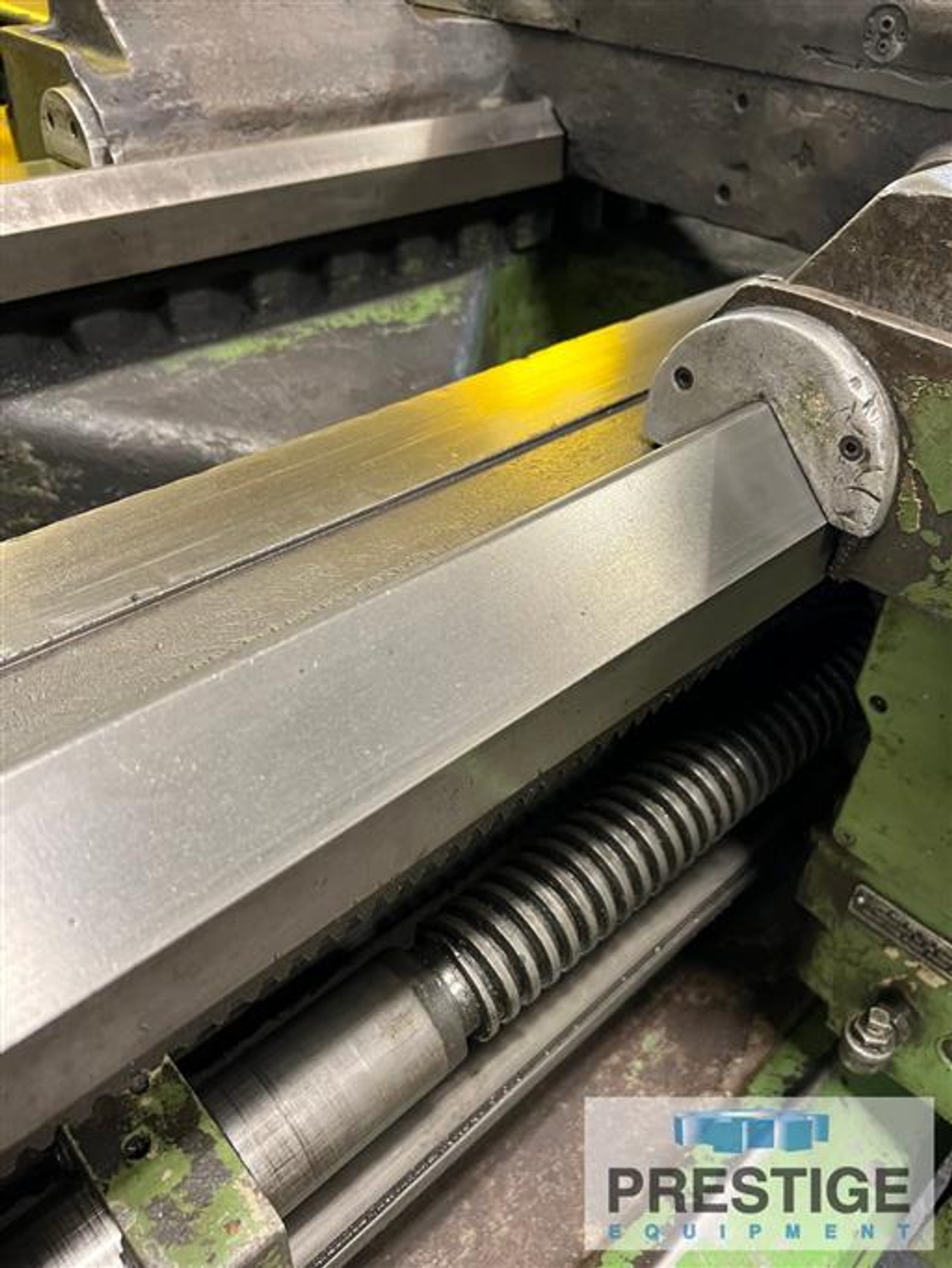

Hardened Ways
4-Way Rapid Traverse
40 HP Main Drive
(2)Steady Rest
Tailstock

NOTE:
Inspect in Plant Under Power
