MAZAK VTC-300C, X-65", 78" x 30" Table, Mazatrol 640MN, 24 ATC, Renishaw Probe, Spindle Rebuilt 2020, #43379

Manufacturer

MAZAK

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43379

Model

VTC-300C

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43379

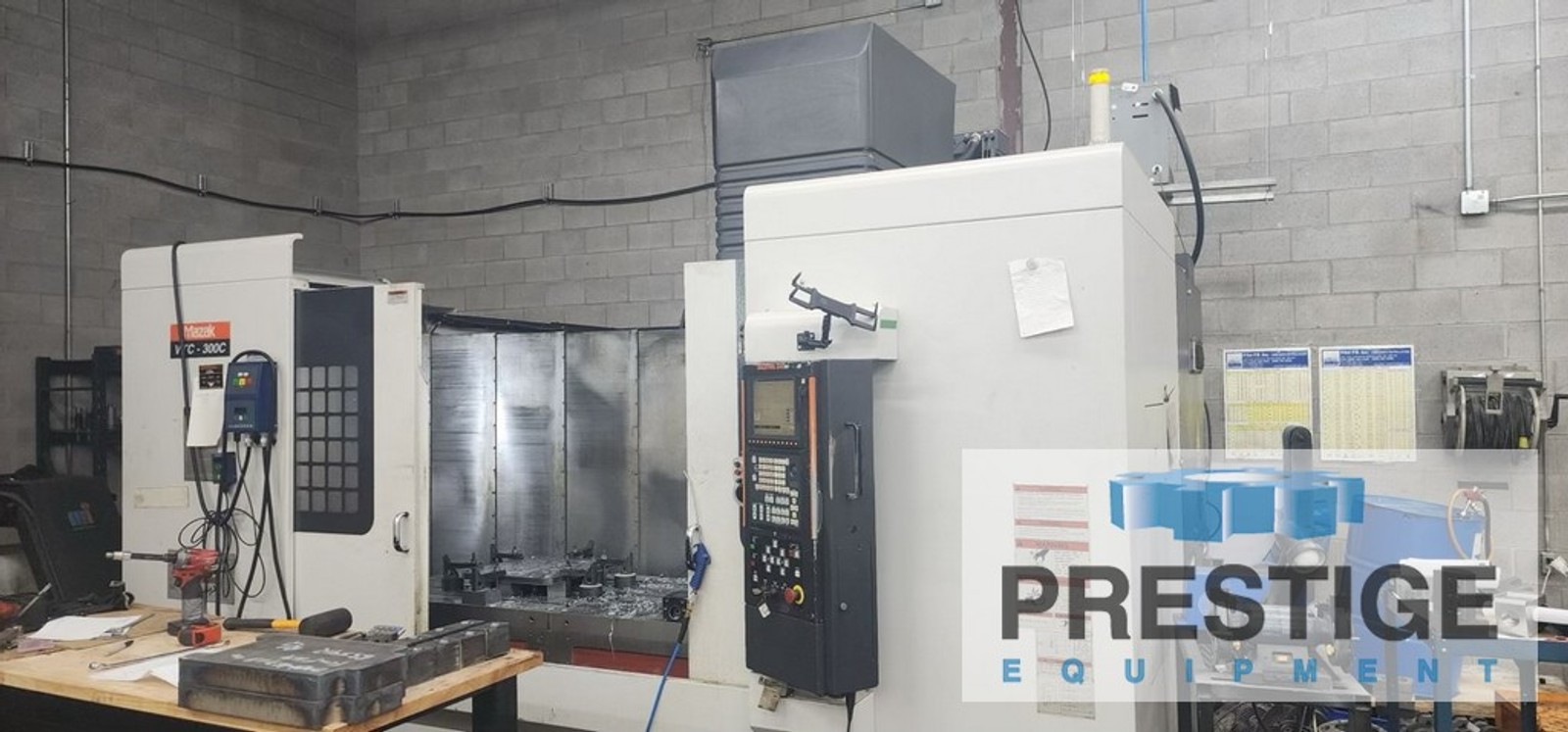

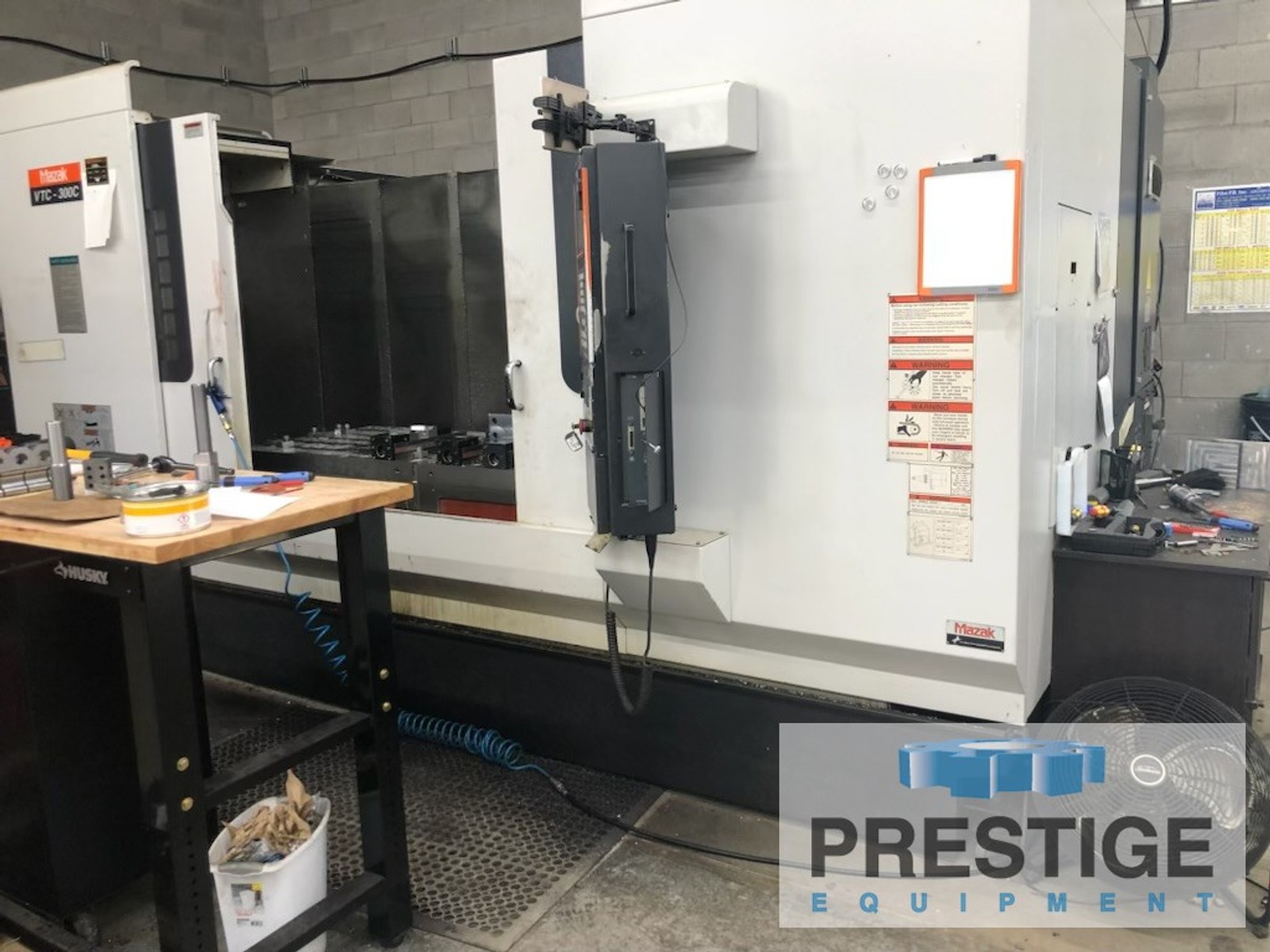

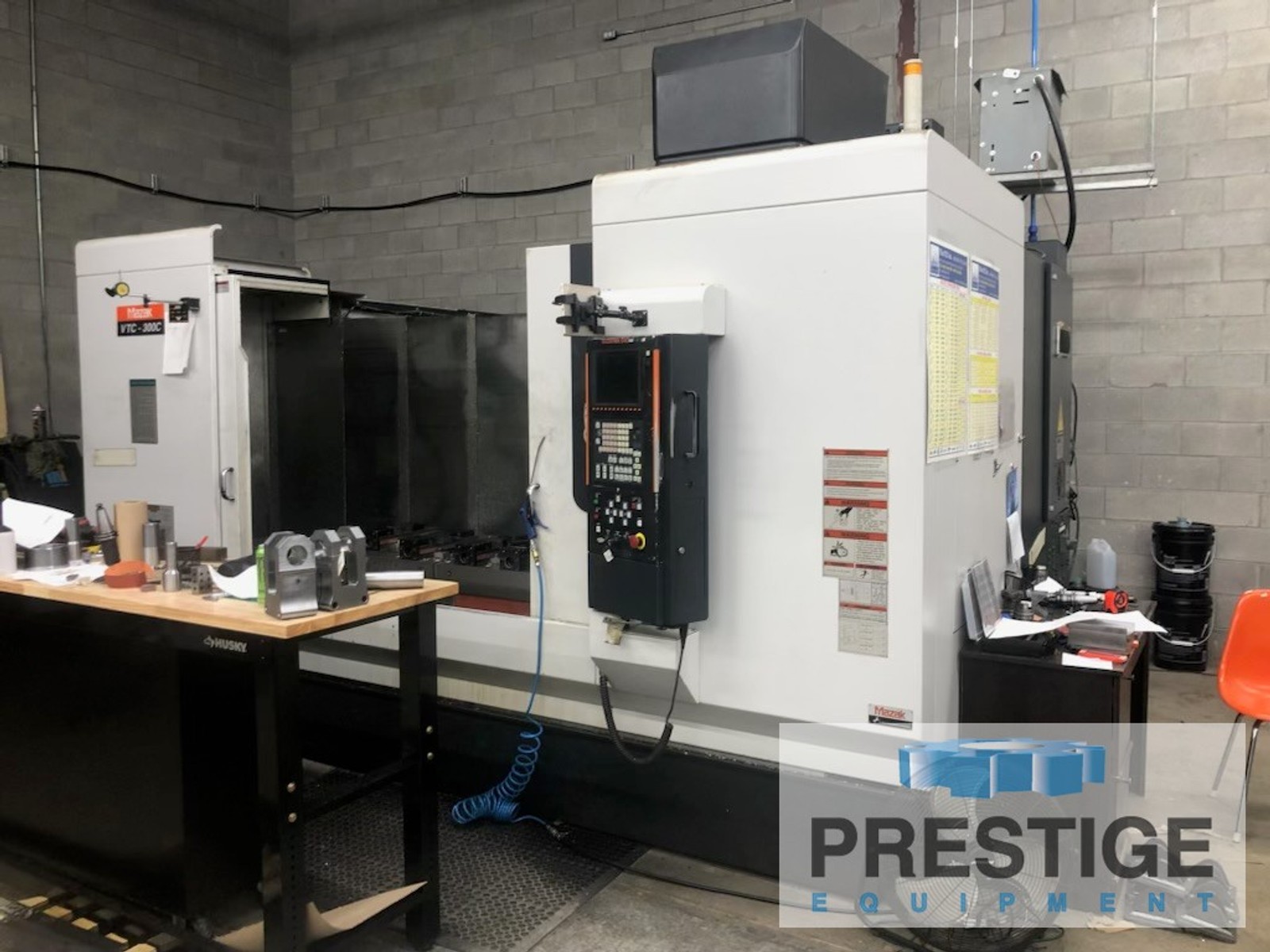

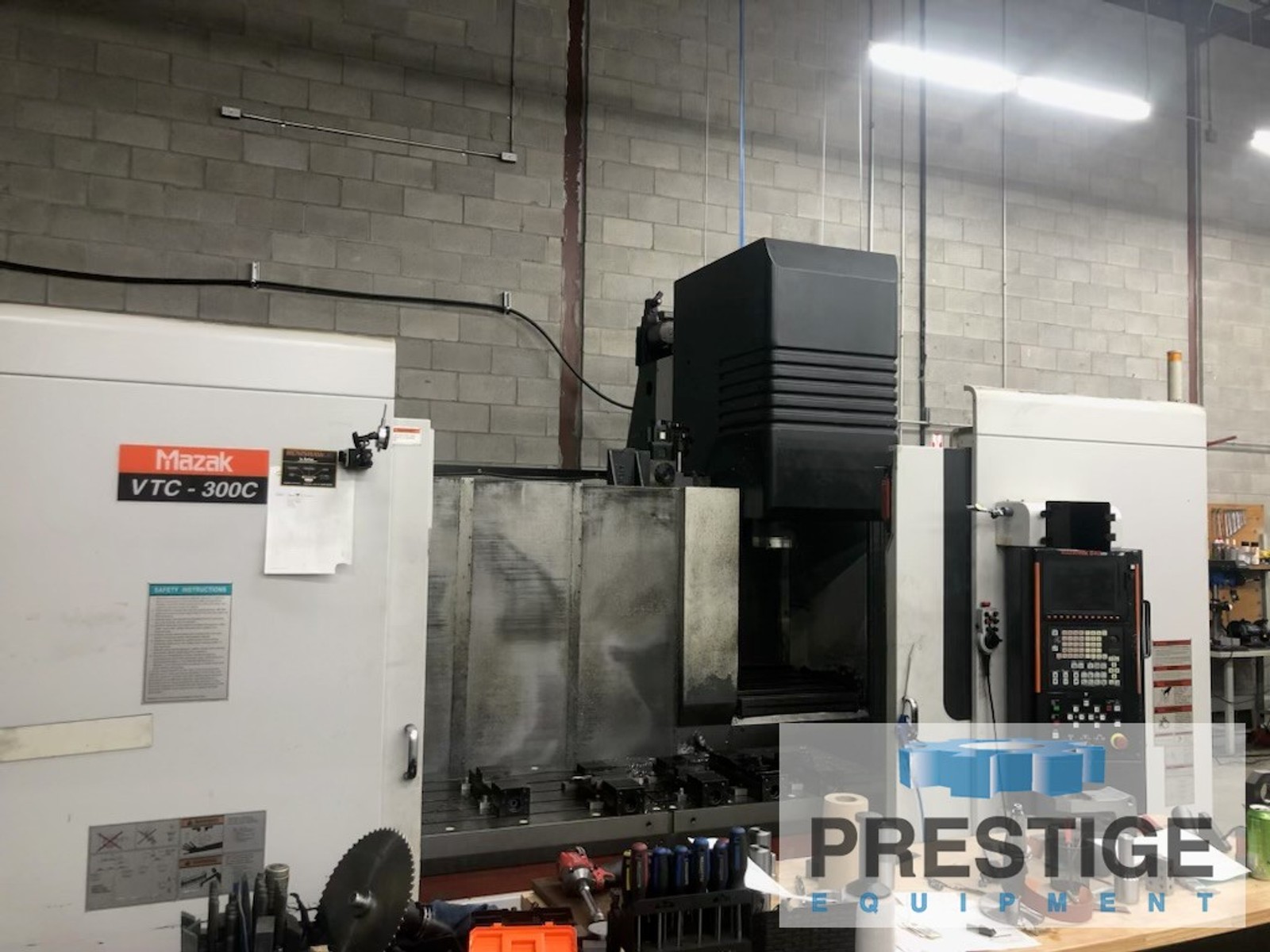

Mazak VTC-300C CNC Vertical Machining Center

FEATURES:
Mazatrol 640MN CNC Control
Spindle Rebuilt 2020

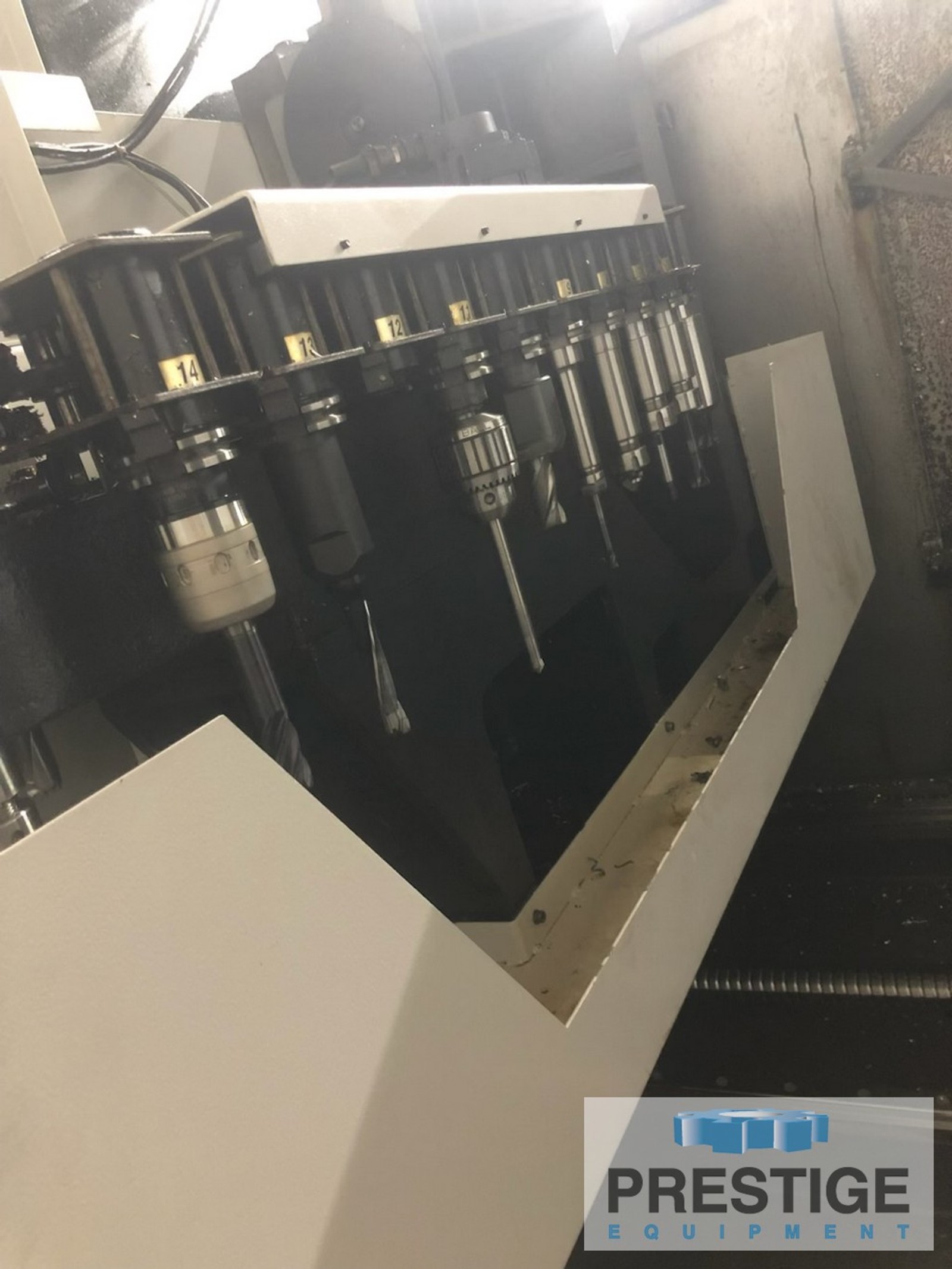

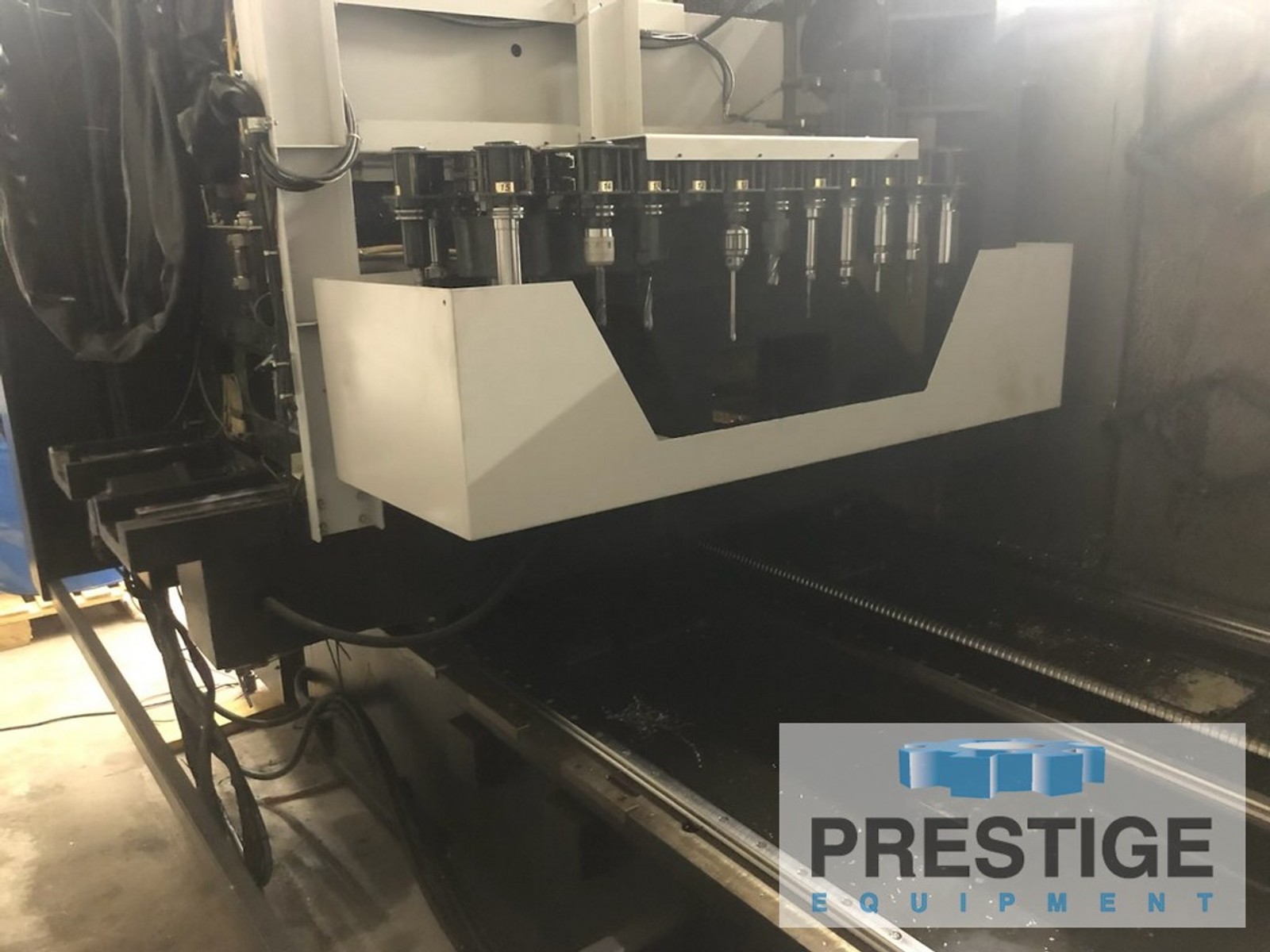

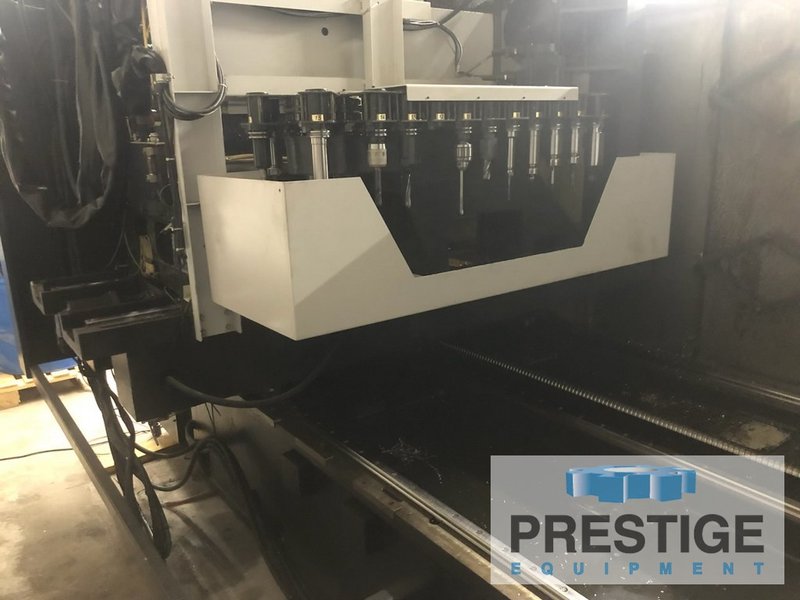

24-Position Automatic Tool Changer
Renishaw Probe
Chip Conveyor

CAPACITY:
X-Axis Travel ......................... 65.37"
Y-Axis Travel ......................... 29.95"
Z-Axis Travel ......................... 26.00"
Table Size ............................ 78.74" x 29.9"
Table Load Capacity ................... 3300 Lbs.
Spindle Nose to Table Top ............. 5.8"-31.8"
Spindle Speeds ........................ 12,000 RPM
Spindle Taper ......................... CAT 40
Spindle Motor ......................... 25 HP
Tool Changer .......................... 24 ATC
Rapid Traverse ........................ 1181 IPM
Approximate Machine Dimensions ........ 157" x 134" x 115" H
Approximate Machine Weight ............ 18,600 Lbs.

EQUIPPED WITH:
Mazatrol 640MN CNC Control
Spindle Rebuilt 2020
24-Position Automatic Tool Changer
Renishaw Probe
Chip Conveyor
