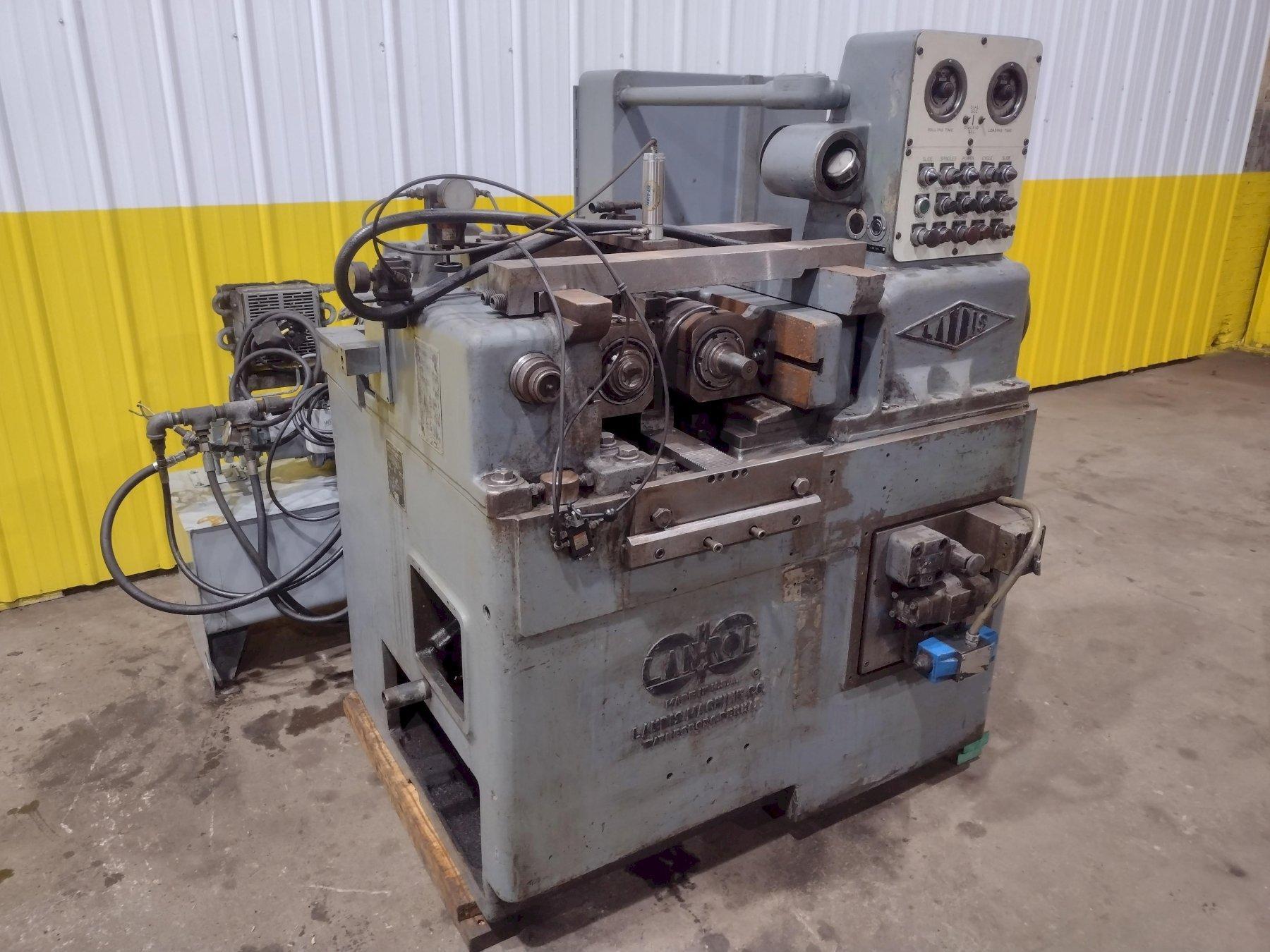

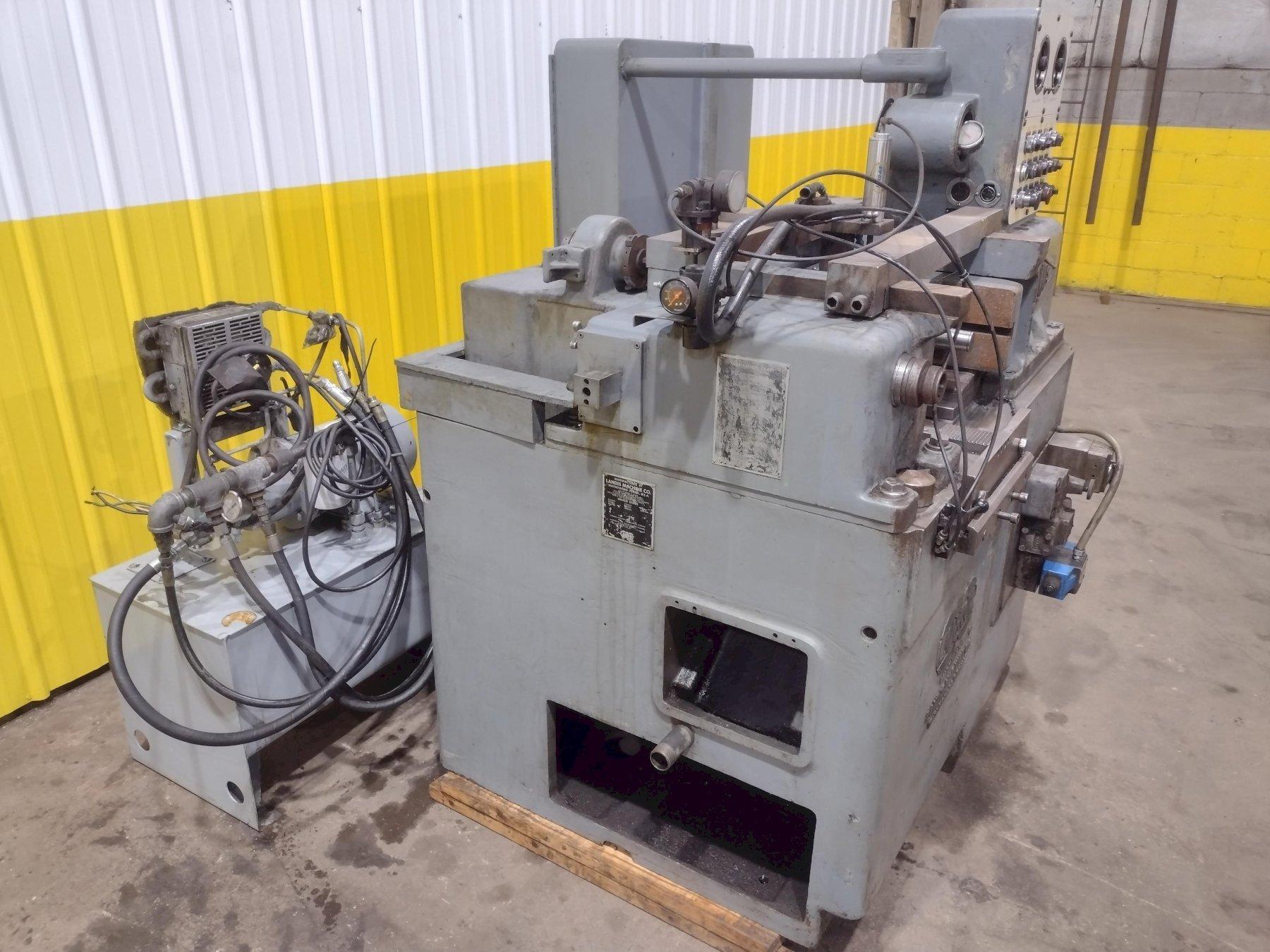

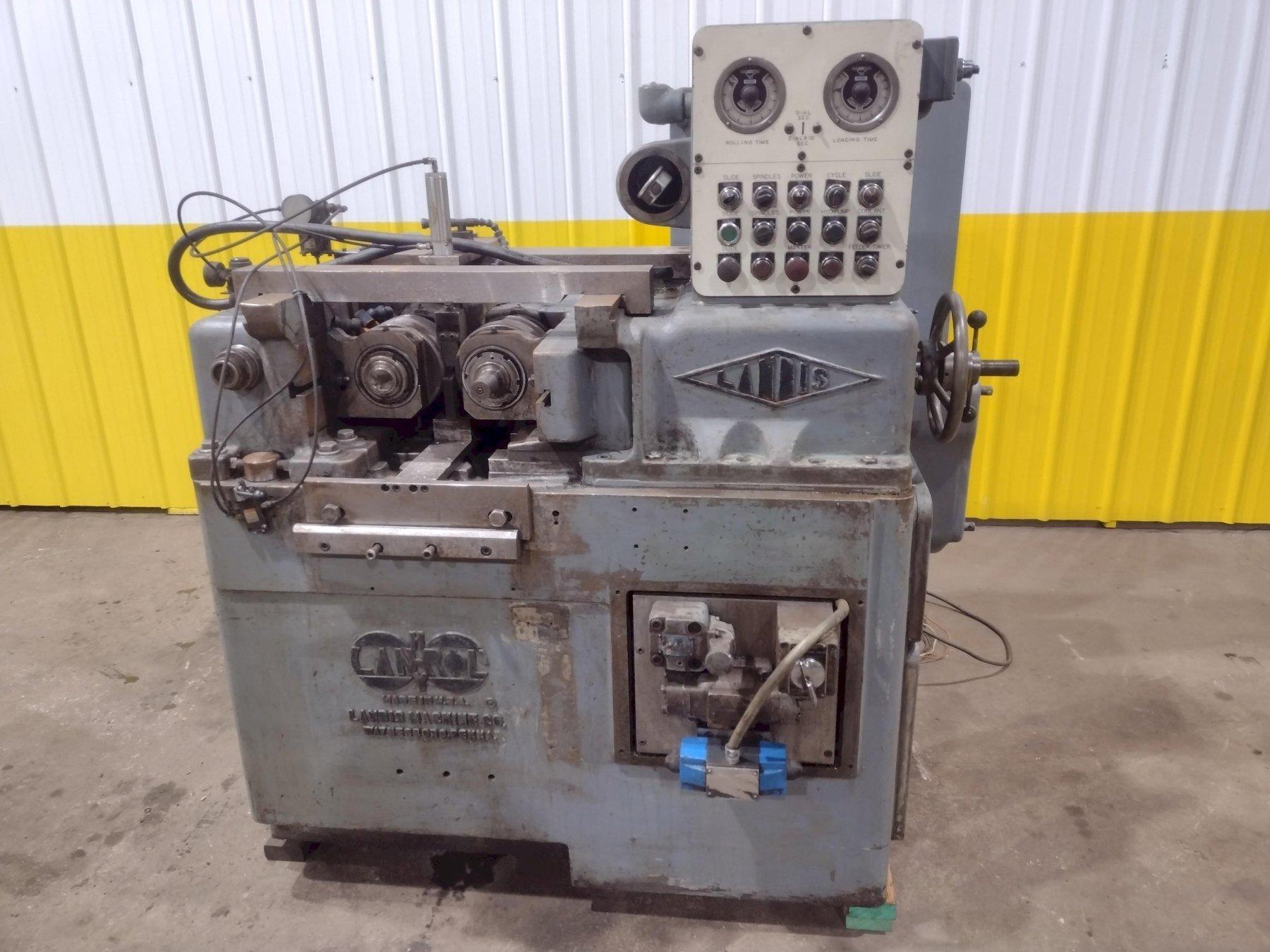

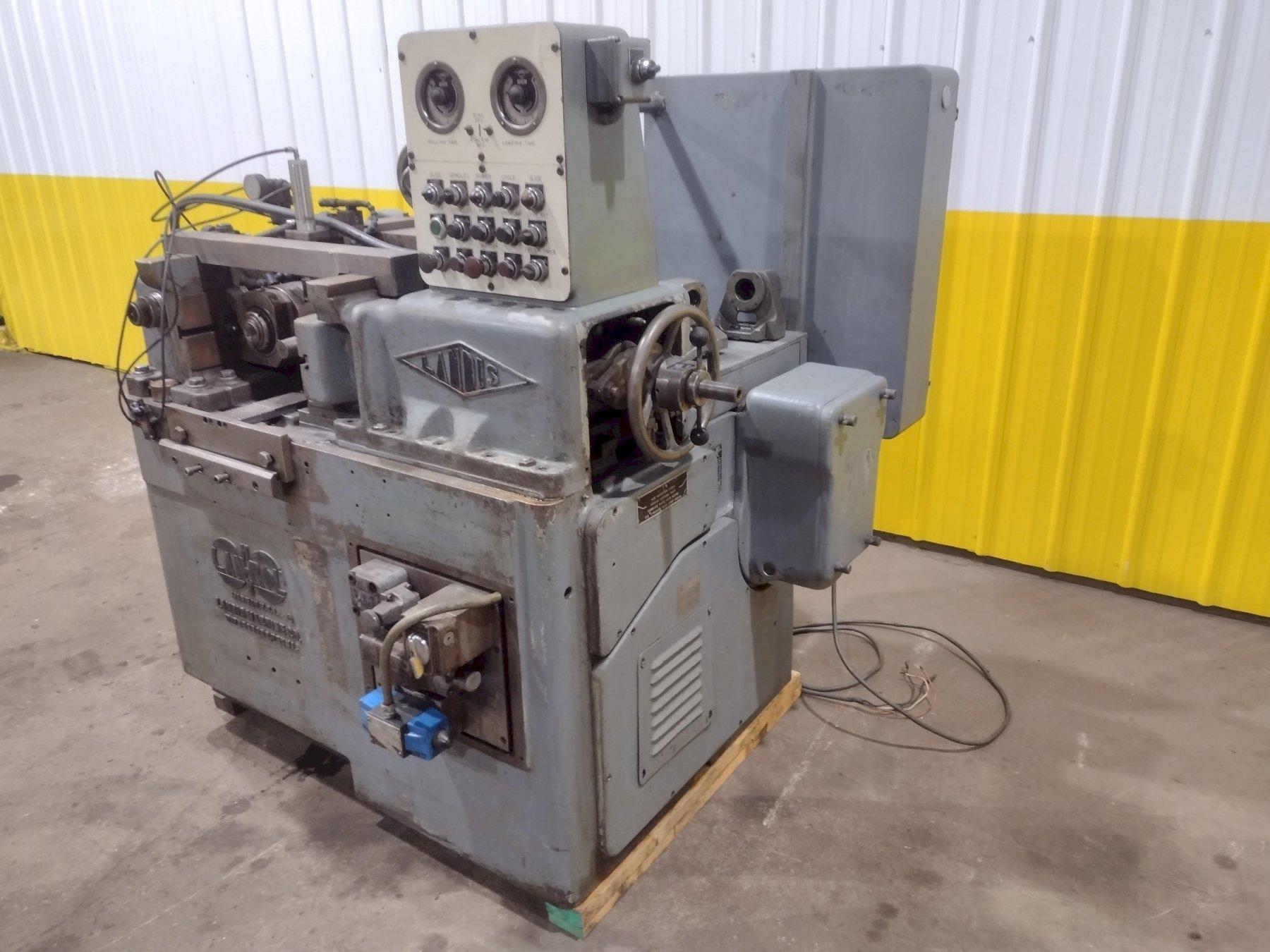

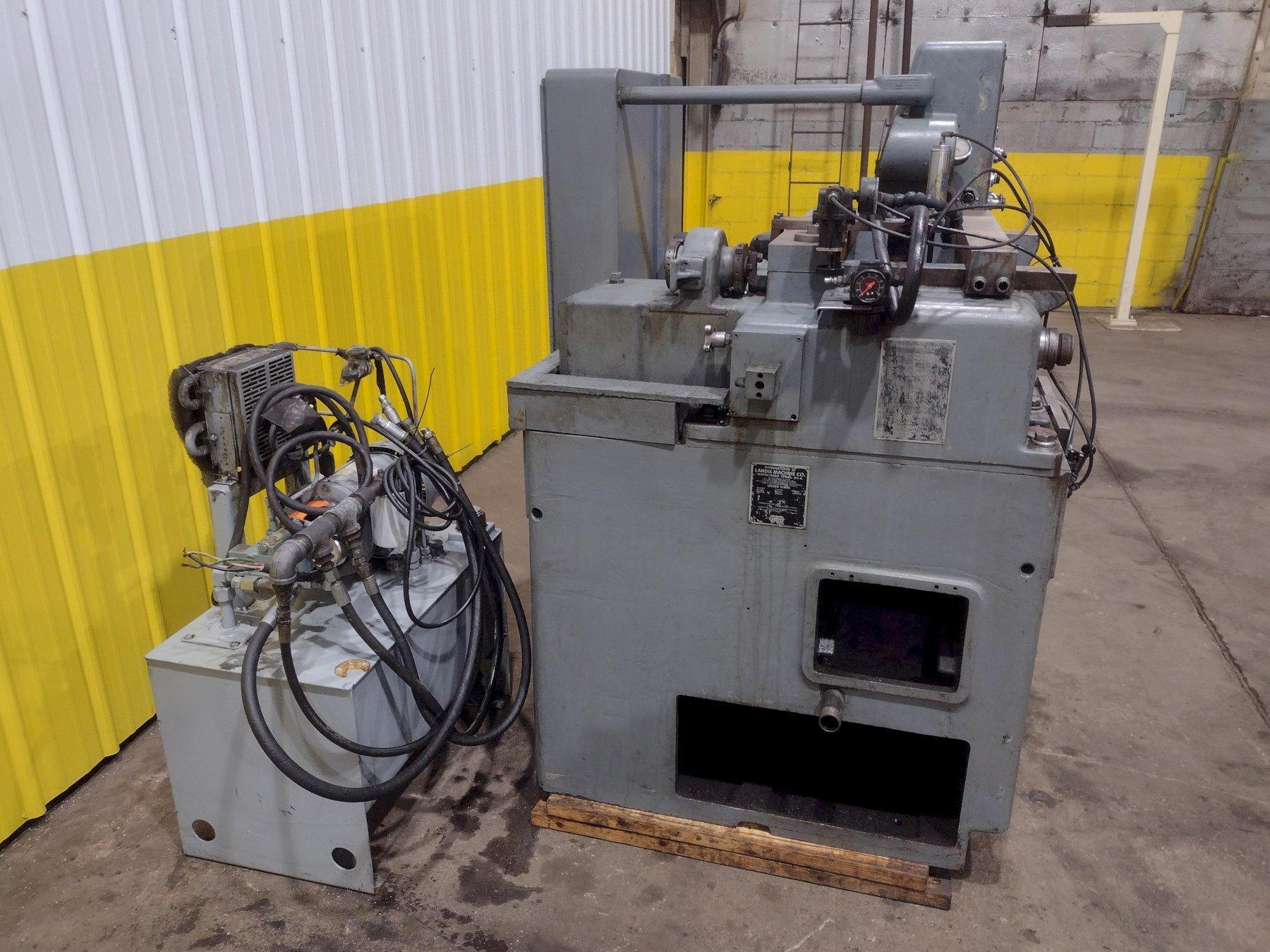

3" LANDIS MODEL #24-PW LAN-HY-ROL THREAD ROLL THREADER: STOCK #20034

Manufacturer

LANDIS

Category

Pipe & Tube Mfg. Machines

Type

THREADERS, PIPE, (Including Nipple Machines, Pipe, Tube Cutters)

Stock

20034

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 110" x 67" x 78"
Weight - 9000 pounds

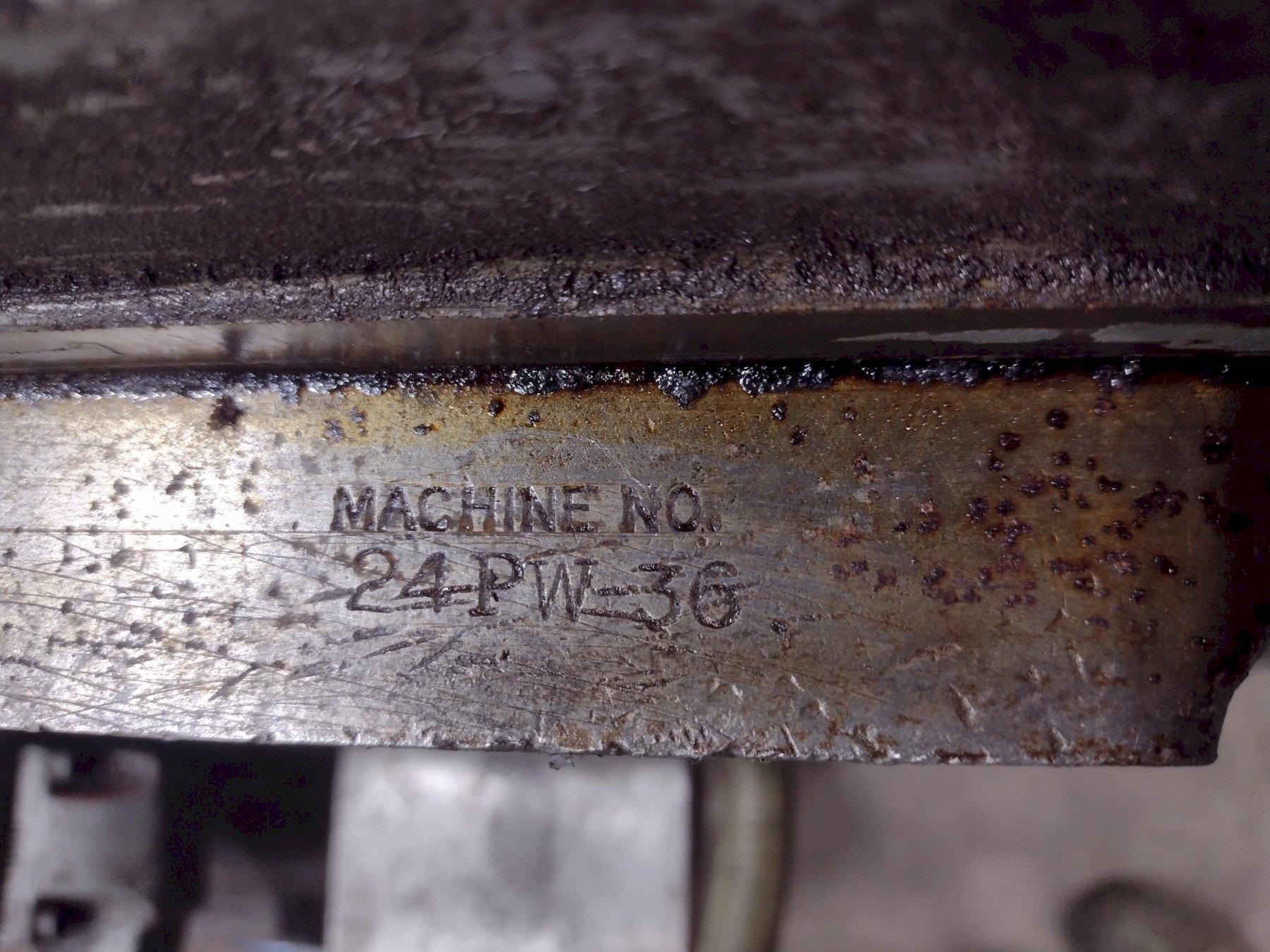

SERIAL .......... 24PW-36
MODEL ........... 24 PW LAN-HY-ROL

Capacity 0-3" Max. Dia.
Effective work length 7 1/4"
Thread length, Infeed 5 7/8"
Rolling pressure variable to maximum 18 Tons
Finest pitch - UN or AN 40 TPI
Coarsest pitch UN or AN 4 TPI
Coarsest pitch - Acme & worm threads .3142 Linear, 3 1/4 TPI
Max. thread length - Thru feed 20'

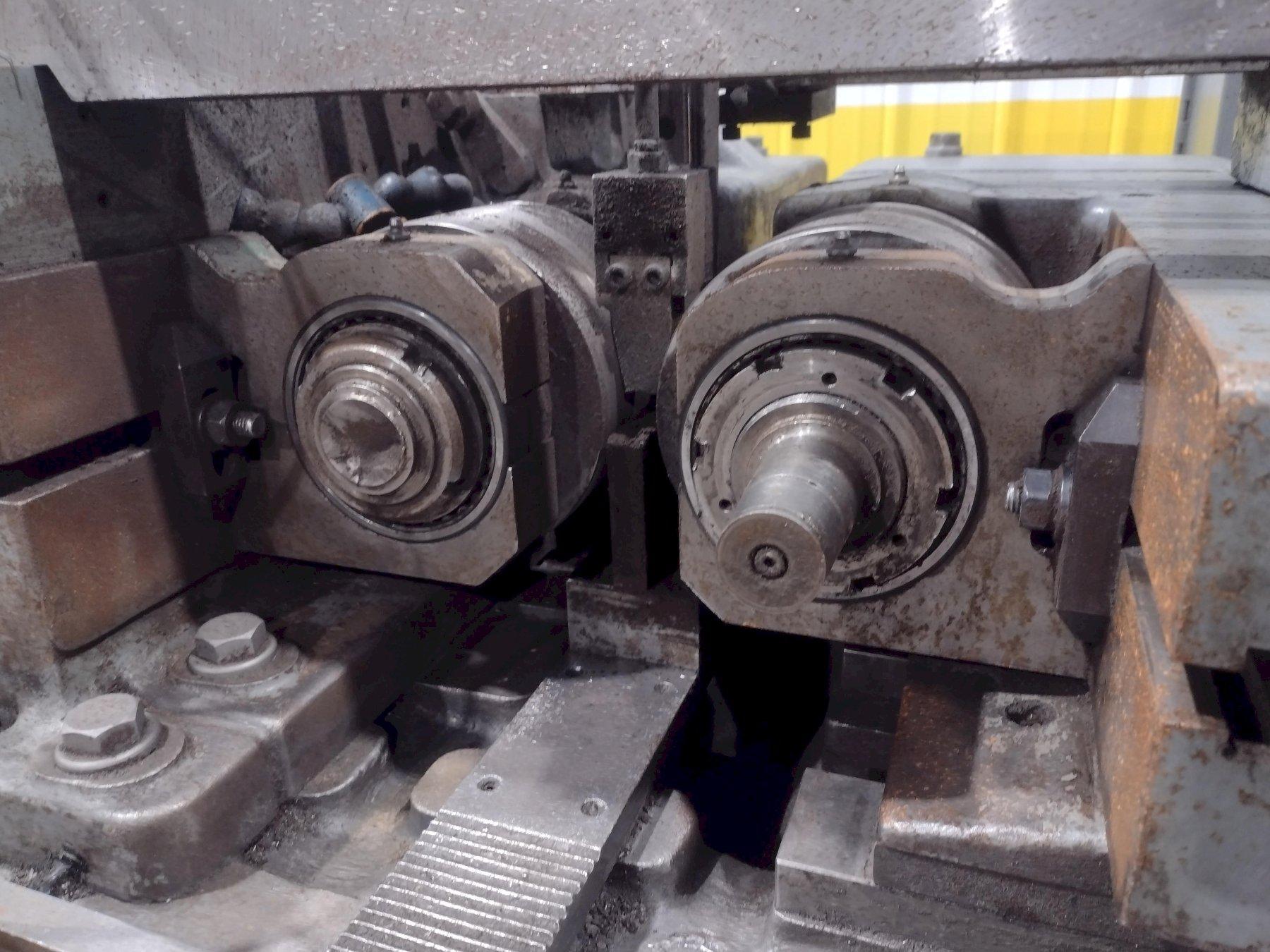

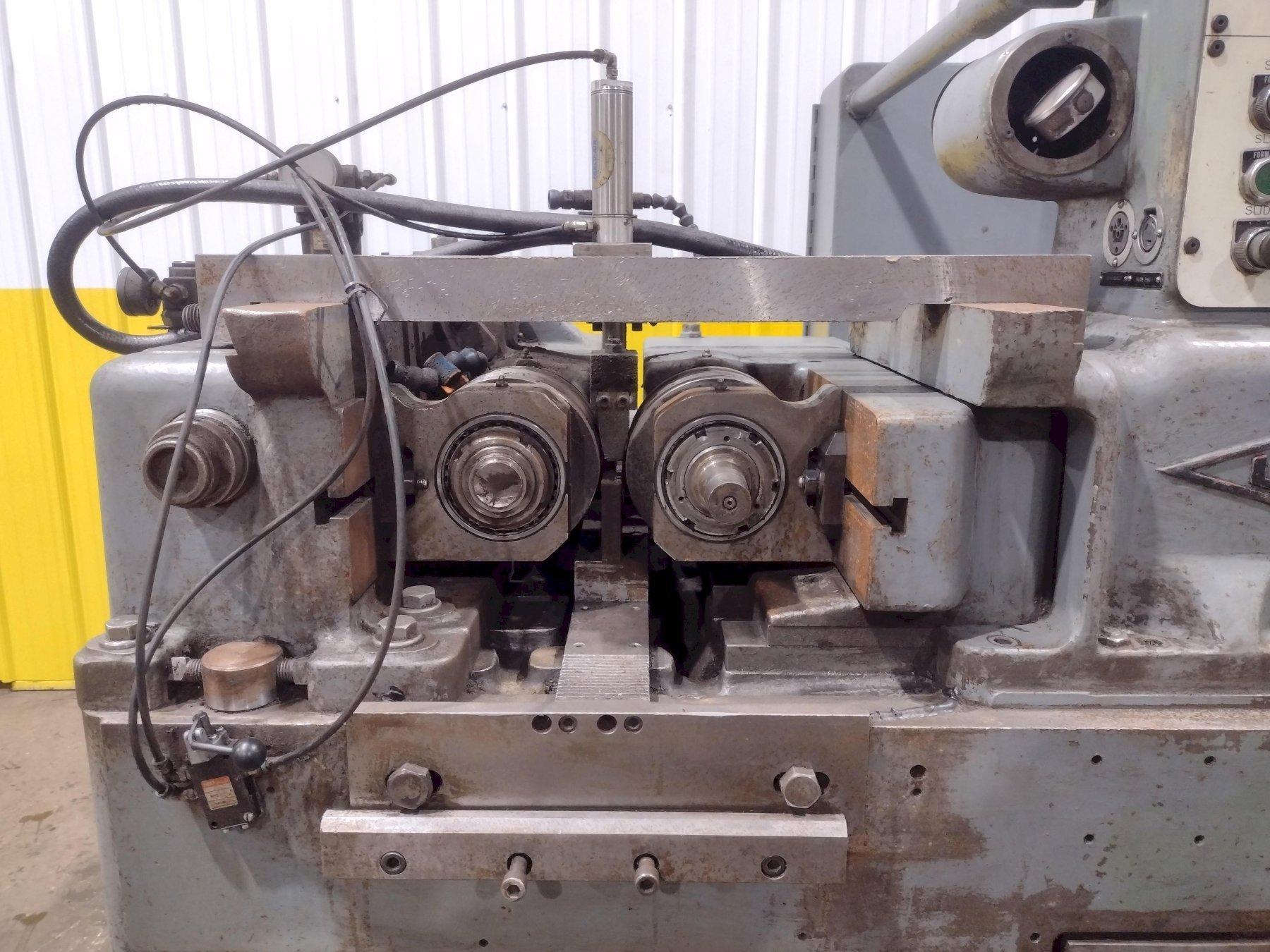

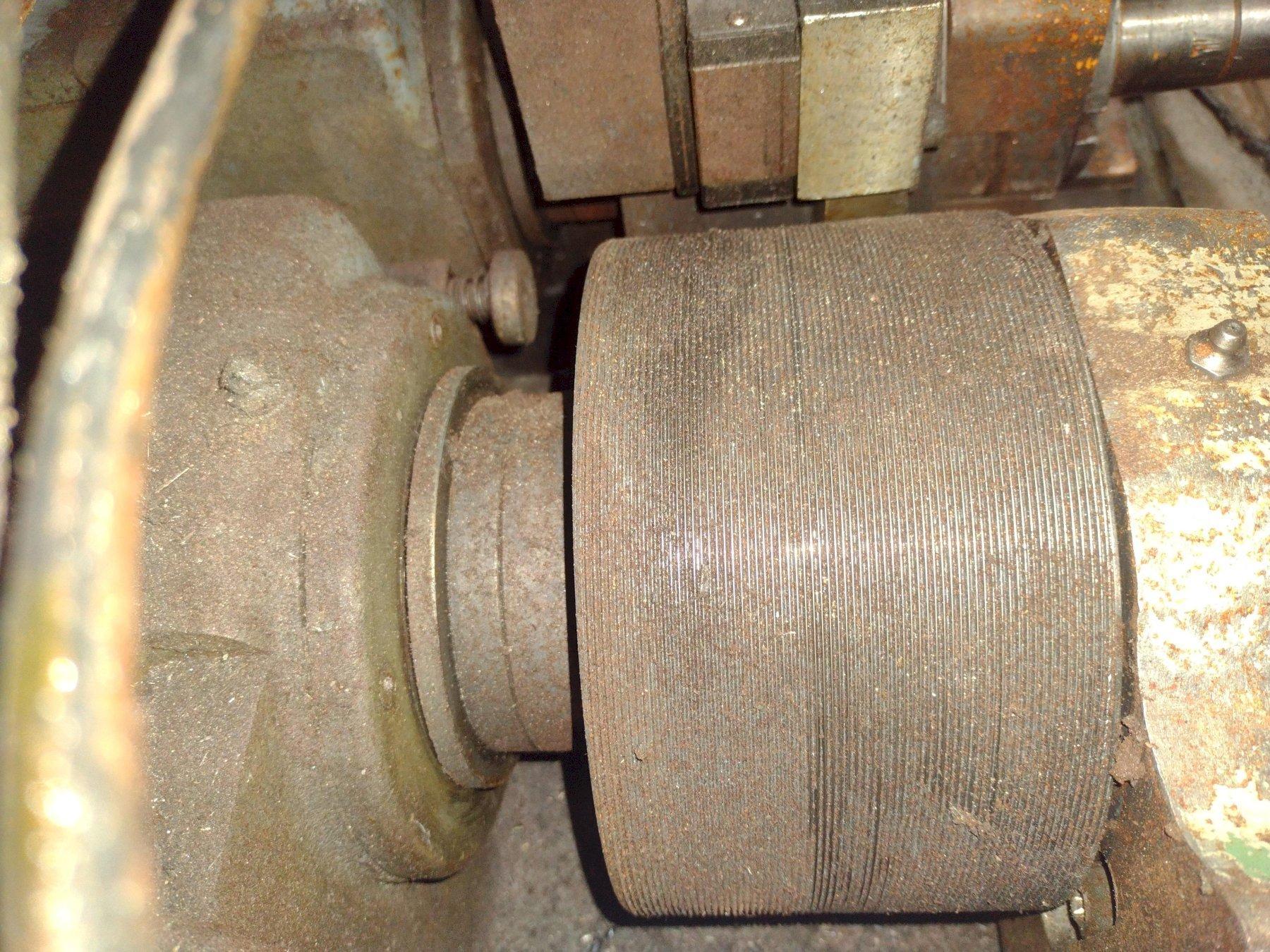

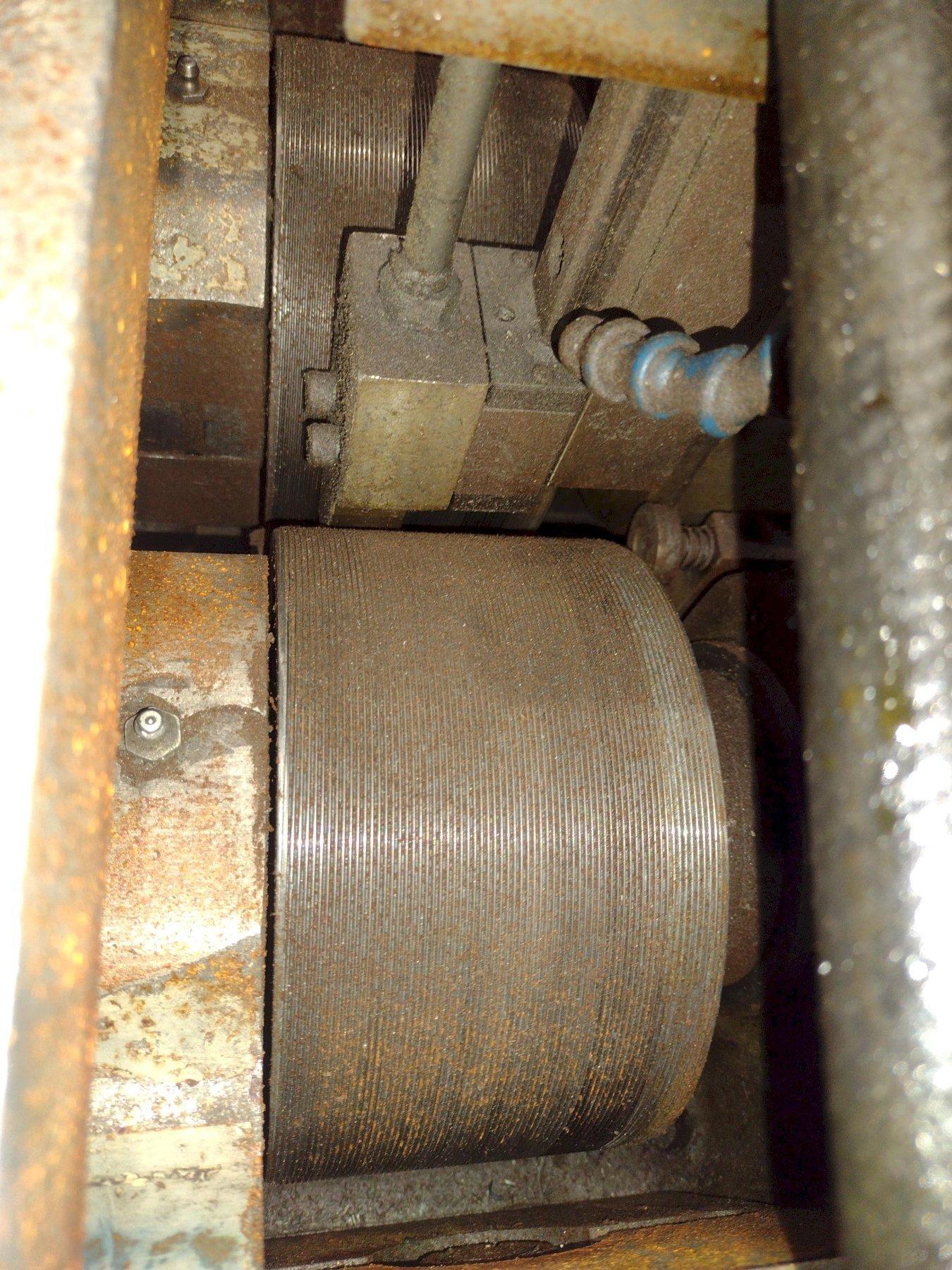

Rolls - minimum dia. 4 1/2"
- maximum dia. 8"
Roll center distance - min (slide forward) 6"
- max (slide retracted) 10 13/16"

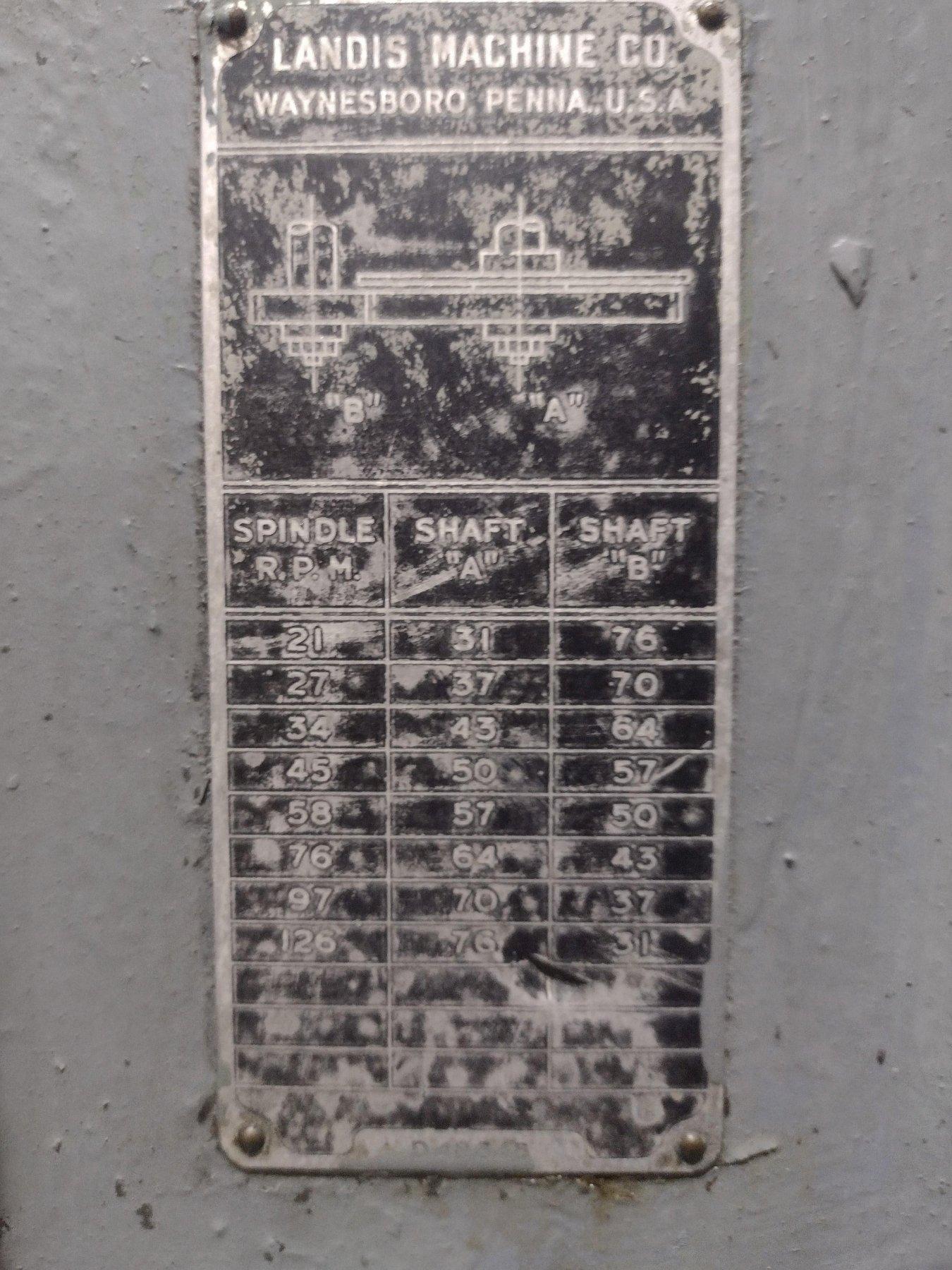

SPINDLE SPEED ... 21 TO 126 RPM
Rolling pressure with std outboard bearing 36,000 LBS
With heavy duty outboard bearing 45,000 LBS
Spindle 10 HP
Hydraulic pump 3 HP
Coolant pump 1/2 HP
Floor space - infeed 86"W x 71" Deep

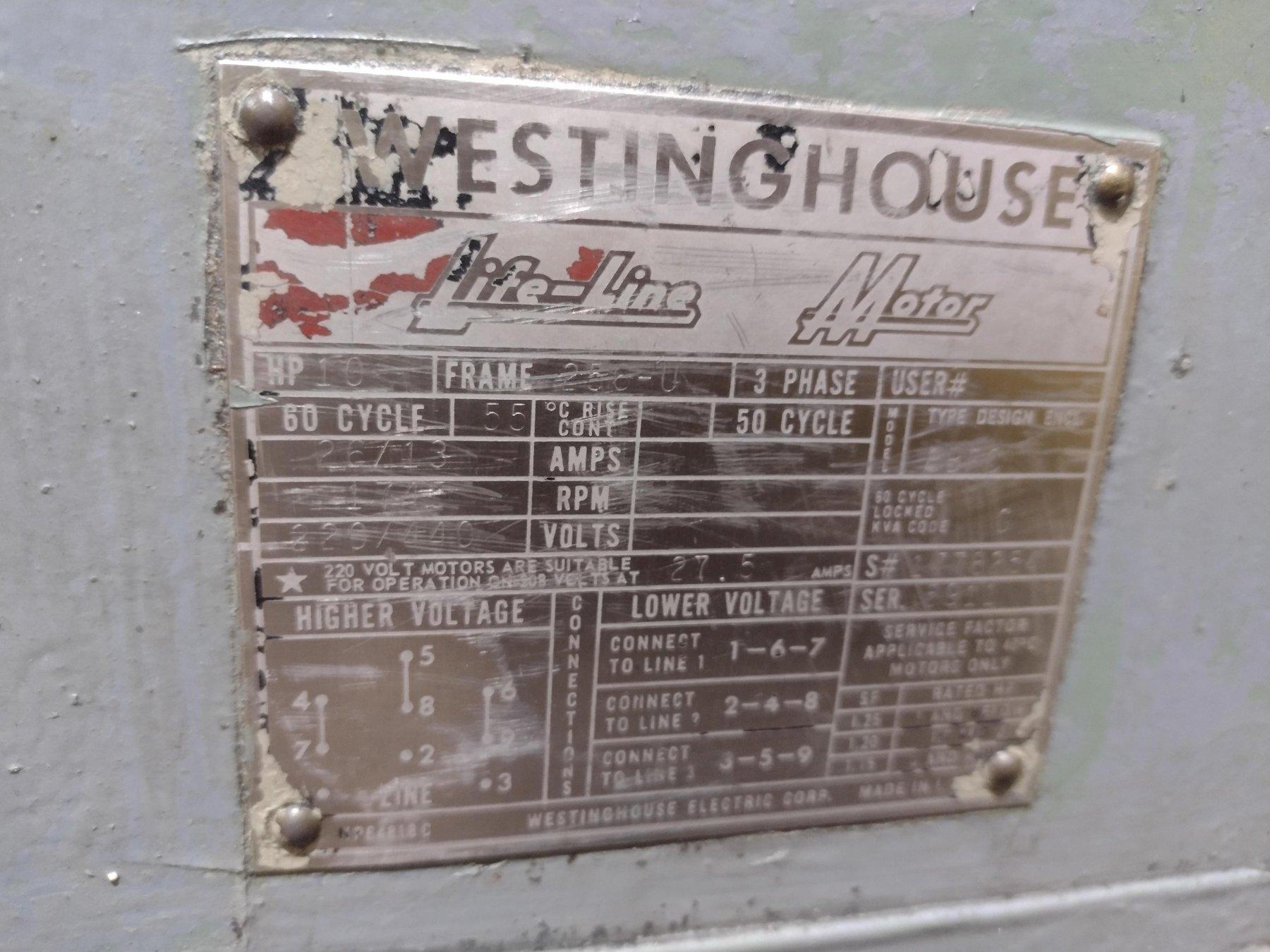

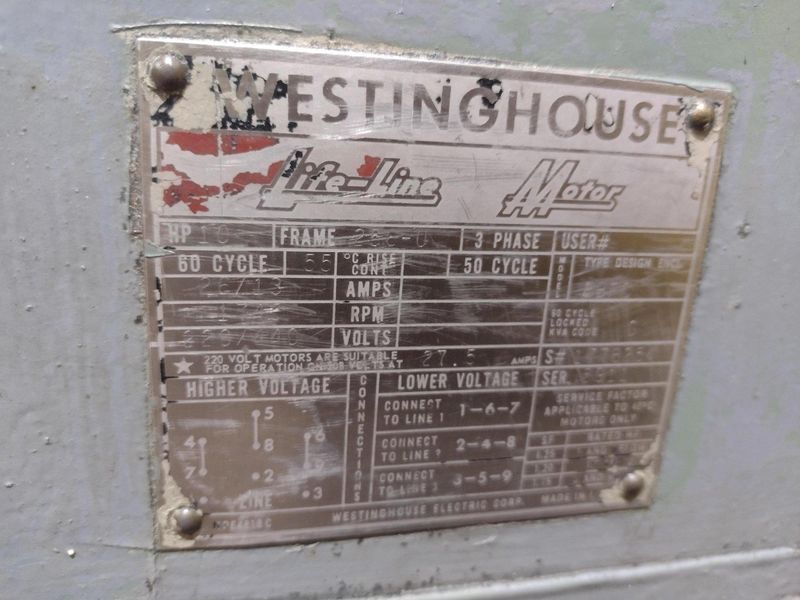

10 HP Main drive motor
