Romi M27 27" x 120", Fanuc 21i-TB, 16" 3-Jaw Chuck, 8-Sta. Turret, Tailstock, Steady Rests, 2009, #32643

Manufacturer

ROMI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32643

Model

M27

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32643

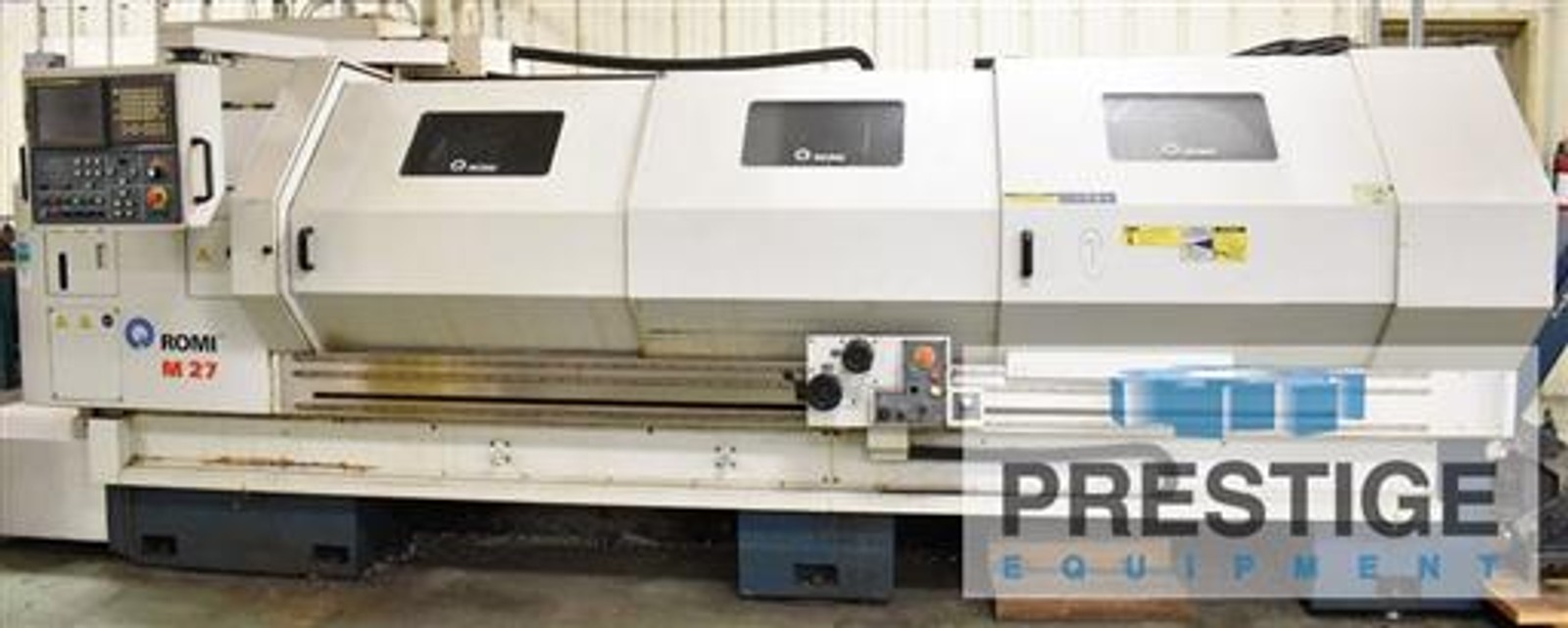

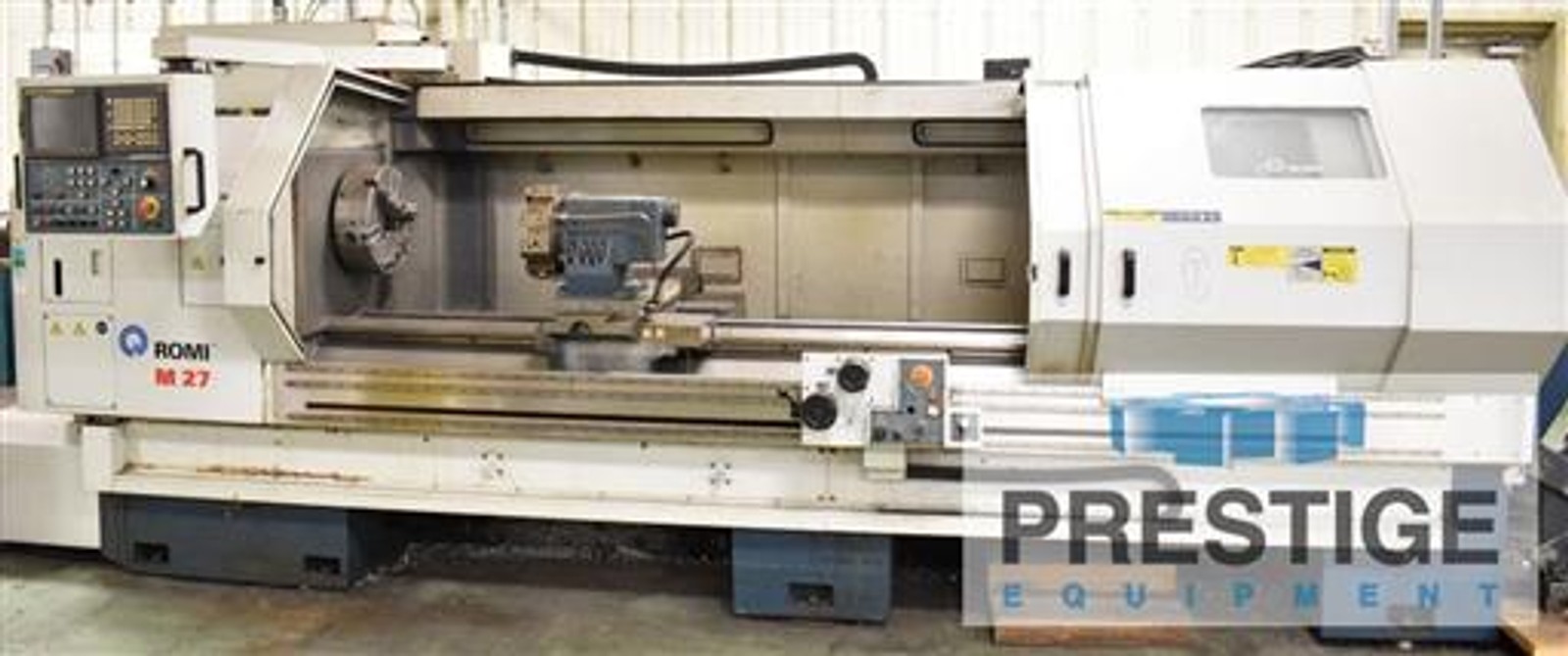

Romi M27 27" x 120" CNC Lathe

FEATURES:
Fanuc 21i-TB CNC

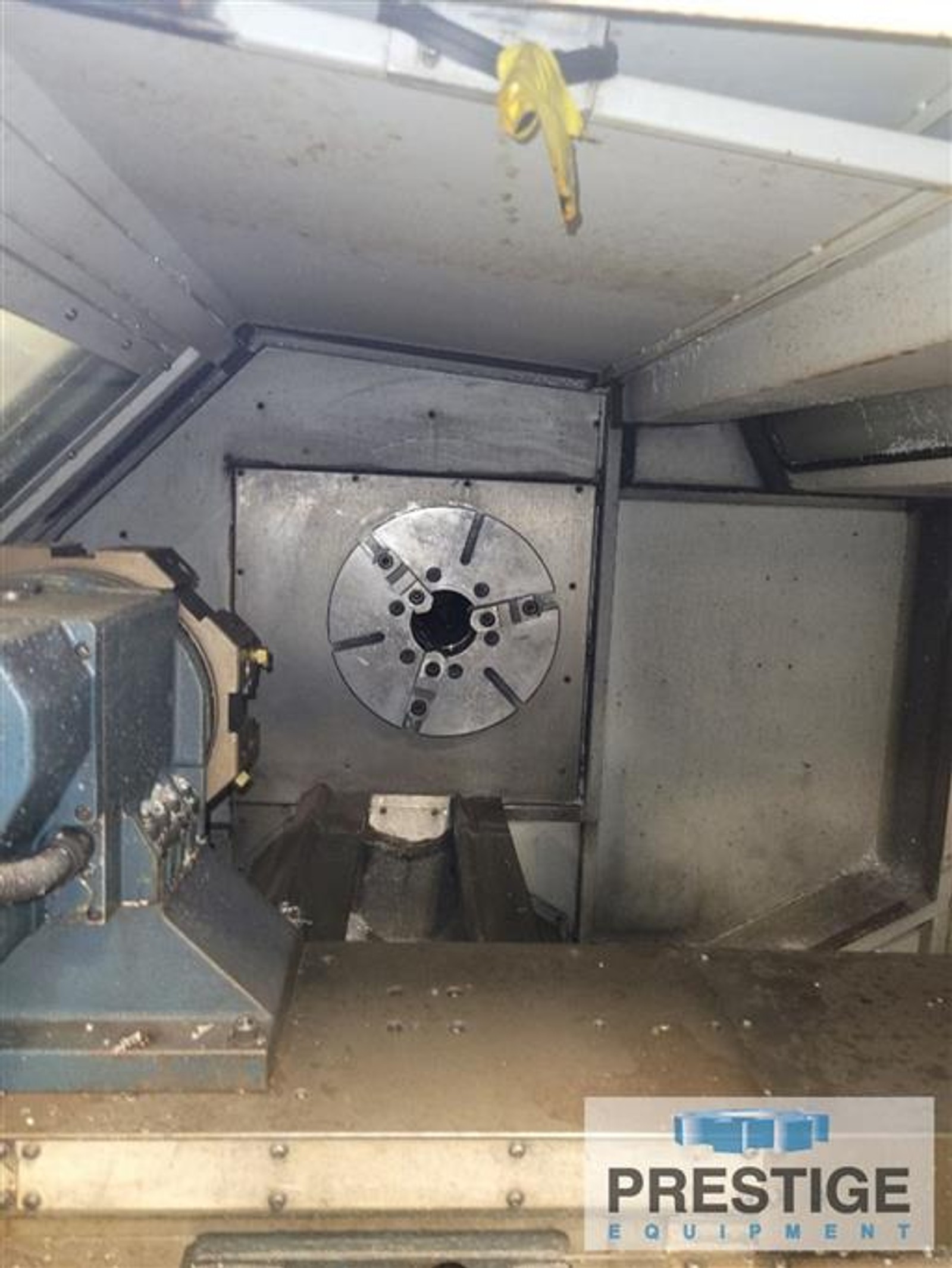

16" 3-Jaw Chuck

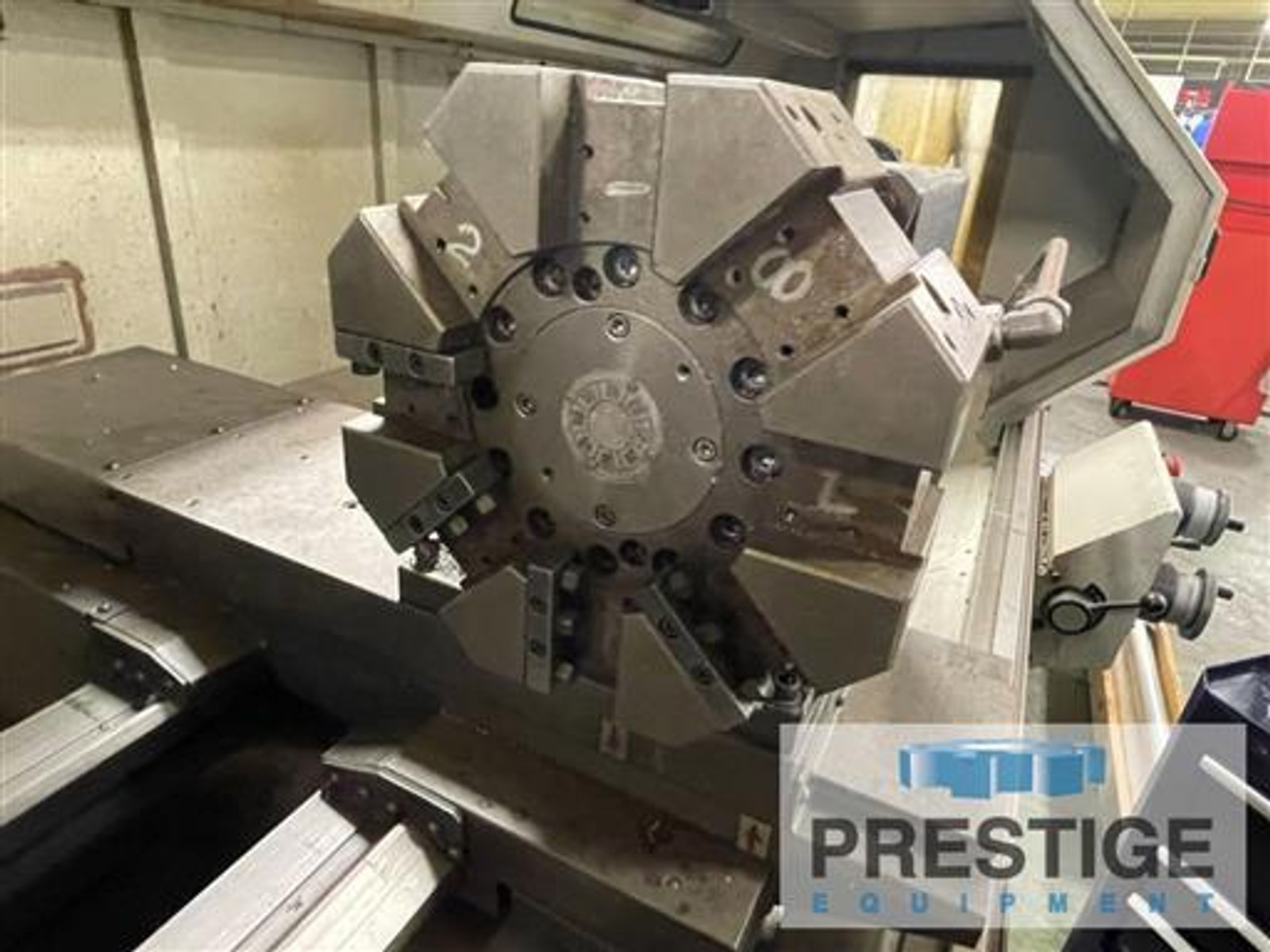

8-Station Turret

SPECIFICATIONS:
Swing Over Bed ........................ 26.97"
Swing Over Cross Slide ................ 16.93"
Distance Between Centers .............. 120"
X-Axis Travel ......................... 14.17"
Z-Axis Travel ......................... 120"
Bed Width ............................. 14.96"
Spindle Nose .......................... A2-8"
Spindle Through Hole .................. 4.09"
Spindle Speeds (2-Ranges) ............. 2-1800 RPM
Rapid Traverse,Z-Axis ................. 295 IPM
Rapid Traverse,X-Axis ................. 295 IPM
Tailstock Quill Diameter .............. 3.94"
Quill Internal Taper .................. 5 MT
Quill Travel .......................... 7.09"
Approximate Floor Space ............... 215" x 80"
Approximate Weight .................... 15,500 LBS

EQUIPPED WITH:

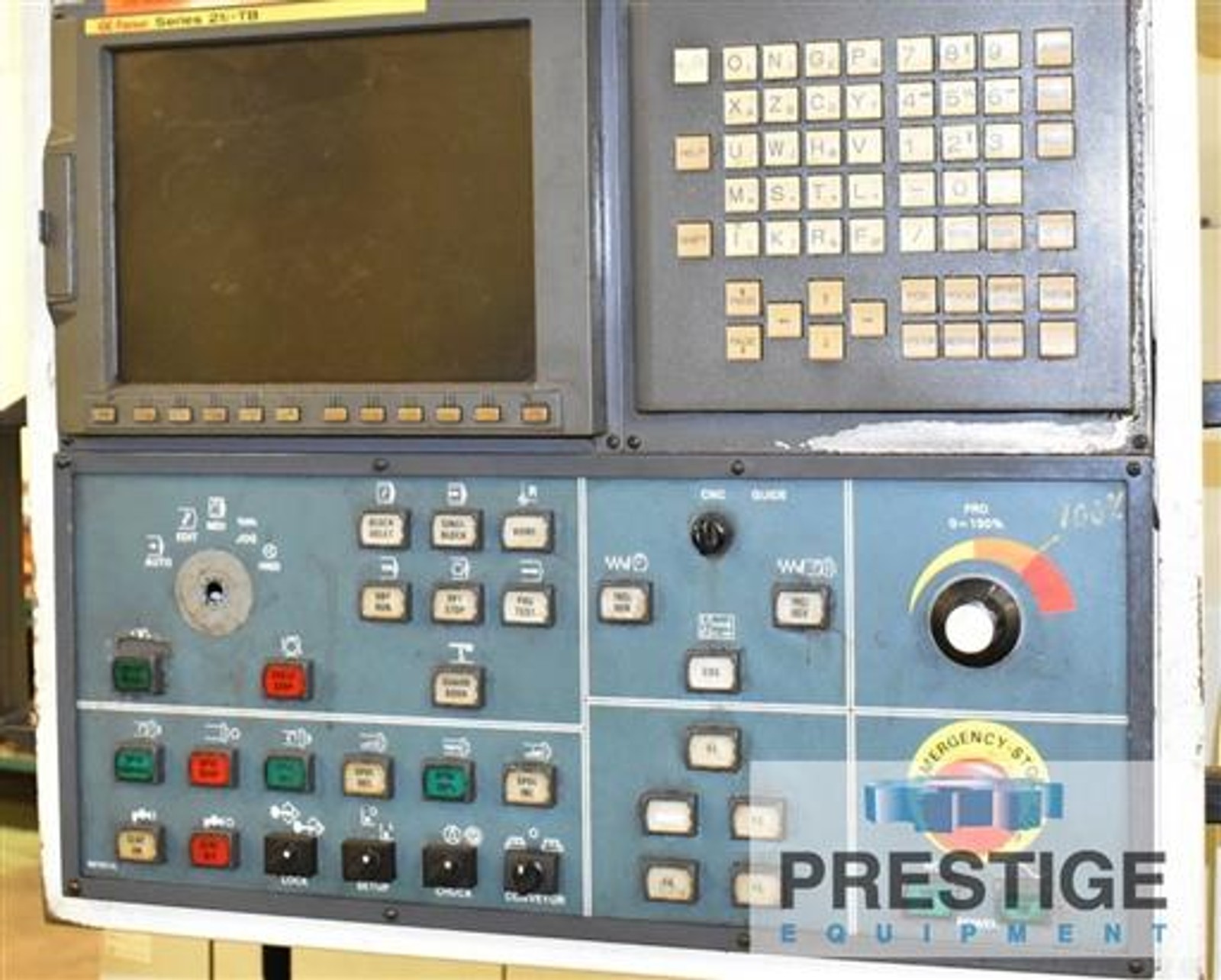

Fanuc 21i-TB CNC
16" 3-Jaw Chuck
8-Station Turret

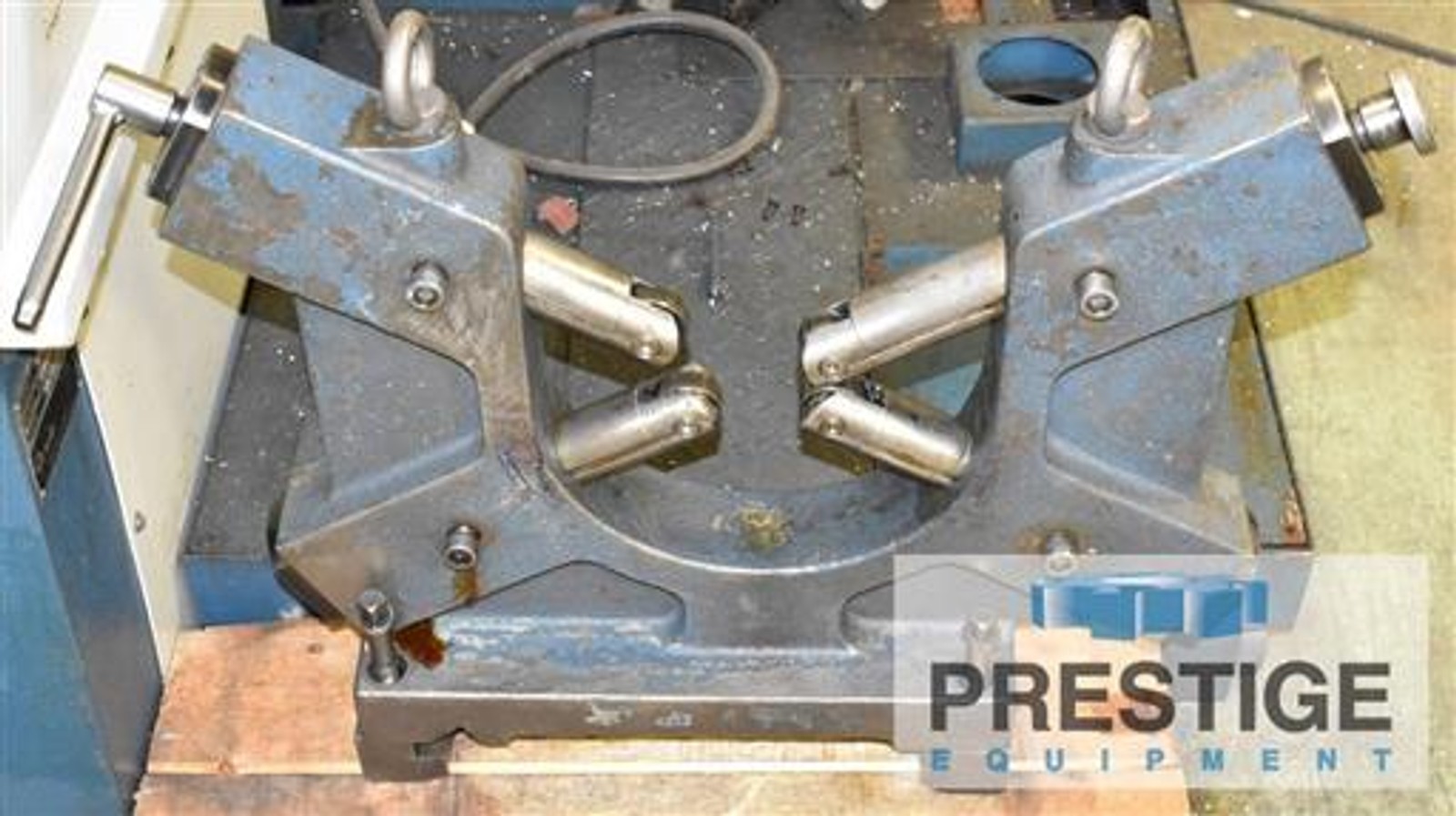

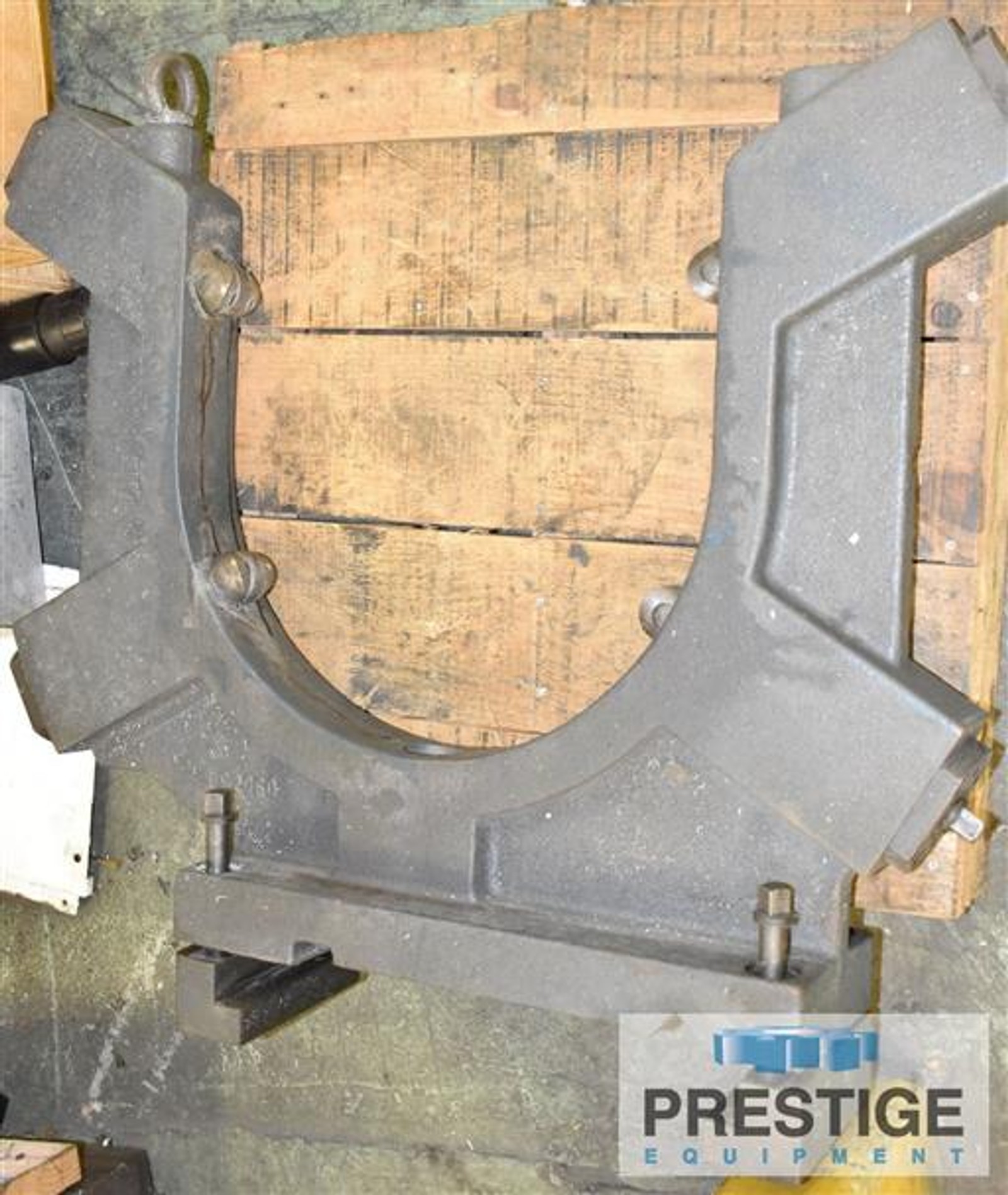

Steady Rest

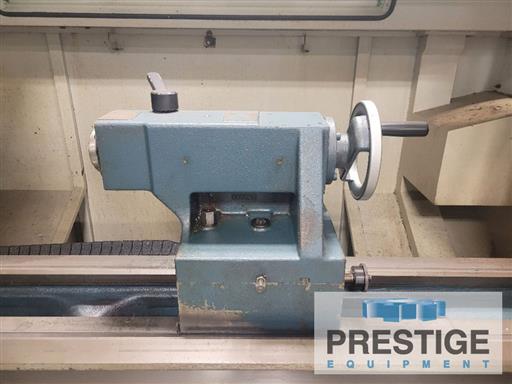

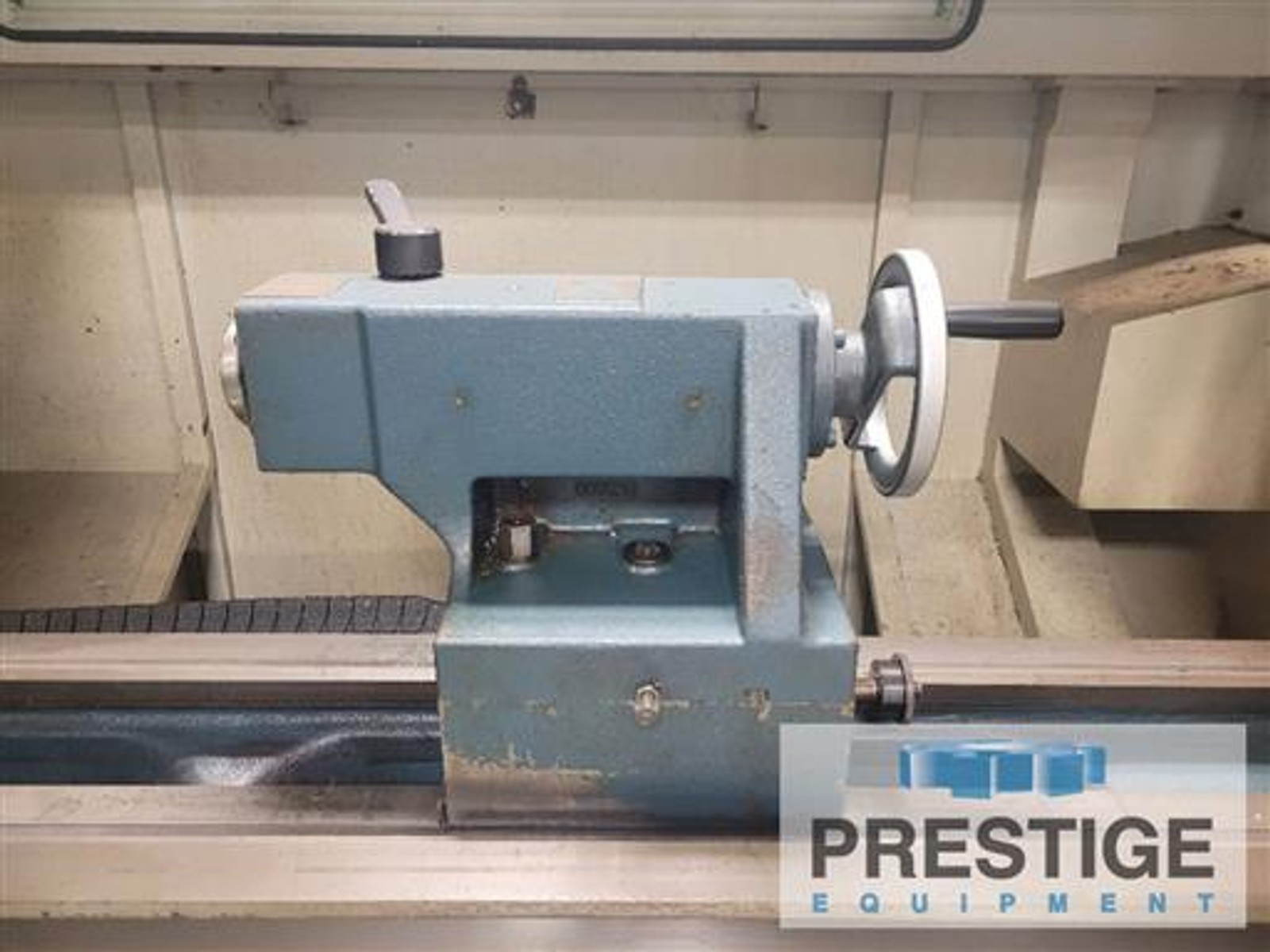

Tailstock

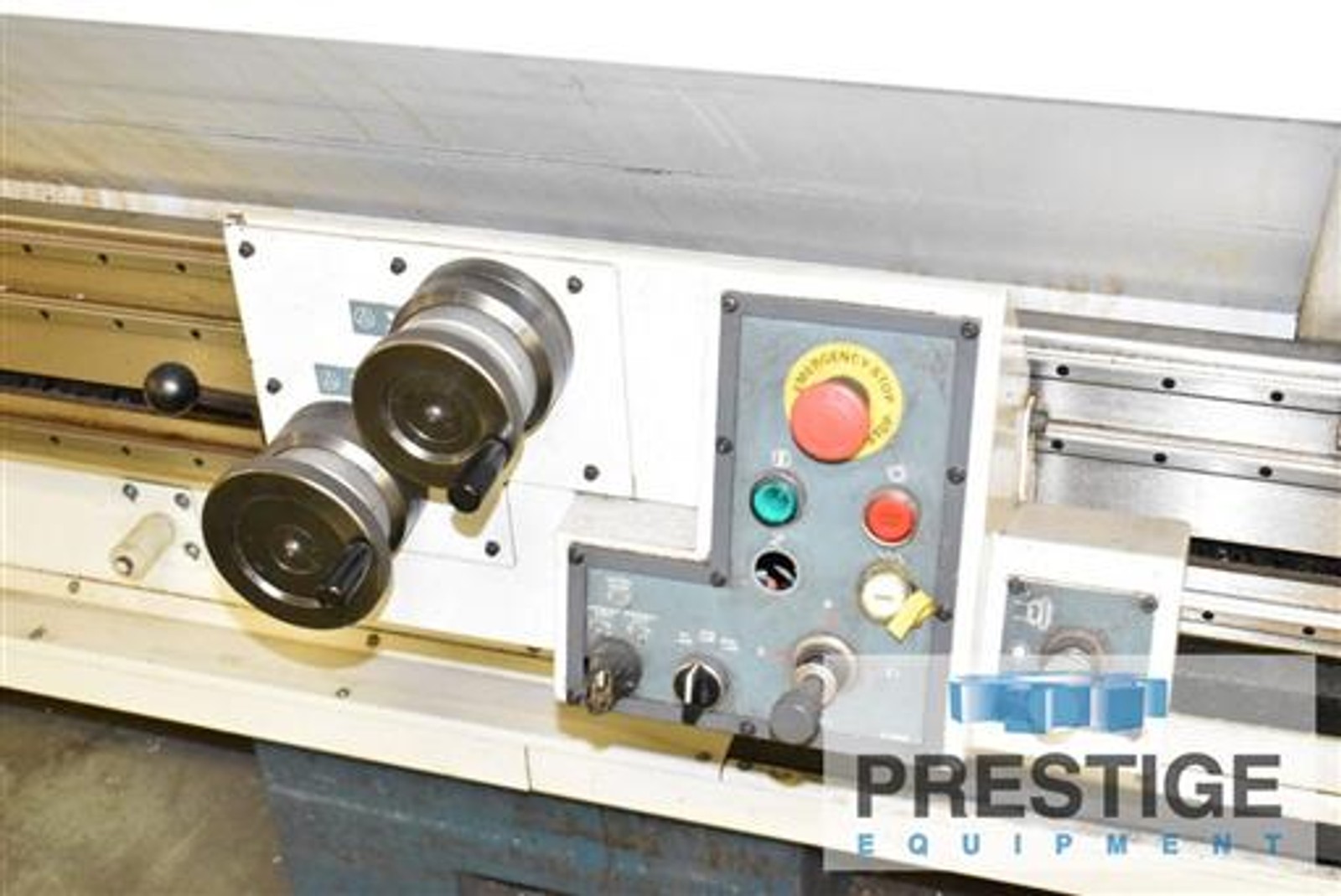

Apron with 2-Electronic Handwheels
Spindle Motor Switch for Manual Operation
Automatic Lubrication

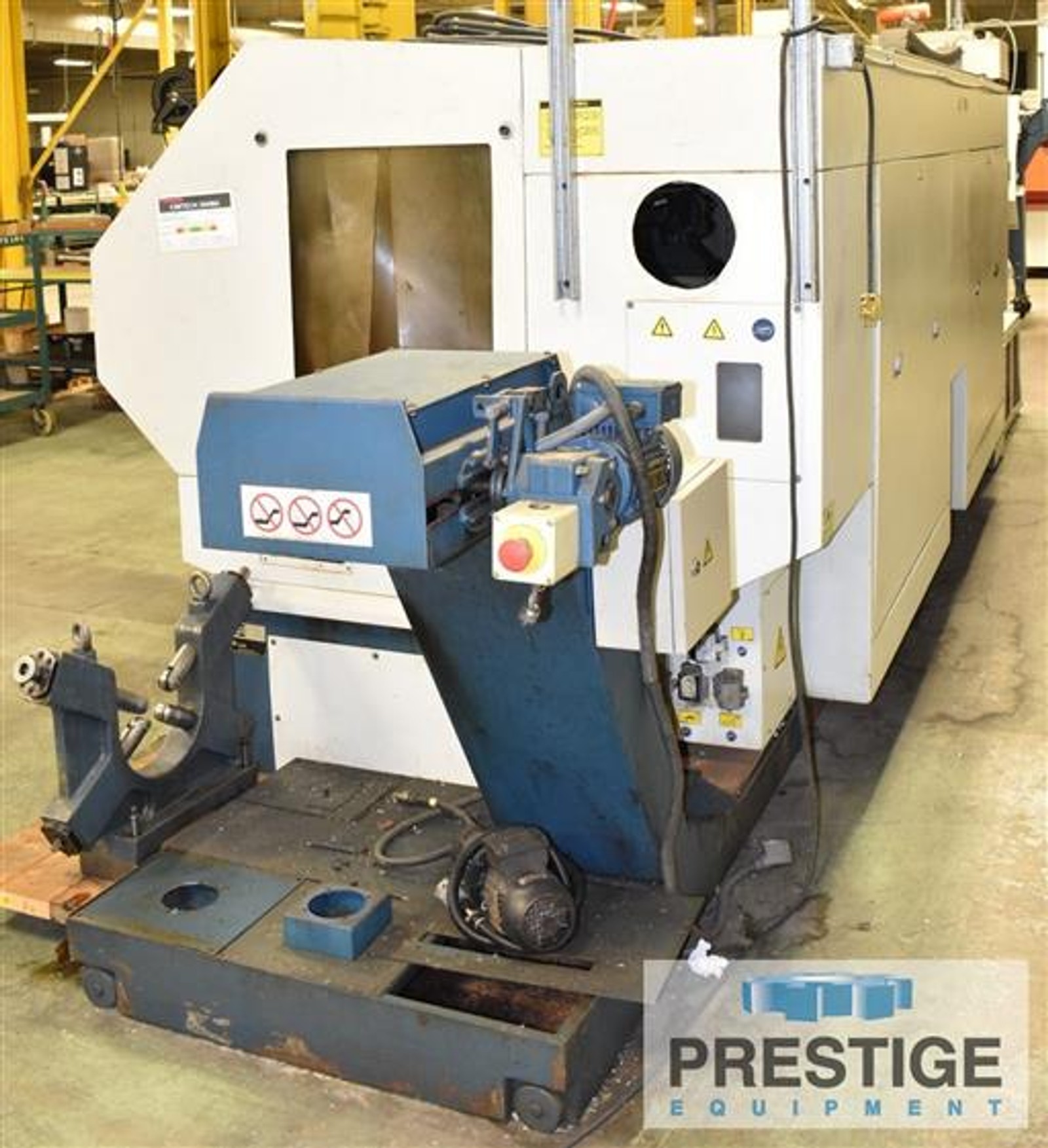

Chip Conveyor (No Chain)
Fully Enclosed

NOTE: No Conveyor Chain In Chip Conveyor
