5.9" Union KC150, X-125", Y-98", Z-59", W-29", (2) 63" x 78" Pallets, 3,000 RPM, CAT 50, 120-ATC, Heidenhain 530, #32815

Manufacturer

UNION

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32815

Model

KC150

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32815

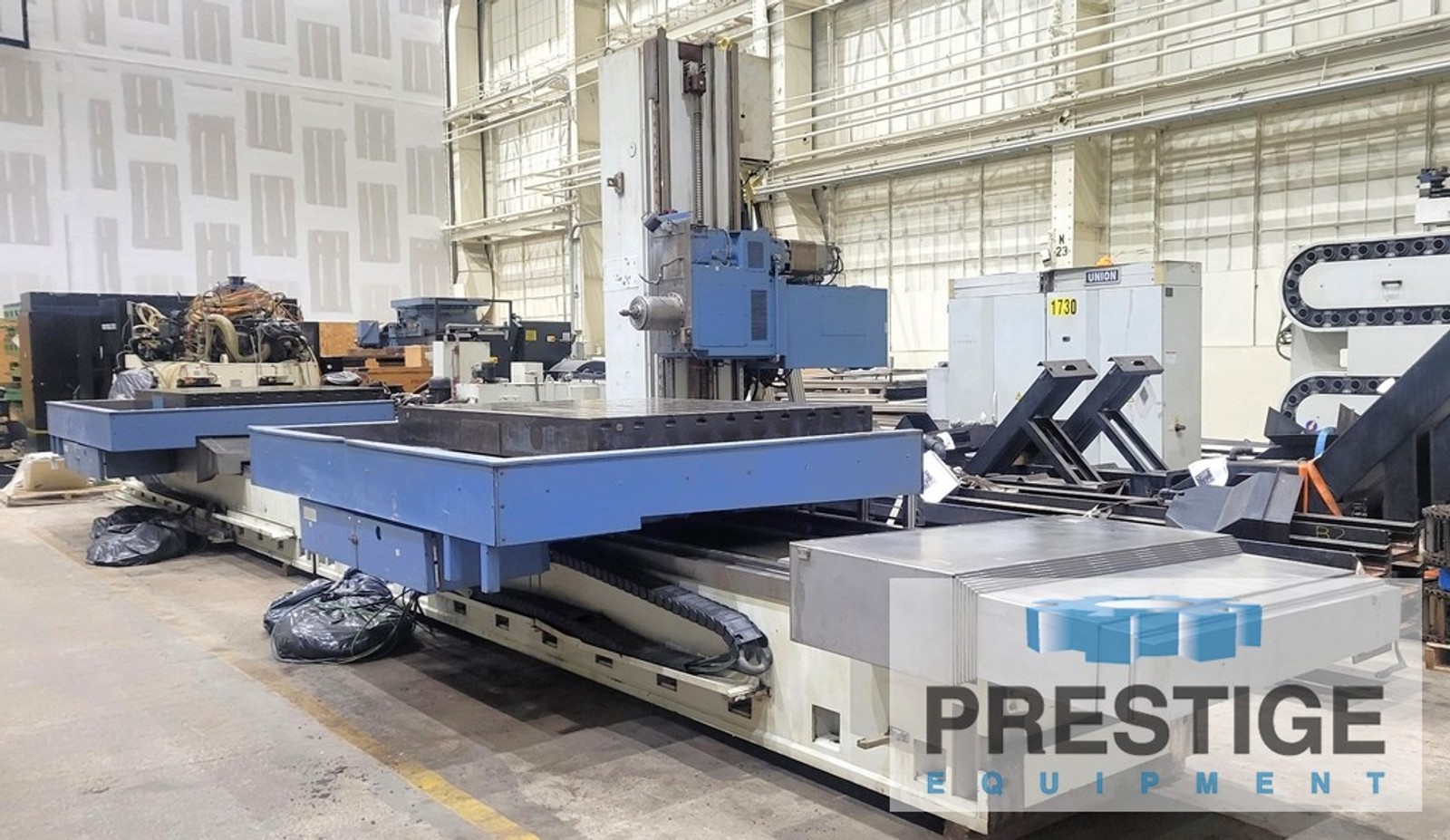

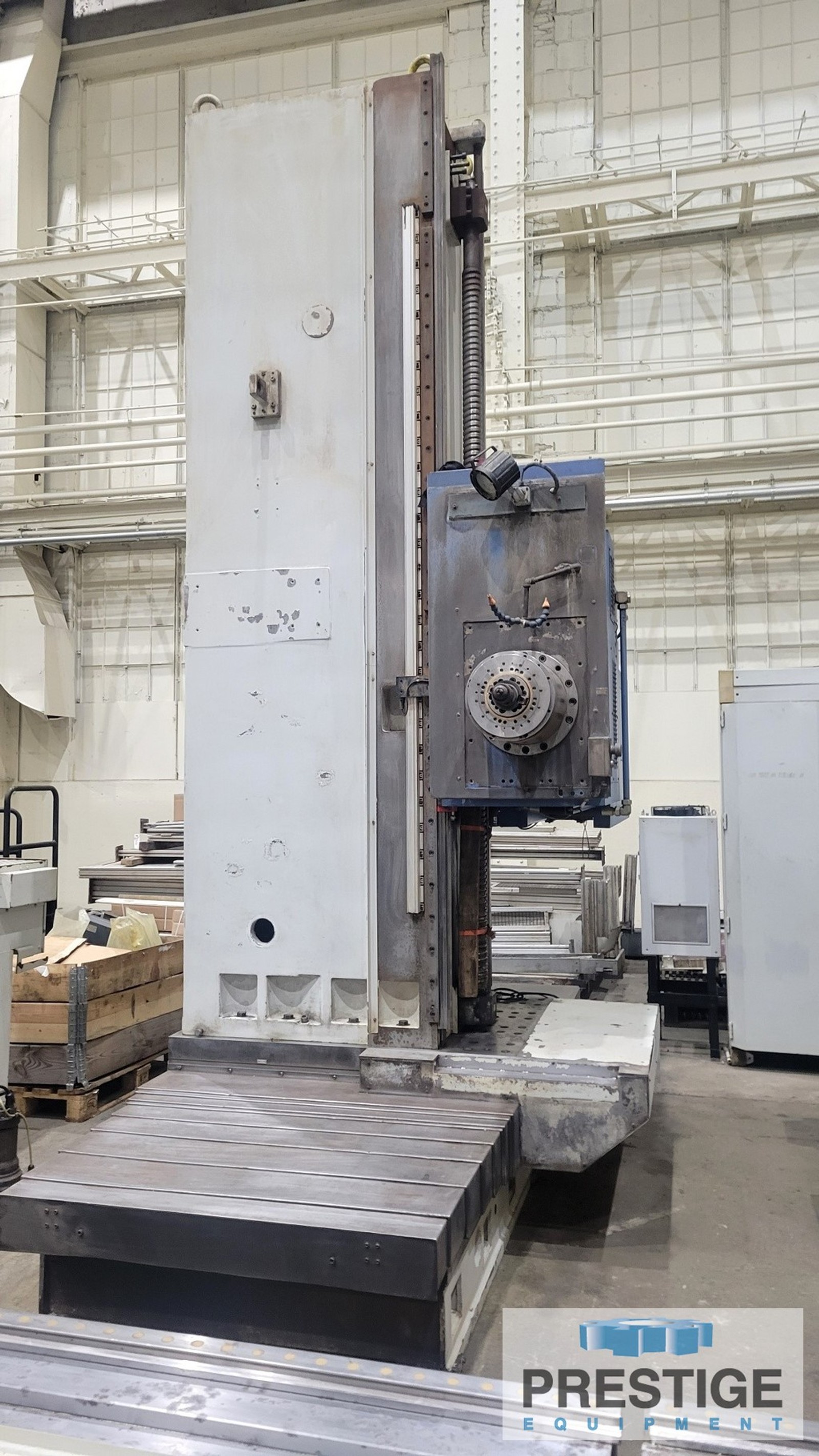

5.9" Union KC150 CNC Table Type Horizontal Boring Mill w/Pallet Shuttle

FEATURES:

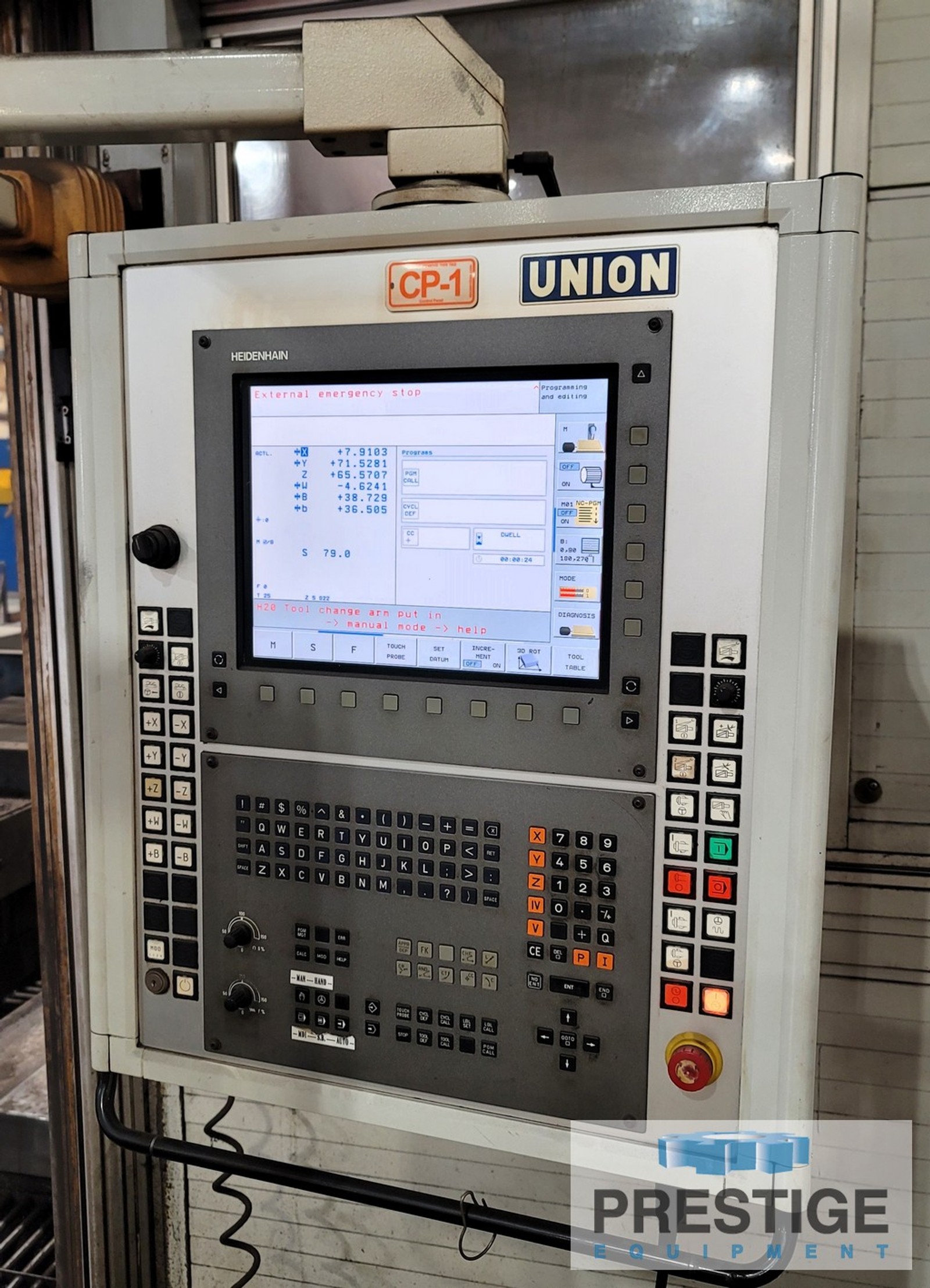

Heidenhain iTNC530 CNC Control

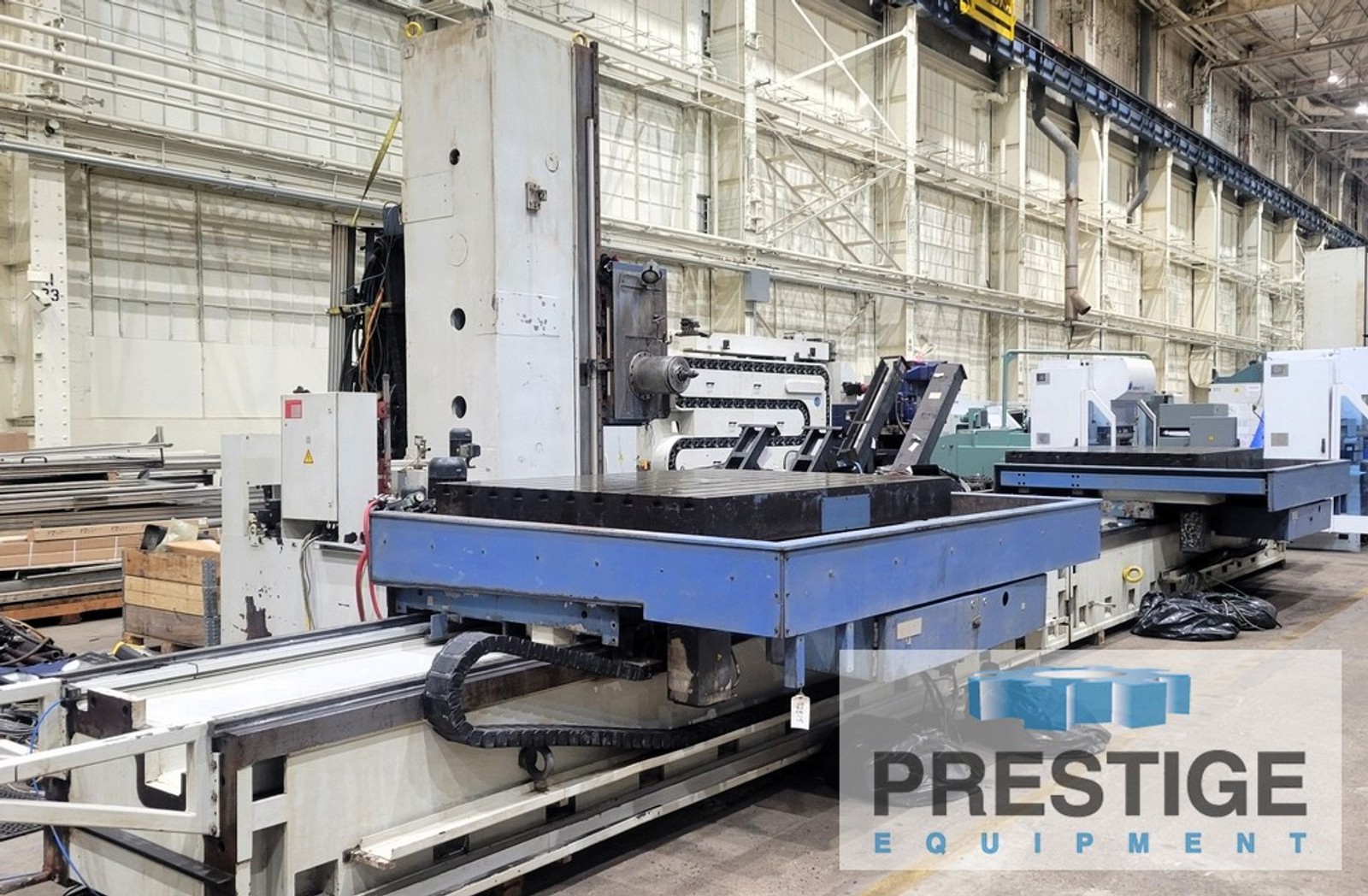

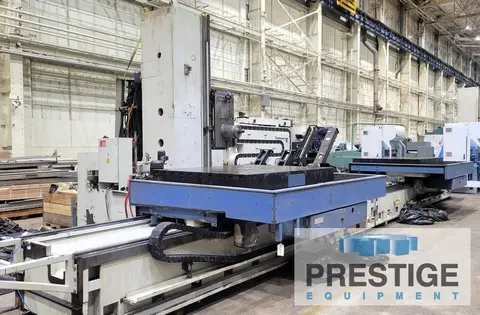

Pallet Shuttle with (2) 62.99" x 78.74" Pallets
Full B-Axis

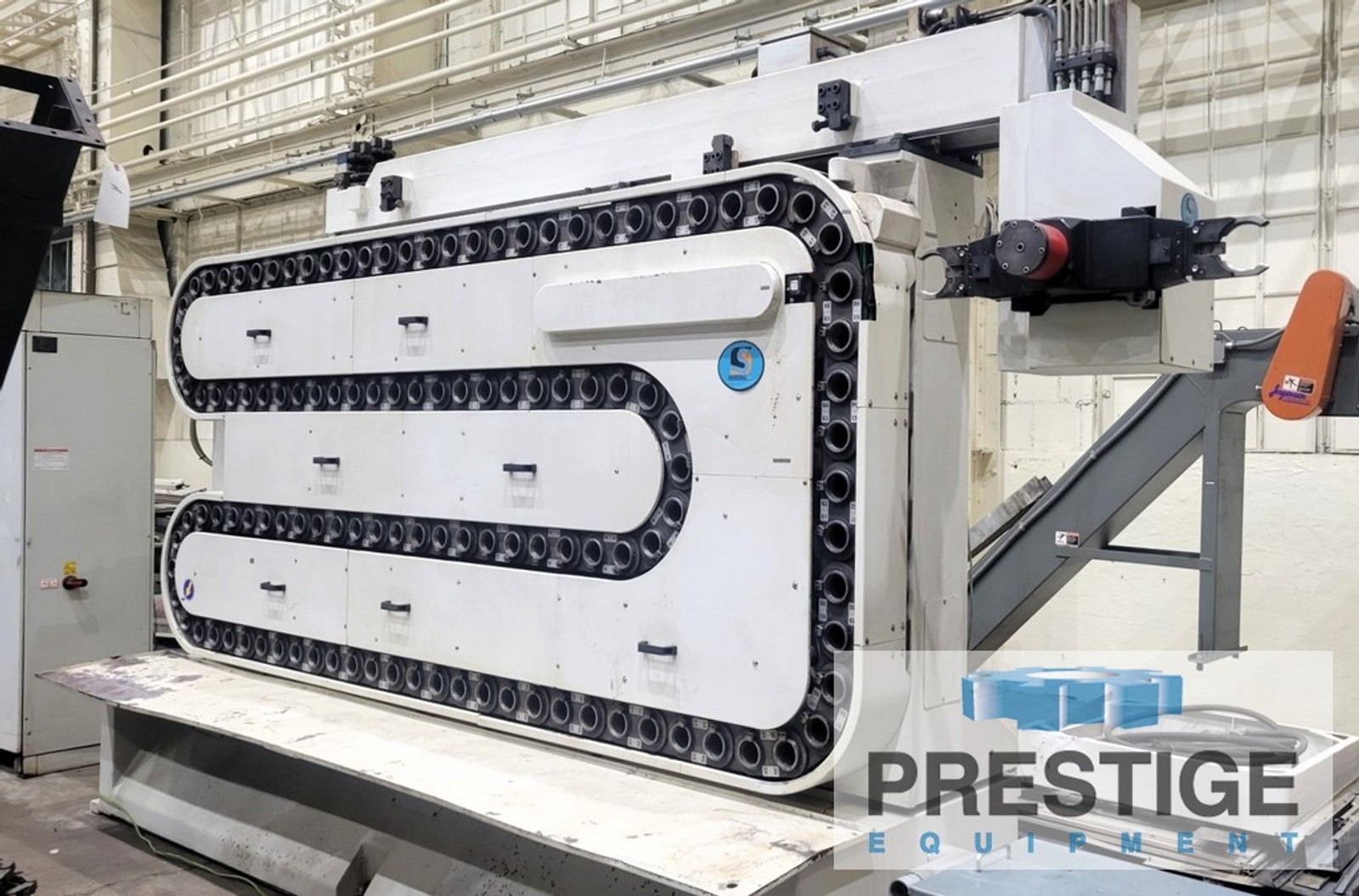

120-Station Automatic Tool Changer

SPECIFICATIONS:
Spindle Diameter ...................... 5.9"
Y-Axis, Vertical Travel ............... 98.42"
X-Axis, Table Travel .................. 125.98"
Z-Axis, Table Infeed .................. 59.05"
W-Axis, Spindle Travel ................ 29.52"
B-Axis, Table Rotation ................ 360,000 Positions
Spindle Speeds ........................ To 3000 RPM
Spindle Speeds ........................ 2-Ranges
Spindle Taper ......................... CAT 50

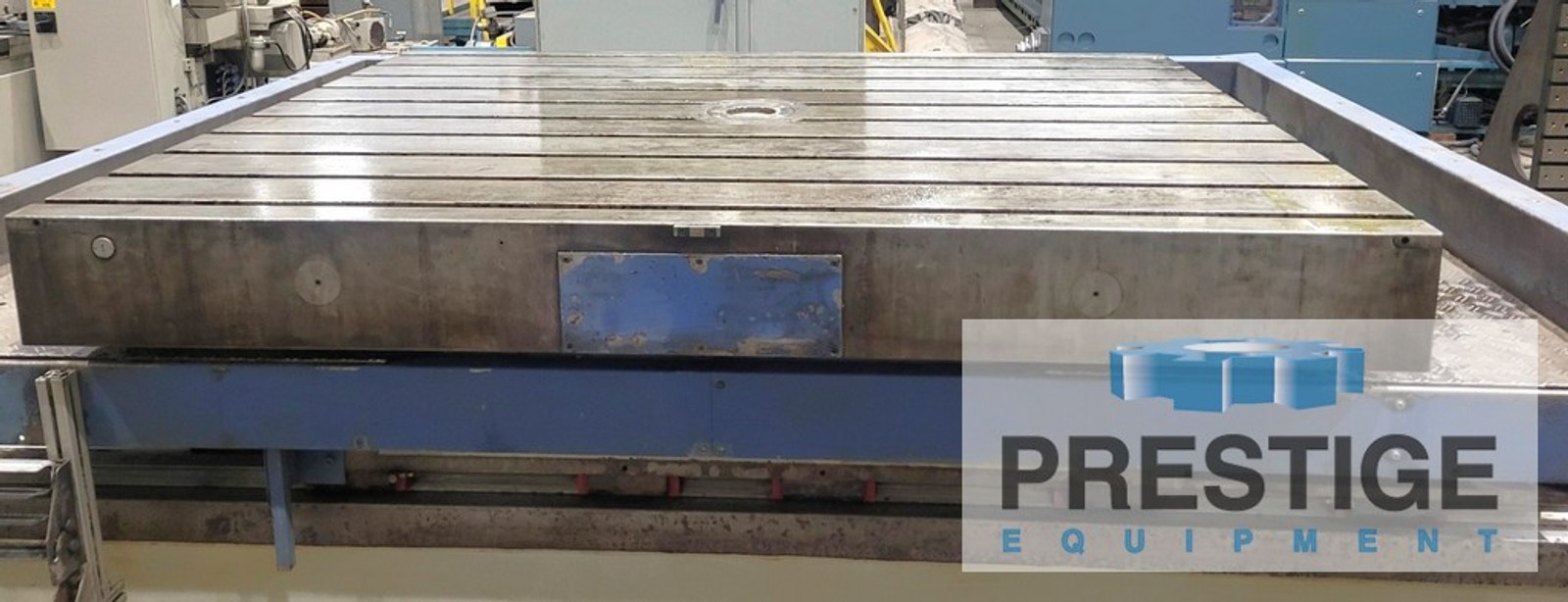

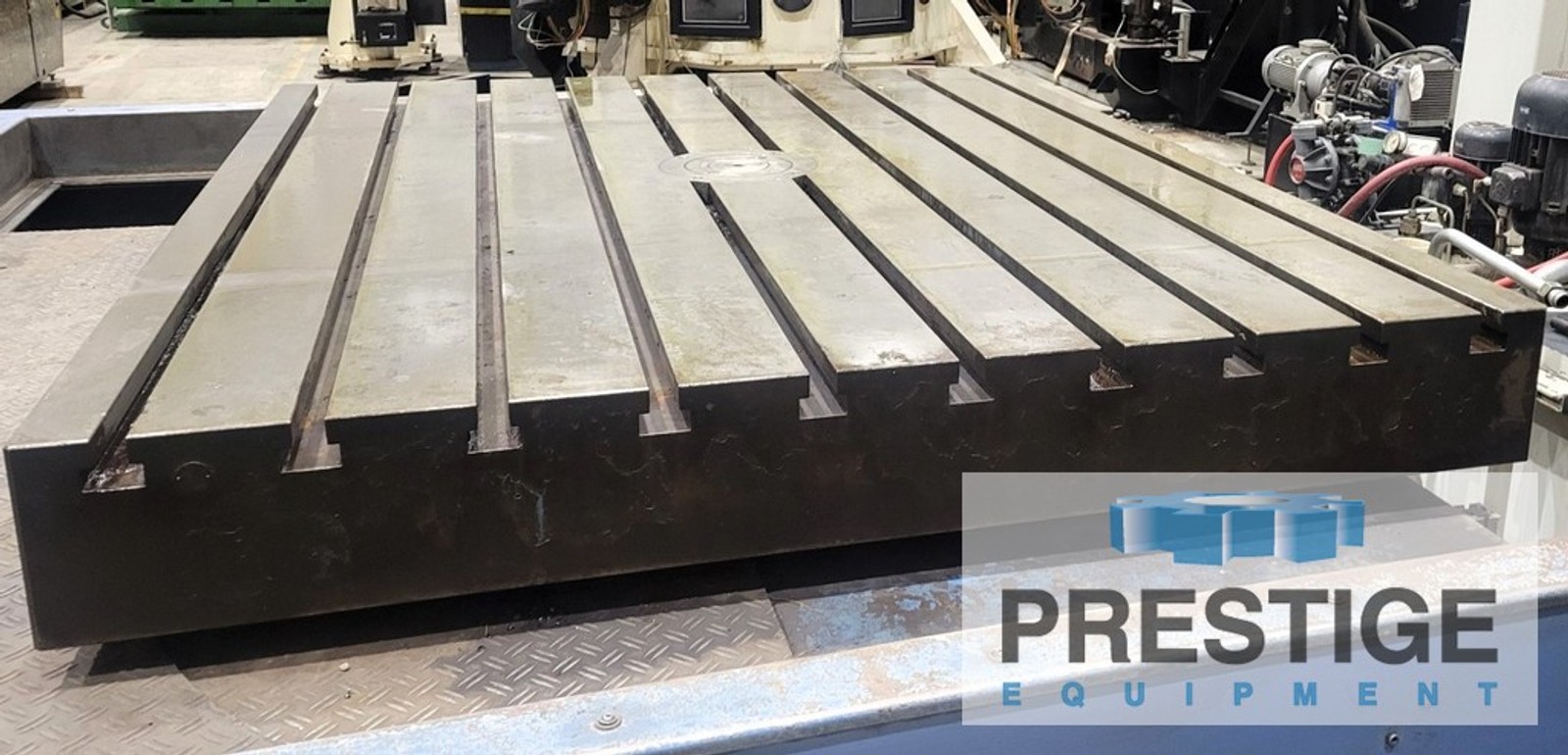

Table Dimensions (2) .................. 62.99" x 78.74"
Table Weight Capacity ................. 22,000 Lbs
Main Motor ............................ 80 HP

EQUIPPED WITH:
Heidenhain iTNC530 CNC Control
Pallet Shuttle with 2)62.99" x 78.74" B-Axis Pallets
120-Station Automatic Tool Changer
Heidenhain Scale Feedback

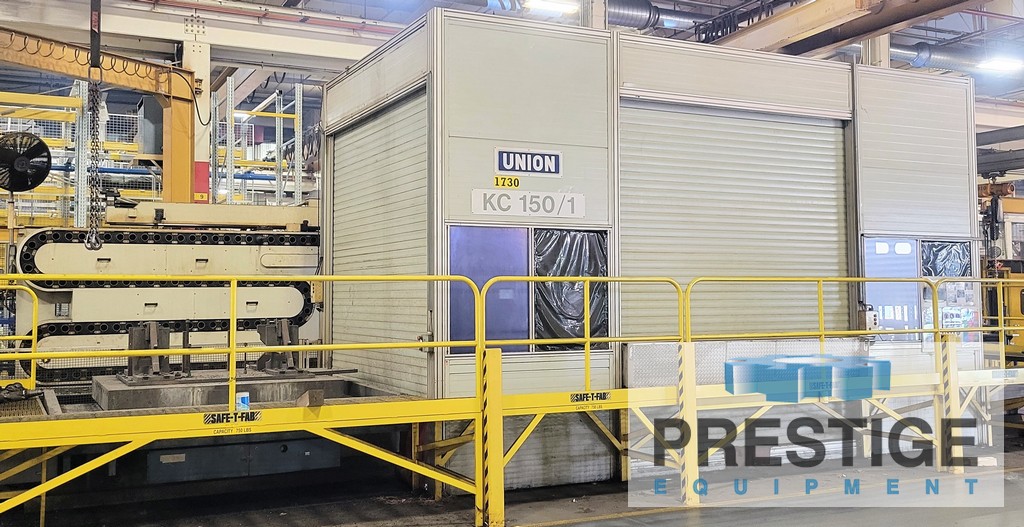

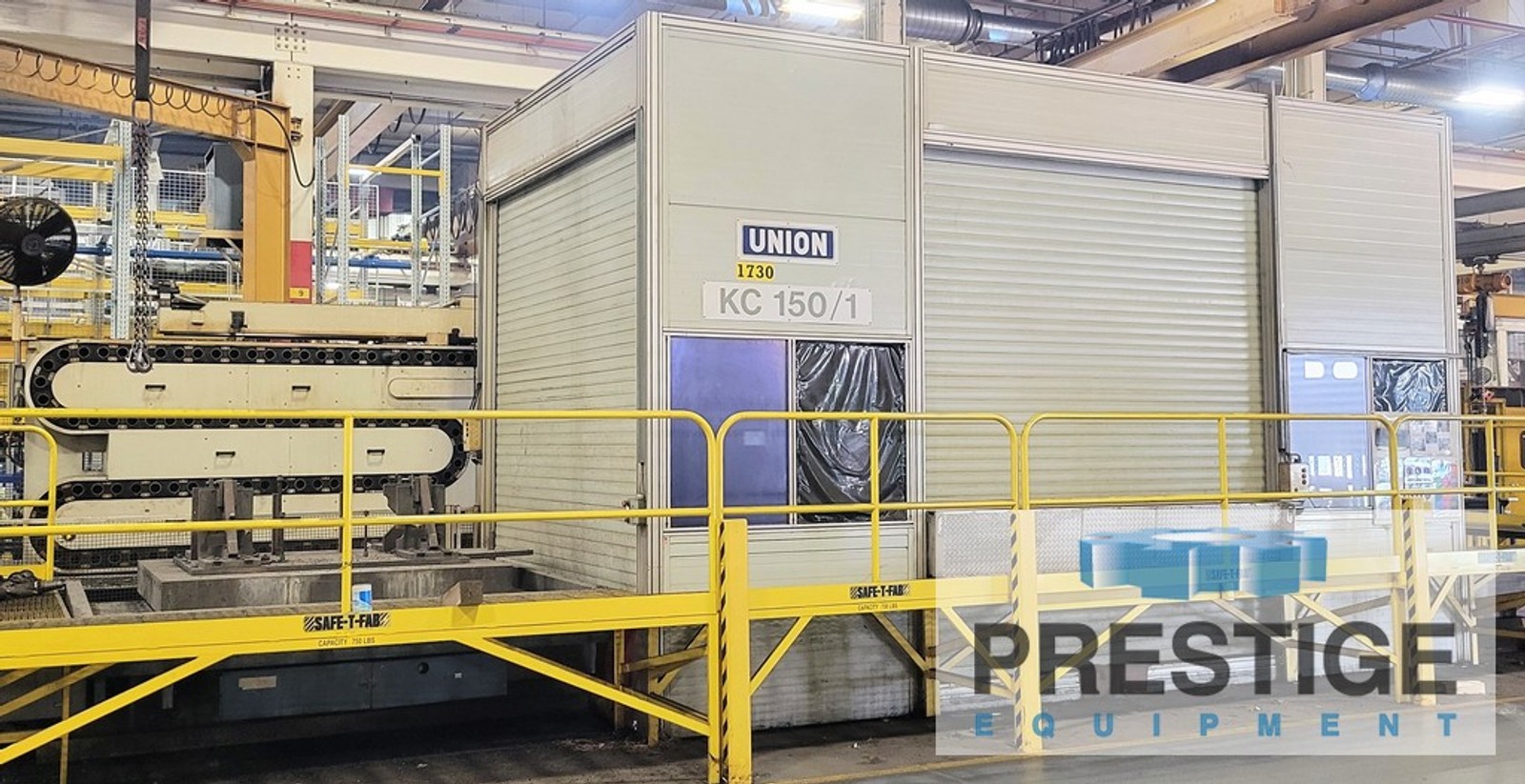

Full Enclosure
Chip Conveyor

NOTE:
Inspect in Plant Under Power
