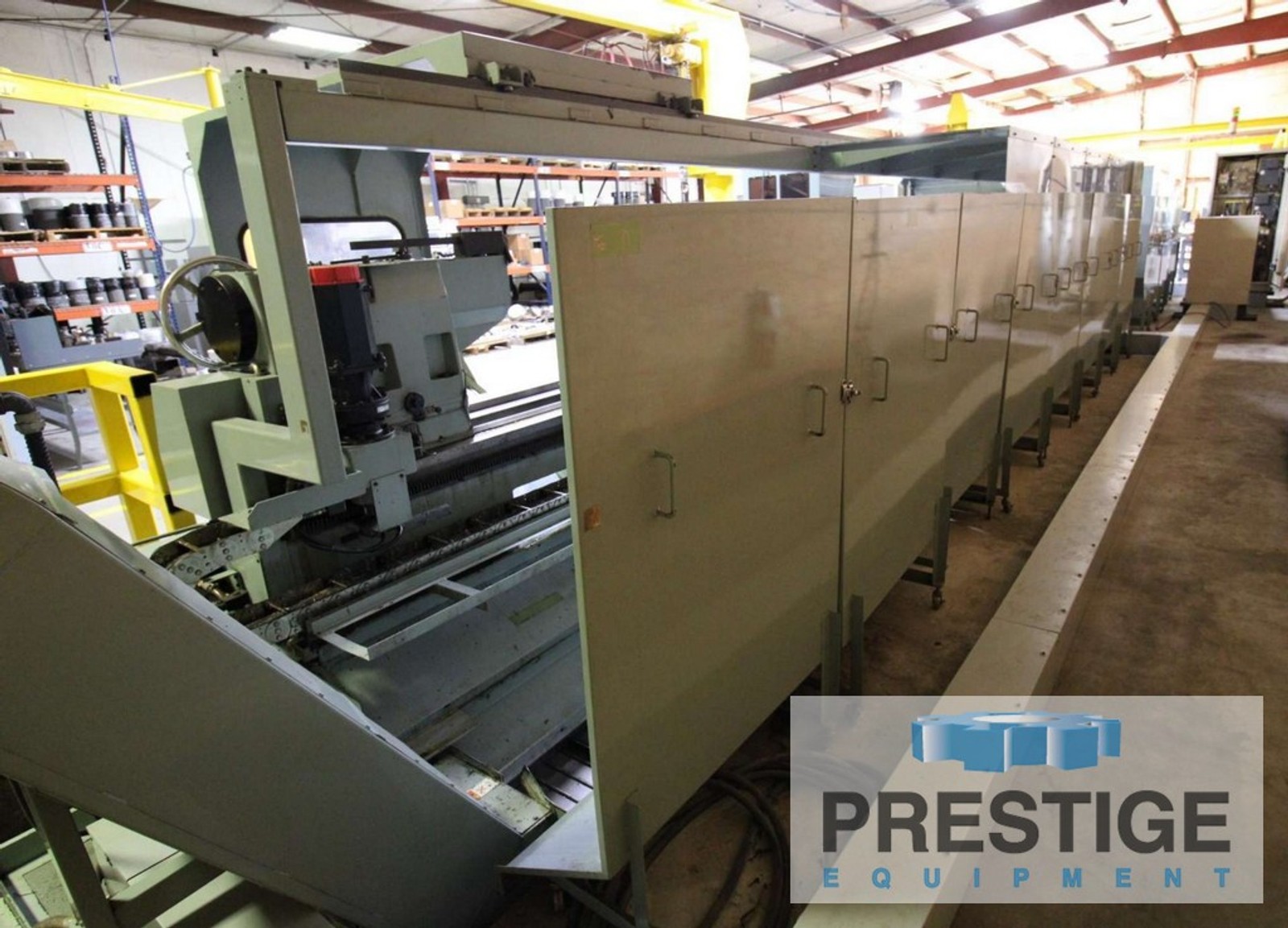

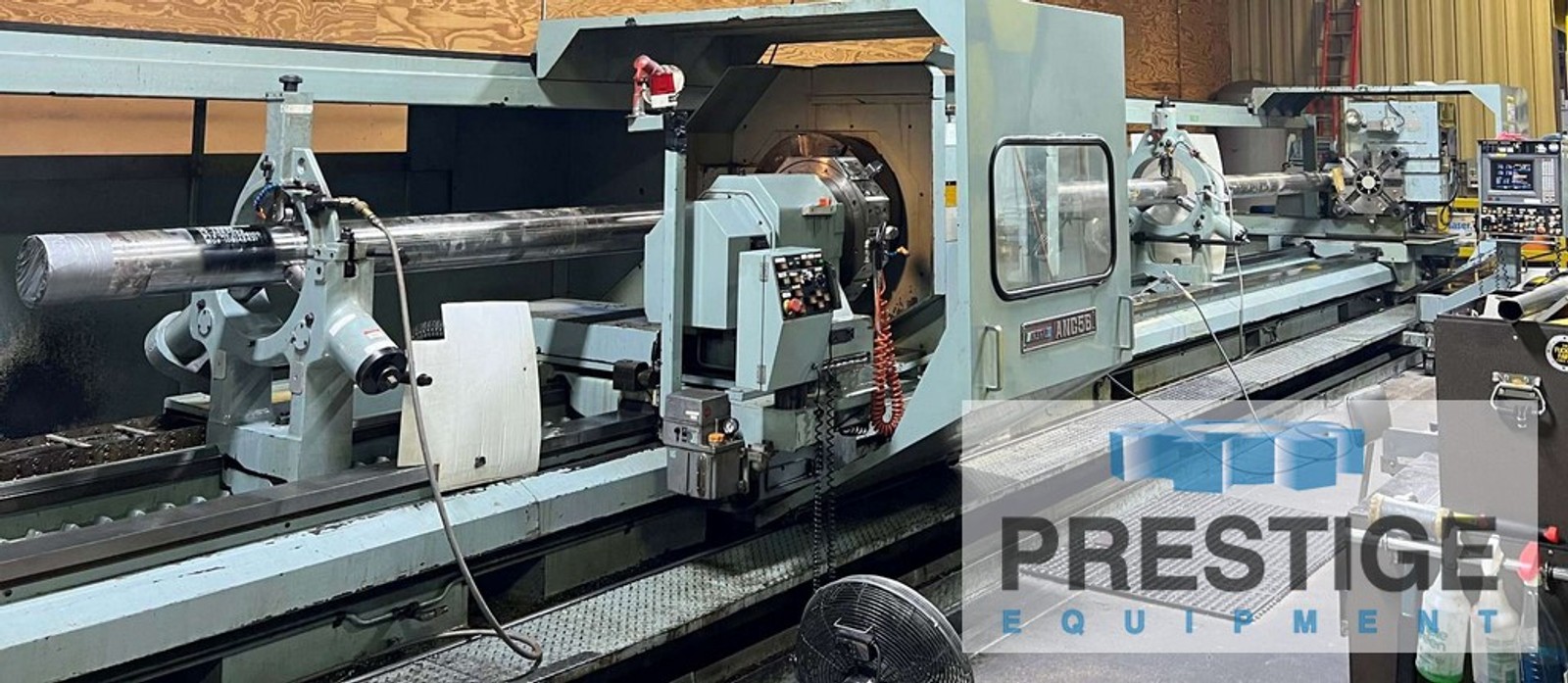

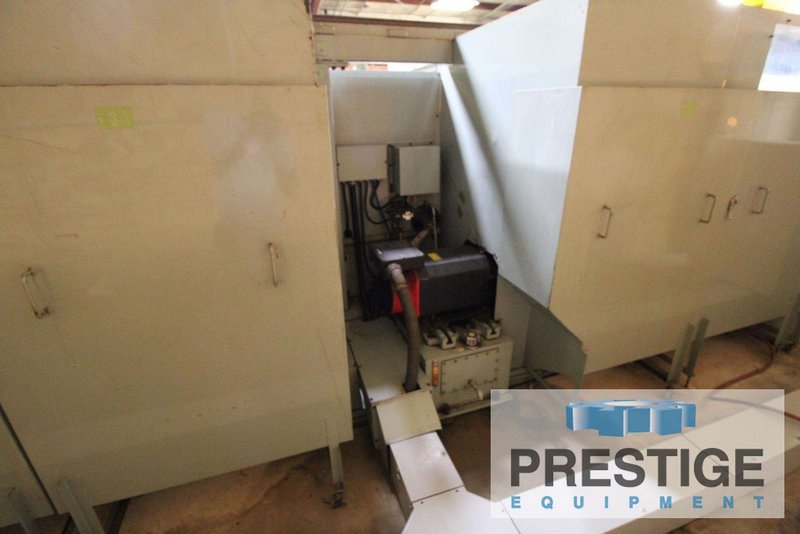

Ikegai, 56" x 240"/157", Fanuc 18T CNC, 11" Bore, Front & Rear Turrets, Front & Rear Chucks, Boring Bar Attch., #43299

Manufacturer

IKEGAI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

43299

Model

ANC-56

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43299

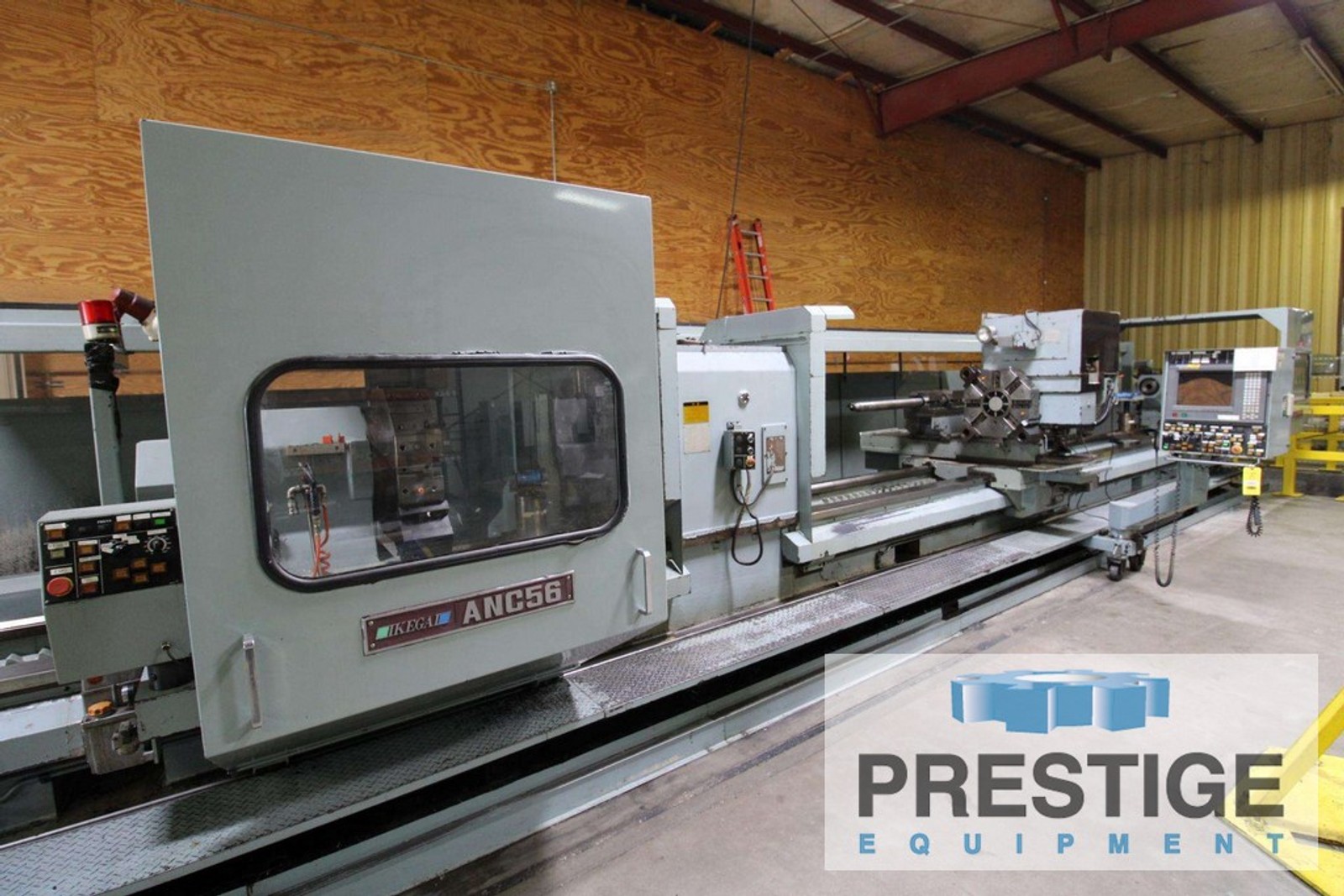

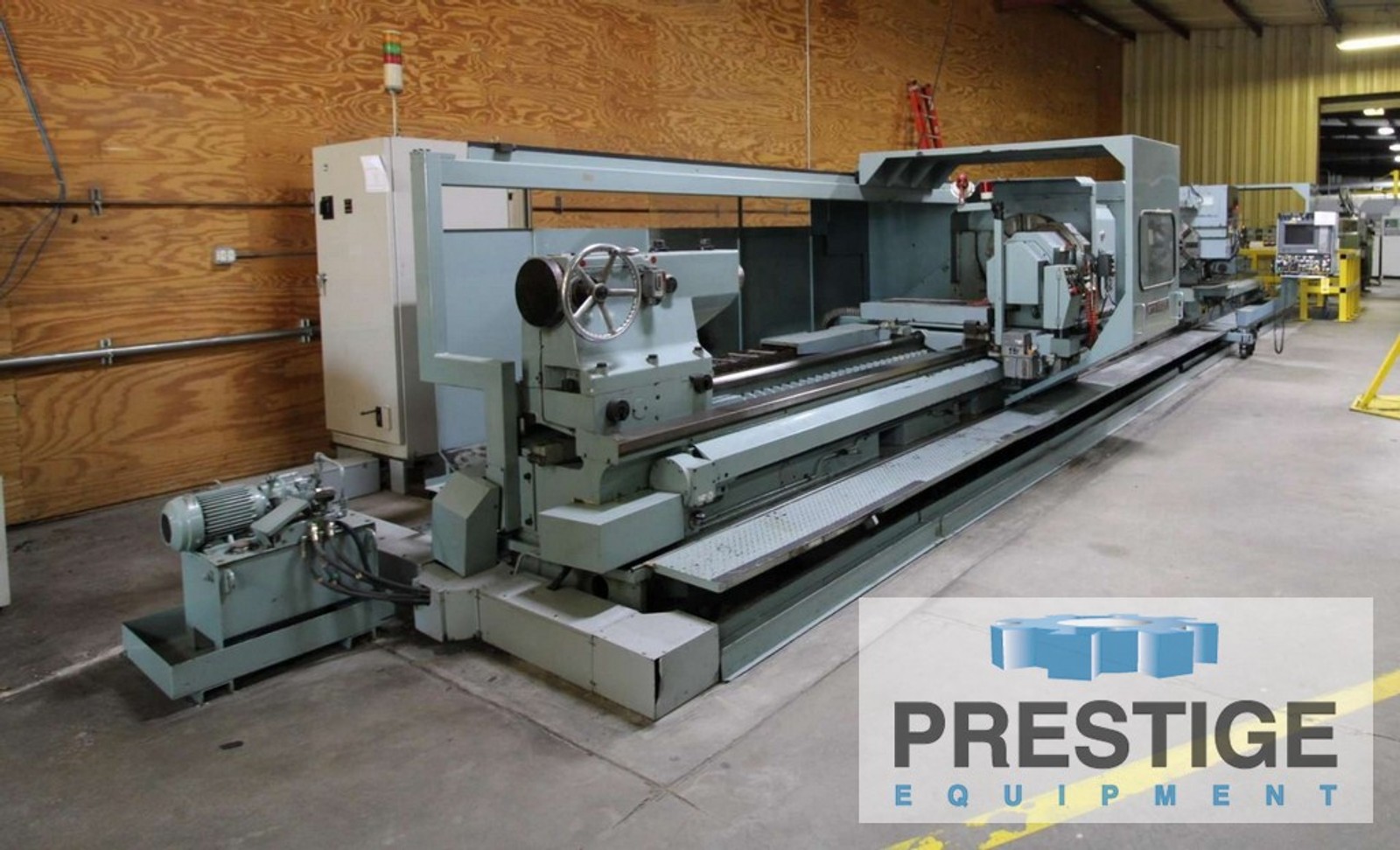

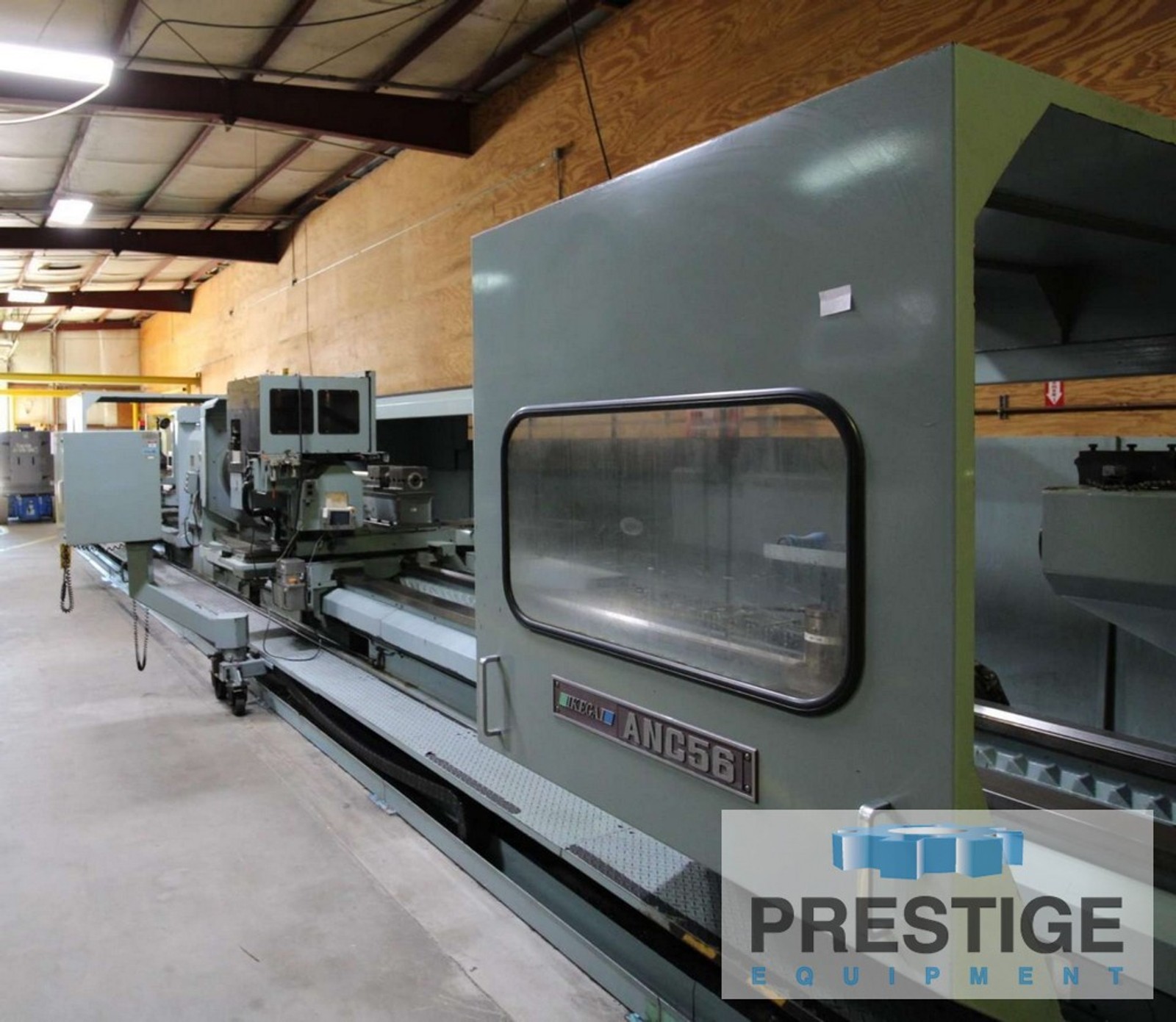

Ikegai 56” x 240”/157” CNC Center Drive Lathe w/ 11” Bore

FEATURES:
Fanuc 18T CNC Control
Center Drive Headstock with 11" Spindle Bore
(2) 32" 4-Jaw Chucks, Front & Rear
(2) 21" 3-Jaw Chucks with 8" Bore, Front & Rear
(2) Tailstocks, programmable Front & Manual Rear
(2) 8 Position Turrets, Front & Rear
Front Turret has Additional Auxiliary 12 Station Tool Changer
(3) Steady Rests
(2) Boring Bar Attachments, Front & Rear

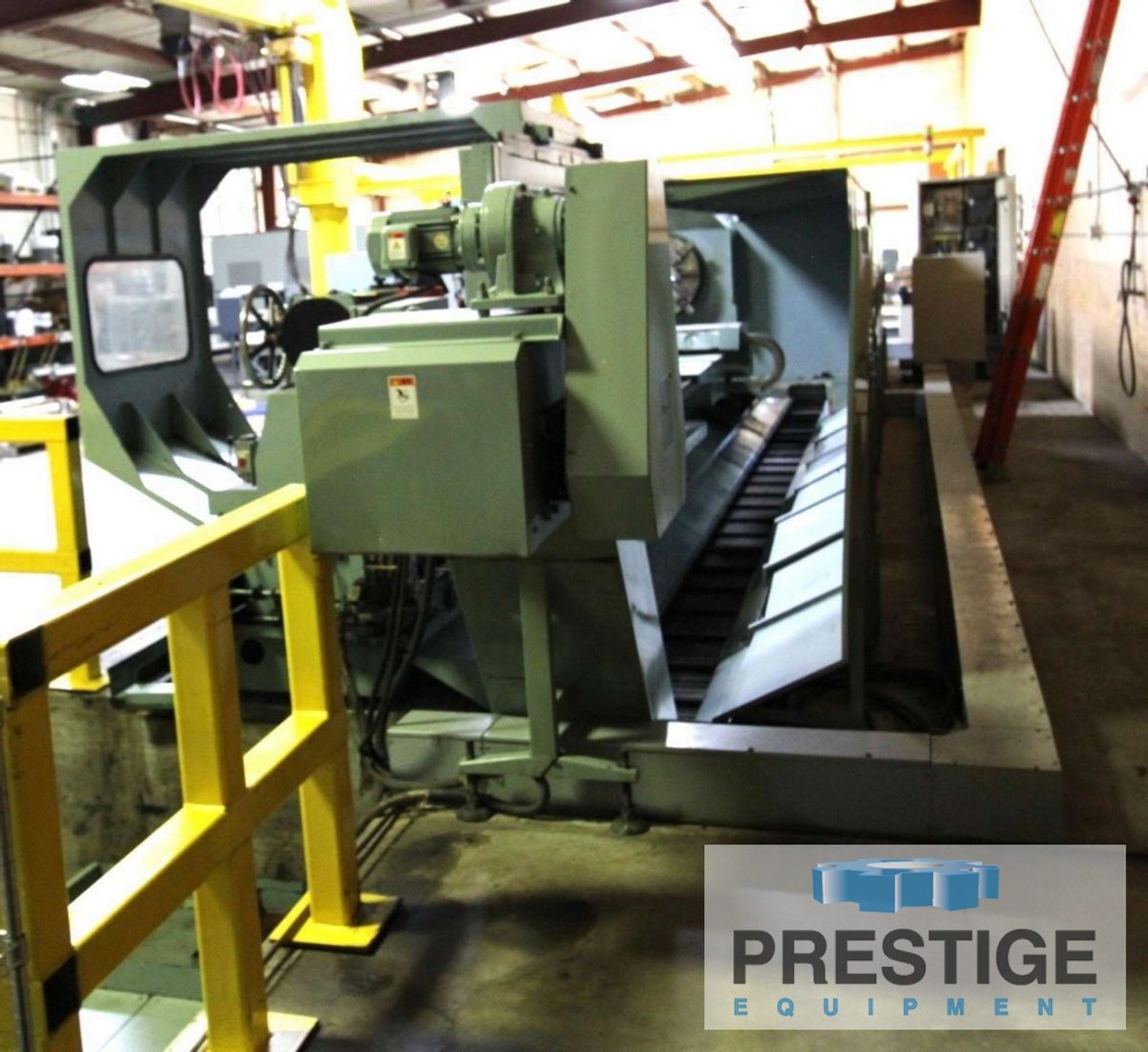

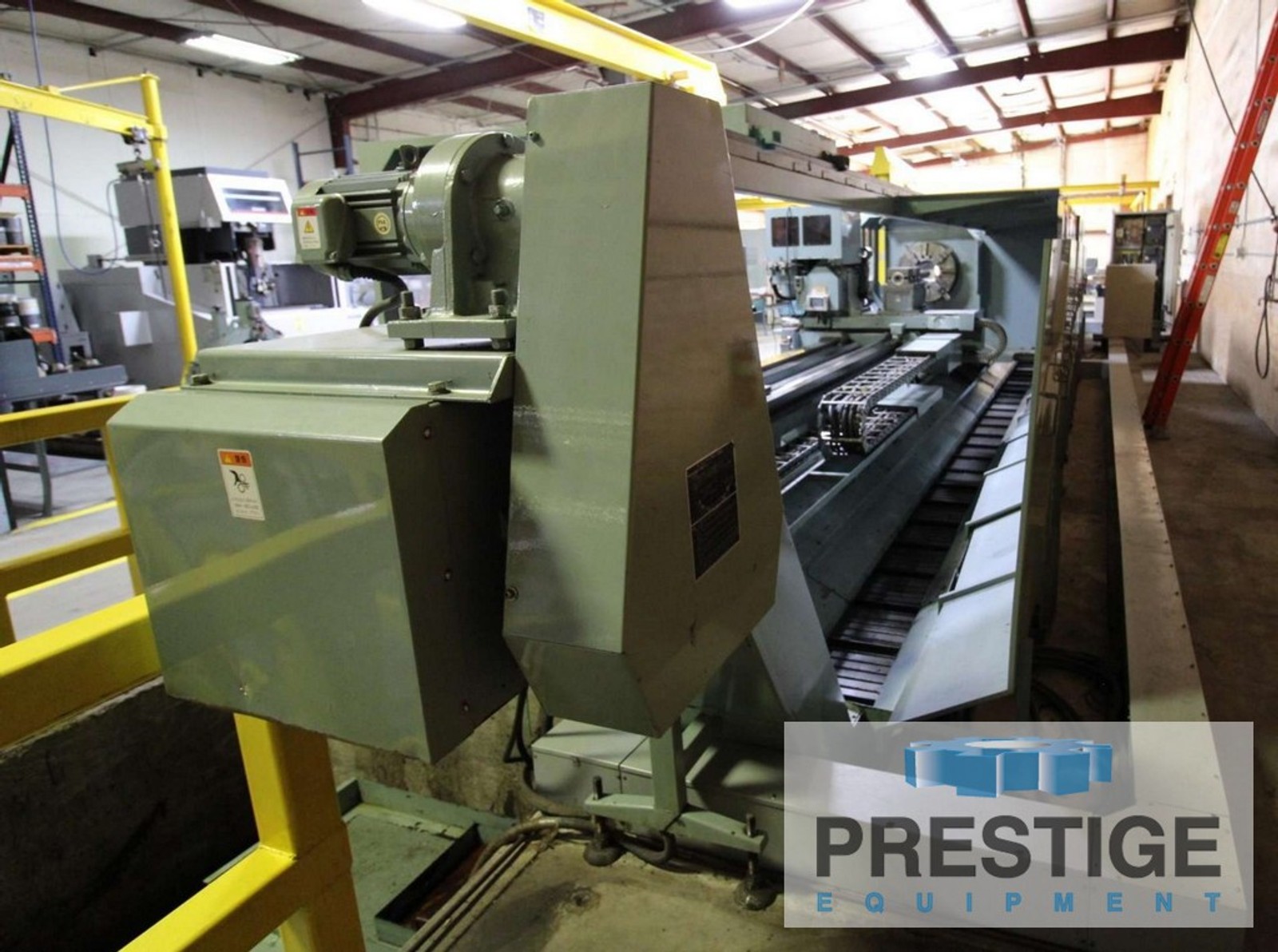

Full Length Chip Conveyor
Coolant system

CAPACITY:
Max Swing over Bed, Both Side ........ 56"
Maximum Swing, Left Side Carriage ..... 42"
Maximum Swing, Right Side Carriage .... 36"
Distance Between Centers, Right Side . 240"
Distance between Centers, Left Side ... 157"
Distance Between Chuck Faces .......... 63"
Max Part Length at 11" Diameter ....... 490"
Spindle Speeds, Max (2-Ranges) ....... 400 RPM
Spindle Bore ......................... 11"
Spindle Motor ........................ 60 HP


EQUIPPED WITH:
Fanuc 18T CNC Control
Center Drive Headstock with 11" Spindle Bore
(2) 32" 4-Jaw Chucks with 11" Bore, Front & Rear
(2) 21" 3-Jaw Chucks with 8" Bore, Front & Rear
(2) Tailstocks, programmable Front & Manual Rear
(2) 8 Position Turrets, Front & Rear
Front Turret has Additional Auxiliary 12 Station Tool Changer
(3) Steady Rests
(2) Boring Bar Attachments, Front & Rear
Full Length Chip Conveyor
Coolant system

NOTE:
5,235 Cut time hours
