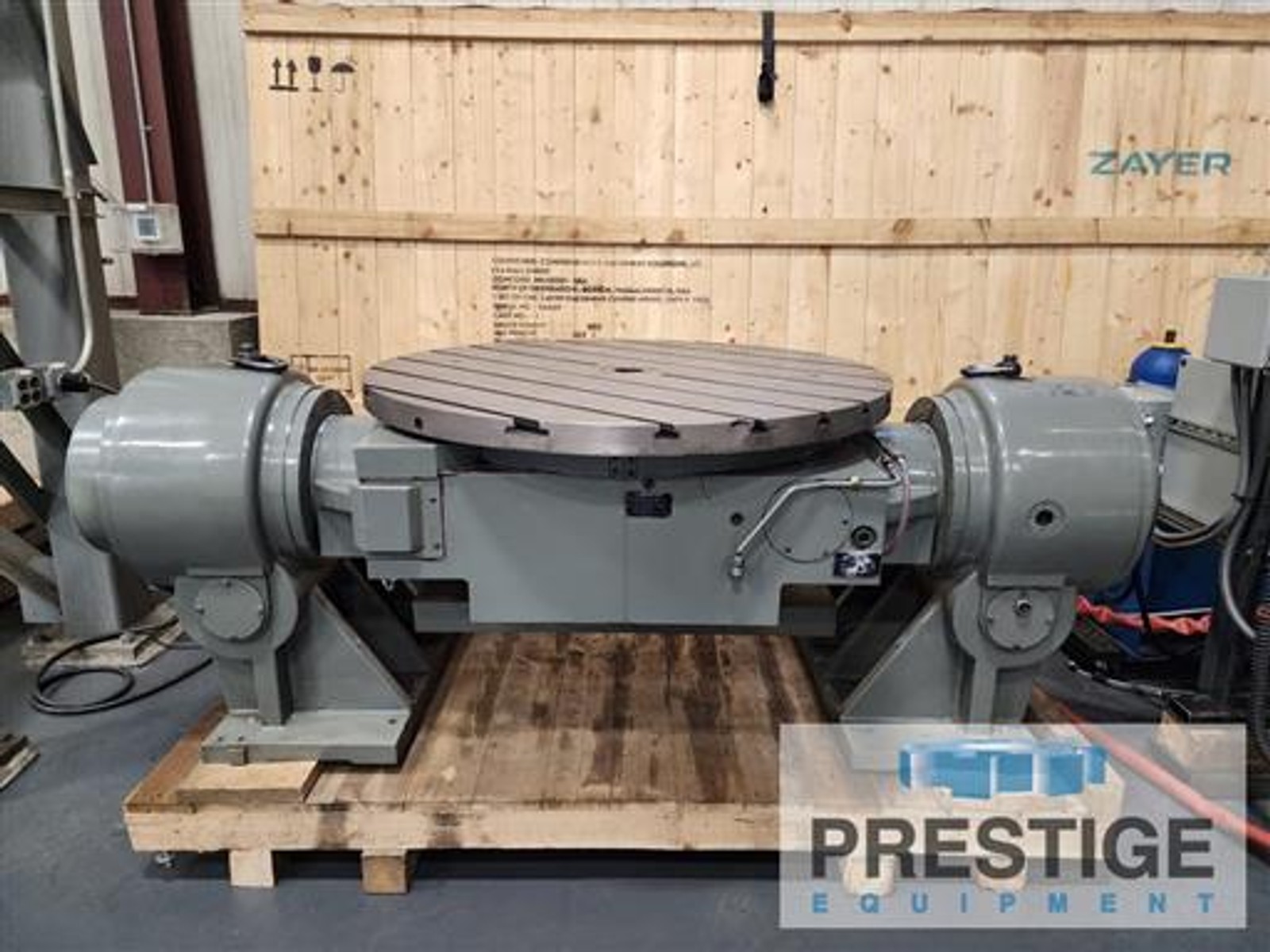

48" Producto Trunnion CNC Rotary Table, A & B Axis, Self Contained, Fanuc 35i CNC #43157

Manufacturer

PRODUCTO

Category

Tables

Type

TABLES, CNC

Stock

43157

Model

4014 2-Axis

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43157
Producto 48" CNC Trunnion Table w/ Fanuc 35i CNC Control

FEATURES:

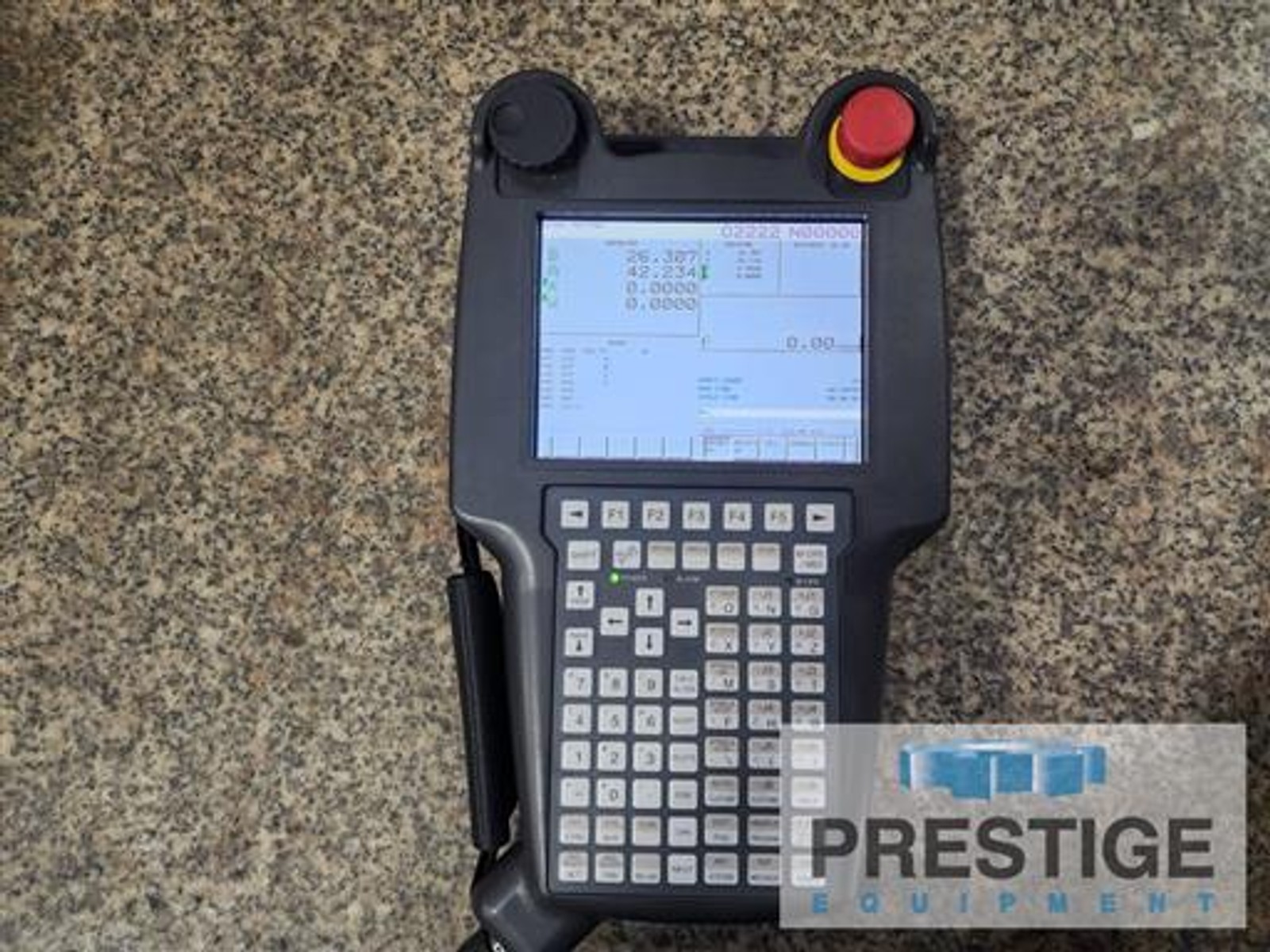

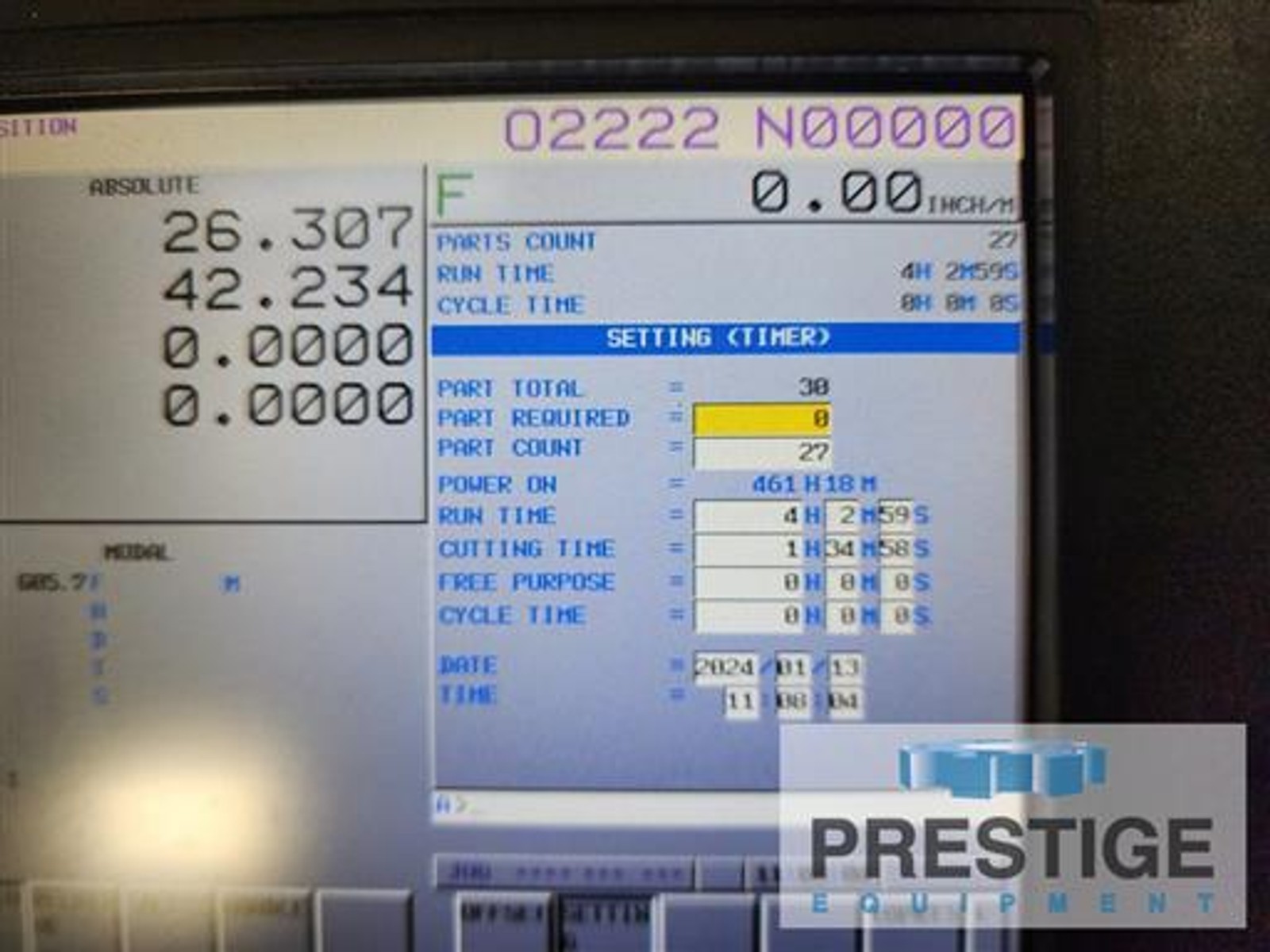

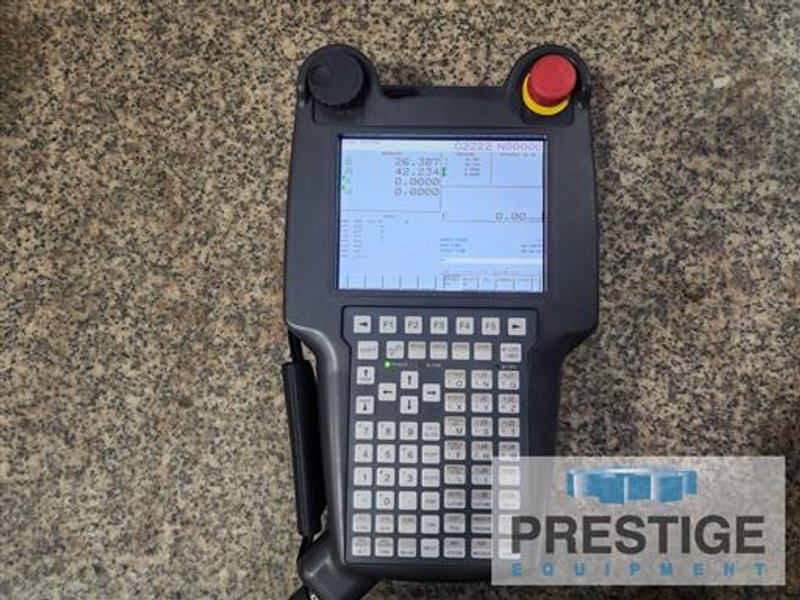

Fanuc 35i CNC Control with I-Pendant (Retrofit 2018)
Full Countouring A & B Axes
Trunion Style

CAPACITY:
Table Size (T-Slotted) ................ 48" Dia.
Base Size ............................. 94" x 41"
B-Axis (Rotary) ....................... .001 Positions

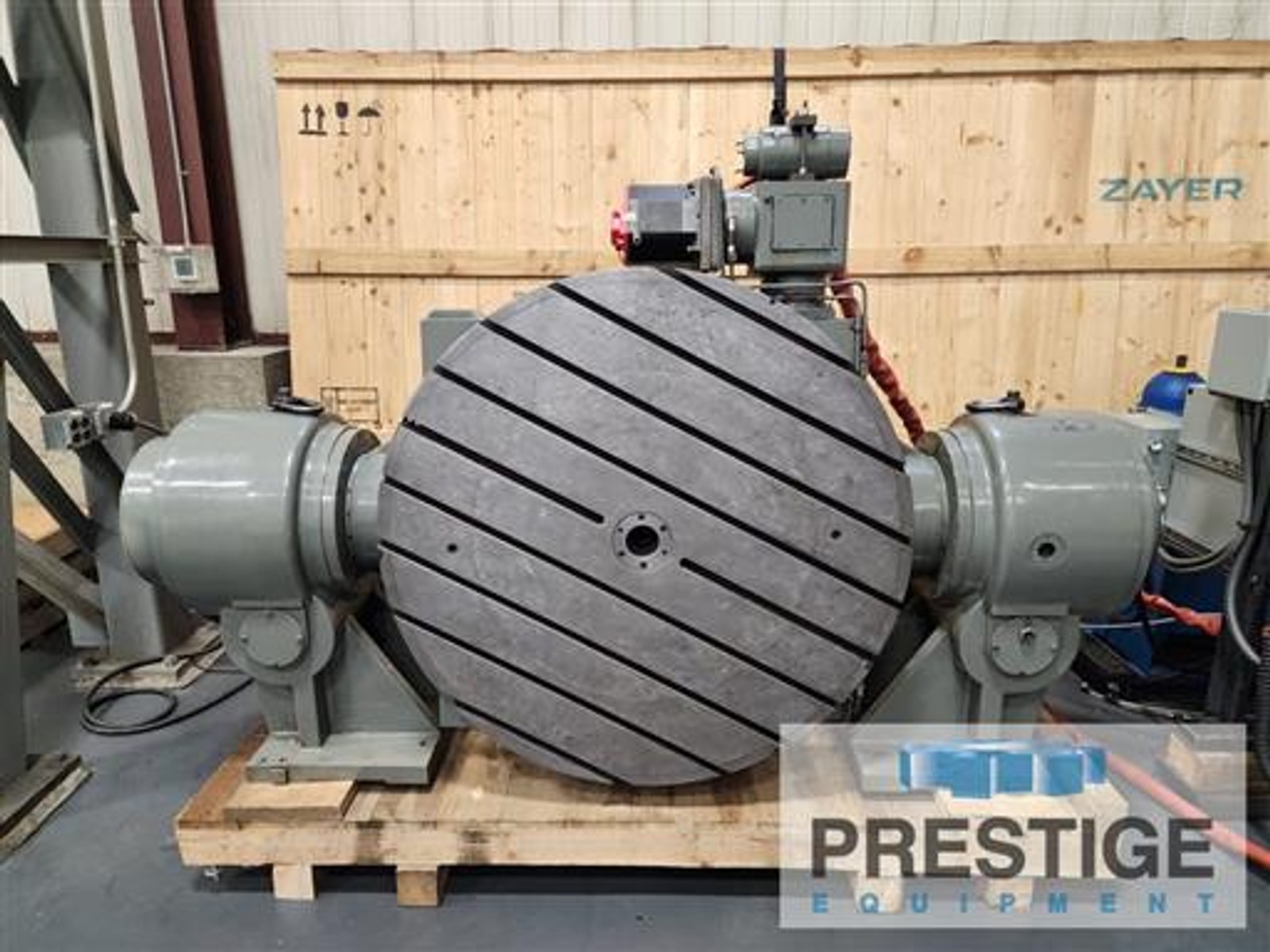

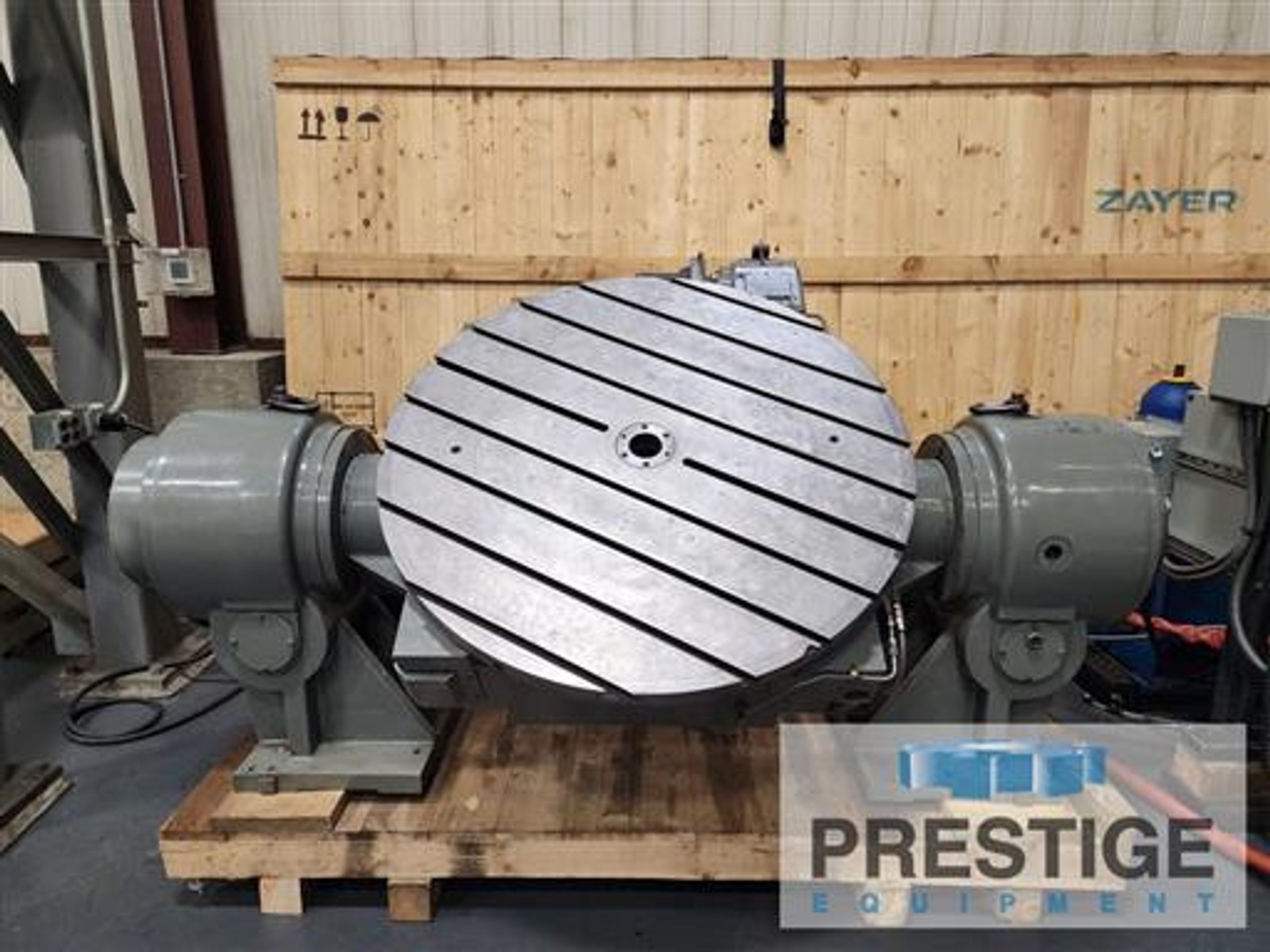

A-Axis (Tilt) ......................... 0-90 Degrees
Table Height (Horizontal) ............. 37.5"
Maximum Rotation Speed ................ 2.8 RPM
Maximum Load Capacity - Vertical ...... 32,000 Lbs
Maximum Load Capacity - Horizontal .... 19,800 Lbs
Footprint ............................. 96" x 60"
Electrics ............................. 460V/3PH/60Hz

EQUIPPED WITH:
Fanuc 35i CNC Control with I-Pendant (Retrofit 2018)
Full A & B Axes CNC
360,000 Position
90 Degree Tilt

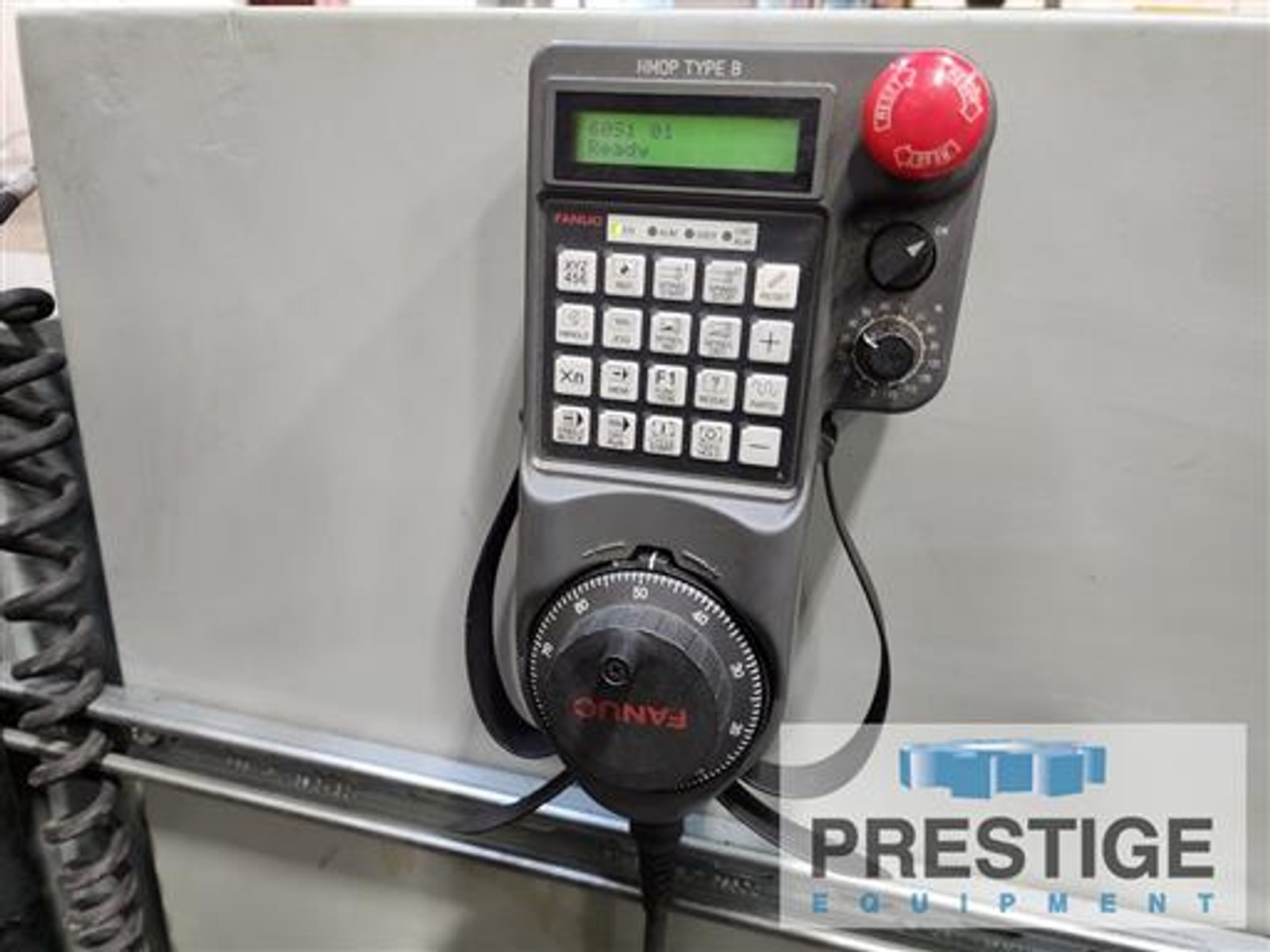

Manual and CNC Imput with 2-Axis Position Input

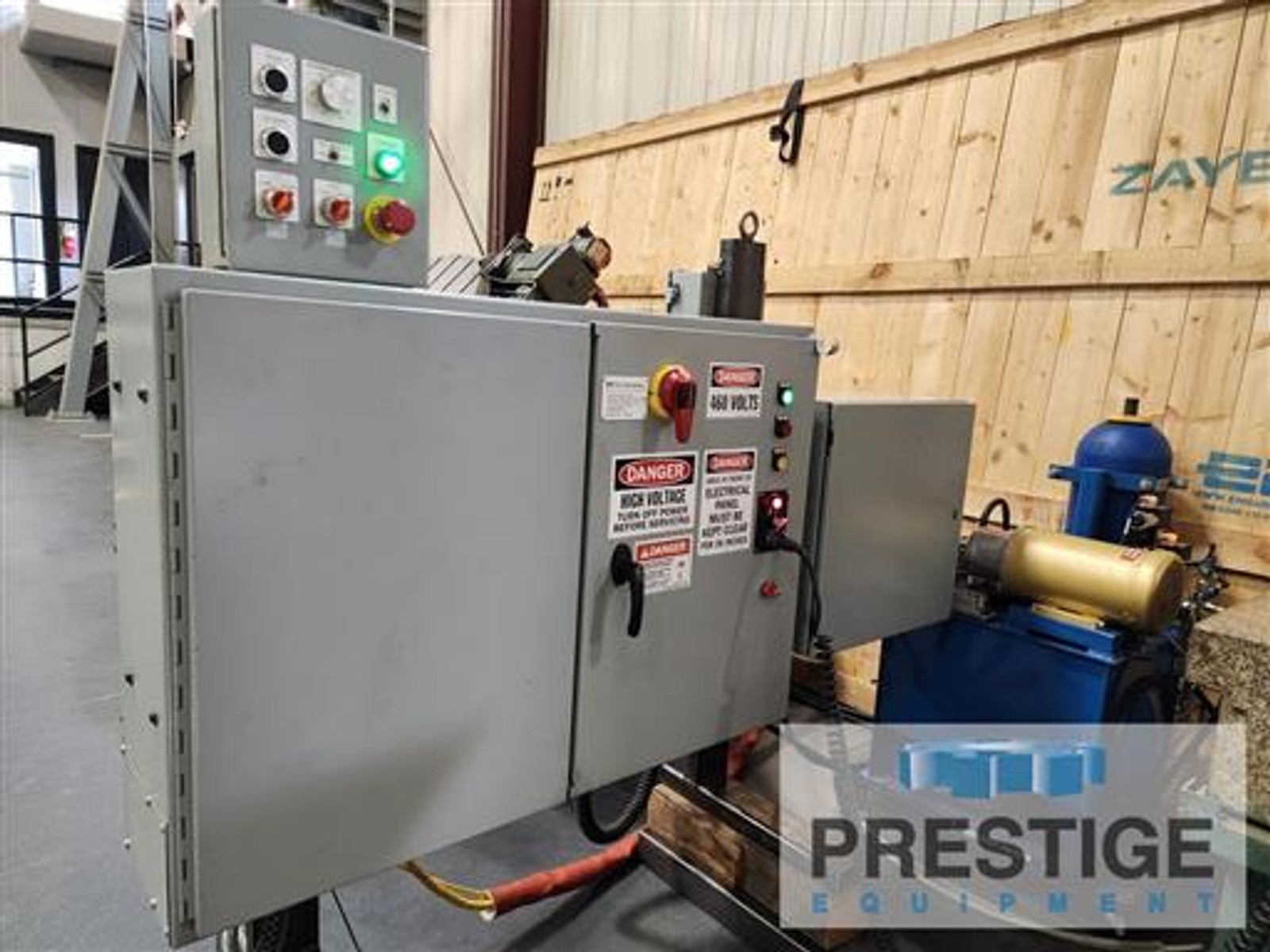

Hydraulic Clamping

NOTE:
Fully Self Contained, Independent Unit
