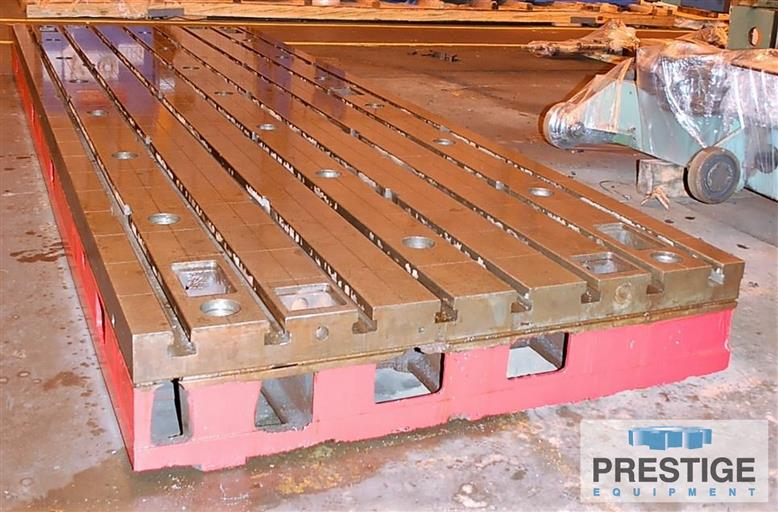

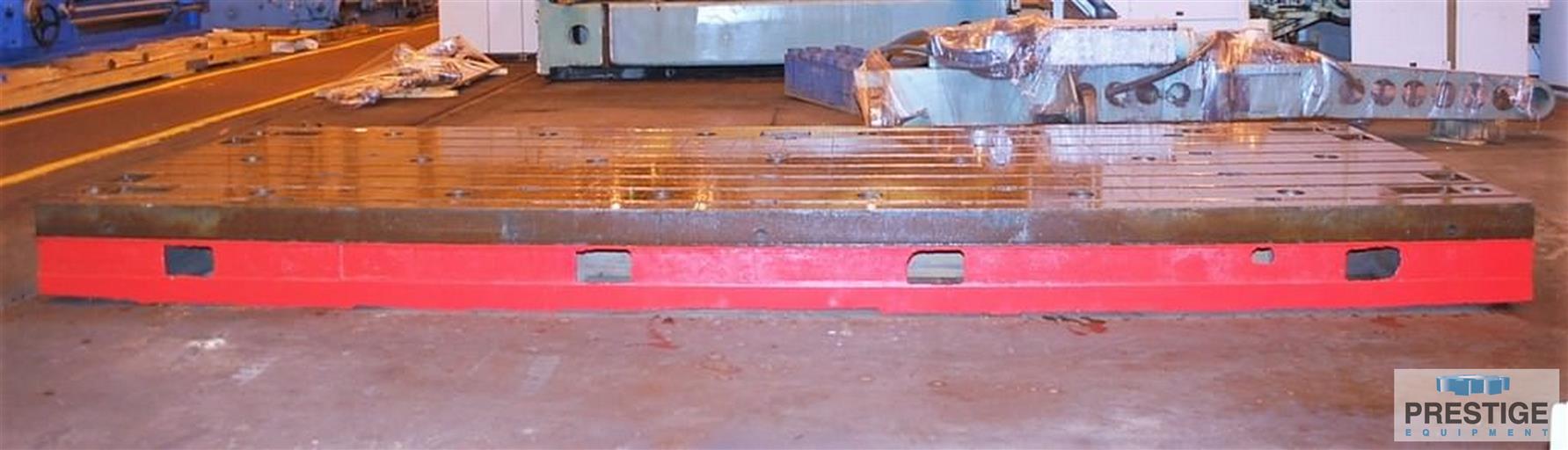

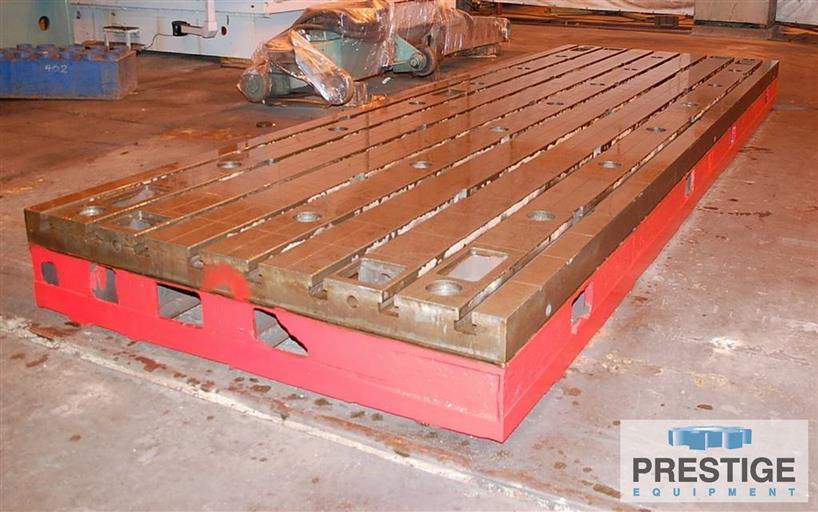

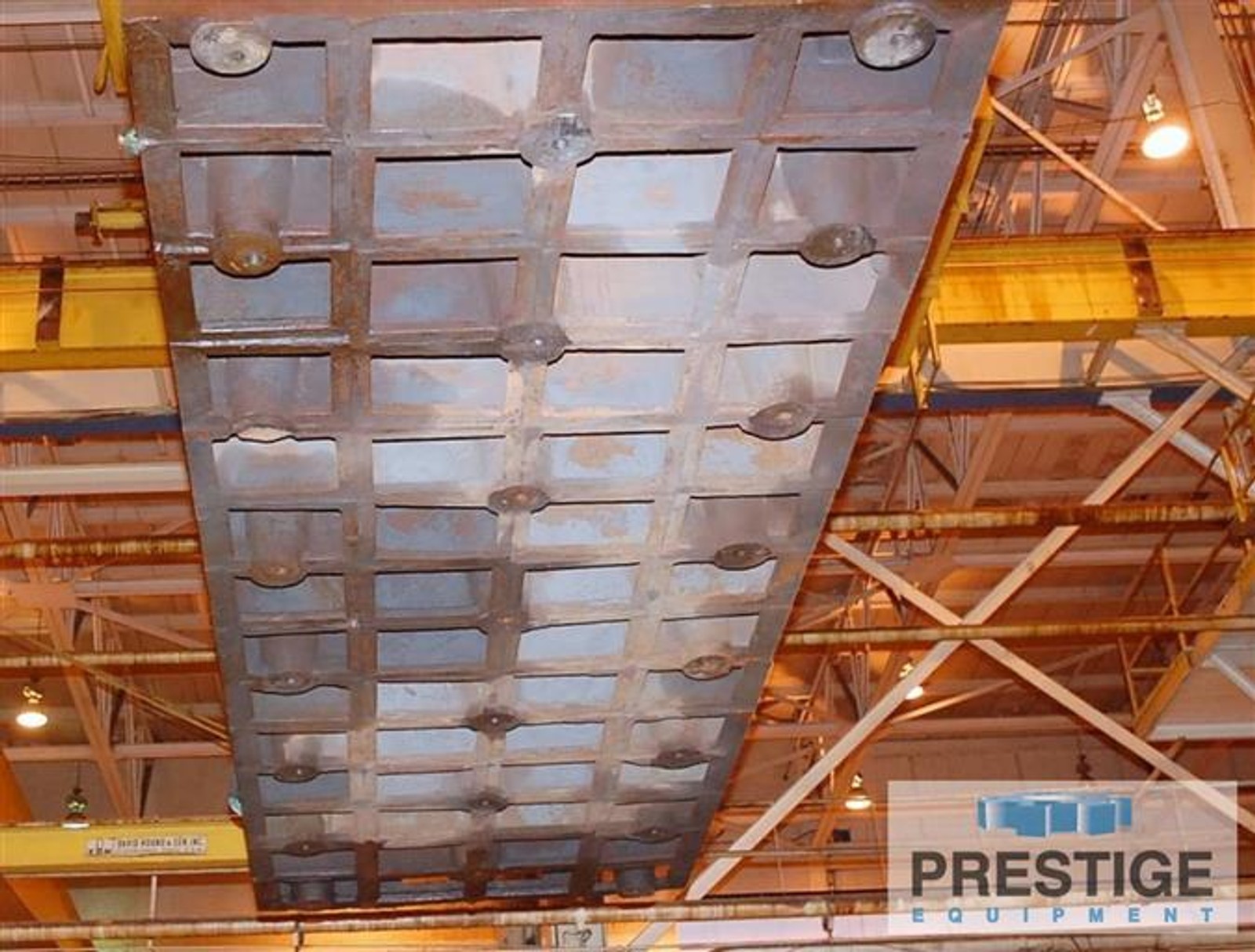

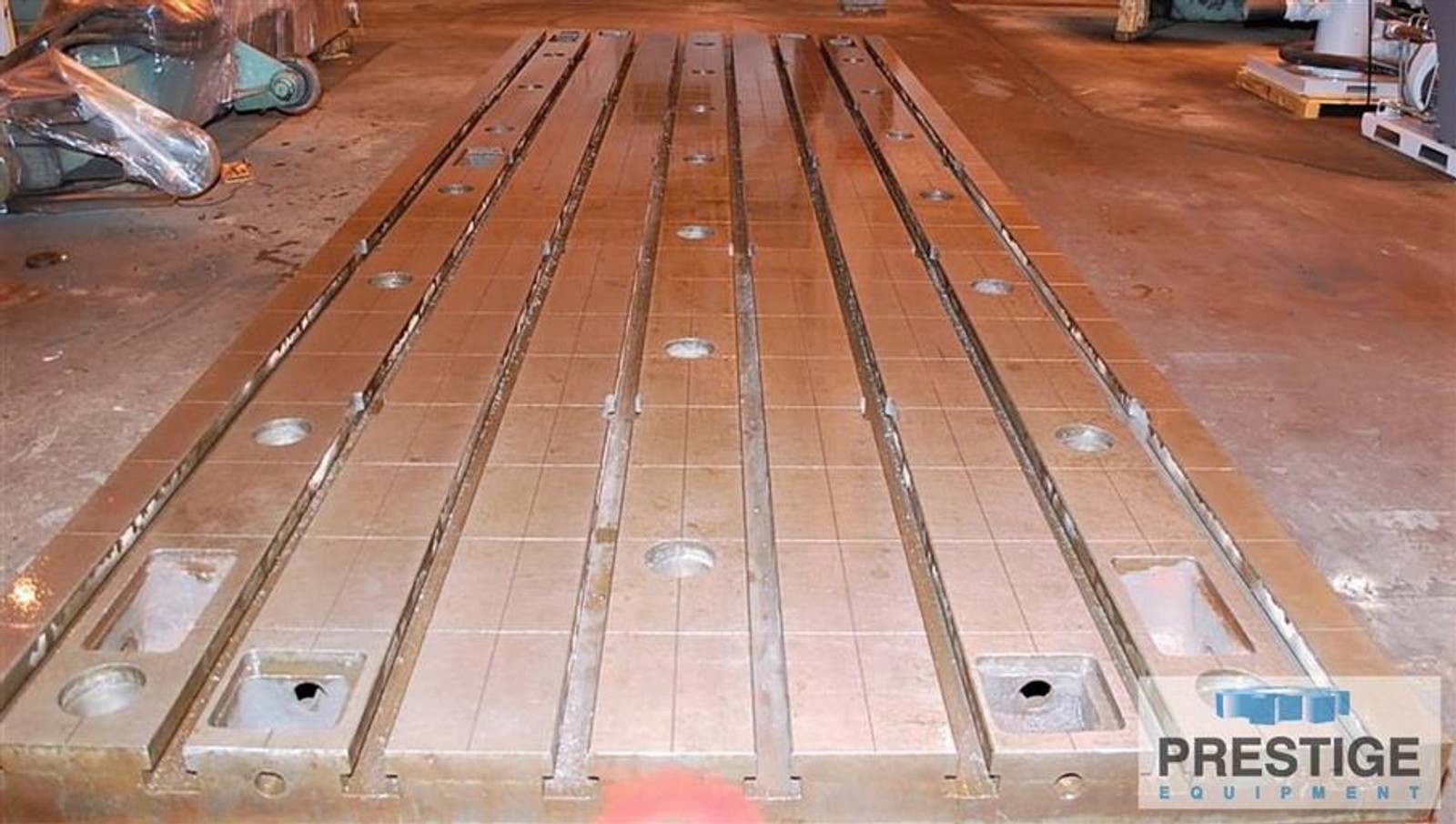

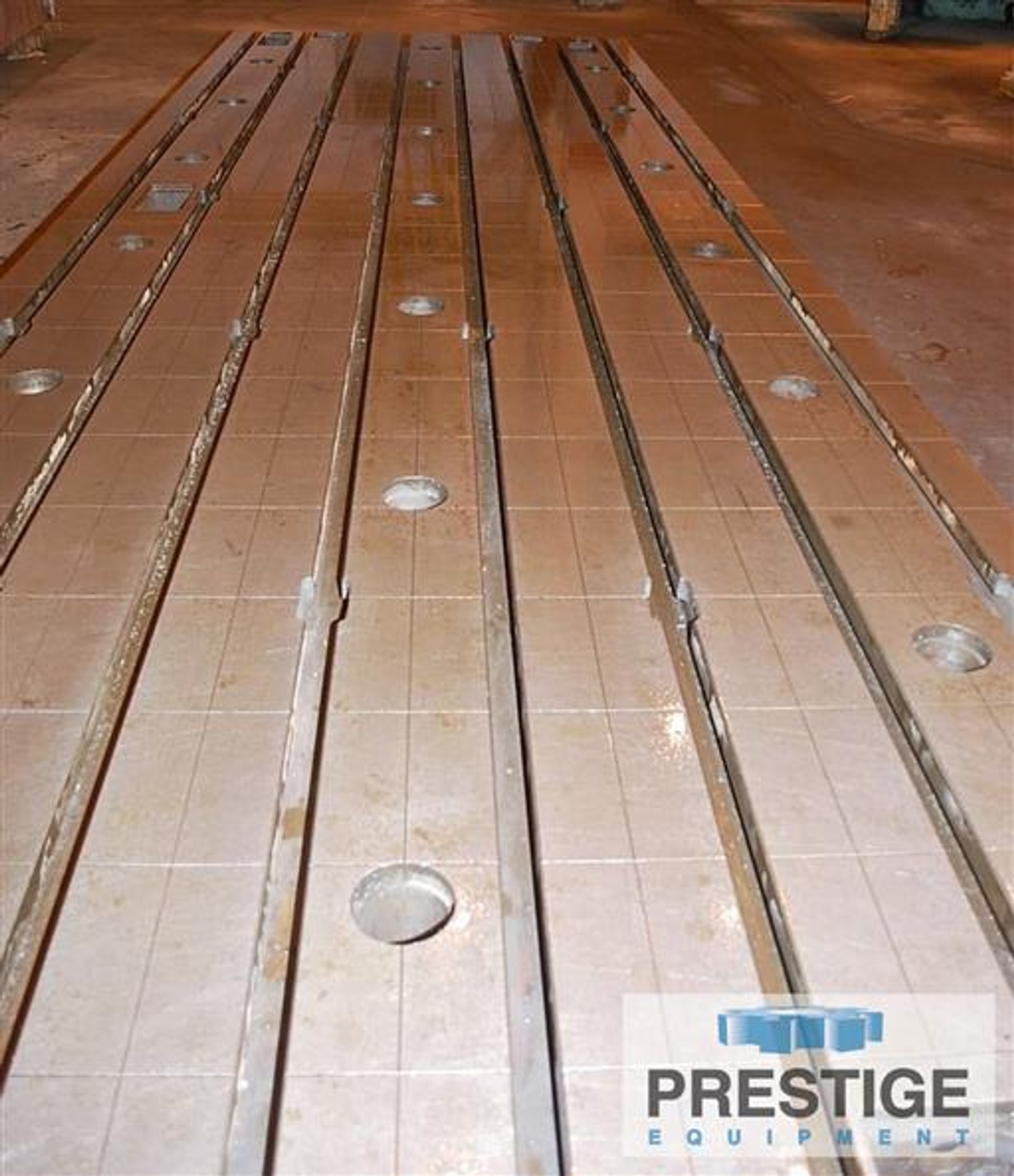

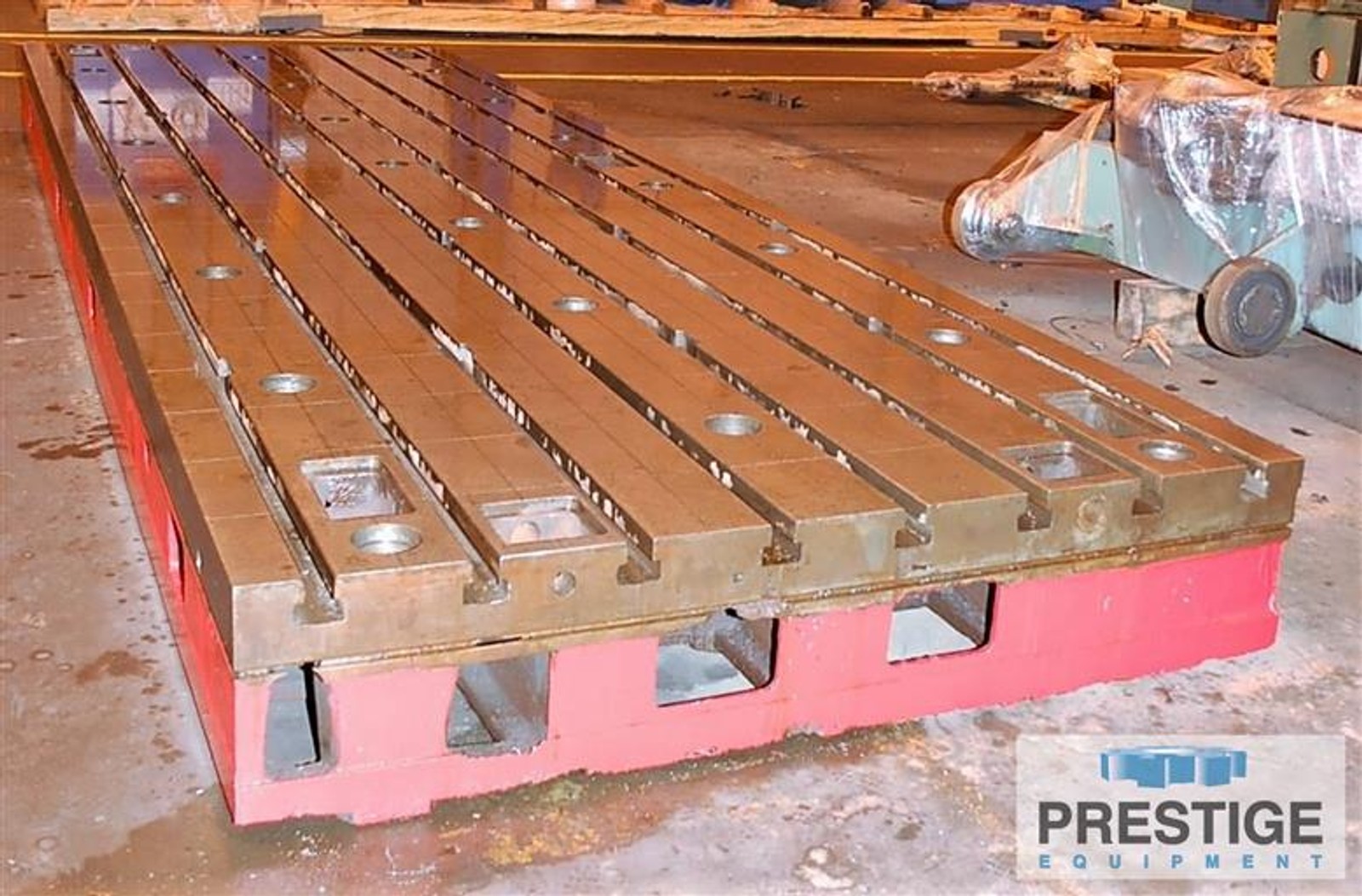

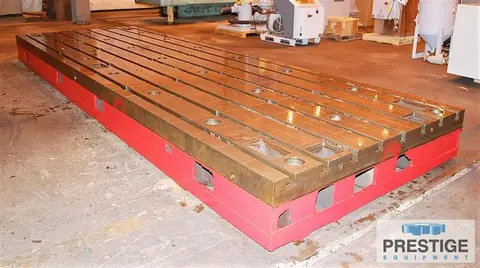

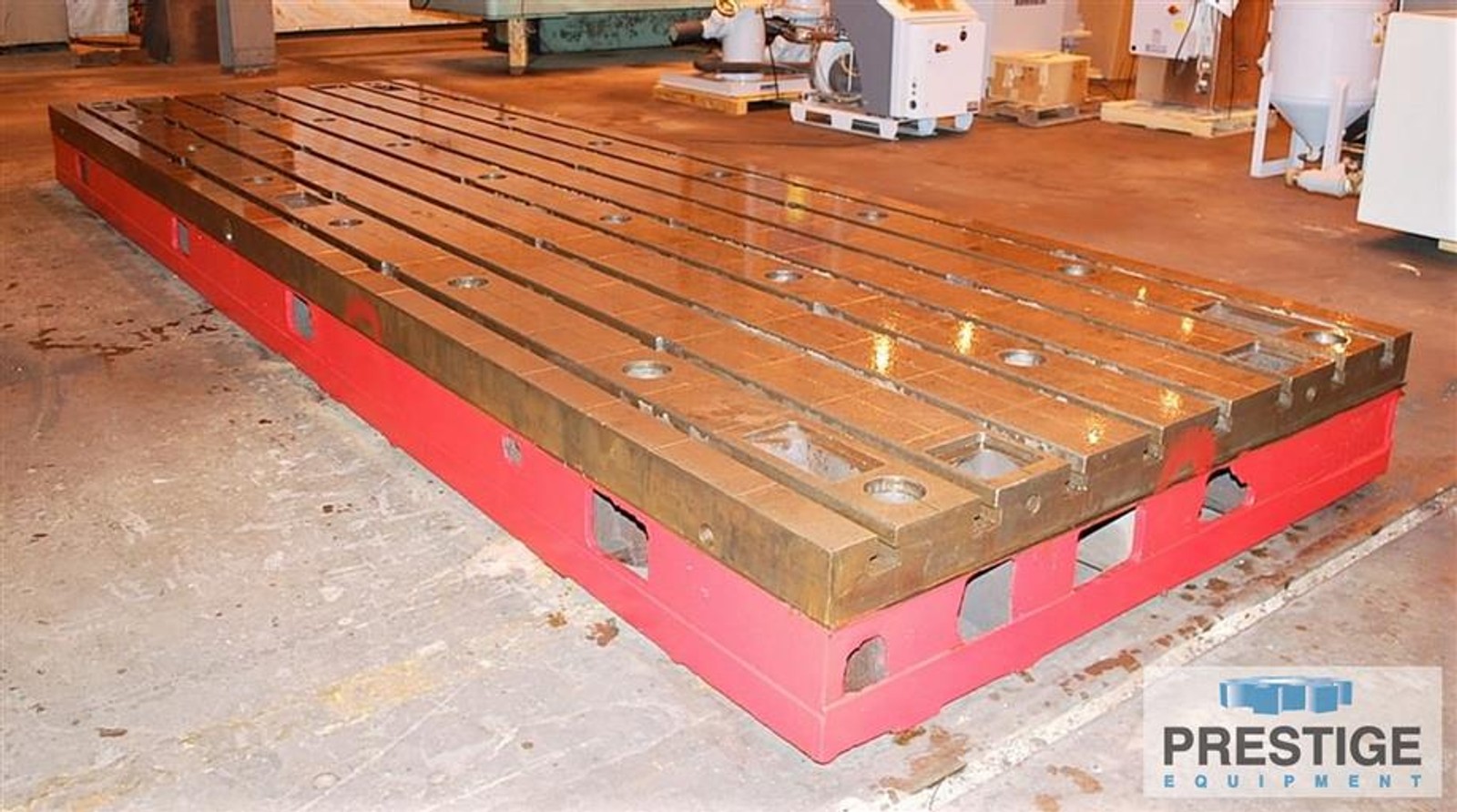

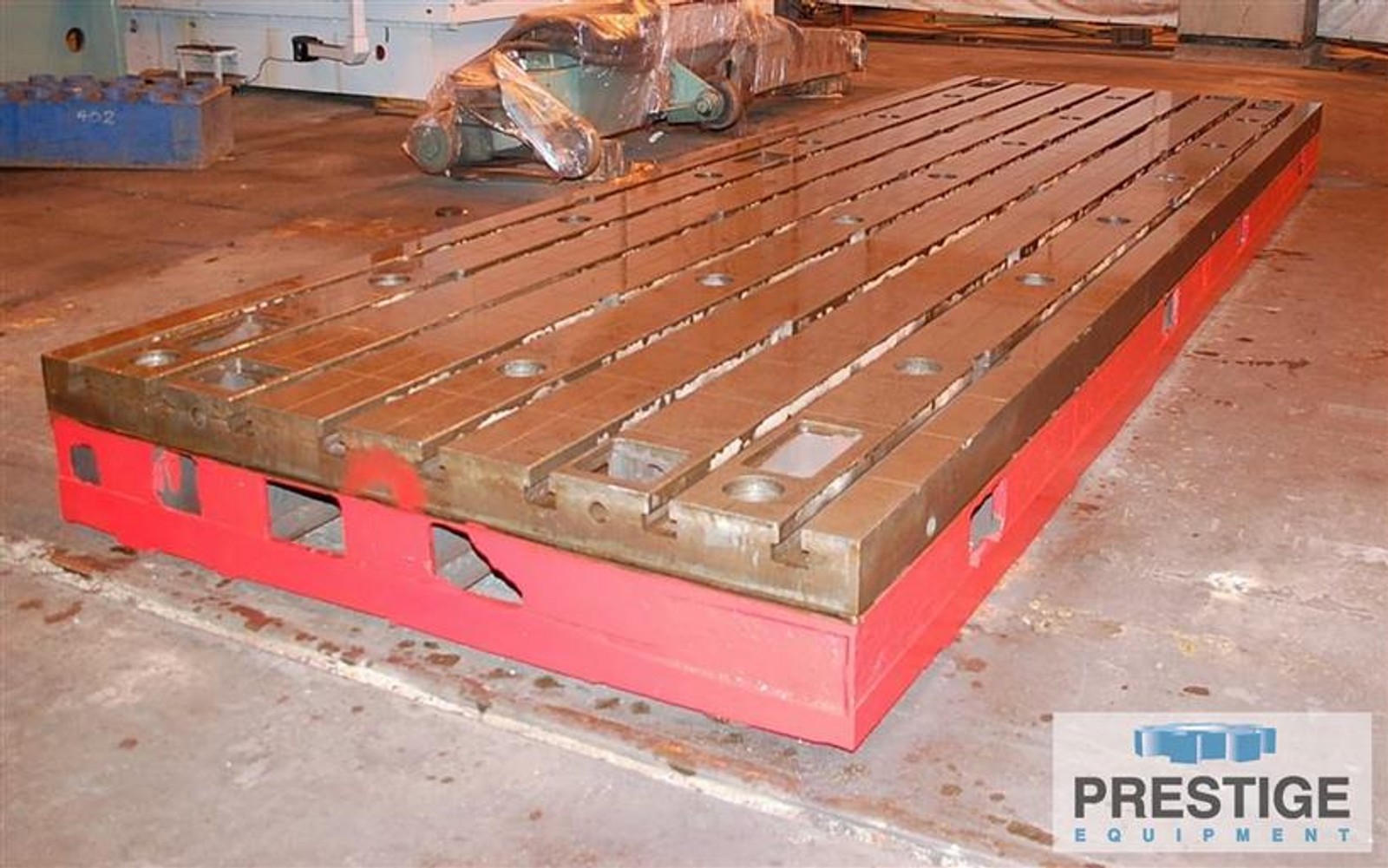

78" x 236" x 15.74" Thick T-Slotted Floor Plate, 8-Slots, Cast Iron, Matched, #30255

Manufacturer

Category

Tooling & Accessories

Type

FLOOR PLATES

Stock

30255

Model

T-Slotted

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #30255
Floor Plate, T-Slotted 78" x 236" x 15.75" Cast Iron Construction

SPECIFICATIONS:
Width ................................. 78.74"
Length ................................ 236.22"
Thickness ............................. 15.74"
T-Slot Center Distance ................ 9.874"
T-Slot Center Distance from Edge ...... 4.13"
Number of T-Slots, Longitudinal ....... 8
T-Slot Depth .......................... 2.95"
T-Slot Width, Top ..................... 1.57"
T-Slot Width, Bottom .................. 2.75"
Approximate Weight .................... 26,500 Lbs

EQUIPPED WITH:
T-Slotted

NOTE:
Inspect In Our Philadelphia PA Warehouse
