Hercules 61" x 275" CNC Roll Lathe, 280 HP, 4-Pos.Turret, Fanuc 31 CNC, #32948

Manufacturer

HERKULES

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

32948

Model

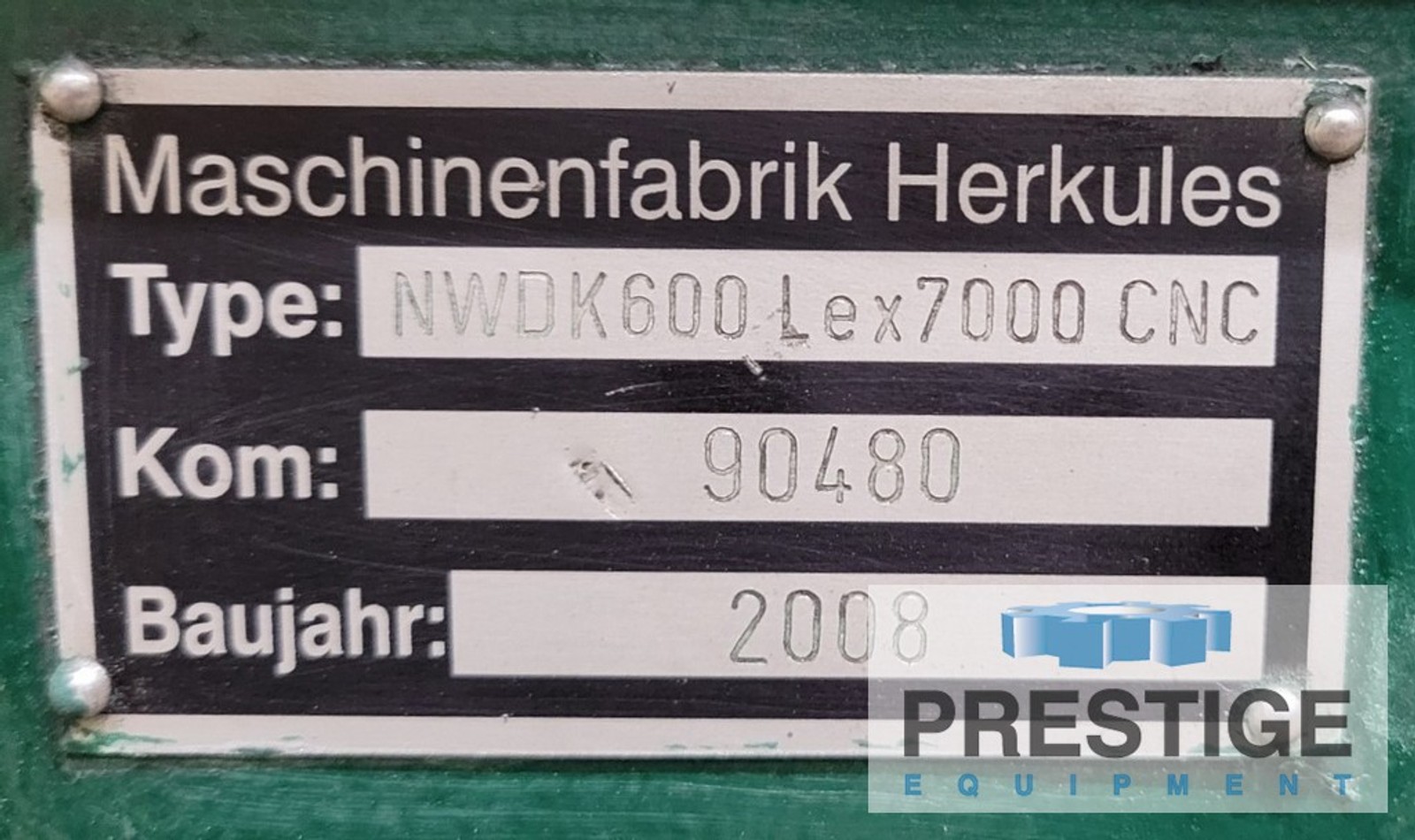

NWDK 600 x 7000 CNC

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32948

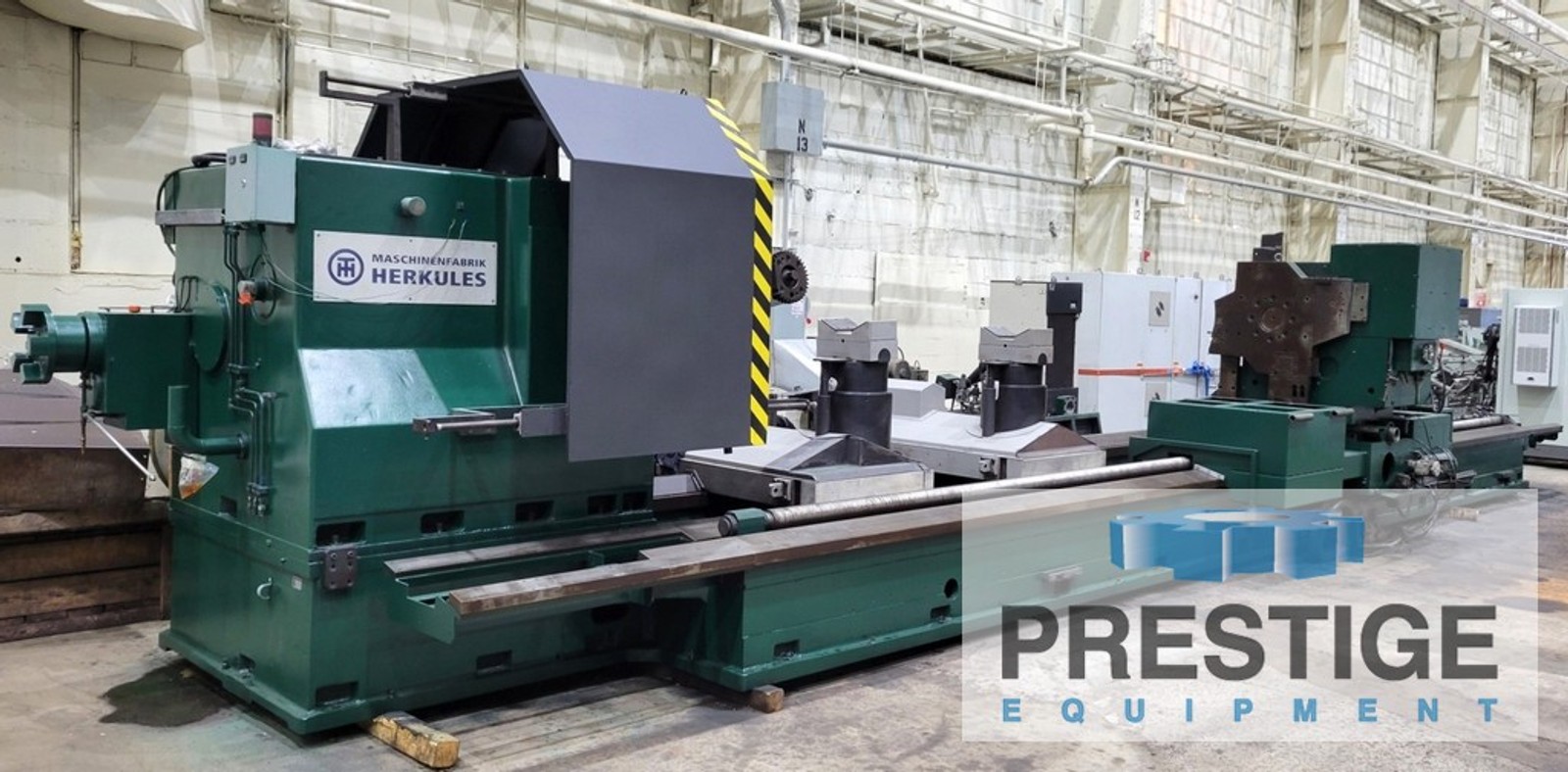

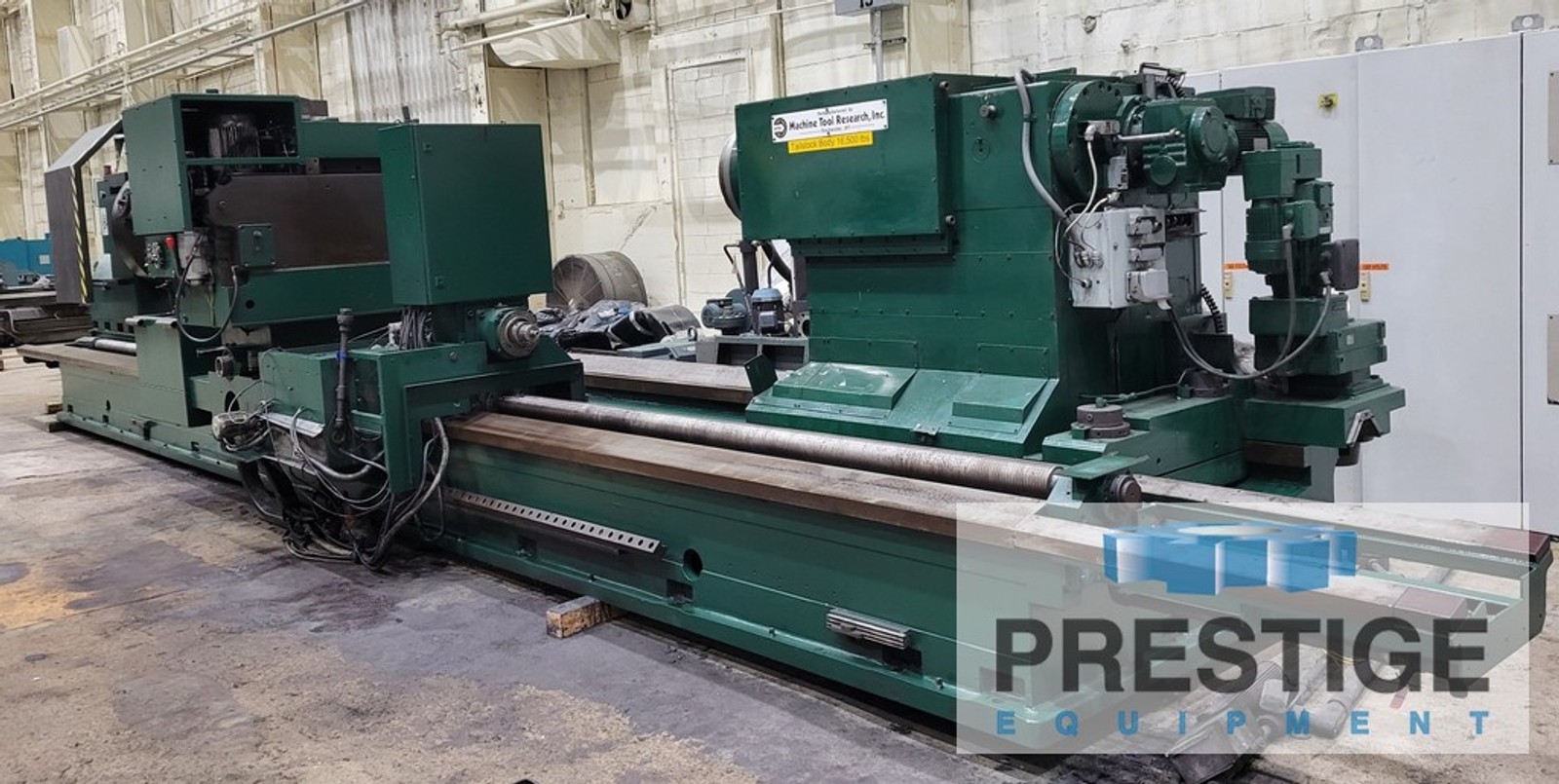

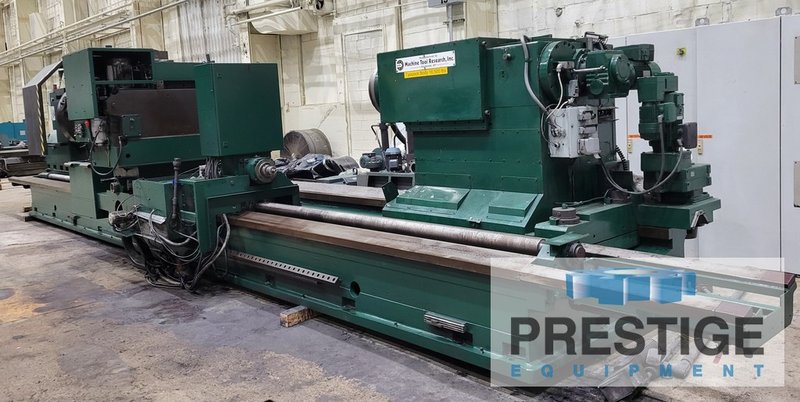

Herkules 61" x 275" CNC Roll Lathe

FEATURES:
4-Position Heavy Duty Turret
250 HP Spindle Motor
60 Ton Weight Capacity


SPECIFICATIONS:
Maximum Turning Diameter .............. 61.02"
Minimum Turning Diameter .............. 0
Distance Between Centers, Maximum ..... 275.59"
Distance Between Centers, Minimum ..... 39.37"
Carriage Stroke, Z-Axis ............... 275.59"
Turning Saddle Stroke, X-Axis, Max. ... 21.65"
Plunge Cut Depth At Roll Diam. 61" .... 12"
Max. Workpiece Weight, Unsupported .... 120,000 Lbs

HEADSTOCK:
Spindle Speeds, Range One ............. 1-45 RPM
Spindle Speeds, Range Two ............. 4-192 RPM
Faceplate Clamping Diameter ........... 5.9"-29.52"
Power Drive Motor, Maximum ............ 260 HP
Gear Lubrication Setting .............. 1....1/Min

SADDLE:
X-Axis Cross Feed ..................... 0.039-236.22 IPM
X-Axis Rapid Motion ................... 236.22 IPM
Z-Axis Longitudinal Feed .............. 0.039-236.22 IPM
Z-Axis Rapid Motion ................... 236.22 IPM

TOOL SLIDE:
Number of Tool Slides ................. 1
Number of Positions ................... 3
Cutting Force, Maximum ................ 120,000 N

TURRET HEAD:
Number of Tool Positions .............. 4
Tool Type ............................. Special Cassettes
Cutting Force, Maximum ................ 100,000 N

TAILSTOCK:
Center Pressure, Maximum .............. 30,000 N
Center Sleeve Adjustment, Maximum ..... 0.3937"

Equipped With:

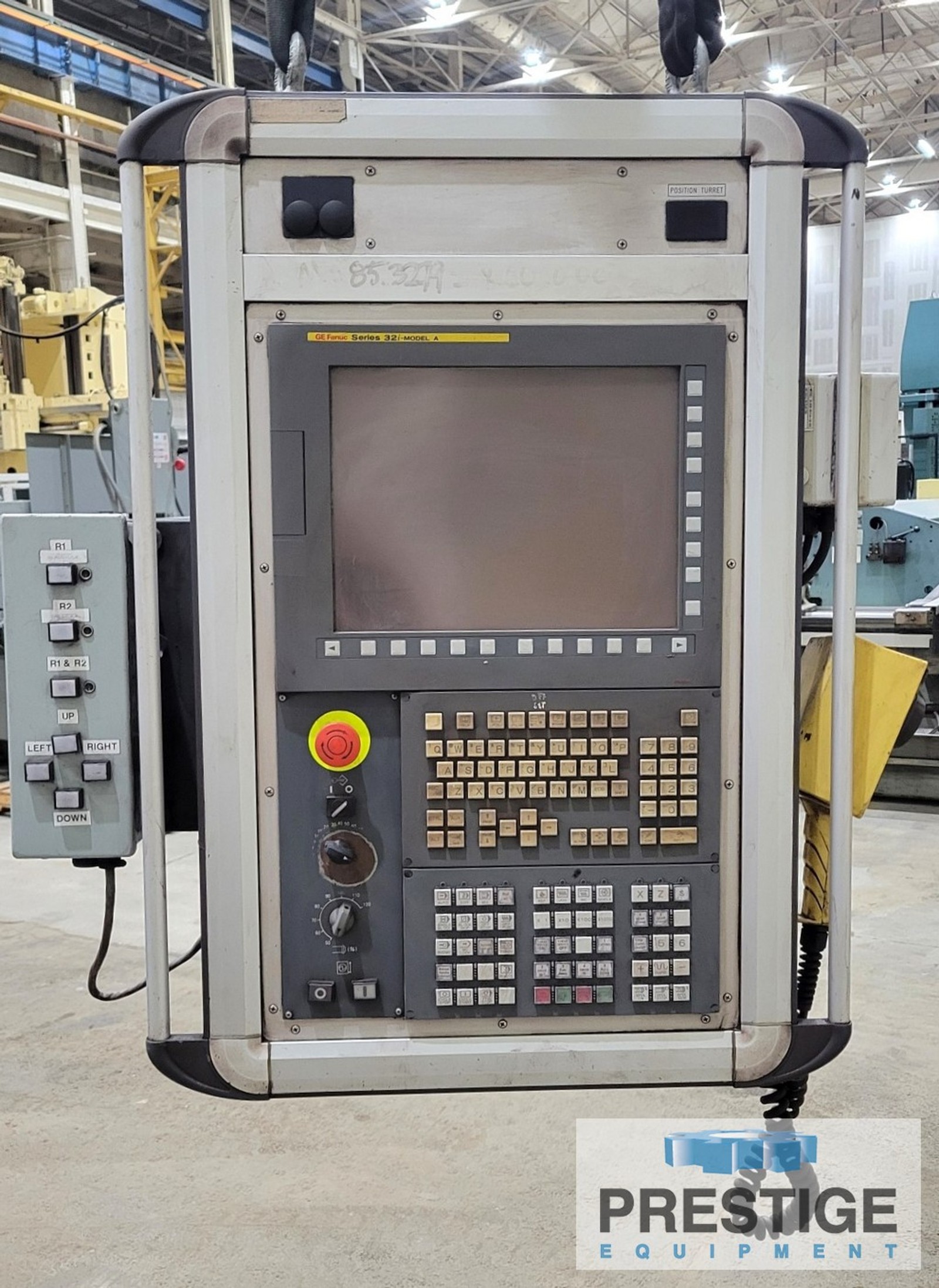

Fanuc 32-A CNC Controls

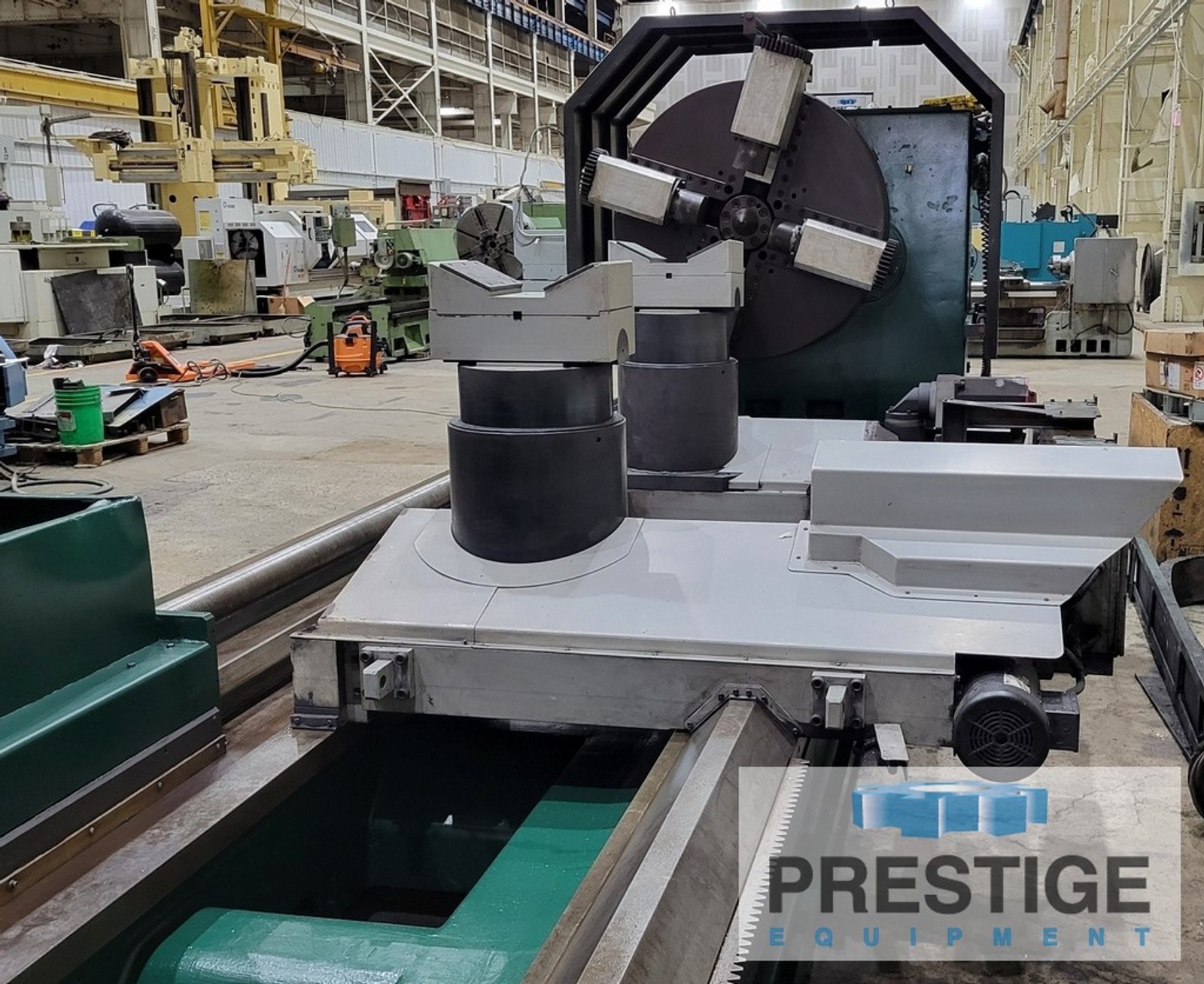

2-Power Roll Supports

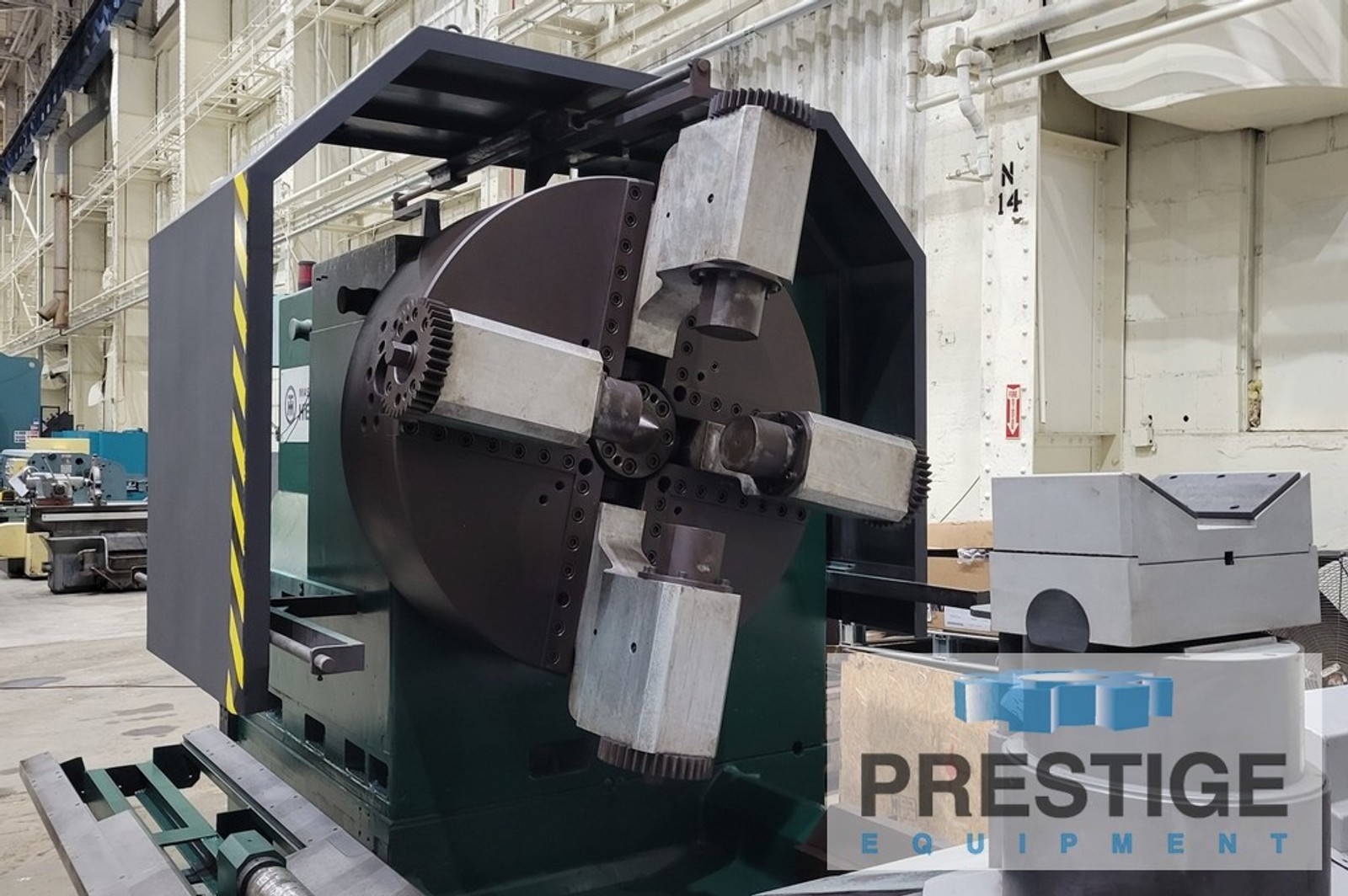

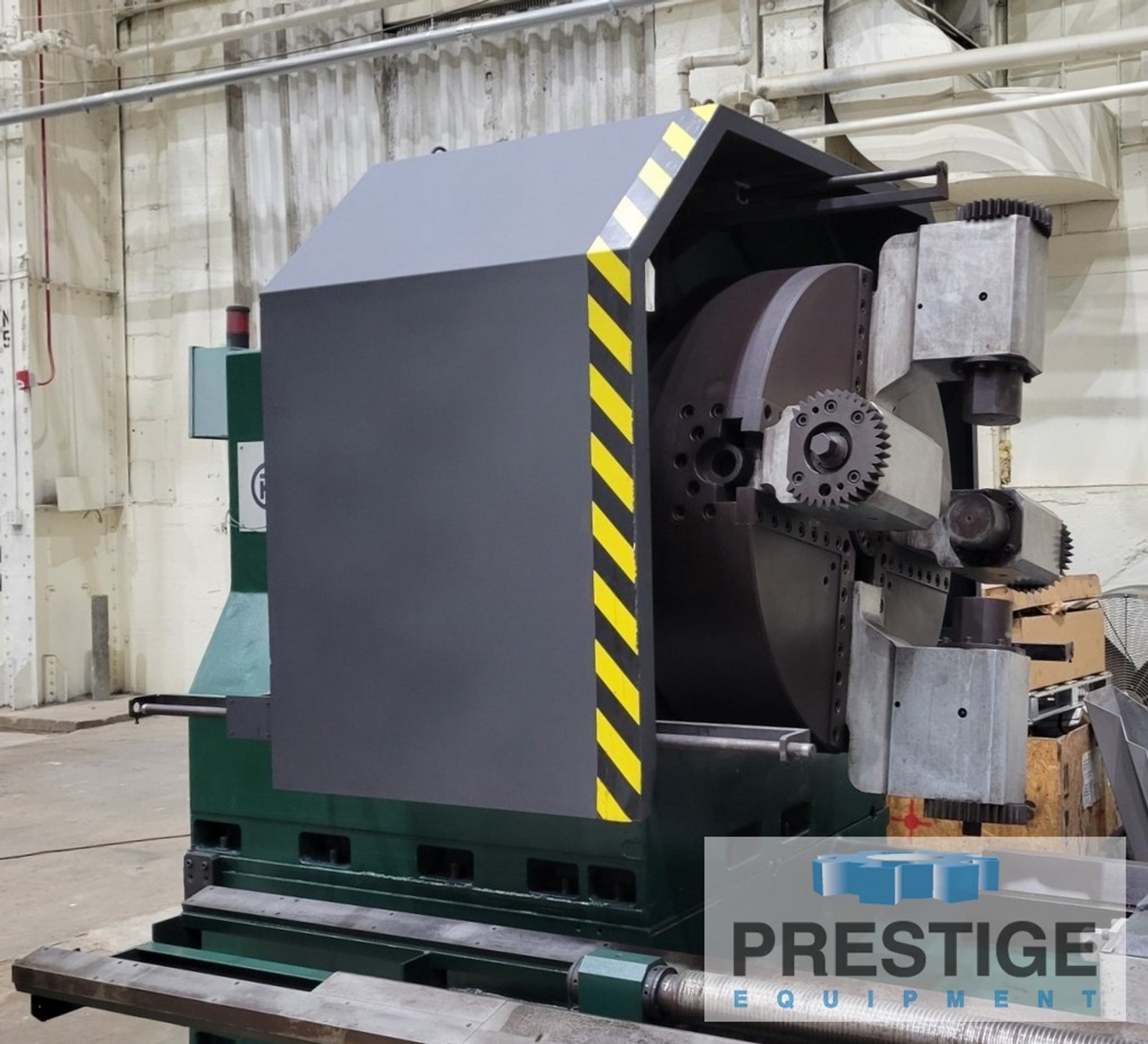

4-Jaw Chuck

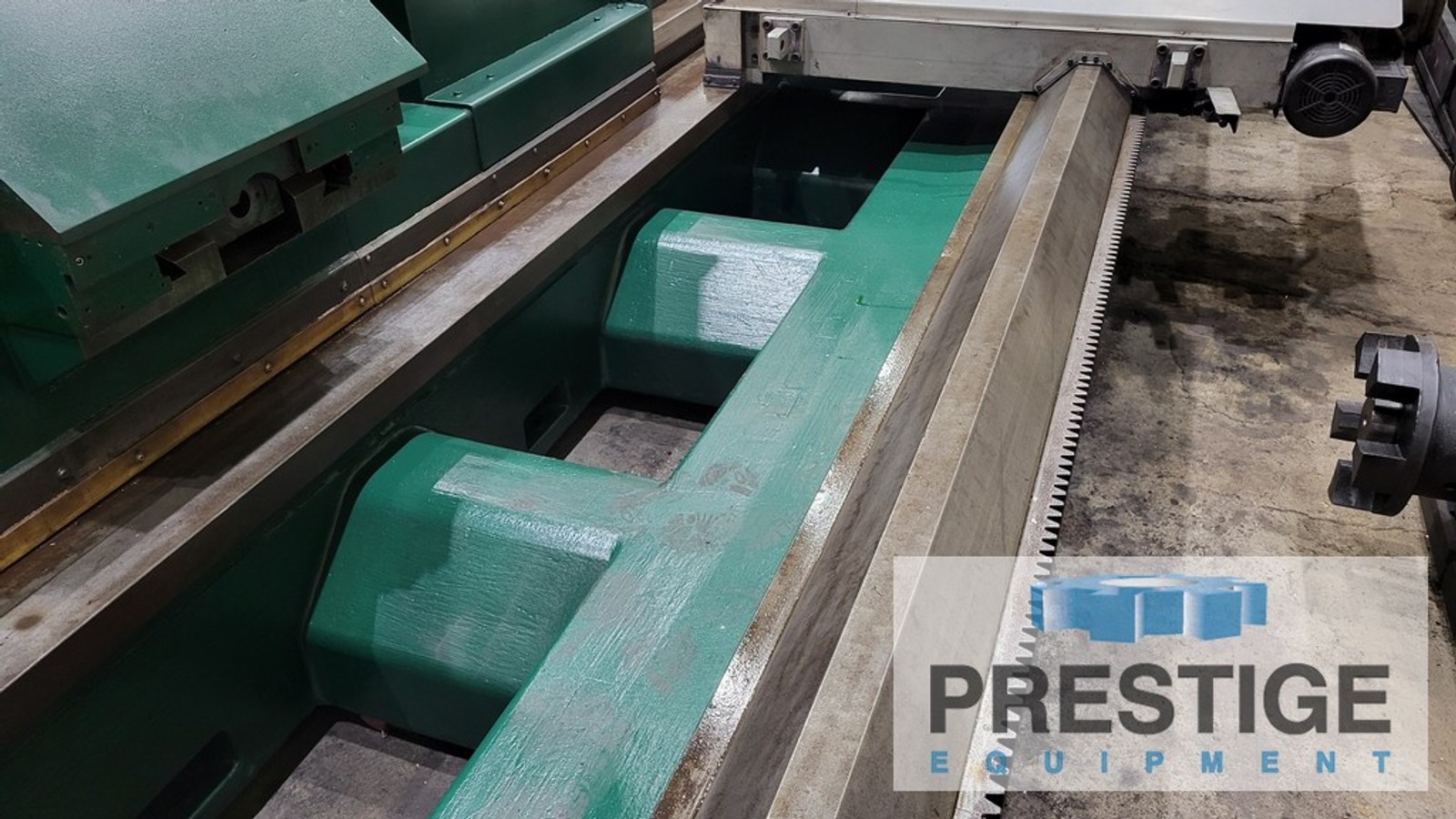

Steel Telescoping Way Covers
250 HP Baldor Drive Motor

NOTES:

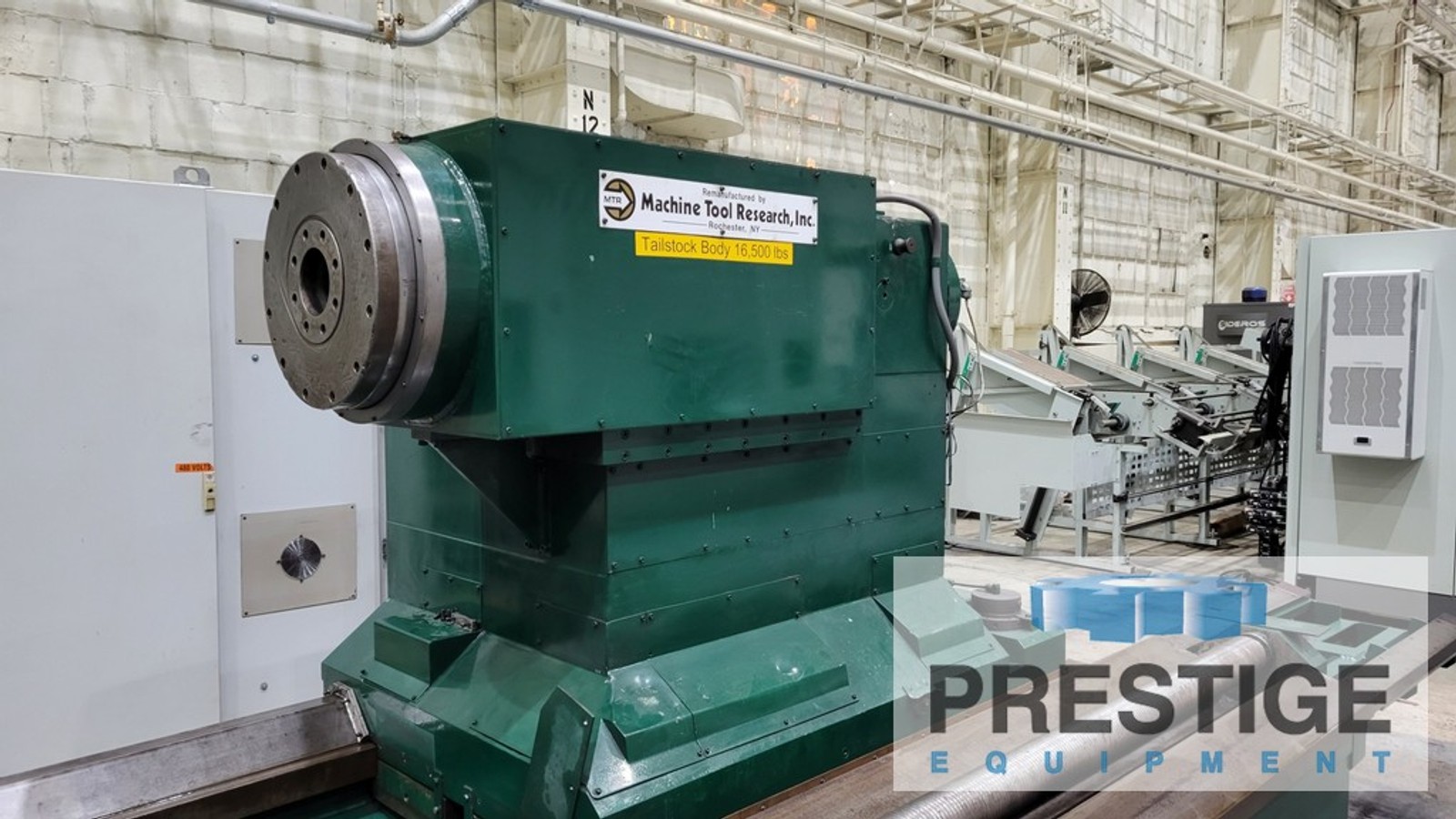

Tailstock Recently Rebuilt By Machine Tool Research to Accommodate Additional Cutting Force
2-Soft Loader For Ease of Roll Loading
