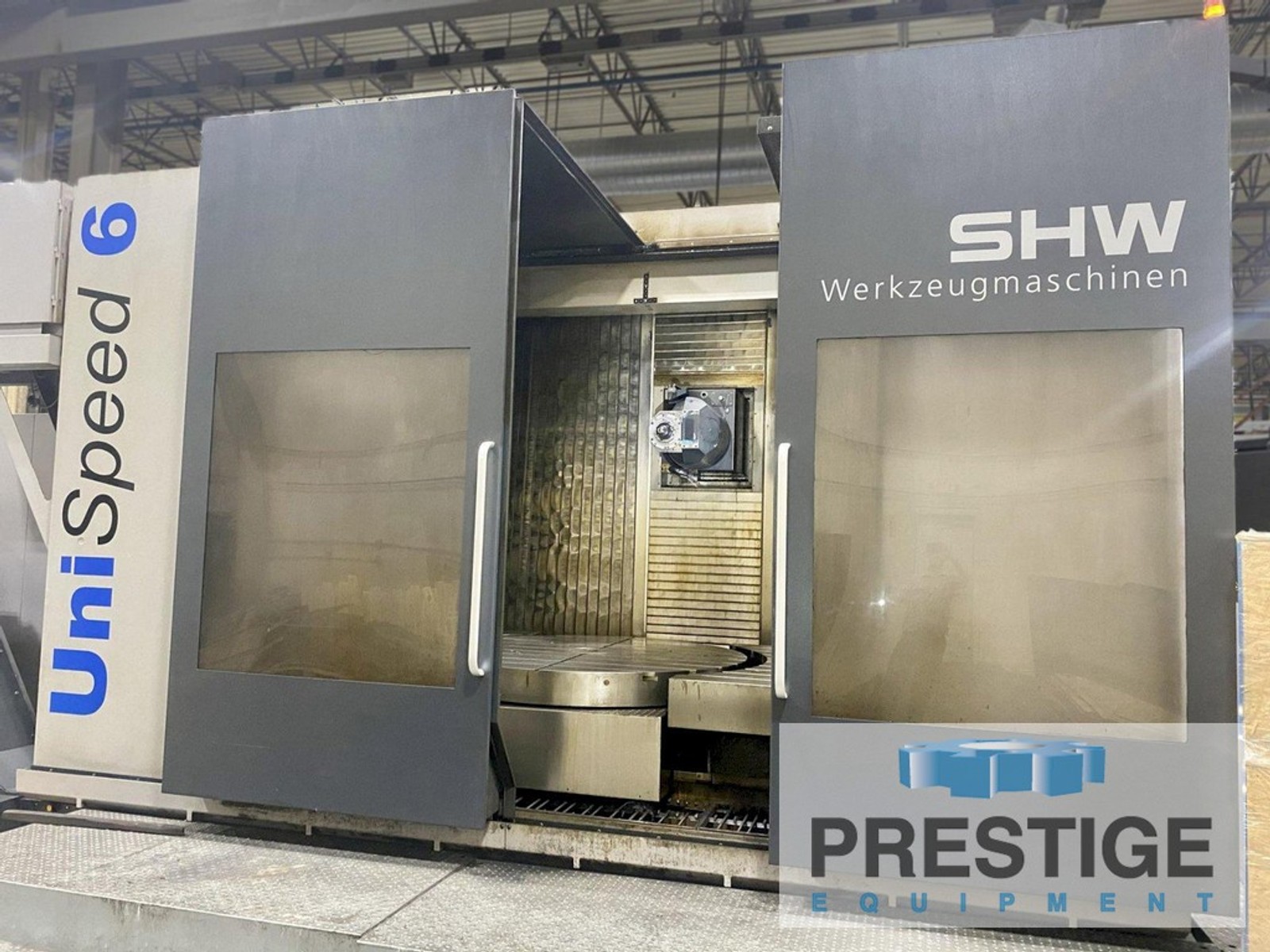

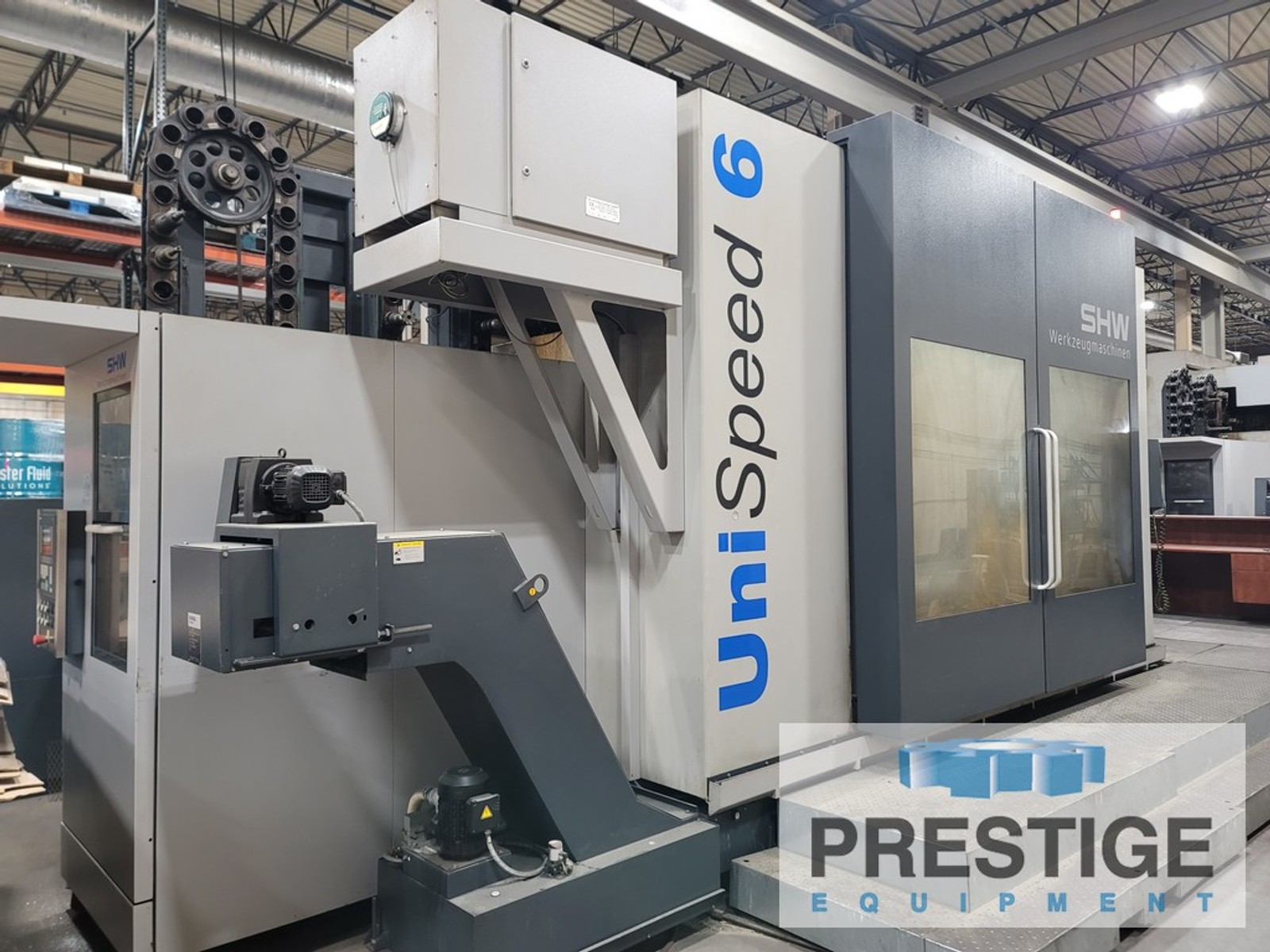

SHW UniSpeed/6, X-118", Y-51", Z-51", C-Axis, A-Axis, 63" dia. B-Axis, 118" x 63" Table, Siemens 840D/SL, 2014 #43462

Manufacturer

SHW

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43462

Model

UniSpeed/6

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43462

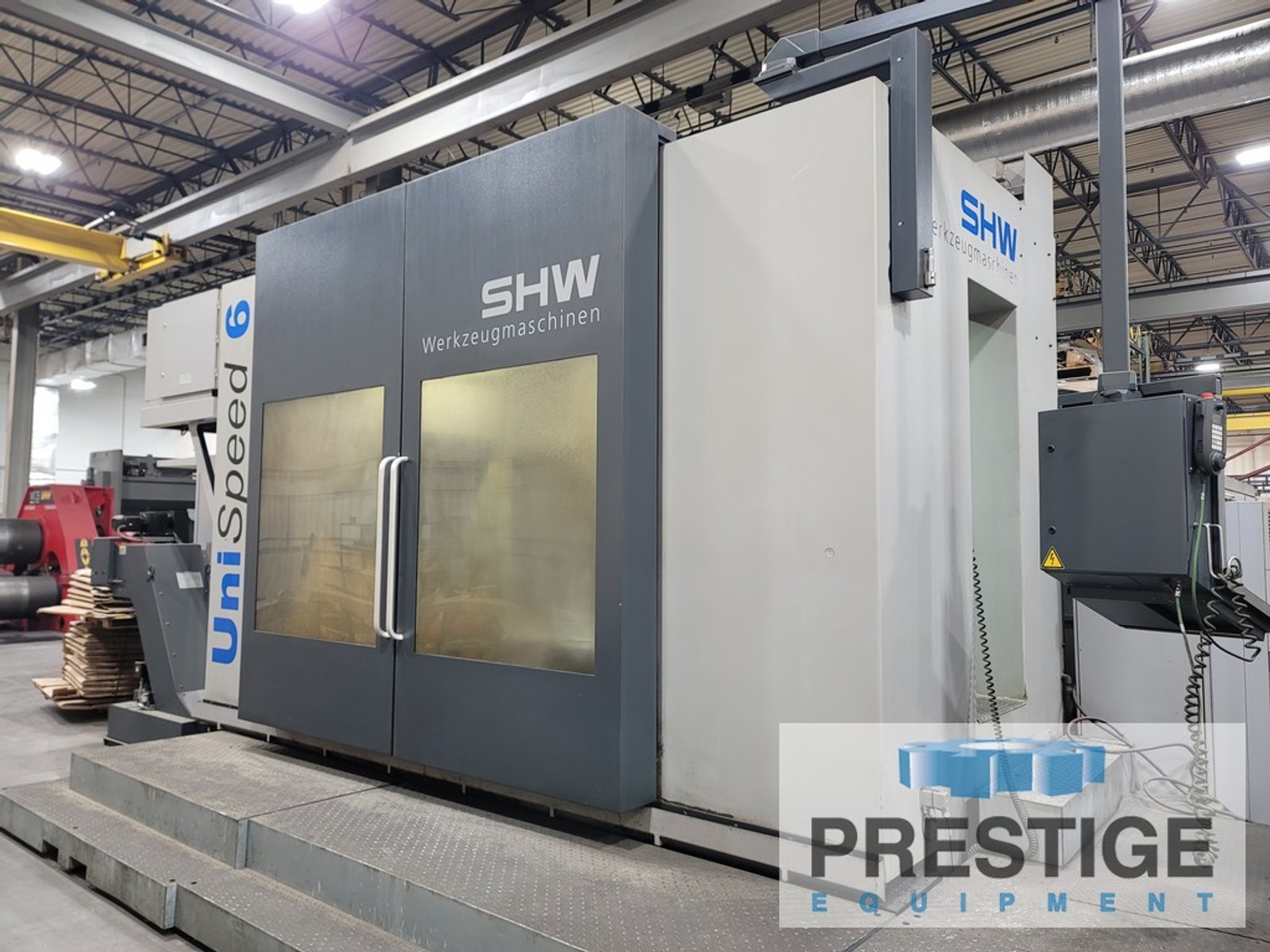

SHW UniSpeed/6 5-Axis CNC Universal Milling Machine

FEATURES:

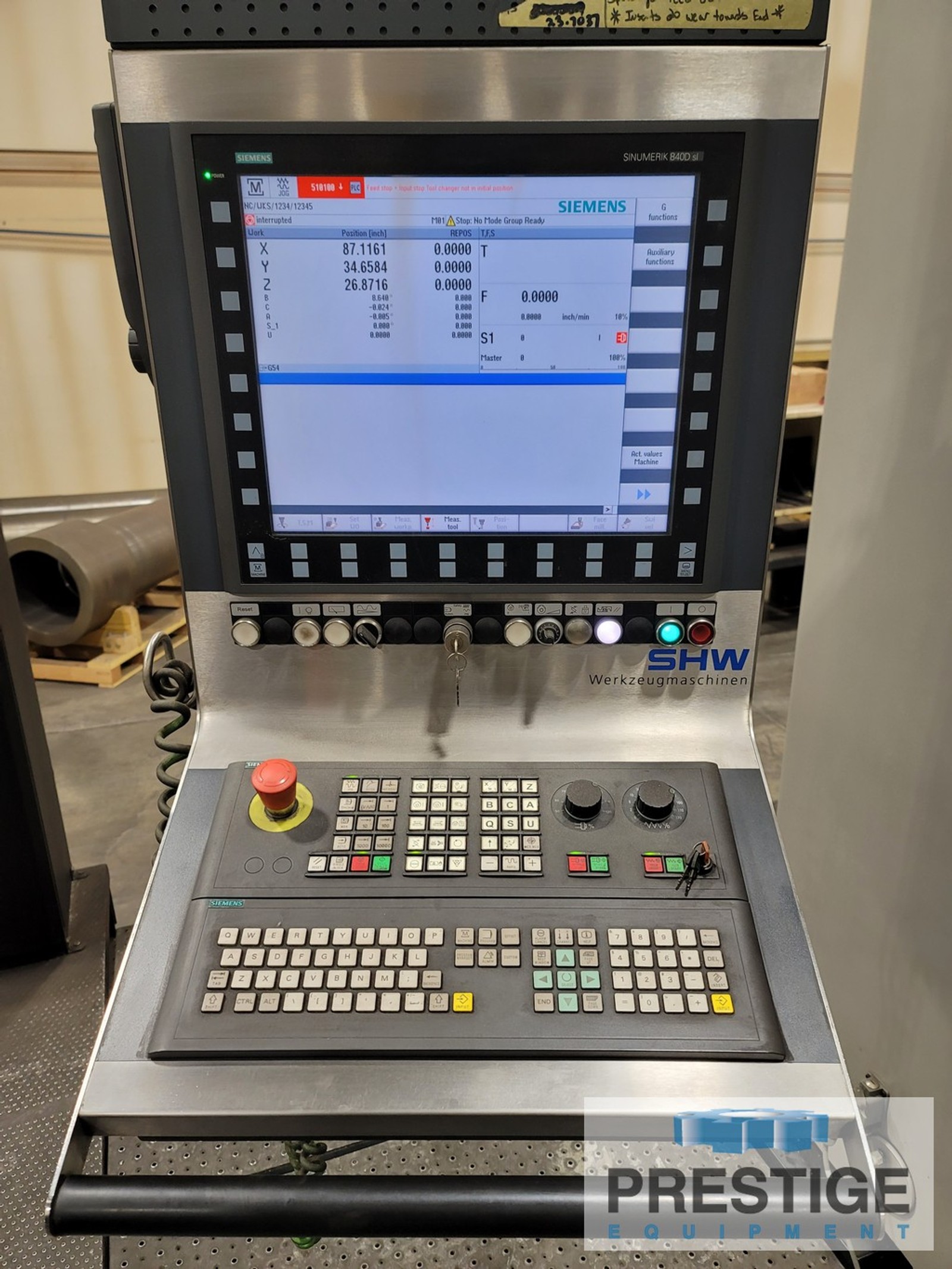

Siemens 840D Solution Line CNC Control
90 Station Automatic Tool Changer

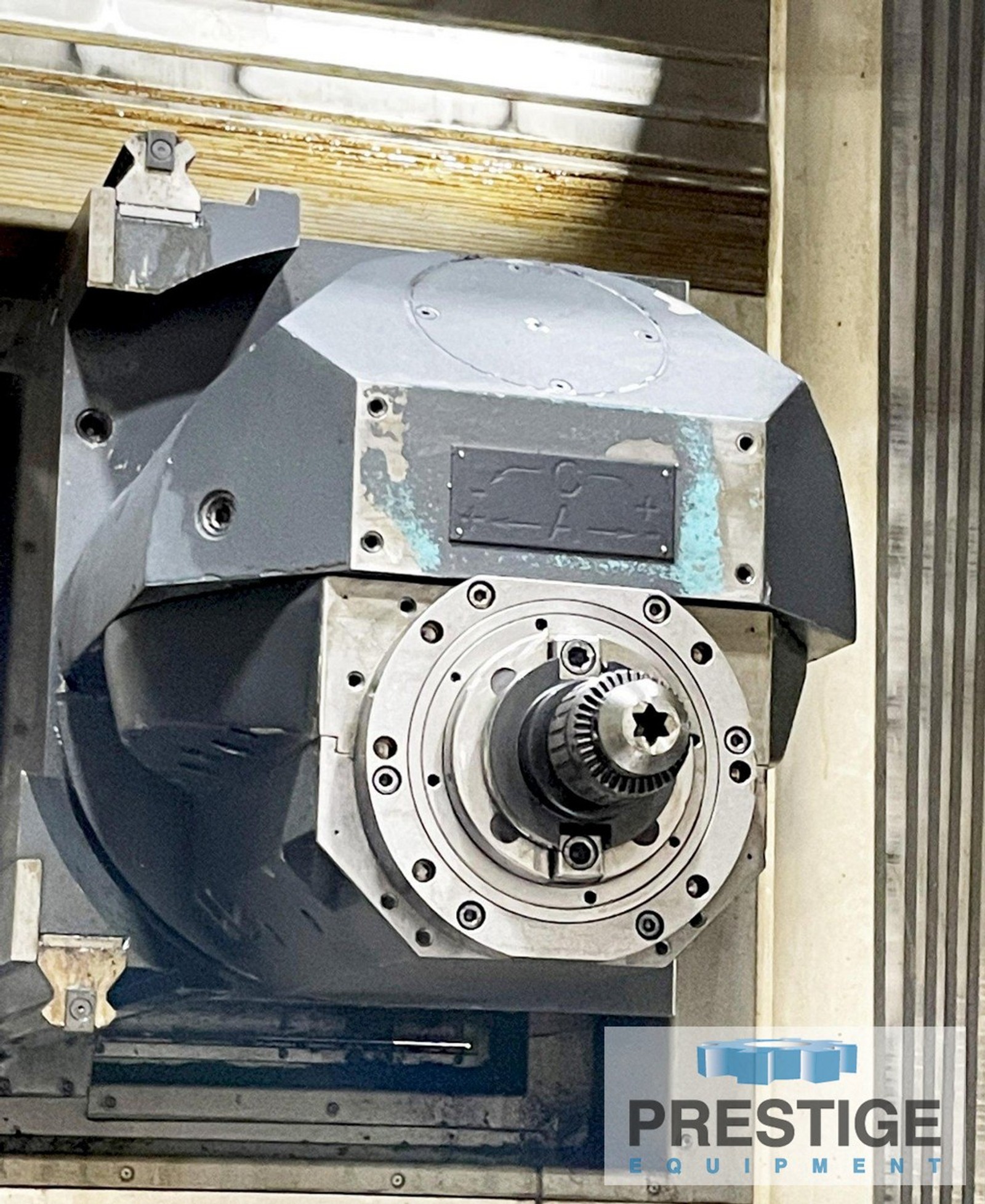

2-Axis Orthogonal Milling Head

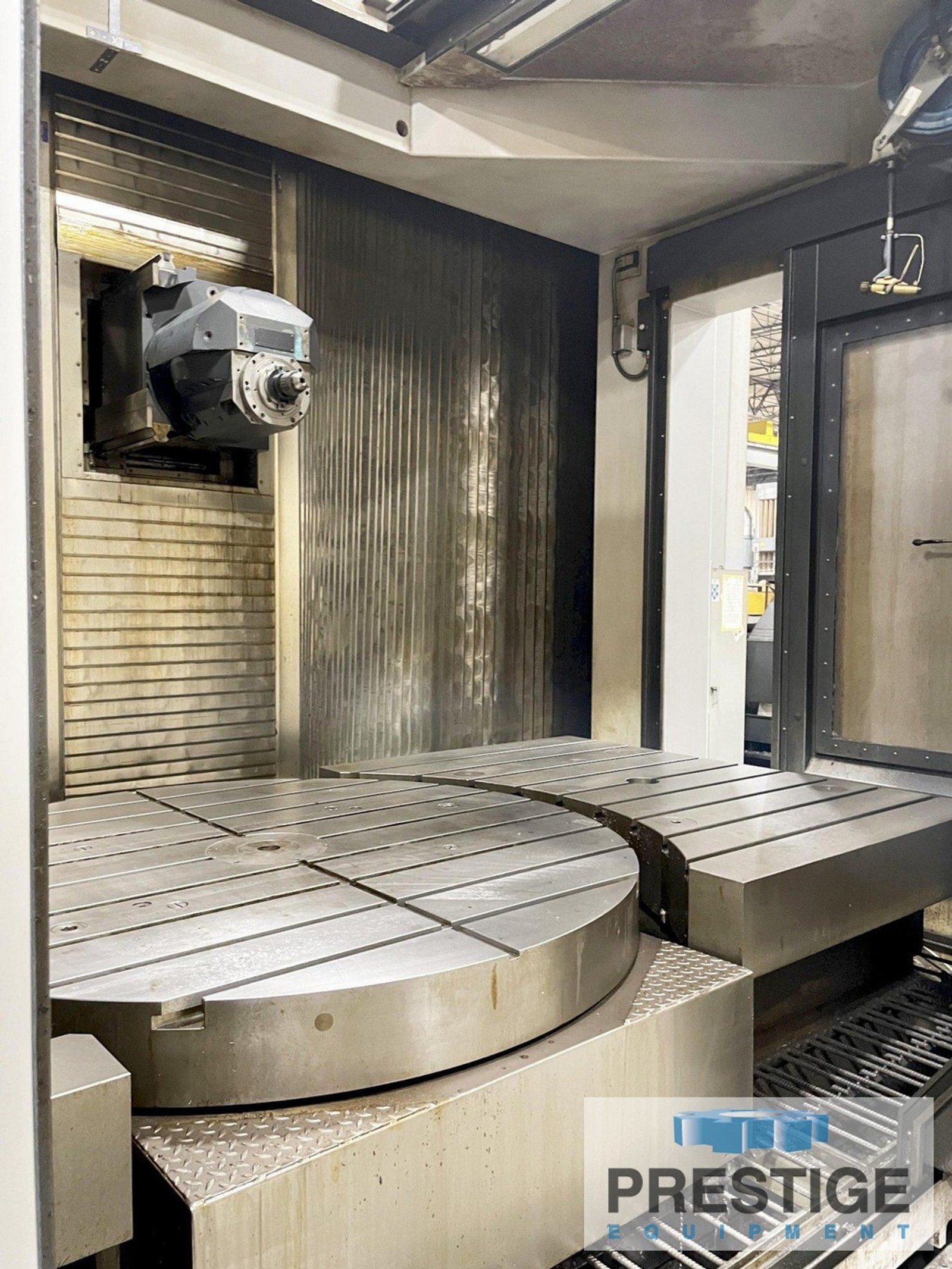

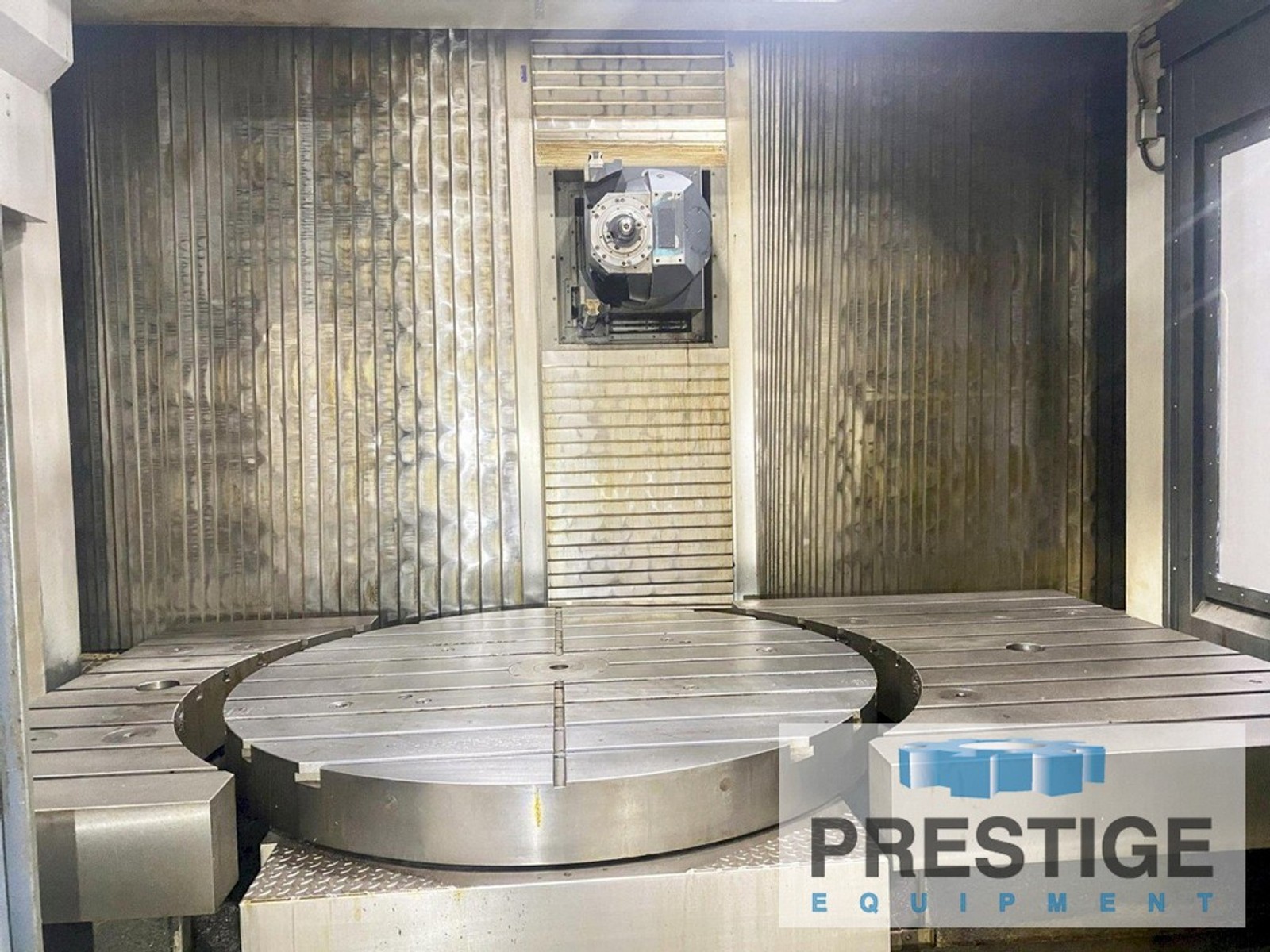

B-Axis Rotary Table
Through Spindle Coolant

CAPACITIES:
X-Axis, Column Travel ................. 118.11"
Y-Axis, Head Travel ................... 51.18"
Z-Axis, Ram Travel .................... 51.18"
Table Size ........................... 62.99" x 118.11"
B-Axis, Rotary Table, ................. 62.99" Diameter
B-Axis Rotary Table, Contouring ....... .001 degrees
B-Axis Rotary Table, Rotation ........ 5 RPM
Rotary Table Load Capacity ............ 13,200 Lbs
Spindle Speed Range ................... To 6000 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ........................ 48 HP
C-Axis, Orthogonal Head, Positioning .. +/- 180 degrees
C-Axis, Orthogonal Head, Indexing ..... .001 degrees
A-Axis, Orthogonal Head, Positioning .. +/- 90 degrees
A-Axis, Orthogonal Head, Indexing ..... .001 degrees
Approx. Machine Footprint ............ 292" x 245"
Approx. Machine Height ............... 166"
Approx. Machine Weight ............... 100,000 lbs
Machine Electrics ..................... 480/3/60

EQUIPPED WITH:
Siemens 840D Solution Line CNC Control
90 Station Automatic Tool Changer
2-Axis Orthogonal Milling Head
62.99" B-Axis Rotary Table
Thru-Spindle Coolant
Telescopic Steel Way Covers
Chip Conveyor

NOTE:
Must Be Moved!
