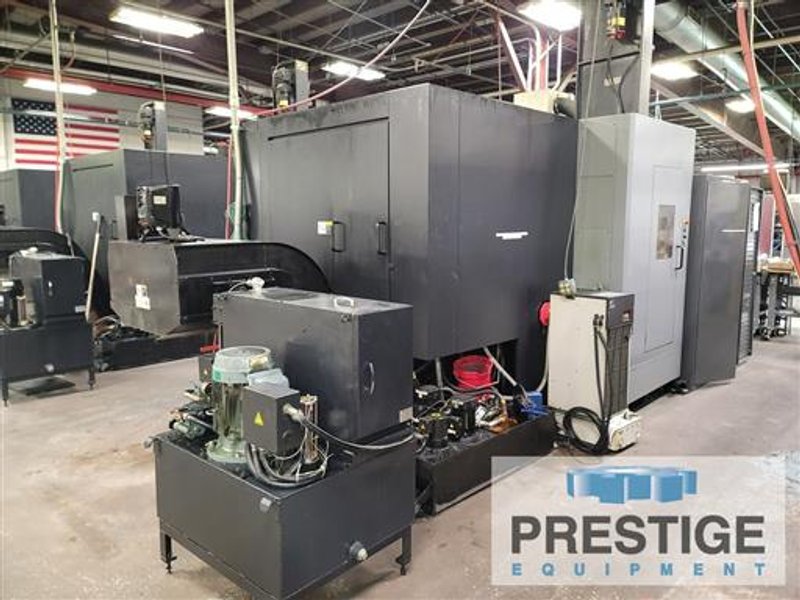

OKK HMC400, Fanuc 31i-B, X-22", Y-22", Z-27", 15.7" Pallets, B-Axis, 60 ATC, 15K RPM, TSC, Chip Conv, 2015, #32909

Manufacturer

OKK

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

32909

Model

HMC400

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32909

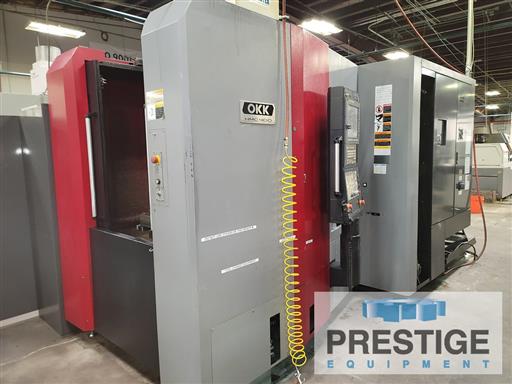

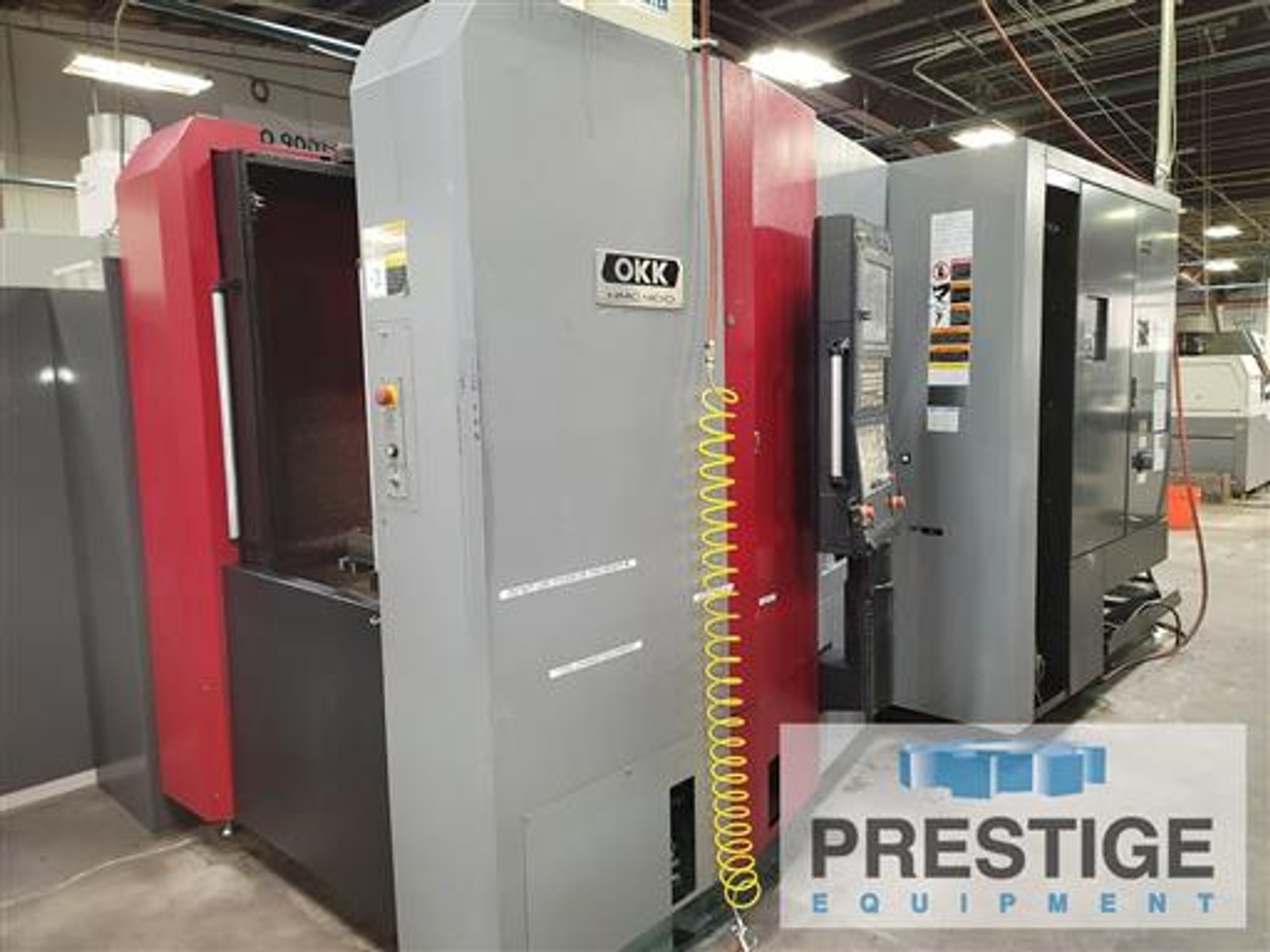

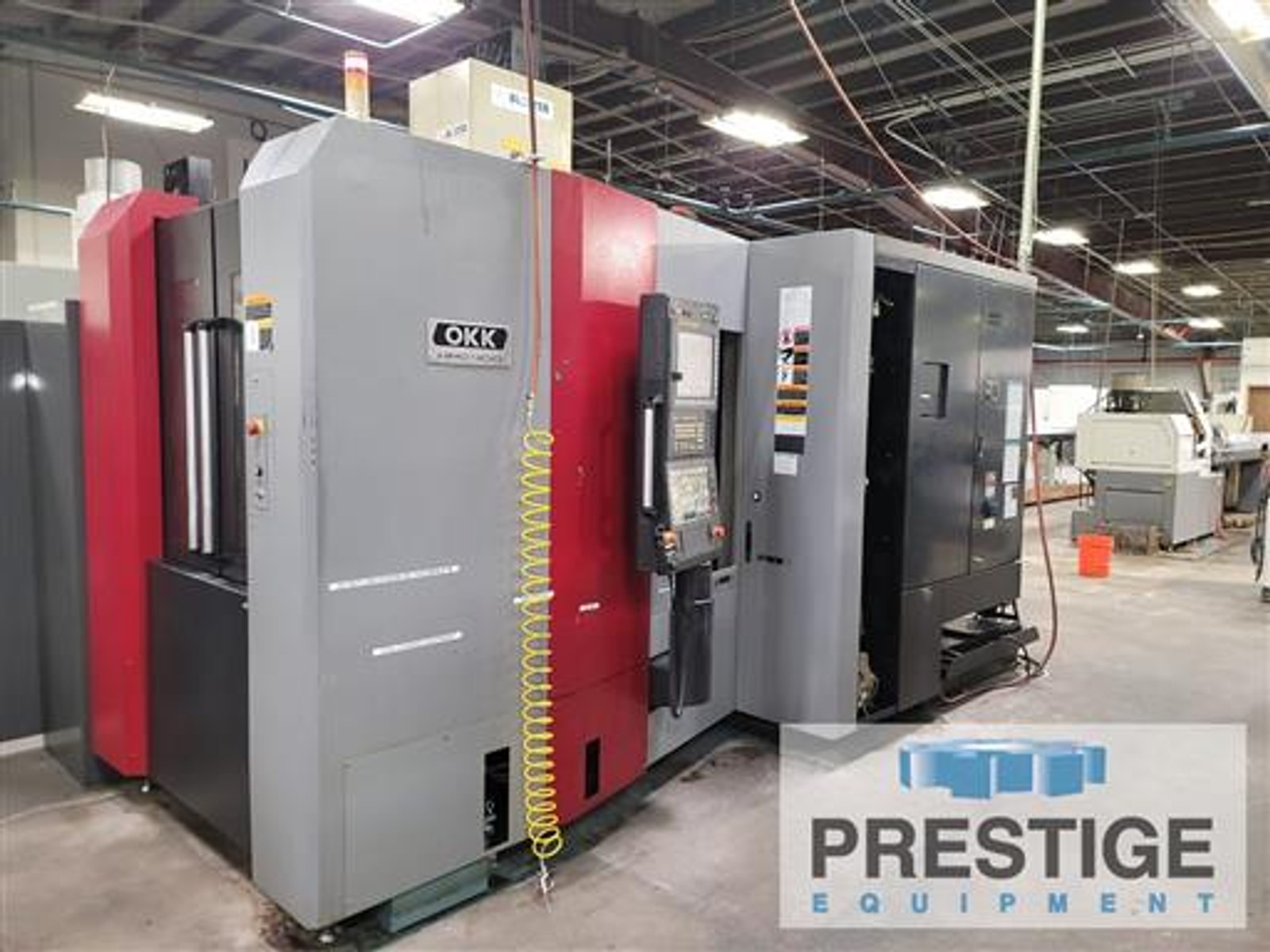

OKK HMC400 CNC 4-Axis Horizontal Machining Center

FEATURES:

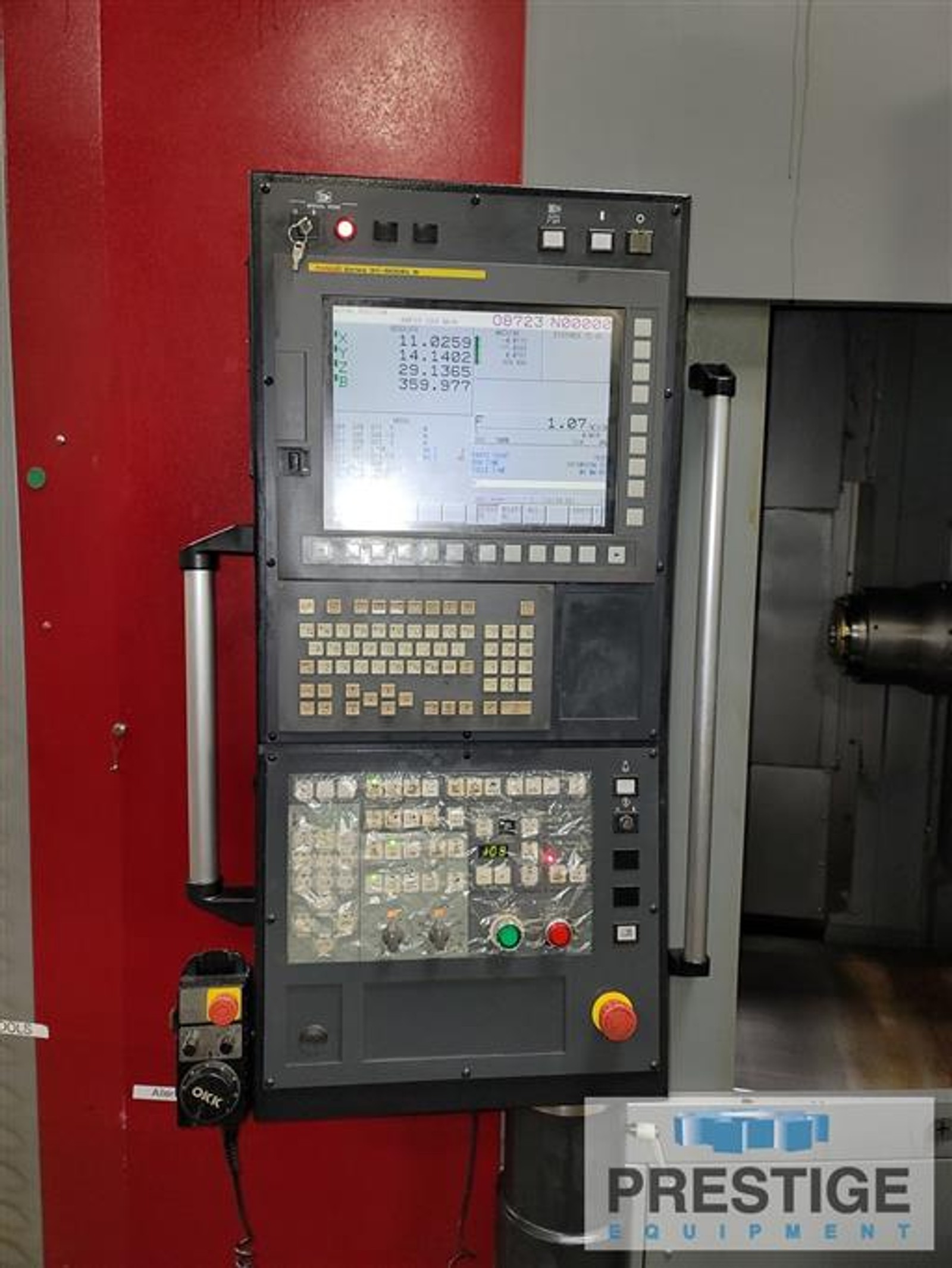

Fanuc 31i-B CNC Control
Full B-Axis Contouring
60-Station Automatic Tool Changer
15,000 RPM
Thru-Spindle Coolant
Renishaw OMP60 Probe System
Chip Conveyor

SPECIFICATIONS:
X-Axis Travel ......................... 22.05"
Y-Axis Travel ......................... 22.05"
Z-Axis Travel ......................... 27.17"
Table Top To Spindle Centerline ....... 3.15-25.20"
Table Center To Spindle Nose .......... 1.97-29.13"
Number Of Pallets ..................... 2
Pallet Size ........................... 15.7" x 15.7"
Spindle Taper ......................... CAT 40
Spindle Speeds ........................ 100-15,000 RPM
Spindle Motor ......................... 50 HP
Spindle Torque ........................ 184 FT/LBS
Tool Changer .......................... 60 ATC
Rapid Traverse Rate ................... 2480 IPM

EQUIPPED WITH:
Fanuc 31i-B CNC Control

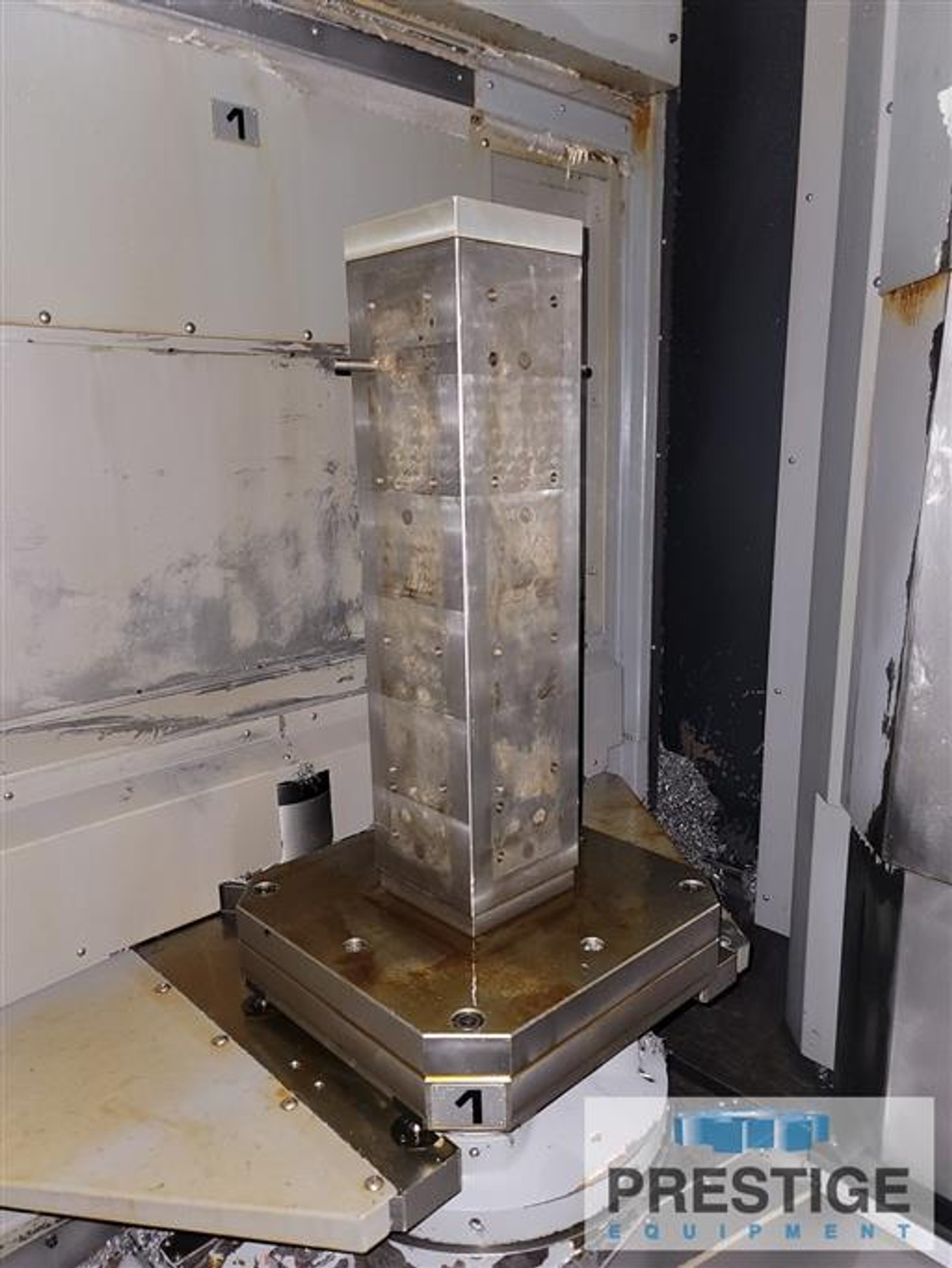

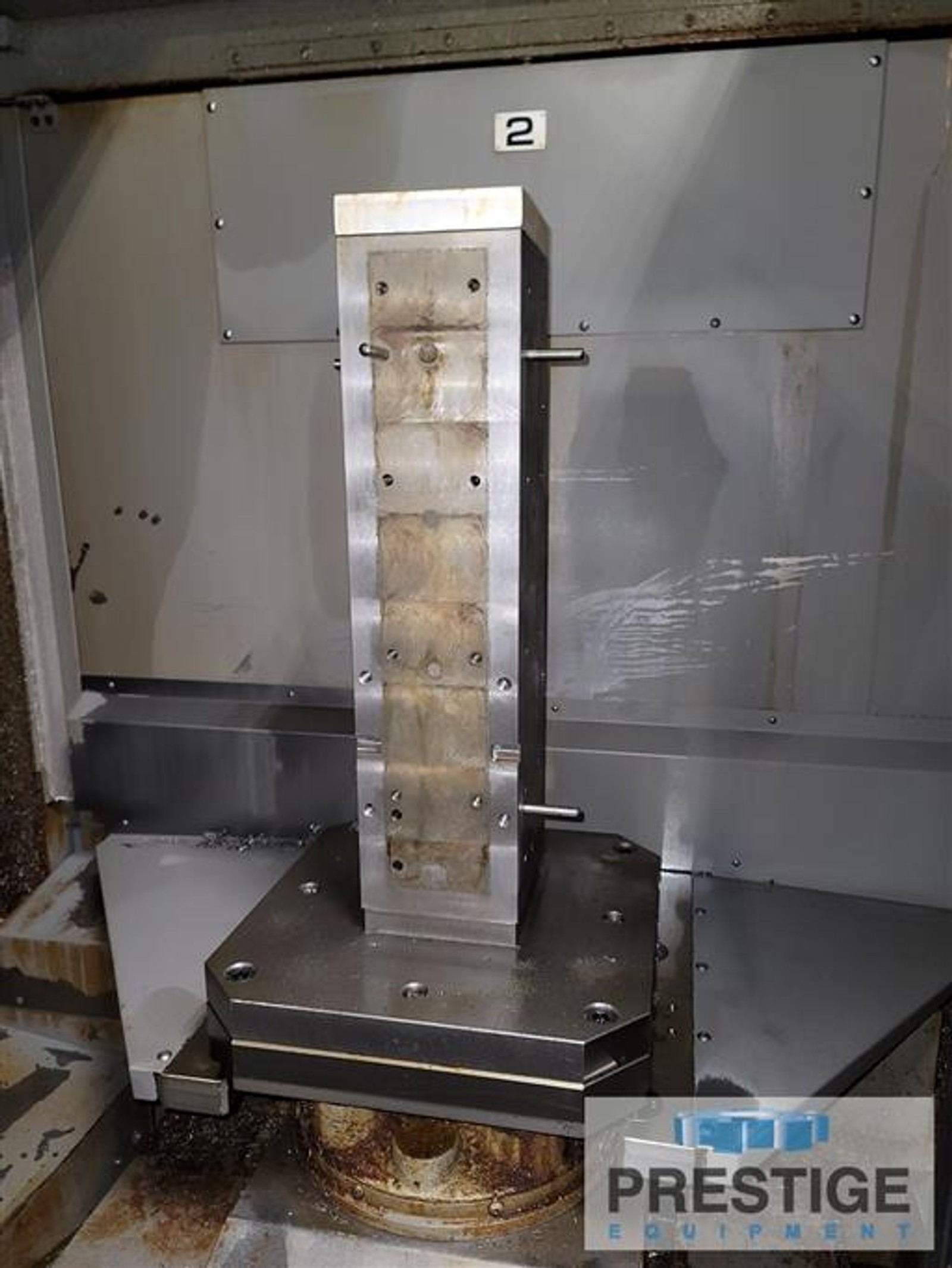

(2) 15.7" x 15.7" Pallets w/ Tombstones
Full B-Axis Contouring

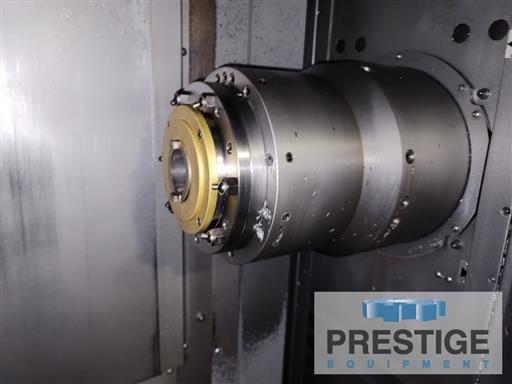

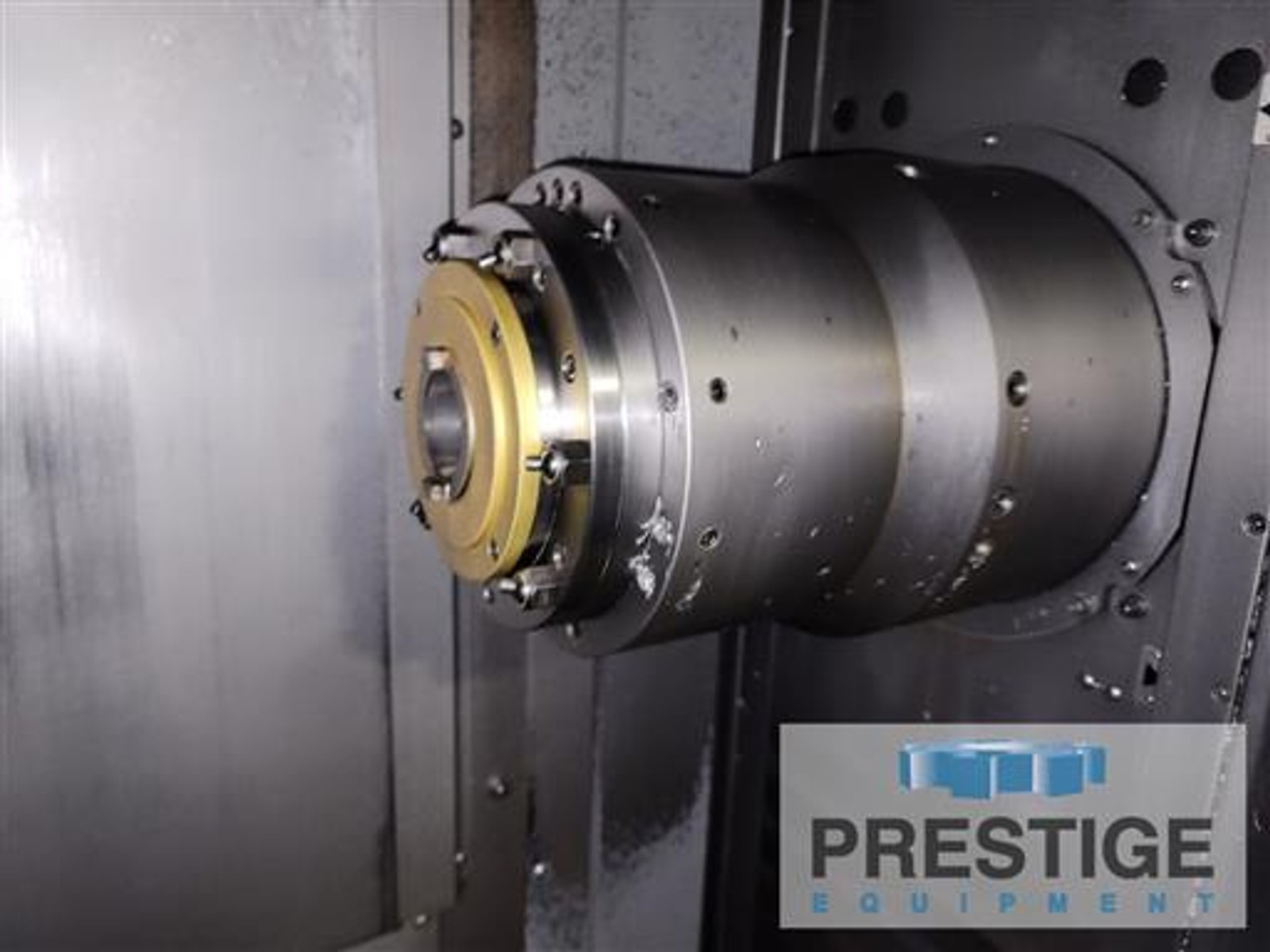

15,000 RPM Spindle
60-Station Automatic Tool Changer
High Pressure Thru-Spindle Coolant
Renishaw OMP60 Probe System

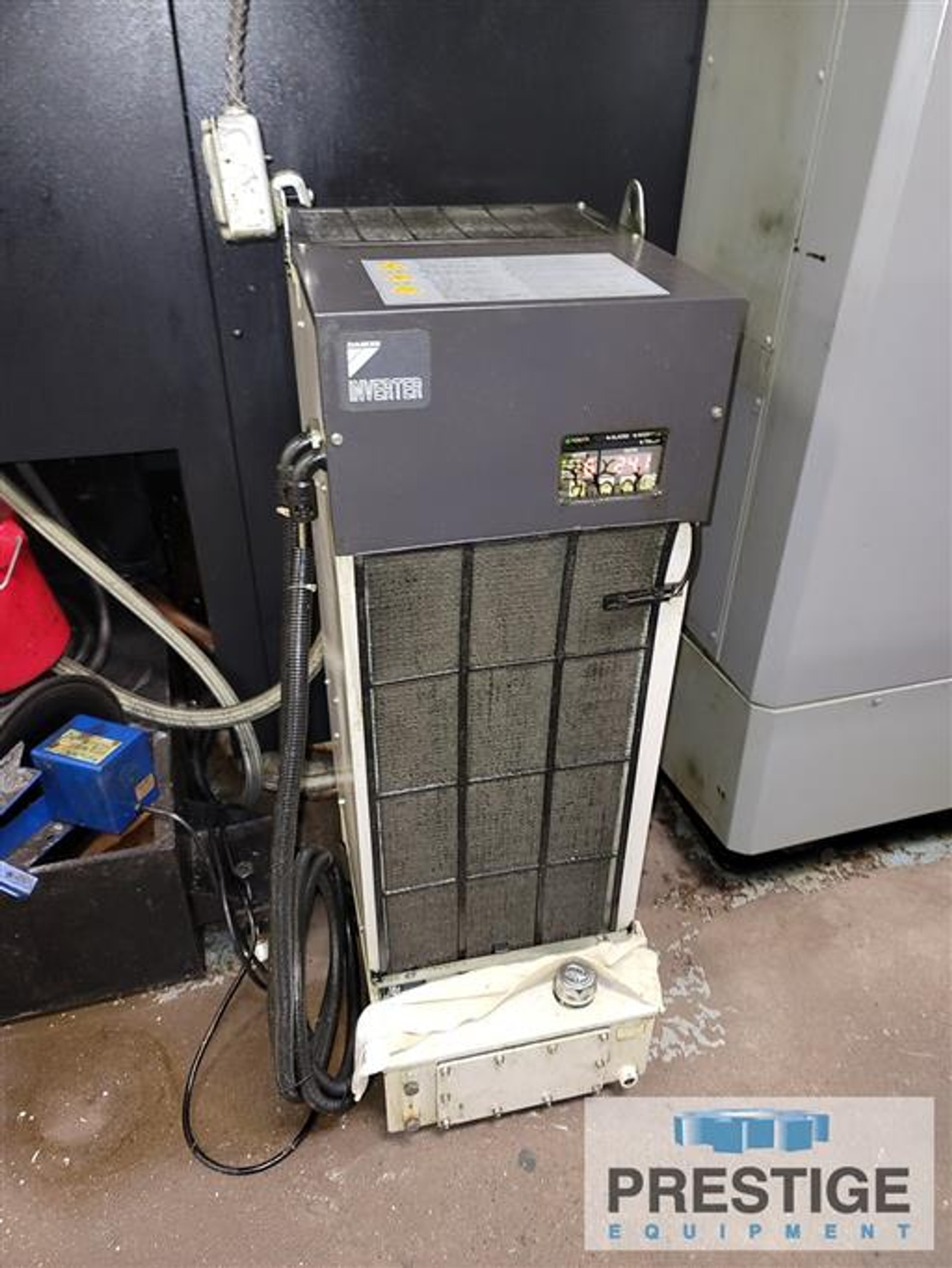

Daikin Inverter

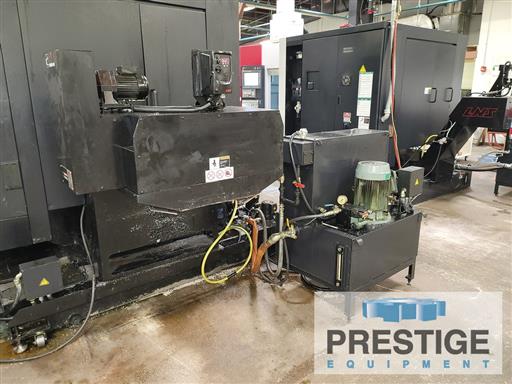

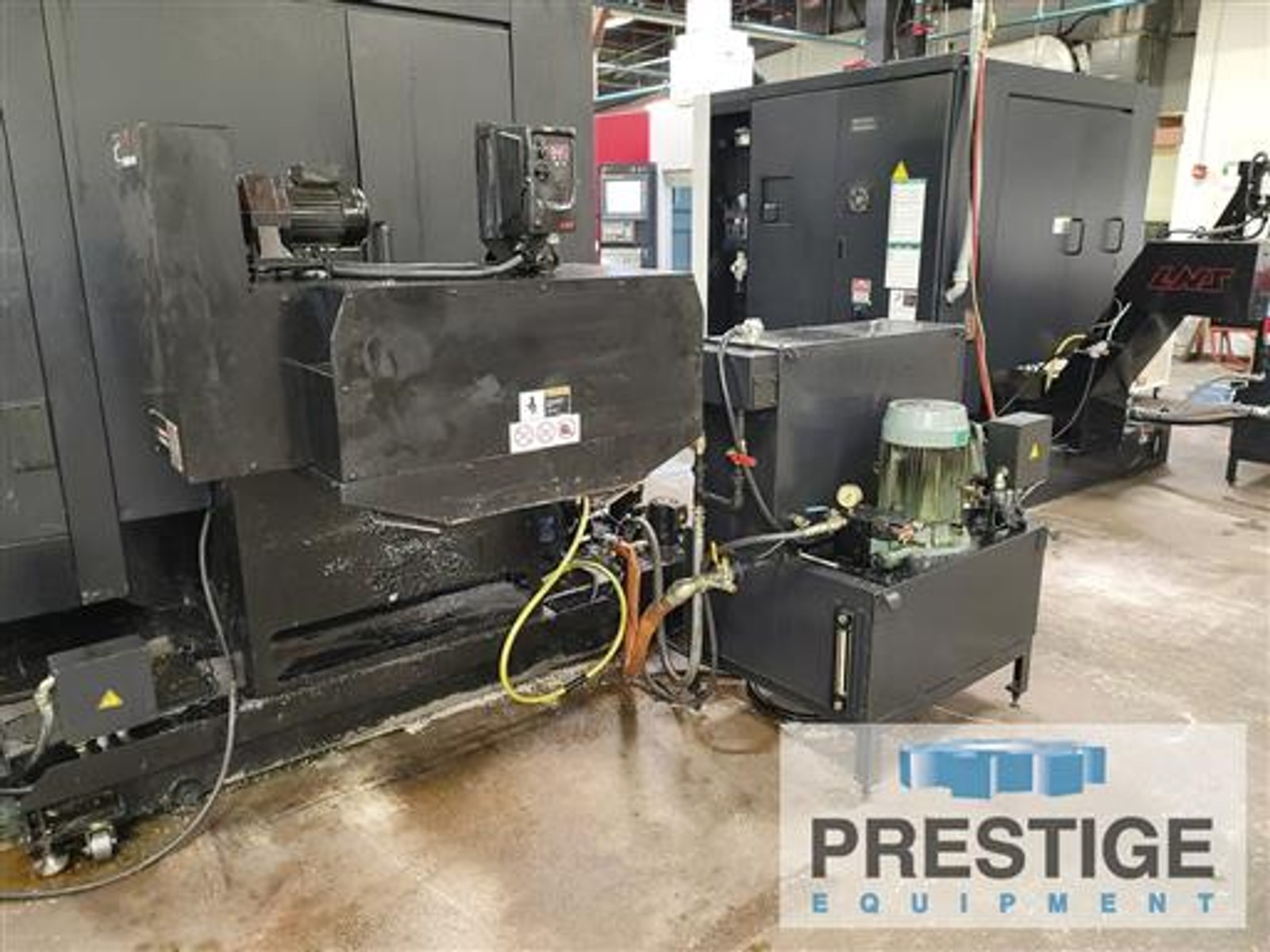

LNS Turbo HB Chip Conveyor

HOUR COUNT:
Power On .............................. 39,130
Cutting Time .......................... 15,788
