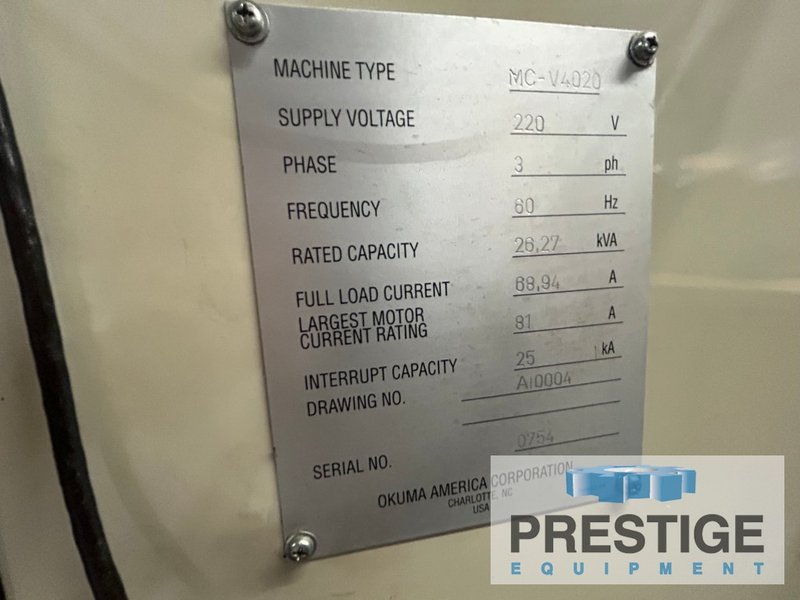

OKUMA MCV-4020, X-40", Y-20", OSP-E100M, 32 ATC, 4th Axis Ready, 15,000 RPM, CAT 40 Chip Conveyor, #43497

Manufacturer

OKUMA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43497

Model

MCV-4020

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43497

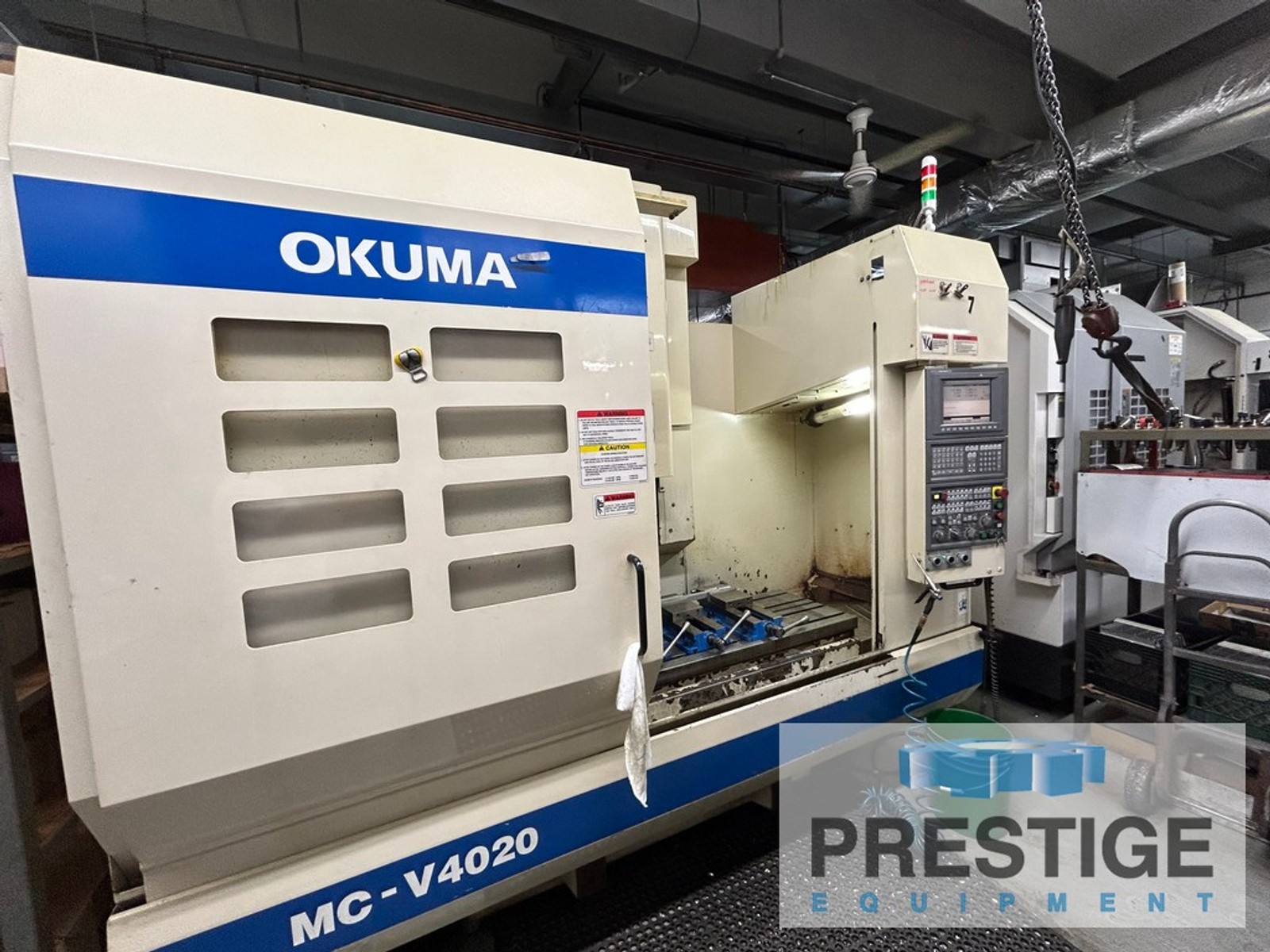

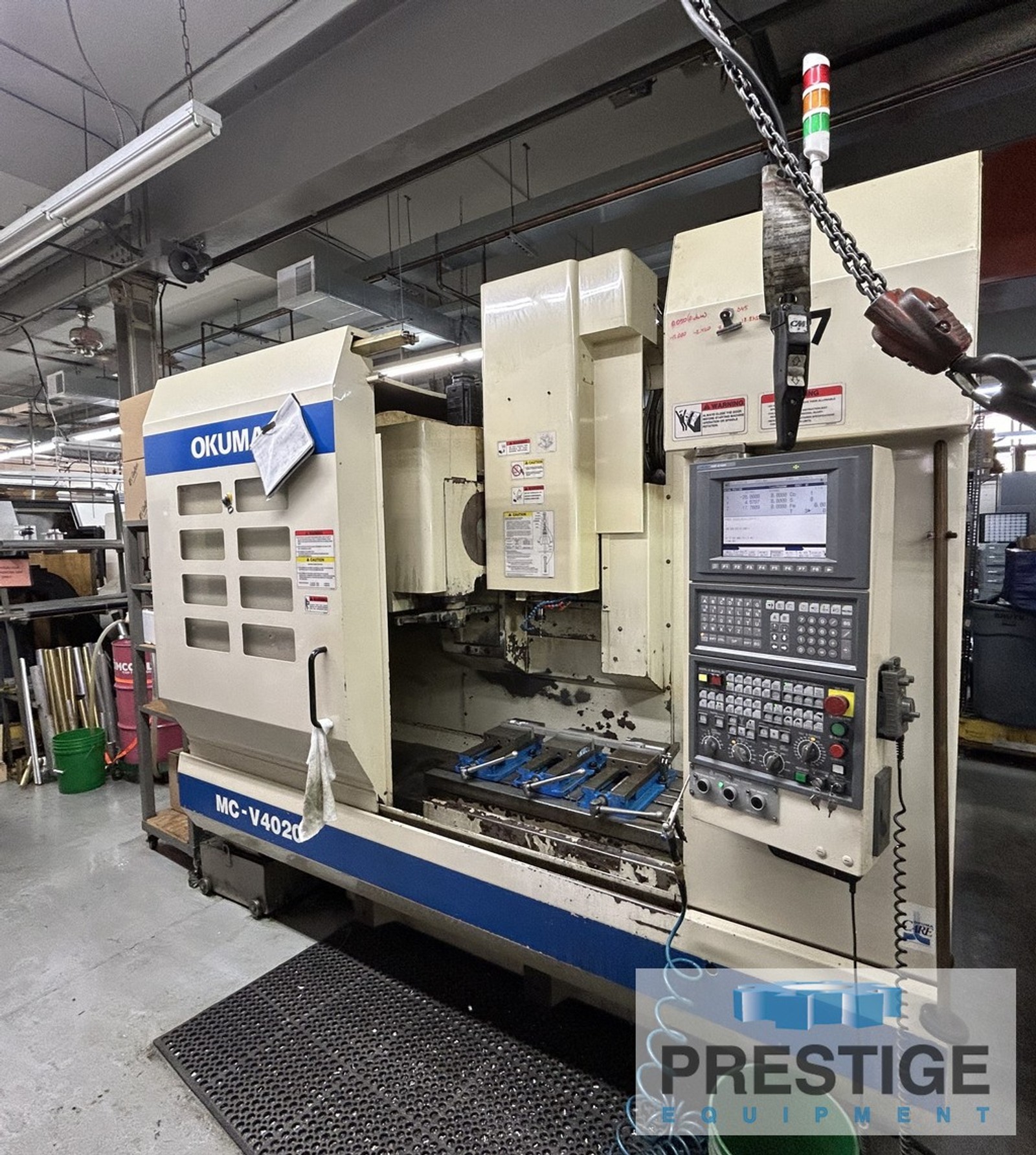

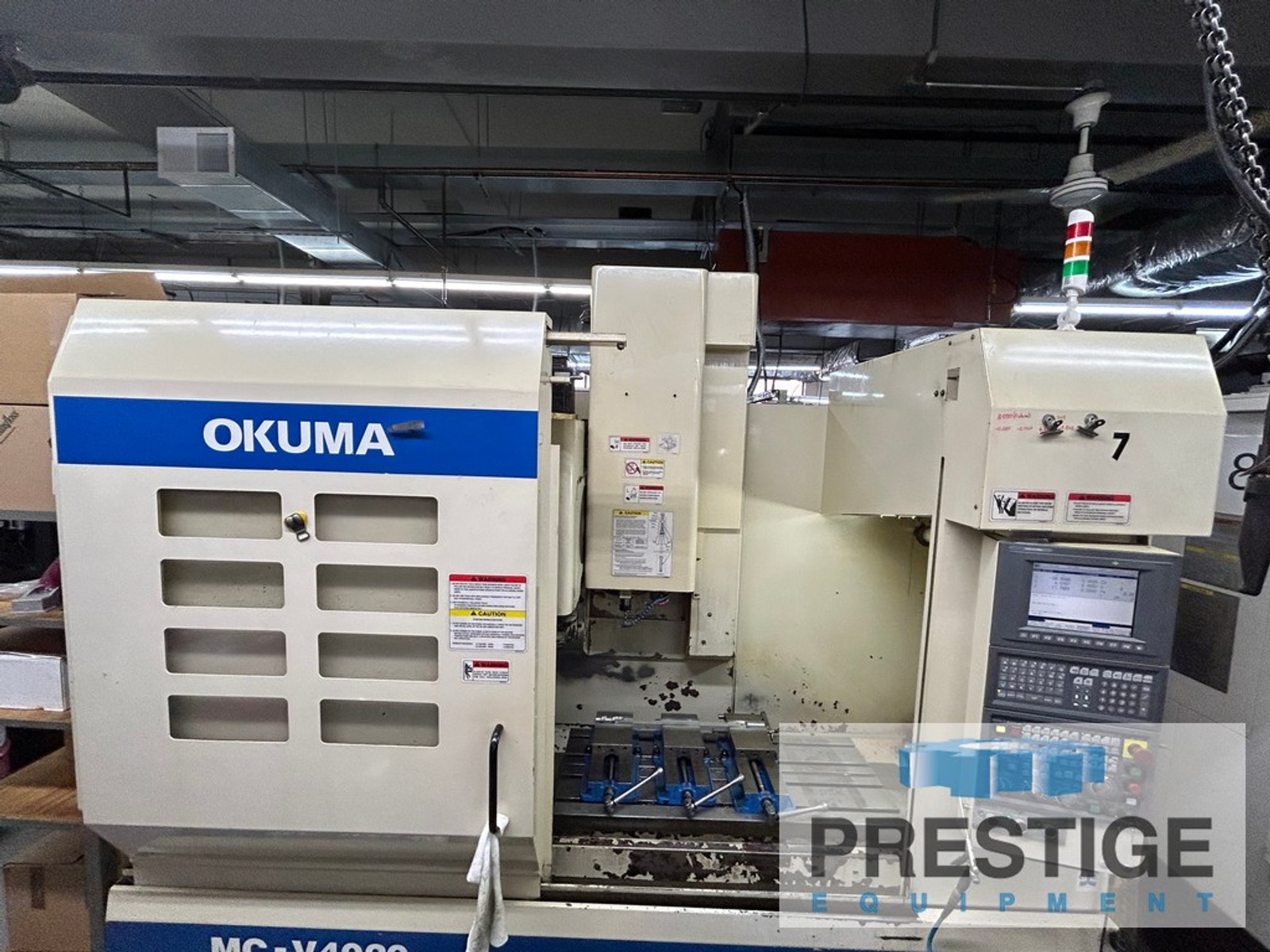

OKUMA MCV-4020 CNC Vertical Machining Center

SPECIFICATIONS:
X-Axis Travel ......................... 40"
Y-Axis Travel ......................... 20"
Z-Axis Travel ......................... 17.72"

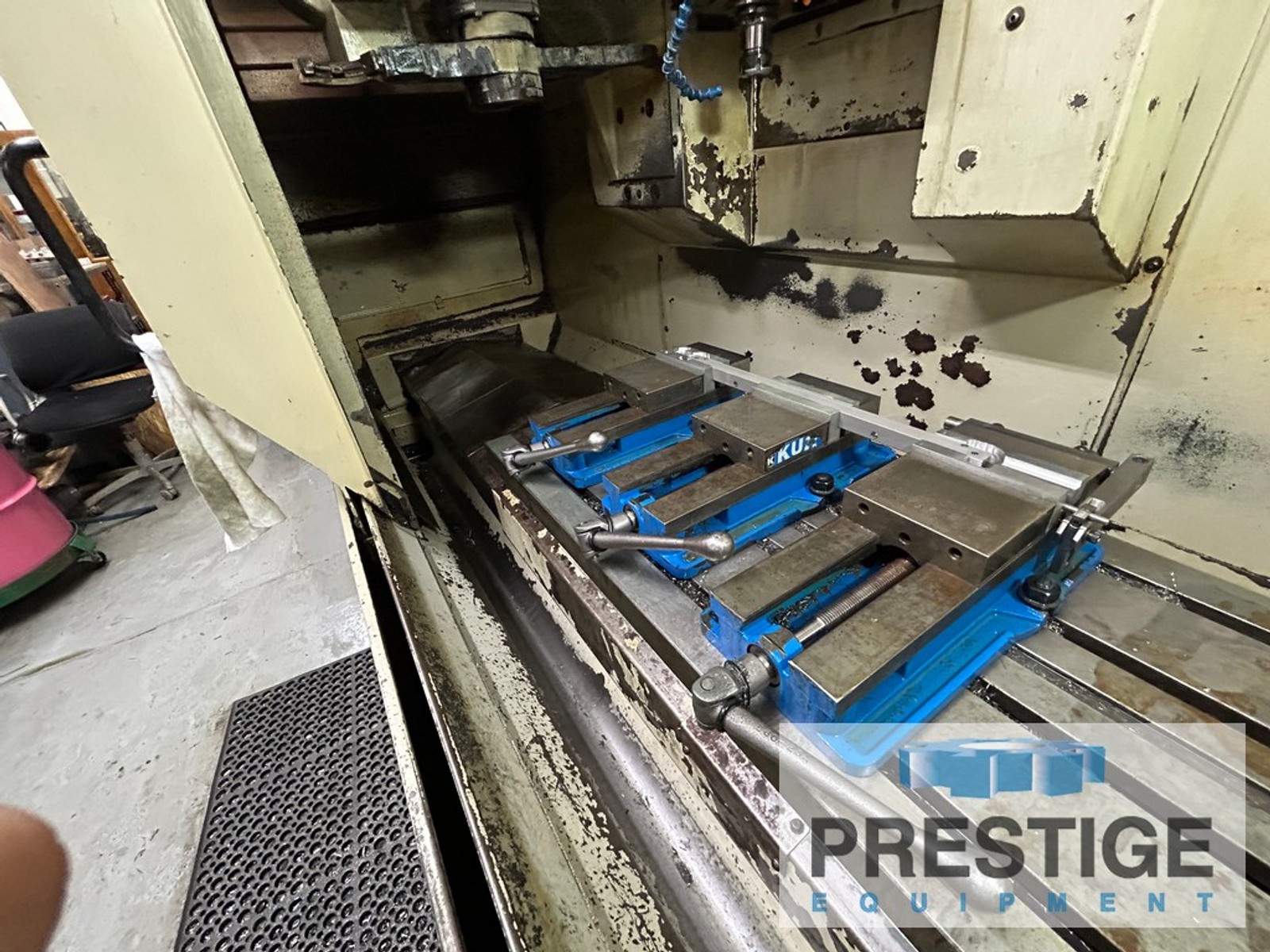

Table Size ............................ 48.37" x 20"
Maximum Table Load .................... 1540 Lbs.
Spindle Nose To Table Top ............. 14.17"-31.89"
Spindle Taper ......................... CAT 40
Spindle Speeds ........................ 15,000 RPM
Spindle Motor ......................... 20 HP
Tool Changer .......................... 32 ATC
Rapid Traverse, X & Y Axes ............ 1417 IPM
Rapid Traverse, Z-Axis ................ 1187 IPM
Cutting Feed Rate ..................... 0.04-1191 IPM
A`prox. Weight ........................ 16,300 LBS
Machine Floor Space ................... 135" x 108"
Machine Height ........................ 110"

EQUIPPED WITH:

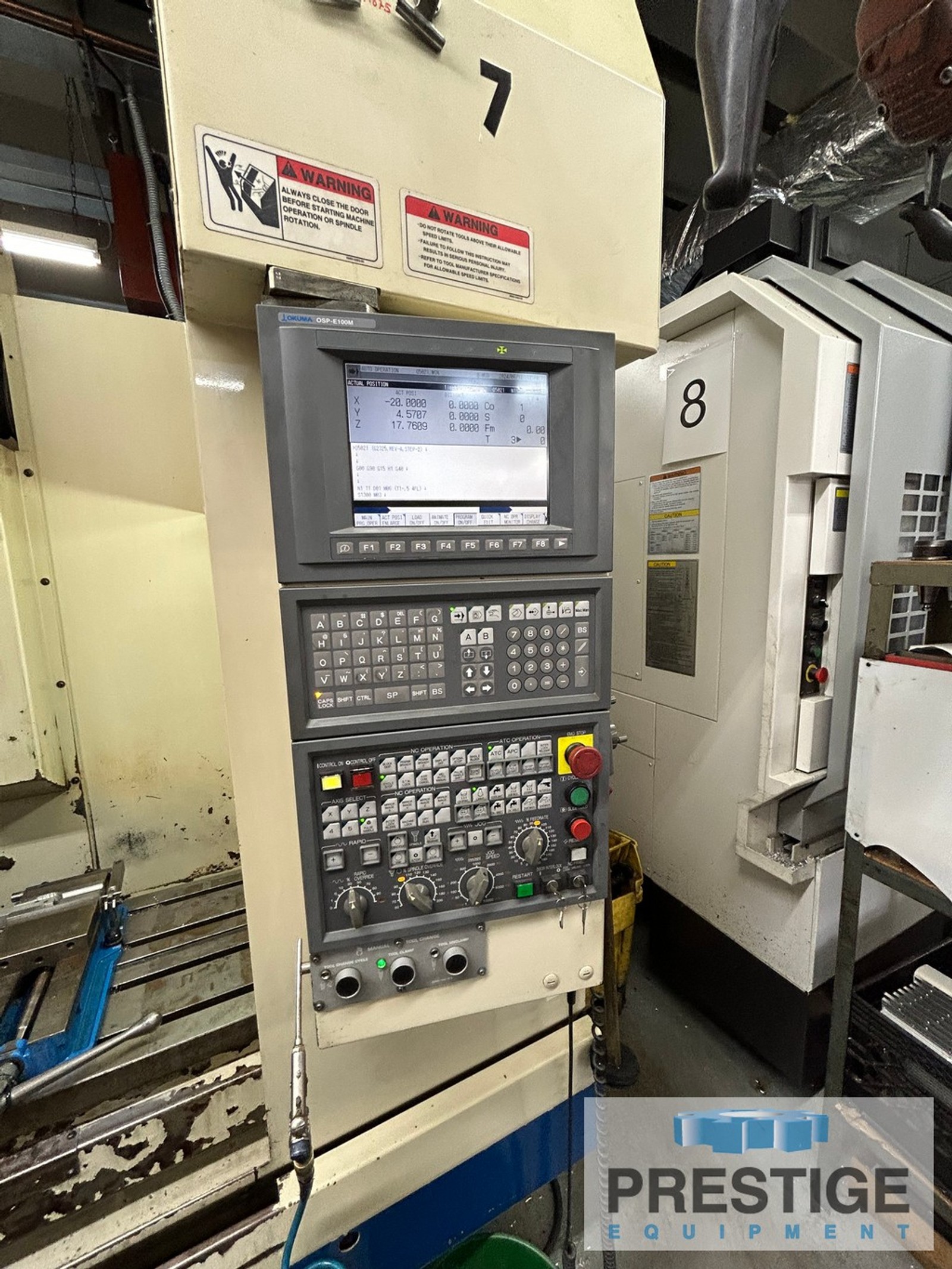

OSP-E100M CNC Control
4th-Axis Interface
32-Position Automatic Tool Changer

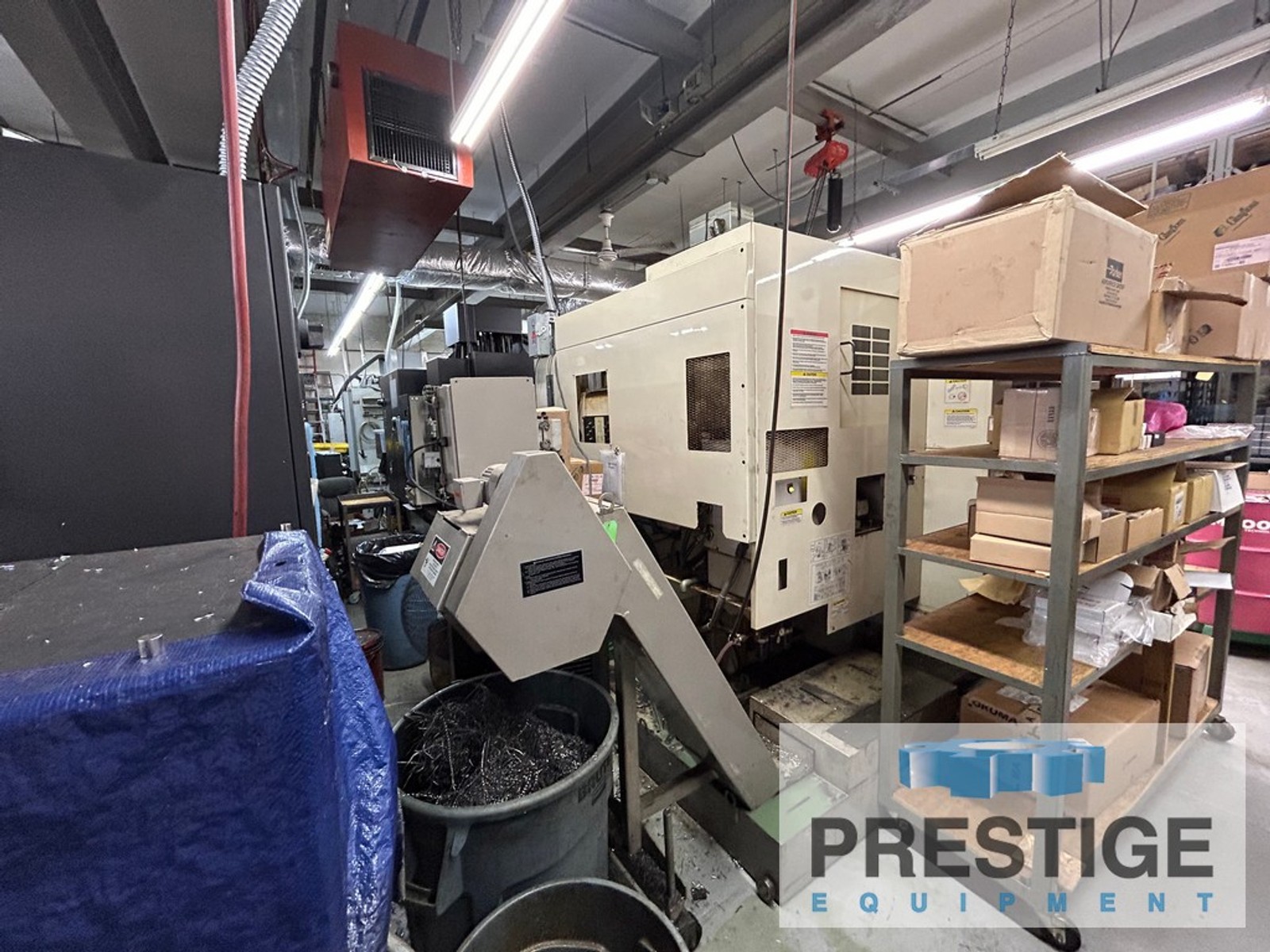

Chip Conveyor

NOTE:
Inspect in Plant Under Power
