3.9" Tos W100A, X-63", Y-44", Z-49", W-35", 49" x 49" Tbl, 7 - 1120 RPM, 3-Axis DRO, Facing Head, #43544

Manufacturer

TOS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

43544

Model

W100A

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43544

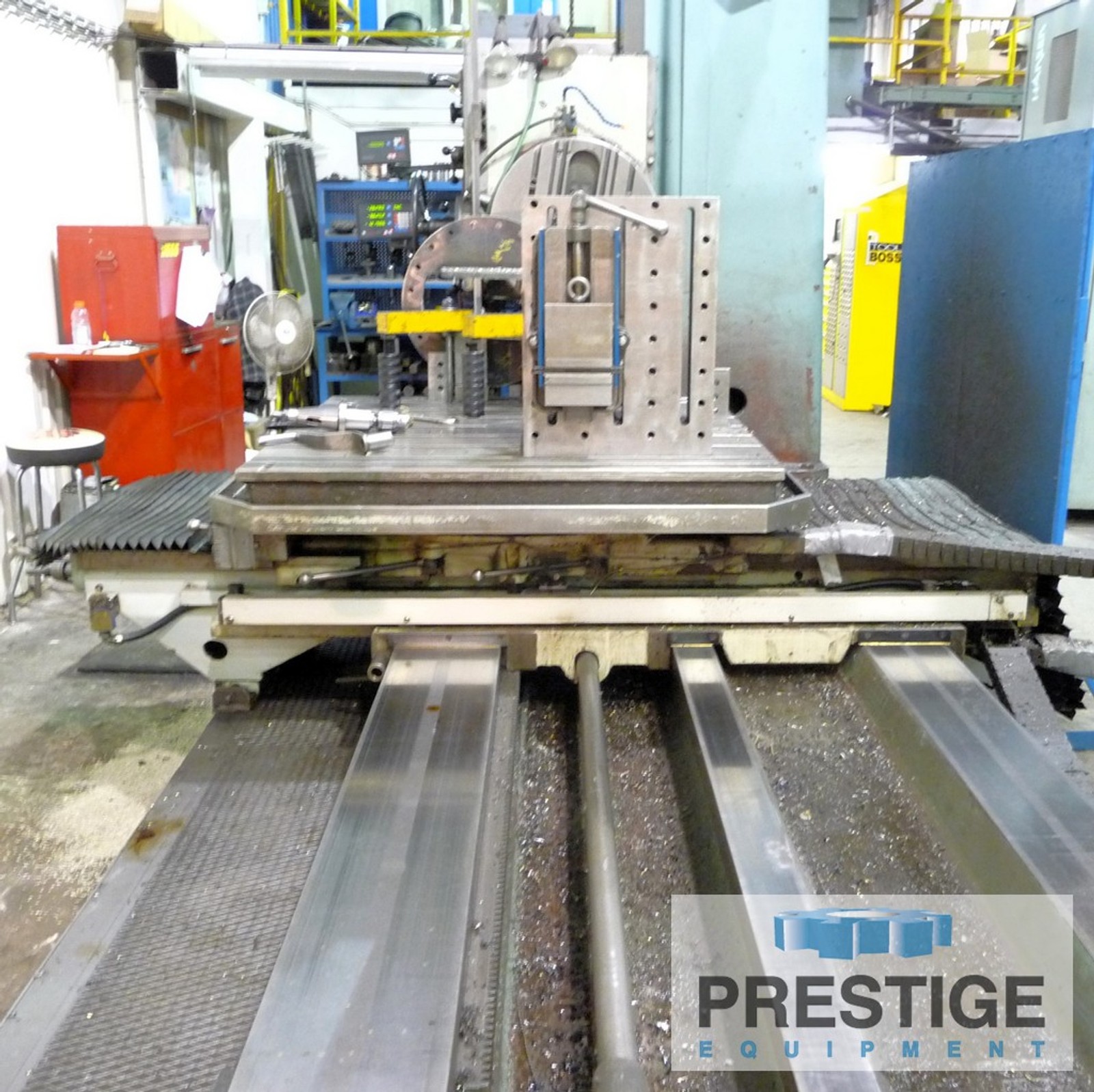

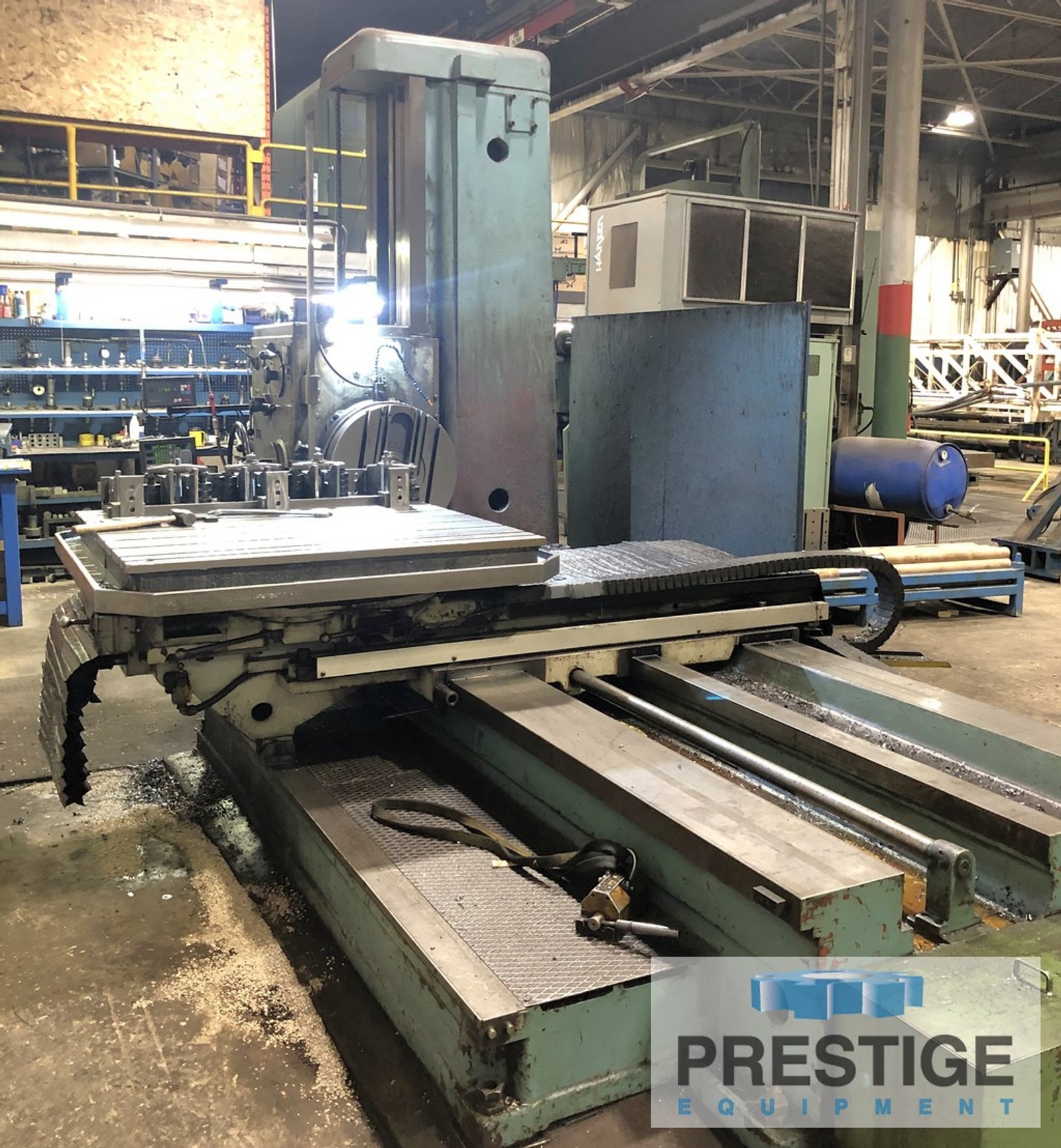

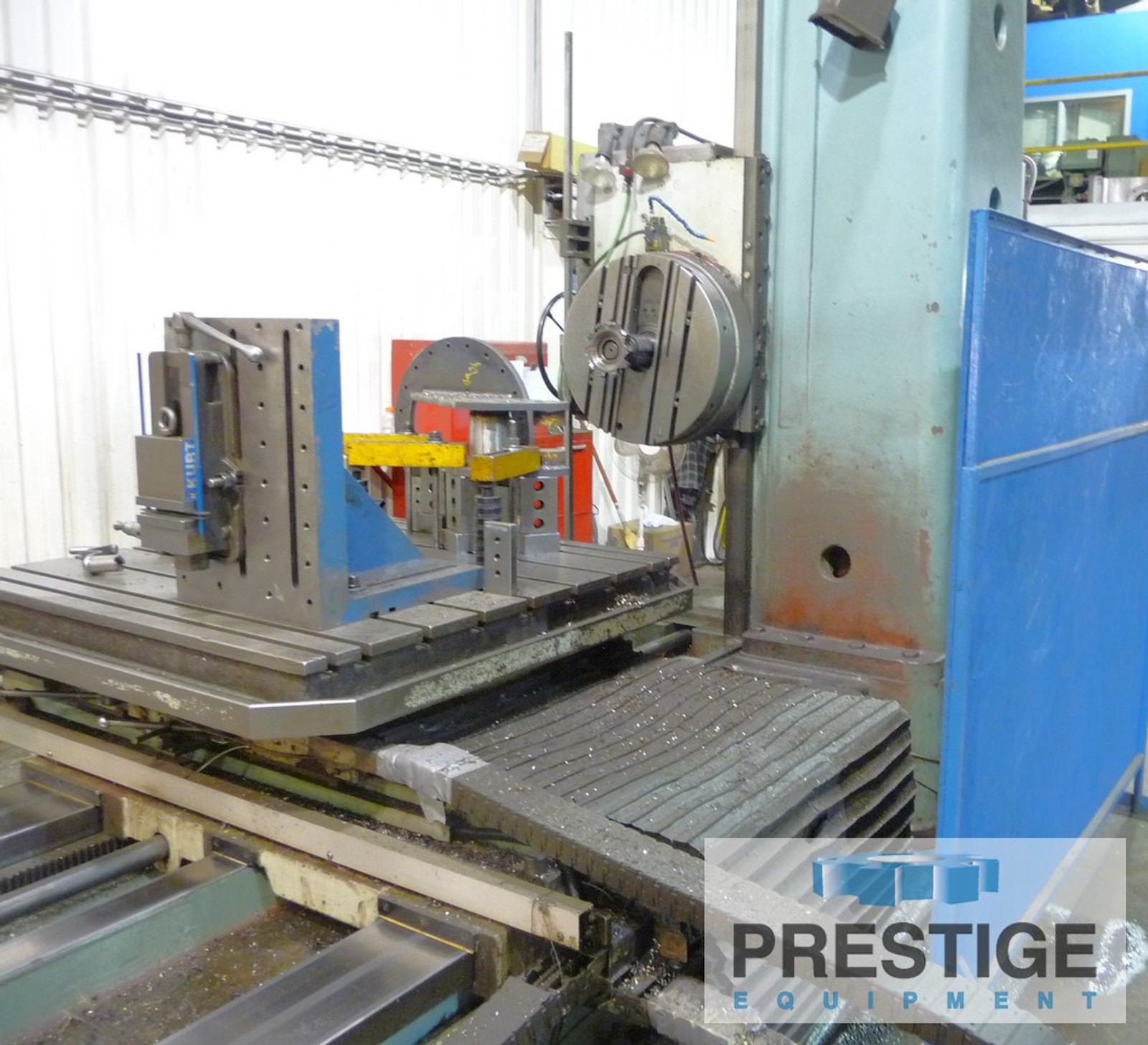

Tos 3.93" W100A Table Type Horizontal Boring Mill

FEATURES:

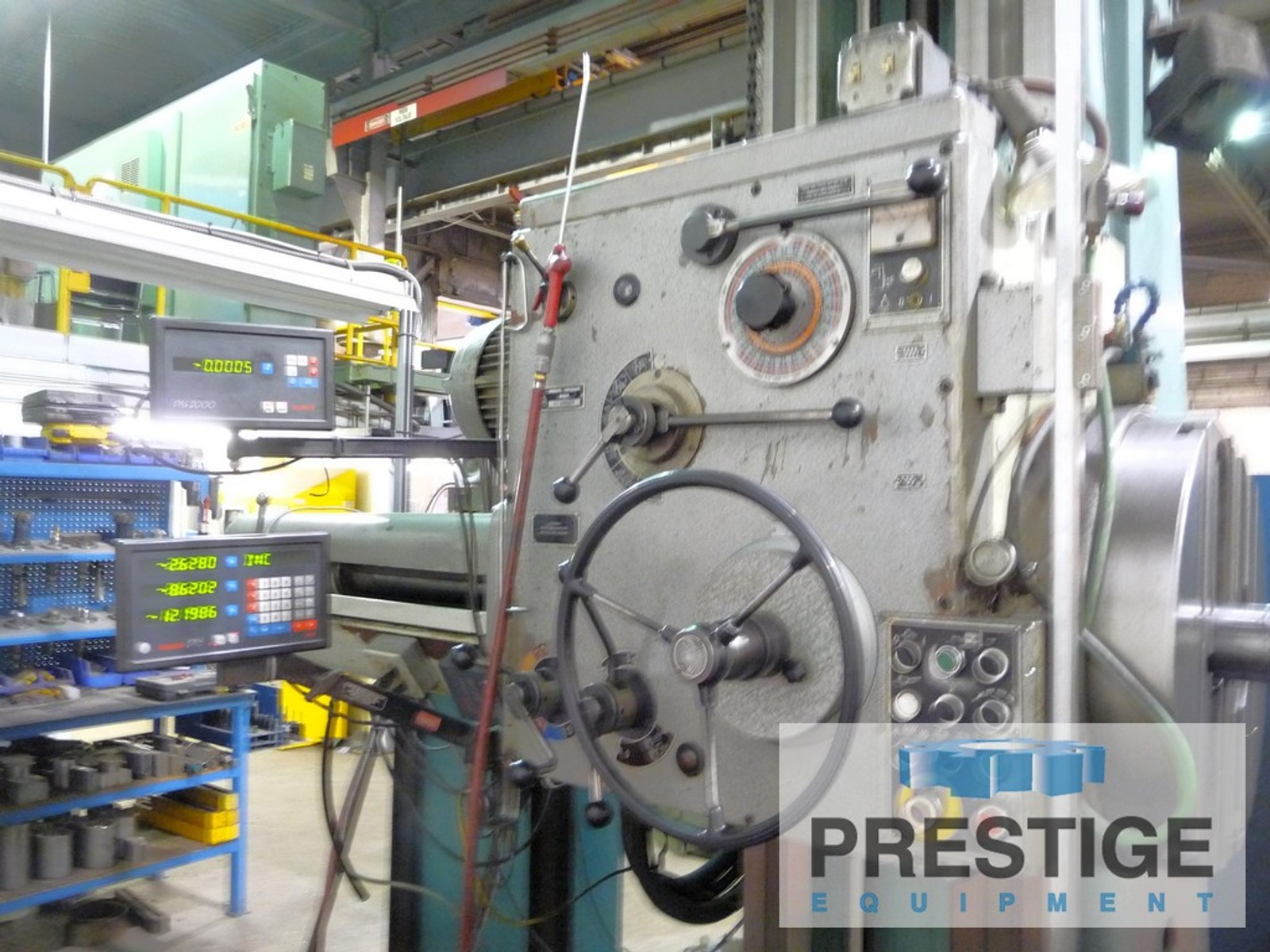

Newall DP700 3-Axis Digital Readout
Newall DPG2000 Digital Readout (Spindle)
Built-In 24" Facing Head
Built-In Rotary Table

CAPACITY:
Spindle Diameter ...................... 3.93"
Table Cross Travel, X-Axis ............ 63"
Headstock Travel, Y-Axis .............. 44"
Spindle Travel, Z-Axis ................ 49"
Saddle Travel, W-Axis ................. 35"
Spindle Speeds ........................ 7 - 1120 RPM
Spindle Taper ......................... ISO 50
Table Dimensions ...................... 49" x 49"
Max. Work Piece Weight ................ 6,620 Lbs
Work Feed Rate ........................ 35 IPM
Rapid Traverse ........................ 110 IPM
Main Motor ............................ 14 HP
Approx. Machine Dimensions ............ 265" x 135" x 118"
Approx. Machine Weight ................ 30,860 Lbs

EQUIPPED WITH:
Newall DP700 3-Axis Digital Readout
Newall DPG2000 Digital Readout (Spindle)
Built-In 24" Facing Head
Built-In Rotary Table
