4.33" Johnford BMC-110, X-78", Y-70", Fanuc 31i, 56"x 63" B-Axis Tbl, TSC, 2012, #43400

Manufacturer

JOHNFORD

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43400

Model

BMC-110

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43400

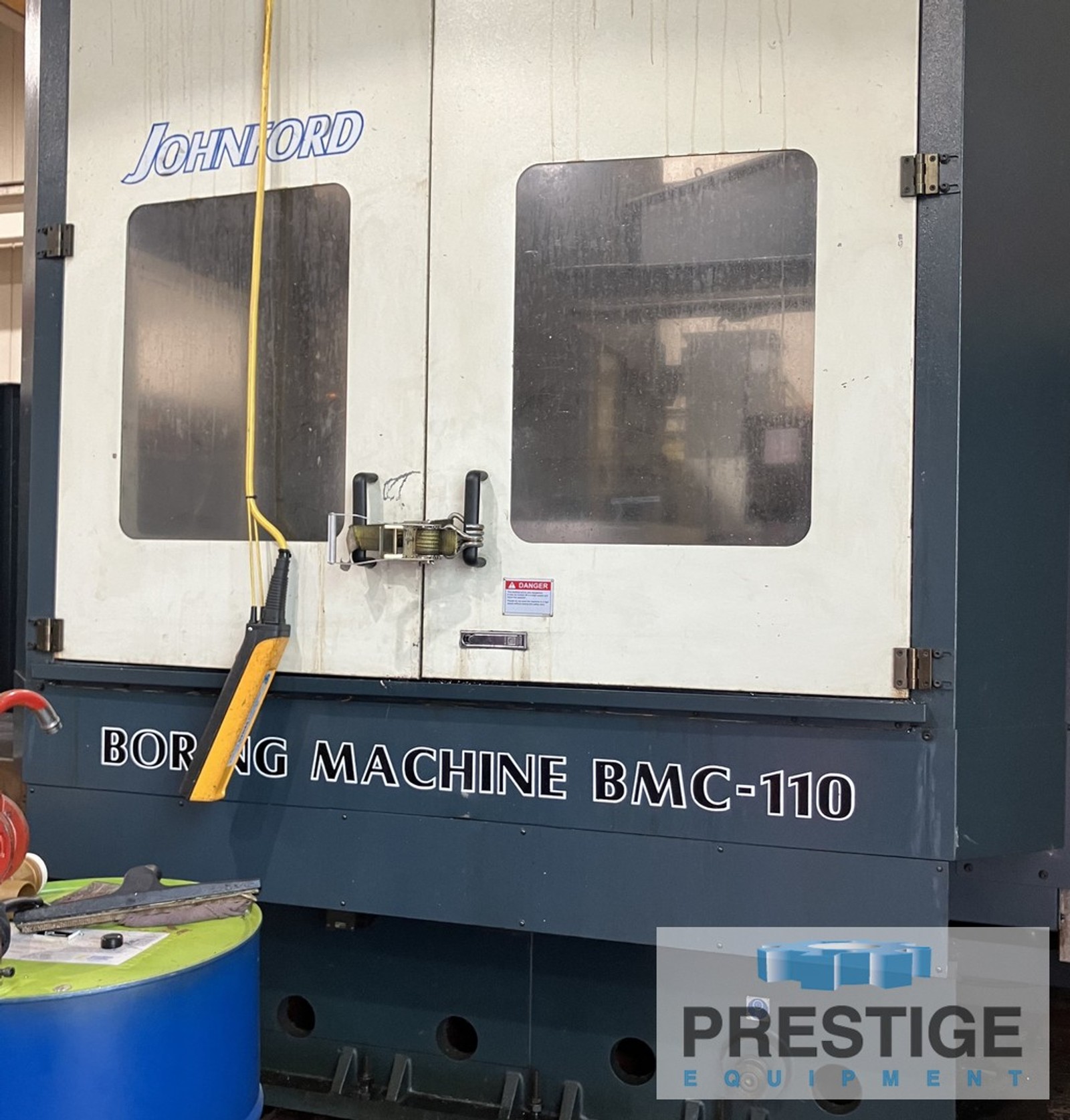

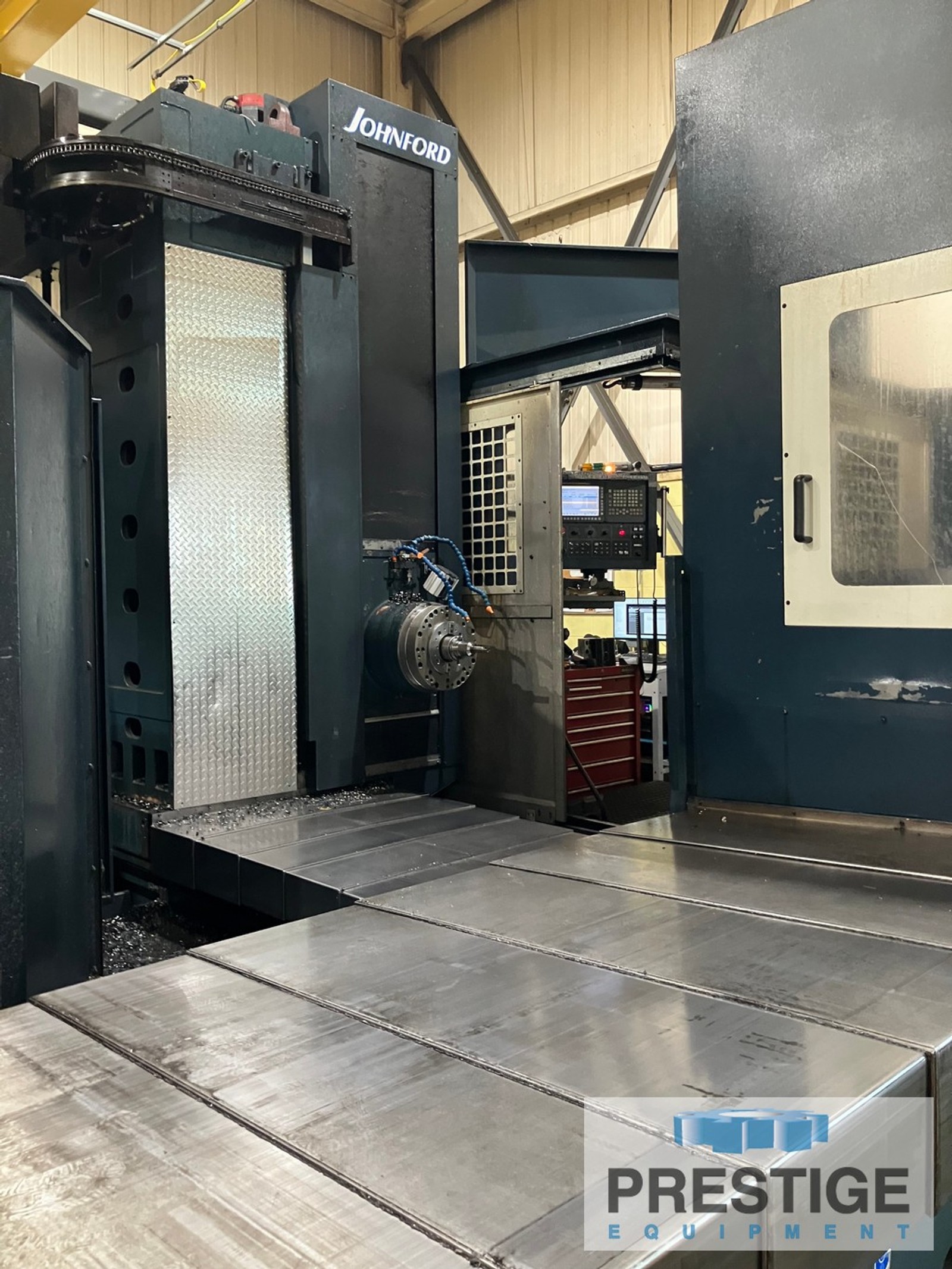

Johnford BMC-110 4.33" CNC Table Type Horizontal Boring Mill

FEATURES:
FANUC 31i MB CNC Control
Built-In "B" Axis Rotary Table
60 Position Automatic Tool Changer
Thru Spindle Coolant

CAPACITY:
Spindle Diameter....................... 4.33"
Spindle Taper.......................... #50
Vertical Head Travel, y................ 70.86"
Table Travel, x........................ 78.74"
Saddle Travel, w....................... 62.99"
Spindle Travel, z...................... 21.65"
Built in Rotary Table.................. 55.11" x 62.99"
Table Index ........................... 0.001 Degree
Table Load Capacity.................... 15,400 LBS
Spindle Speeds (2 Ranges).............. 0-3000 RPM
Maximum Tool Weight in Tool Changer.... 55 LBS
Approx.Machine Dimensions ............. 208" x 221" x 159"
Machine Weight ........................ 55,000 Lbs

EQUIPPED WITH:

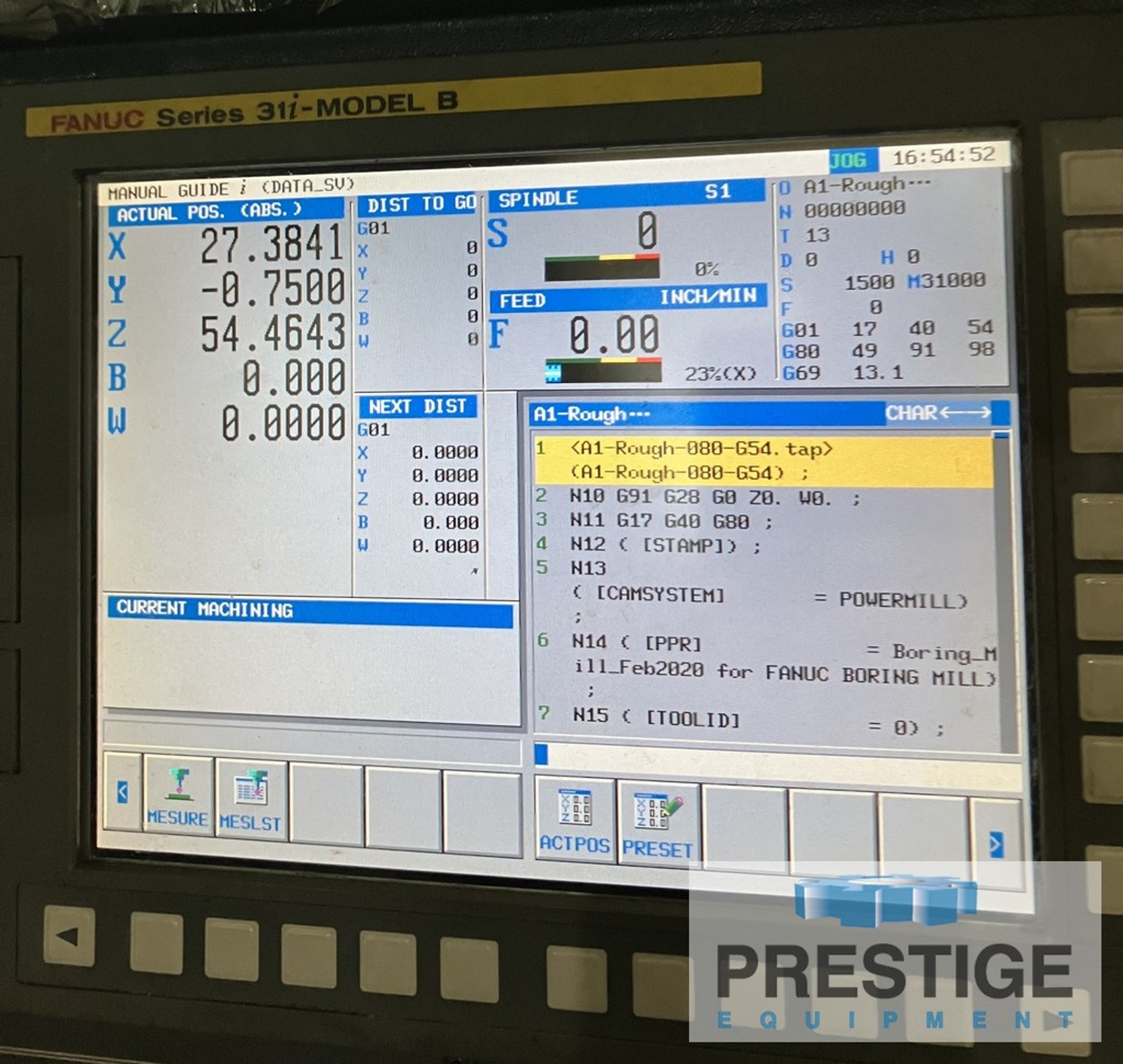

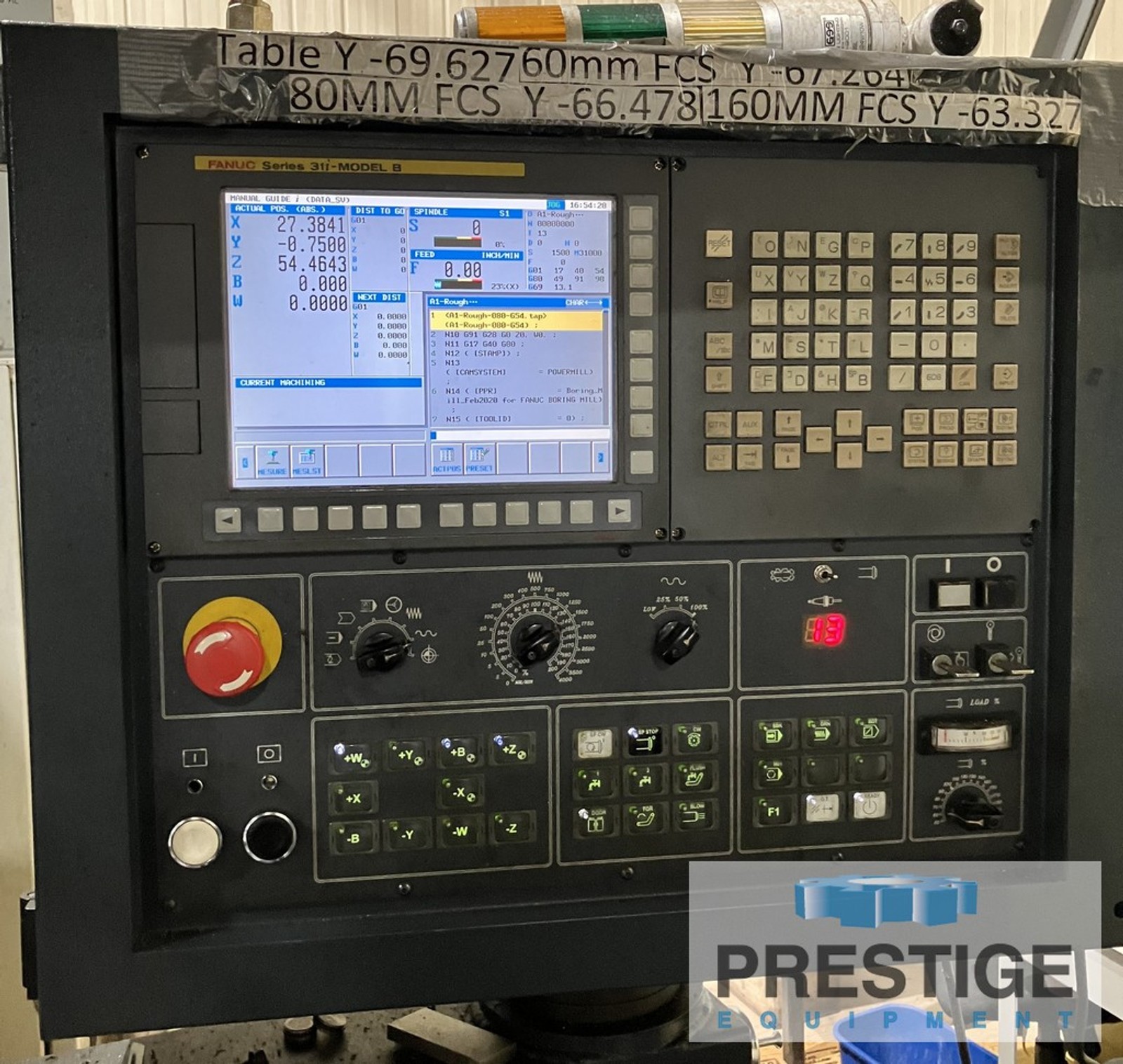

FANUC 31i MB CNC Control w/ 10.4" LCD Screen
RS 232 Interface
Built-In "B" Axis Rotary Table

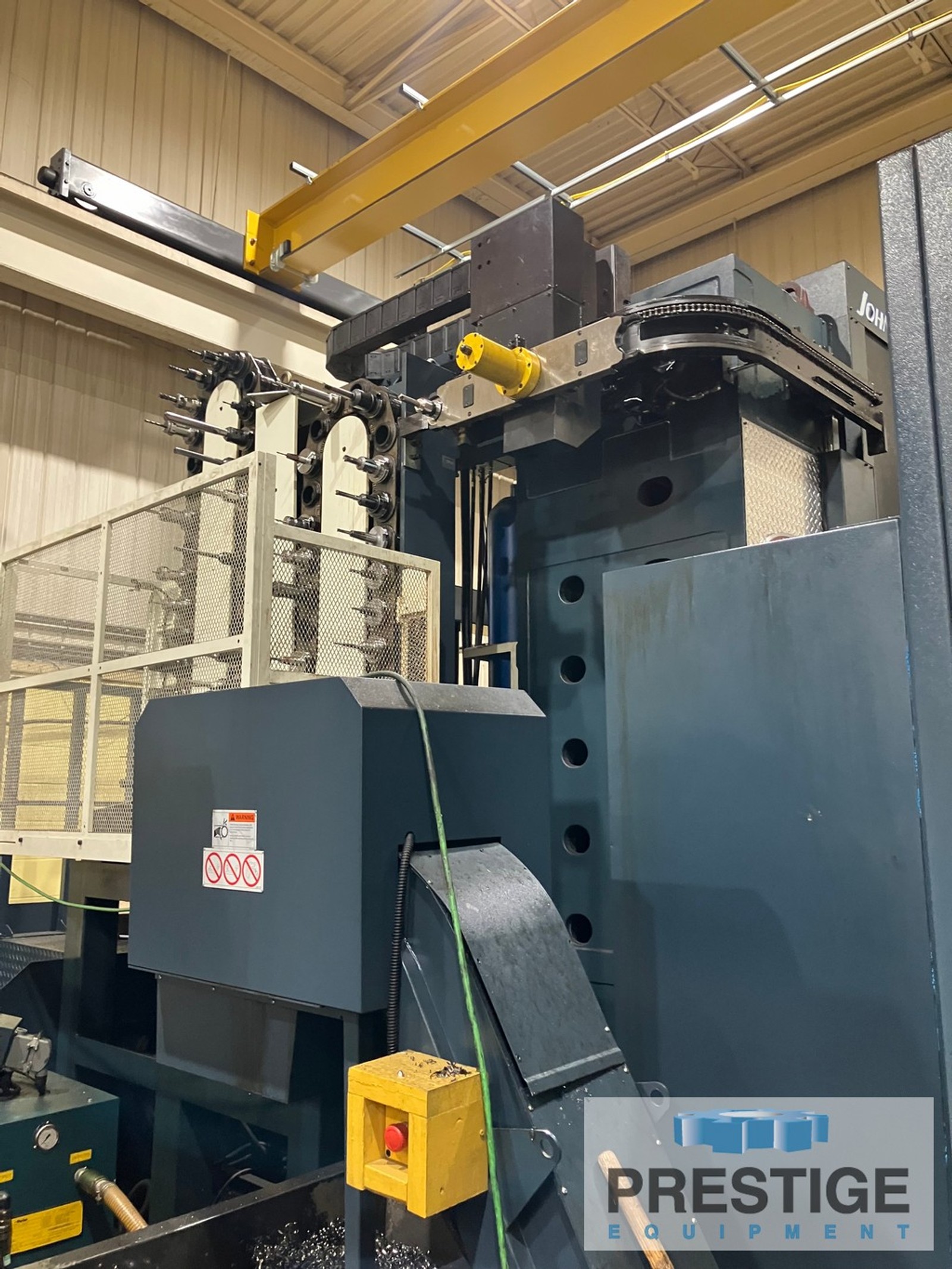

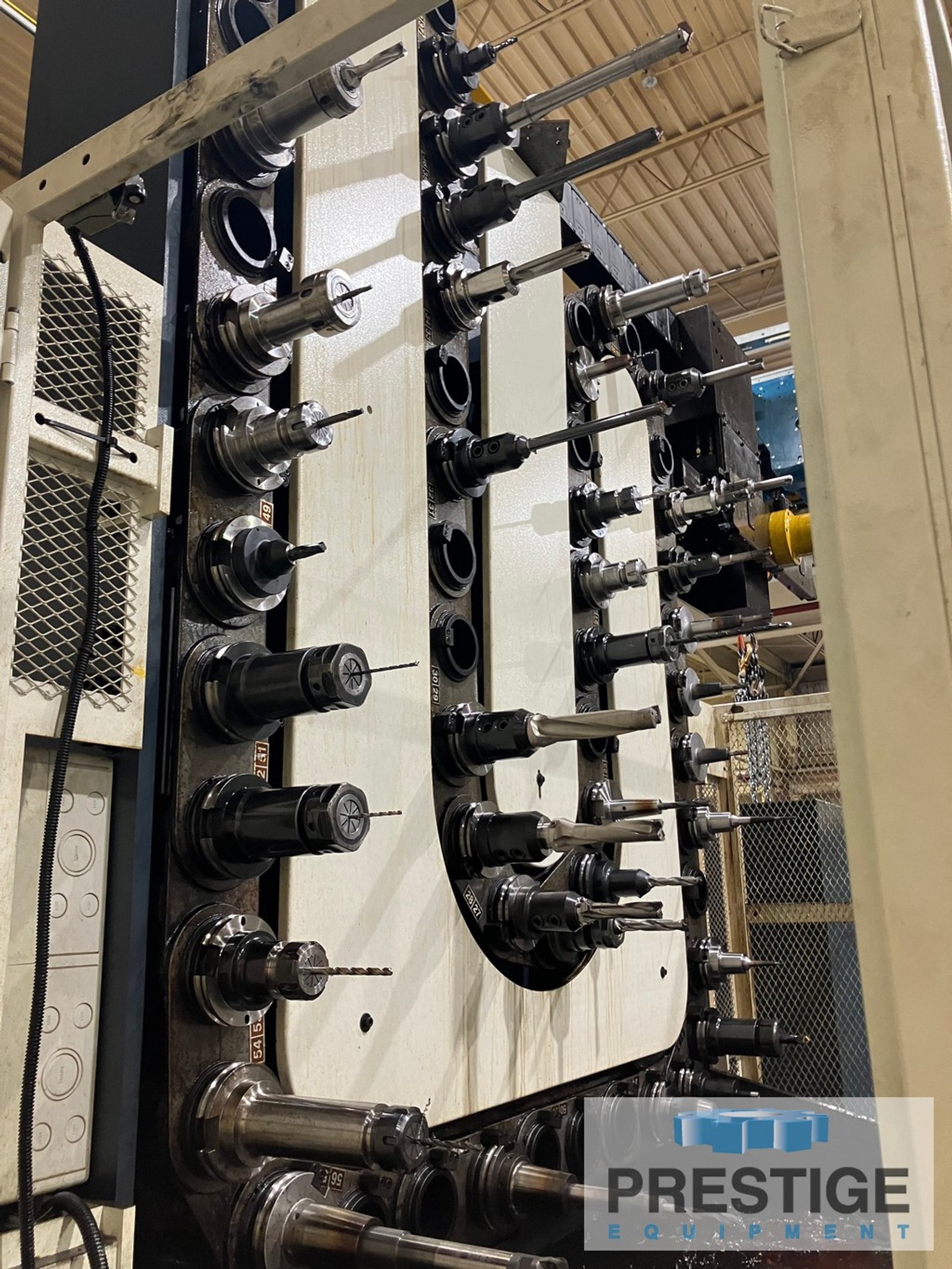

60 Position Automatic Tool Changer
Thru Spindle Coolant
Air Blast
Flood Coolant
Spindle Chiller
Chip Conveyor
35 HP Main Motor
Scale Feedback
Chip Conveyor

NOTE:
Inspect In Plant Under Power
