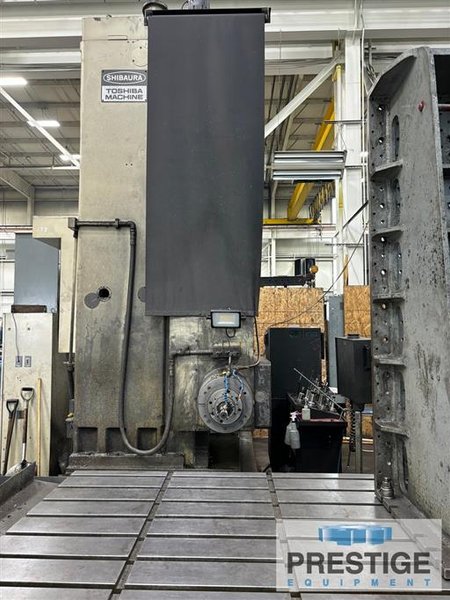

Toshiba B7, 5.12" Spindle, X-157", Y-90",W-59", Z-27", 159" x 59" Table, Mitsubishi 700, #43348

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43348

Model

B7

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43348

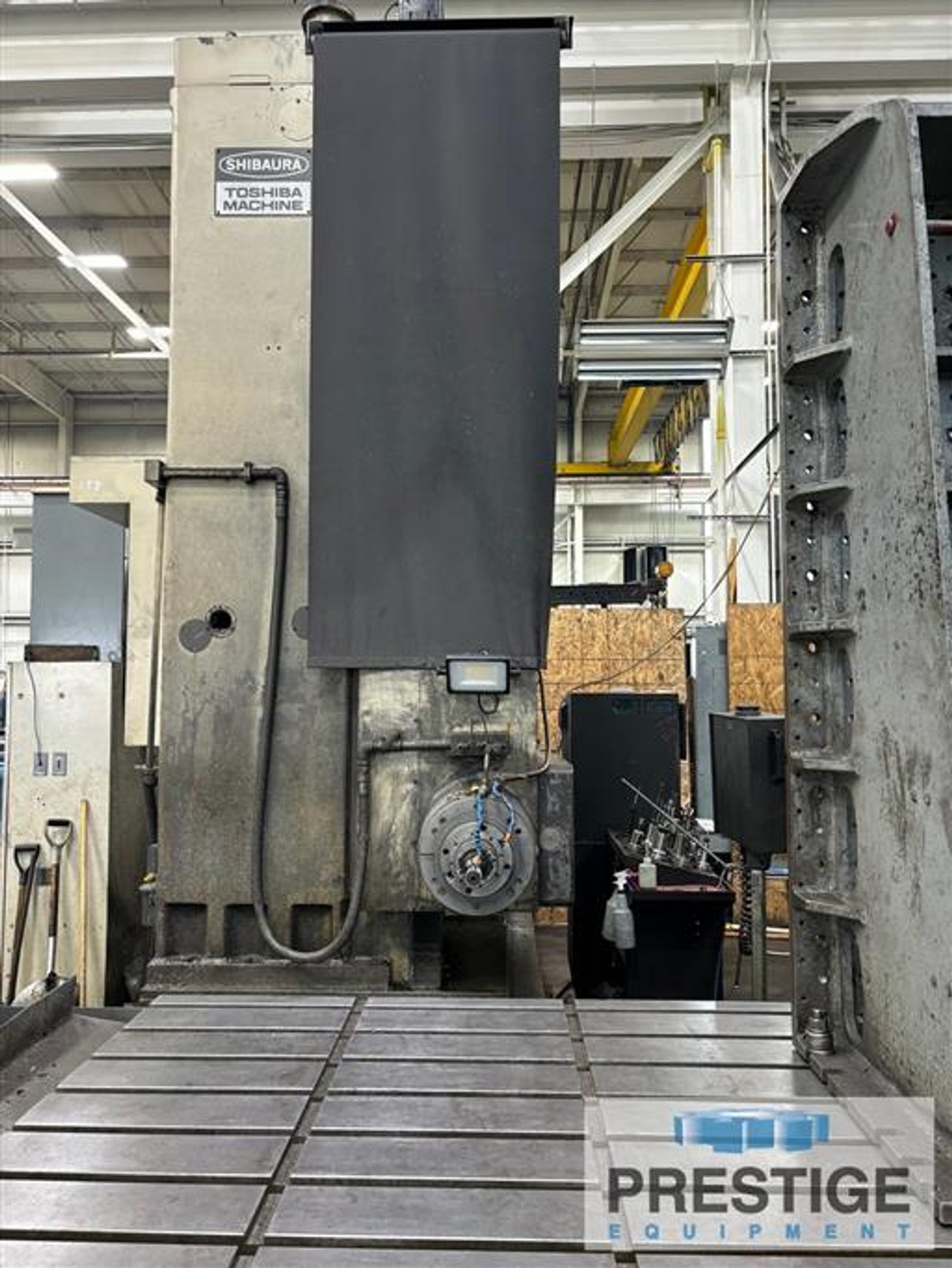

Toshiba B7 5.12" Plain Table CNC Boring Mill

FEATURES:

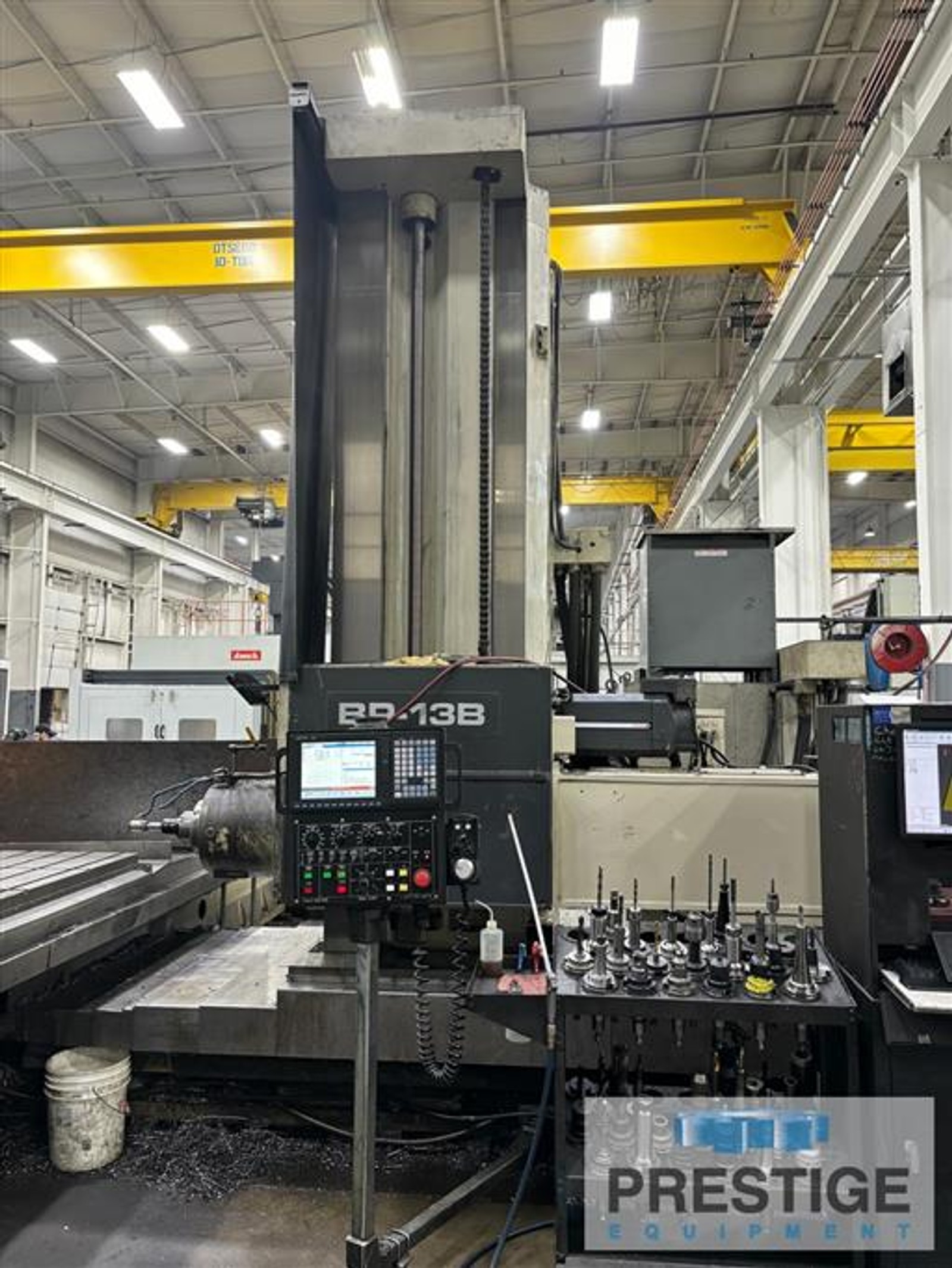

Mitsubishi 700 Series CNC Control (Retrofit)

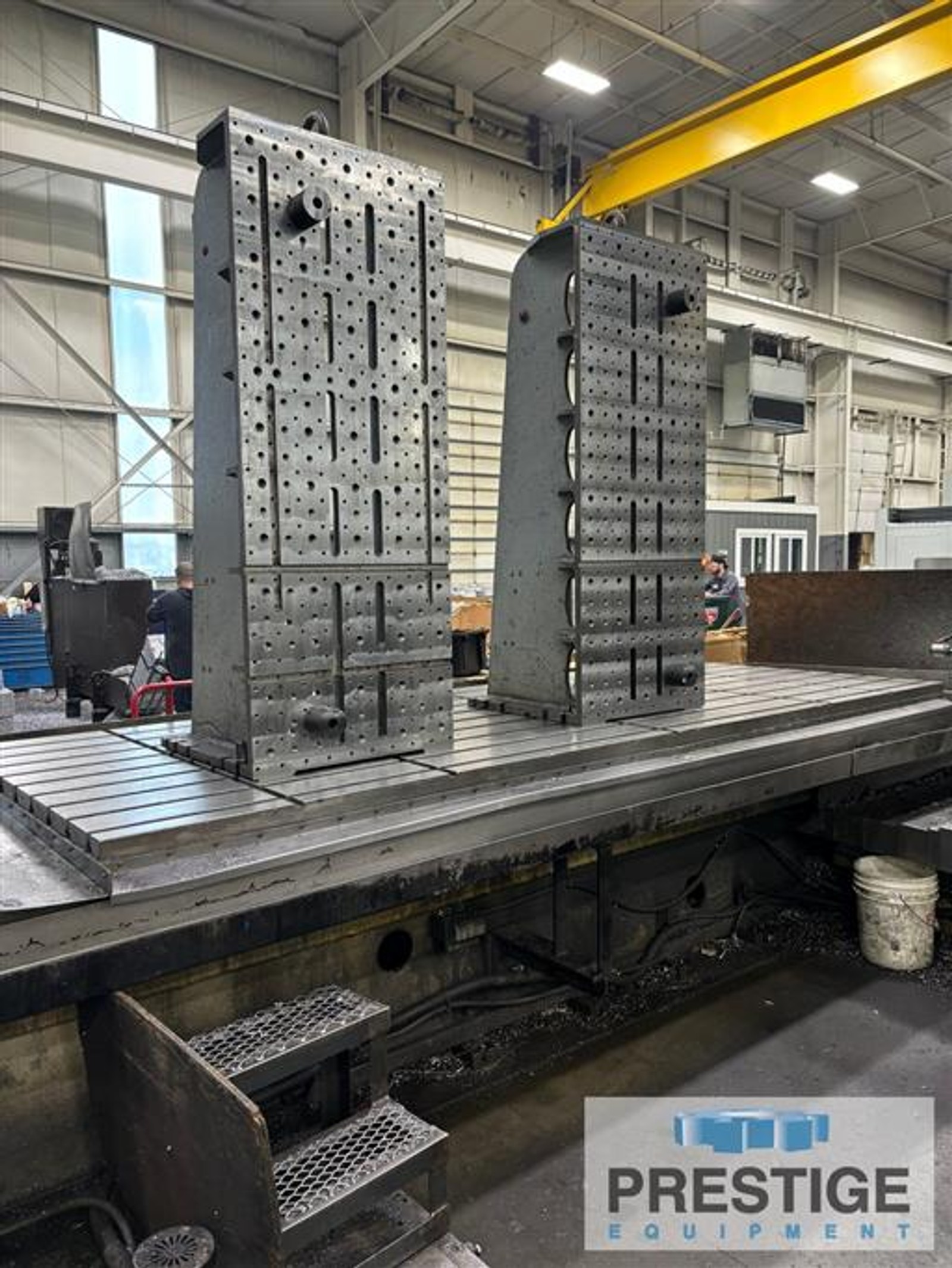

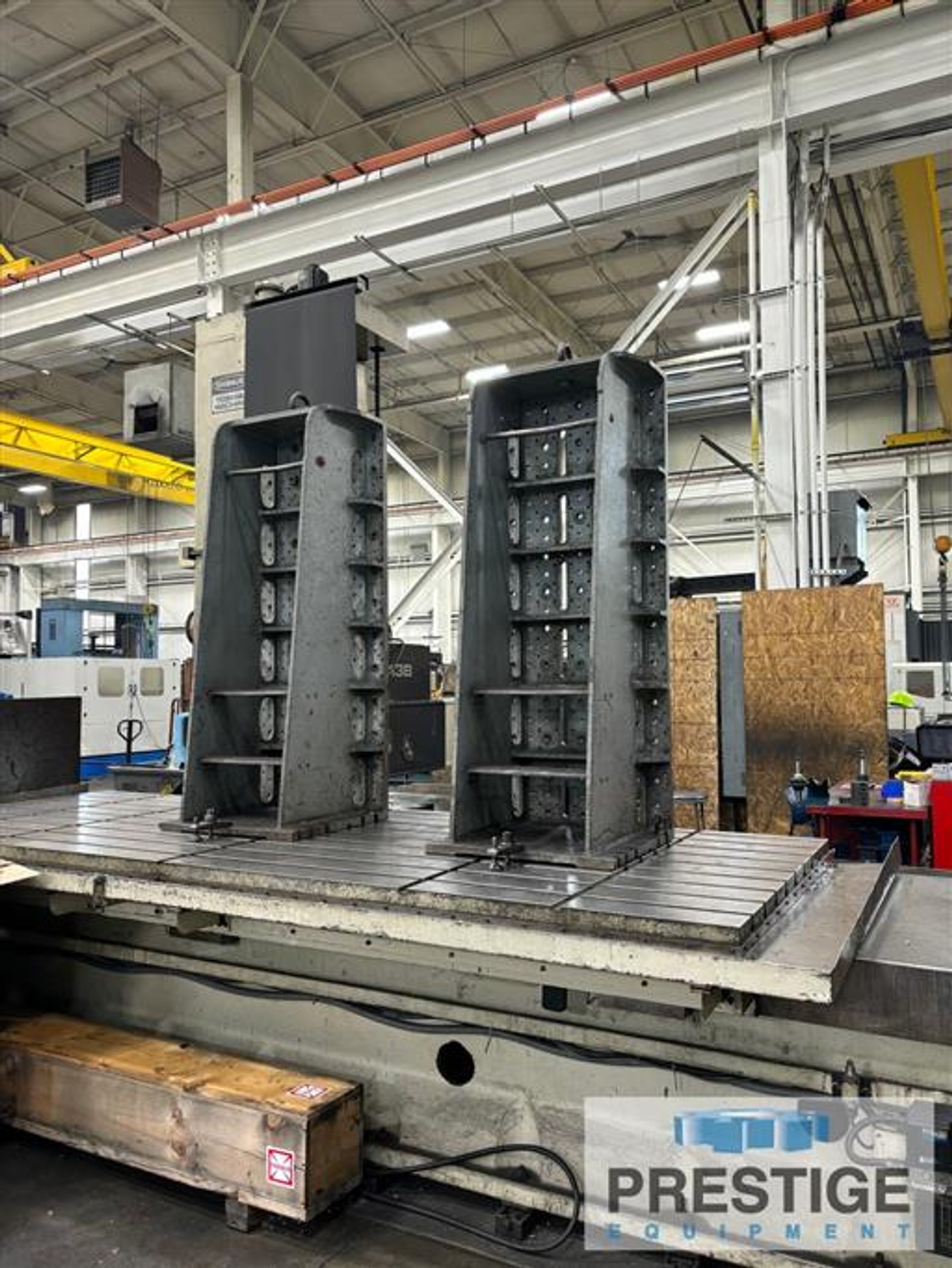

Large 59" x 157" Plain Table

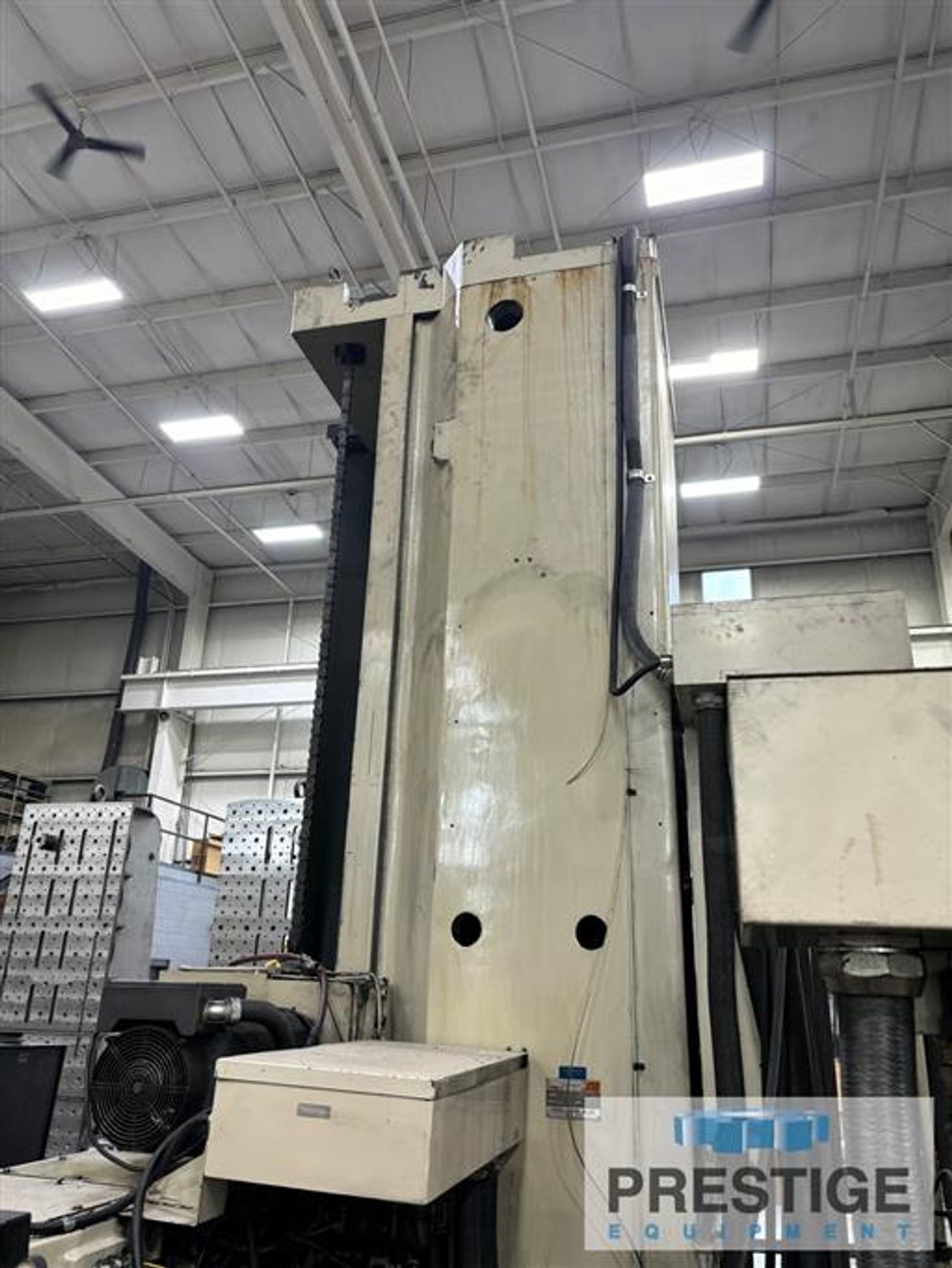

In-feeding Column

SPECIFICATIONS:
Spindle Diameter ...................... 5.12"
Milling Spindle Diameter .............. 8.86"
Spindle Taper ......................... #50
Vertical Travel, Y-Axis ............... 90.7"
Table Cross Travel, X-Axis ............ 157.5"
Spindle Travel, Z-Axis ................ 27.6"
Column Travel, W-Axis ................. 59"
Table Size ............................ 157.5" x 59"
Table Capacity ........................ 22,000 lbs
Spindle Speeds ........................ 0-2000 RPM
Floor Space ........................... 449" x 205"
Machine Height ........................ 192"
Approx. Machine Weight ................ 65,000 lbs.

EQUIPPED WITH:
Mitsubishi 700 Series CNC Control (Retrofit)

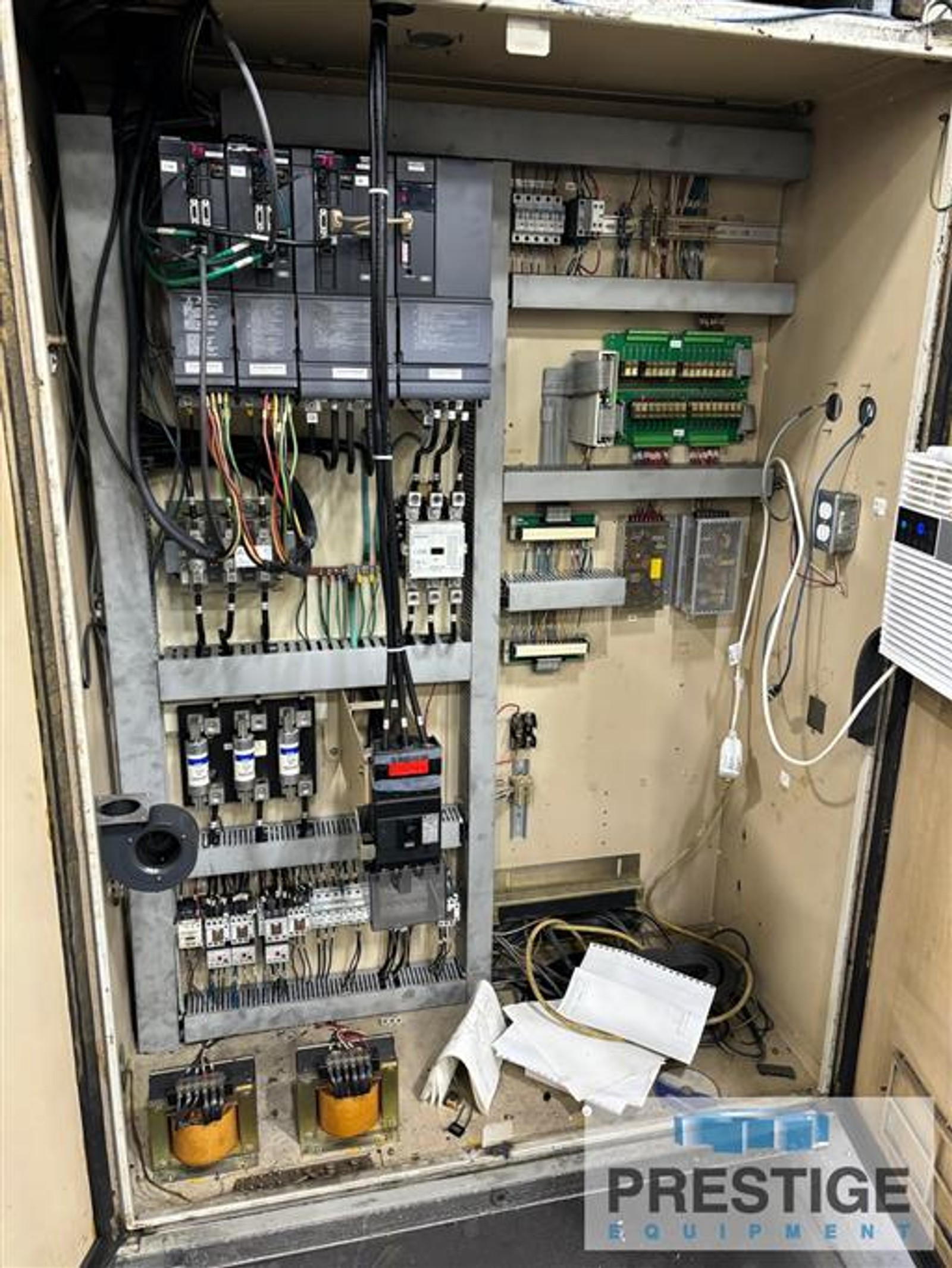

Ballscrews & Independant Servo Drives
Hardened & Ground Ways Box Ways
30/25 HP Spindle Drive
