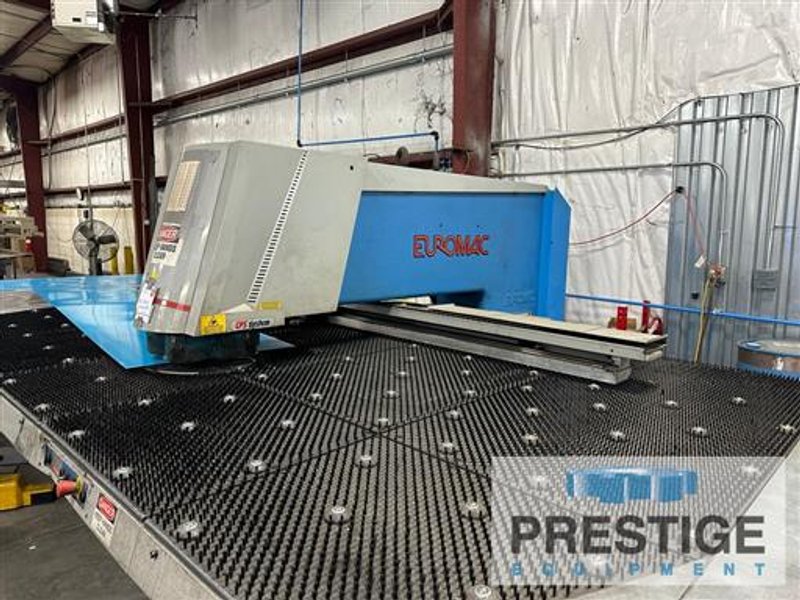

Euromac MTX Punch, 33 Ton, 50" x 50", 6-Station Turret,(3) Auto Index, (3) Multi-Tool Station, Loaded w/ Tooling, #43373

Manufacturer

EUROMAC

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

43373

Model

MTX Index

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43373

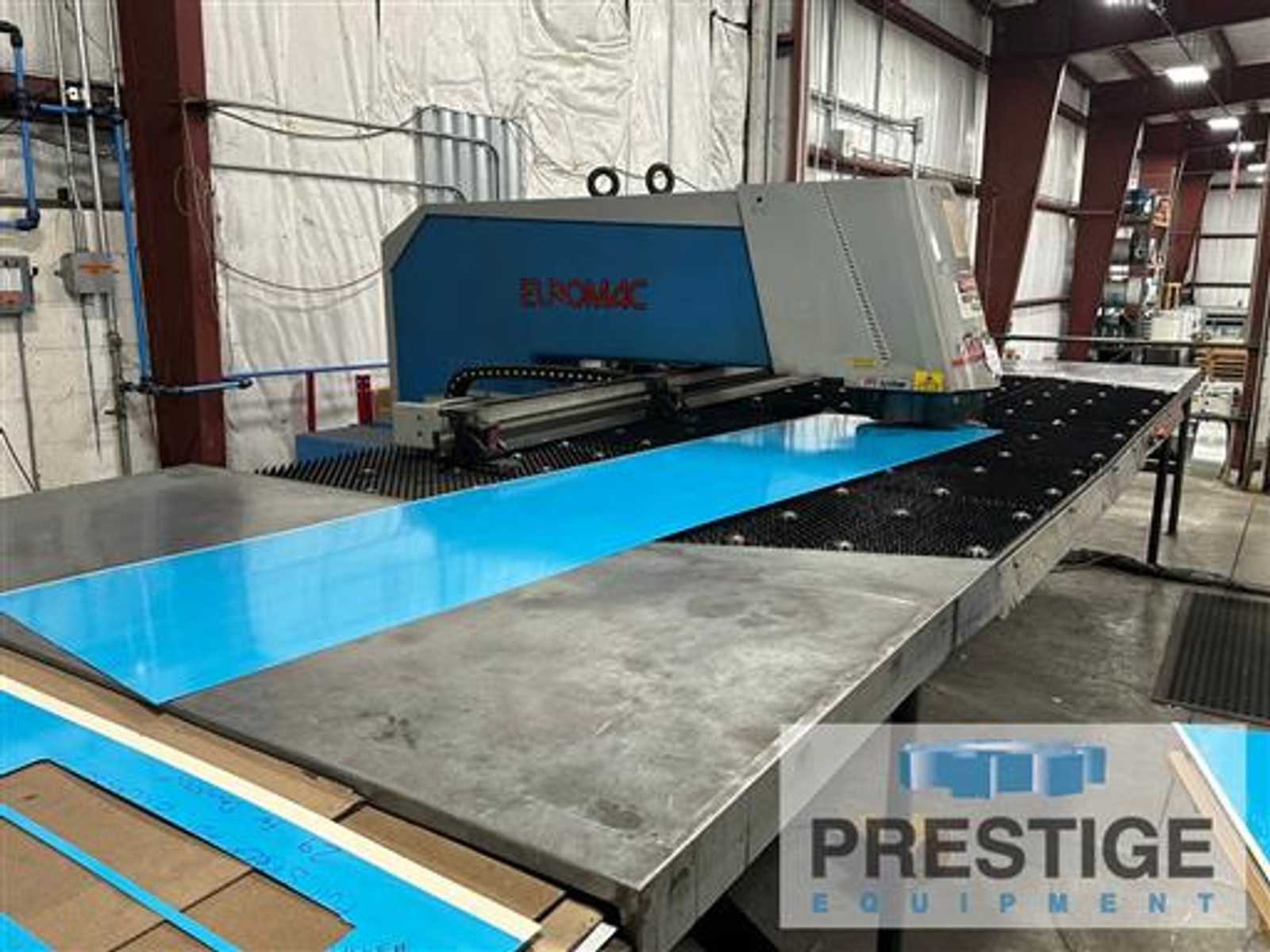

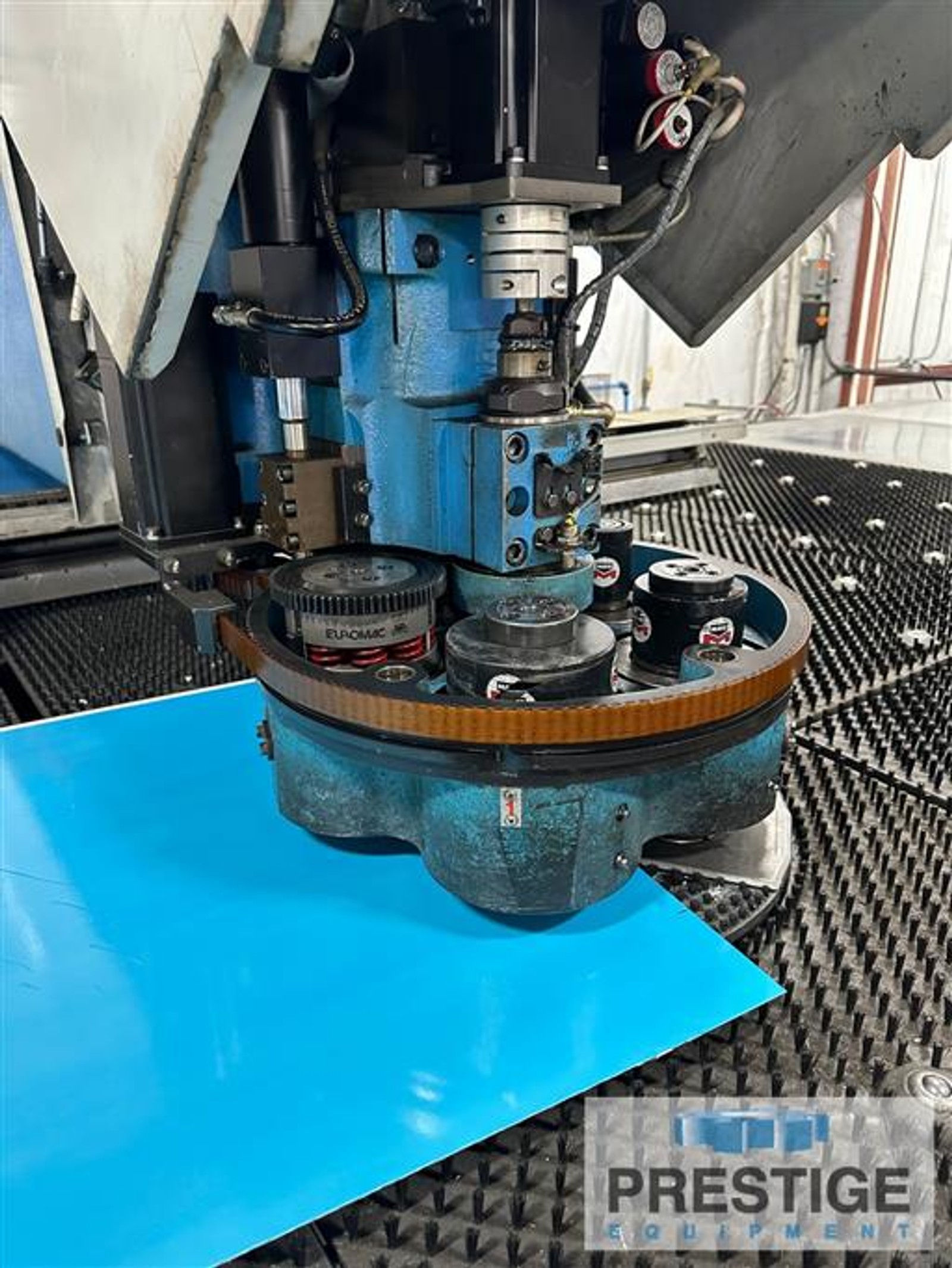

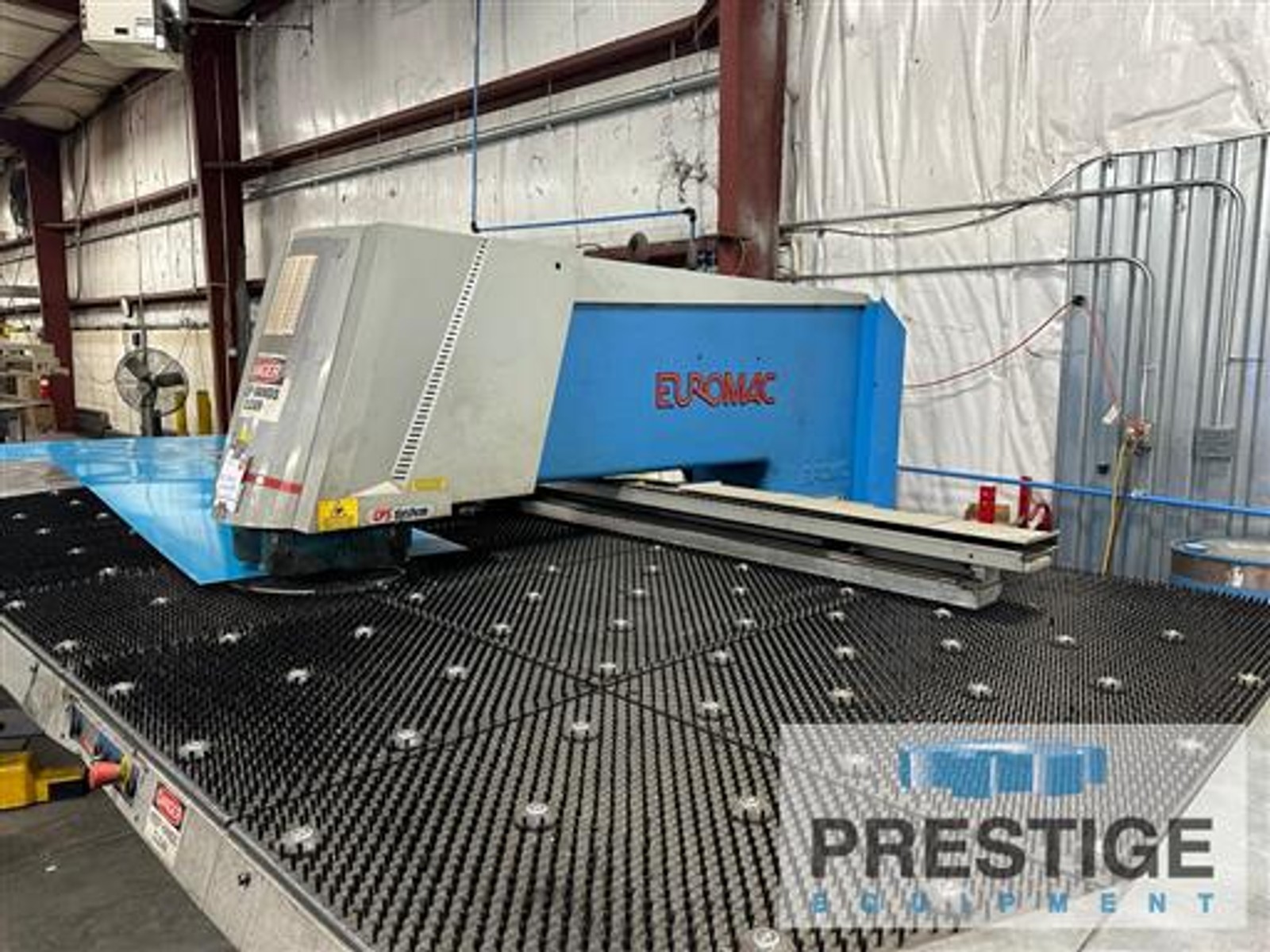

Euromac MTX Index CNC Punch

FEATURES:

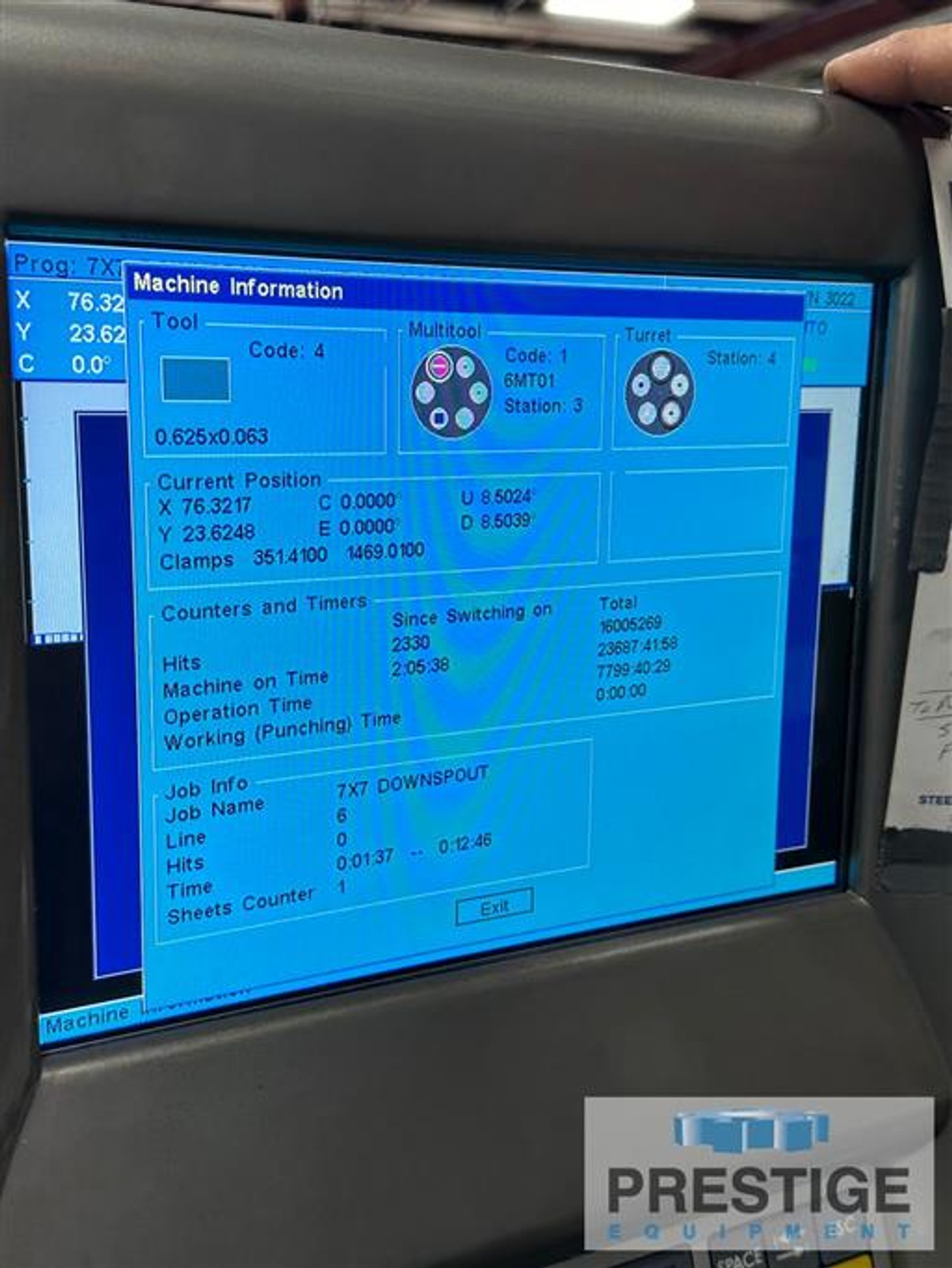

Euromac PC Based CNC Control
5 Punching Stations
(2) Auto Index Stations
Multi-Tool
Brush Table Design
Large Quantity of Tooling

CAPACITY:
Punching Capacity ..................... 33 Tons
Maximum Material Thickness ............ 1/4"
X-Axis Travel ......................... 50"
Y-Axis Travel ......................... 50"
Punch Rate with 20 mm Pitch ........... 375 HPM
Positioning Accuracy .................. +/-0.002"
Approximate Shipping Weight ........... 18,500 Lbs.

EQUIPPED WITH:
Euromac PC Based CNC Control
5 Punching Stations
(2) Auto Index Stations
Multi-Tool
Brush Table Design
Large Quantity of Tooling

NOTE:
Inspect In Plant Under Power

No Video Available
