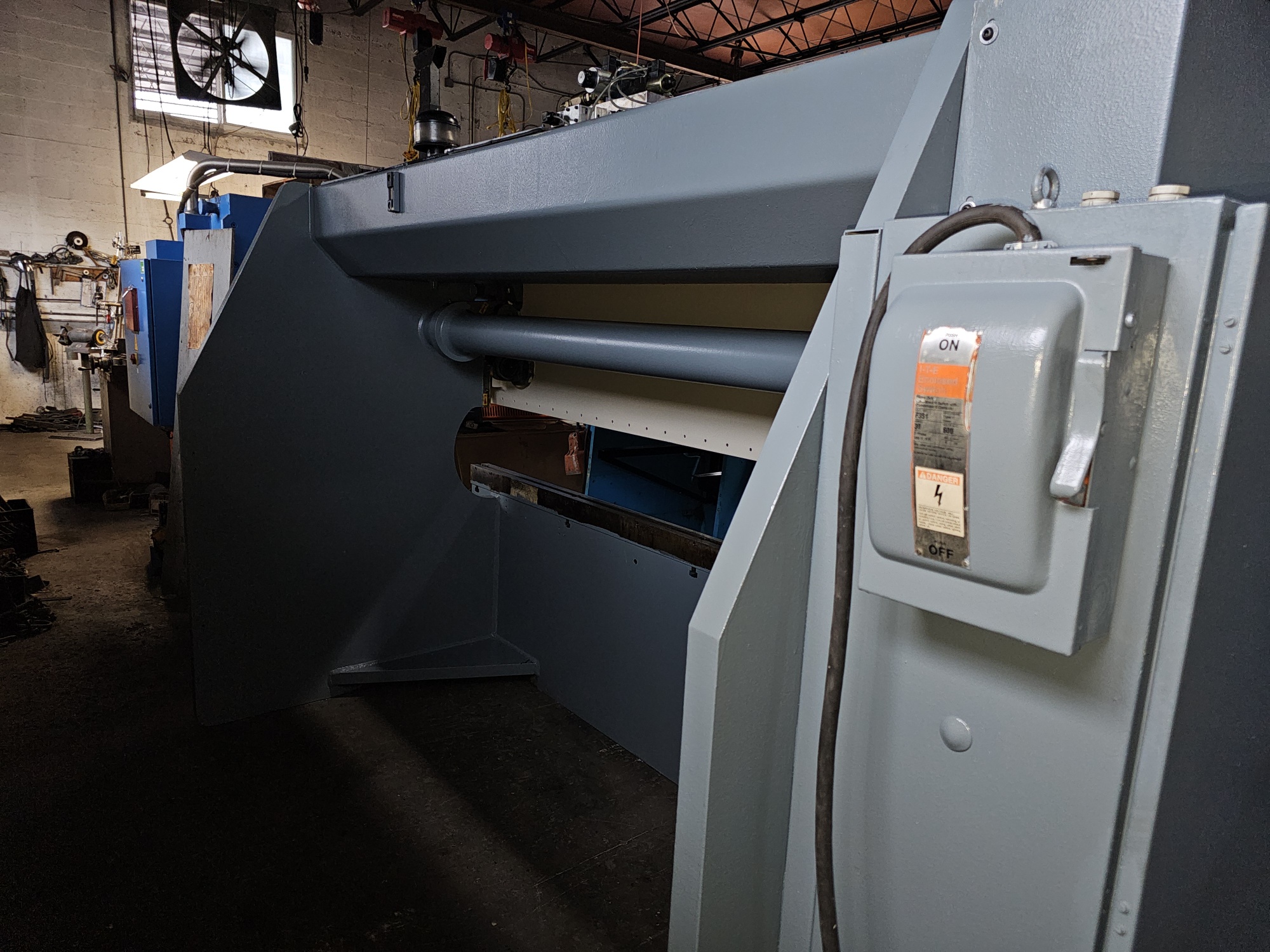

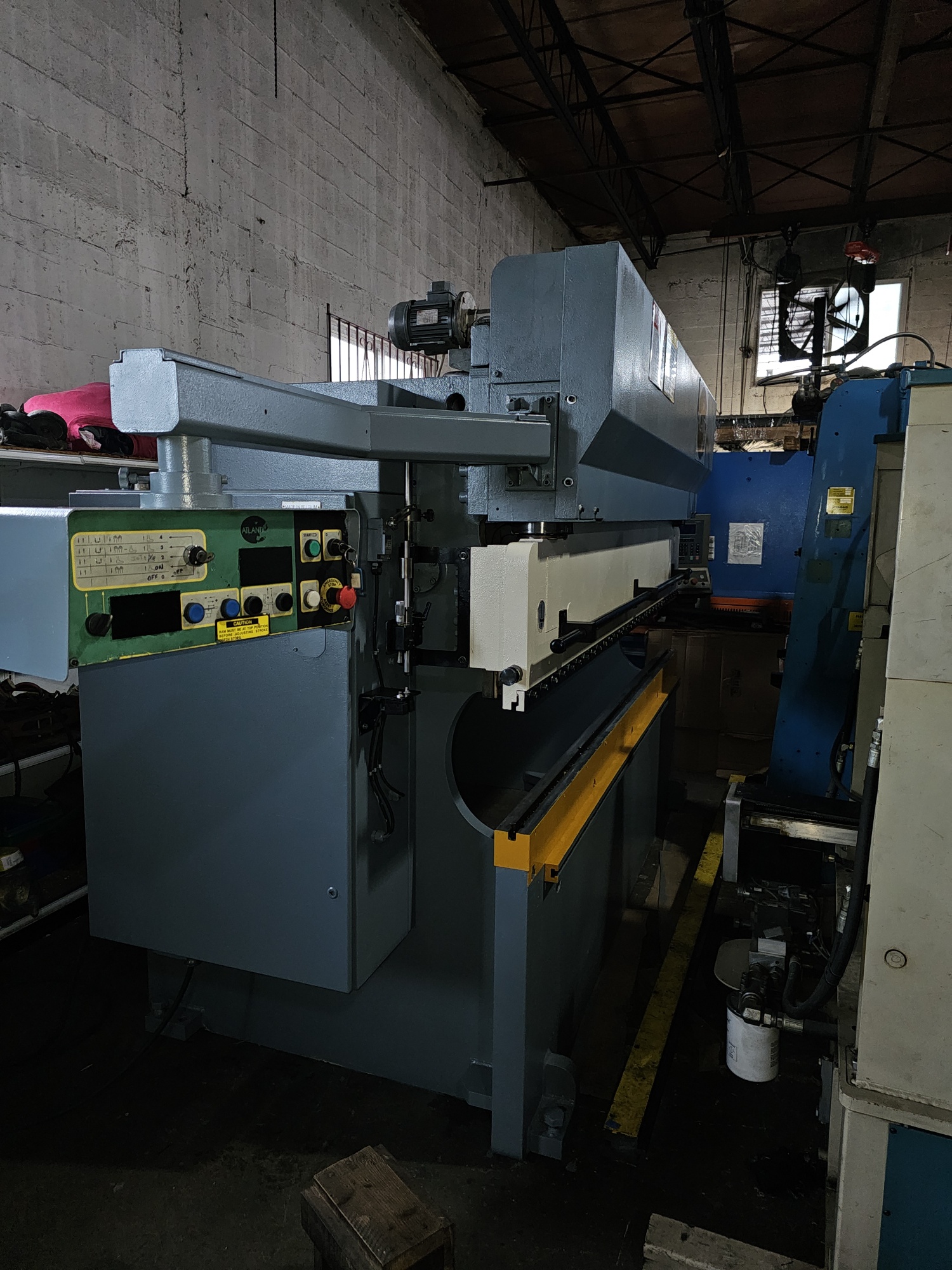

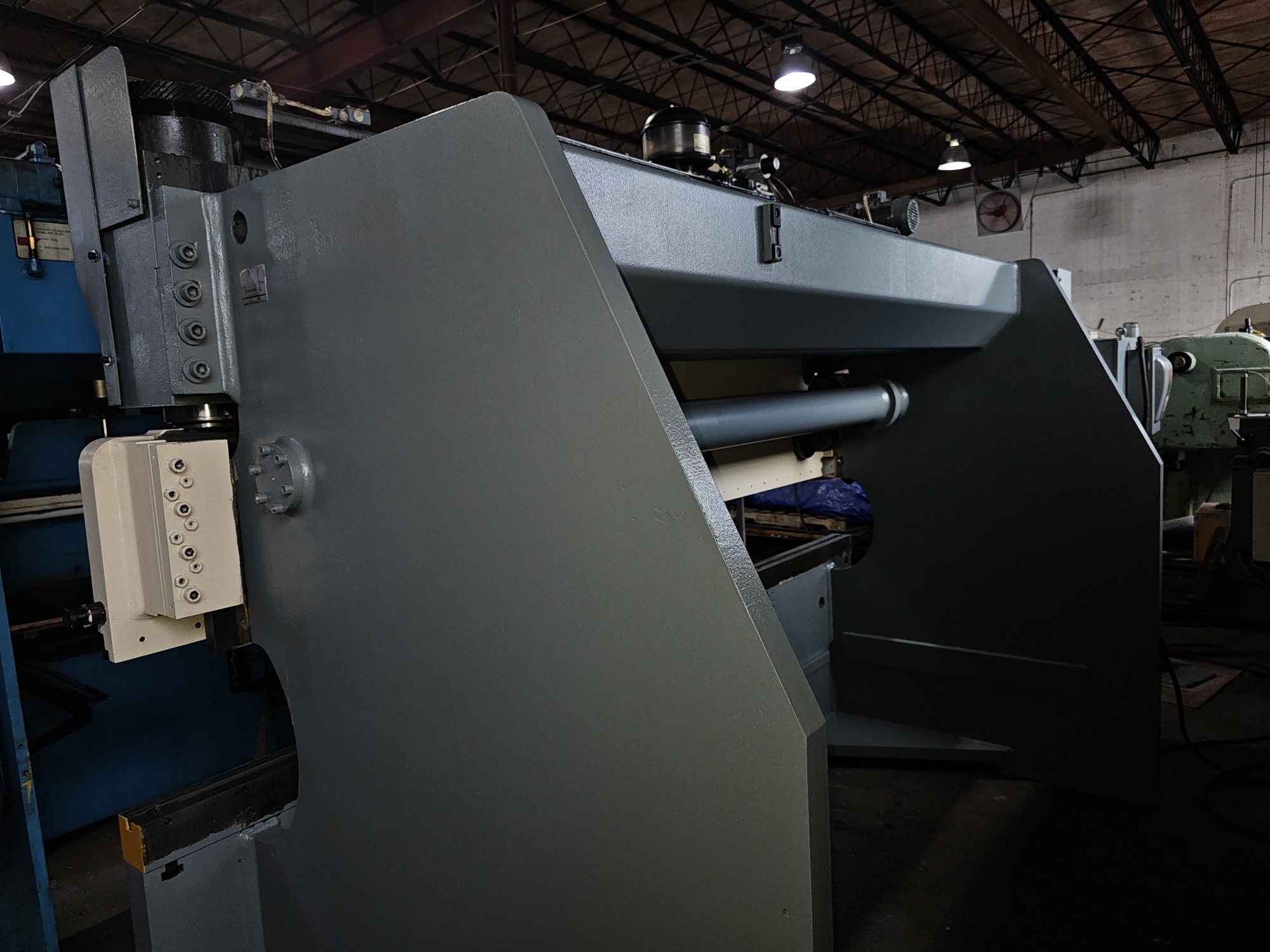

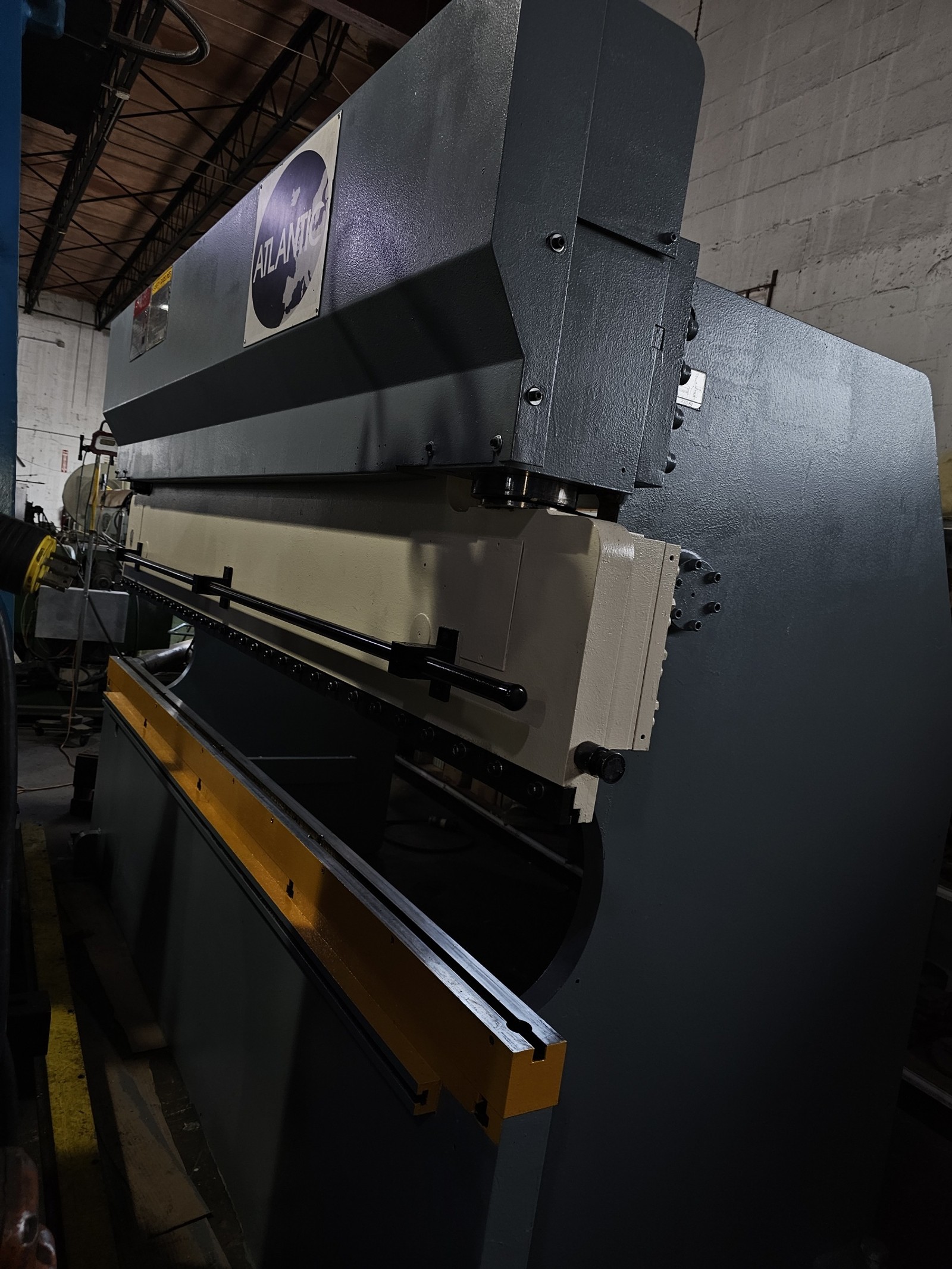

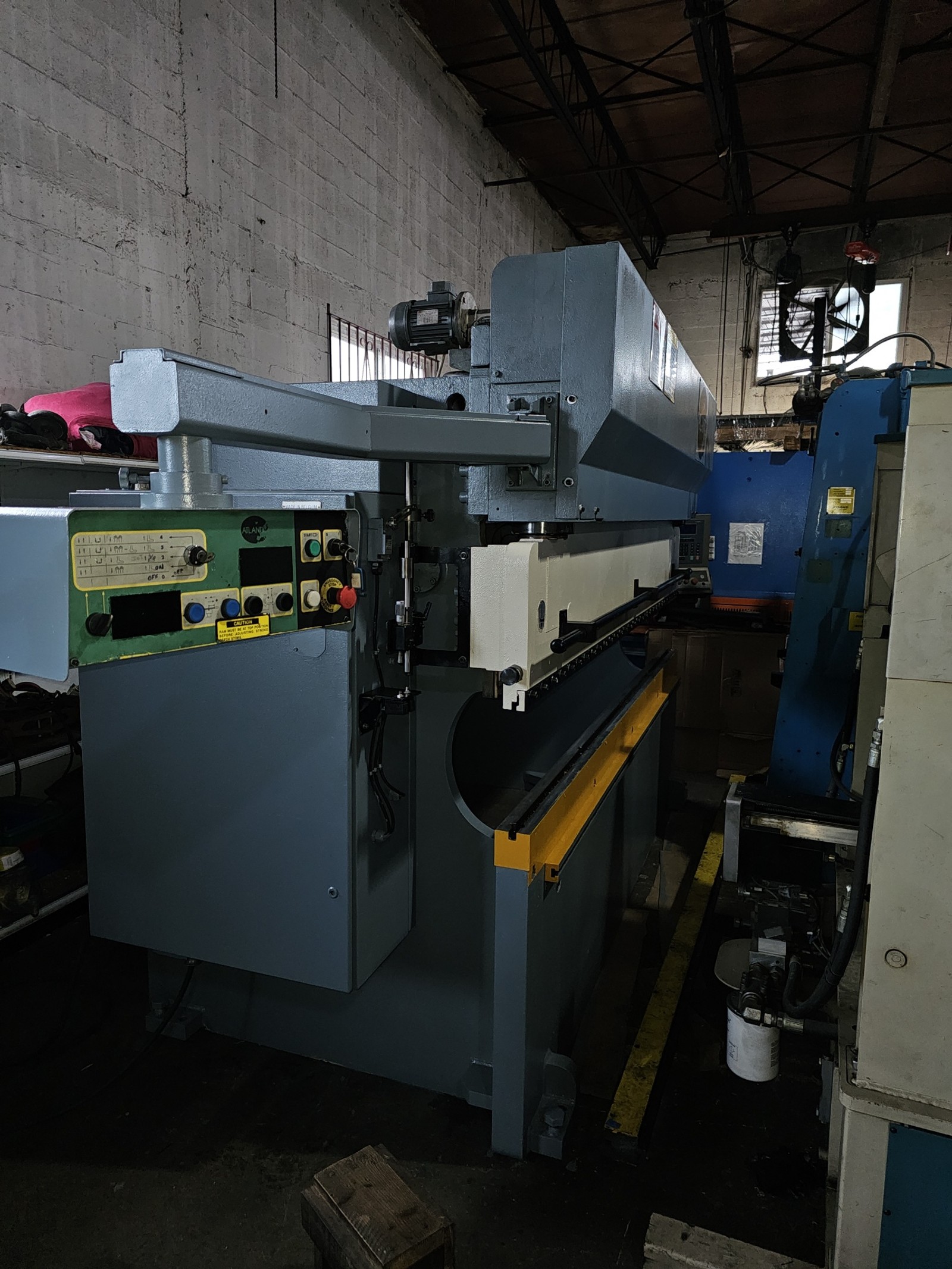

120 Ton, Haco ATLANTIC, HDE 120-10-8, hydraulic, 10' OA, 8'6"BH, 2000

Manufacturer

Haco Atlantic

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

7177

Model

120-10-8

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

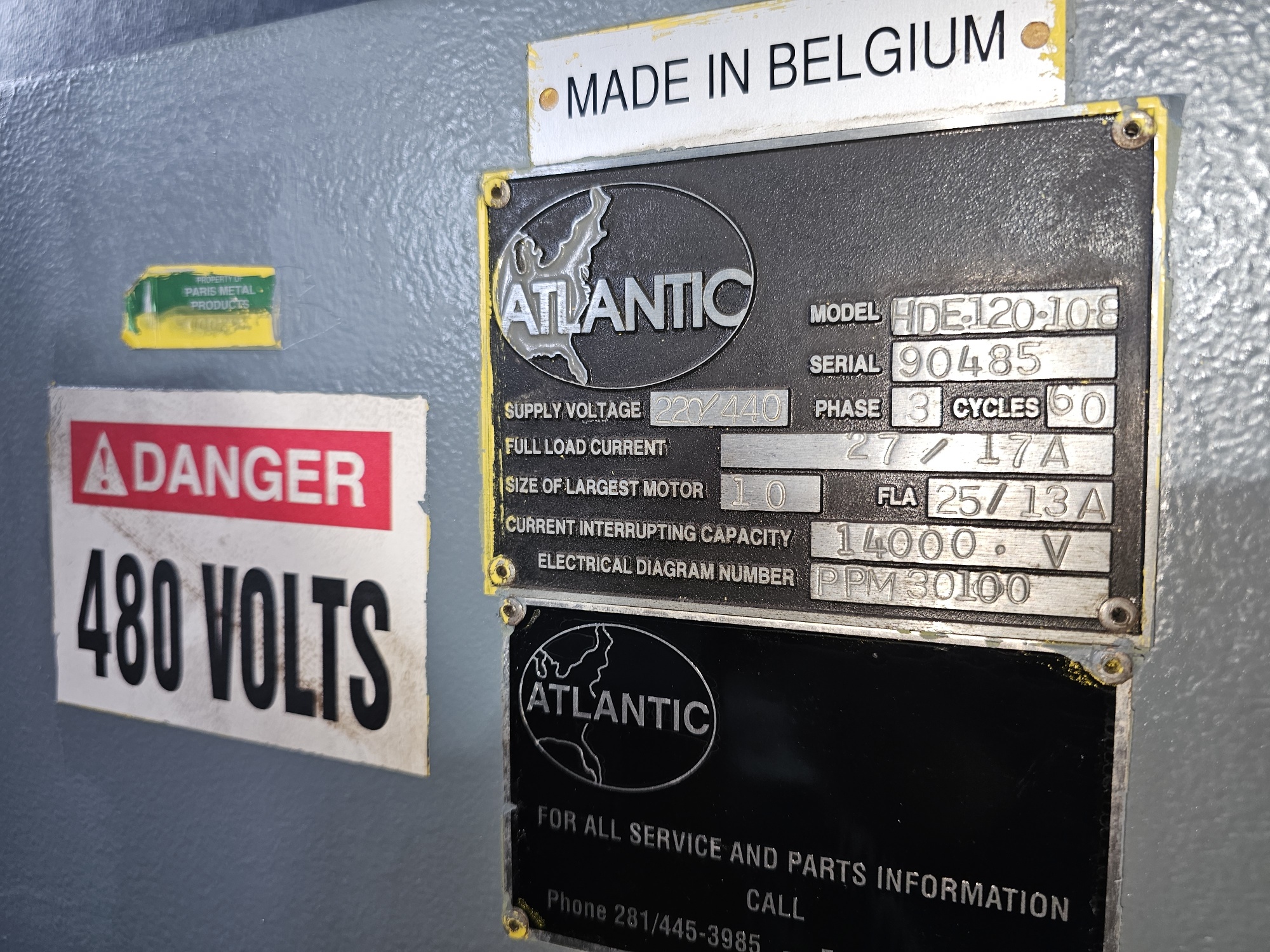

Model number HDE 120-10-8
Year of manufacture 2000


SPECIFICATIONS:
Capacity at bottom stroke 120 tons
Overall bending length 122"
Distance between housings 102"
Ram speeds--approach 165 ipm
--working 18 ipm
--return 150 ipm
Throat 9.8"
Stroke, max 4.7"
Open height. max w/o tool holders 12.8"
Main motor 10 HP
Electrics 220/440/3/60
Overall dimensions (L x W x H) 128" x 61" x 88"
Shipping weight 15,400 lbs.

EQUIPPED WITH:
Full length filler block

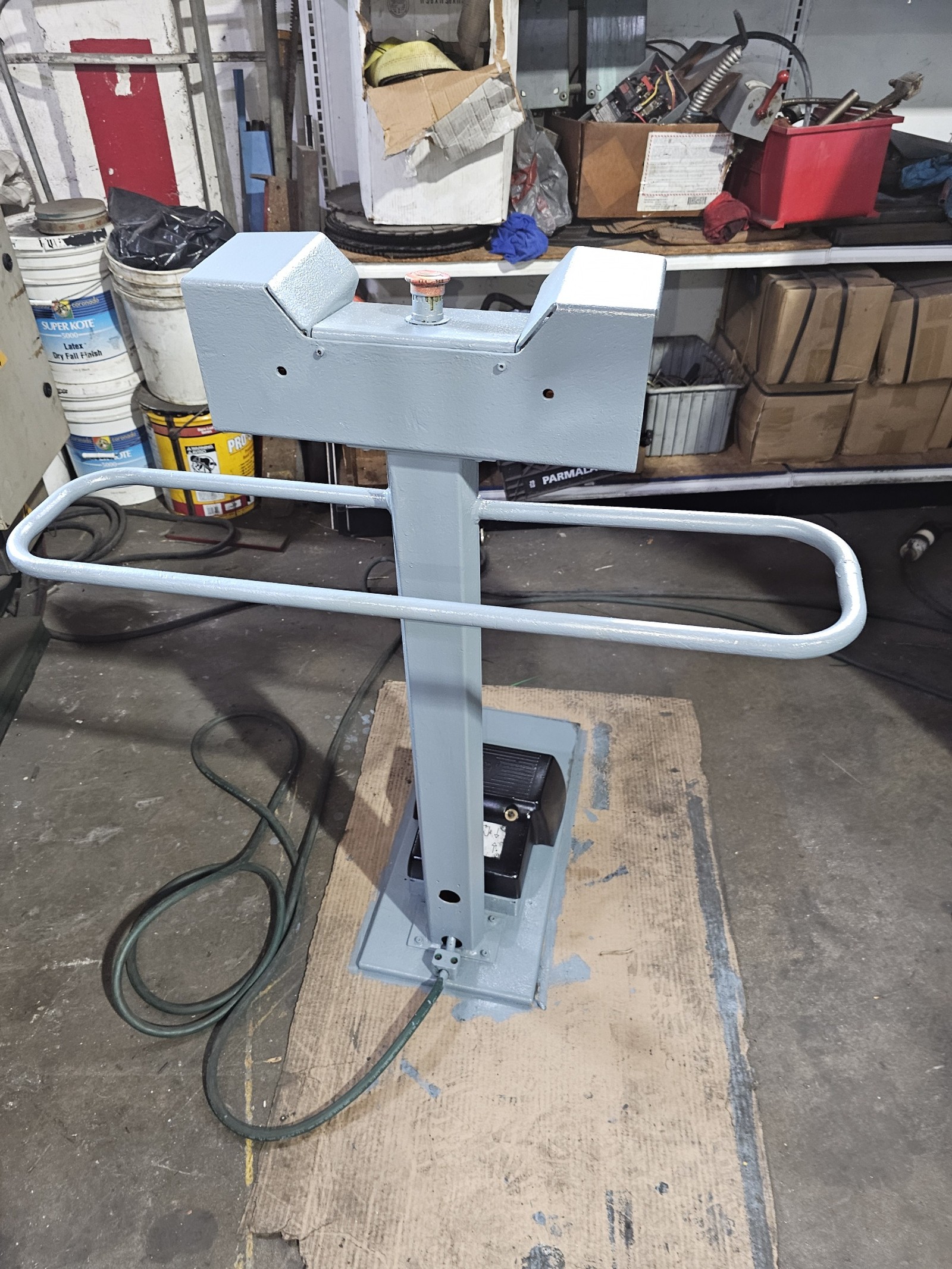

Electric foot pedal on a trailing lead
