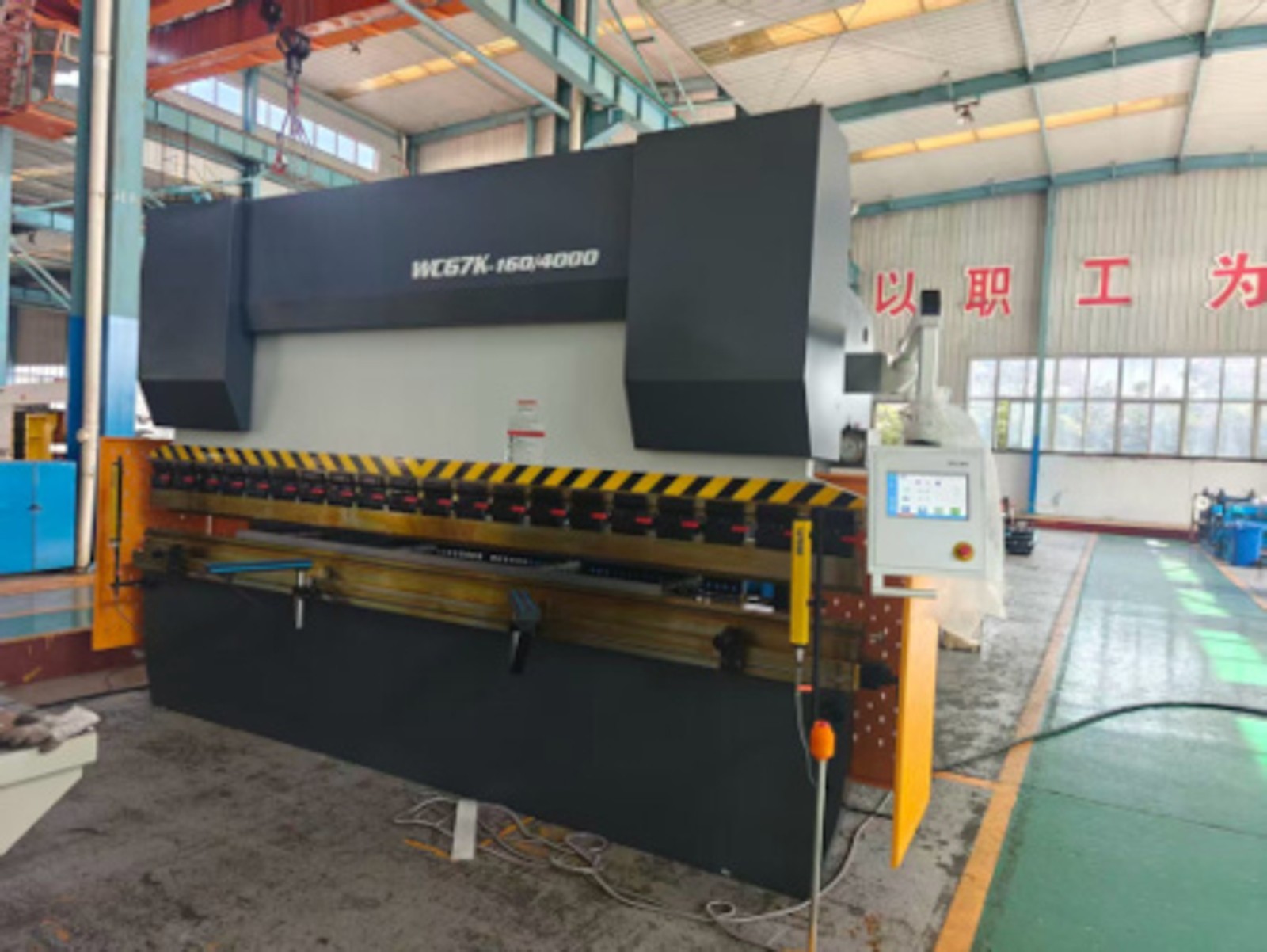

176 Ton, FICOM, #WC67K-176x4000, 157"OAL, 123" BH, 20 HP, 3 axis, Y1, Y2 Our stock number: 7142

Manufacturer

Ficom

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

7142

Model

176X4000

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Table length 157" (4000mm)
Distance between housing 123" (3140mm)
Throat depth 13" (330mm)
Ram stroke 7.8" (200mm)
Maximum open height 18.3" (465mm)
Stoke adjustment 5.9" (150mm)
Bending speeds--rapid approach 3.94 ips
--bending 0.35 ips
--return 3.54 ips
Maximum stroke rate 6 spm

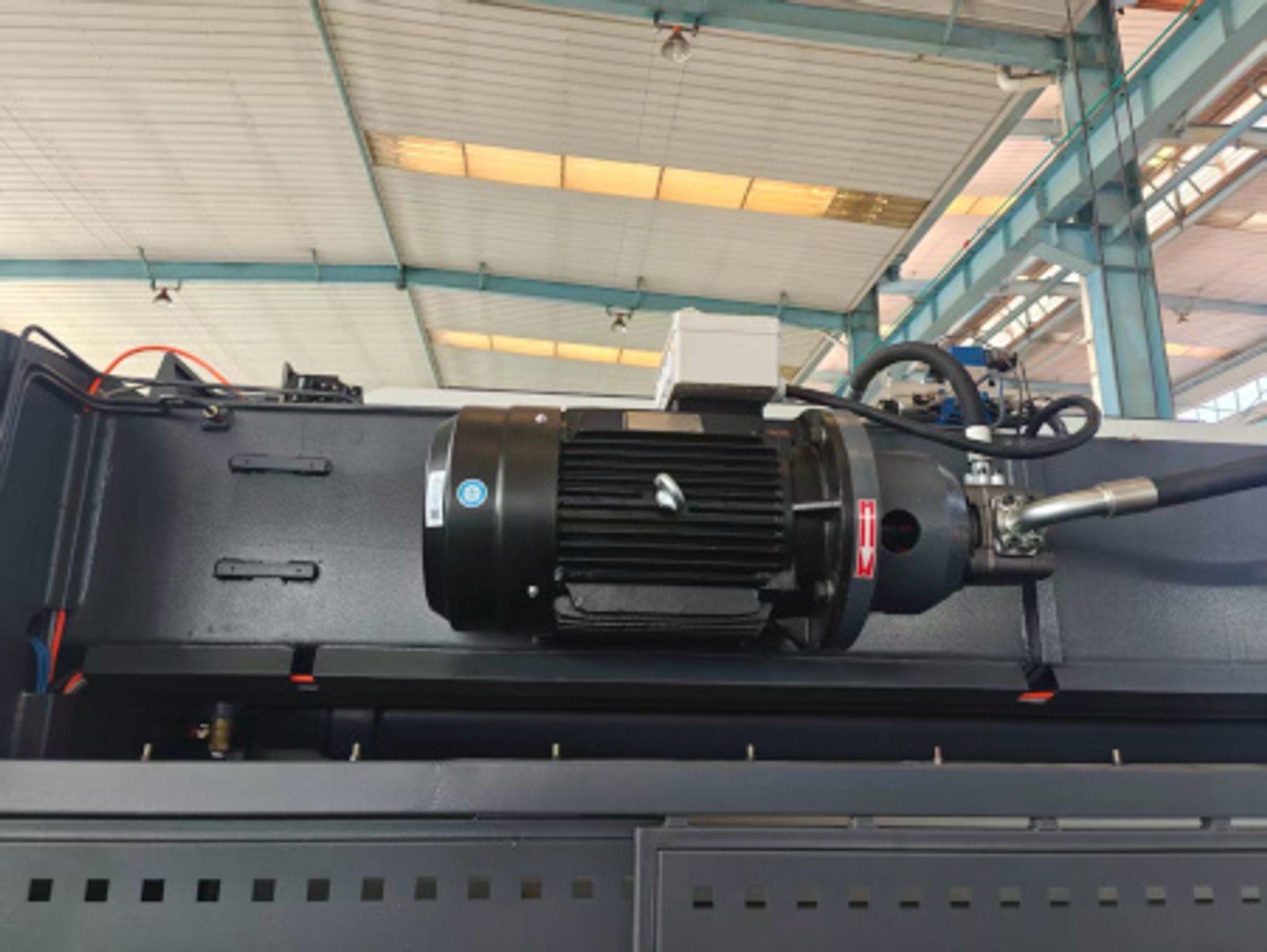

Motor 20 HP (15KW)
Electrics 230/3/60 or 460/3/60
Dimensions (L x W x H) 185" x 86" x 100"
Weight, approx. 27,720 lbs (12,600 Kgs)

STANDARD FEATURES & ACCESSORIES:

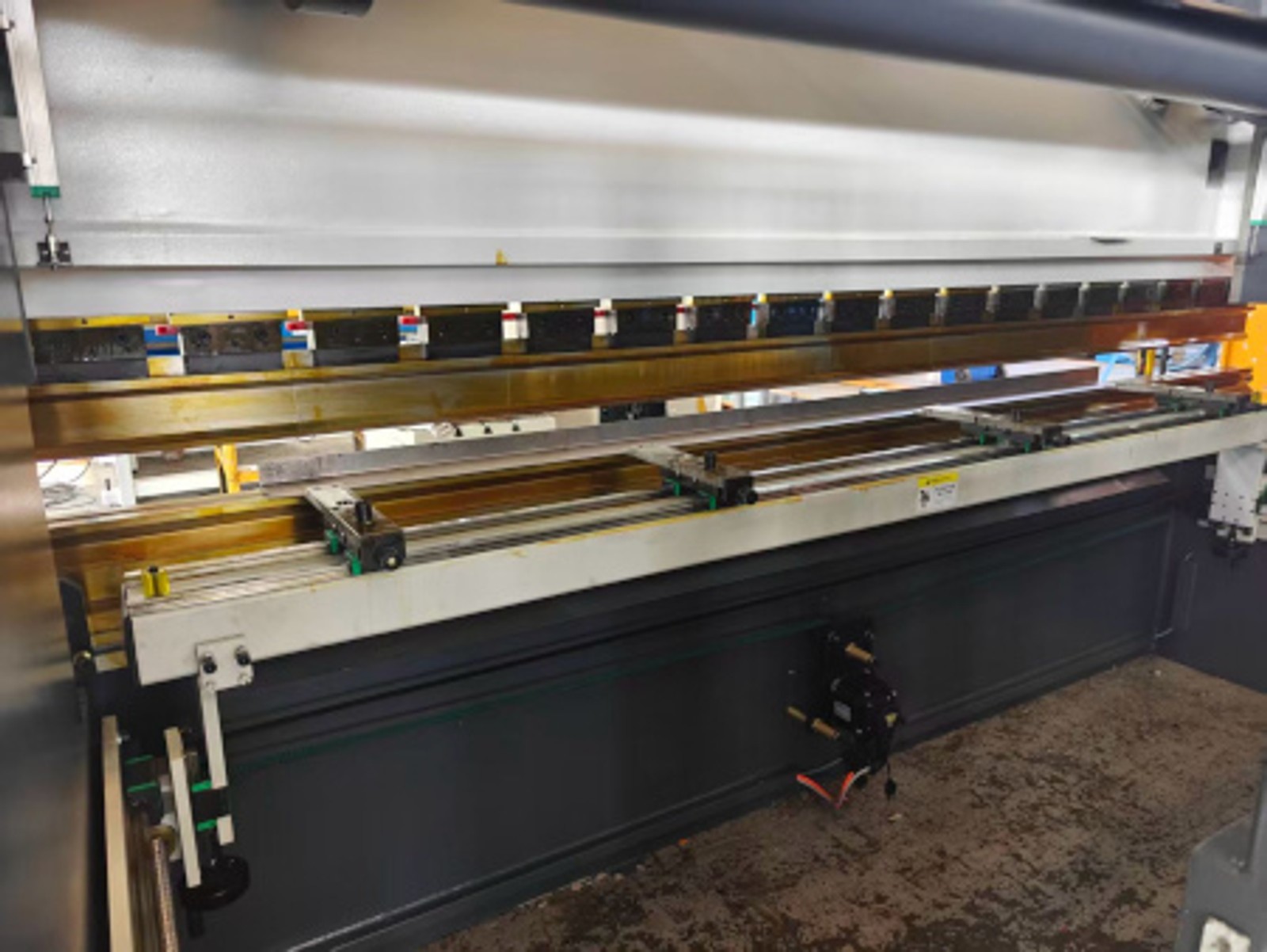

YC Tech TP10 S Control X axis, Y1 & Y2 gauging system
Hydrualic valves manufactured by Bosch-Rexroth
Seals manufactured by Valque (Japan) and Fietz (Germany)
Three modes of operation: inch, single or continuous

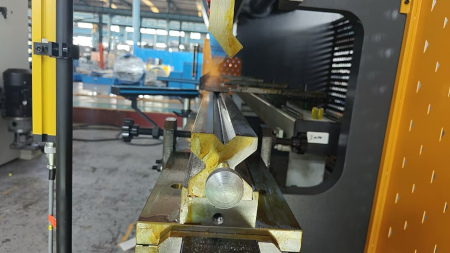

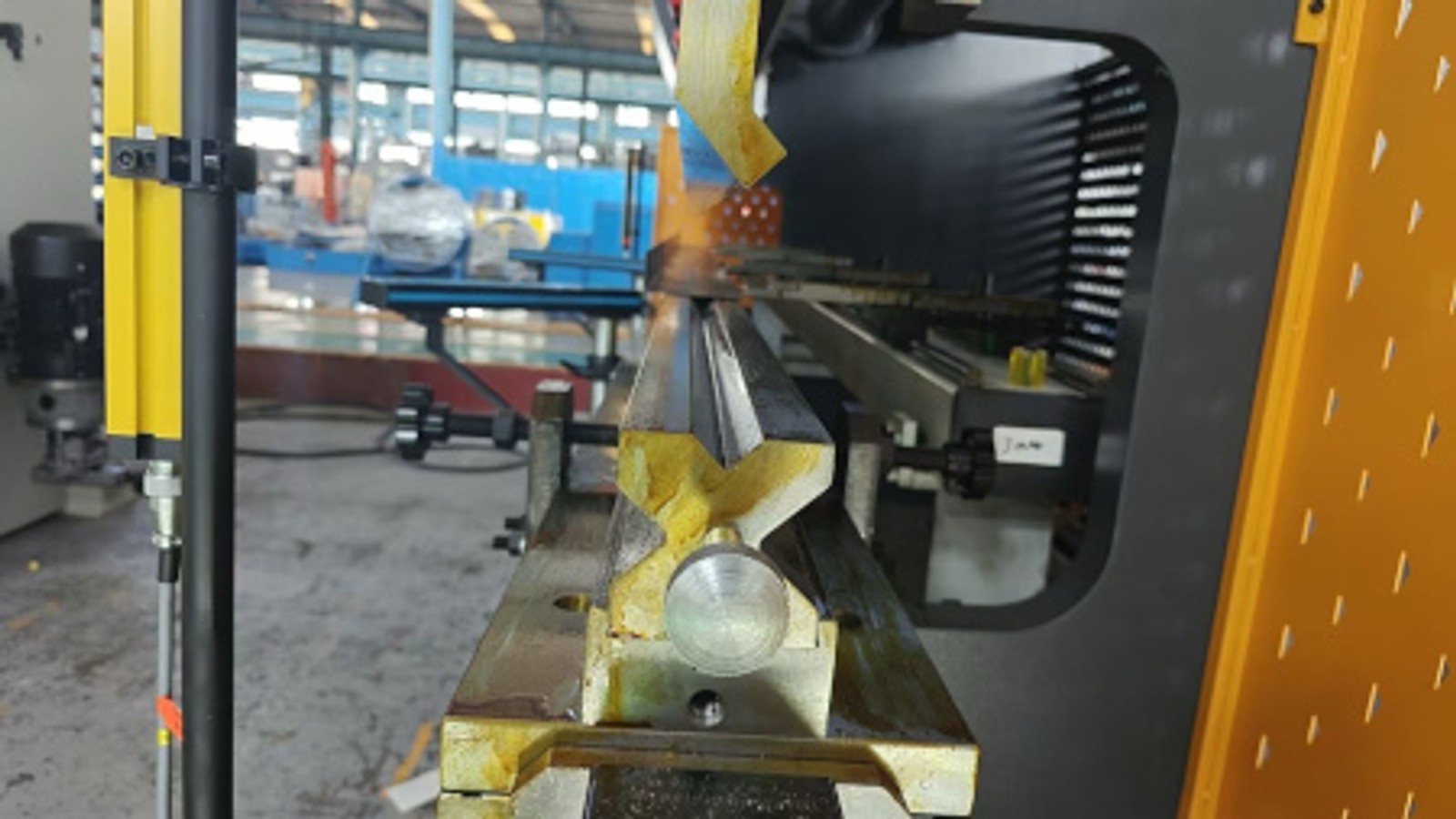

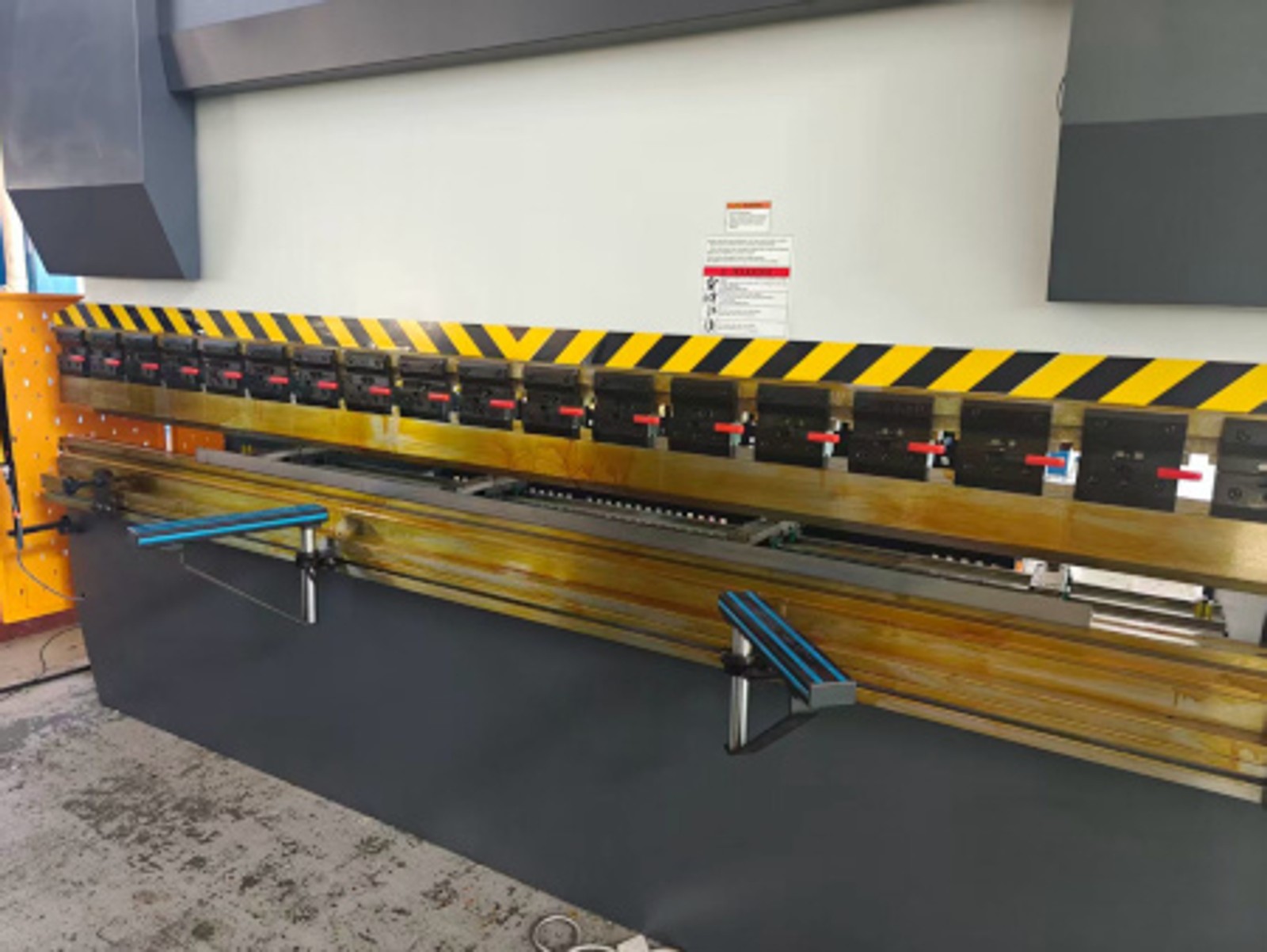

Full length gooseneck punch and 4 way die
Includes full length filler block

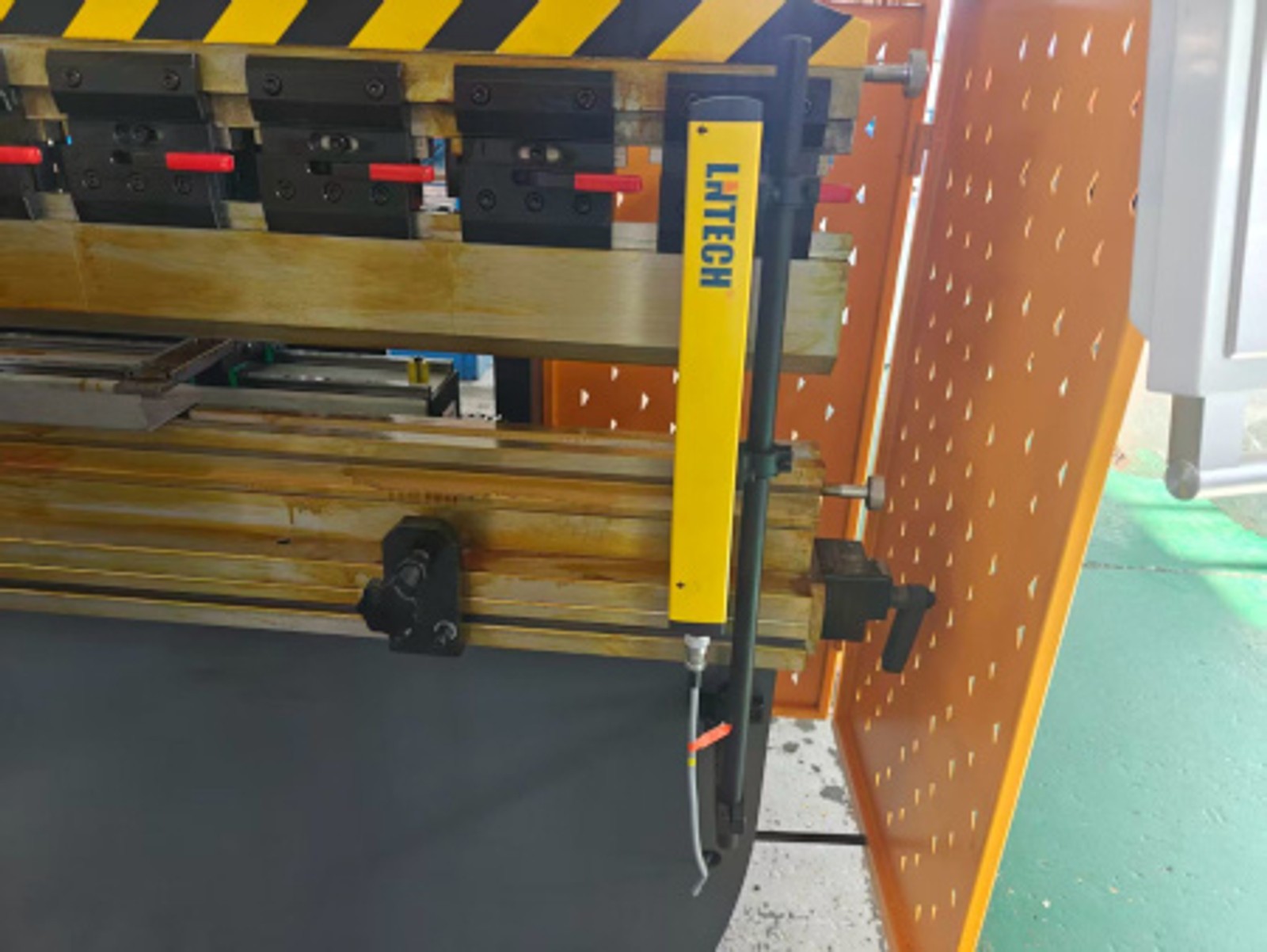

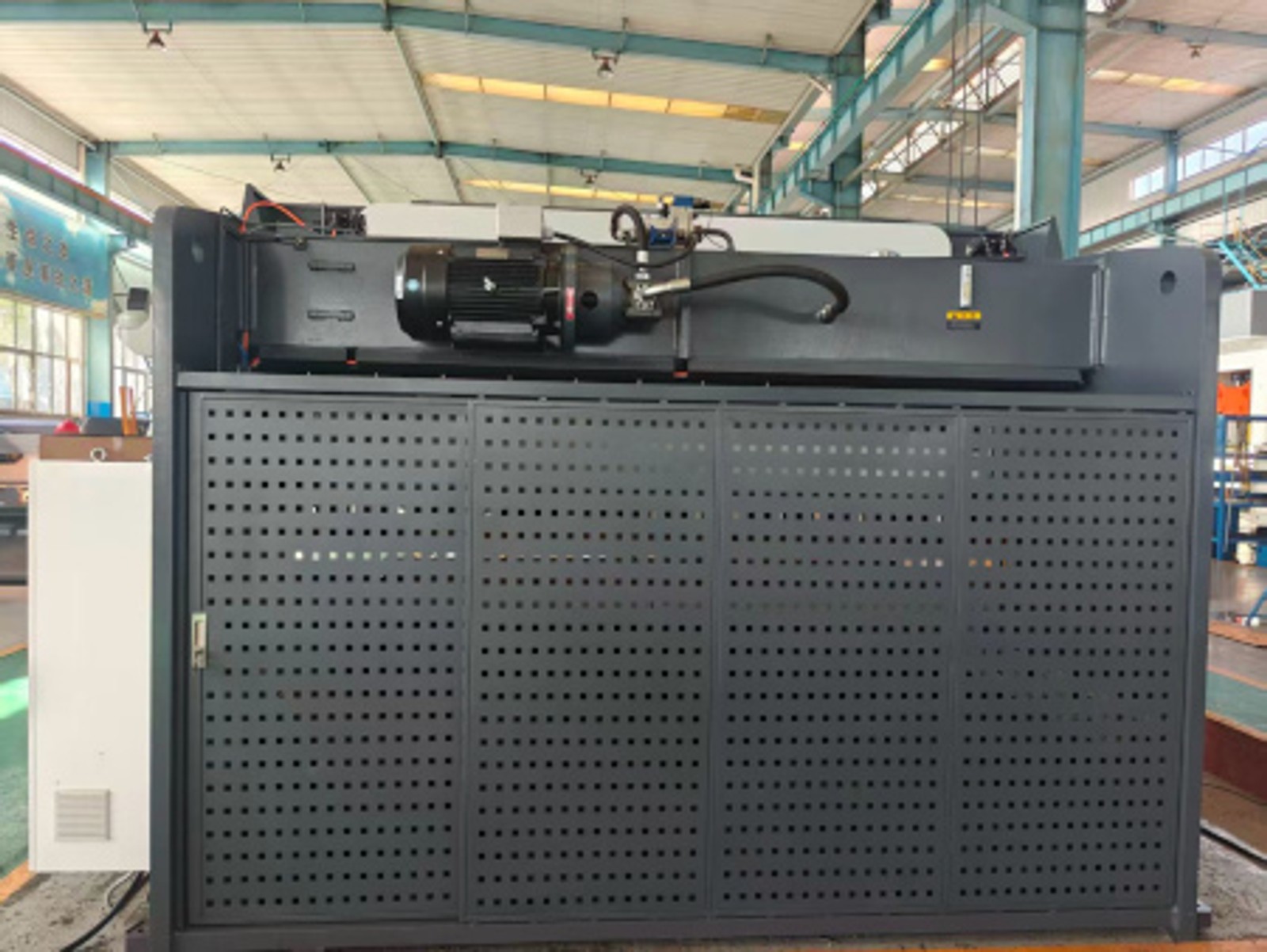

LNTech front light curtain, Rear metal sliding safety doors
Full charge of hydraulic oil
