MICROCUT Maxicut VMC1600F, X-63", Y-31.5", 70.86" x 31.5" Table, CAT #50, Fagor 8055, 24 ATC, 2012, #43448

Manufacturer

MICROCUT

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43448

Model

VMC1600F

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43448

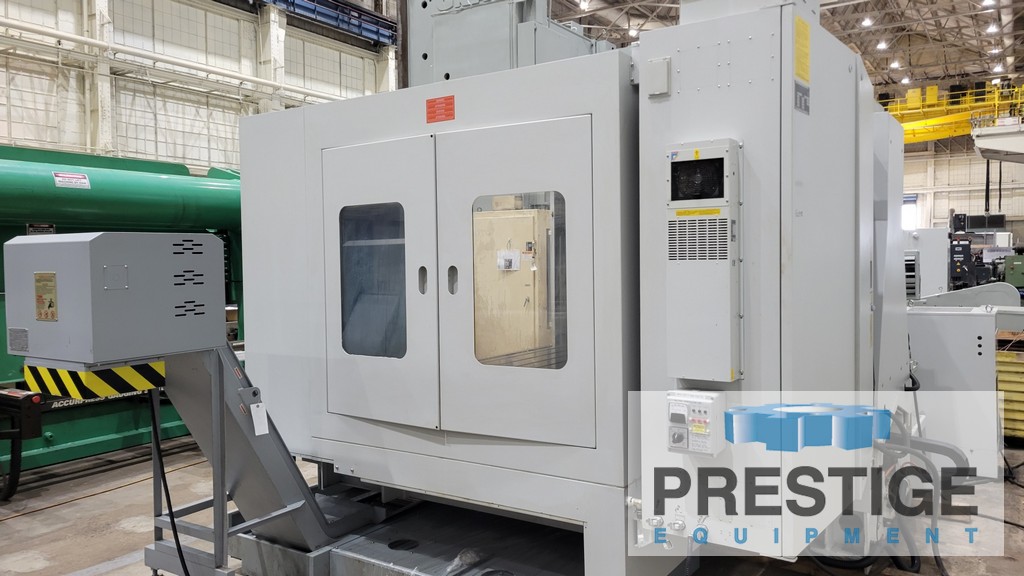

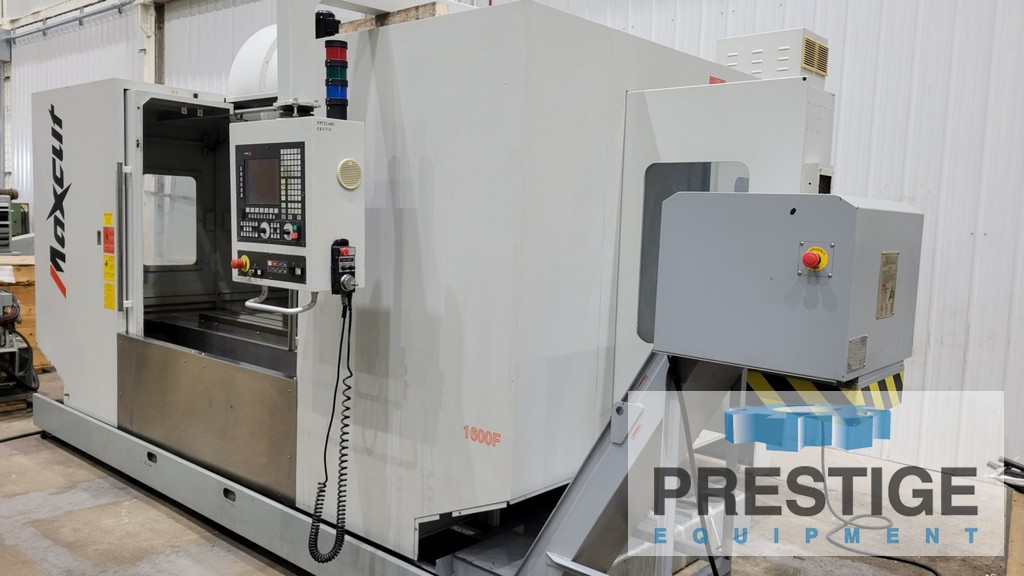

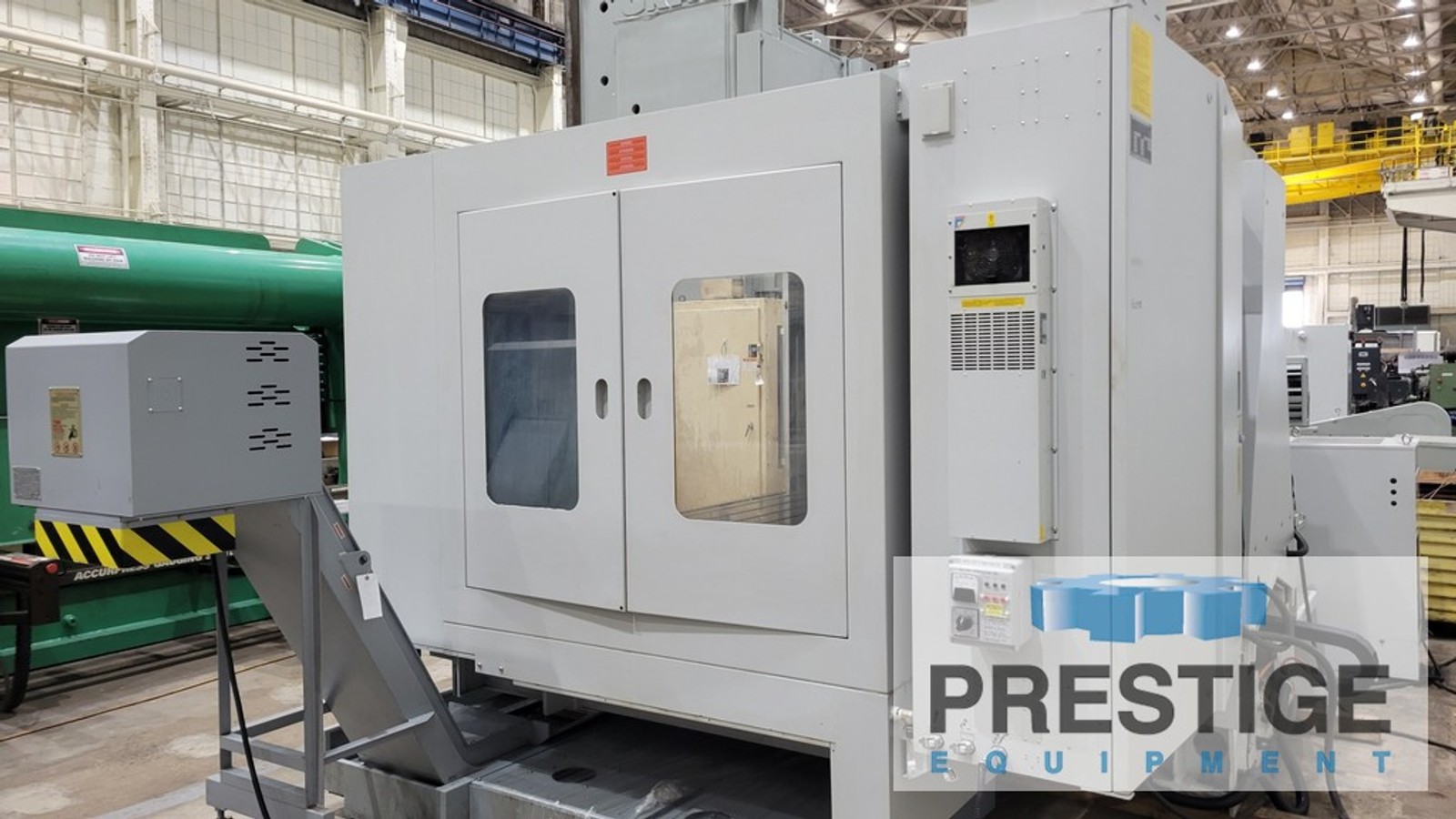

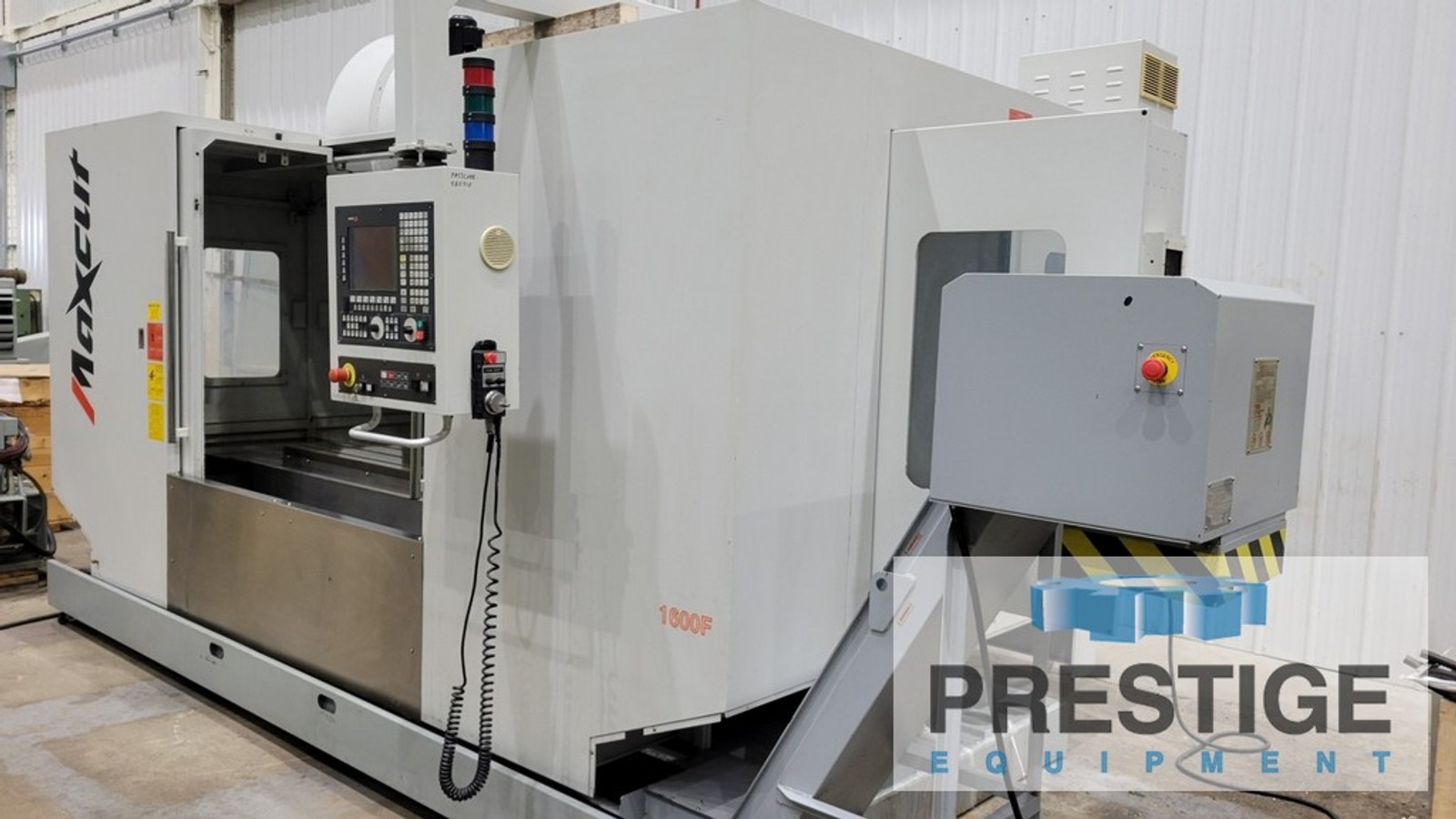

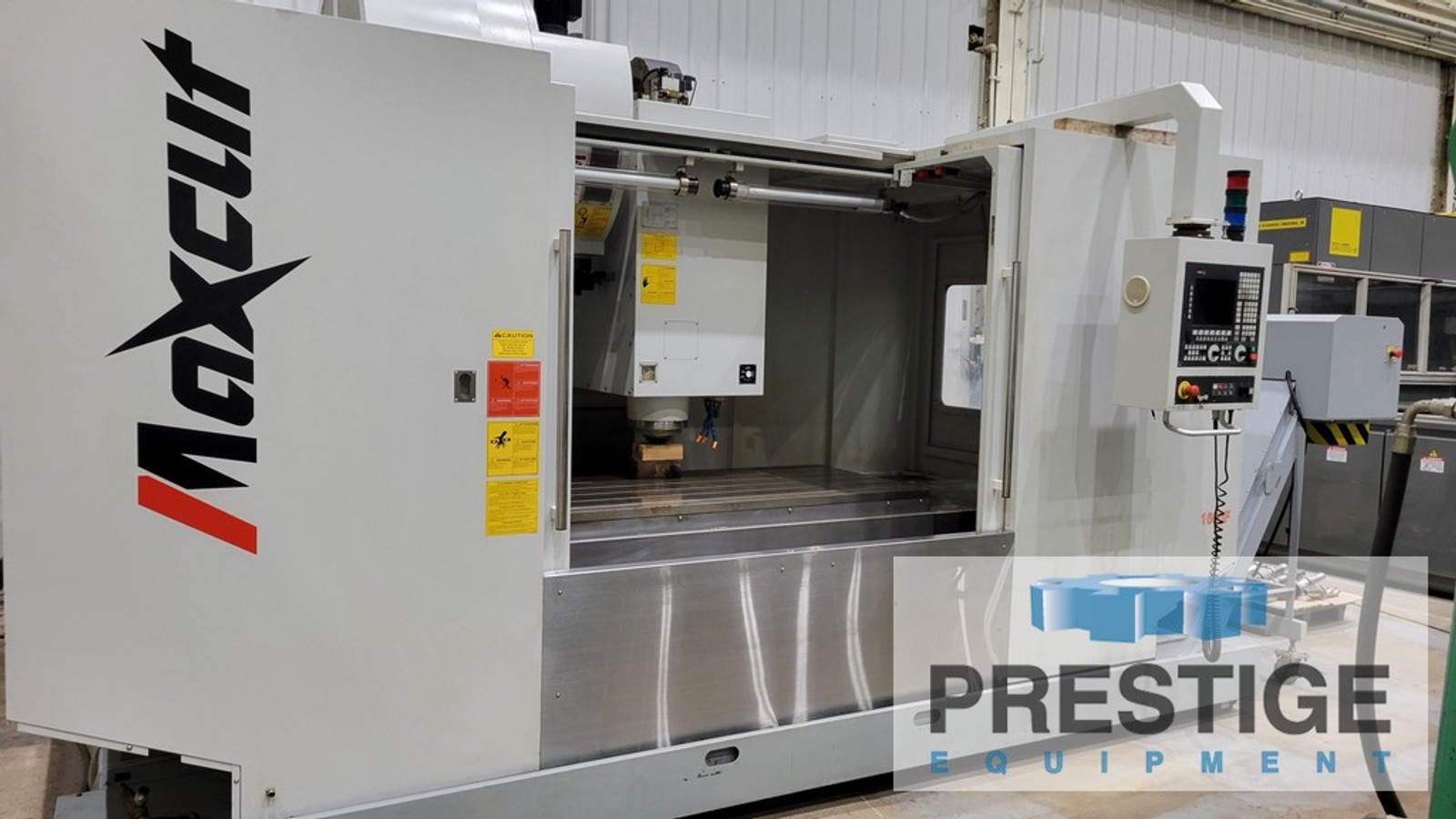

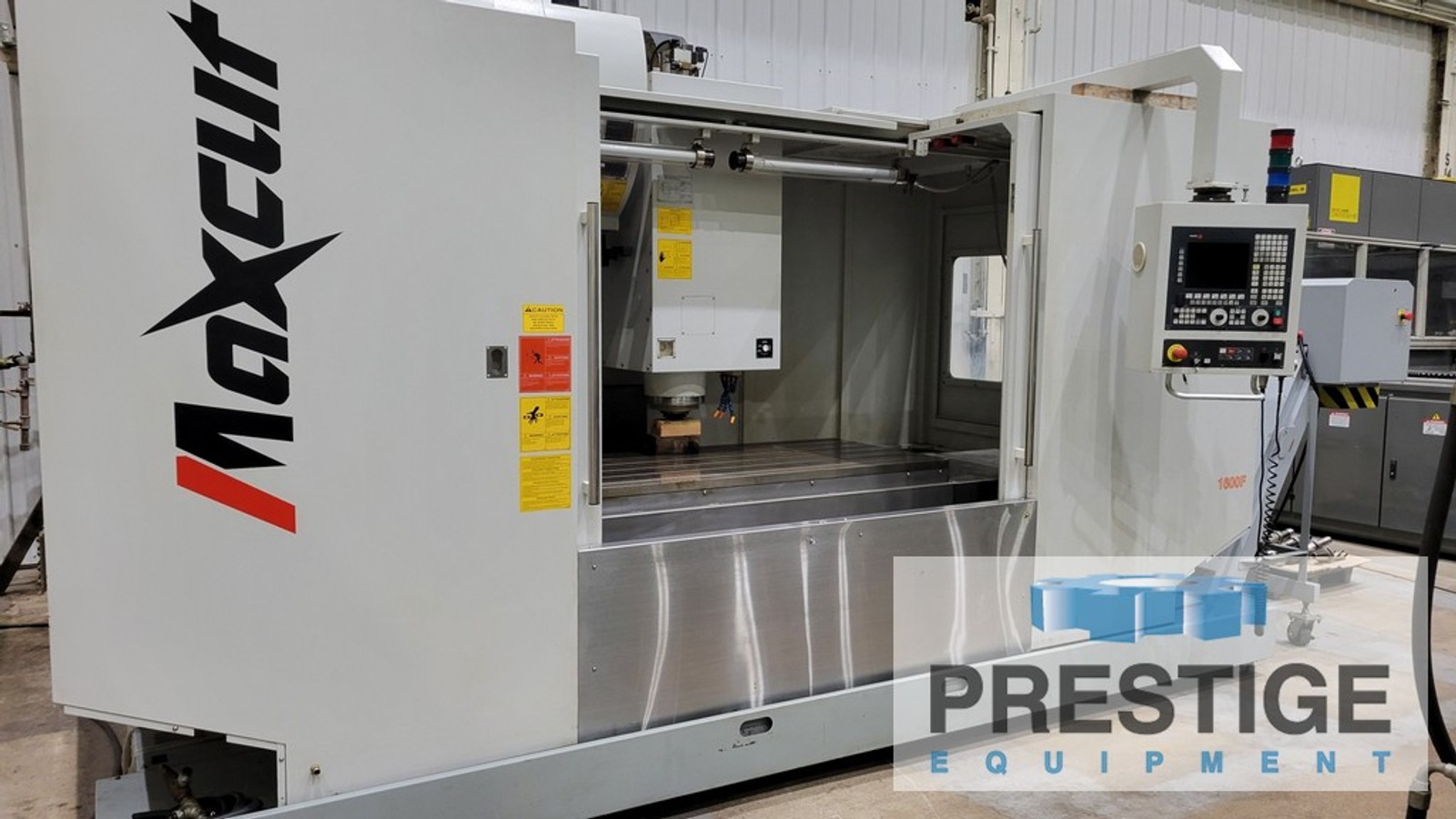

MICROCUT Maxicut VMC1600F CNC Vertical Machining Center

FEATURES:
Fagor 8055
24-Position Automatic Tool Changer
Chip Conveyor
Misc. Tooling

CAPACITY:
X-Axis Travel ......................... 62.99"
Y-Axis Travel ......................... 31.49"
Z-Axis Travel ......................... 27.95"
Spindle Nose to Table ................. 5.90"-33.07"

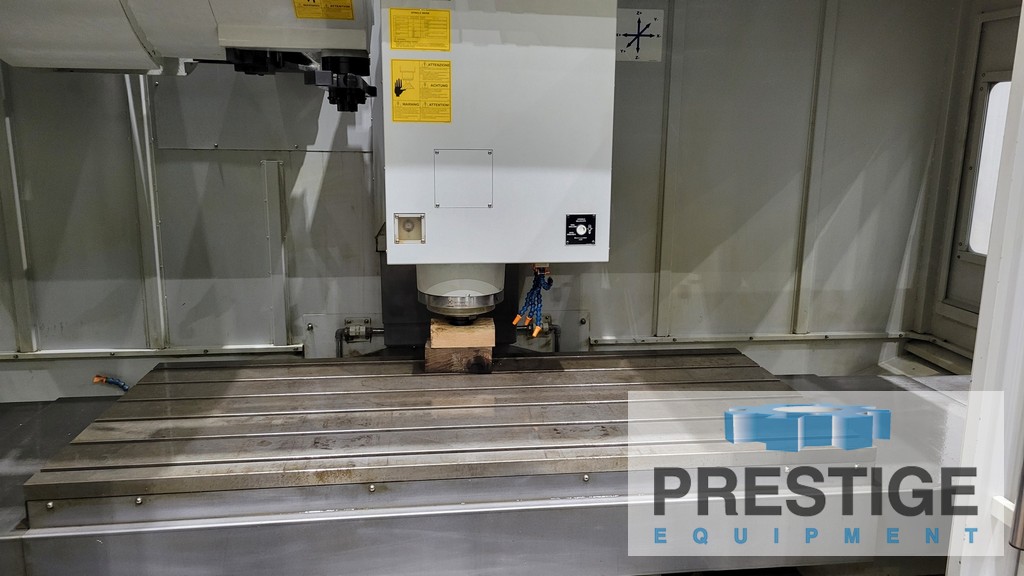

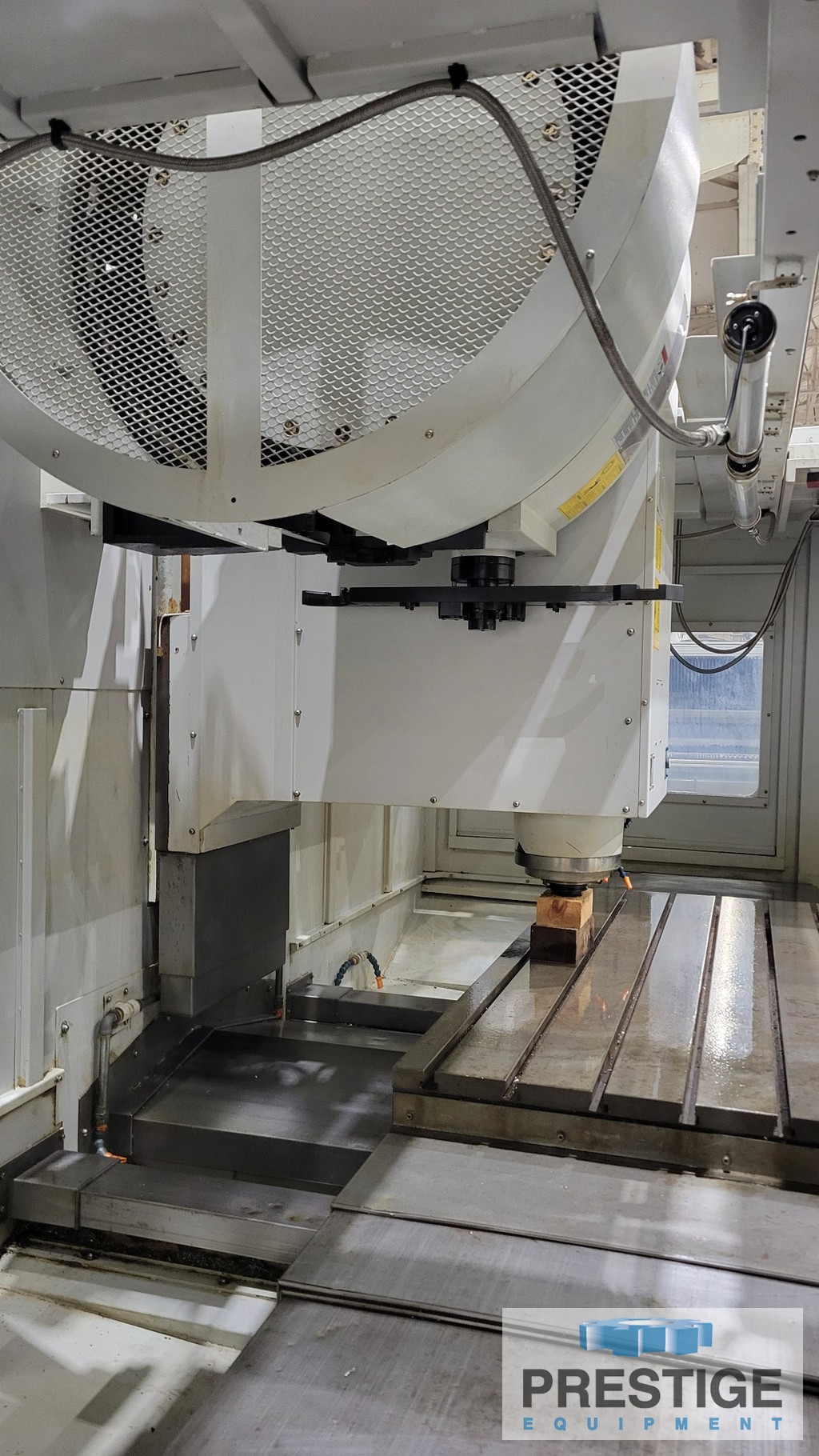

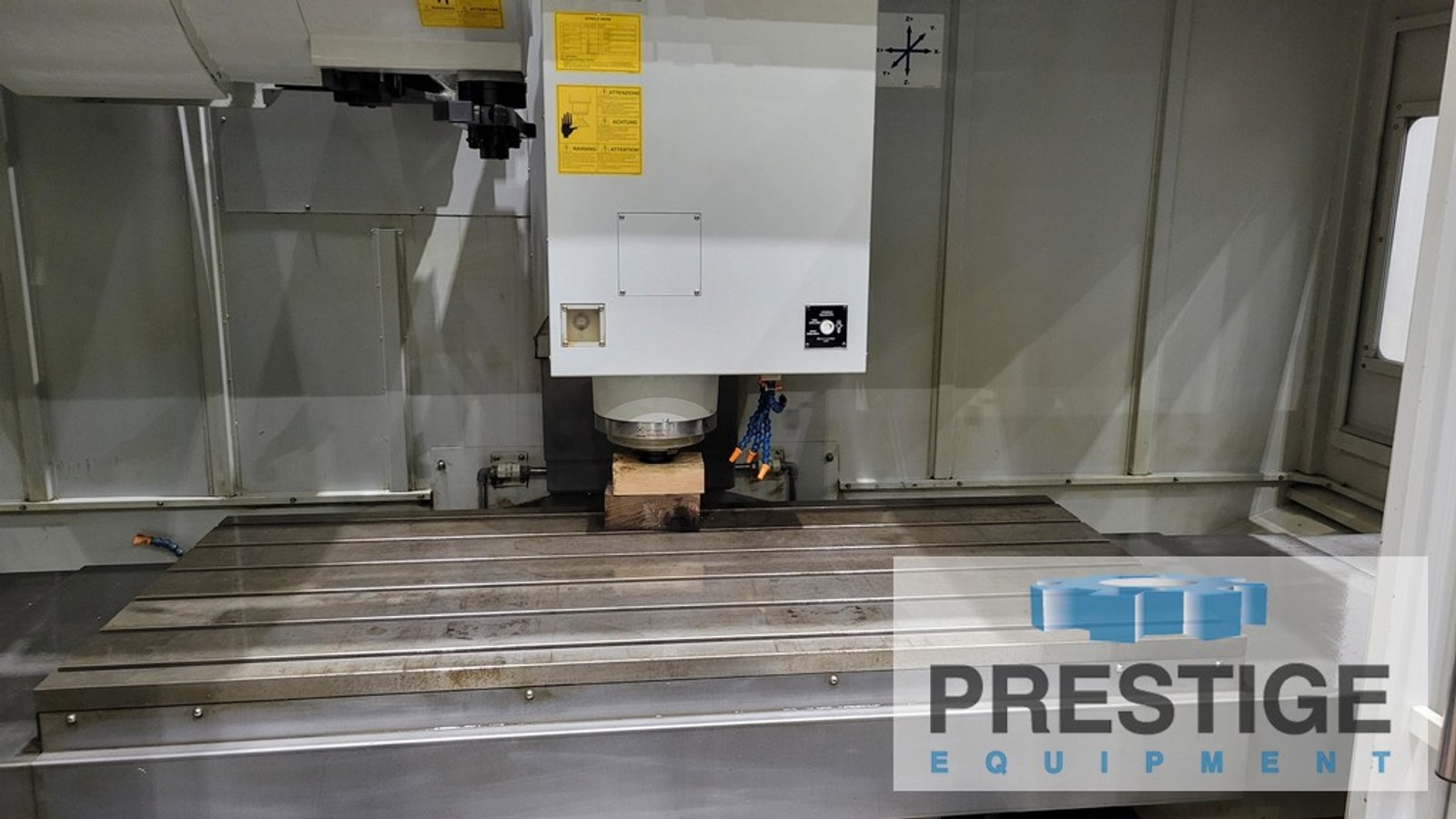

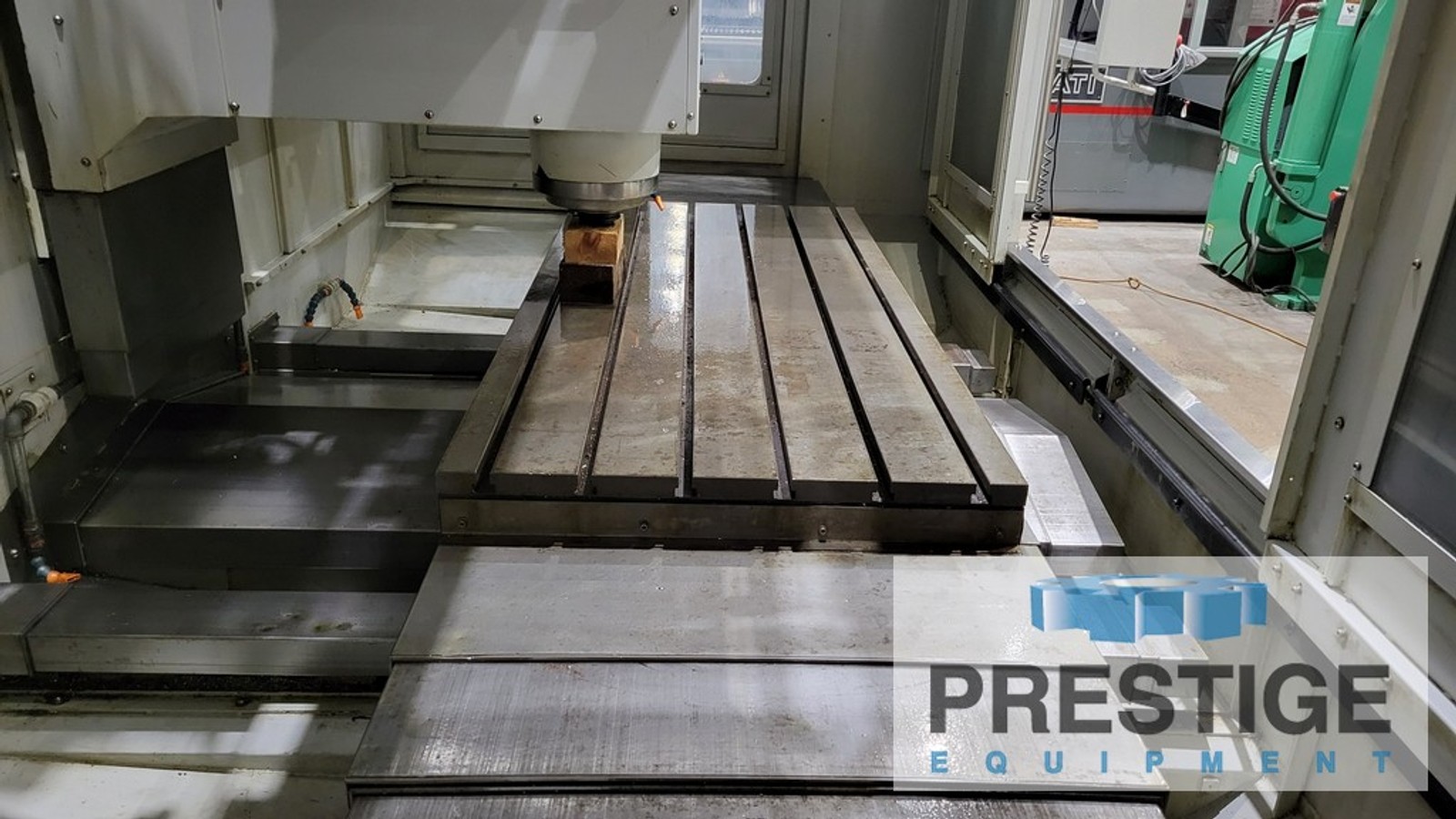

Table Size ............................ 70.86" x 31.49"
Table Weight Capacity ................. 4,400 Lbs.
Spindle Speeds ........................ 6,000 RPM
Feed Rate Rate (X/Y/Z)................. 944.88 IPM
Spindle Taper ......................... CAT #50
Spindle Drive Motor ................... 34.6 HP / 24.6 HP
Machine Dimensions (w/ Chip Conveyor) . 213" x 126" x 120"
Machine Weight ........................ 24,200 Lbs.

EQUIPPED WITH:

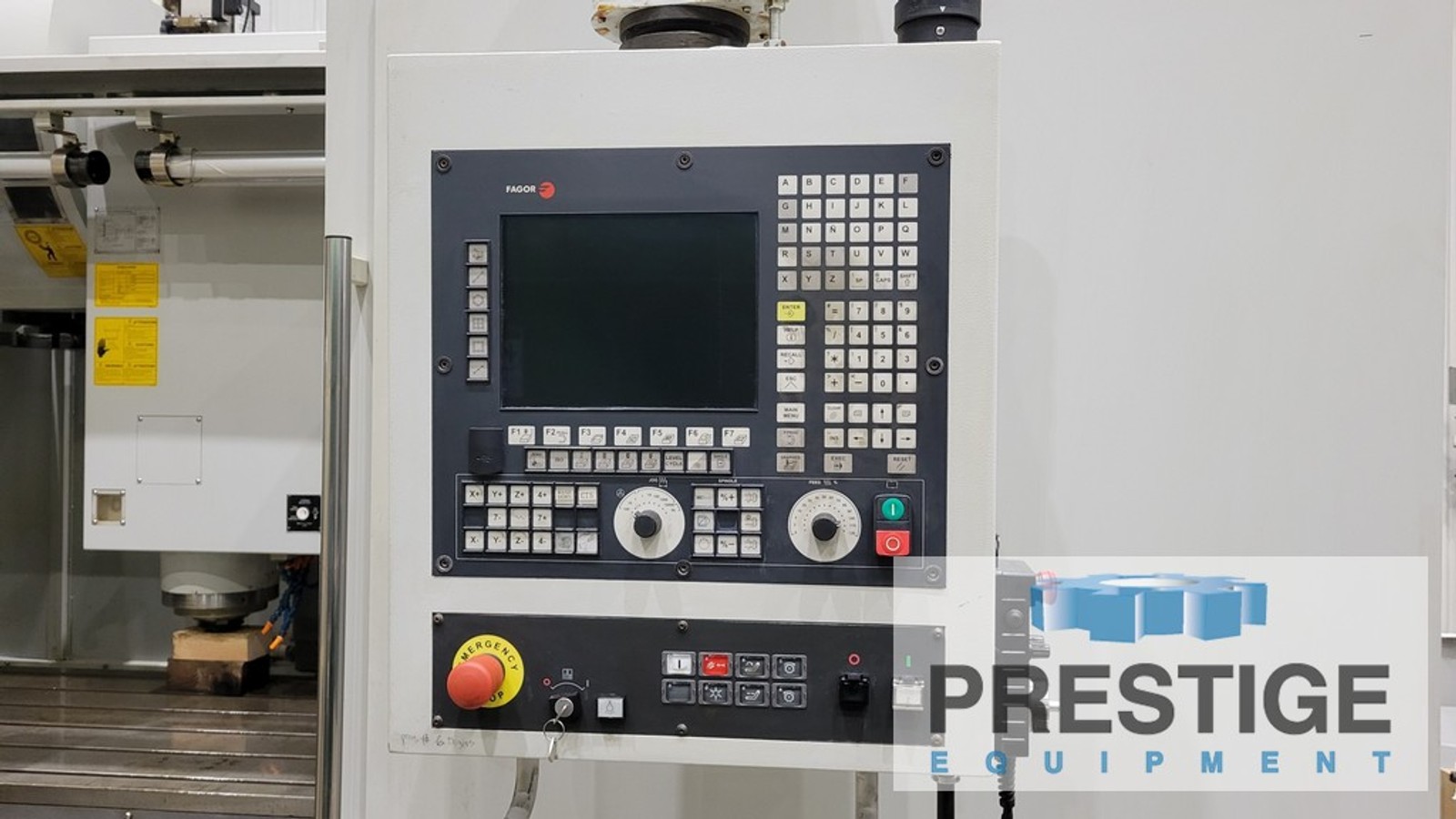

Fagor 8055 CNC Control
Box Ways
Rigid Tapping
24-Position Automatic Tool Changer
Automatic Lubrication System
Fully Enclosure Splash Guard with Interlock Device
Telescoping Covers for X & Y Axis
Rigid Tapping
Portable MPG
Chip Conveyor

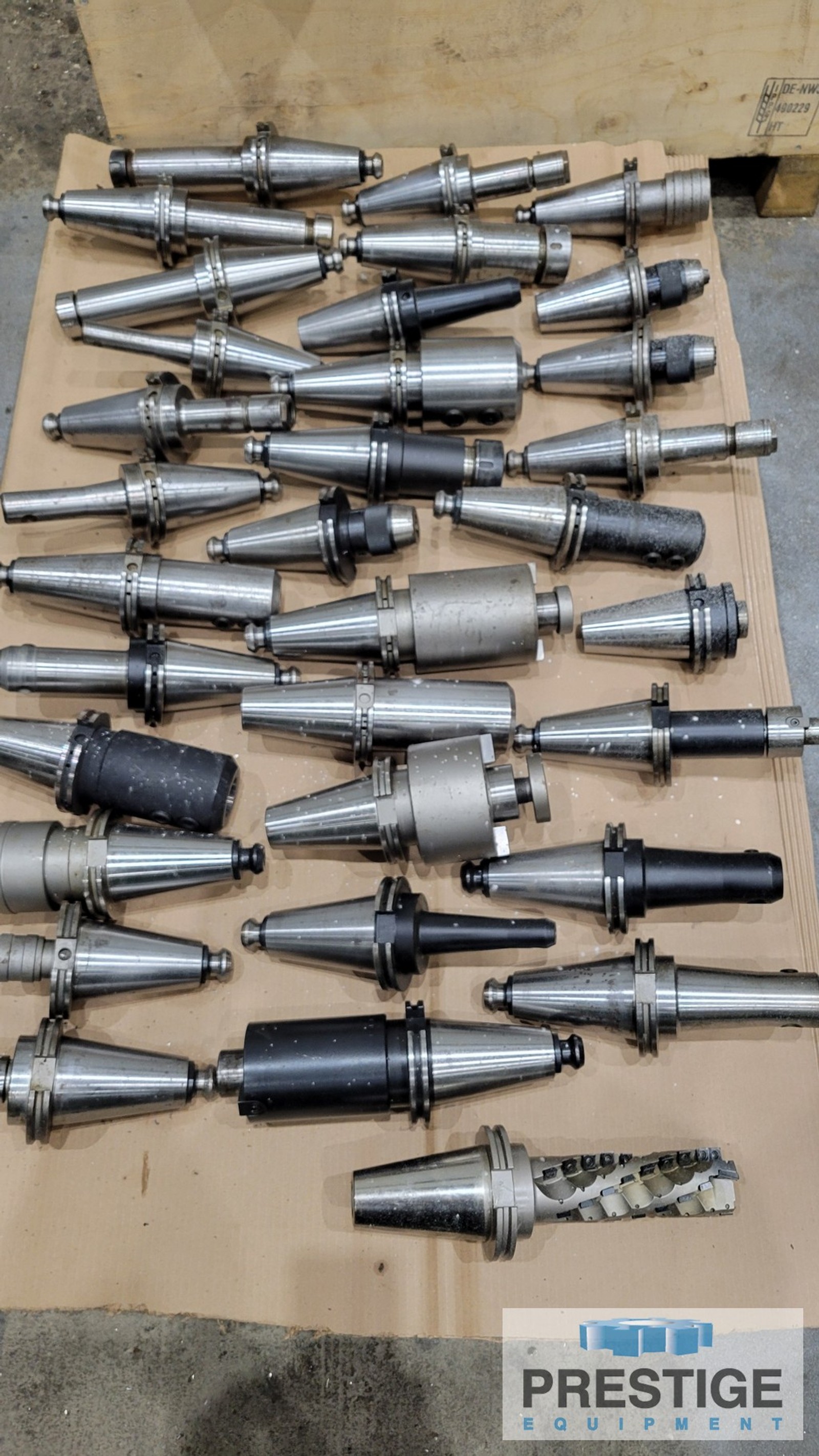

Misc. Tooling
