Porta TRV-08-N-16-90-110, 8-Station, 16-Spindle, HSK 50/63/ISO-40 Taper, 6K/15K RPM, Siemens CNC, Chip Conv, 2017, #31467

Manufacturer

PORTA

Category

Miscellaneous Machines

Type

TRANSFER MACHINES

Stock

31467

Model

TRV-08-N-16-90-110

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #31467

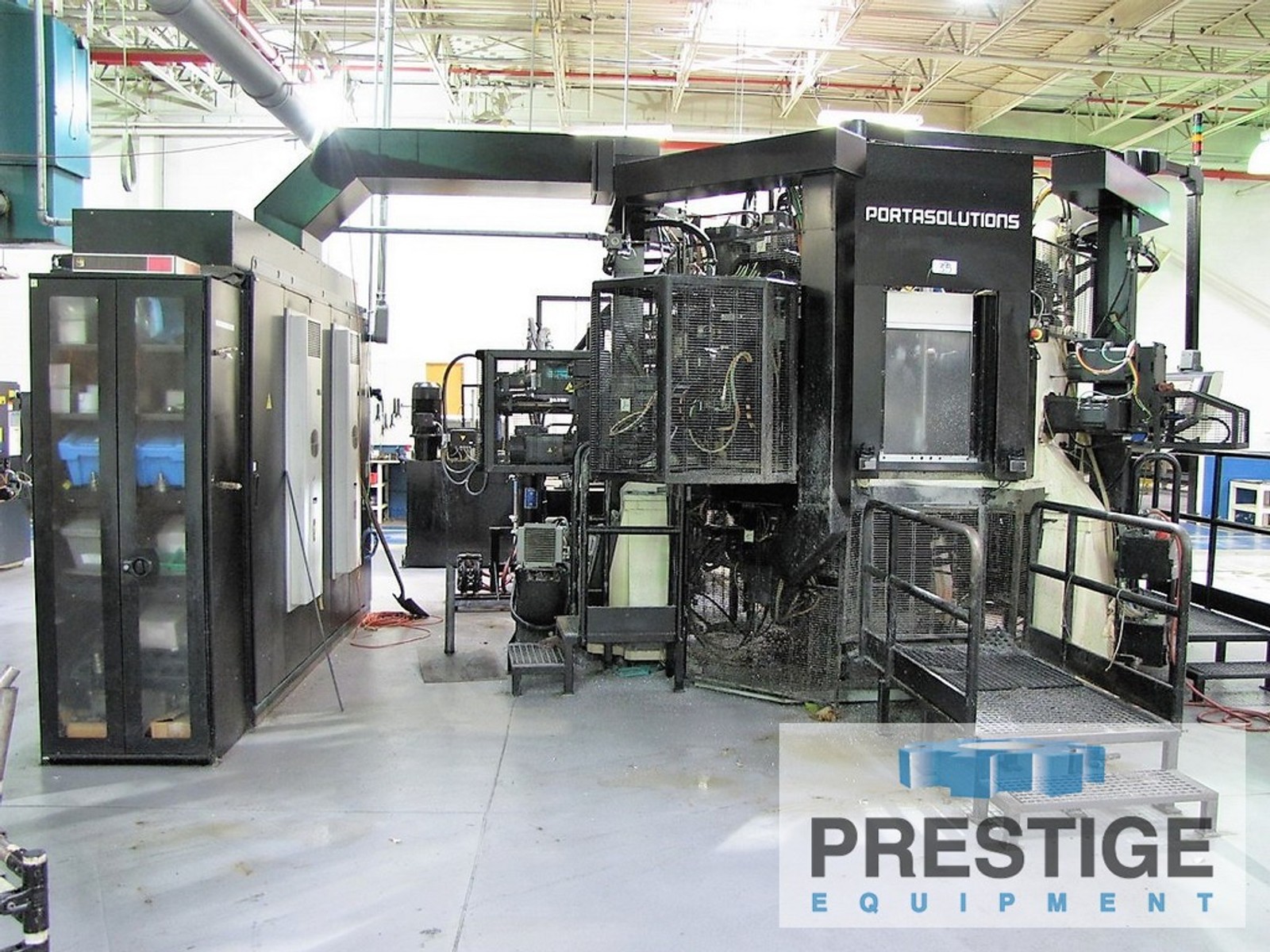

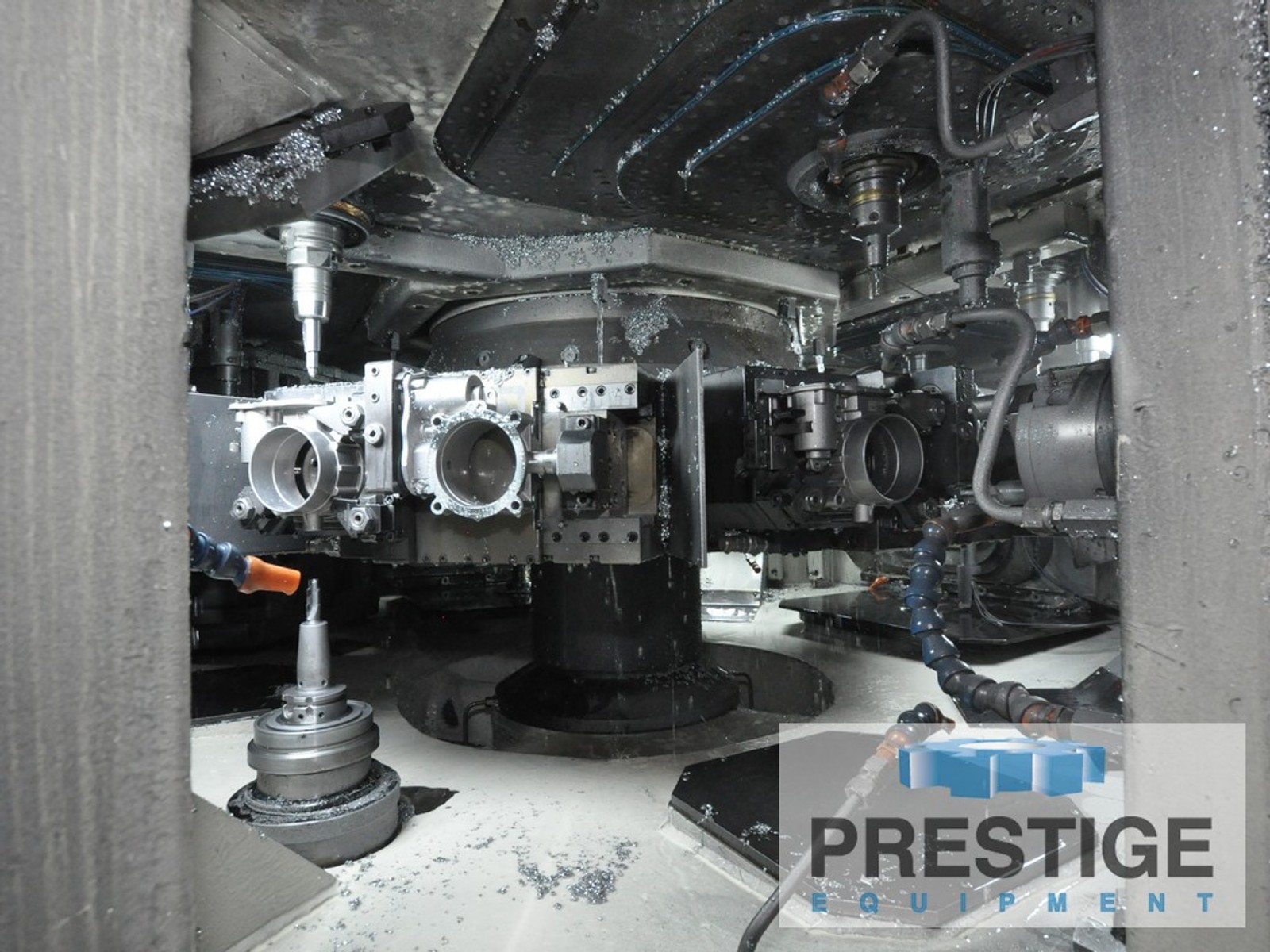

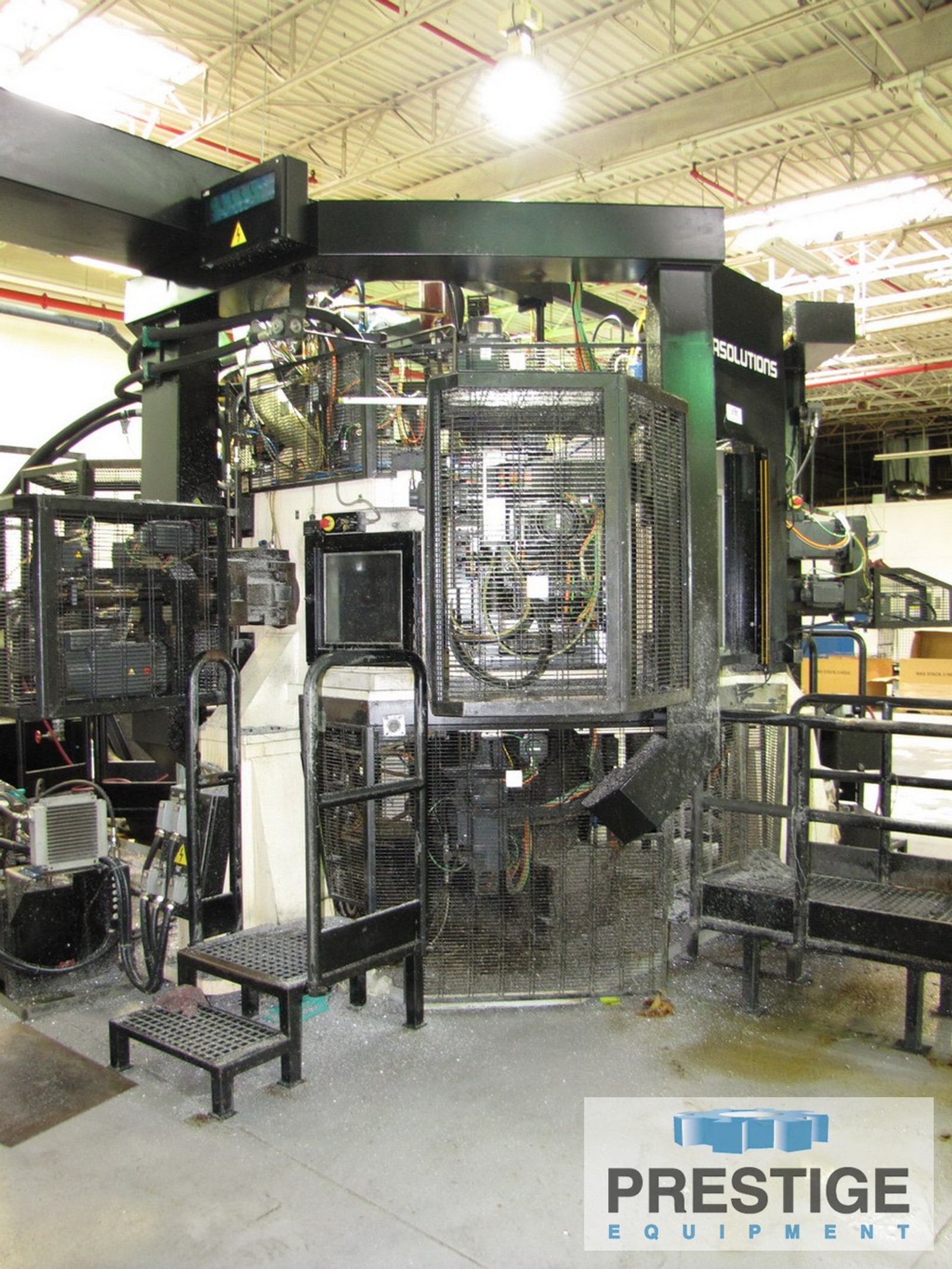

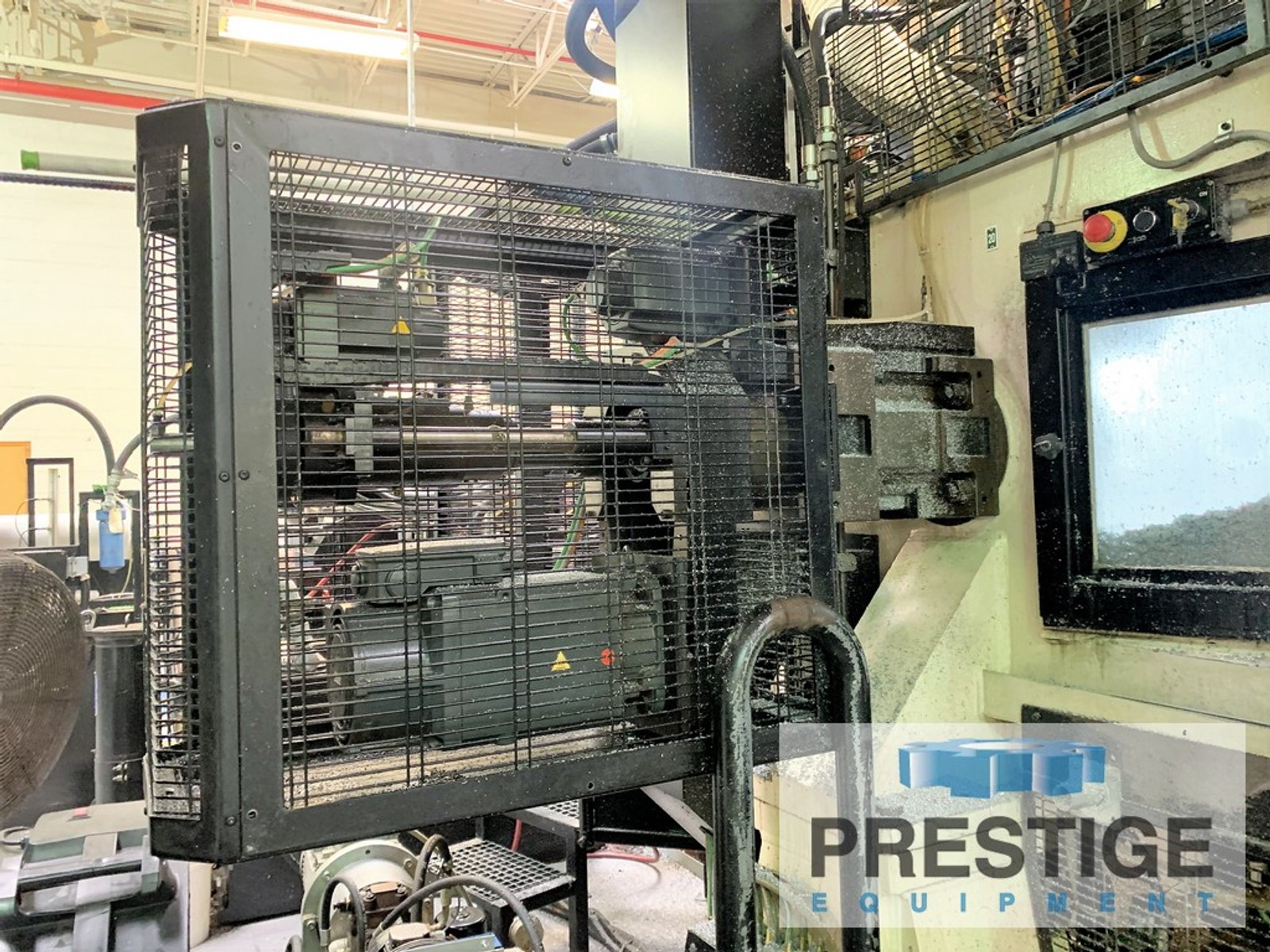

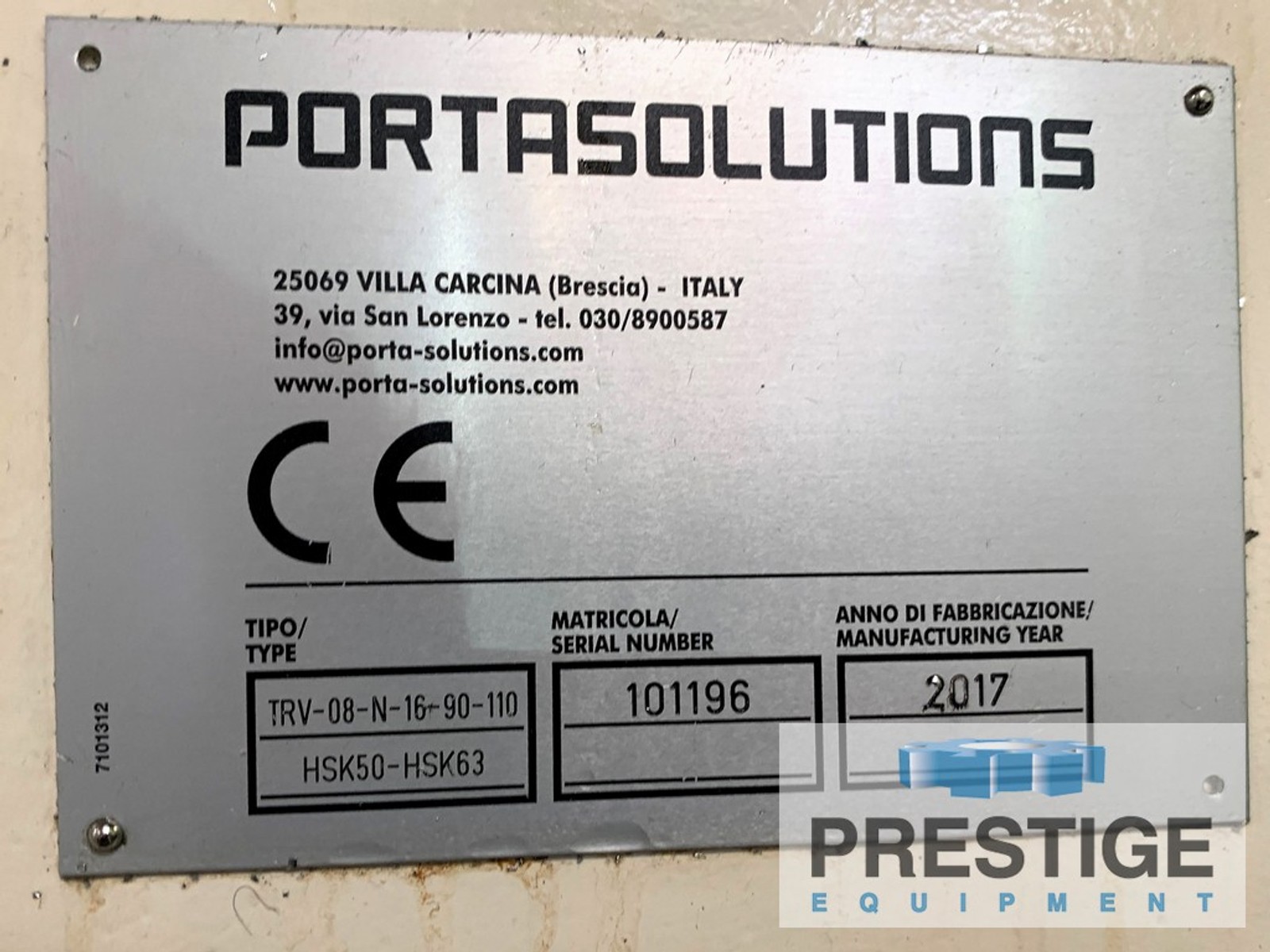

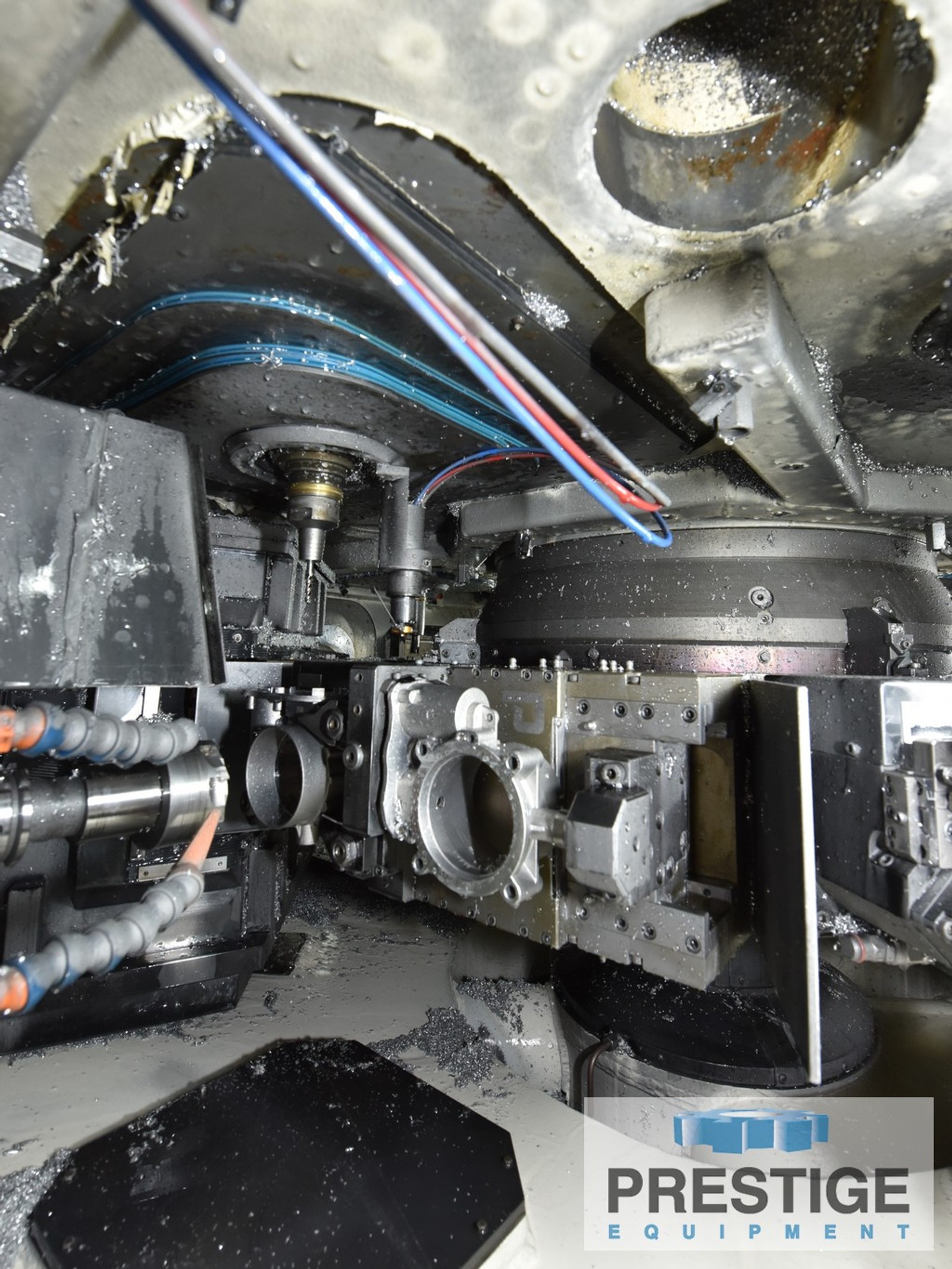

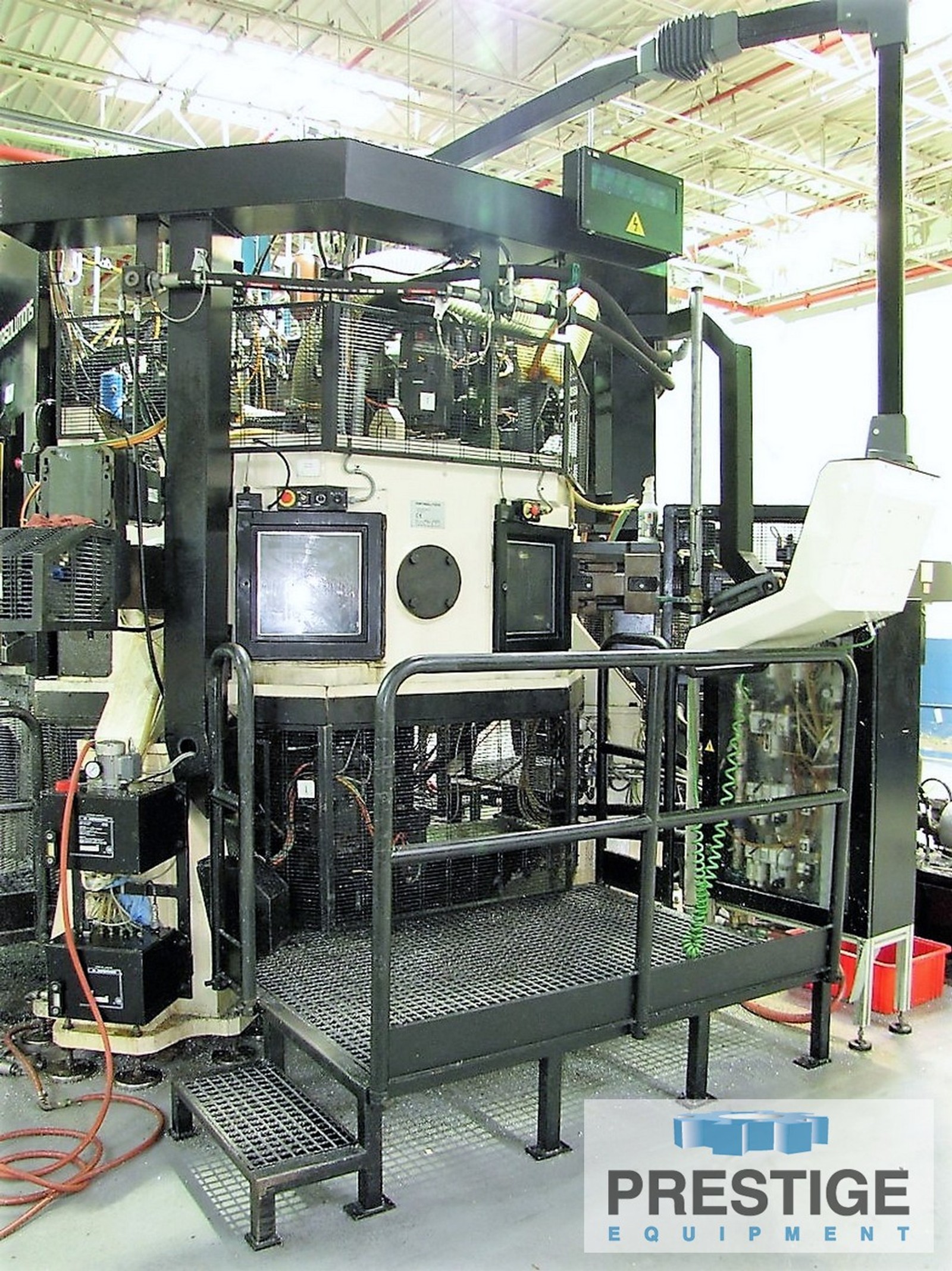

Porta TRV-08-N-16-90-110 CNC Rotary Transfer Machine

FEATURES:

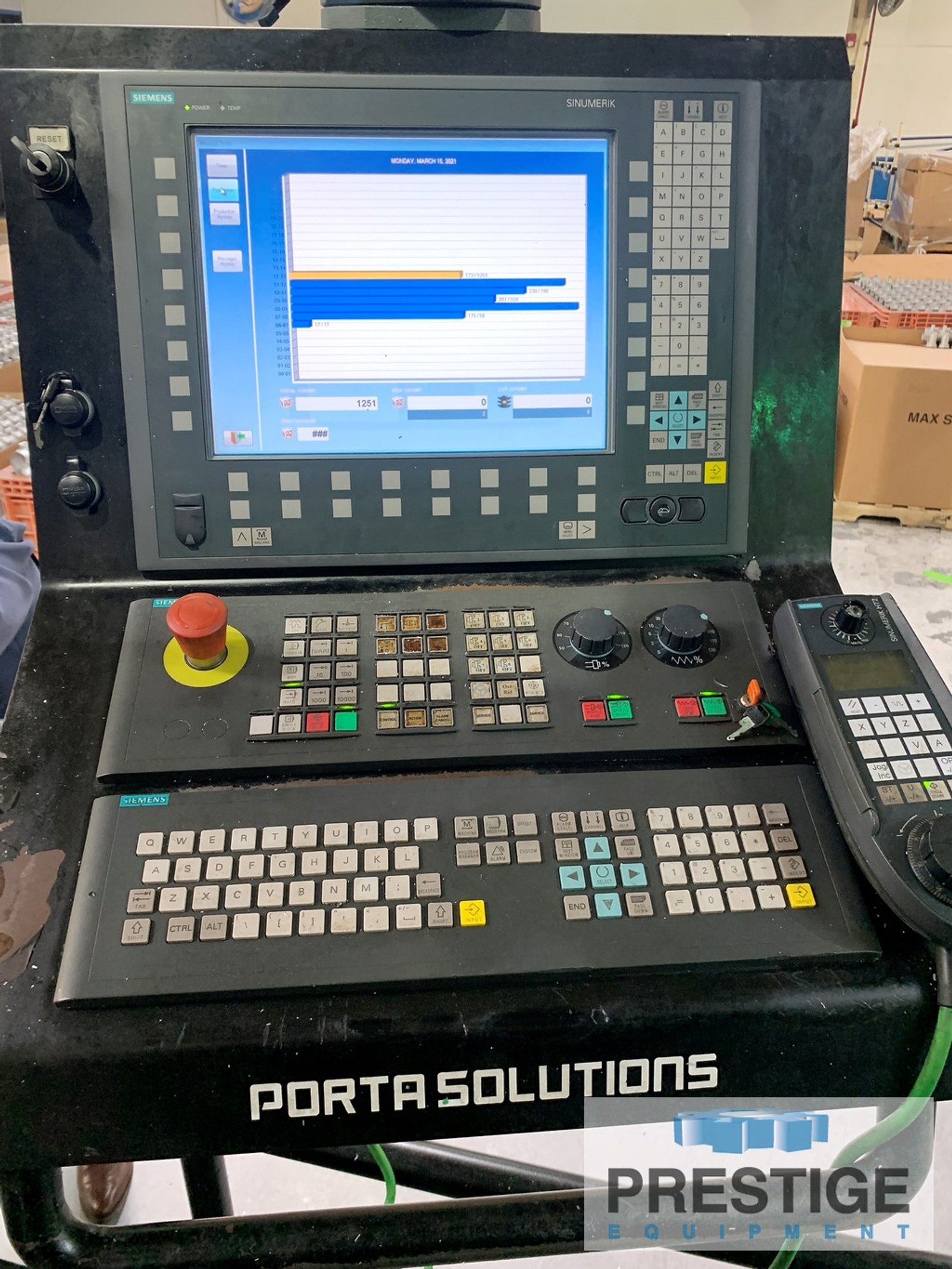

Siemens Sinumerik HT2 CNC Controls
8 Machining Stations
16 Work Spindles
6000 & 15,000 RPM
HSK 50, HSK 63, ISO 40 Taper
Automatic Tool Changer
High Pressure Coolant

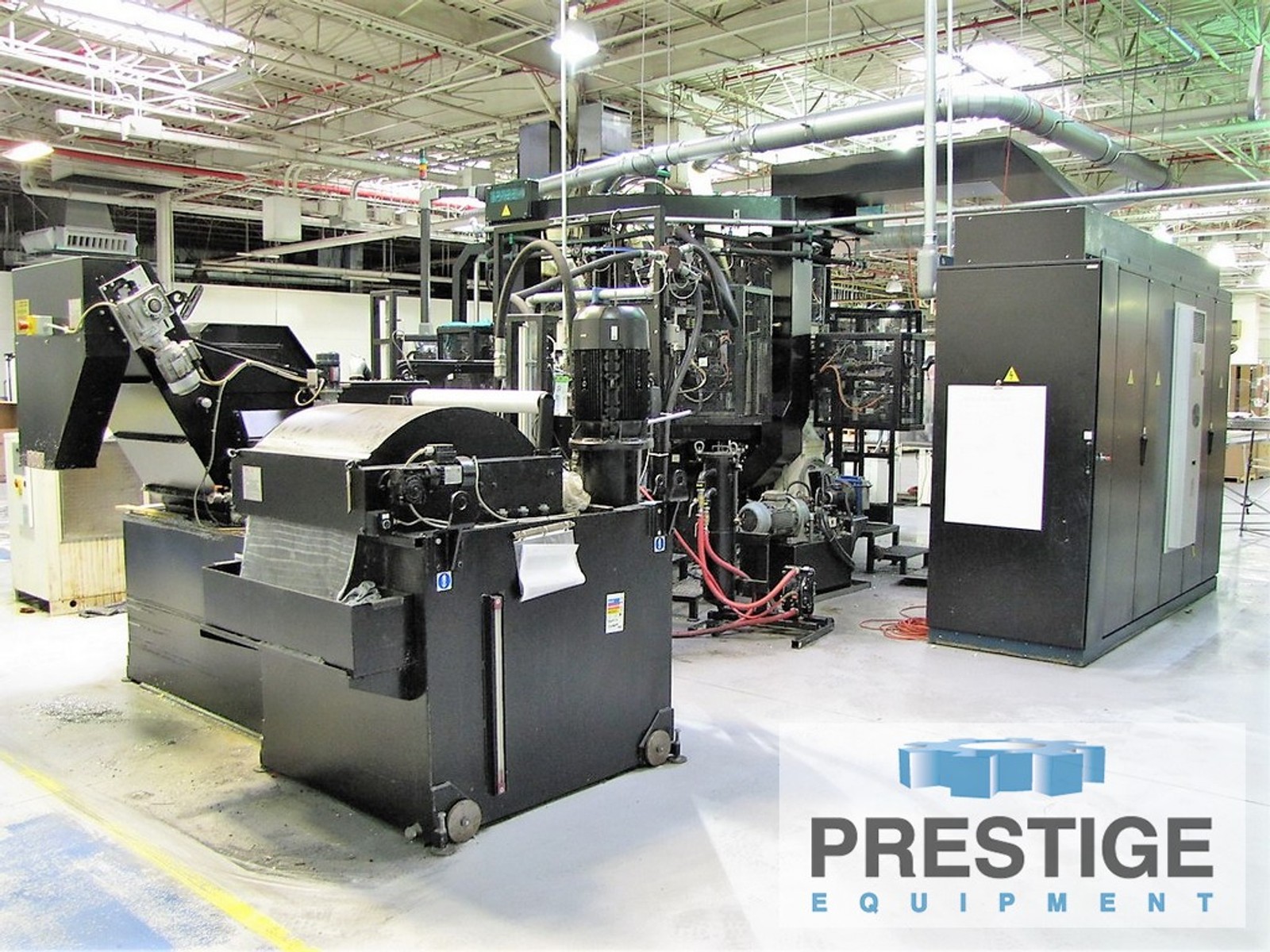

Chip Conveyor

SPECIFICATIONS:
Stations .............................. 8
Vertical Spindles ..................... 7
Y-Axis Boring Spindles ................ 3
Z-Axis Boring Spindles ................ 3
Independent XYZ Axis Spindles ......... 4
Number of Controlled Axis Movements ... 34

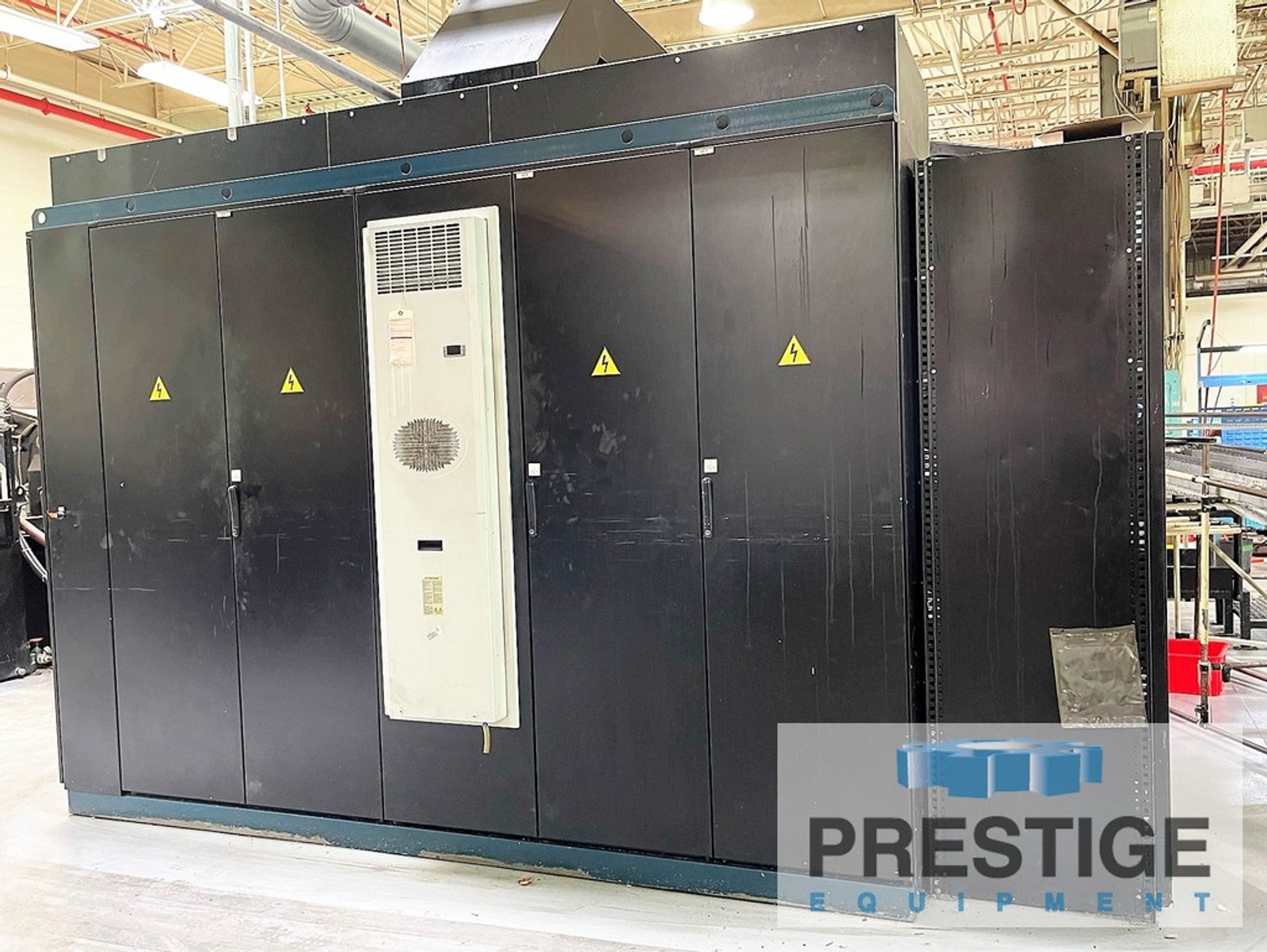

Machine Electrics .................... 460/3/60

STATION 1:
Spindle Heads ........................ 3
Spindle Head Type ..................... FMU 90
Spindle Taper ........................ HSK-50
Spindle Speeds ....................... 15,000 RPM
Spindle Motor ........................ 3.75 HP
Spindle Travel, Z-Axis ................ 4.72"
High Pressure Coolant

STATION 2:
Spindle Heads ......................... 2
Spindle Head Type ..................... FMU 110
Spindle Taper ........................ HSK 63 & ISO 40
Spindle Speeds ....................... 6,000 RPM
Spindle Motor ........................ 7.37 HP
Spindle Travel, Z-Axis ................ 5.31"
High Pressure Coolant
Predisposition Fixed Unit

STATION 3:
Spindle Heads ......................... 3
Spindle Head Type & Taper ............. FMU 90 (HSK 50)
Spindle Speeds ....................... 15,000 RPM
Spindle Motor ........................ 3.75 HP
Spindle Travel ........................ 4.72"
High Pressure Coolant

STATION 4:
Spindle Heads ......................... 2 (FMU 110 & FMU 90)
Spindle Taper, FMU 110................. ISO 40
Spindle Speeds, FMU 110................ 15,000 RPM
Spindle Motor, FMU 110 ................ 7.37 HP
Spindle Travel, FMU 110 ............... 5.31"
Spindle Taper, FMU-90 ................. HSK 50
Spindle Speeds, FMU-90 ................ 6000 RPM
Spindle Motor, FMU-90 ................. 3.75 HP
Spindle Travel, FMU-90 ................ 4.72"


STATION 5:
Spindle Heads ......................... 2 (FMU 110 & FMU 90)
Spindle Taper, FMU 110................. ISO 40
Spindle Speeds, FMU 110................ 6,000 RPM
Spindle Motor, FMU 110 ................ 7.37 HP
Spindle Travel, FMU 110 ............... 5.31"
Spindle Taper, FMU-90 ................. HSK 50
Spindle Speeds, FMU-90 ................ 15,000 RPM
Spindle Motor, FMU-90 ................. 3.75 HP
Spindle Travel, FMU-90 ................ 4.72"
High Pressure Coolant
With Predisposition XYZ CNC Unit

STATION 6:
Spindle Heads ......................... 2 (FMU-110)
Spindle Taper ........................ HSK-63
Spindle Speeds ........................ 6000 RPM
Spindle Motor ........................ 7.37 HP
Spindle Travel ....................... 5.31"
High Pressure Coolant
With Predisposition XYZ CNC Unit

STATION 7:
Spindle Heads ......................... 2 (FMU 110 & FMU 90)
Spindle Taper, FMU 110................. HSK 63
Spindle Speeds, FMU 110................ 6000 RPM
Spindle Motor, FMU 110 ................ 7.37 HP
Spindle Travel, FMU 110 ............... 5.31"
Spindle Taper, FMU-90 ................. HSK 50
Spindle Speeds, FMU-90 ................ 15,000 RPM
Spindle Motor, FMU-90 ................. 3.75 HP
Spindle Travel, FMU-90 ................ 4.72"
High Pressure Coolant
With Predisposition XYZ CNC Unit

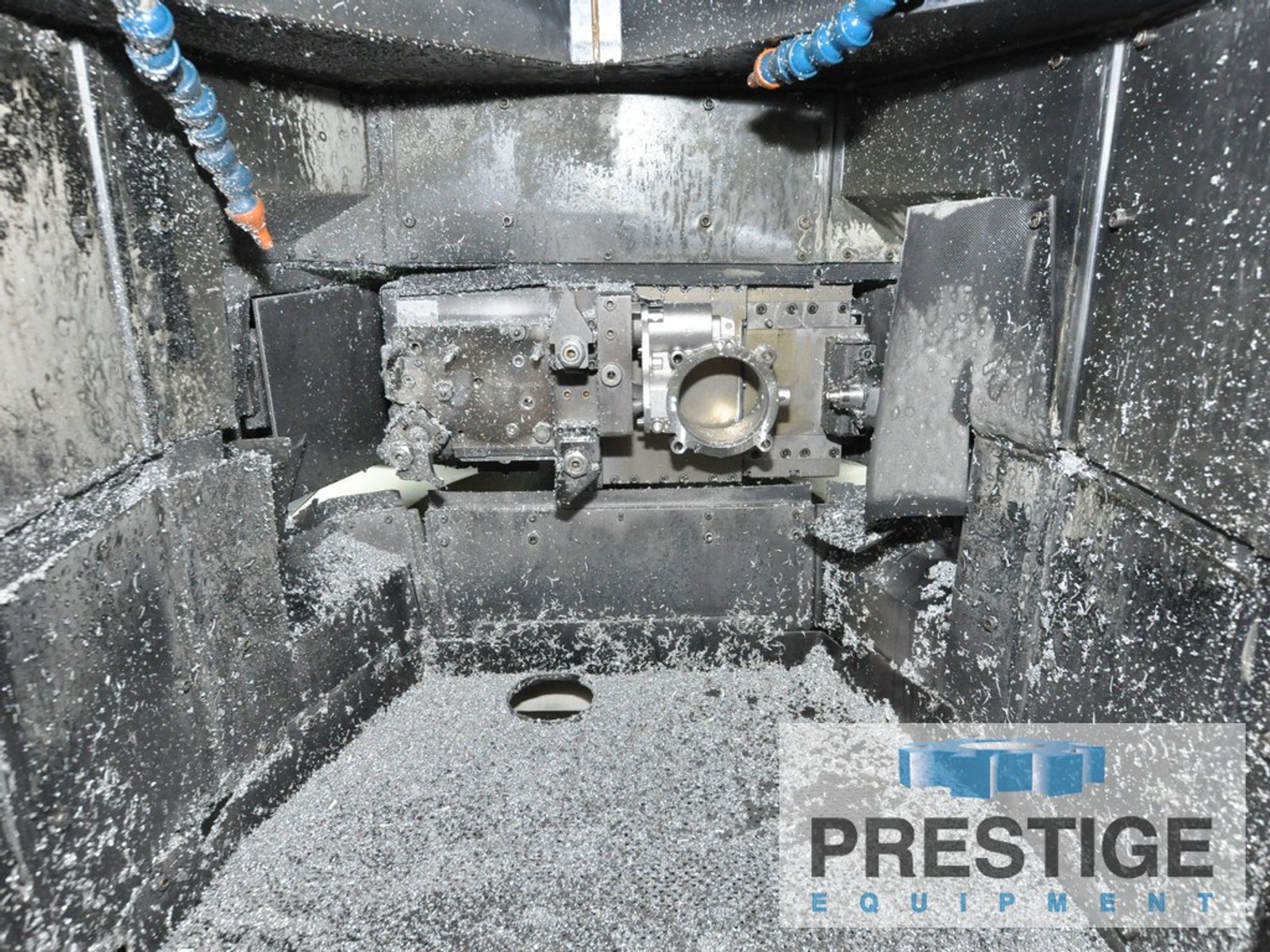

STATION 8:
Load / Unload

EQUIPPED WITH:
Siemens Sinumerik HT2 CNC Controls
8 Machining Stations
16 Work Spindles
6000 & 15,000 RPM
HSK 50, HSK 63, ISO 40 Taper
Automatic Tool Changer
High Pressure Coolant

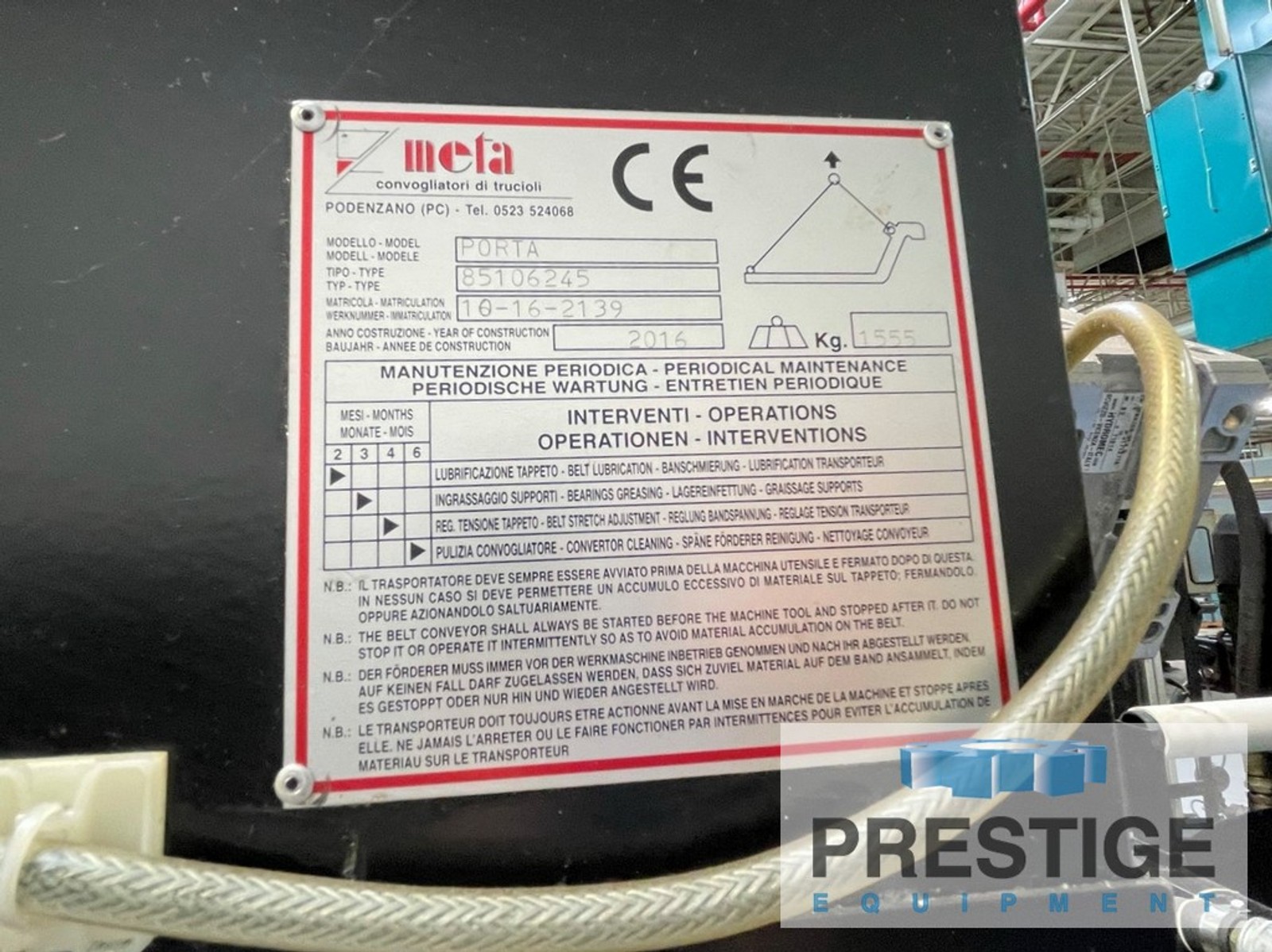

Meta Porta Chip Conveyor

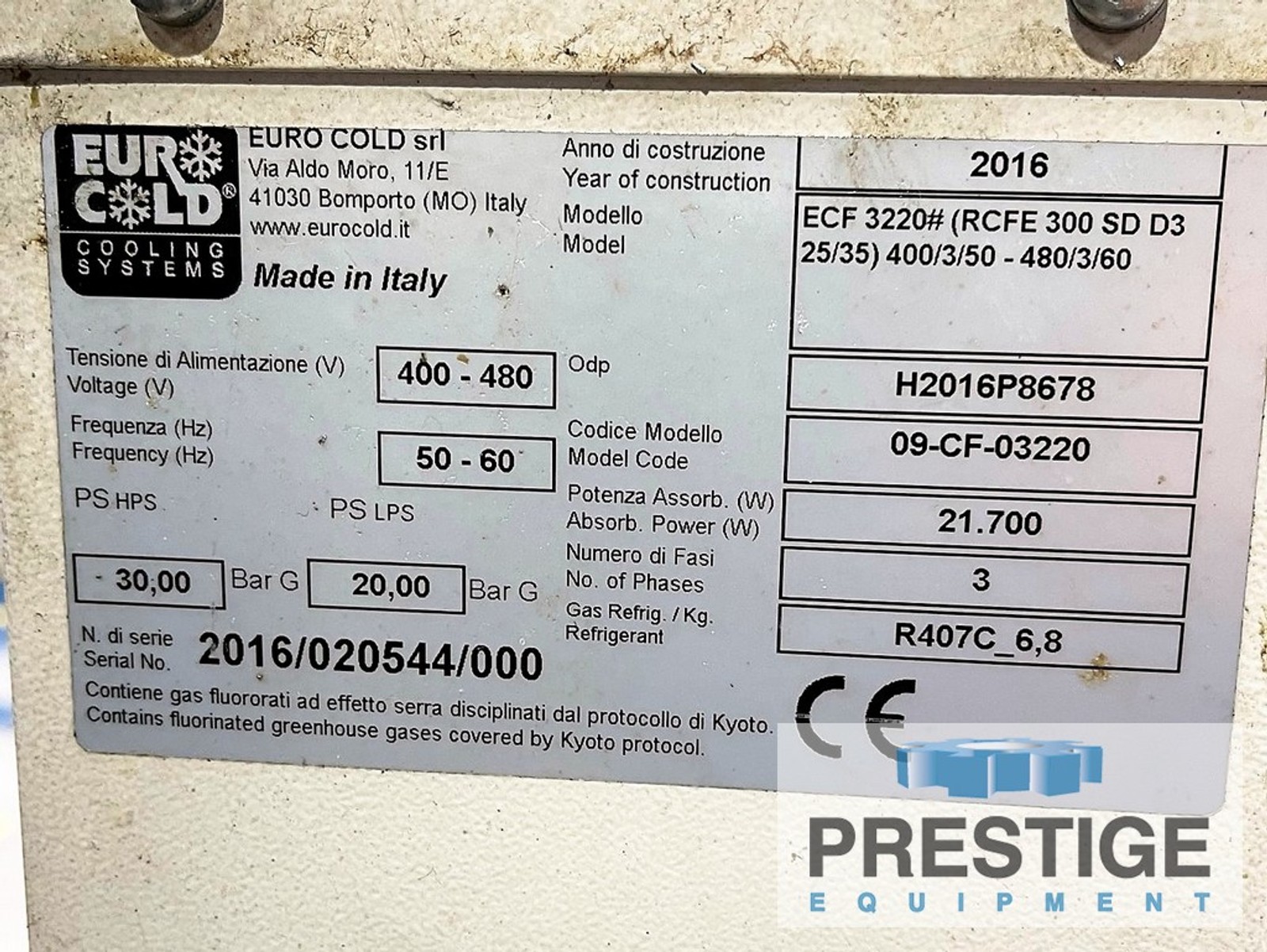

Euro Cold Chiller

PLEASE NOTE:
This Machine Was Finishing The Surfaces Of 60mm and 80mm Aluminum Components

LOCATION:
Our Philadelphia Warehouse
