(2) 33" Doosan Puma V8300R, 33" Swing, 21" Tbl, 29" Max. Height, 2,000 RPM, 12-Pos. Trt, Fanuc CNC, 2017, #43580

Manufacturer

DOOSAN

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43580

Model

Puma V8300R

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43580

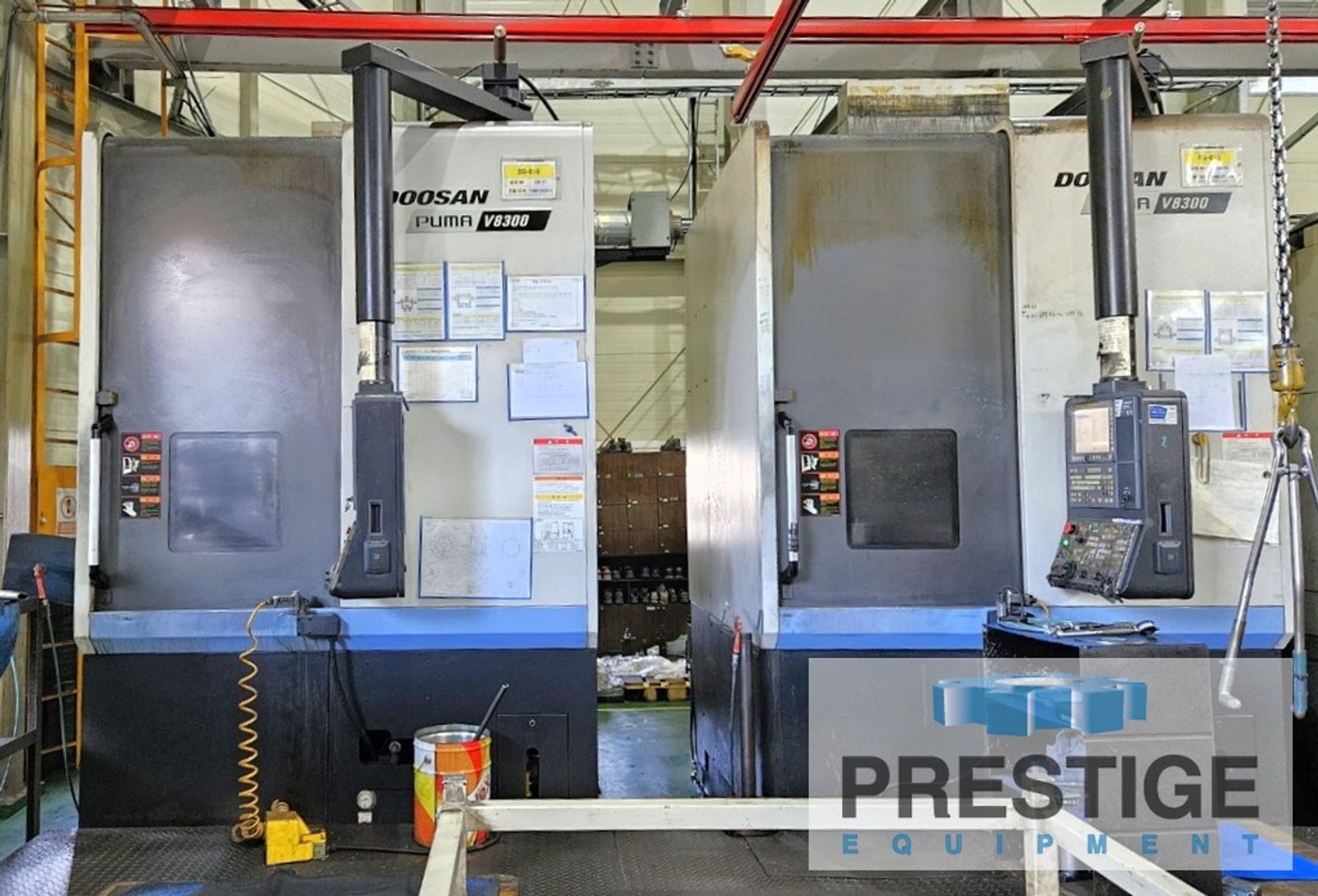

(2) 33.4" Doosan Puma V8300R CNC Vertical Turning Center

FEATURES:

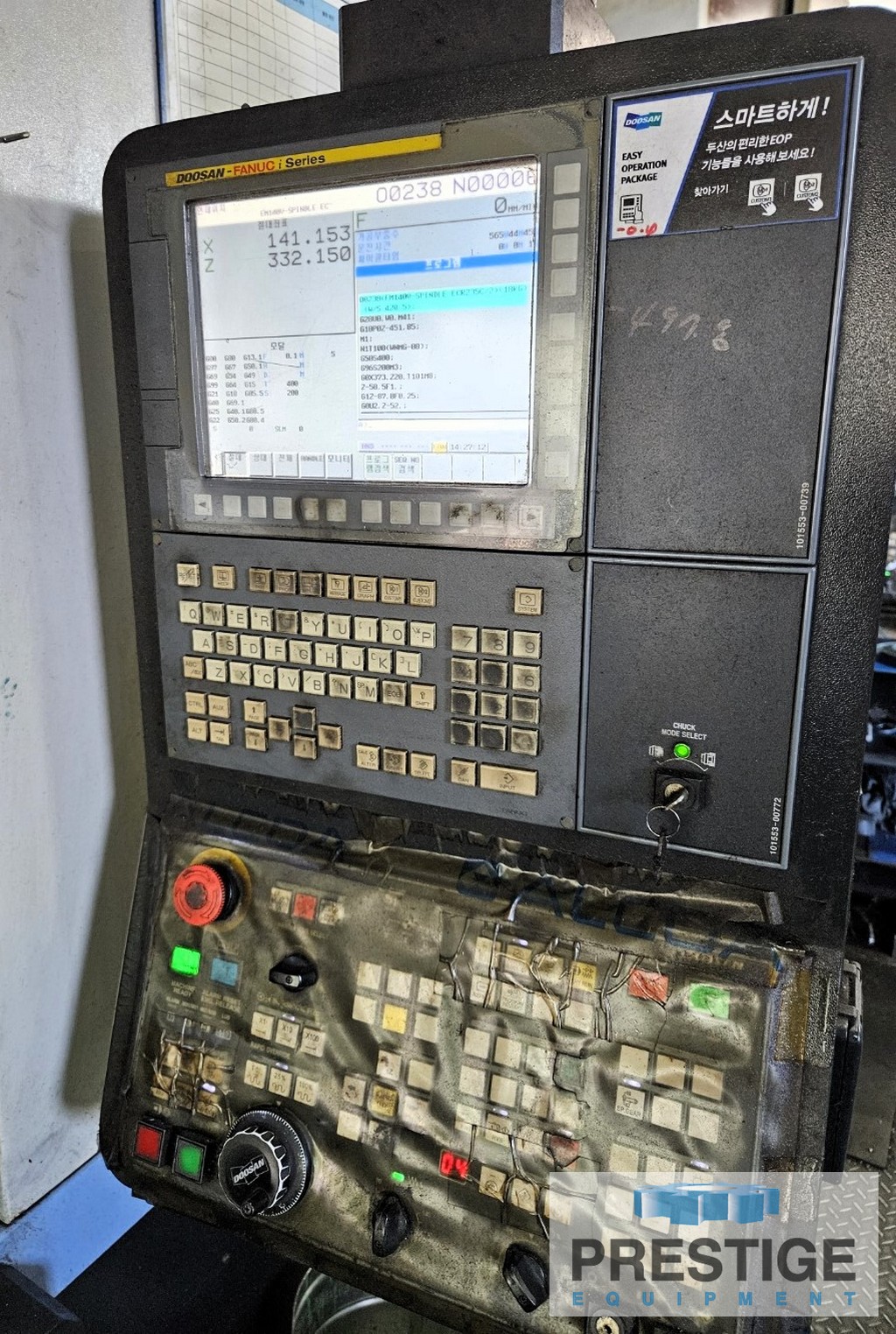

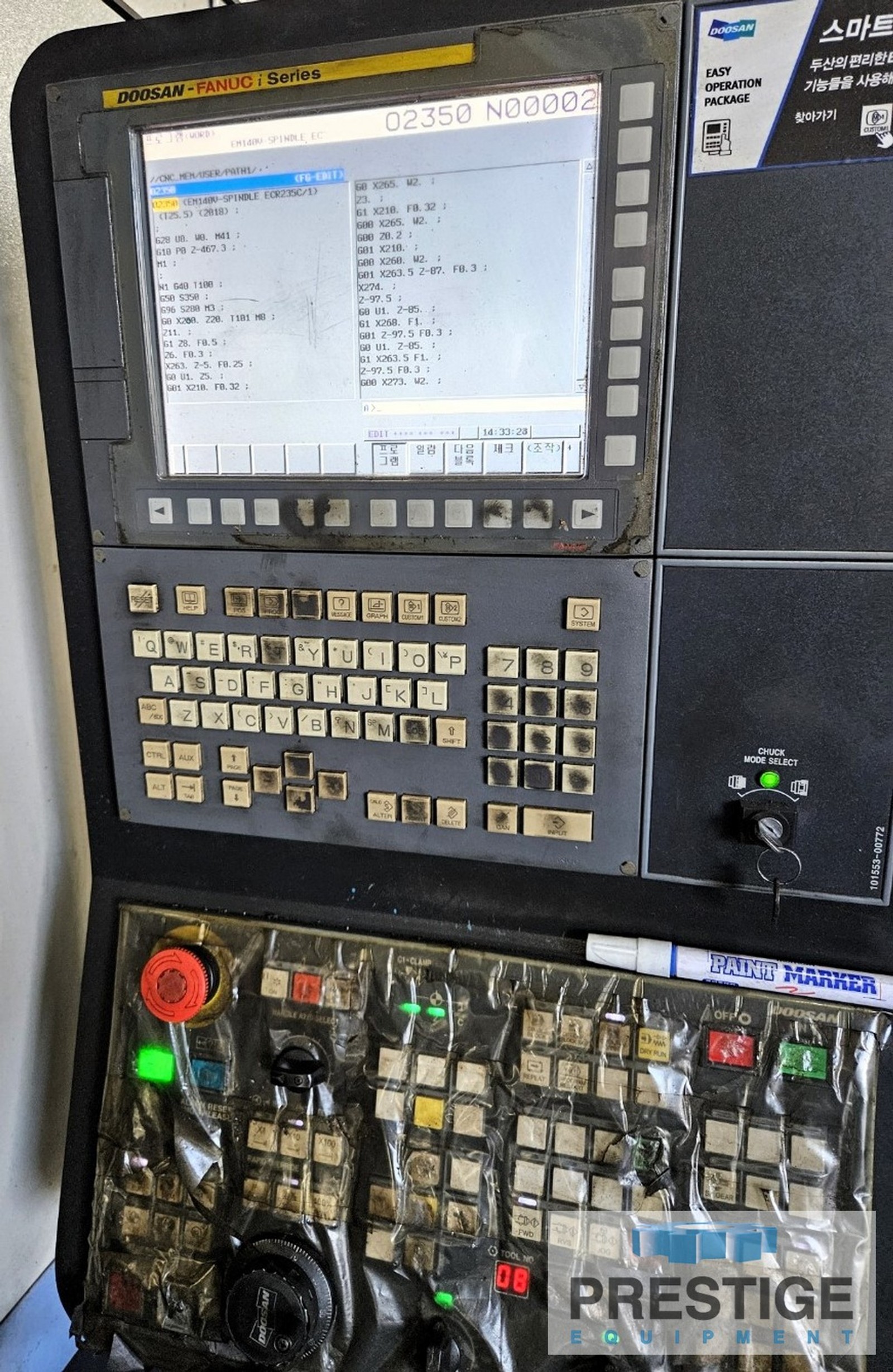

Fanuc i CNC Control

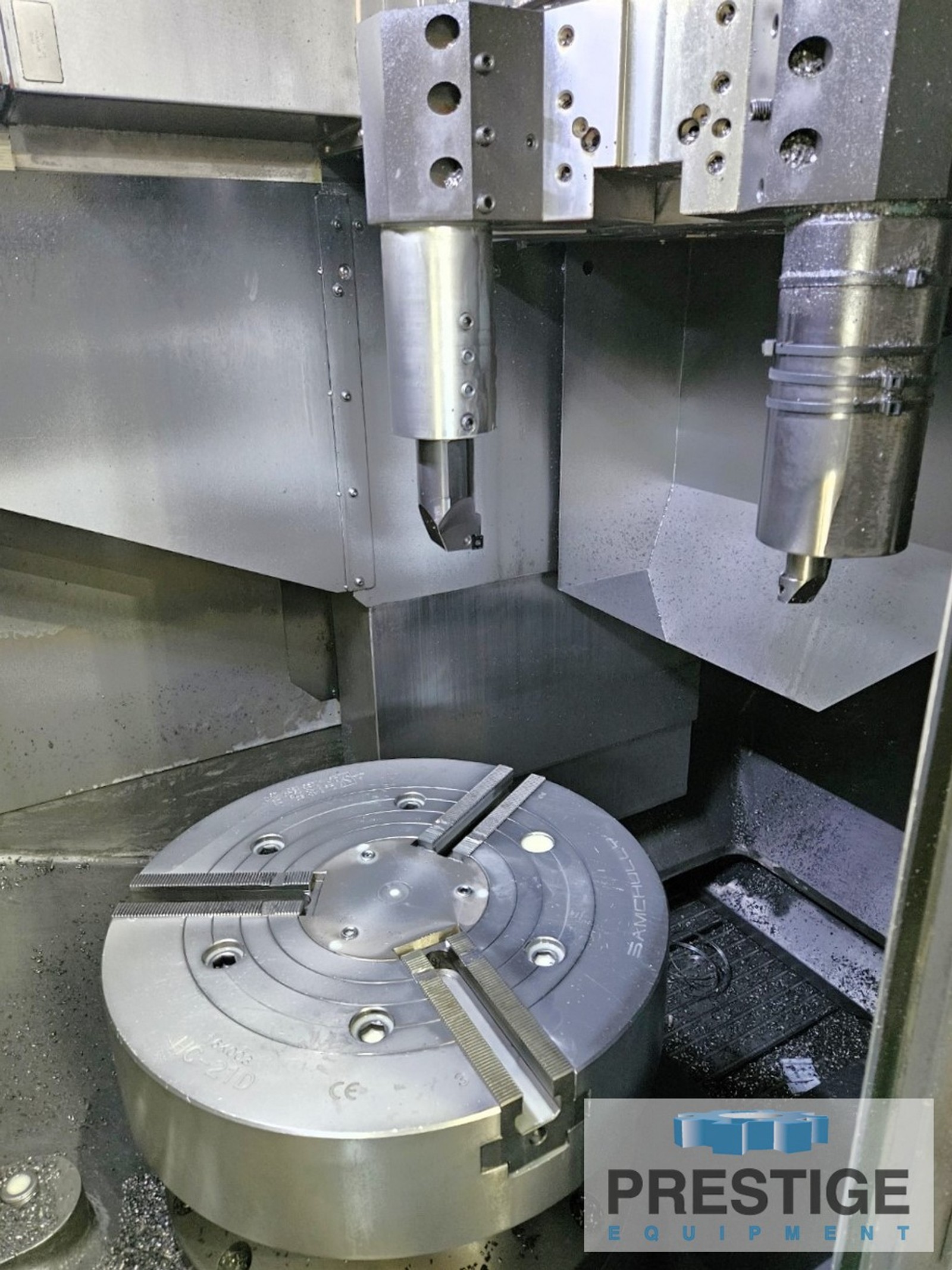

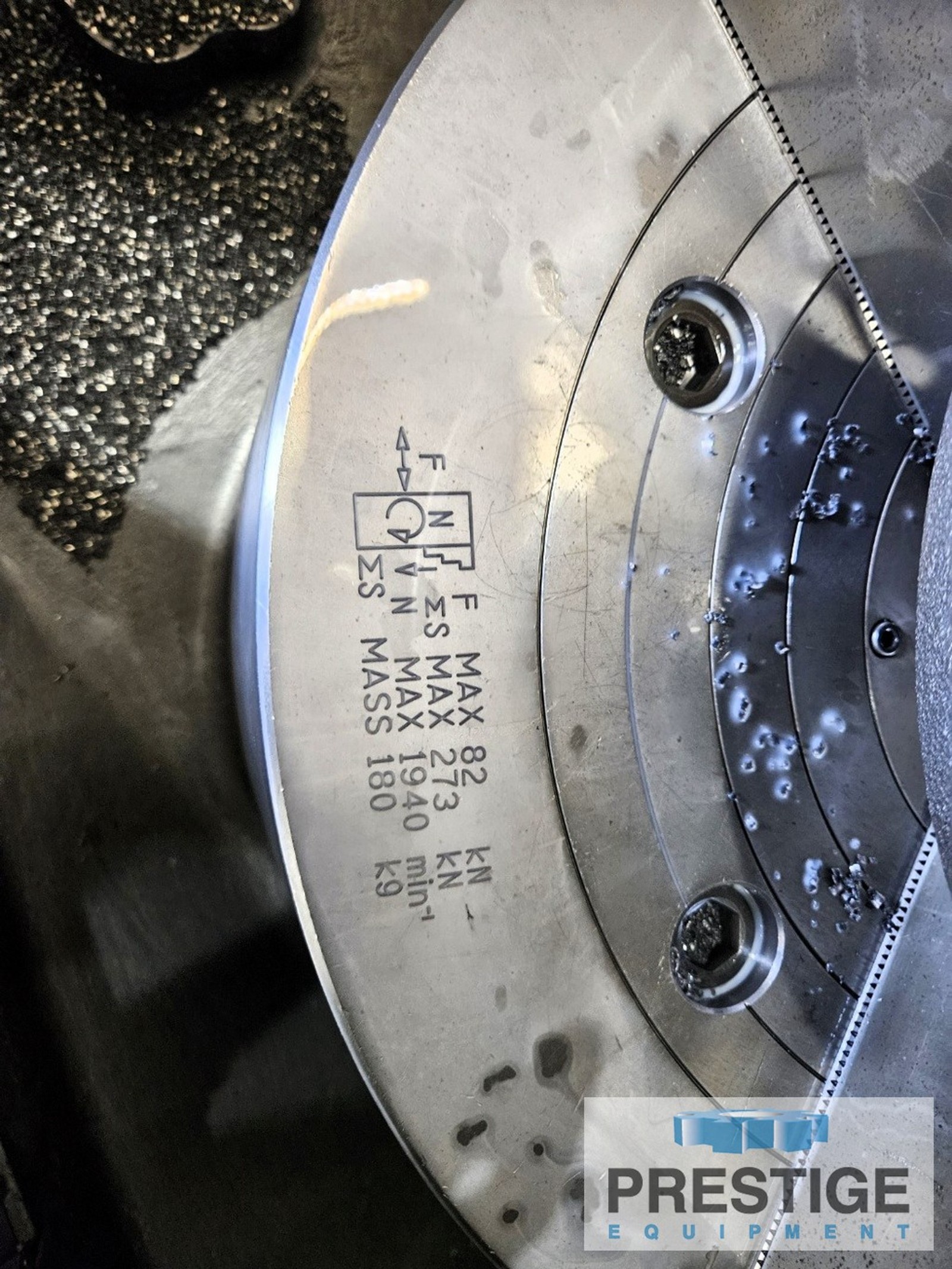

21" Hydraulic Chuck
12-Position Auto-Indexing Turret

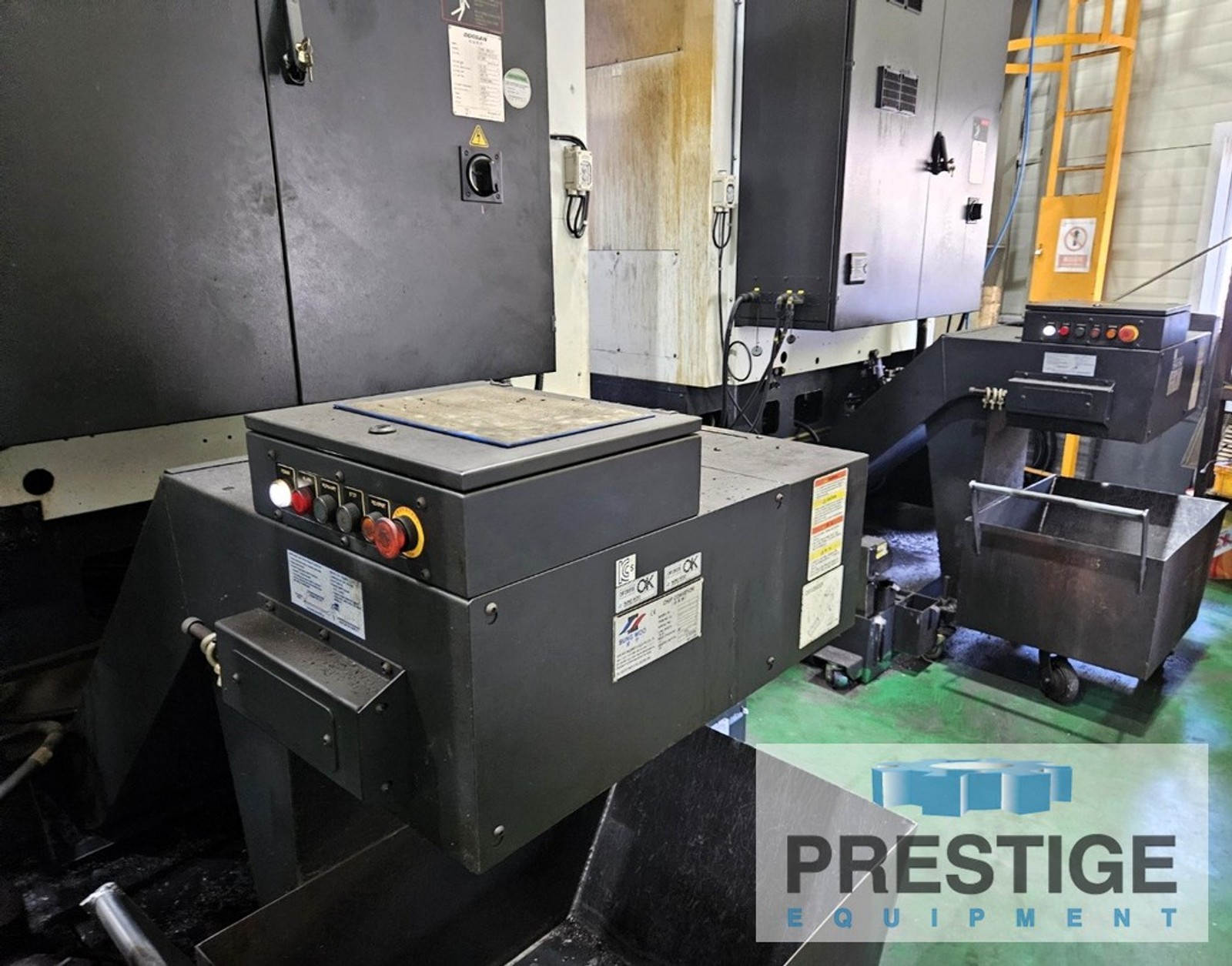

Chip Conveyor

CAPACITY:
Maximum Turning Diameter ............. 33.46"
Maximum Turning Length ............... 29.52"
Maximum Table Load ................... 1,918 Lbs.
Spindle Speed Ranges (1) ............. 2,000 RPM
Spindle Motor ........................ 50 HP
X-Axis Travel ........................ 19.5"
Z-Axis Travel ........................ 31"
Rapid Traverse (X-Axis) .............. 787 IPM
Rapid Traverse (Z-Axis) .............. 787 IPM

EQUIPPED WITH:
Fanuc i CNC Control
24" Hydraulic Chuck
12-Position Auto-Indexing Turret
Chip Conveyor

NOTE:
Package Consists of (2) Machines
