Mighty Viper VT-50AX/400 CNC Lathe, 35" x 157", 25" 4-Jaw, 12-Pos. Trt, 2-Stdy Rest, Fanuc 21i-TB, #43249

Manufacturer

MIGHTY VIPER

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

43249

Model

VT-50AX/4000

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43249

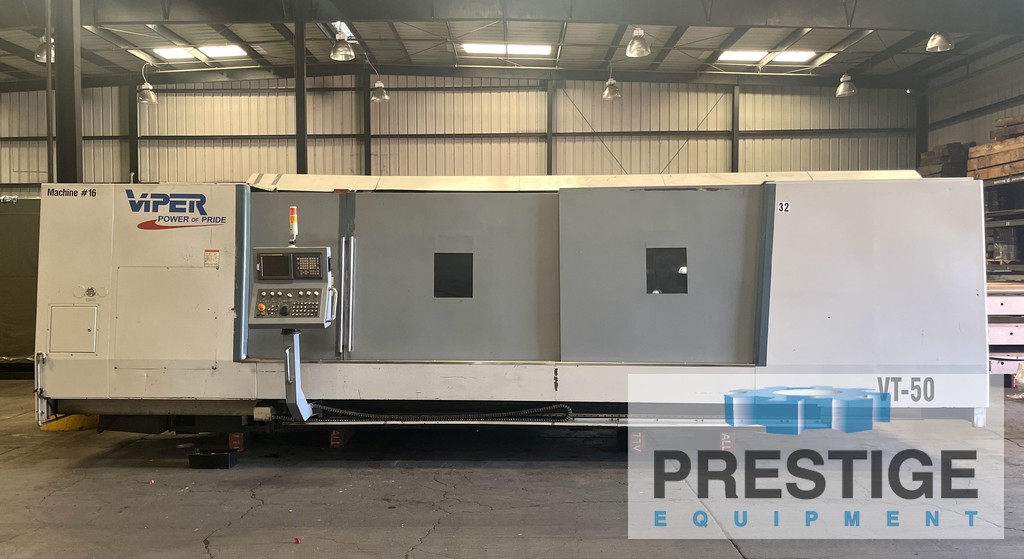

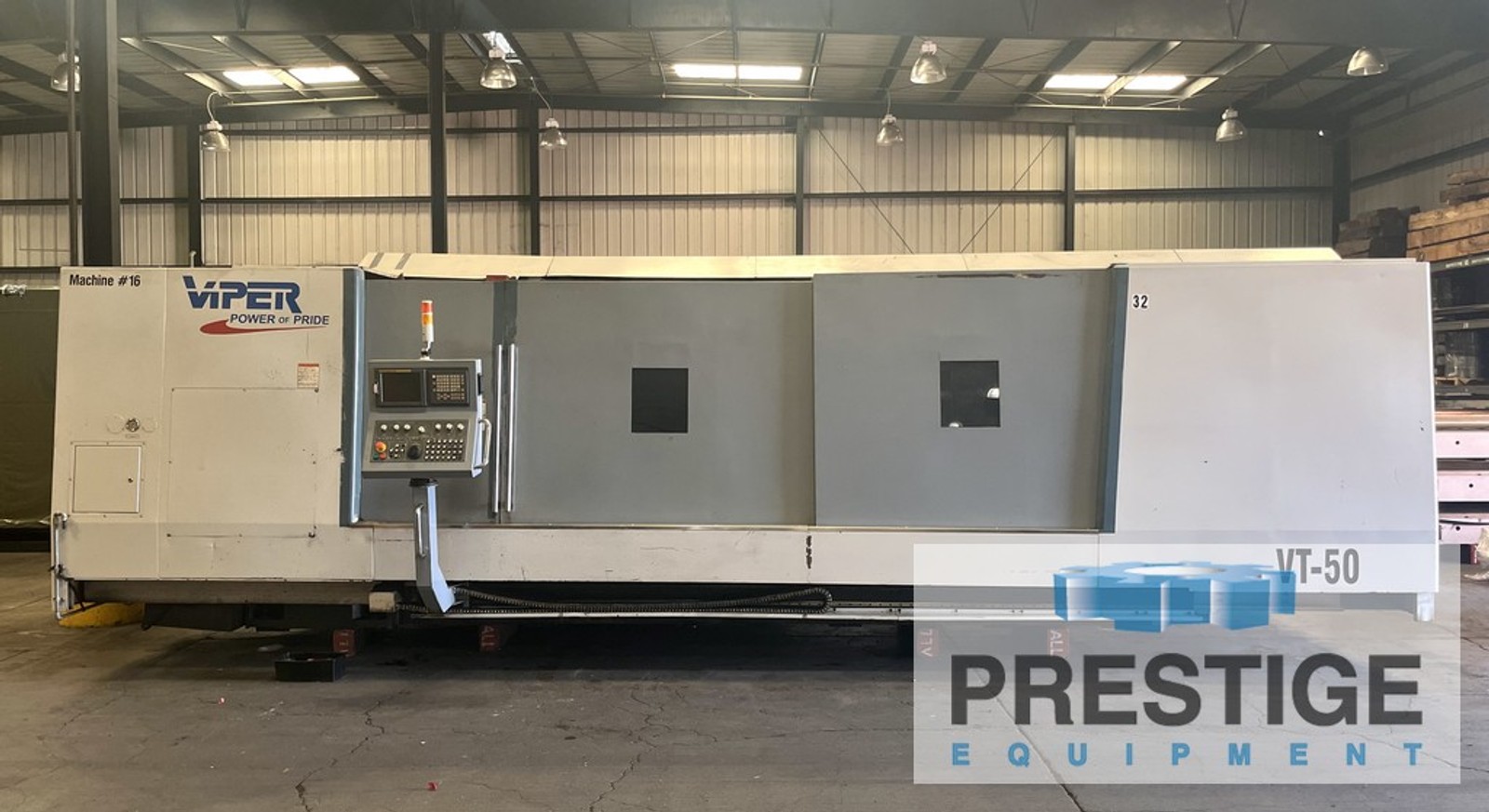

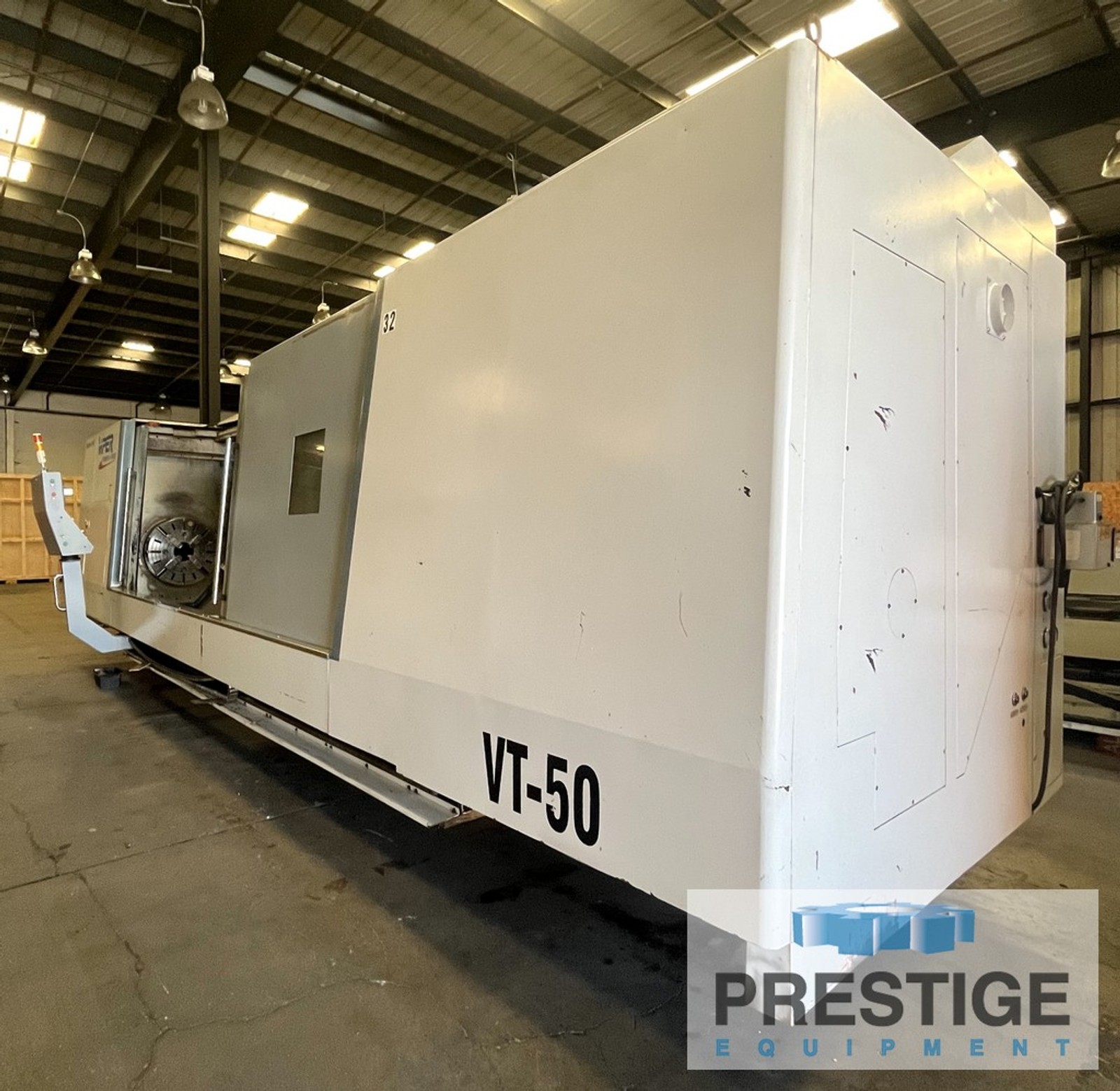

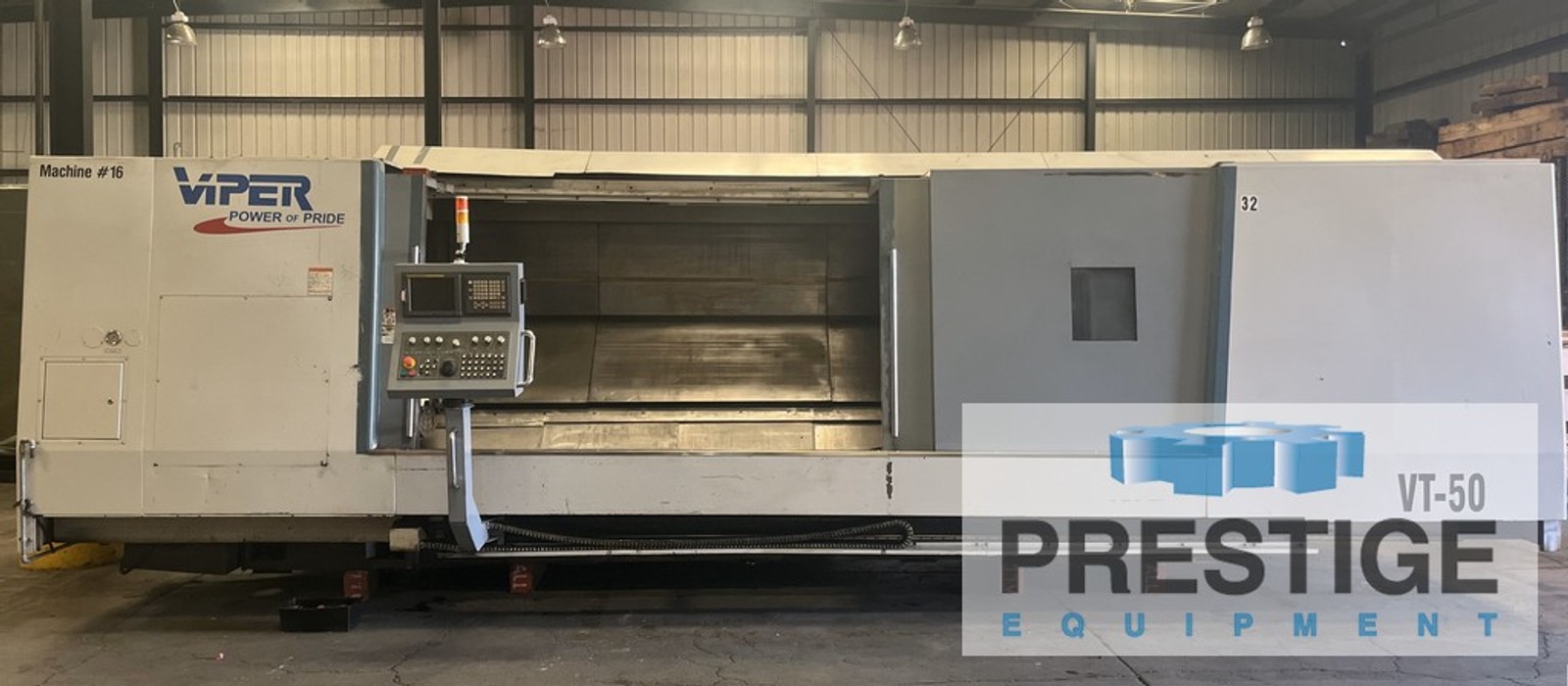

Mighty Viper VT-50AX/4000 35" x 157" Slant Bed CNC Lathe

FEATURES:

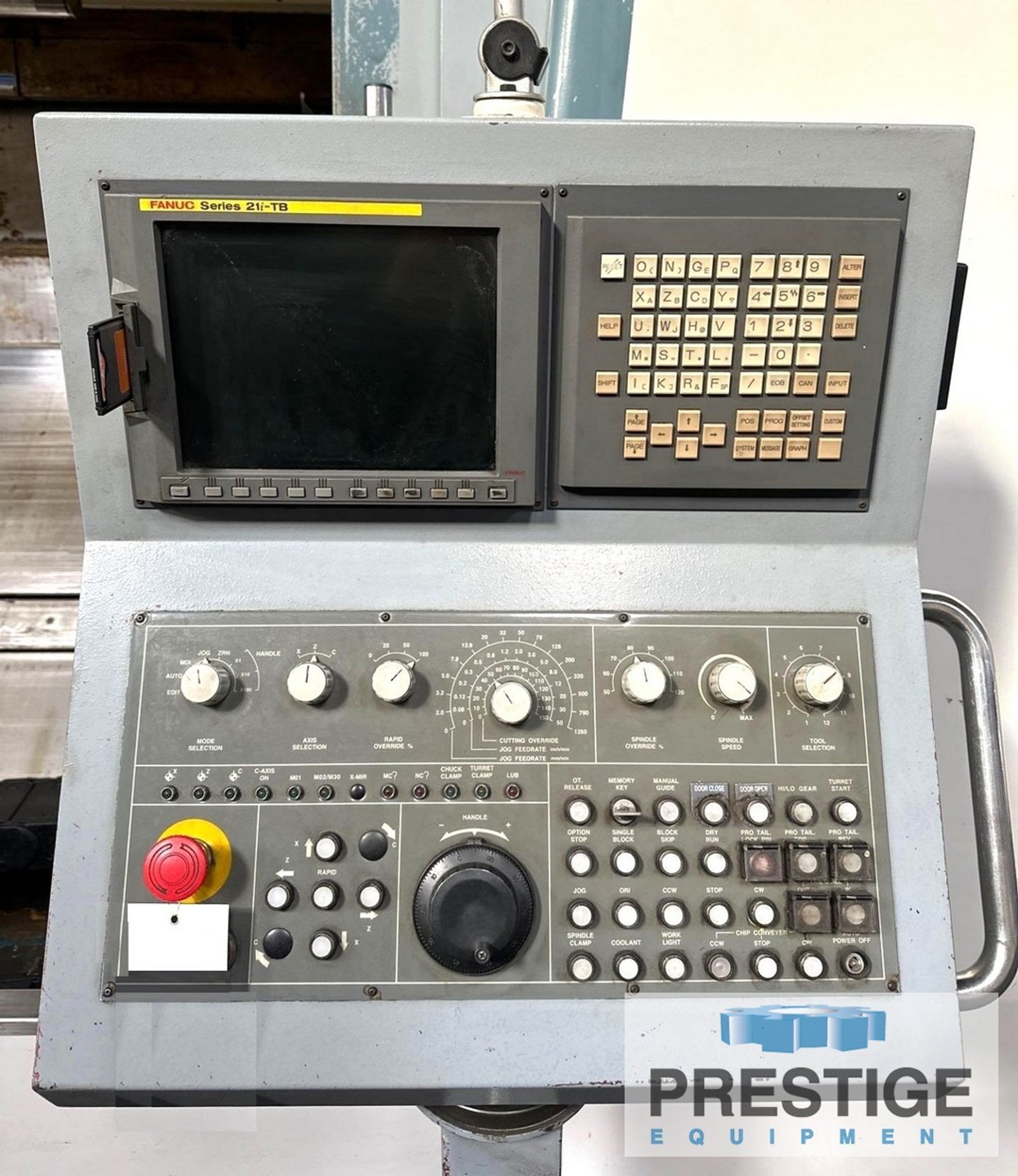

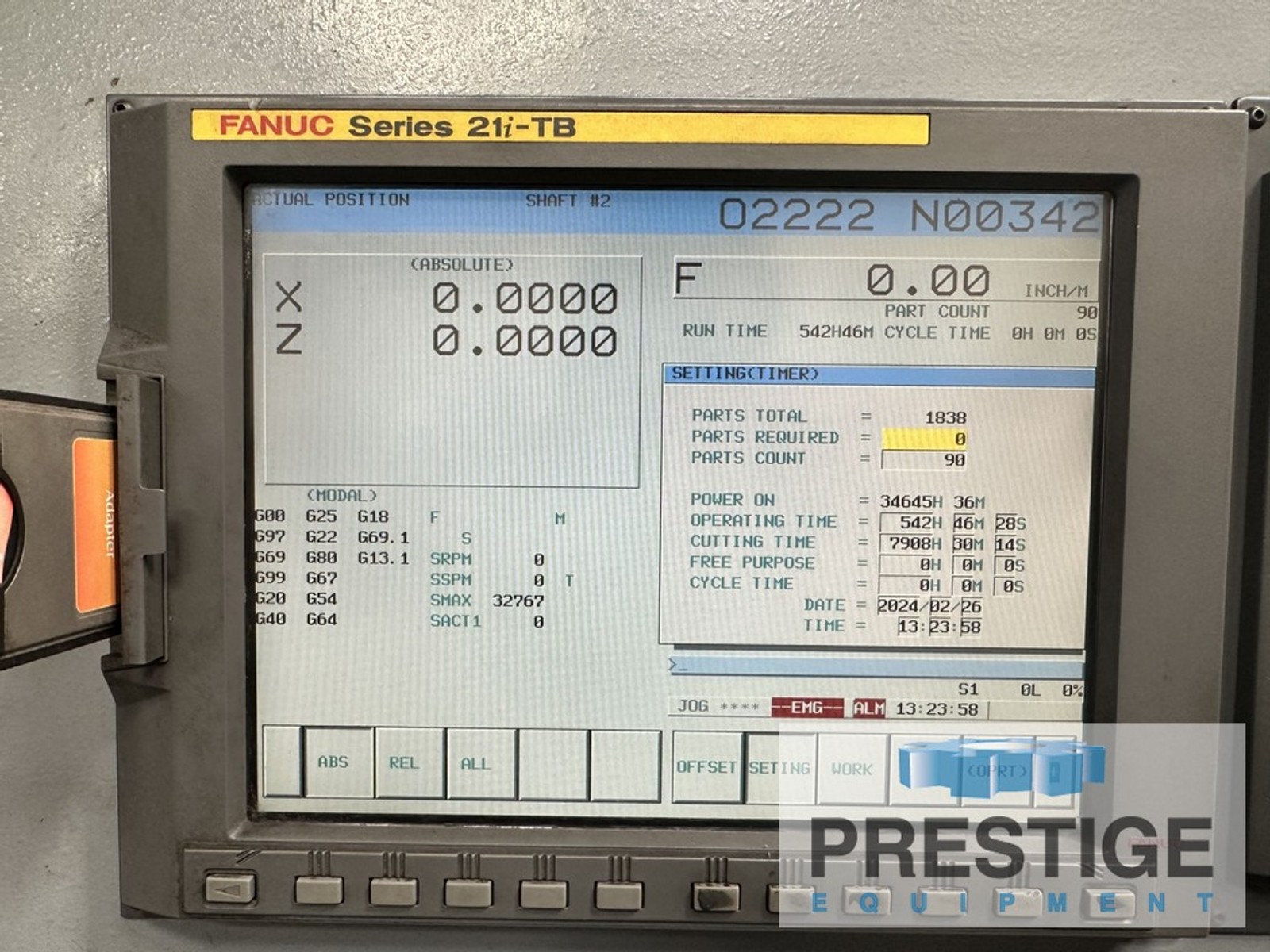

Fanuc 21i-TB CNC Control
9.25" Spindle Bore

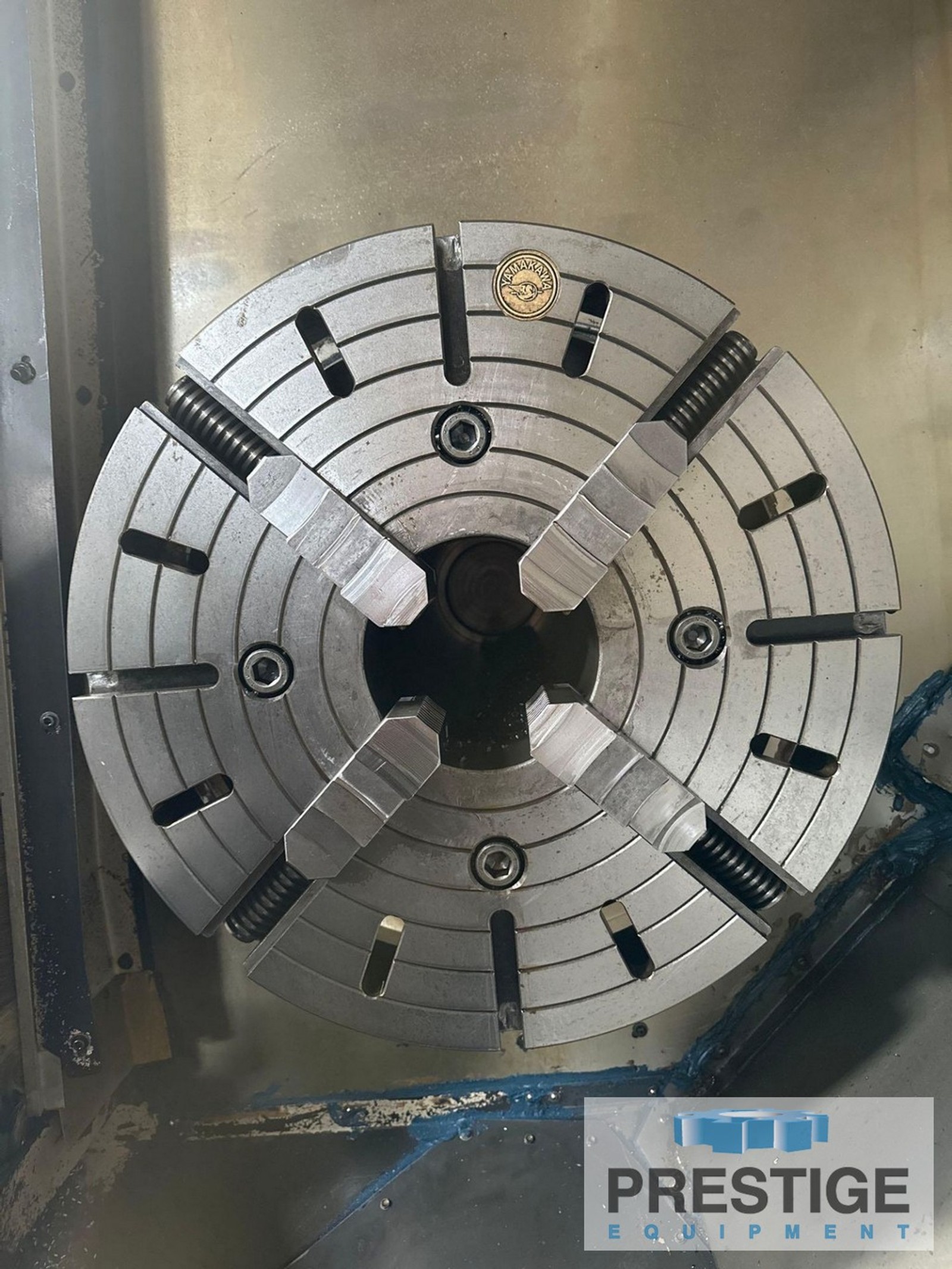

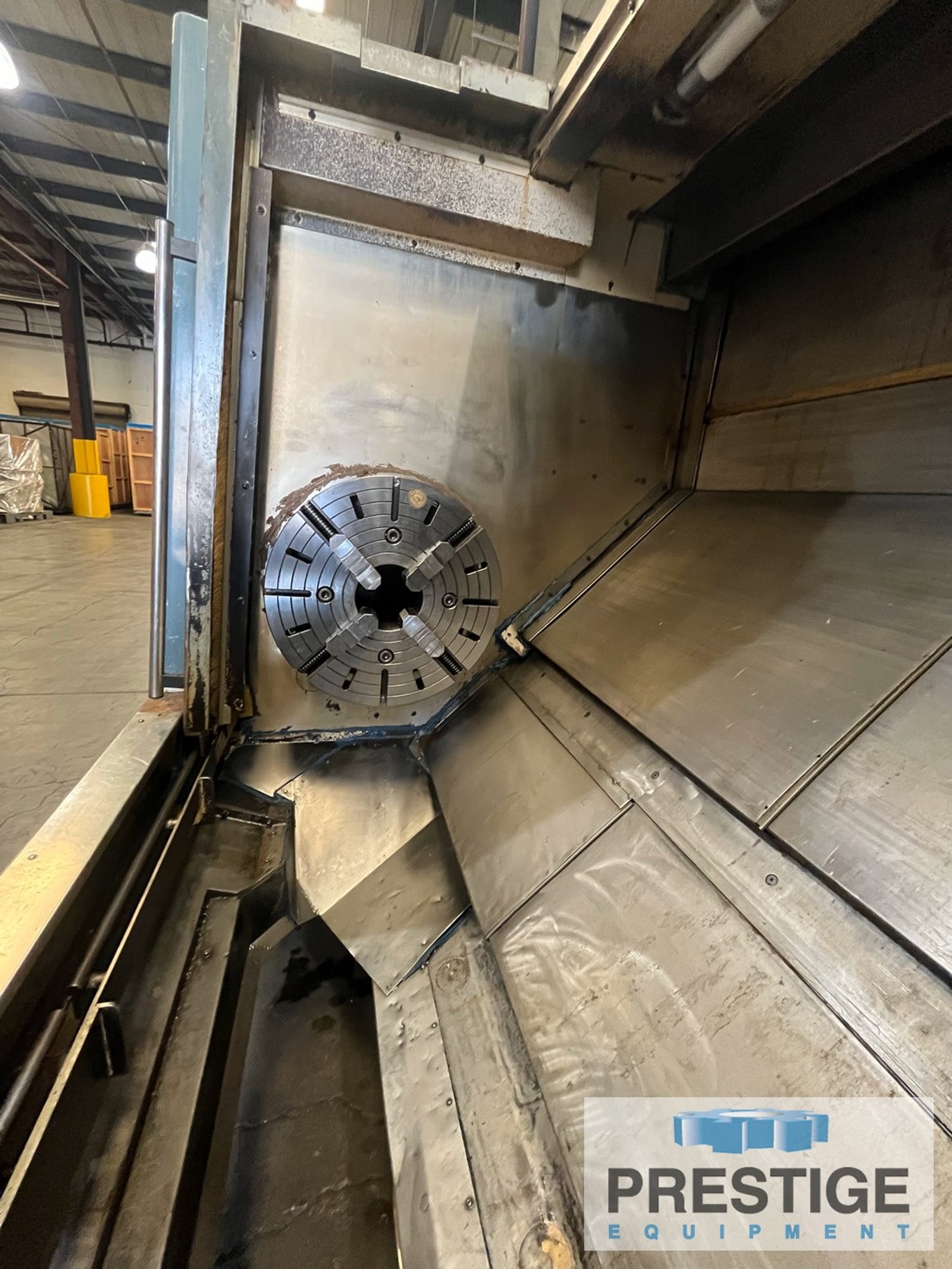

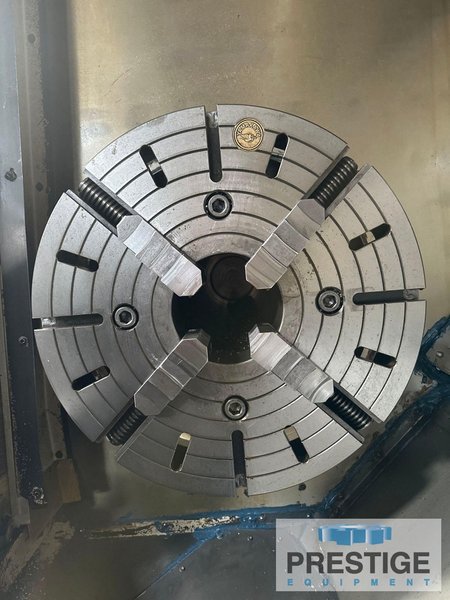

25” 4-Jaw Hydraulic Chuck w/ 7" Through Hole

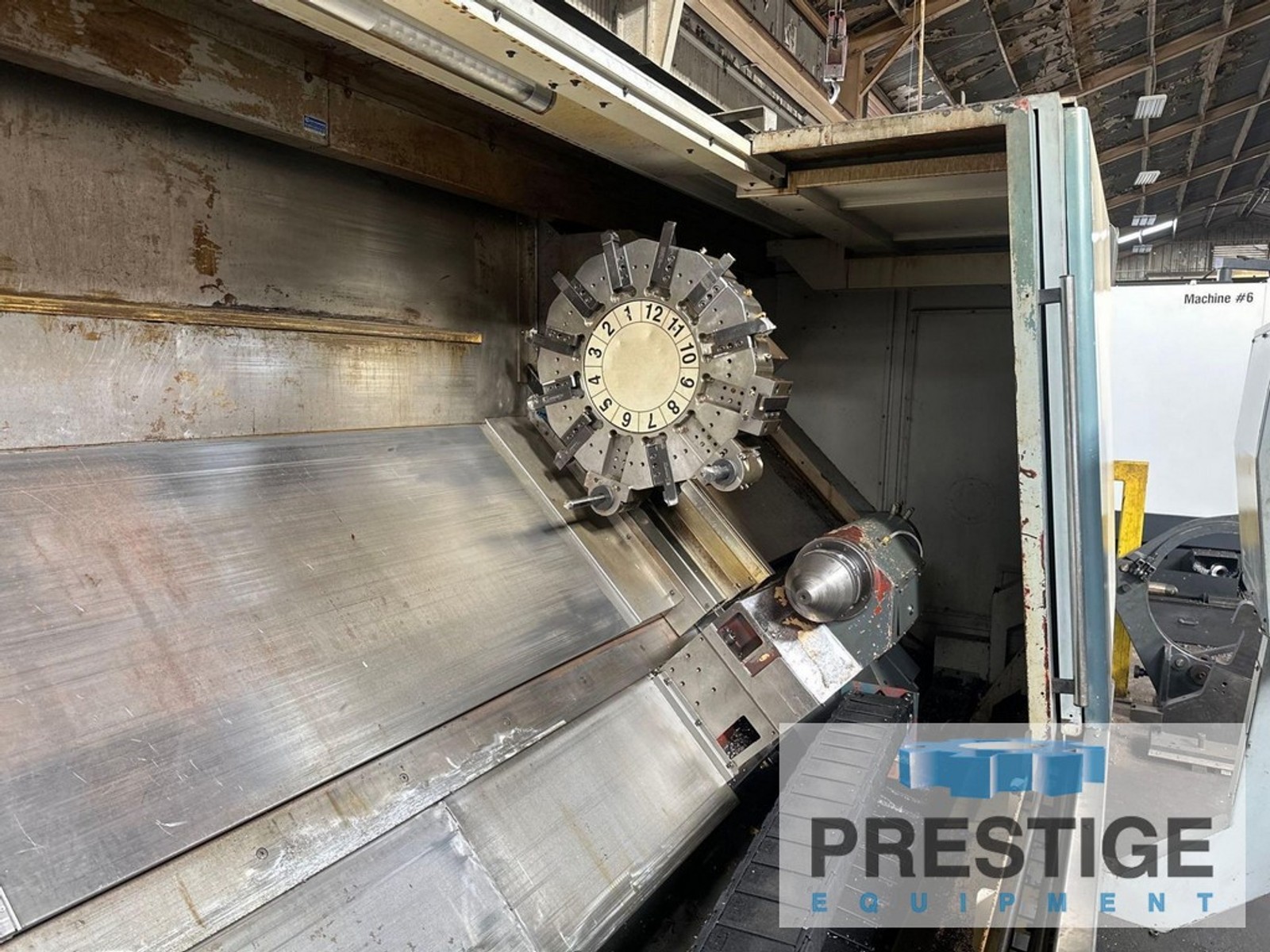

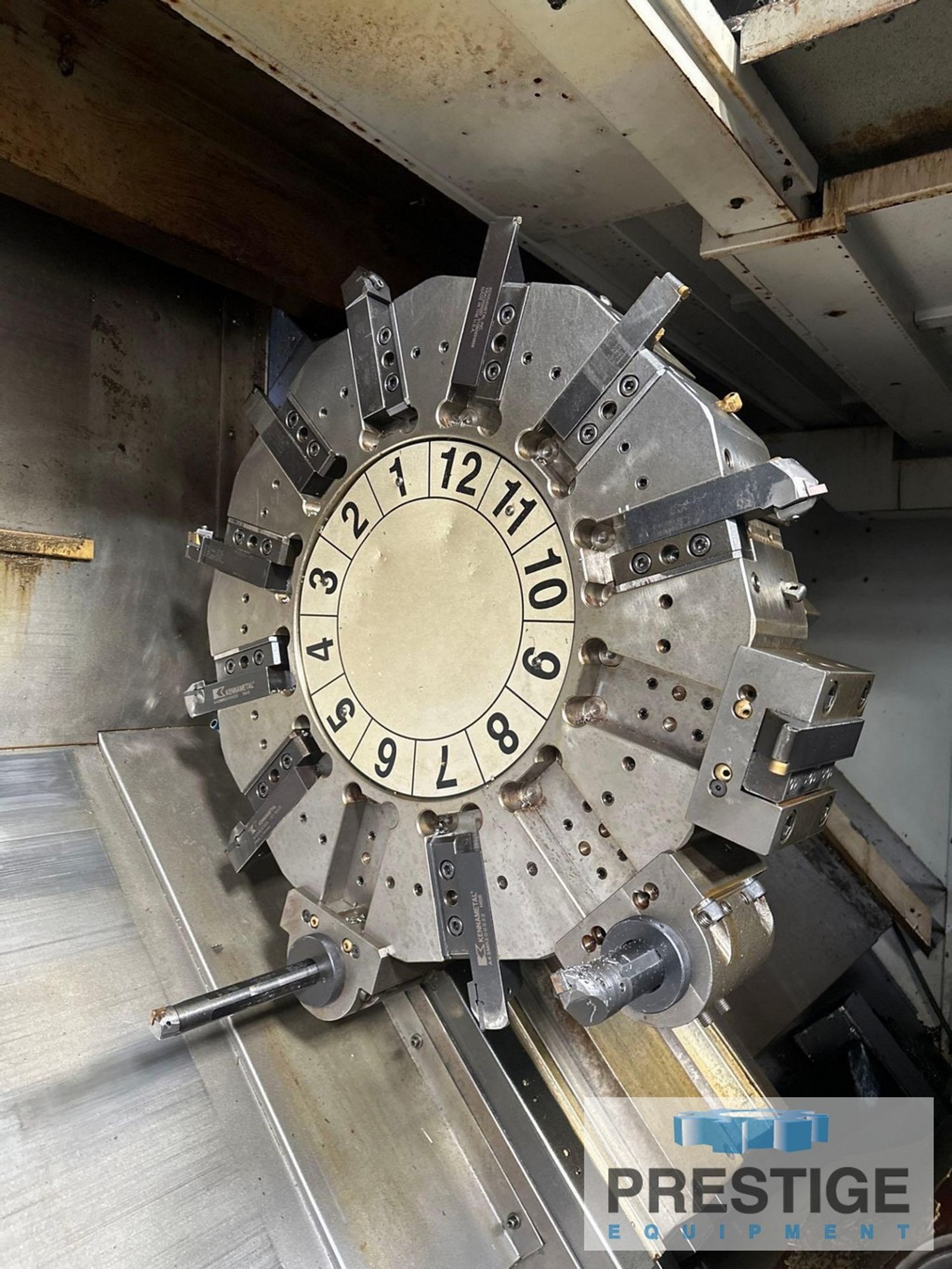

12 Position Turret

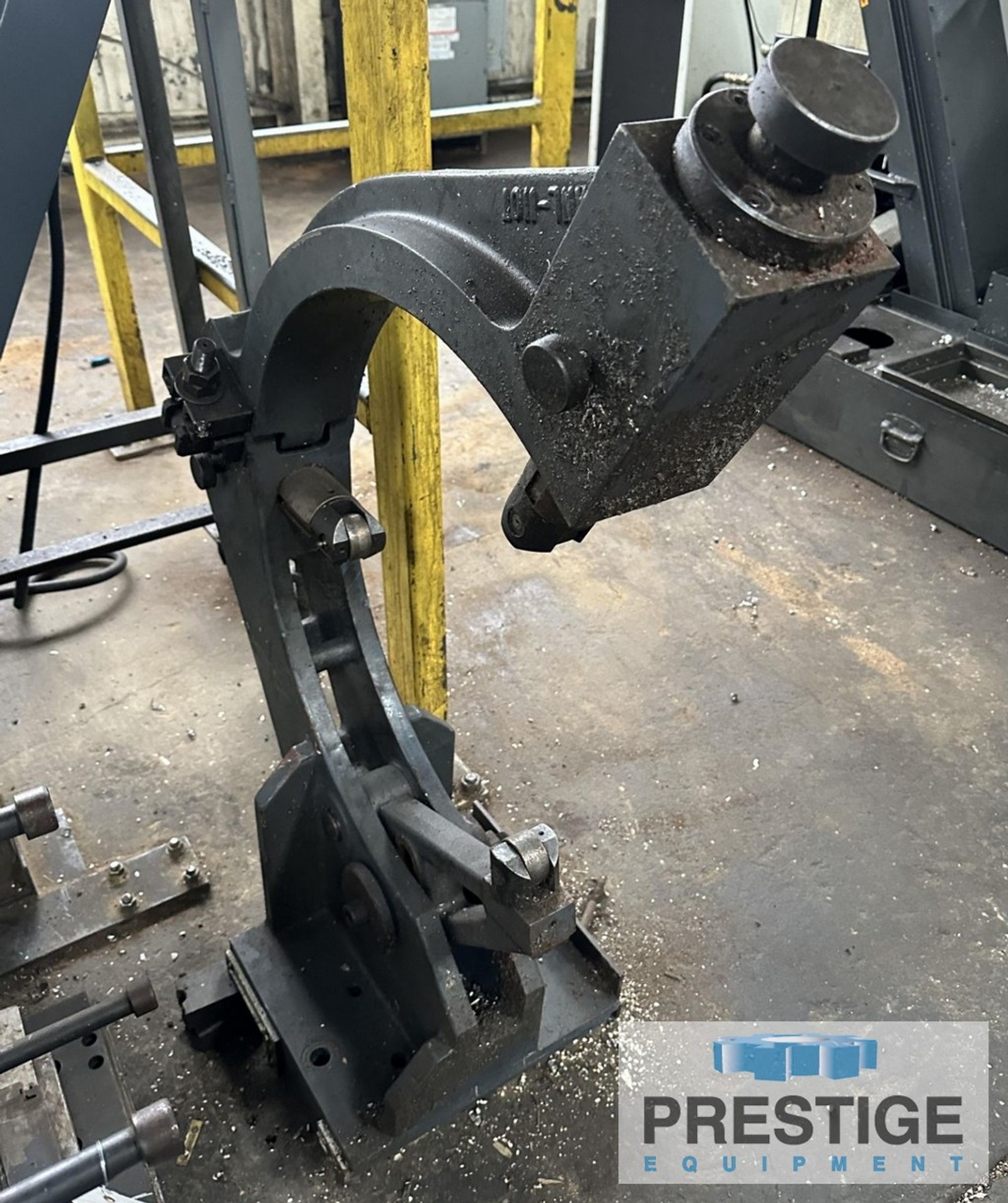

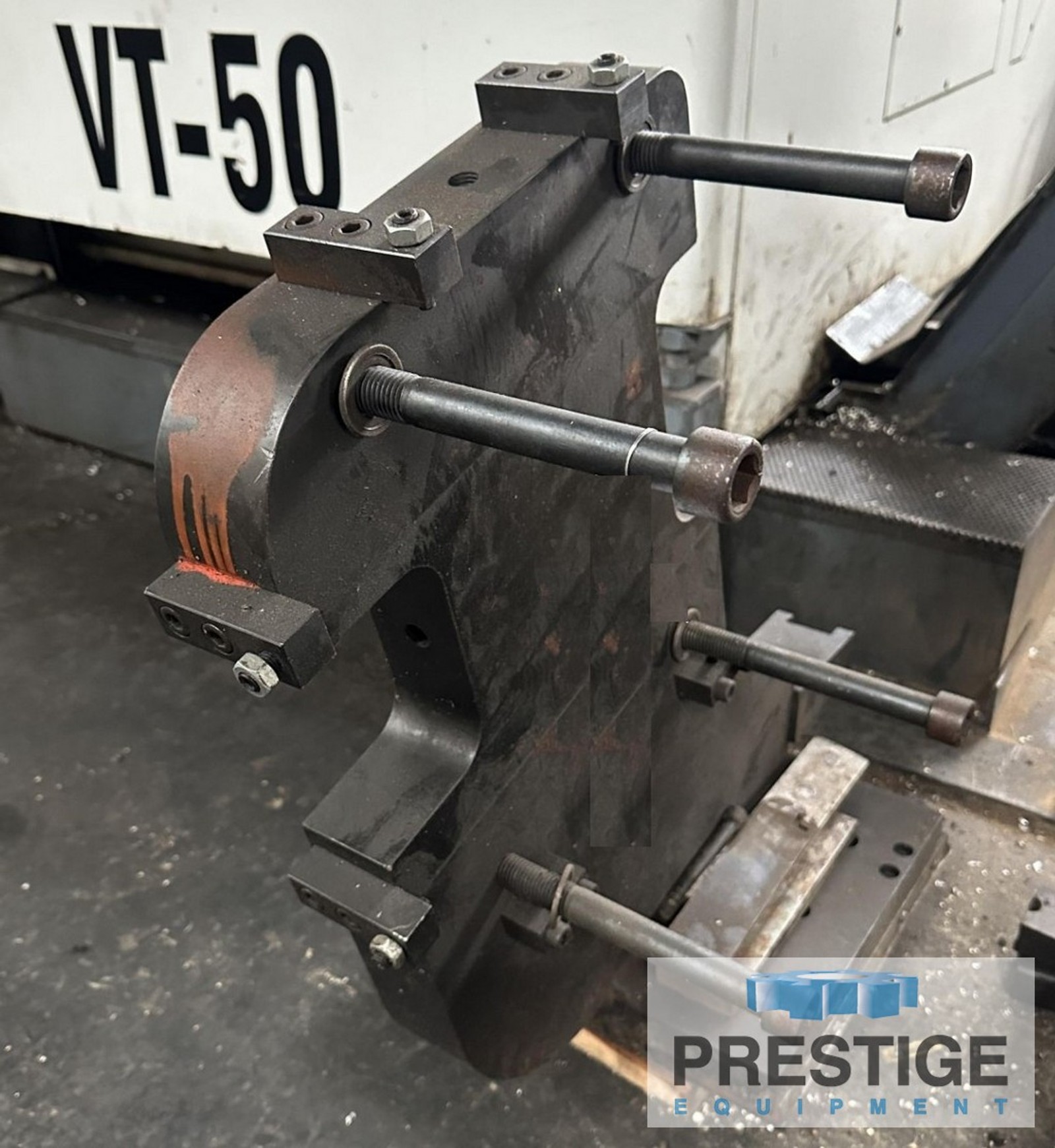

2-Steady Rest
Chip Conveyor


CAPACITY:
Swing Over Bed ........................ 39"
Max. Work Diameter .................... 35"
Distance Between Centers .............. 157"
Max Turning Length ................... 155"
Spindle Hole Diameter ................. 9.25"
Spindle Speed, ........................ 1-750 RPM
Spindle Ranges ....................... 2
Spindle Nose ......................... A2-15
Spindle Drive Motor ................... 50 HP

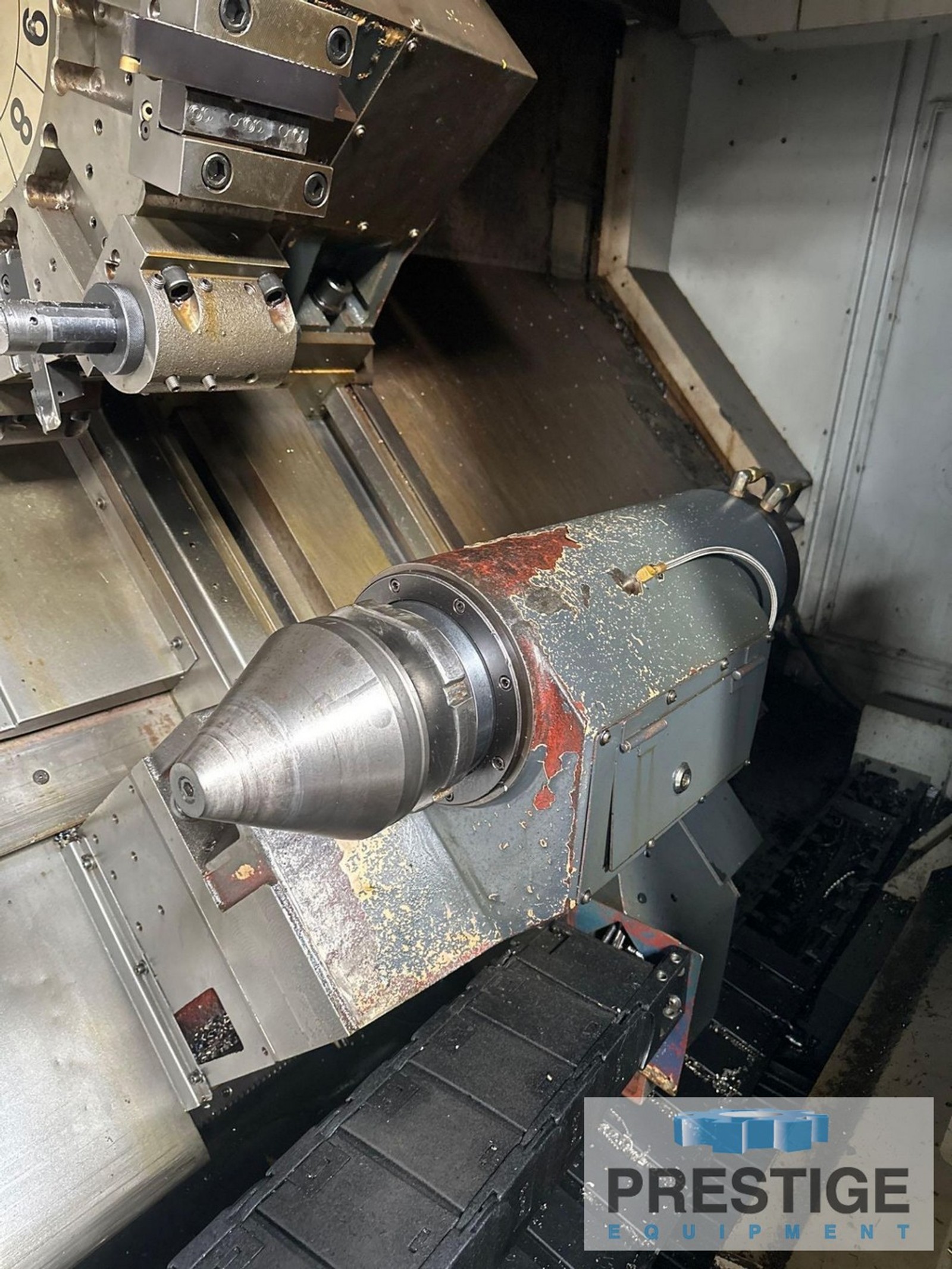

Tailstock Quill, Travel ............... 5.9"
Tailstock Quill Diameter .............. 5.9"
Tailstock Quil, Taper ................ MT-6
Machine Dimensions, w/ out conveyor ... 292" x 111"
Machine Dimensions, w/ Conveyor ....... 347" x 111"
Machine Height ....................... 97"
Approximate Weight .................... 46,200 lbs

EQUIPPED WITH:
Fanuc 21i-TB CNC Control
25” 4-Jaw Hydraulic Chuck 7" Through Hole
9.25" Spindle Bore
12 Position Turret
2-Steady Rest
Gear Headstock
Chip Conveyor

Note:
Under Power in West Coast Plant
