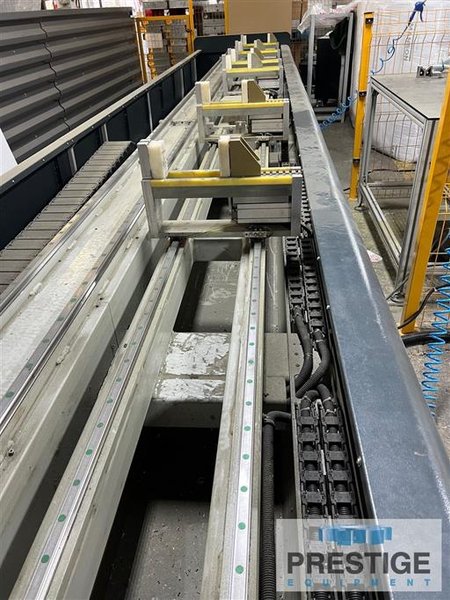

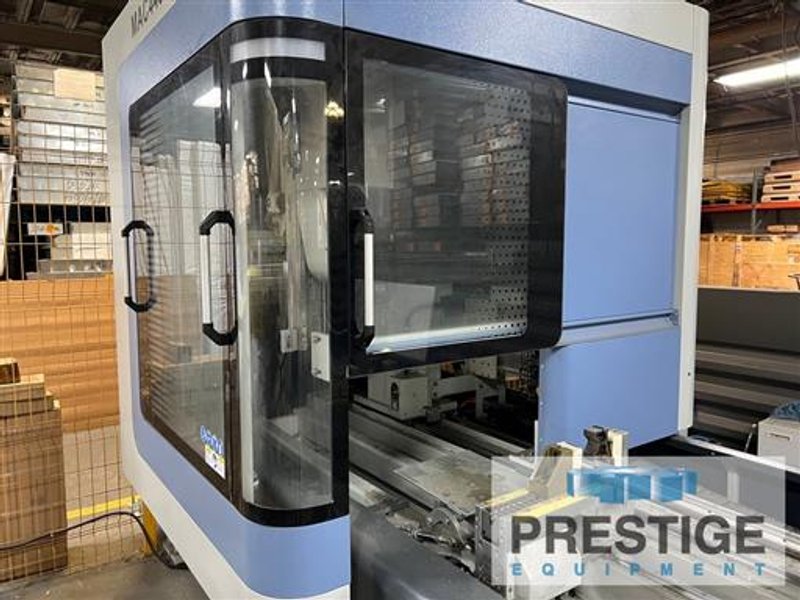

Haffner MAC 440-3 4-Axis Aluminum Profile Machining Center, X-Axis, 181"-368", 2-Axis Head, 20 ATC, New 2022, #43579

Manufacturer

Haffner

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43579

Model

MAC 440-30

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43579

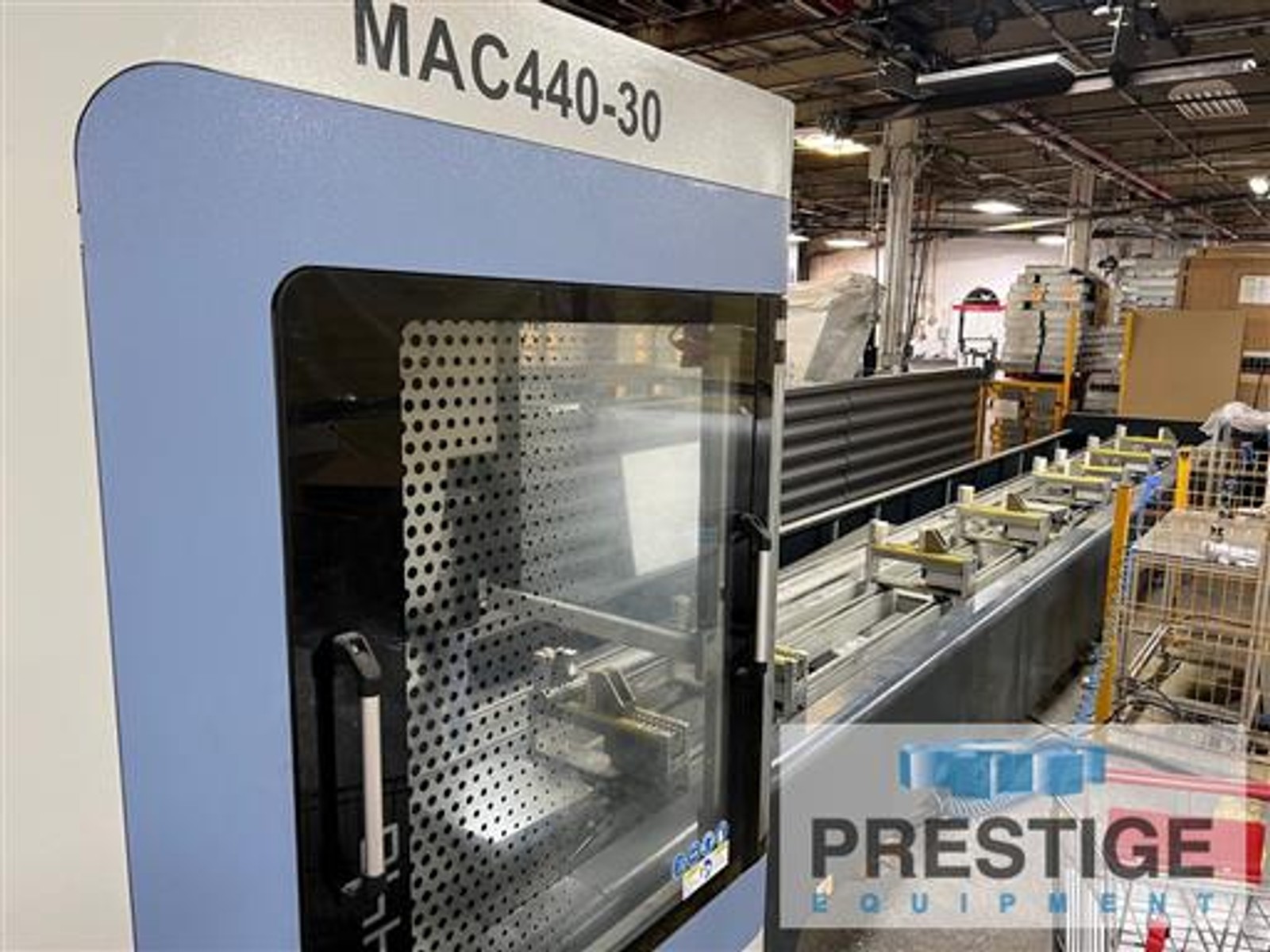

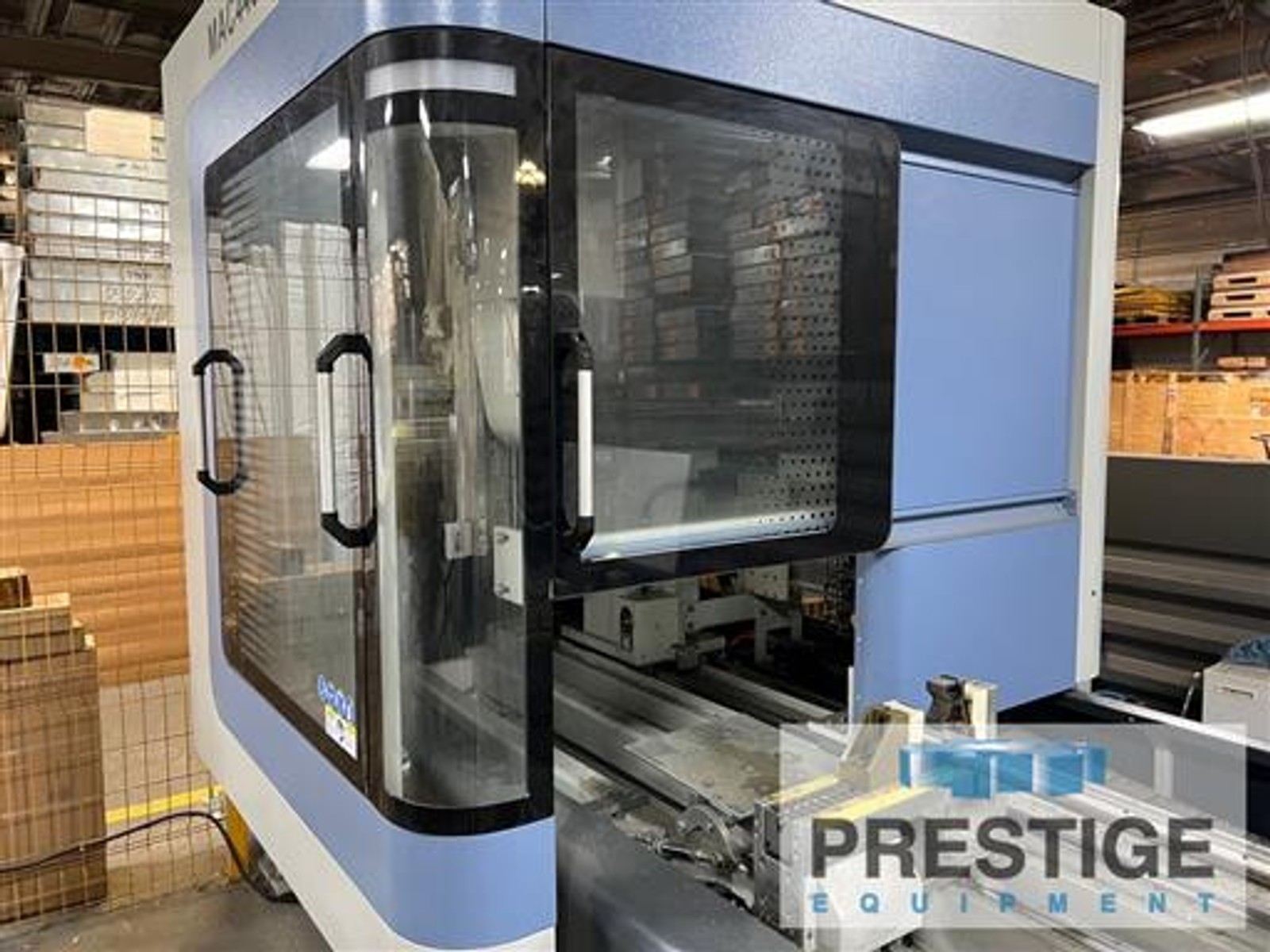

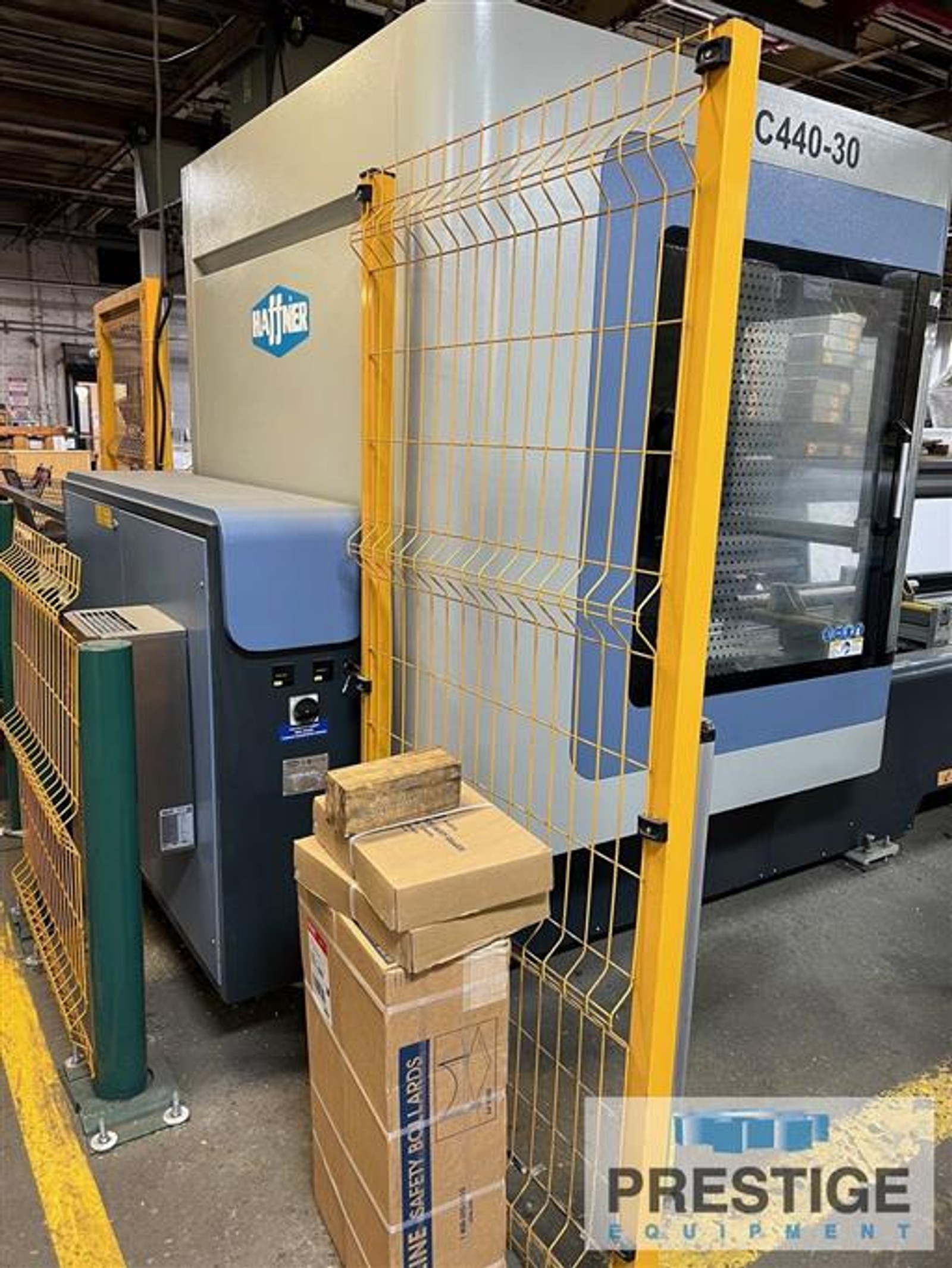

Haffner MAC 440-3 4-Axis Aluminum Profile Machining Center

CAPACITY:
X-Axis Traverse Path .................. 181.10"-368.11"
Y-Axis Traverse Path .................. 36.61"
Z-Axis Traverse Path .................. 24.60"
A-Axis ................................ +/- 120 Degrees
Maximum Machinable Length ............. 161.41"-334.64"
Maximum Milling Blade Diameter ........ 5.90"
Adjustable Electro Spindle Speeds ..... 0-24,000 RPM
Spindle Taper ......................... HSK-F63
Approximate Dimensions ................ 437" x 71" x 91"

EQUIPPED WITH:

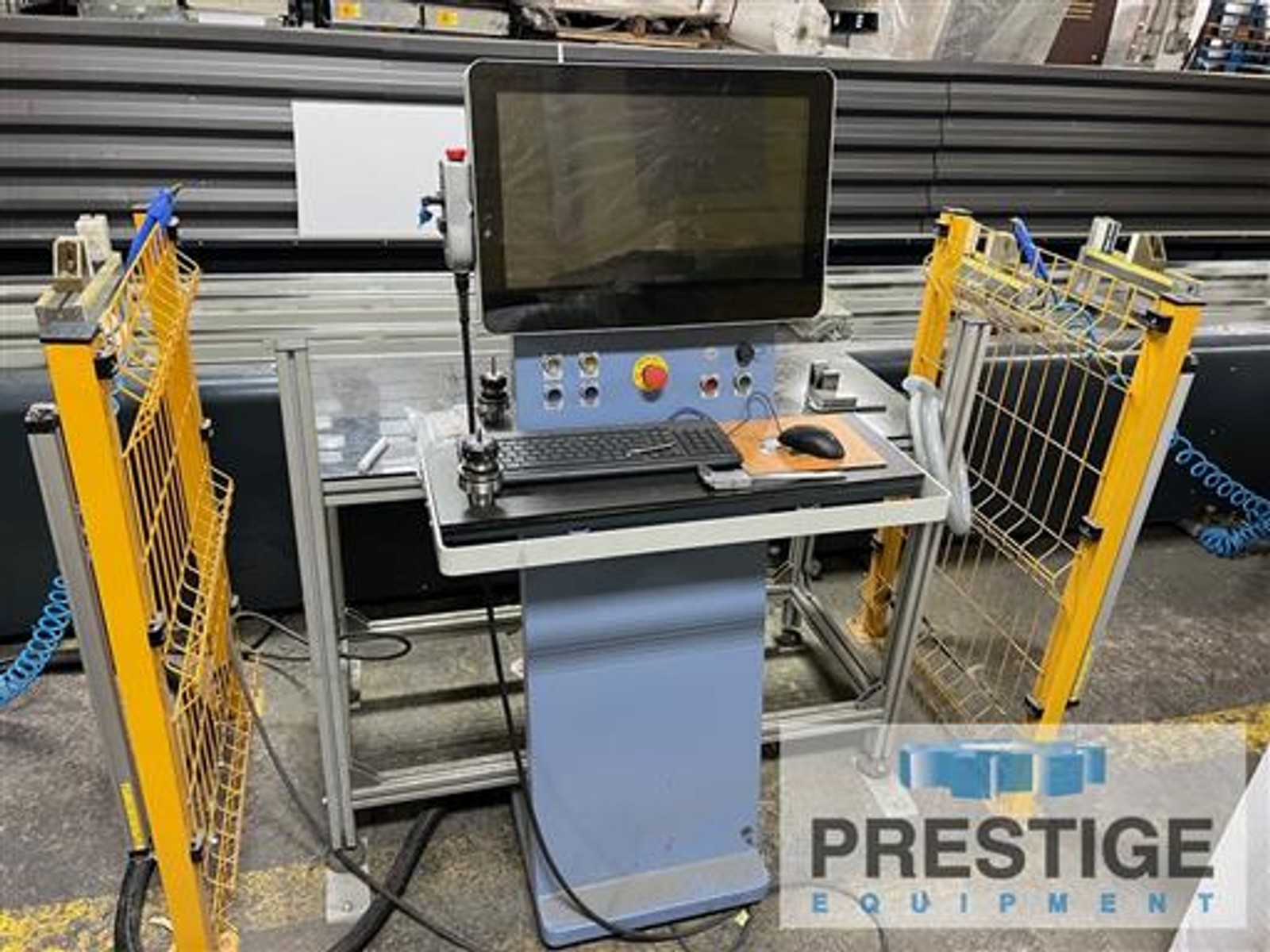

Haffner CNC Control
9 Tool Stations

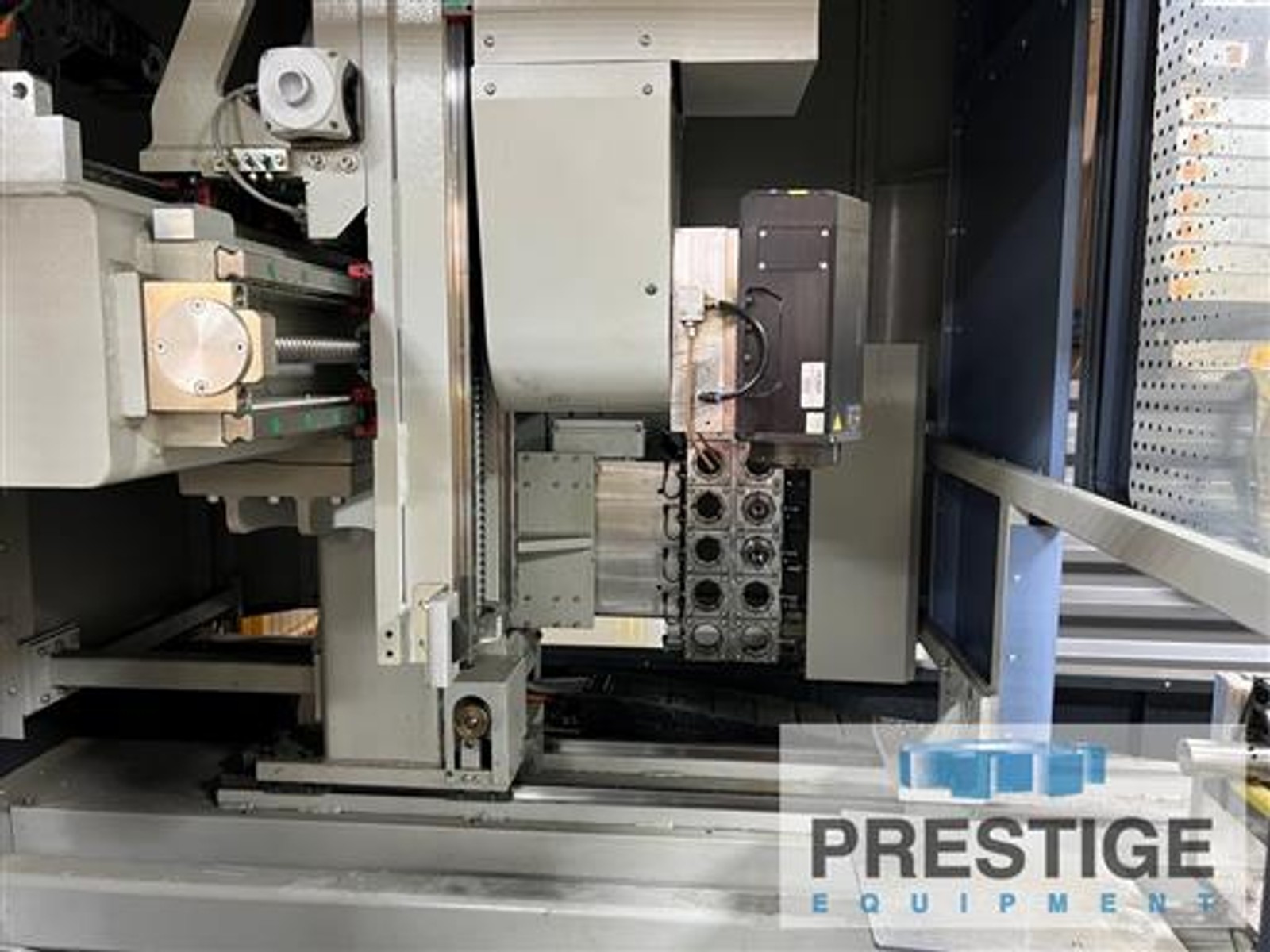

2-Axis Milling Head
20-Automatic Tool Changer
Thru Spindle Coolant
Automatic Clamp Recognition & Clamp Positioning
Mist Collector

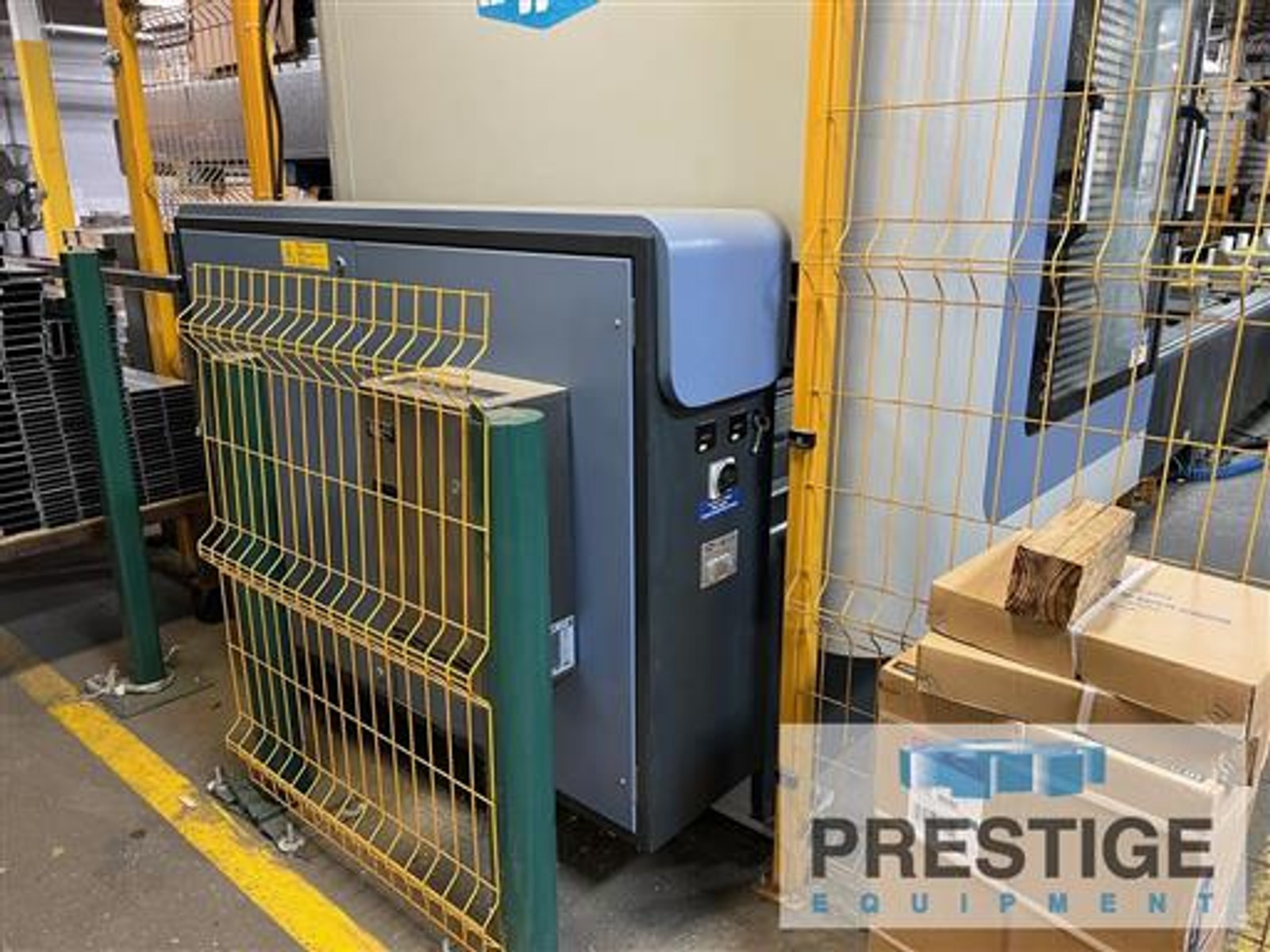

Chiller Unit
Chip Conveyor

NOTE:
Inspect in Plant Under Power
