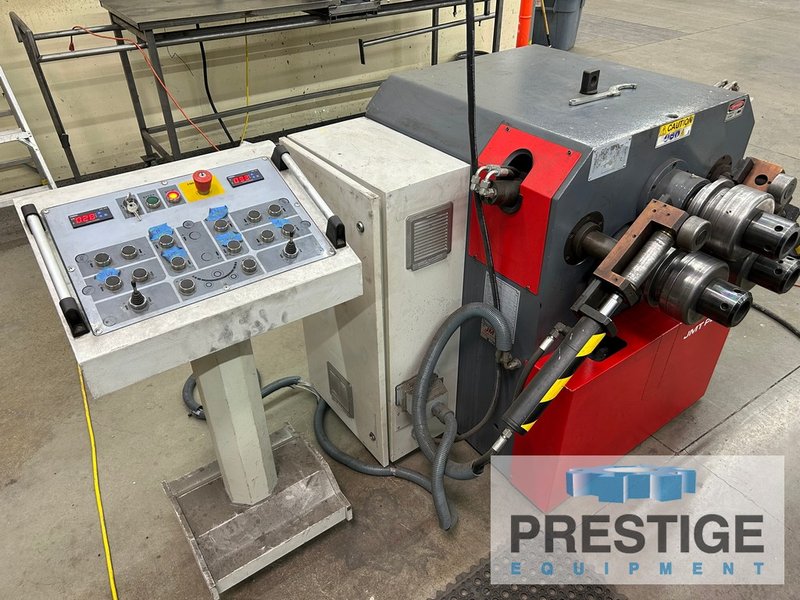

JMT PBH-60, 2" x 2" x 3/8" Leg Out, 2" x 2" x 1/8" Square Tube, 7" Roll Dia., 3+2 HP, 17 FPM, #43591

Manufacturer

JMT

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

43591

Model

PBH-60

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43591

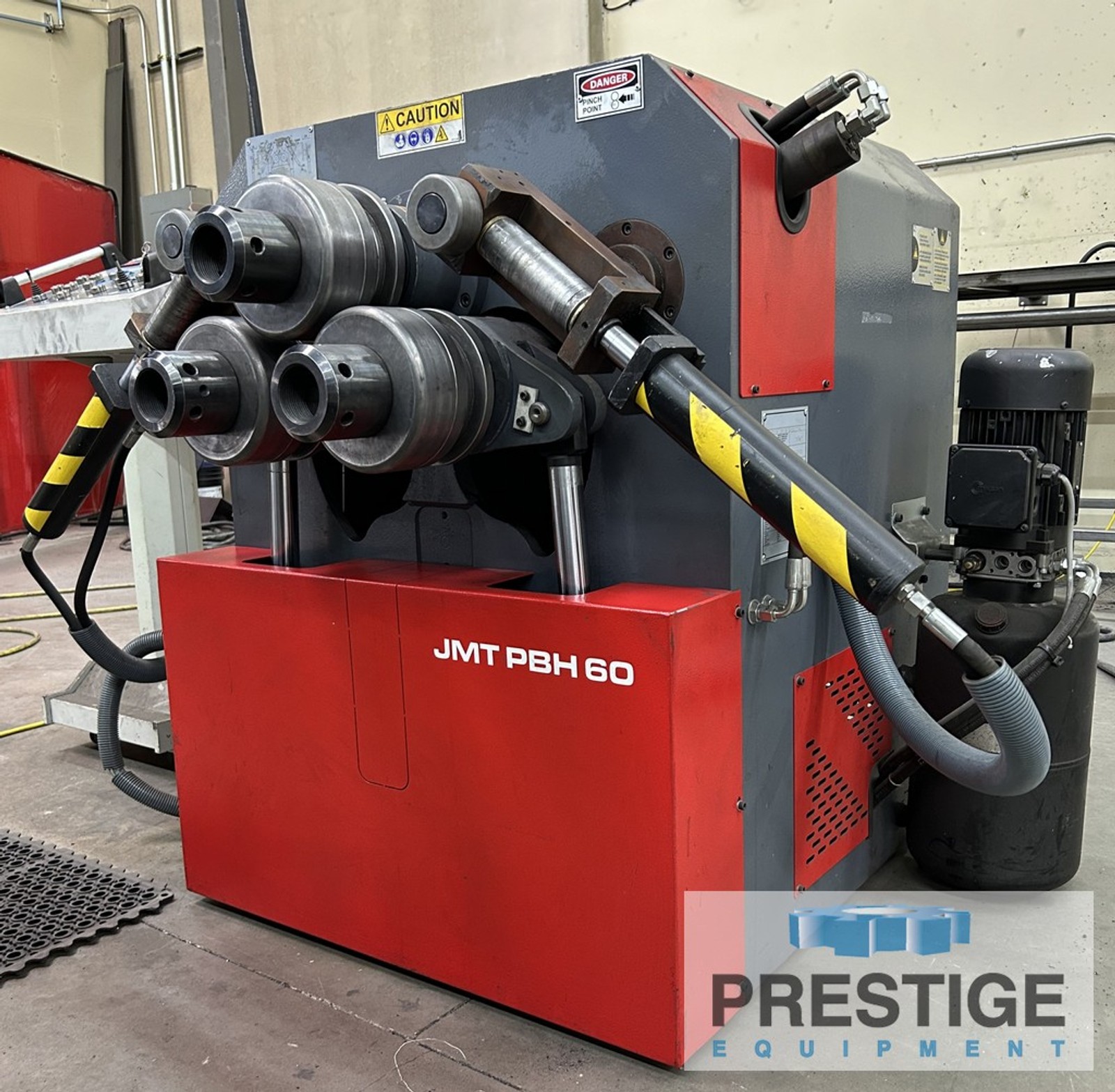

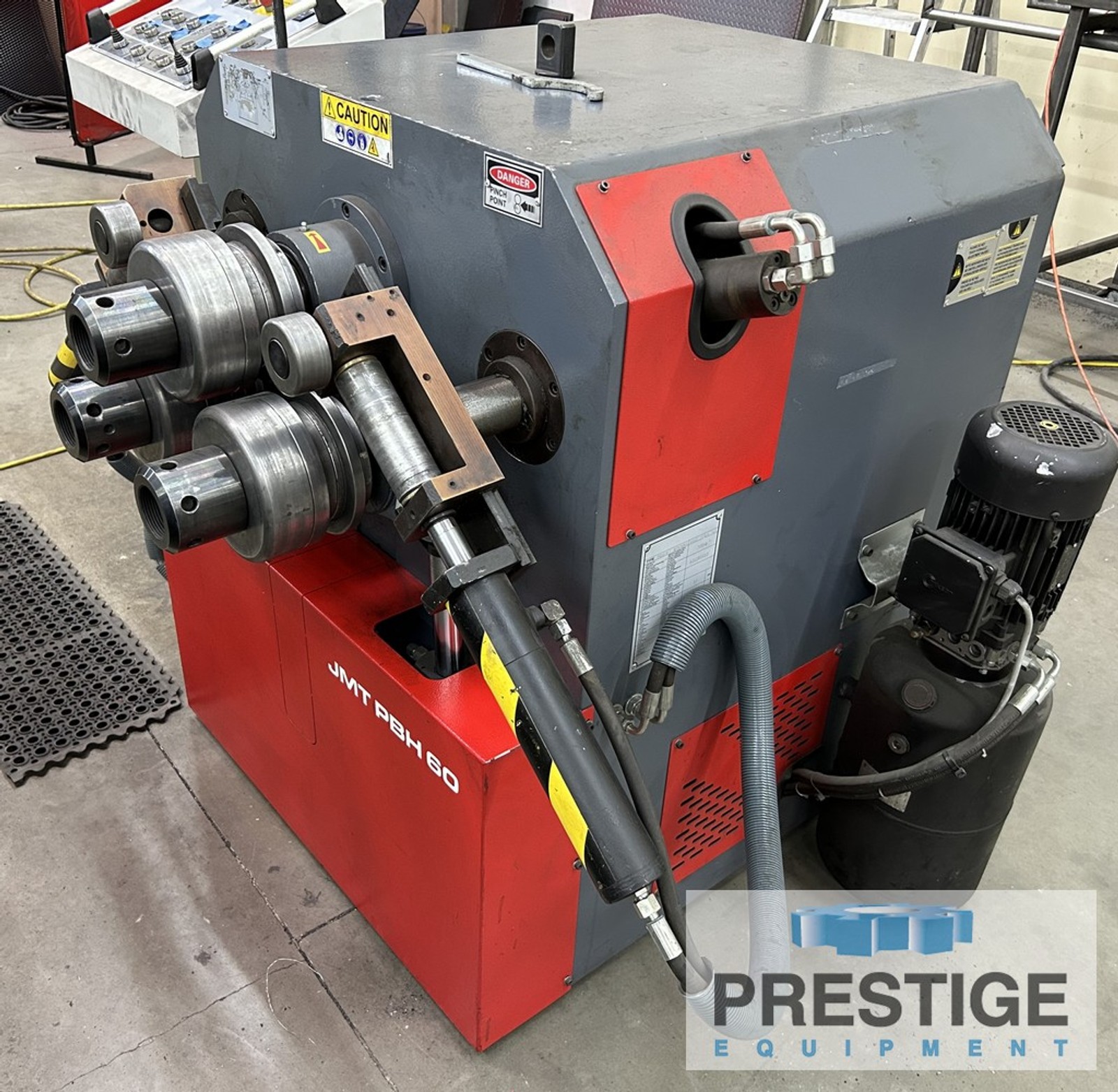

JMT PBH-60 2" x 2" x 3/8" Angle Bending Roll

FEATURES:
Universal Hardened & Ground Rolls
Side Support

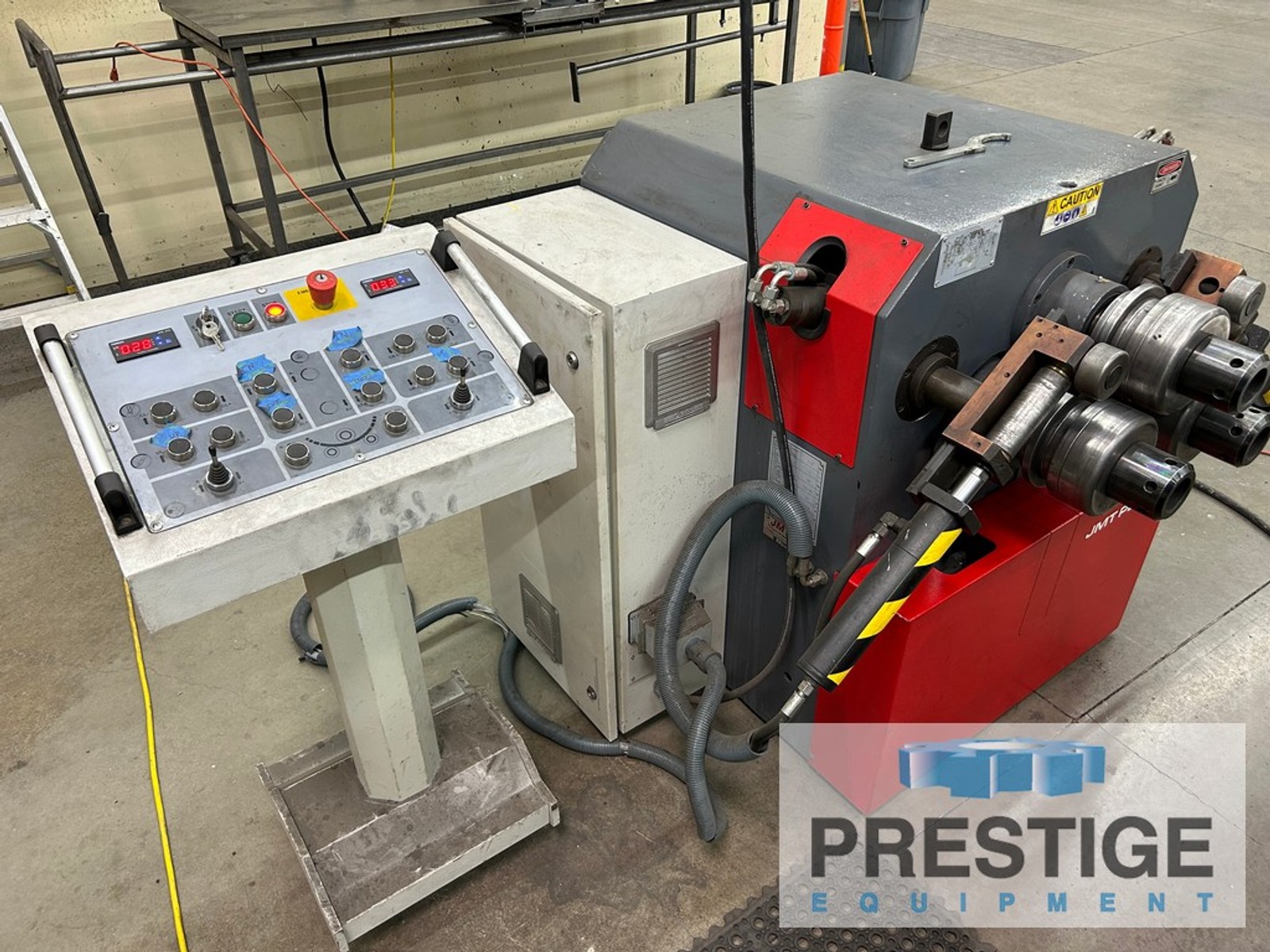

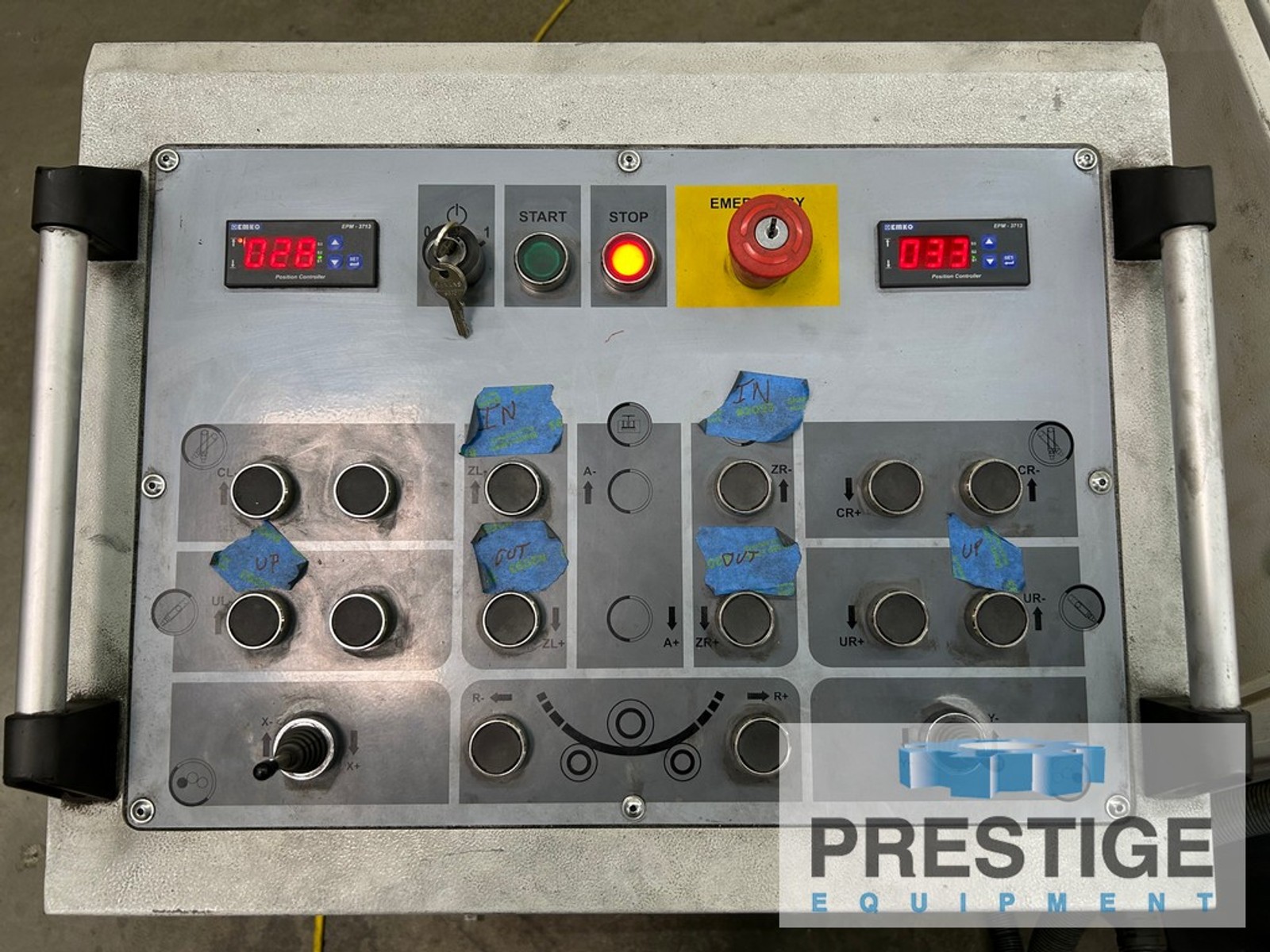

Portable Control Panel
Vertical/Horizontal Orientation

SPECIFICATION:
Roll Diameter ......................... 7"
Turning Speed ......................... 17 FPM
Angle Leg - Out ....................... 2" x 2" x 3/8"
Tubing - Square........................ 2" x 2" x 1/8"
Tubing - Rectangular .................. 3" x 1.5" x 1/4"
Solid - Square ........................ 1.5" x 1.5"
Flat - Along Edge ..................... 2.75" x .75"
Motor ................................. 3 + 2 HP
Dimensions ............................ 46" x 39" x 46"
Approx. Weight ........................ 2,627 Lbs

EQUIPPED WITH:
Universal Hardened & Ground Rolls
Side Support
Portable Control Panel
Vertical/Horizontal Orientation

NOTE:
Inspect in Plant Under Power
