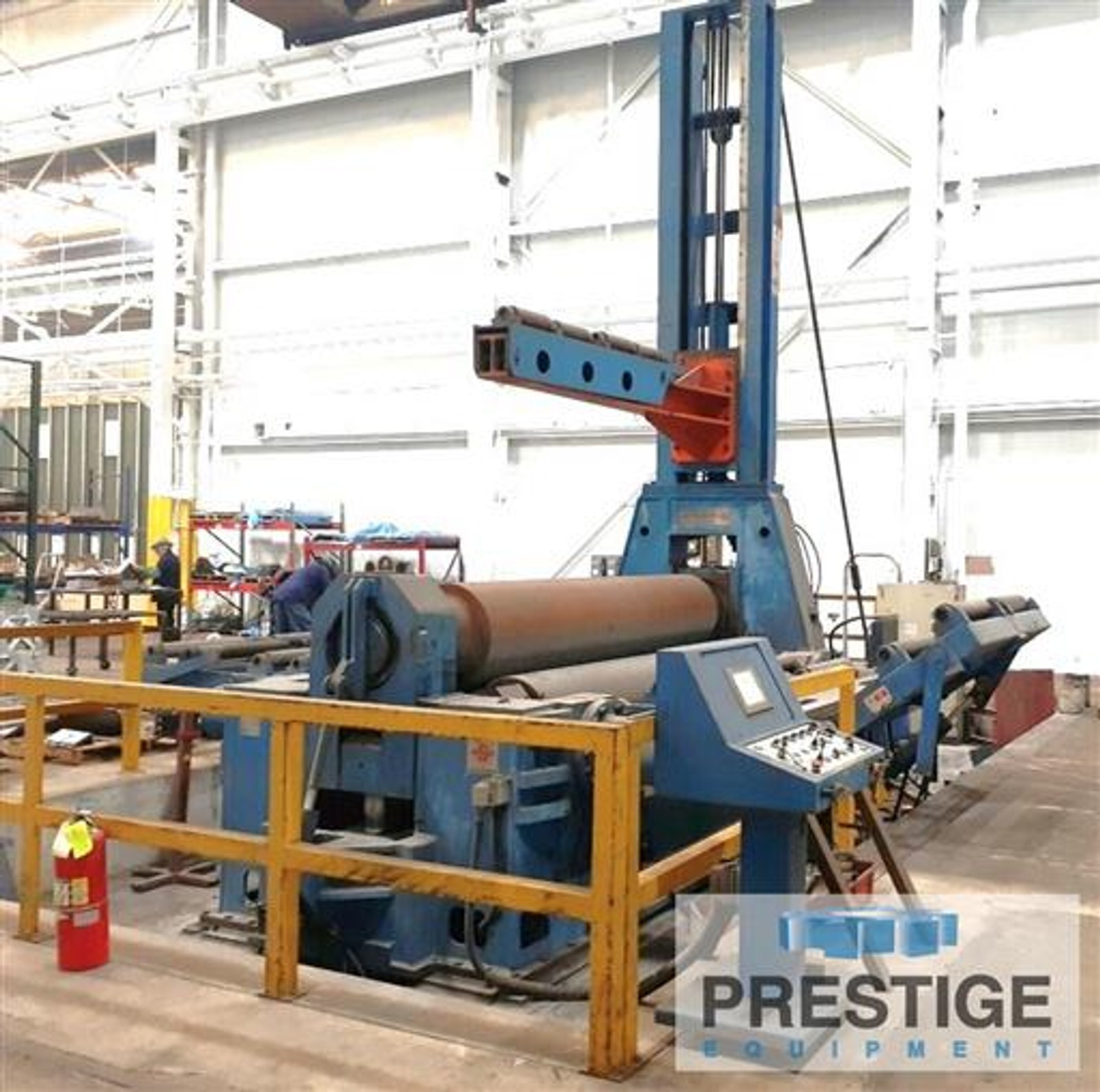

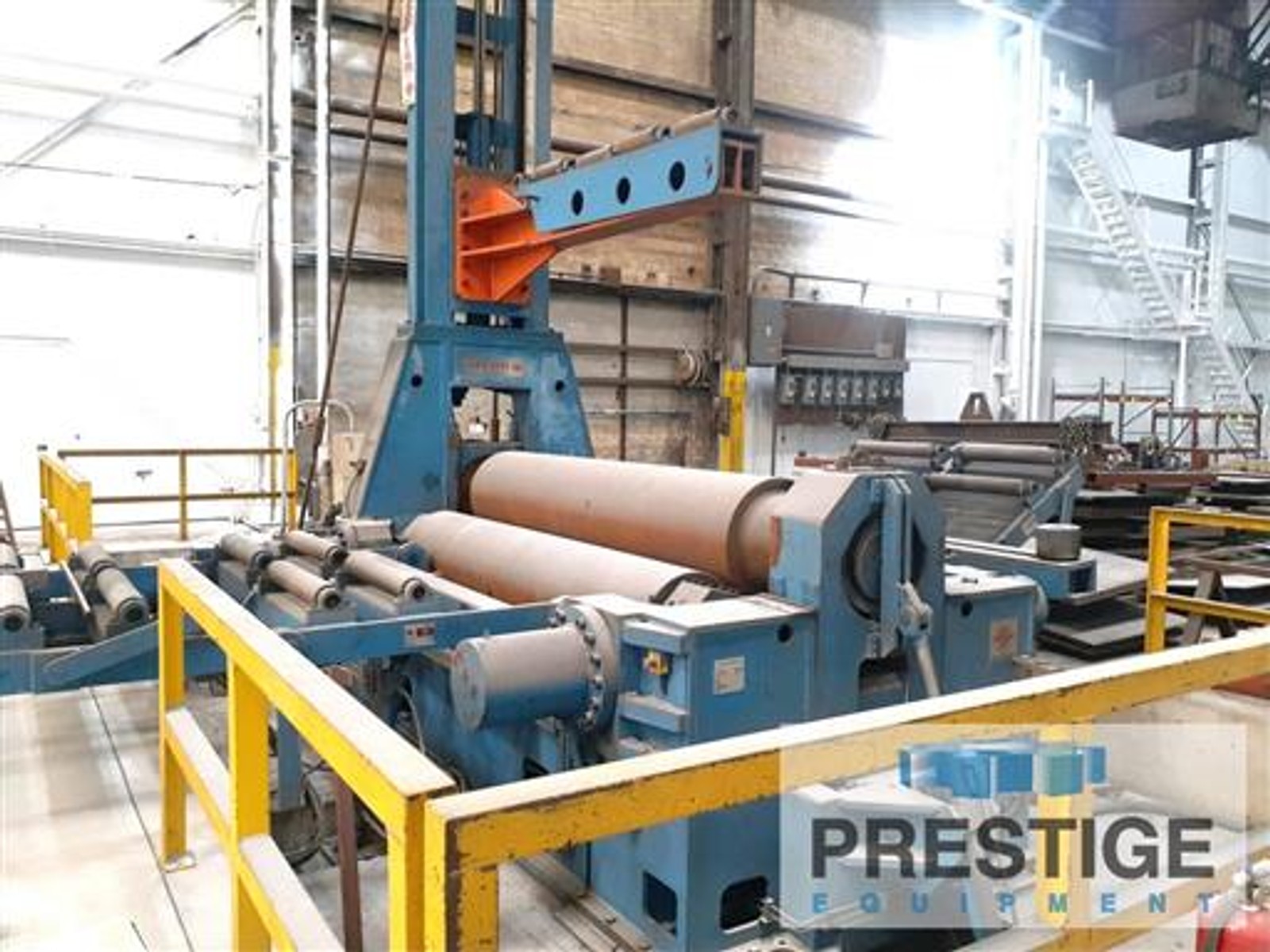

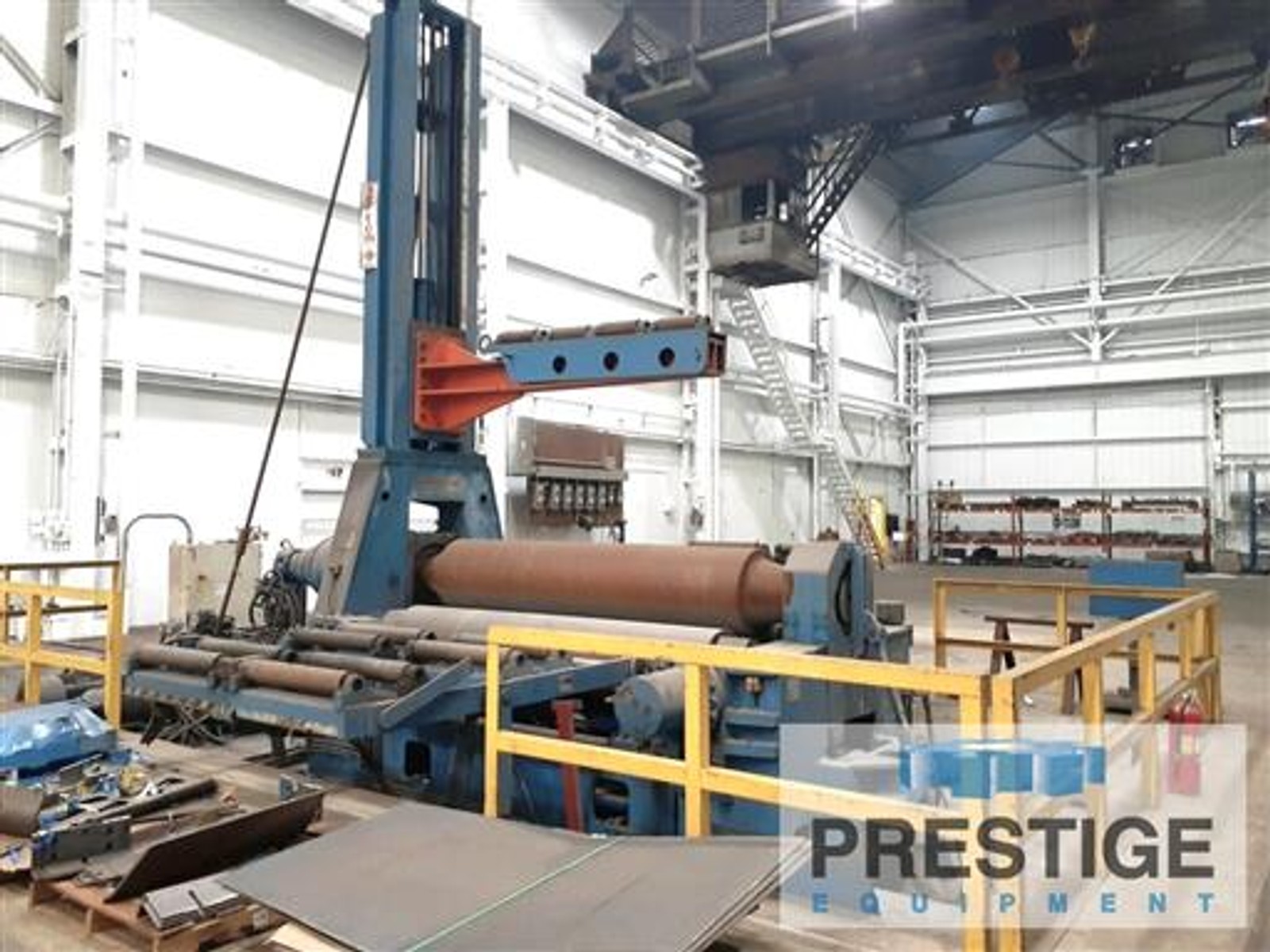

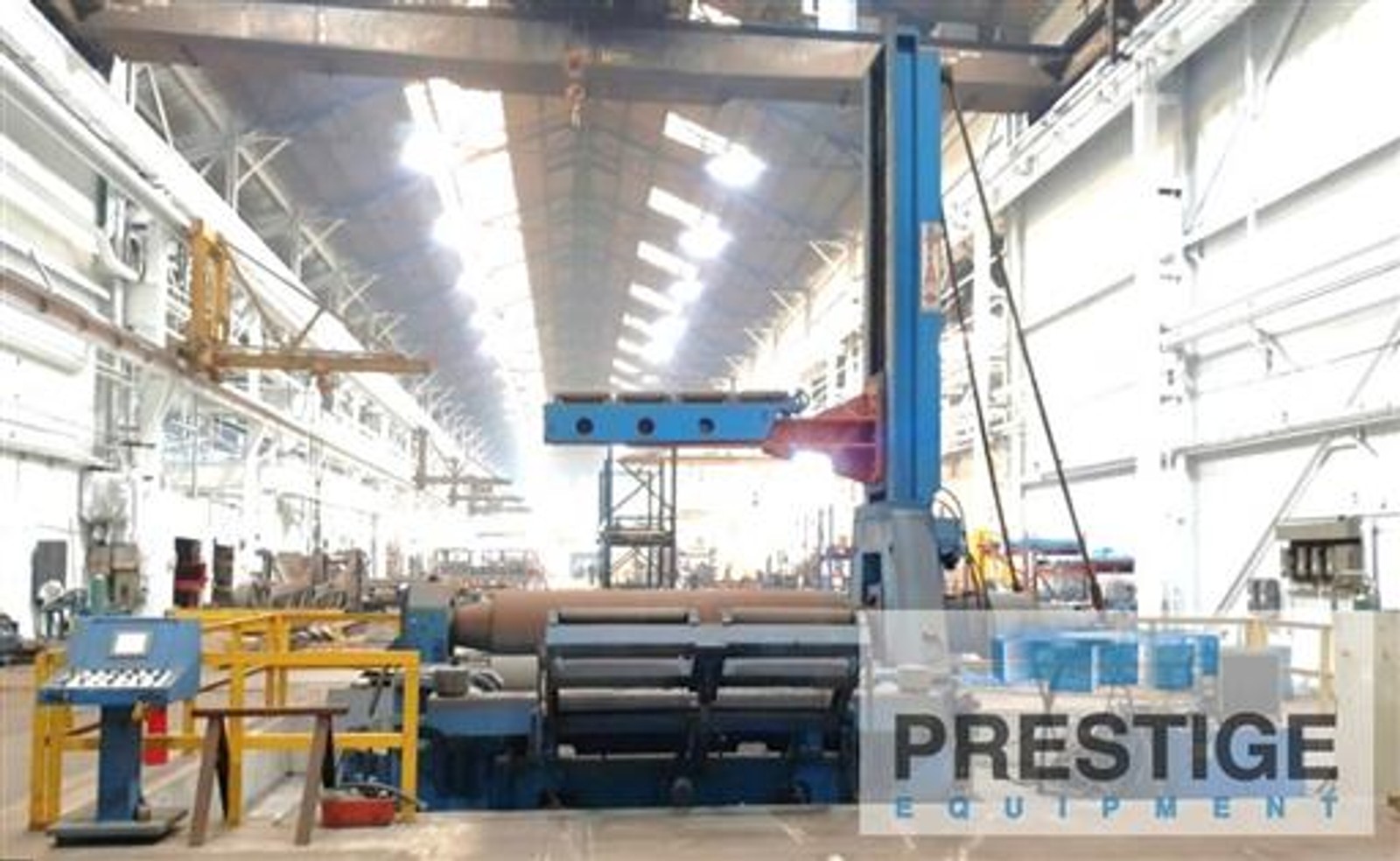

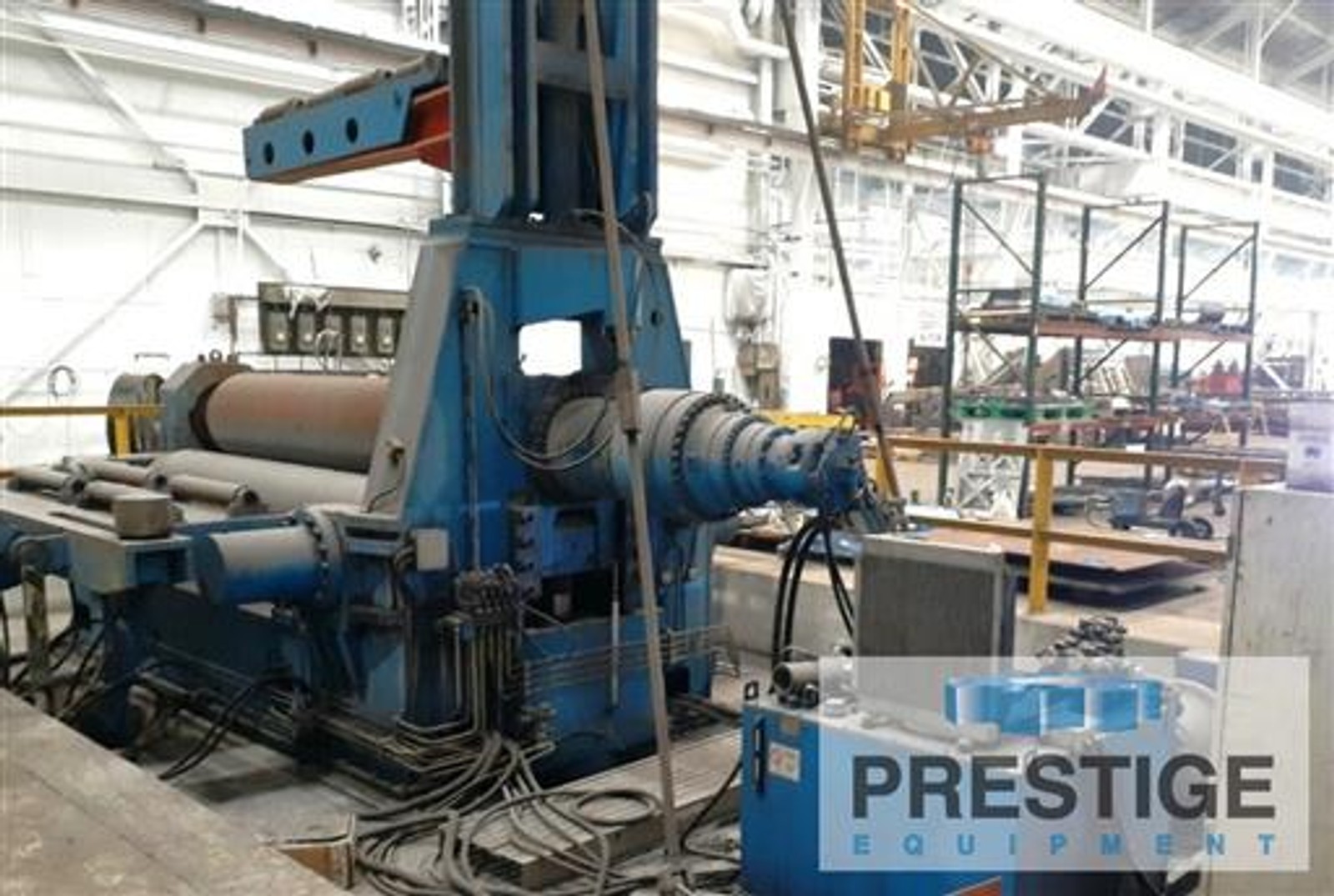

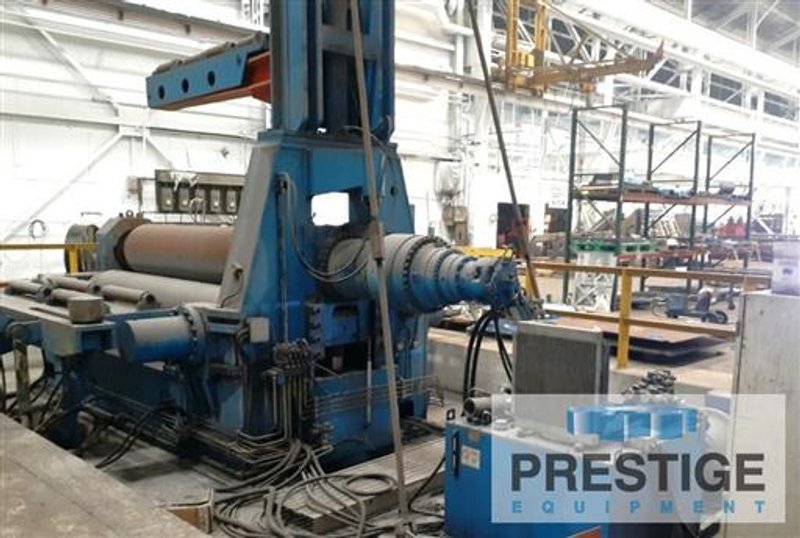

Sertom EMO 31-60, 2.75" x 10' , 3-Roll Variable Axis, 25.5" Top Roll, Siemens PLC Ctrl, Overhead Support, 2008 #32933

Manufacturer

SERTOM

Category

Rolls

Type

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Stock

32933

Model

EMO 31-60

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32933
Sertom EMO 31-60 2.75" x 10'' 3-Roll Hydraulic Variable Axis Bending Roll

FEATURES:

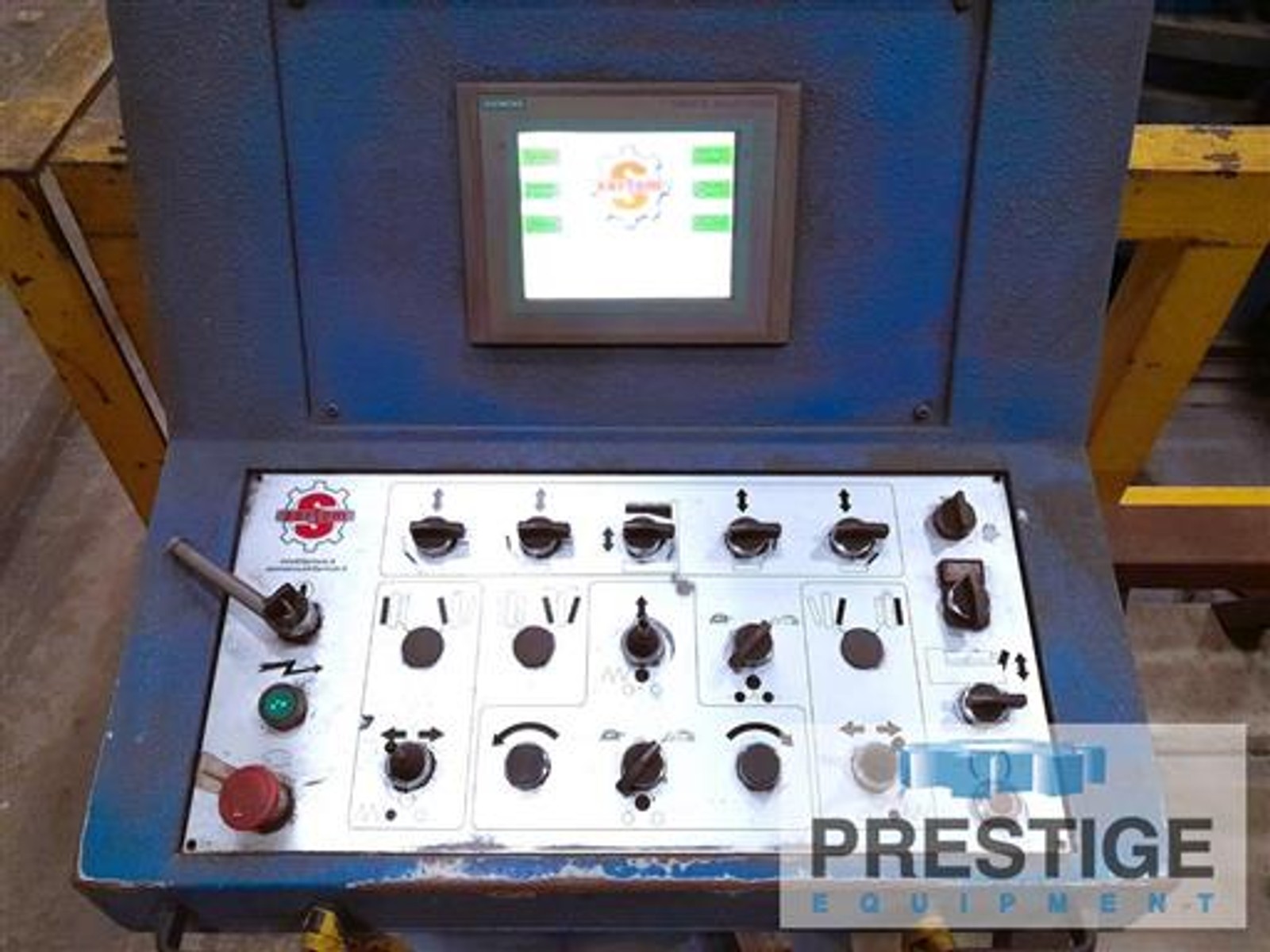

Siemens Simatic Multi Panel PLC Control Console
3-Roll Variable Axis Design
Overhead Plate Support
Feed Table & Side Plate Support

CAPACITY:
Length Of Rolls ....................... 122"
Max. Cap Bending @ 1.5 x Roll Dia. .... 2.75" x 10'
Max. Cap Pre-Bend @ 1.5 x Roll Dia. ... 2.36" x 10'
Top Roll Diameter ..................... 25.59"
Bottom Rolls Diameter ................. 22.04"
Roll Rotation Speed ................... 8.2 - 16.4 FPM
Max. Distance Between Rolls ........... 6.10"
Main Drive Motor ...................... 109 HP
Approximate Shipping Weight ........... 121,035 Lbs

EQUIPPED WITH:
Siemens Simatic Multi Panel PLC Control Console
3-Roll Variable Axis Design
Horizontal Adjusting Bottom Rolls Move Independently With variable Steps
Vertical Adjusting Top Roll

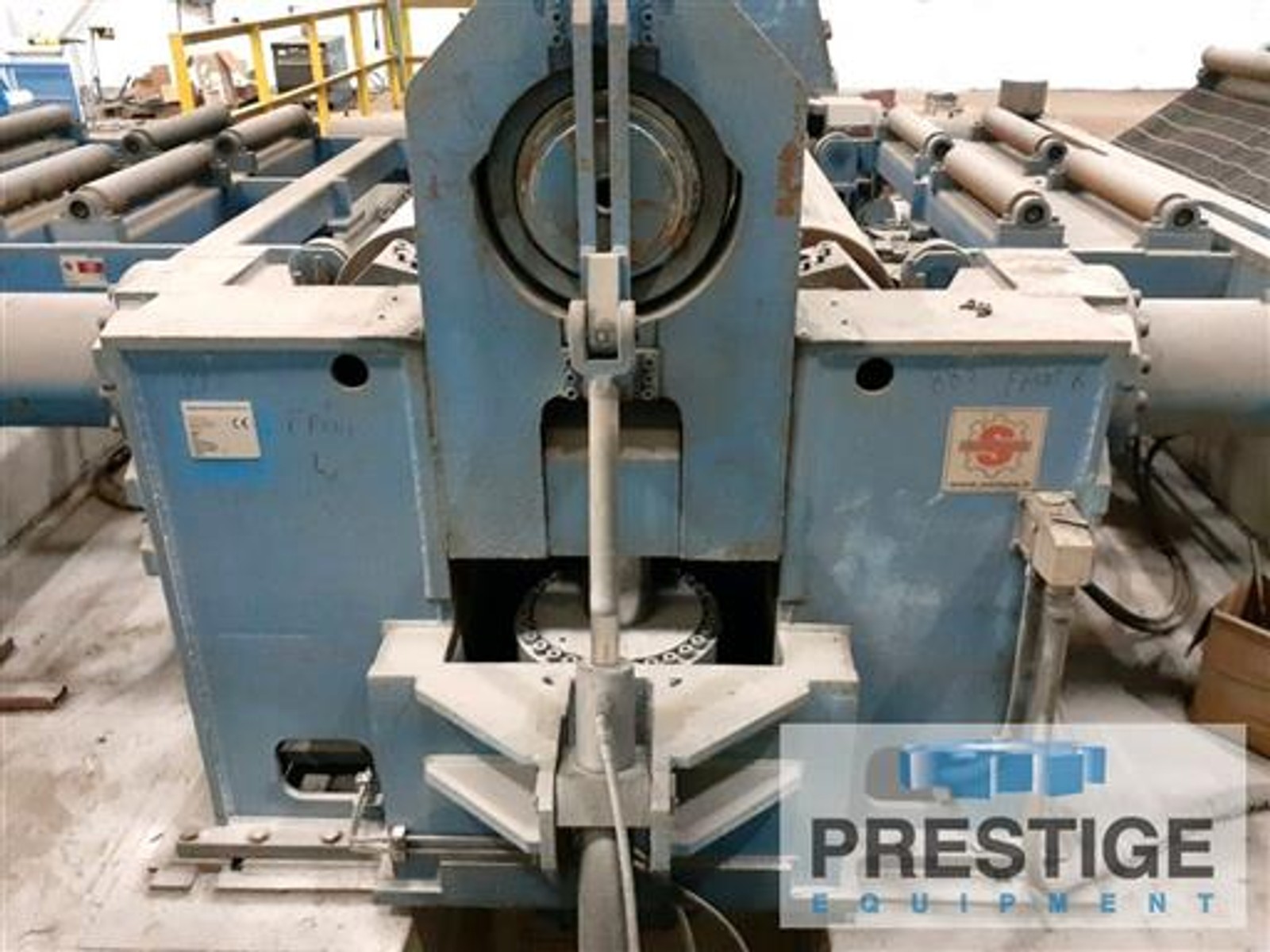

Hydraulic Drop End
Overhead Plate Support
Feed Table & Side Plate Support

NOTES:
Inspect in Plant Under power

No Video Available
