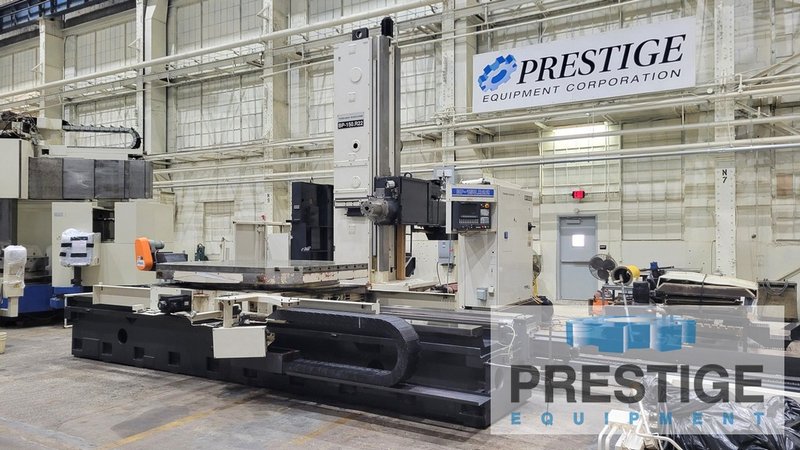

5.9" Toshiba BP-150.R22 , 60 ATC, X-160", Y-120", 71" x 86" B-Axis Rotary Table, 2500 RPM, TSC, 50 HP, 2013, #43653

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43653

Model

BP-150.R22

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43653

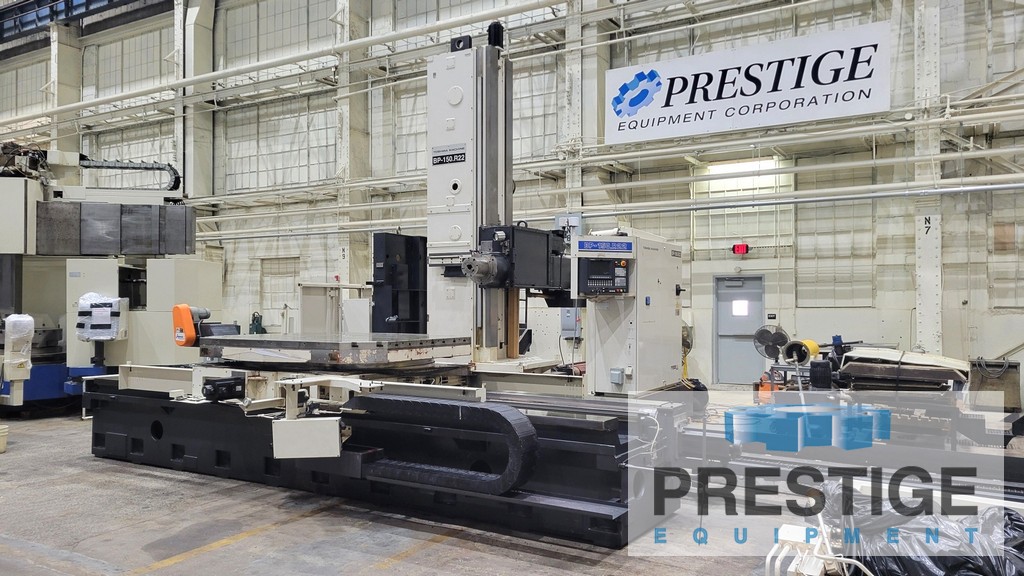

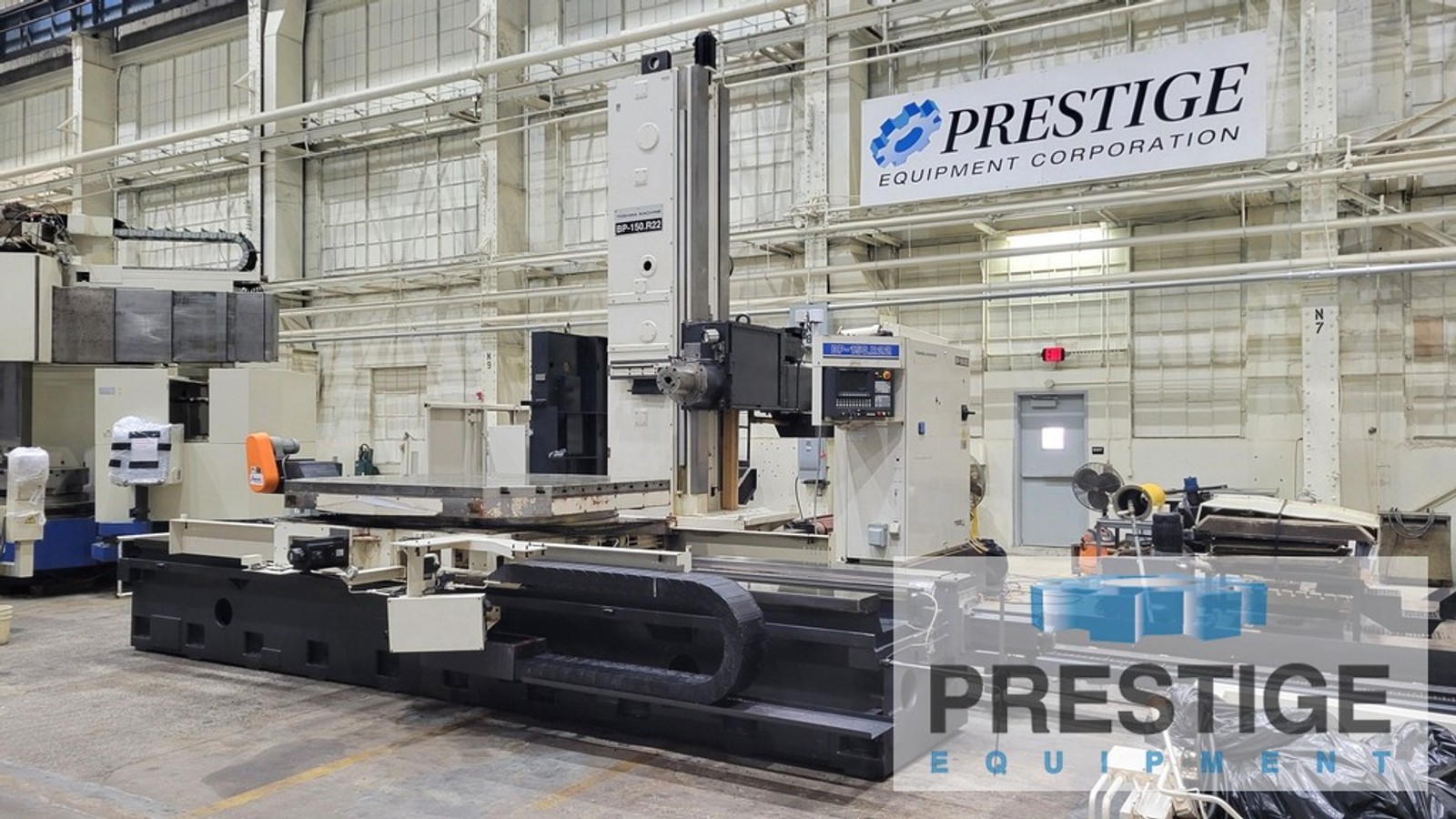

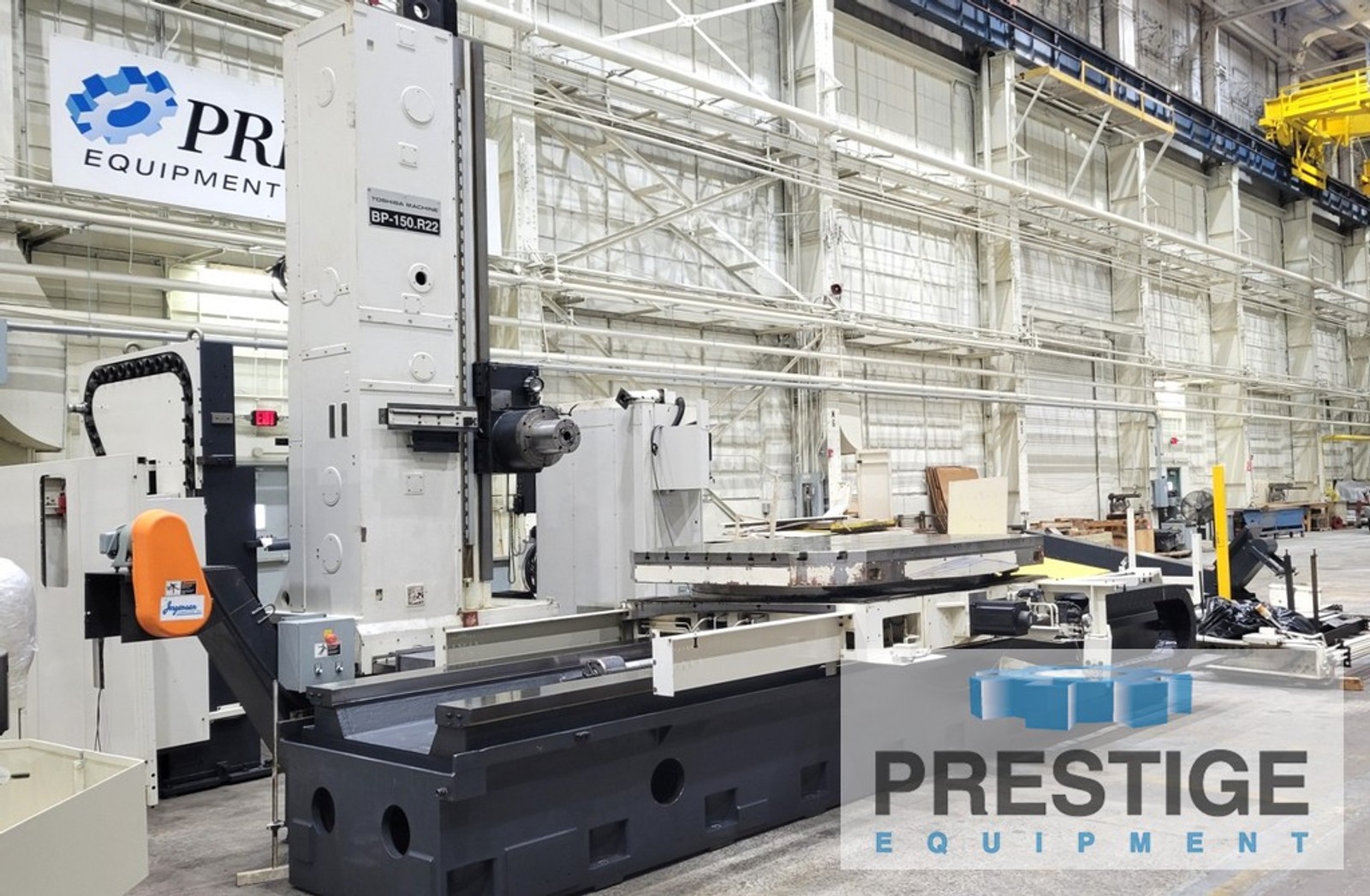

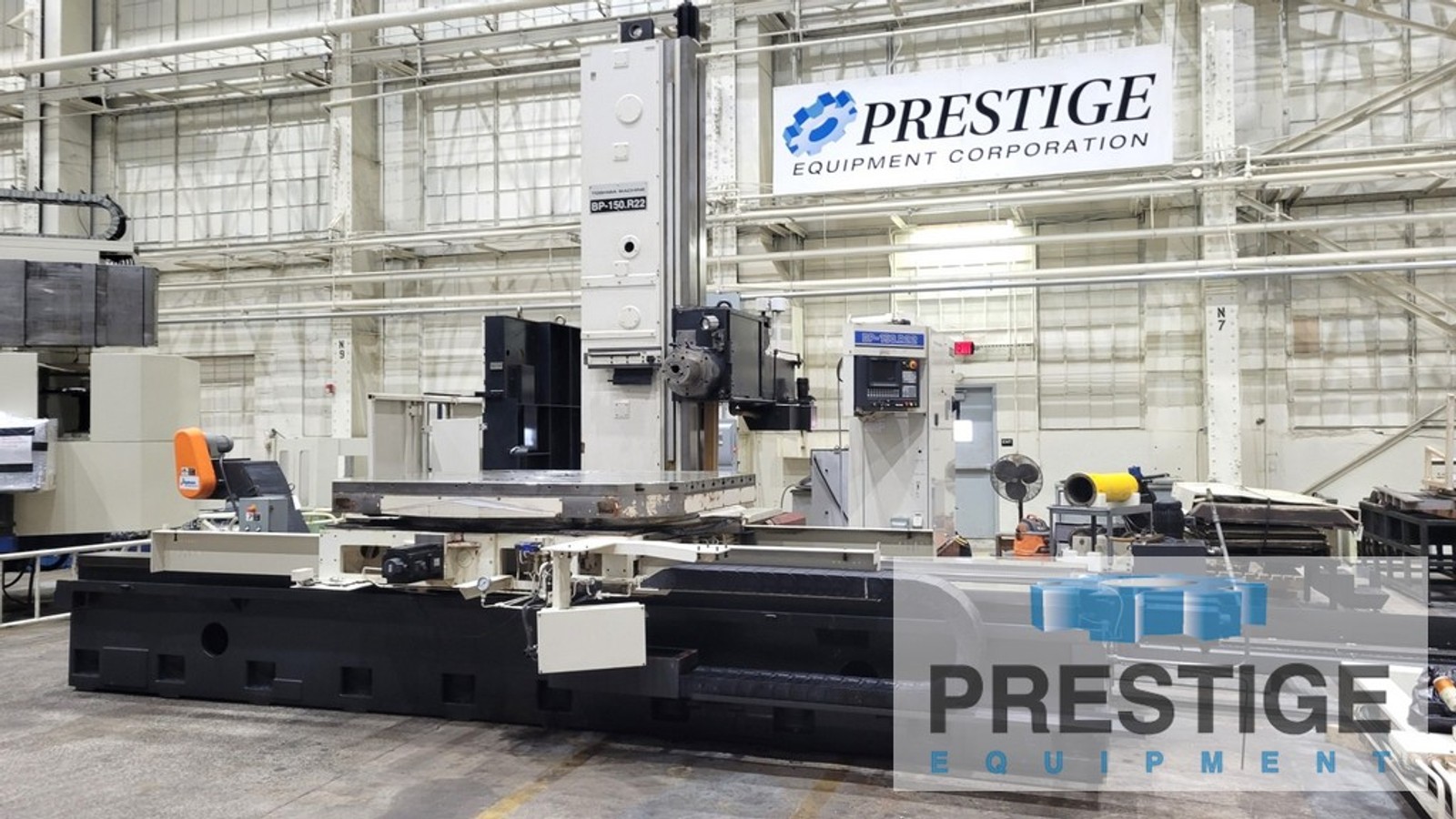

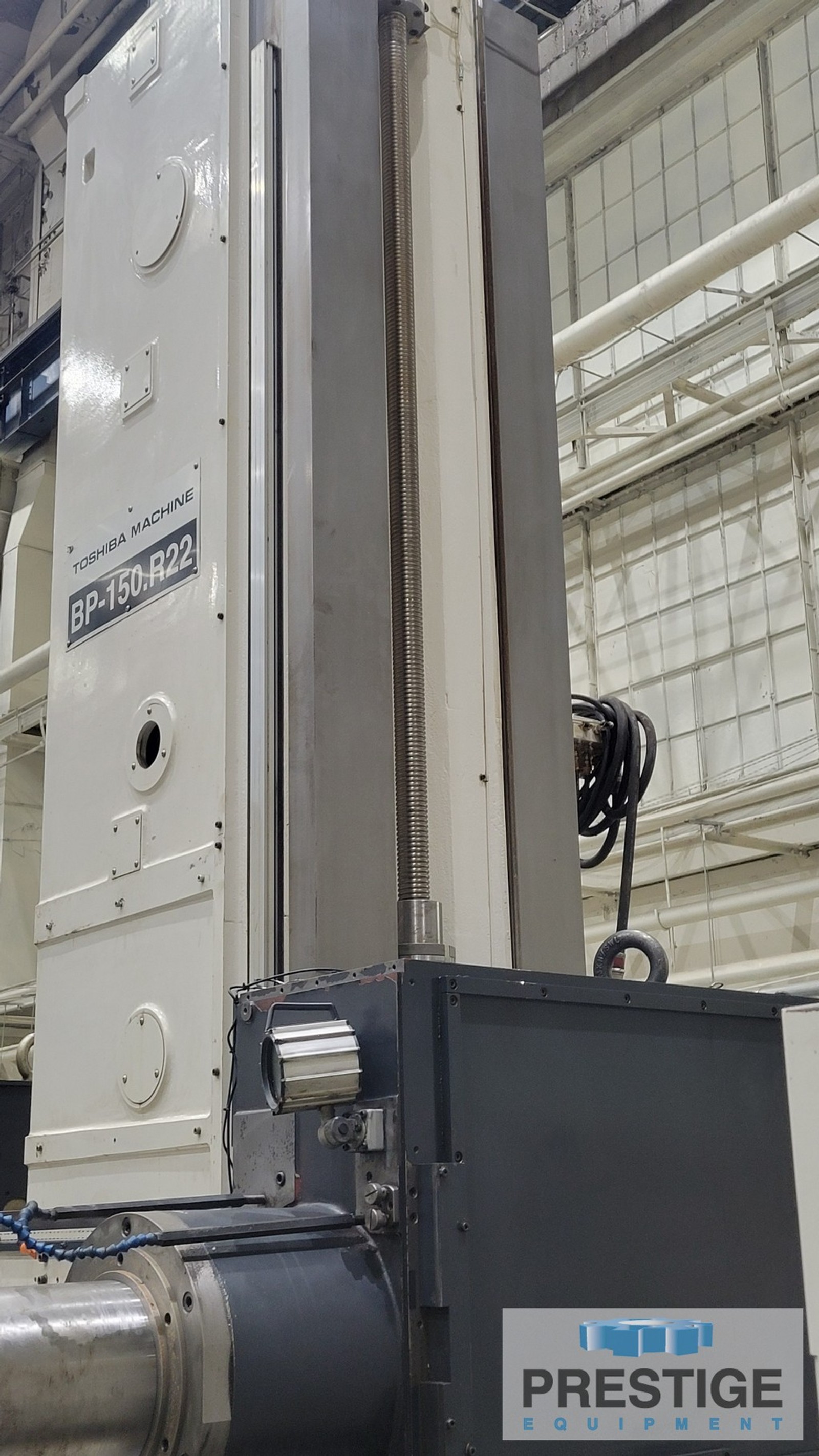

Toshiba BP-150.R22 5.9" CNC Horizontal Boring Mill

FEATURES:
Tosnuc 999 CNC Control
60-Position Automatic Tool Changer
Thru-Spindle Coolant

SPECIFICATIONS:

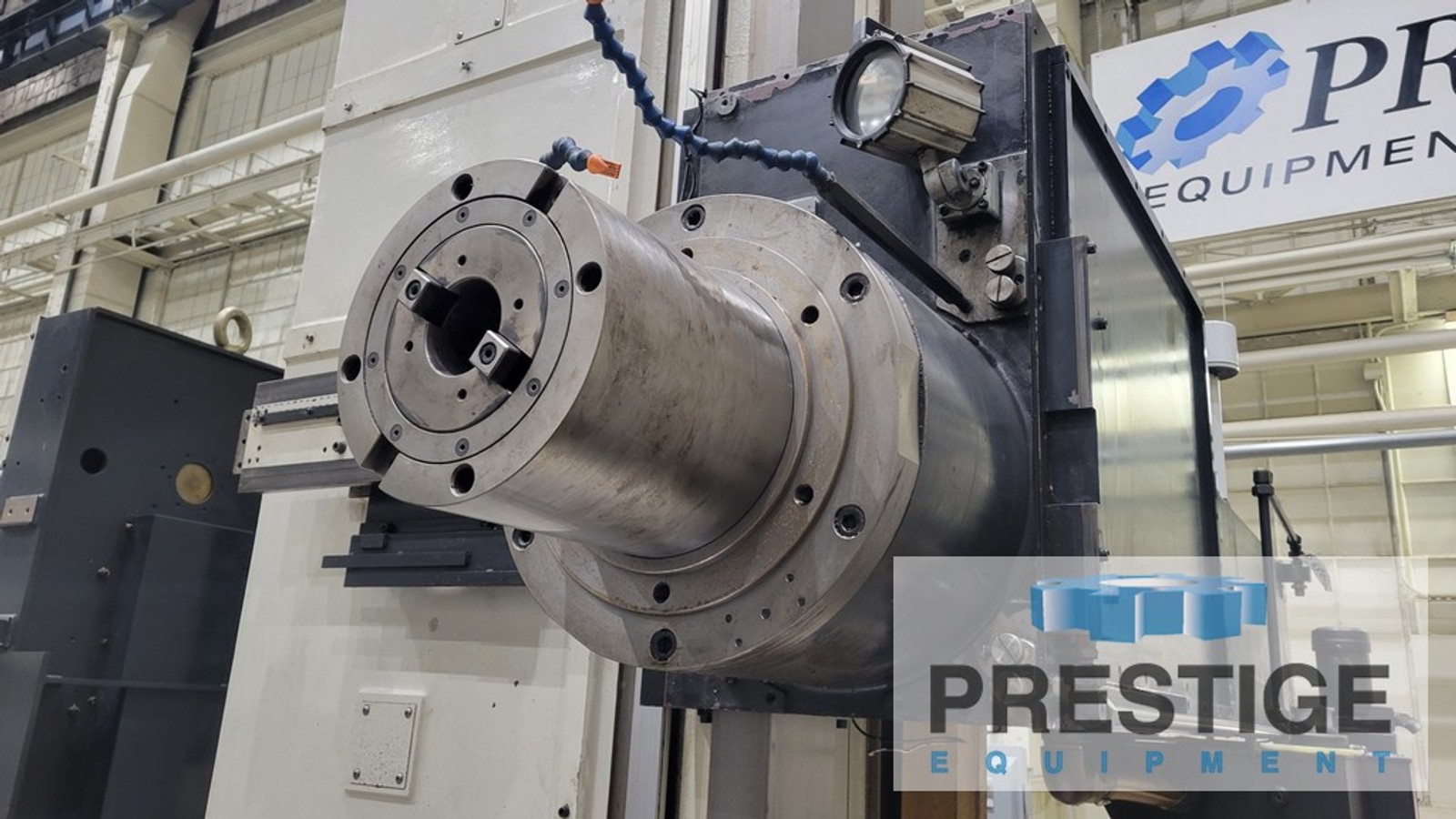

Spindle Diameter ..................... 5.9"
Taper In Spindle ..................... CAT 50
Y-Axis Vertical Travel ............... 120"
X-Axis Table Travel .................. 160"
Z-Axis Spindle Travel ................ 28"
W-Axis Column Infeed Travel .......... 60"
B-Axis Rotary Table .................. 0.001 Degrees
Rotary Table Size .................... 70.9" X 86.6"
Table Load Capacity .................. 44,000 LBS
Spindle Speeds (3-Ranges) ............ 5-2500 RPM
Rapid Traverse X,Y,Z Axes ............ 708.7 IPM
Rapid Traverse B-Axis ................ 720 Deg/Min
Machine Footprint .................... 300" x 402"
Machine Height ....................... 225.3"
Machine Weight ....................... 96,800 lbs

EQUIPPED WITH:

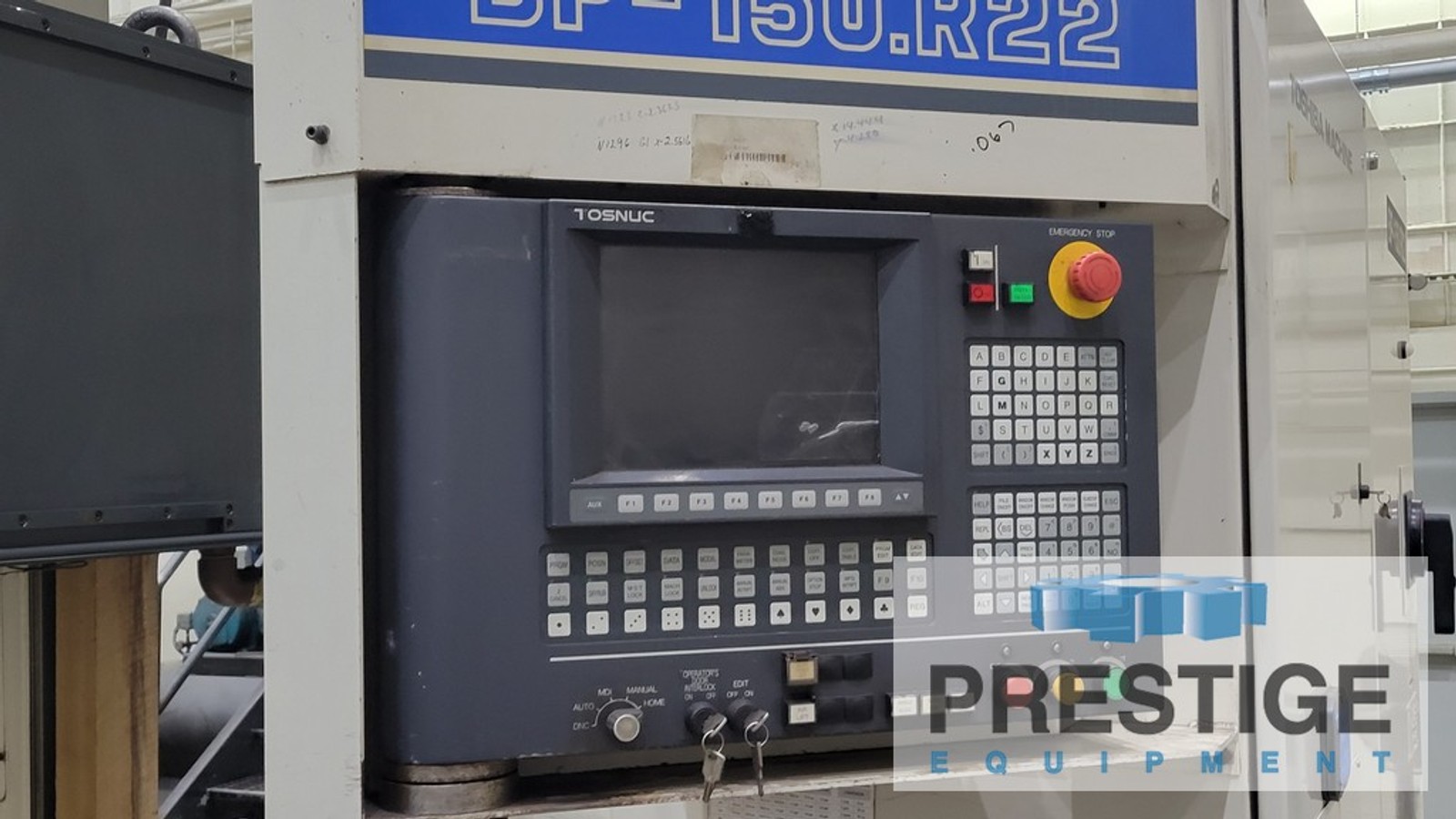

Tosnuc 999 4-Axis CNC Control
60-Station Automatic Tool Changer

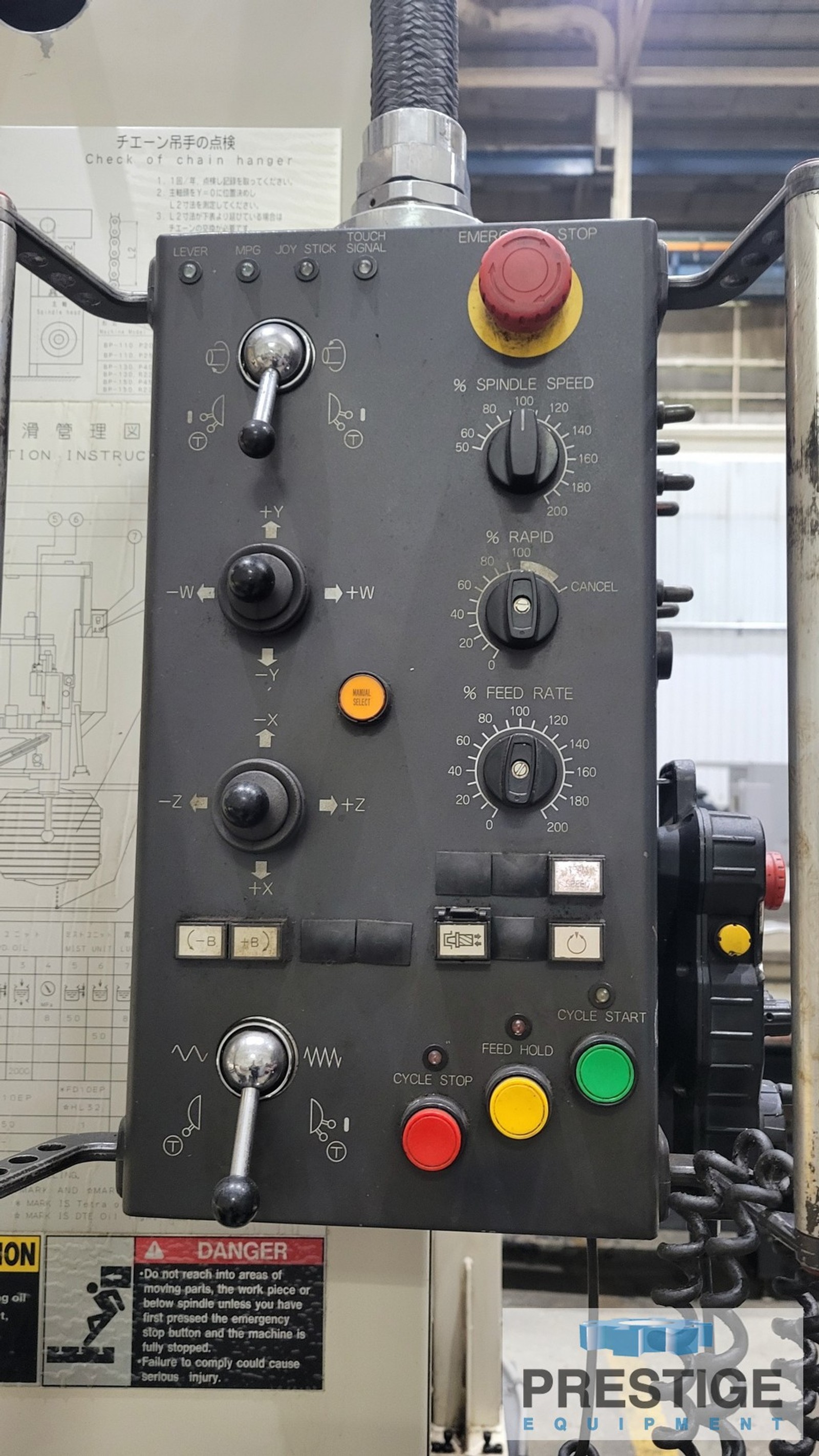

Pendant For Manual Operation
Scale Feedback
Thru-Spindle Coolant
Flood Coolant

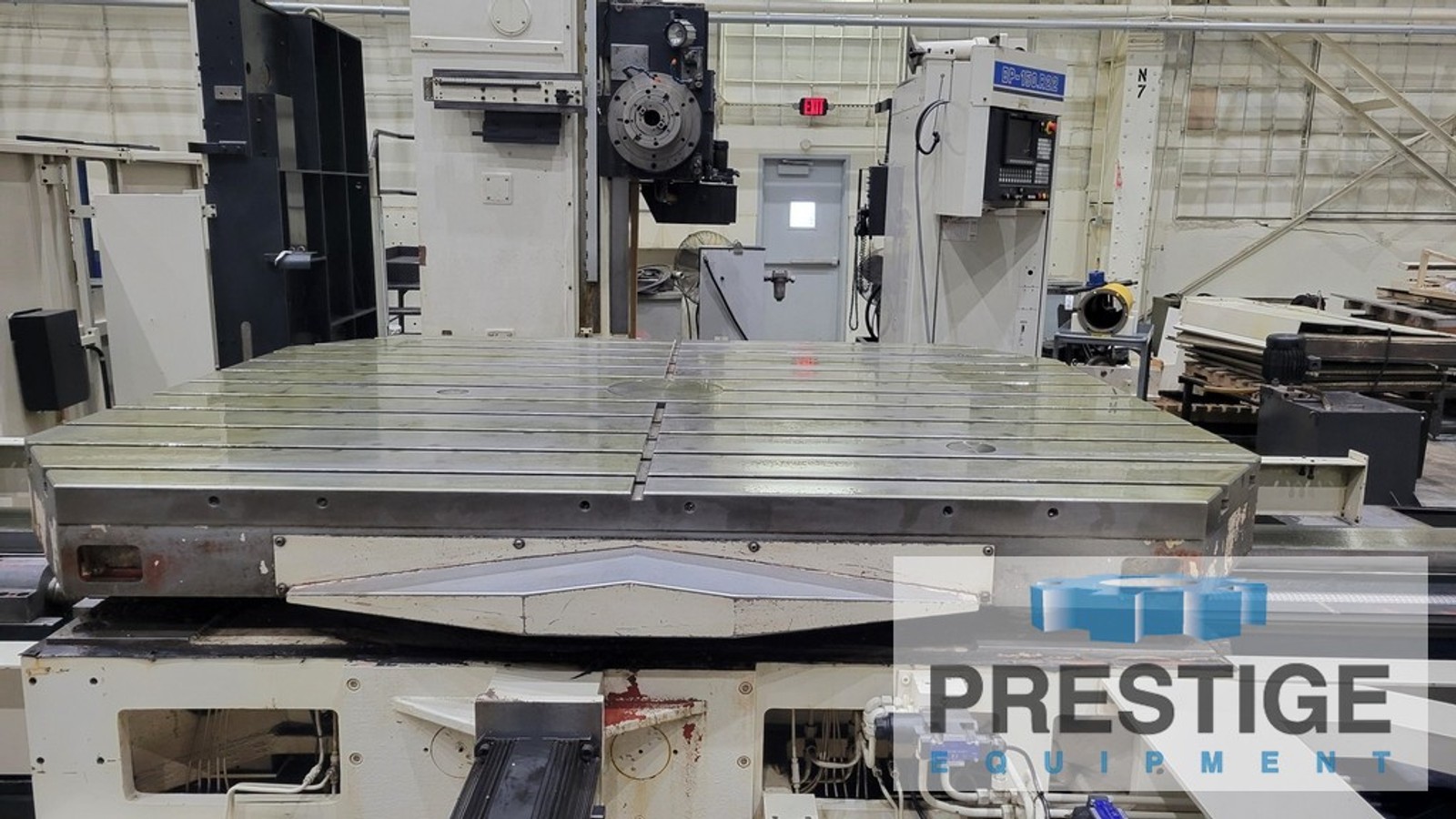

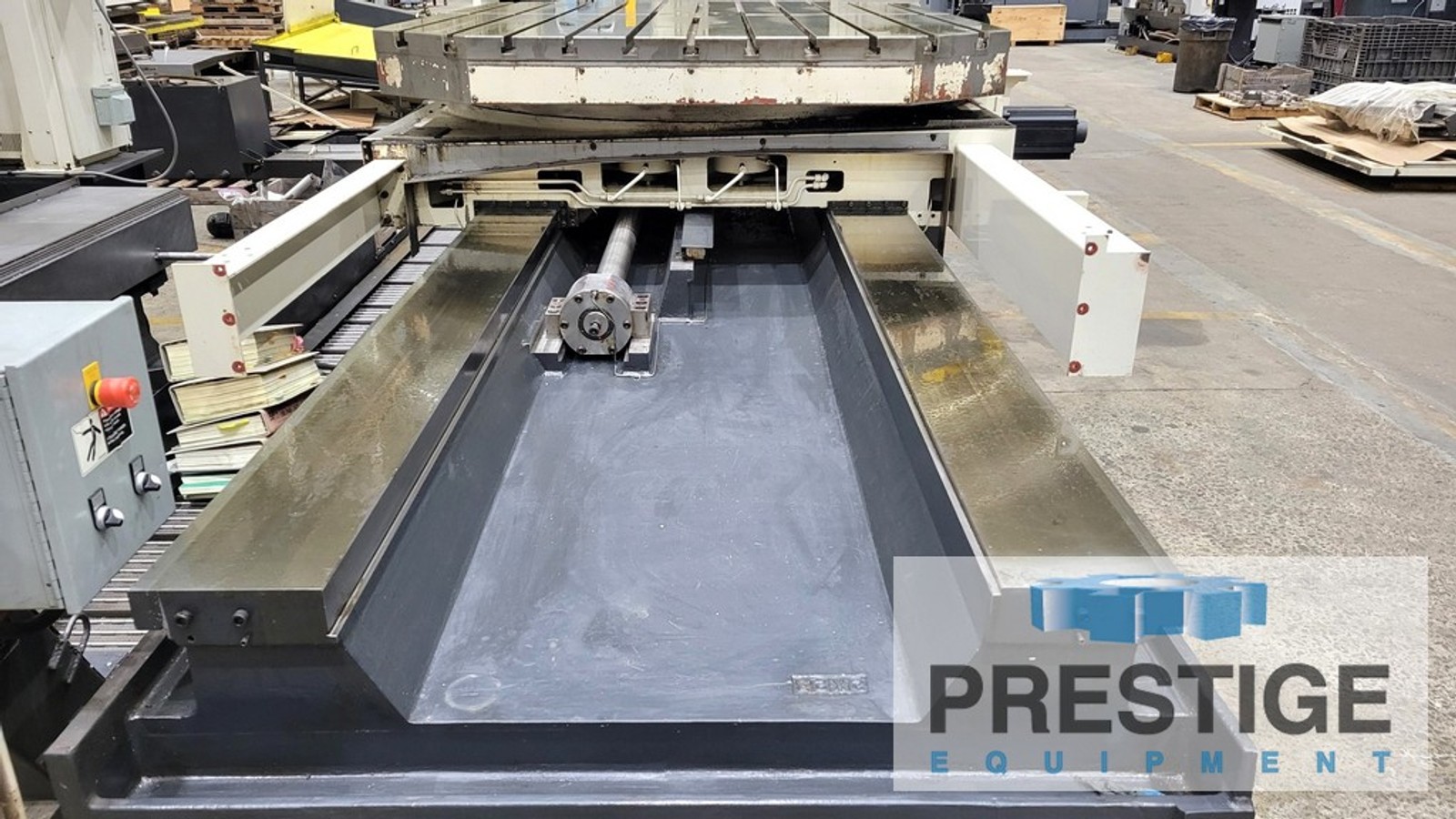

Built-In B-Axis Rotary Table

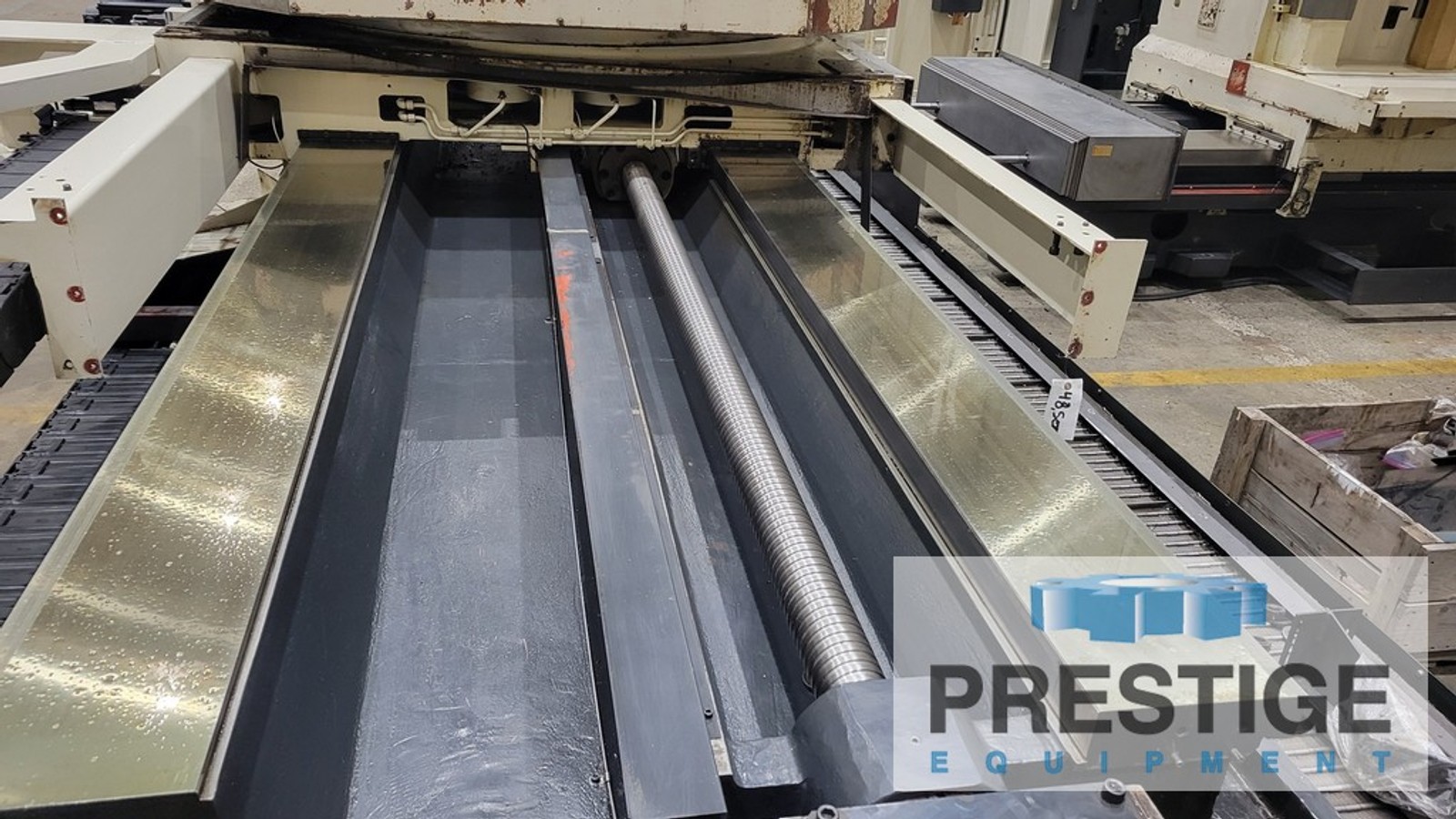

Chip Conveyor
50 HP/40 HP Spindle Motor

Also Available:
Toshiba Right Angle Head at Additional Cost.
