400-ton Minster E2-400-108-54 Hevi-Stamper Progressive Die Metal Stamping Press, Rebuild in Proc

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2916

Model

E2-400-108-54

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 400
Stroke - 14 inches
Shut Height - 40 inches
Adjustment - 10 inches
Bed Size - 108" x 54"
Ram Area - 108" x 54"
SPM - 20-40 VSPM

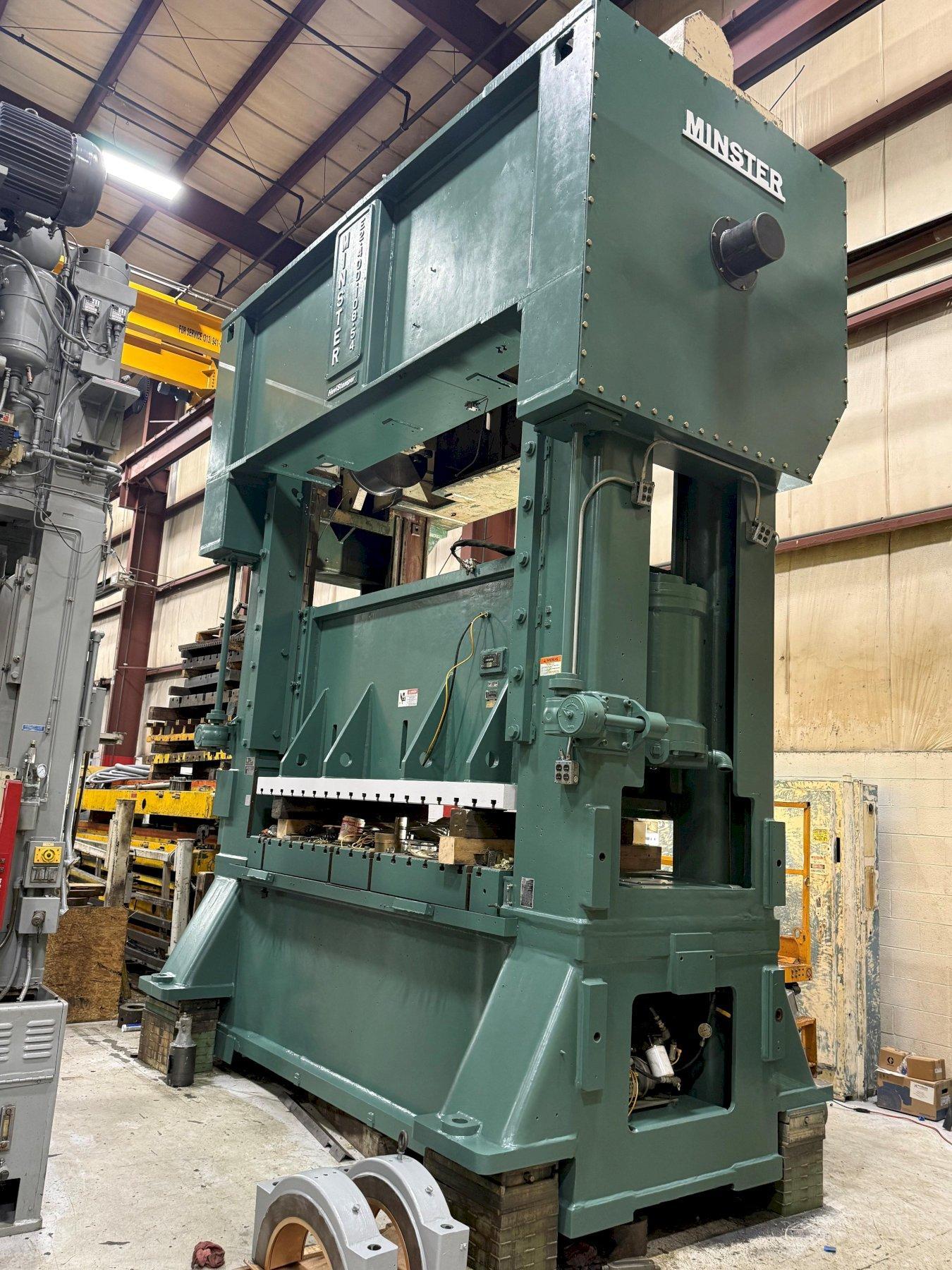

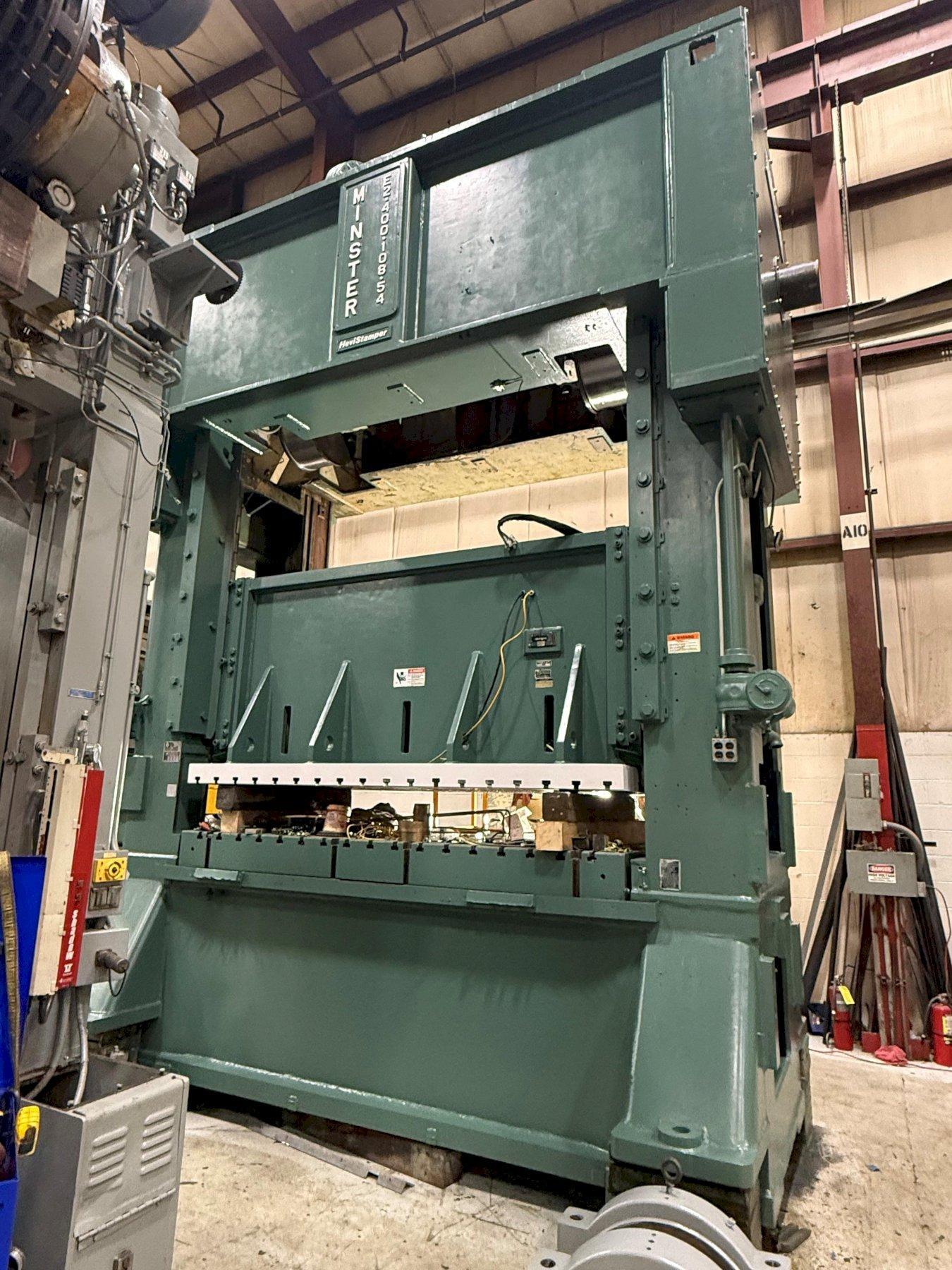

400-ton Minster Straight Side
Mechanical Metal Stamping Press
Model Hevi-Stamper Press Model E2-400-108-54
Serial Number E2-400-16968
400-ton Capacity
14" Stroke
40" Shut Height on Bed
31" Die Height on Bolster
10" Motorized Adjustment
108" LR x 54" FB Bed Area
108" LR x 54" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Single Geared - Twin End Drive
3 Crossbar Knockouts in Ram
8 Adjustable Bronze Lined Gibs
Recirculating Lube System
9" Thick Bolster Plate
T-Slotted Ram and Bolster
Hydraulic Tie Rod Nuts
Dual Ross Air Valve
Distance Floor to Top of Bed:  33"
8 Point Gibing
Motors and New Electrical Controls
38" wide Windows
Floor Standing

Price included "New" well equipped Toledo Press Controls (other Control Brand Options available upon request)

This 400-ton Minster Hevi-stamper Mechanical Metal Stamping Press is currently in process of being fully rebuilt with new electrical controls.  Please ask your salesperson for more details and a full scope of work.  Upon completion of Rebuild this 400-ton Minster Hevi-Stamper can be seen under power in the S&G Press Livonia Michigan Warehouse!

Click for more 400-ton Press Options.

Rebuilt 400-ton Minster Hevi-stamper Press For Sale, Straight Side Mechanical Presses, Used Presses, Minster Press, Rebuilt / Reconditioned Presses
