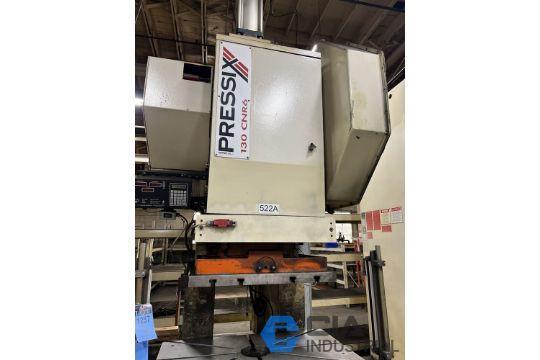

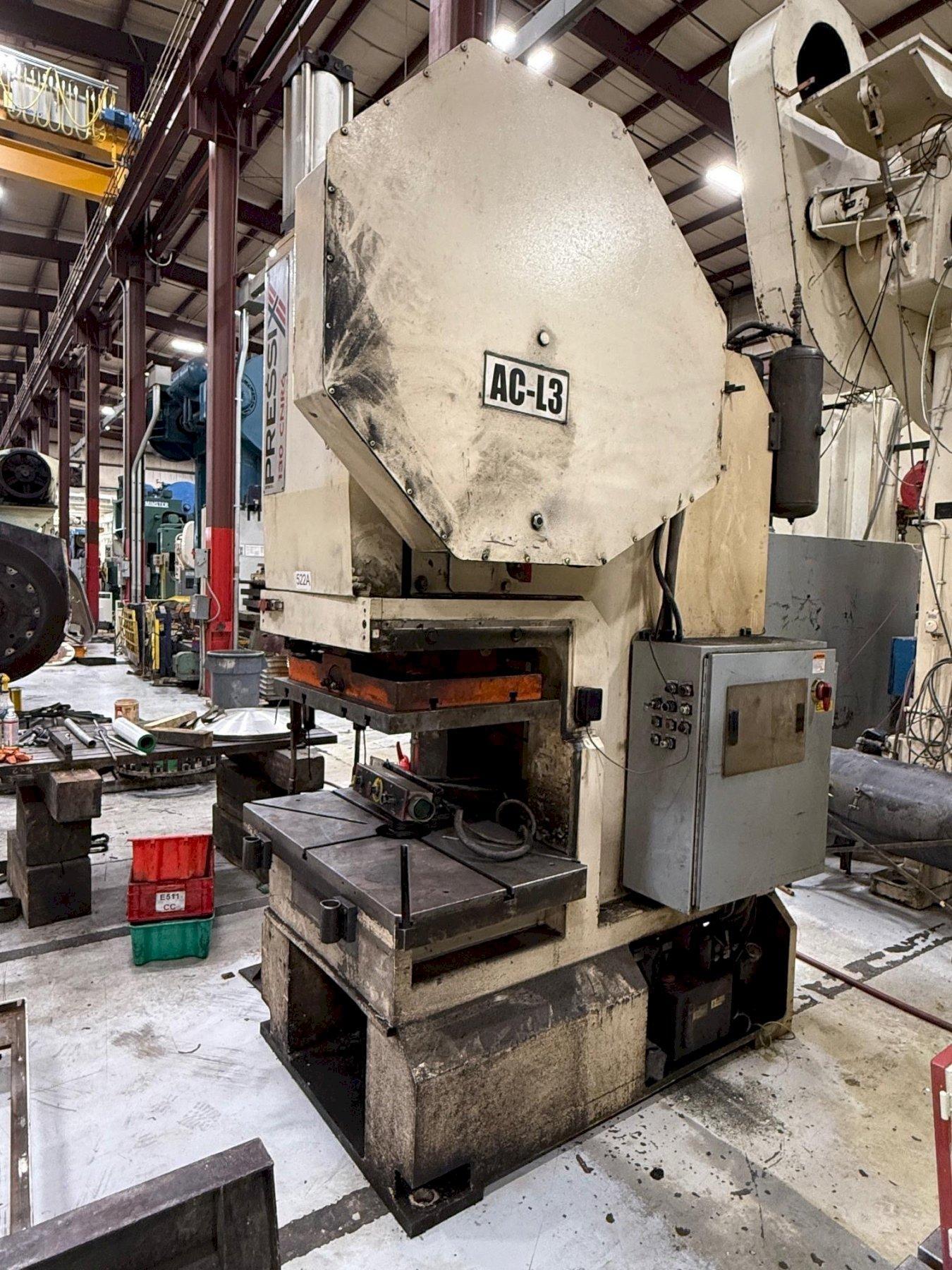

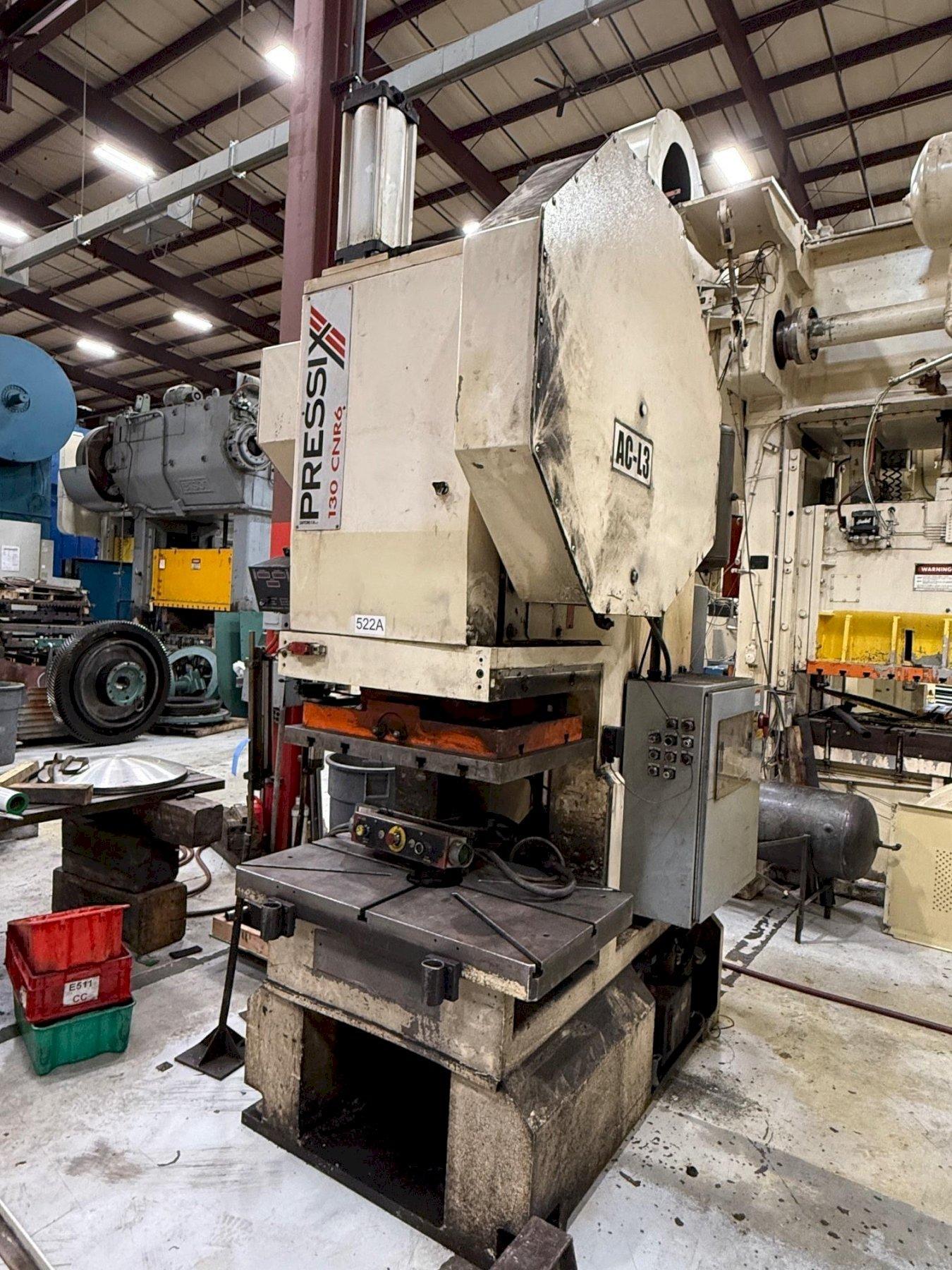

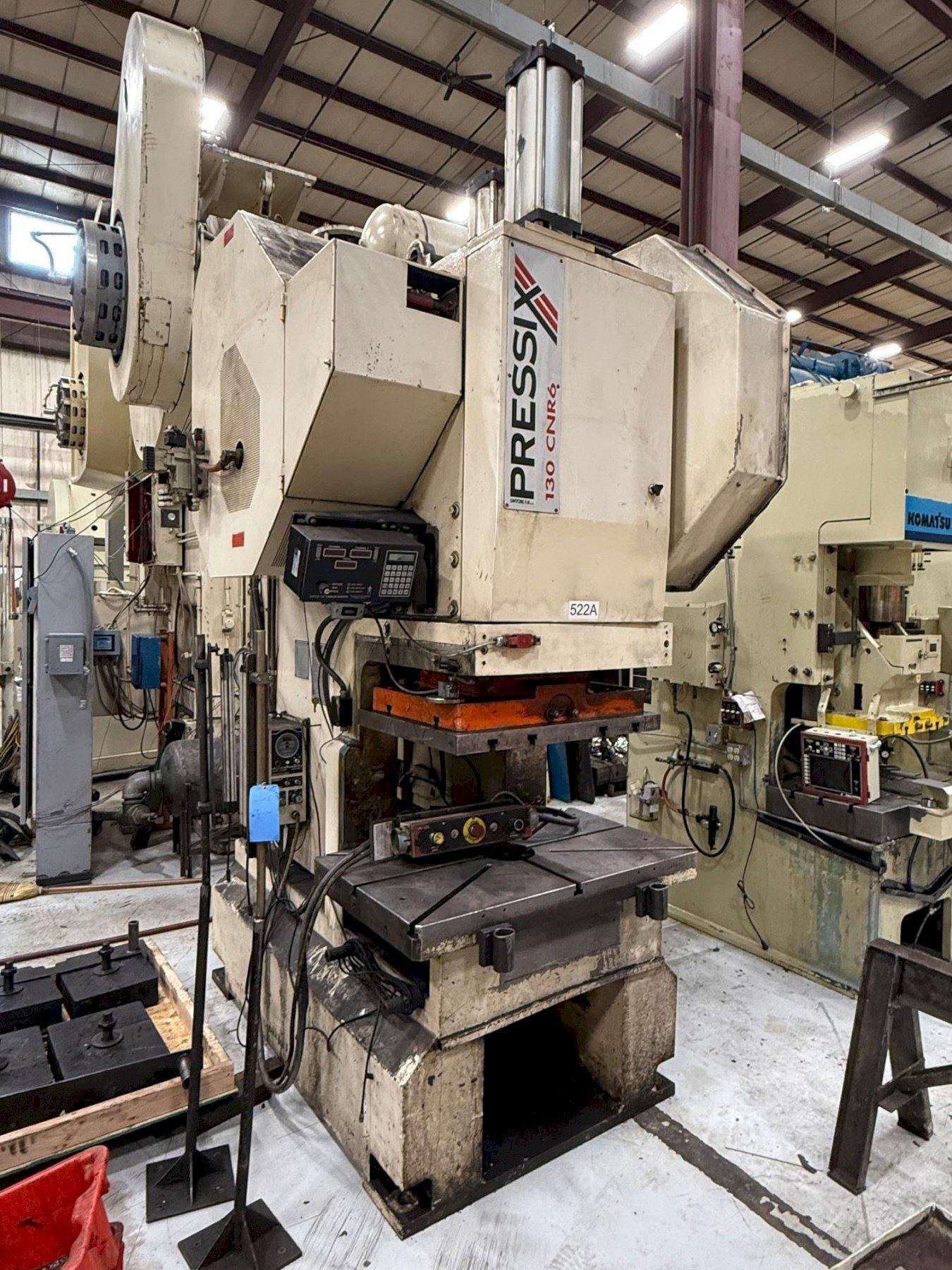

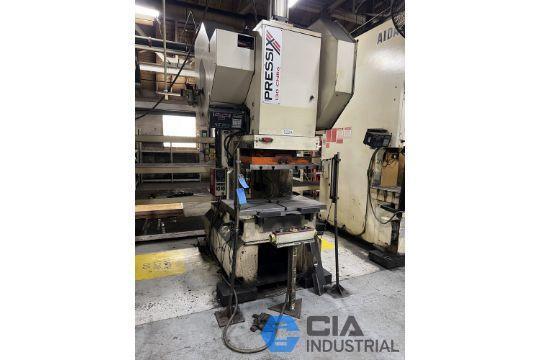

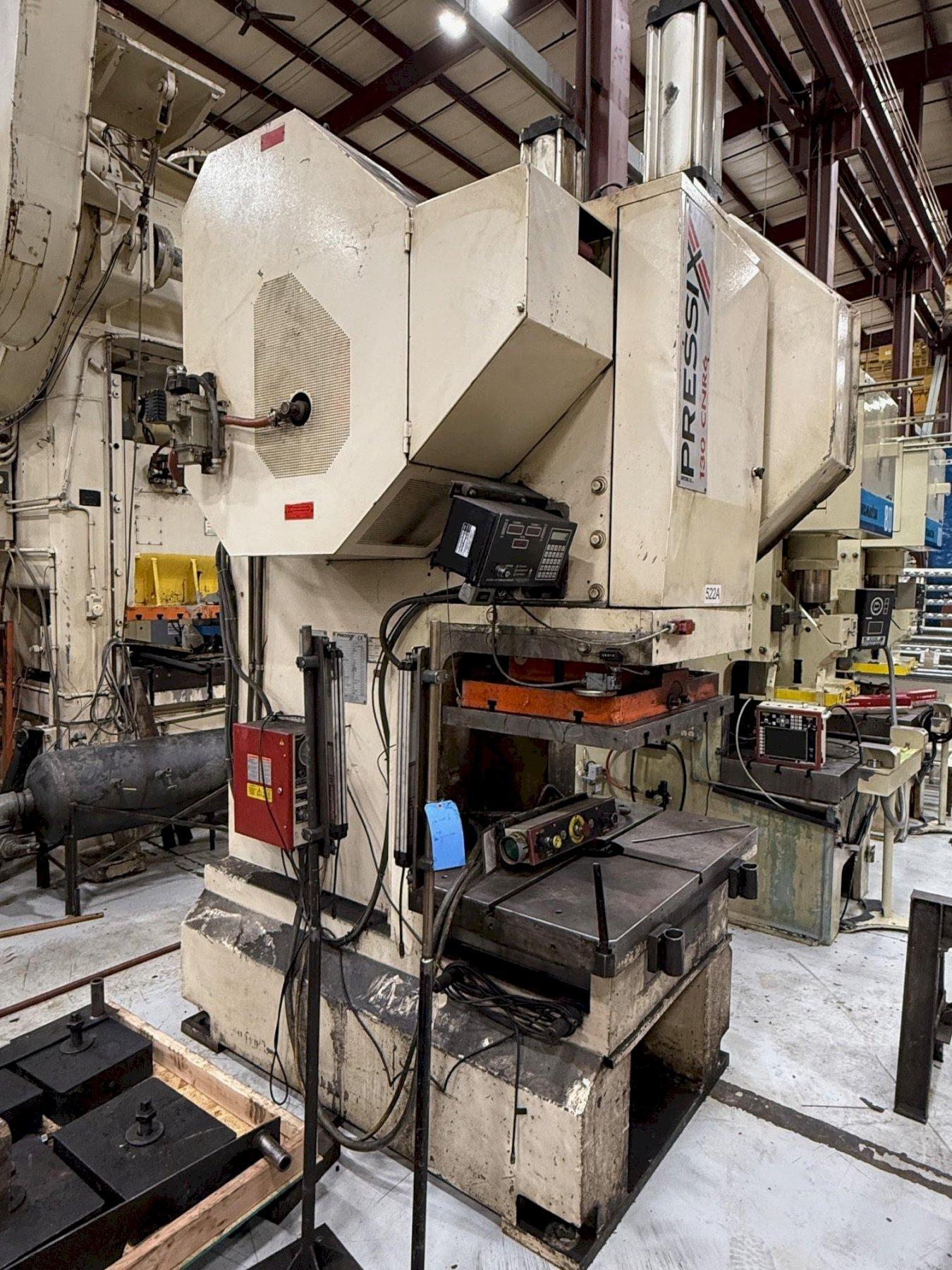

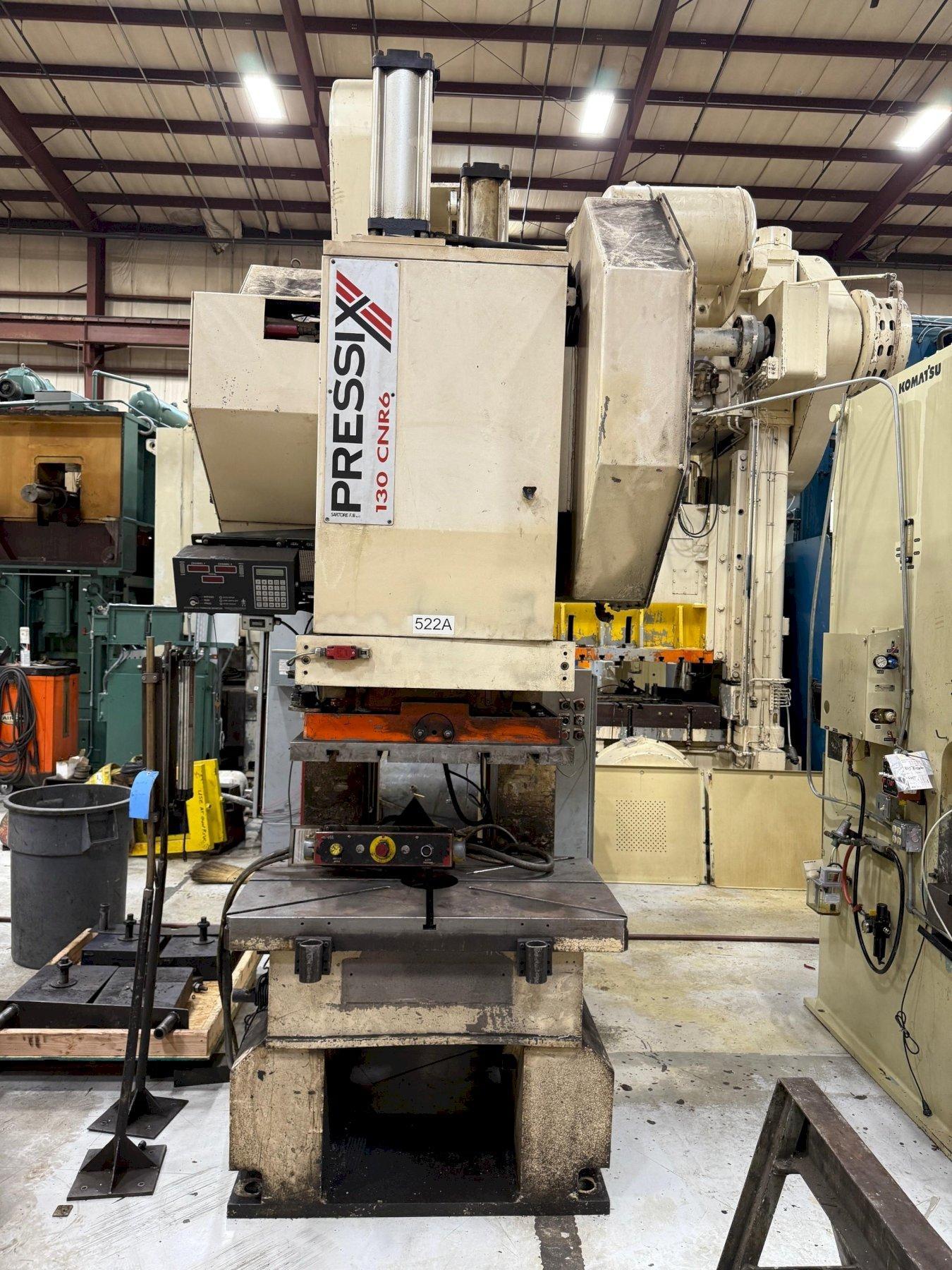

130 ton Pressix Adjustable Stroke Metal Stamping Gap Frame Back Geared Press, Year 2006

Manufacturer

PRESSIX

Category

Presses

Type

PRESSES, GAP FRAME, (Single Crank)

Stock

2920

Model

130 CNR 6

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 130
Stroke - 6.3 inches
Shut Height - 16.9 inches
Adjustment - 4.3 inches
Bed Size - 47 x 30
Ram Area - 31.5 x 21.6
SPM - 27-80


More Specifications to Follow:

New to Inventory
130 ton Capacity (Metric)
Variable Stroke Length: .5" to 6.2"
Motorized Adjustment: 4.3"
Die Height 16.9" on Bolster Plate

FORCE kN 1.300
NOMINAL SPEED Spm 48
FIXED SPEED Spm 60
VARIABLE SPEED Spm 27 - 80
STROKE LENGTH mm 13 - 160
SLIDE ADJUSTMENT mm 110
SHUT HEIGHT mm 430
BOLSTER AREA mm 765 x 1.200
BOLSTER HOLE mm 165
SLIDE AREA mm 550 x 800
SLIDE HOLE mm 60
THROAT DEPTH mm 405
POWER kW 15
APPROXIMATE WEIGHT kg 13.000
OVERALL DIMENSIONS (LxPxH) mm 1.780 - 2.540 - 3.460

Features:
Air Clutch and Brake

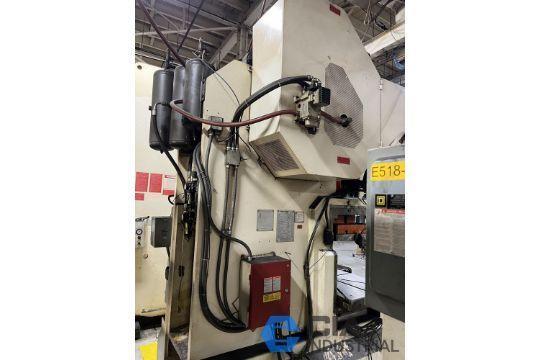

Air Counterbalances
Lubrication System
T-Slotted Plate on Ram
Easily Adjustable Stroke Length

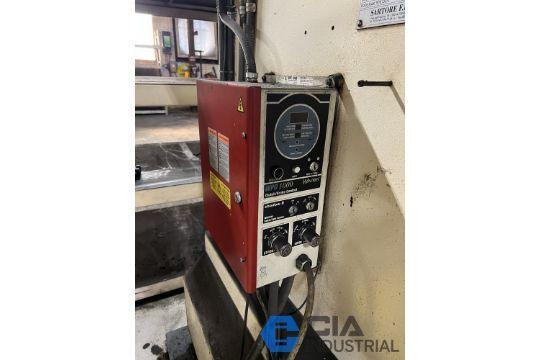

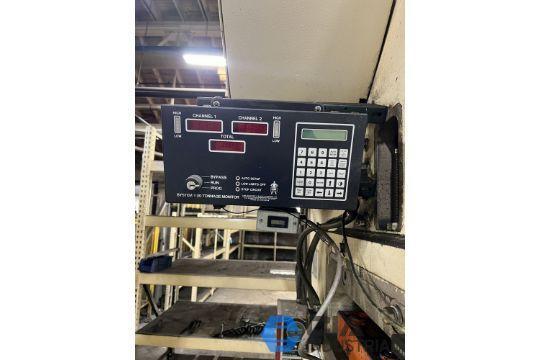

Wintriss WPC 2000 Press Control
Vibro Dynamic Floor Pads

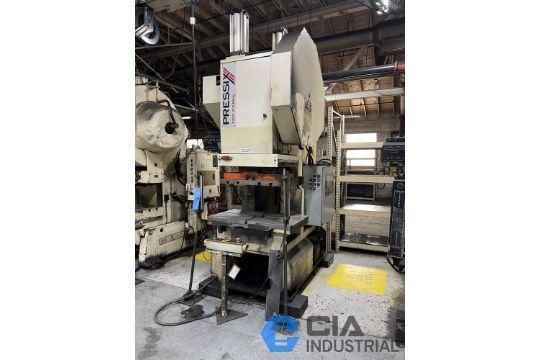

This used Pressix Single Point Gap Frame Press can be seen underpower in the S&G Press Livonia Warehouse.

Click this link for more Single Point Gap Press Options
