Asquith, Gantry, X-395", Y-157", Z-47", 160" BC, Floor Plates, Angle Head, Dynapath CNC, #43915

Manufacturer

ASQUITH

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43915

Model

MDB-300

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43915

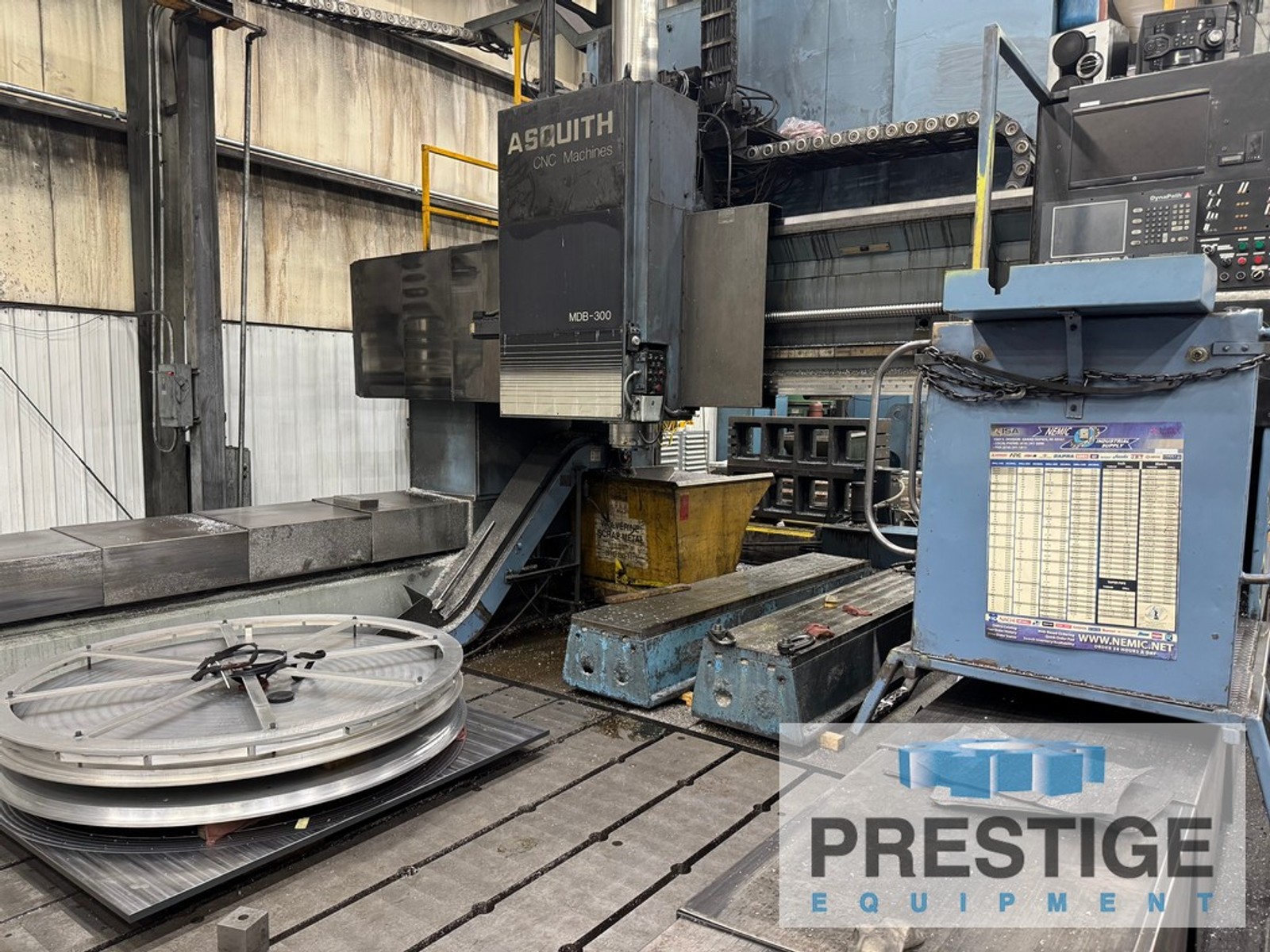

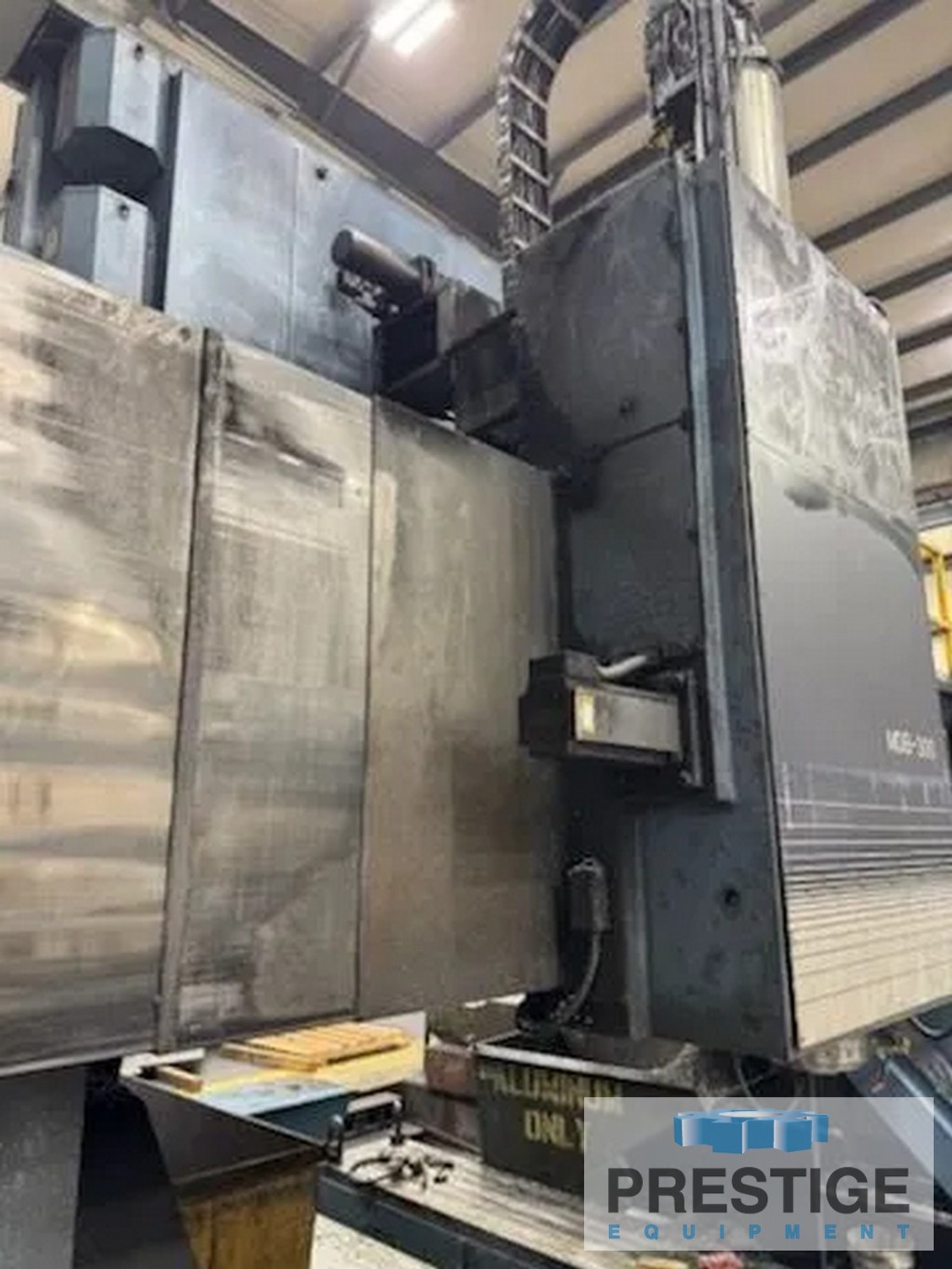

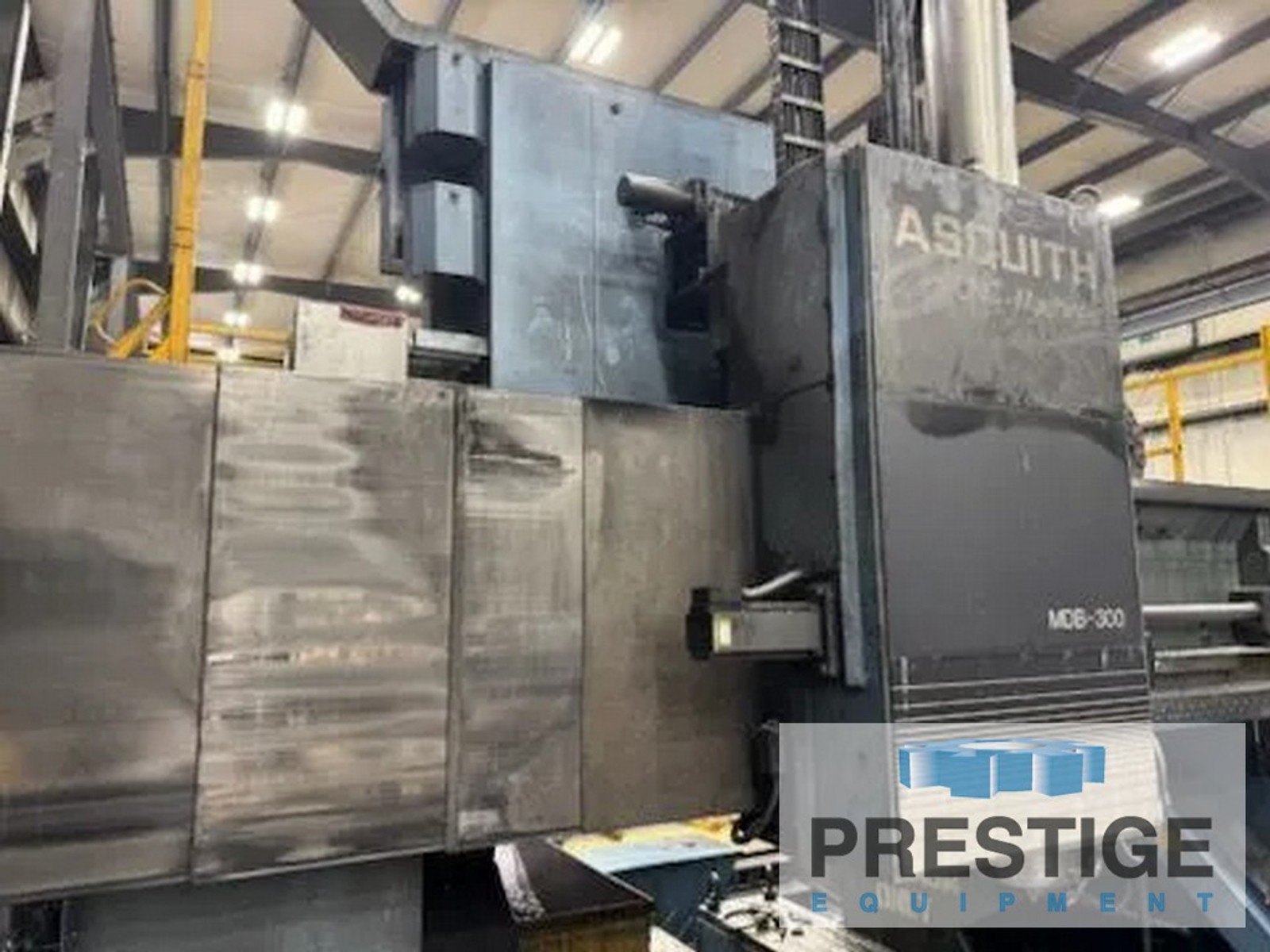

Asquith MDB-300 5-Axis Gantry Type Machining Center

FEATURES:

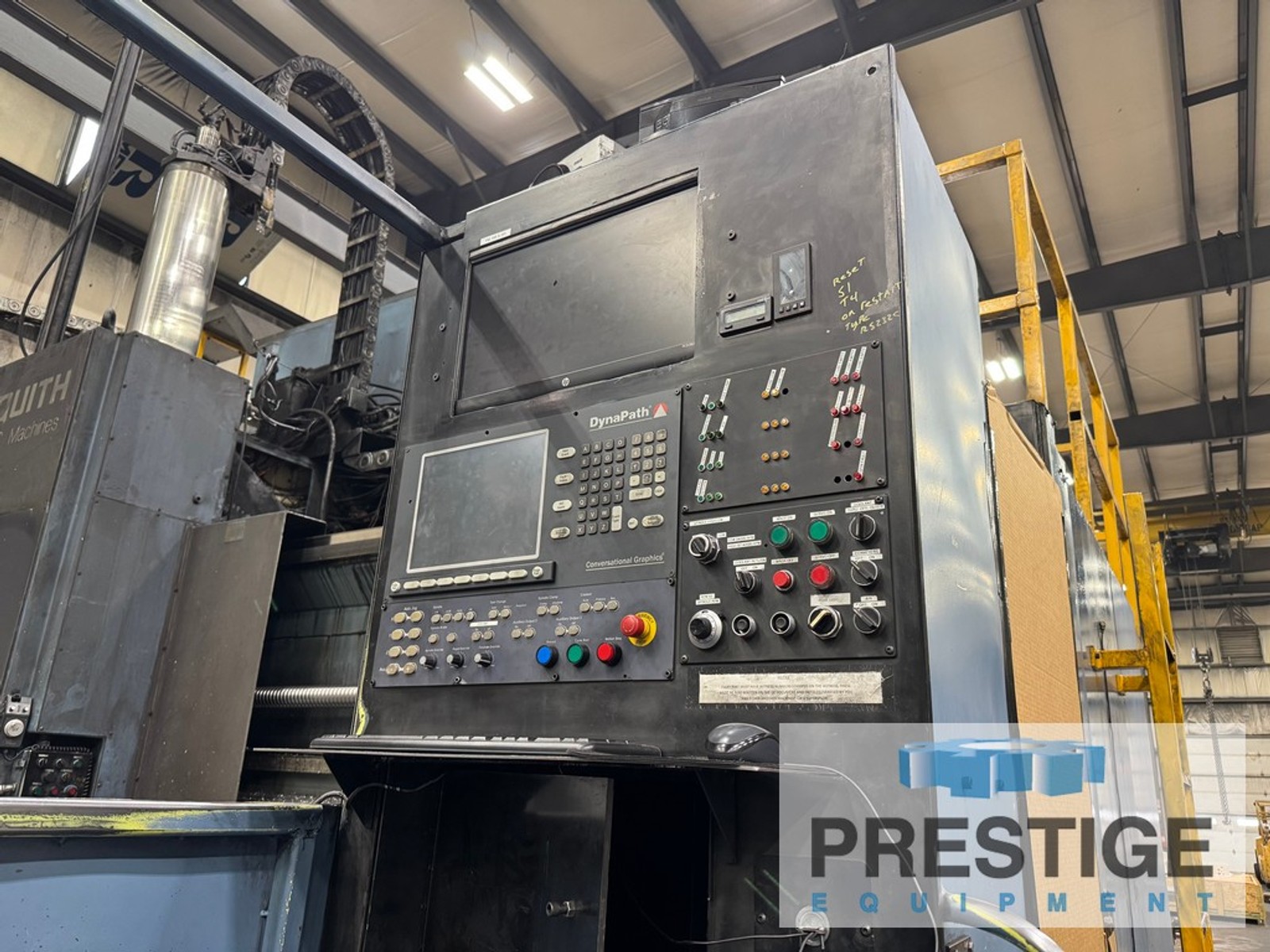

Delta Dynapath CNC Control

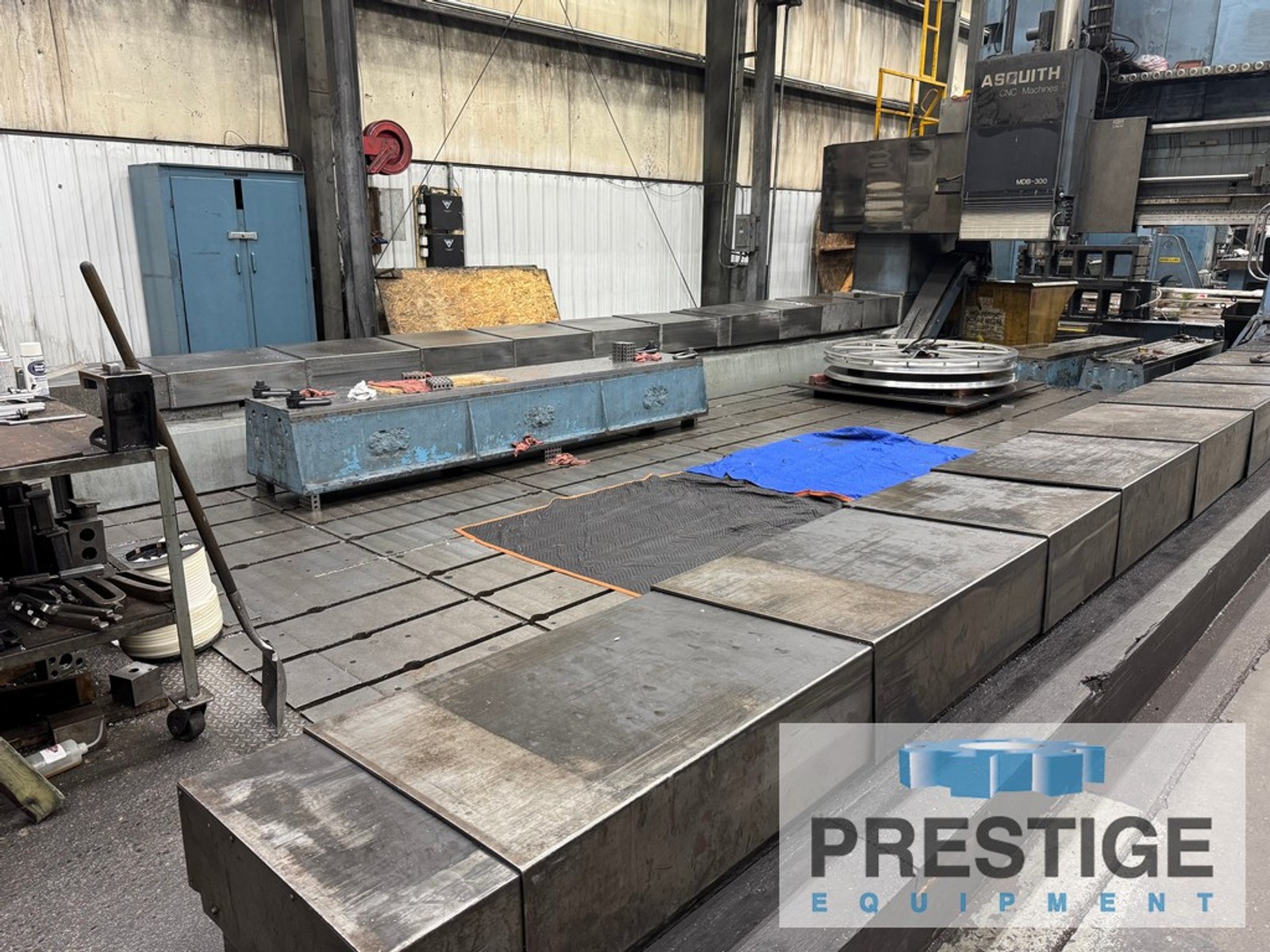

400" x 160" T-Slotted Floor Plates

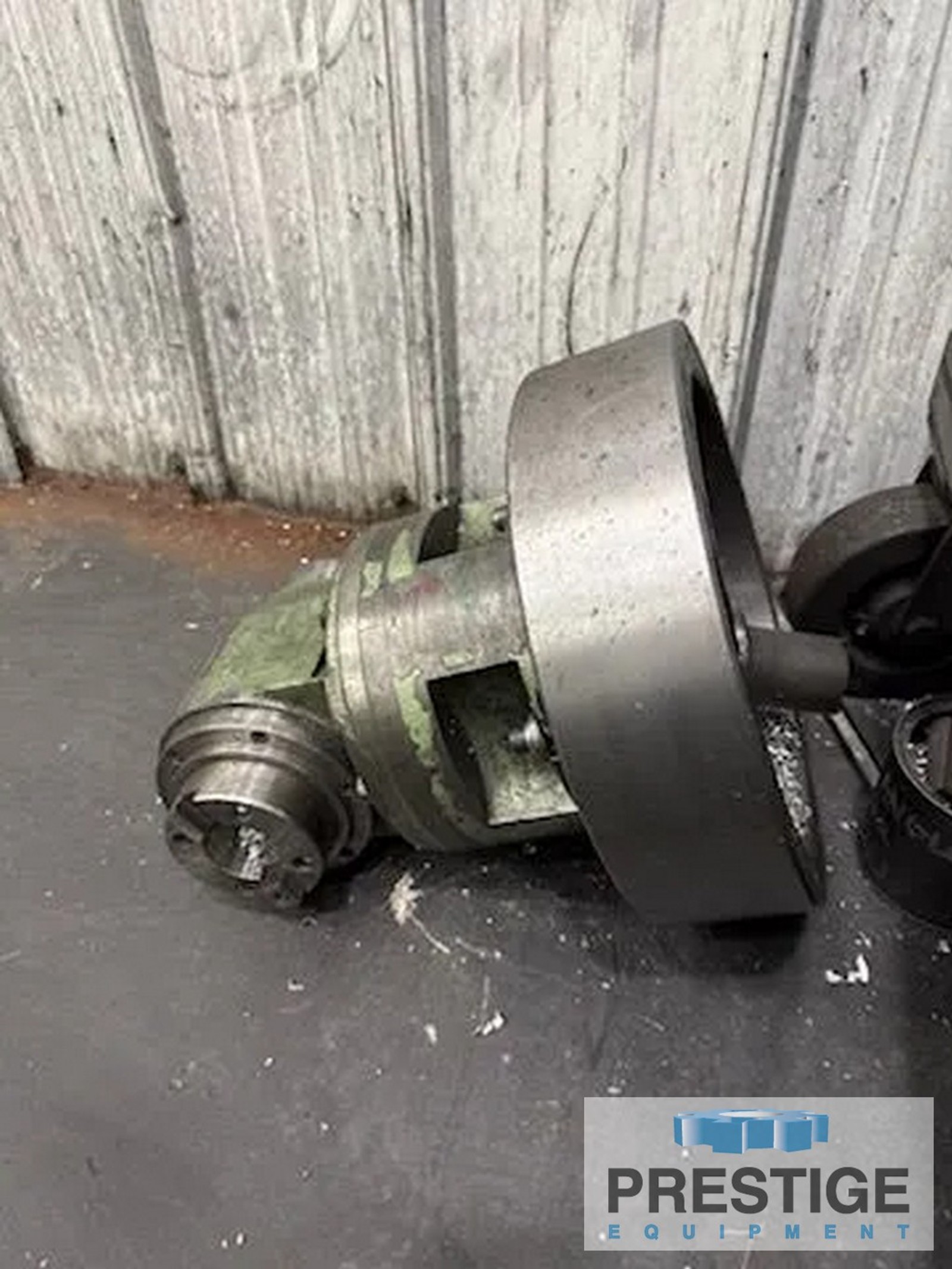

Right Angle Head Attachment
Coolant Thru Spindle

SPECIFICATION:
Table Dimensions ...................... 400" x 160"
X-Axis Travel ......................... 393"
Y-Axis Travel ......................... 157"
Z-Axis Travel ......................... 50"
Distance Between Columns .............. 160"
Spindle Speed ......................... 4000 RPM
Spindle Taper ......................... #50
Spindle Quill Diameter ................ 11"
Height Under Rail ..................... 60"
Electrics ............................. 440V/3Ph/60Hz

EQUIPPED WITH:
Delta Dynapath CNC Control
Right Angle Head Attachment
Coolant Thru Spindle

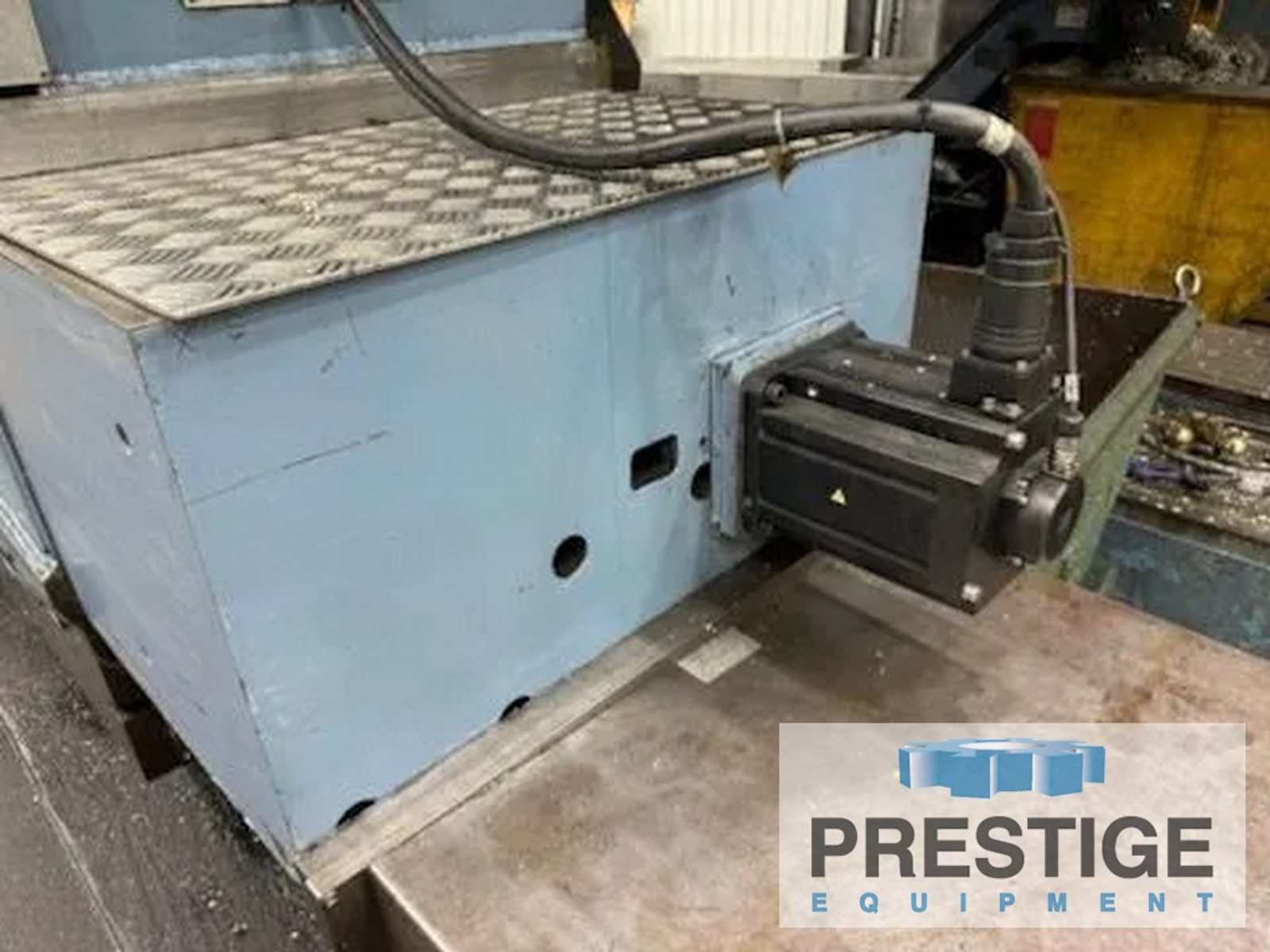

Baldor Servo Drives
Siemens Spindle Drive
Dual Chip Conveyors

NOTE:
Inspect in Plant Under Power
