Doosan BM-1530M Bridge Type VMC, X-118", Y-59", 67" B/C, Fanuc 31iB, 40 ATC, 12,000 RPM, 2021, #43920

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43920

Model

BM-1530M

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43920

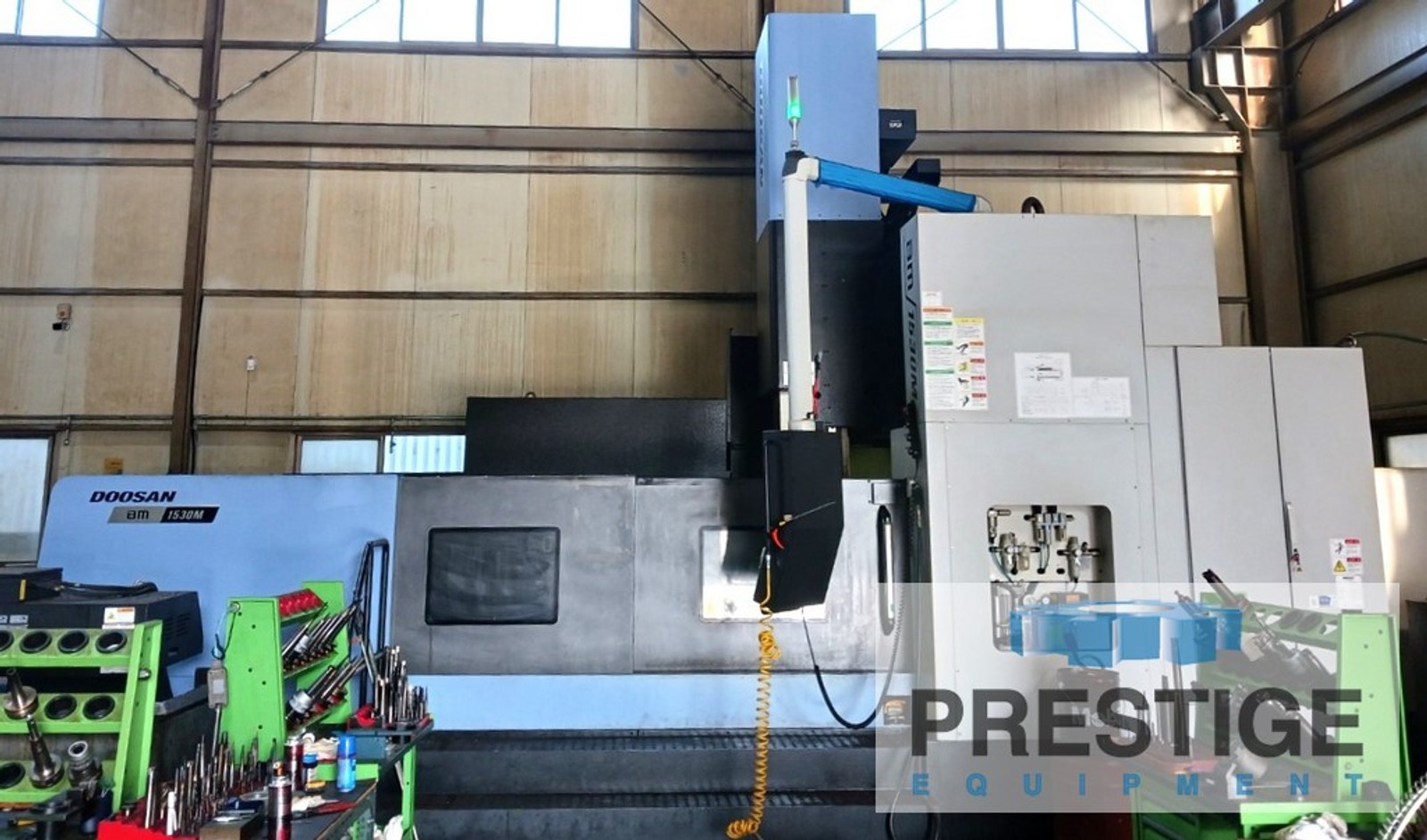

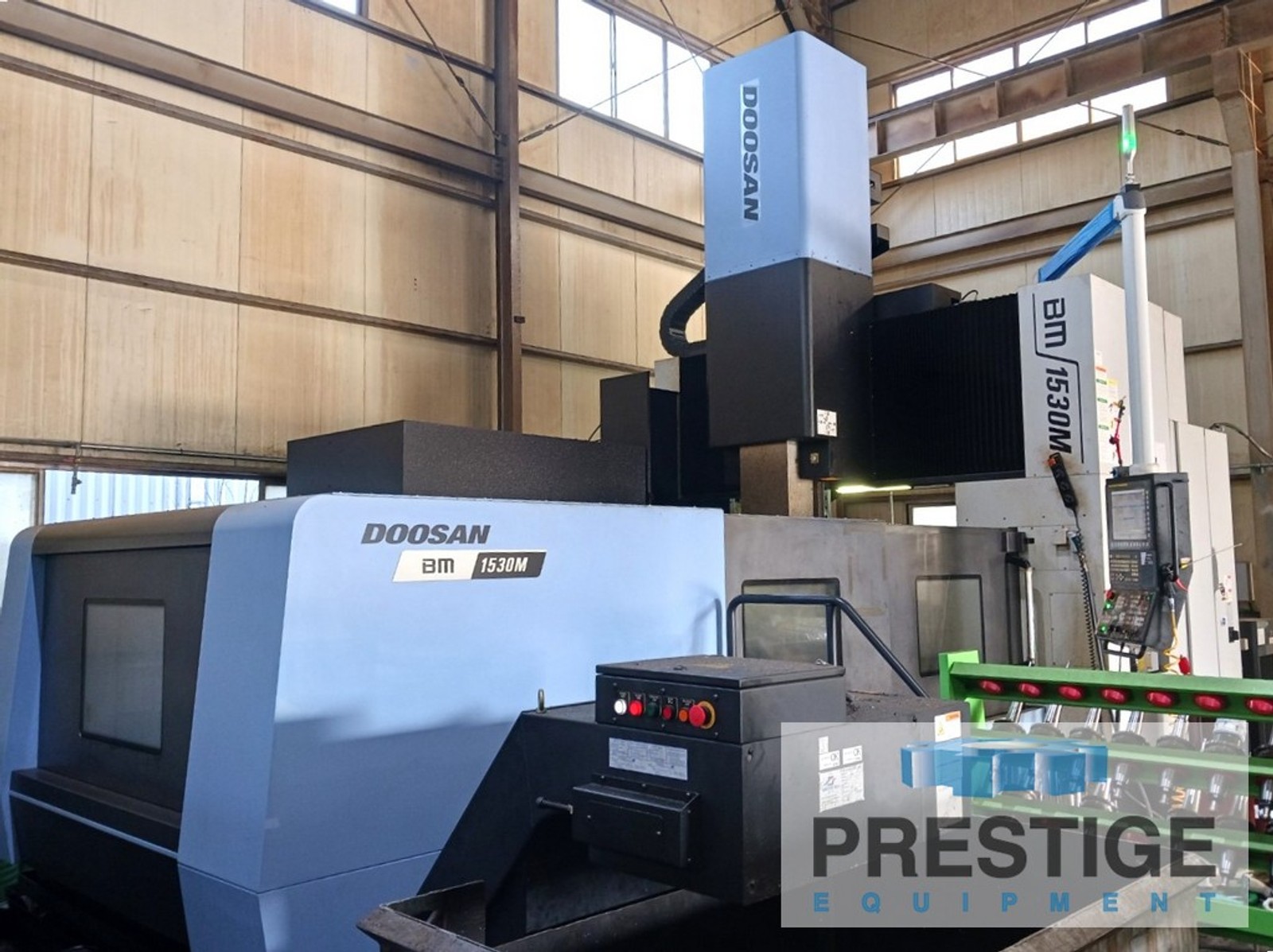

Doosan BM-1530M CNC Bridge Type Vertical Machining Center

FEATURES:

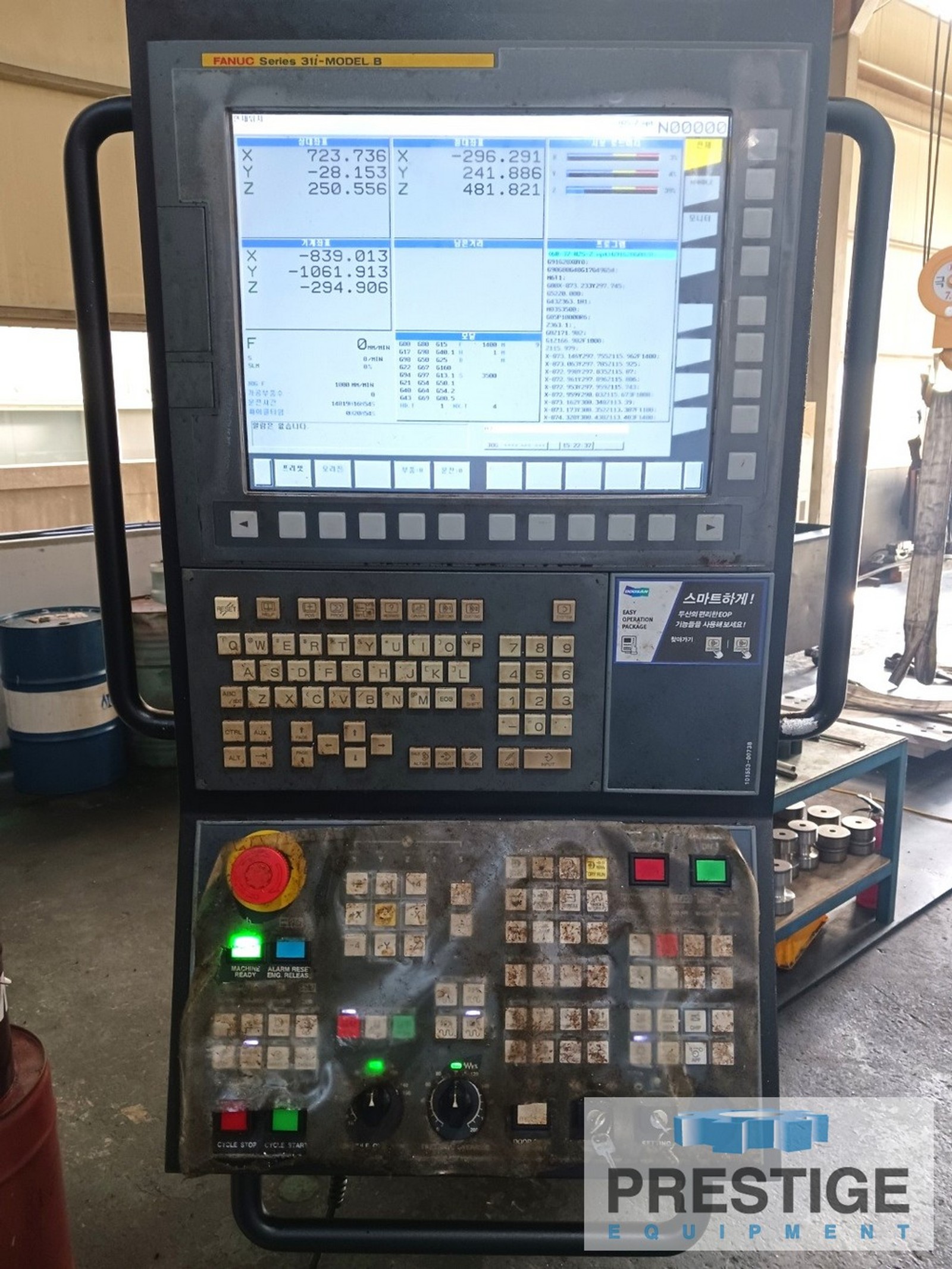

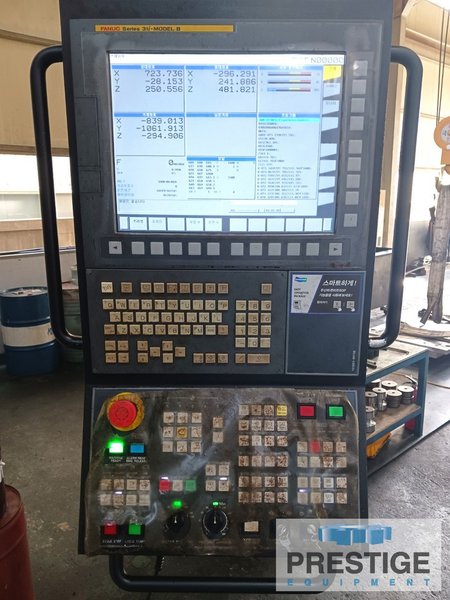

Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Linear Scales X,Y & Z Axis
Flood Coolant System
Coolant Gun
Full Splash & Chip Guard
Air Blower
Chip Conveyor

SPECIFICATIONS:
X-Axis Travel ......................... 118.11"
Y-Axis Travel ......................... 59.05"
Z-Axis Travel ......................... 31.49"
Distance Between Columns .............. 66.92"
Table Size ............................ 118.11" x 53.14"
Table Capacity ........................ 17,600 lbs
Spindle Speeds ........................ 12,000 RPM
Spindle Drive Motor ................... 40 HP
Spindle Taper ......................... #50 Big Plus
Machine Electrics ..................... 220/3/60

EQUIPPED WITH:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Linear Scales X,Y & Z Axis
Flood Coolant System
Full Splash & Chip Guard
Chip Conveyor

HOURS:
Power On Hours:17,499
Run Time: 15,034
Cutting Hours: 12,290
