Mazak Slant Turn 50N CNC Lathe, 31" x 118", 16" 3-Jaw, 15-Pos. Trt, HP Cool, Probe, Stdy Rest, Mazatrol 640T, #32751

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32751

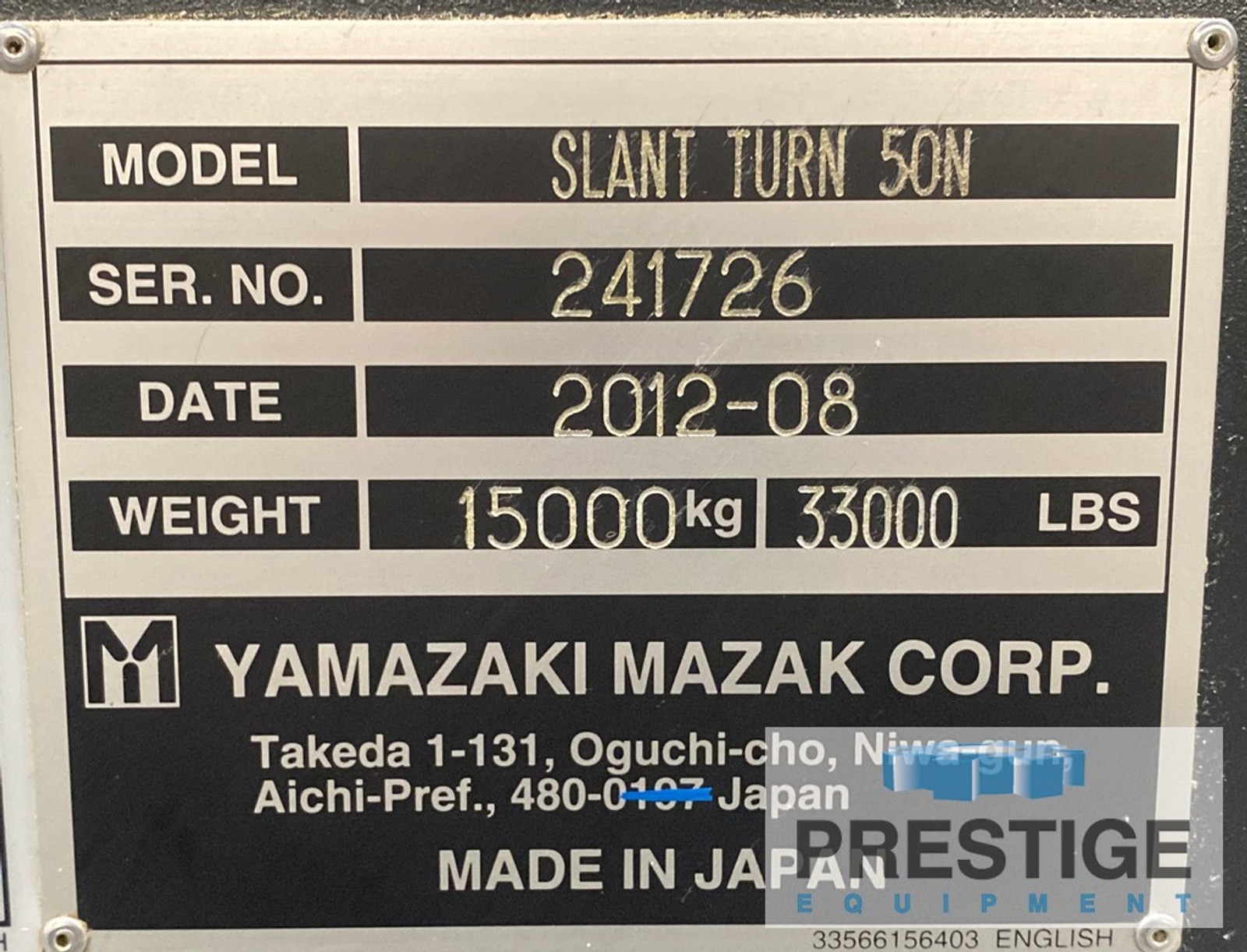

Model

Slant Turn 50N

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32751

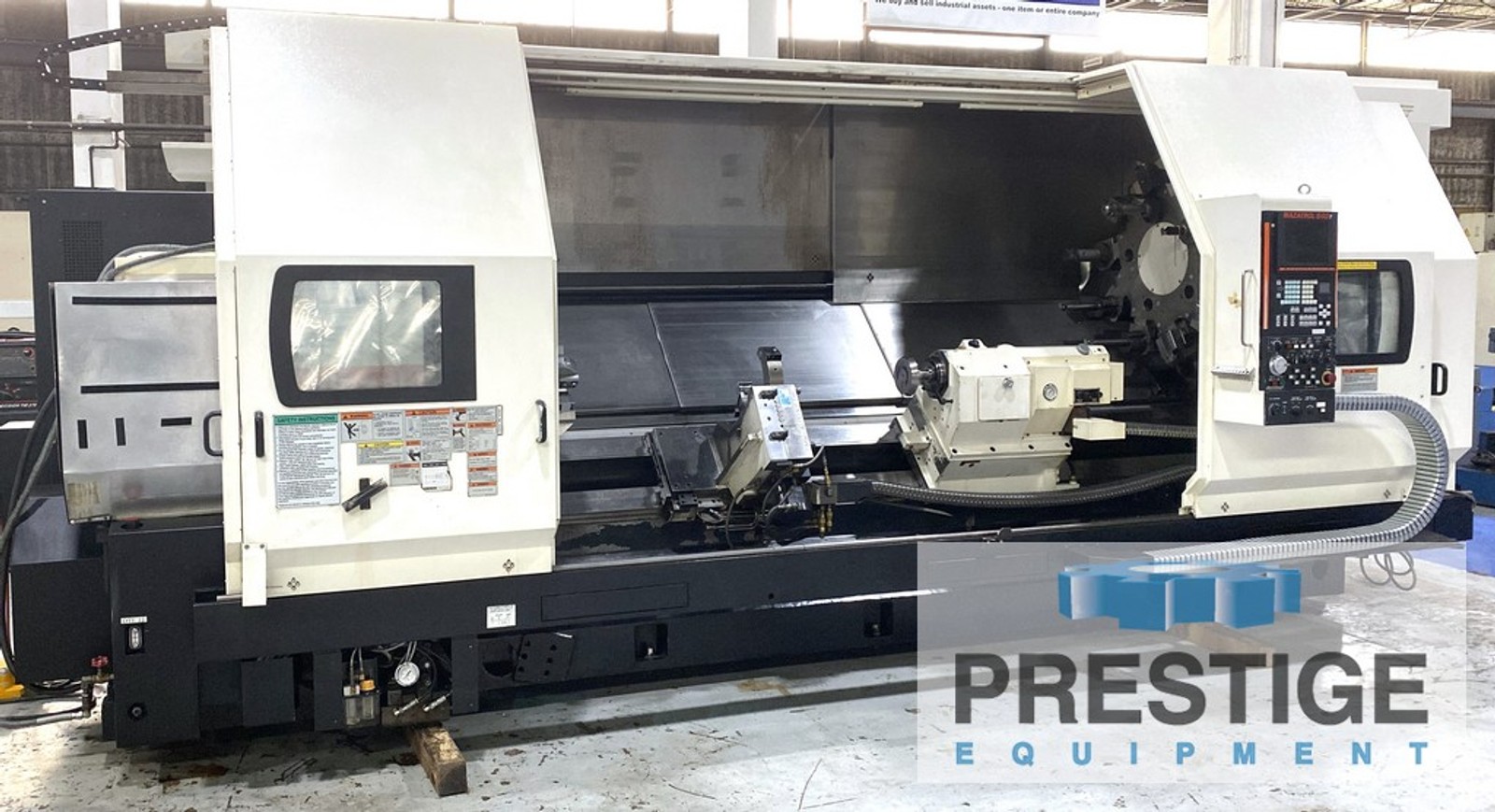

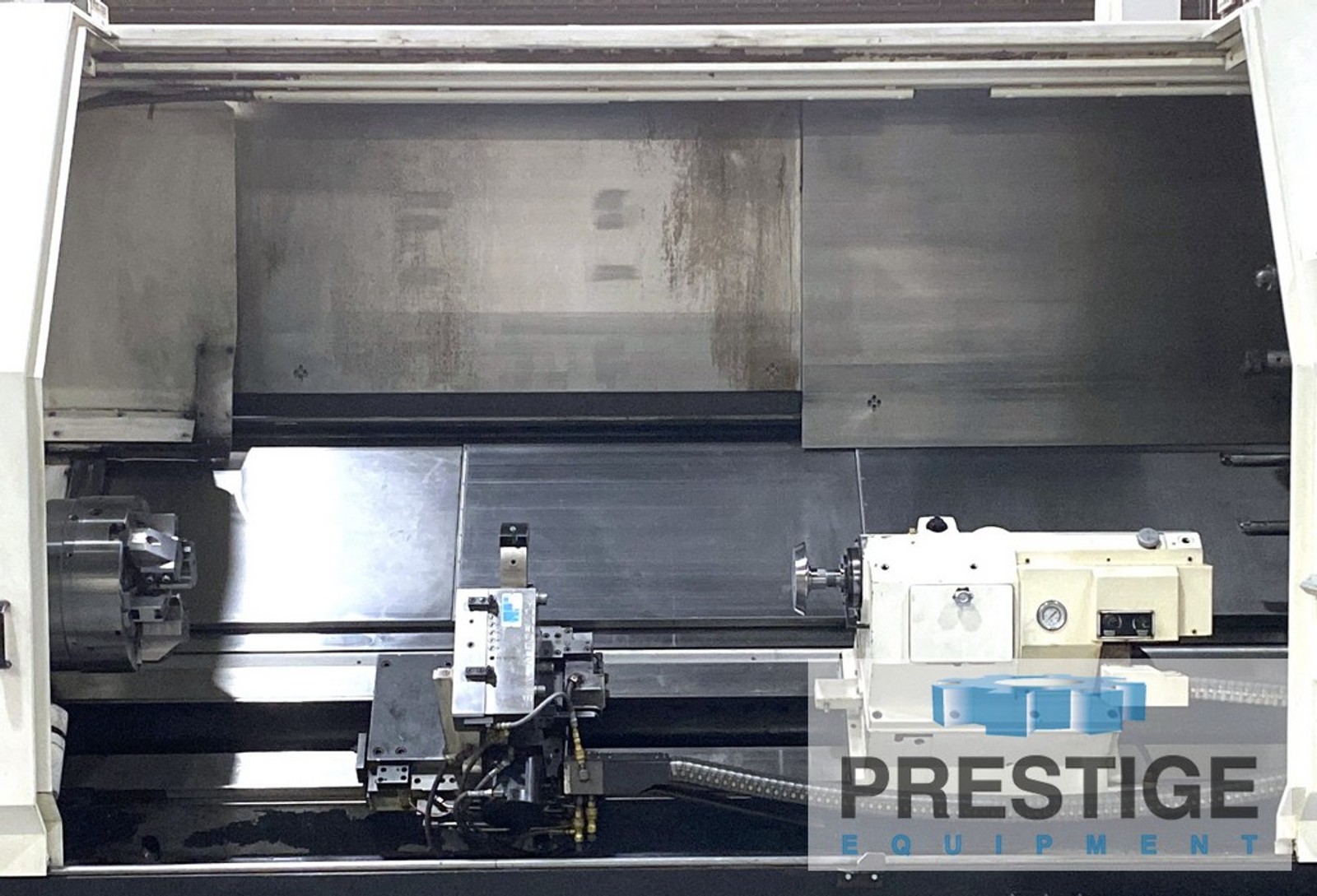

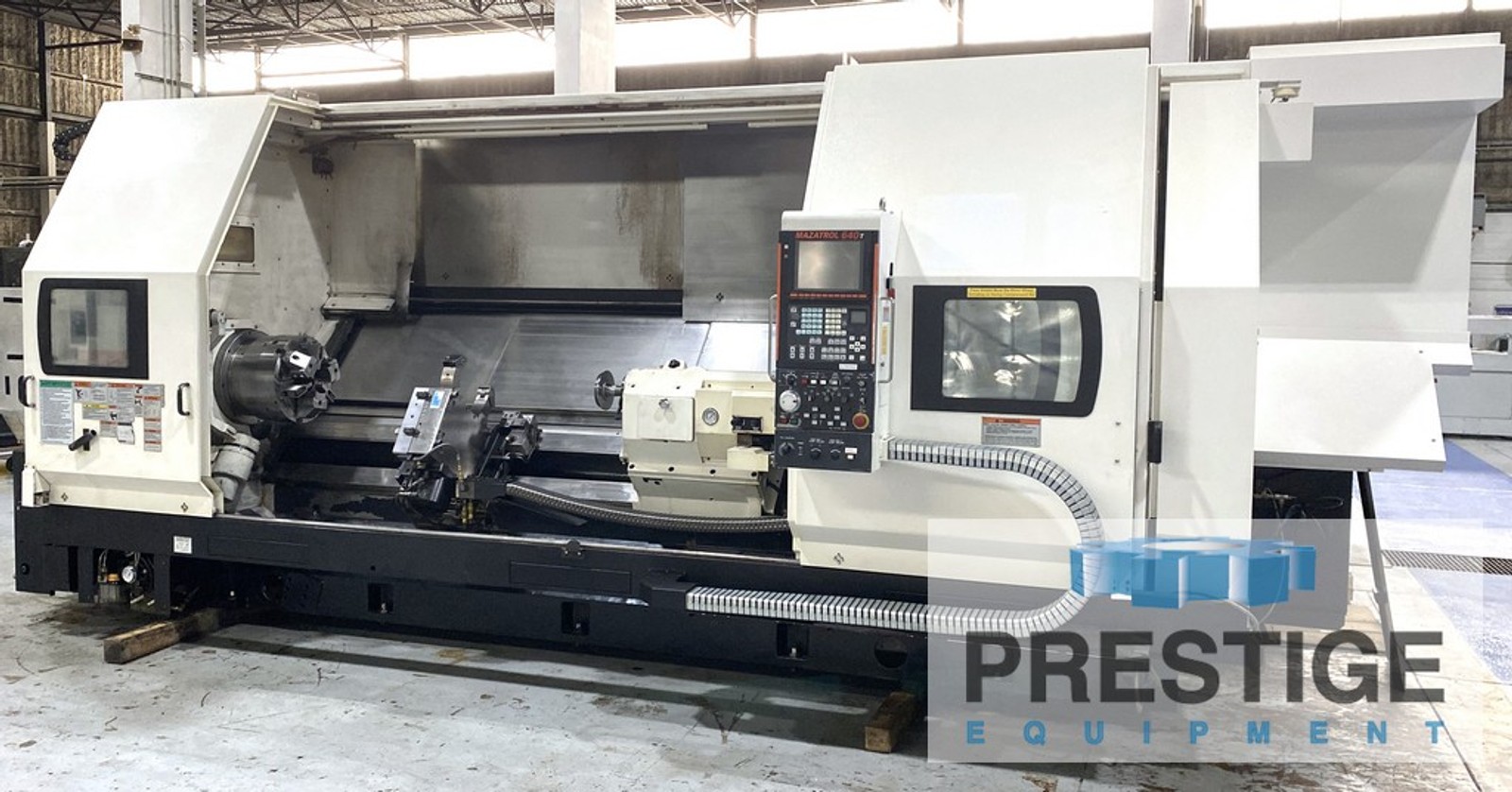

Mazak Slant Turn 50N CNC Lathe

FEATURES:

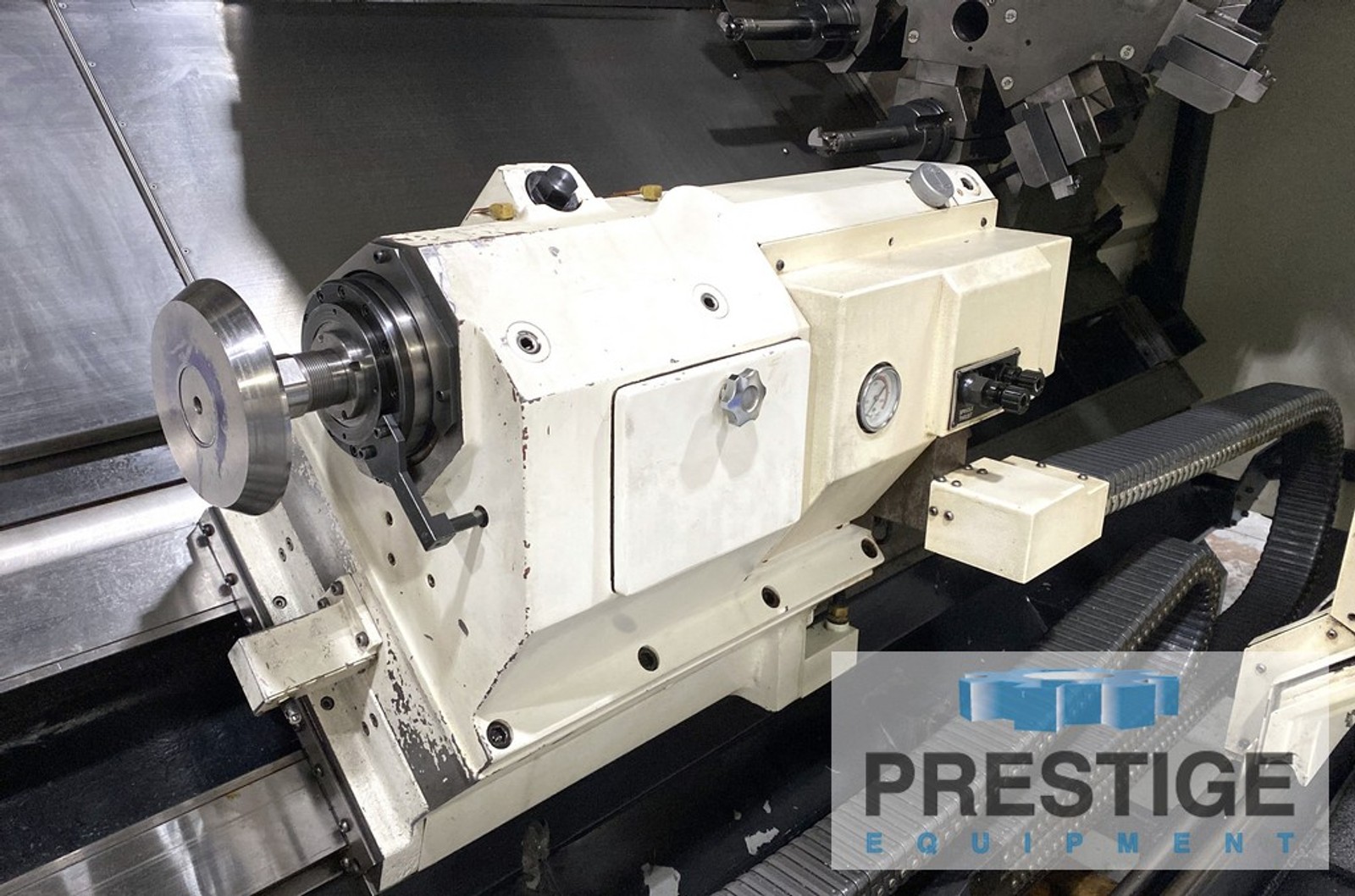

Programmable Tailstock

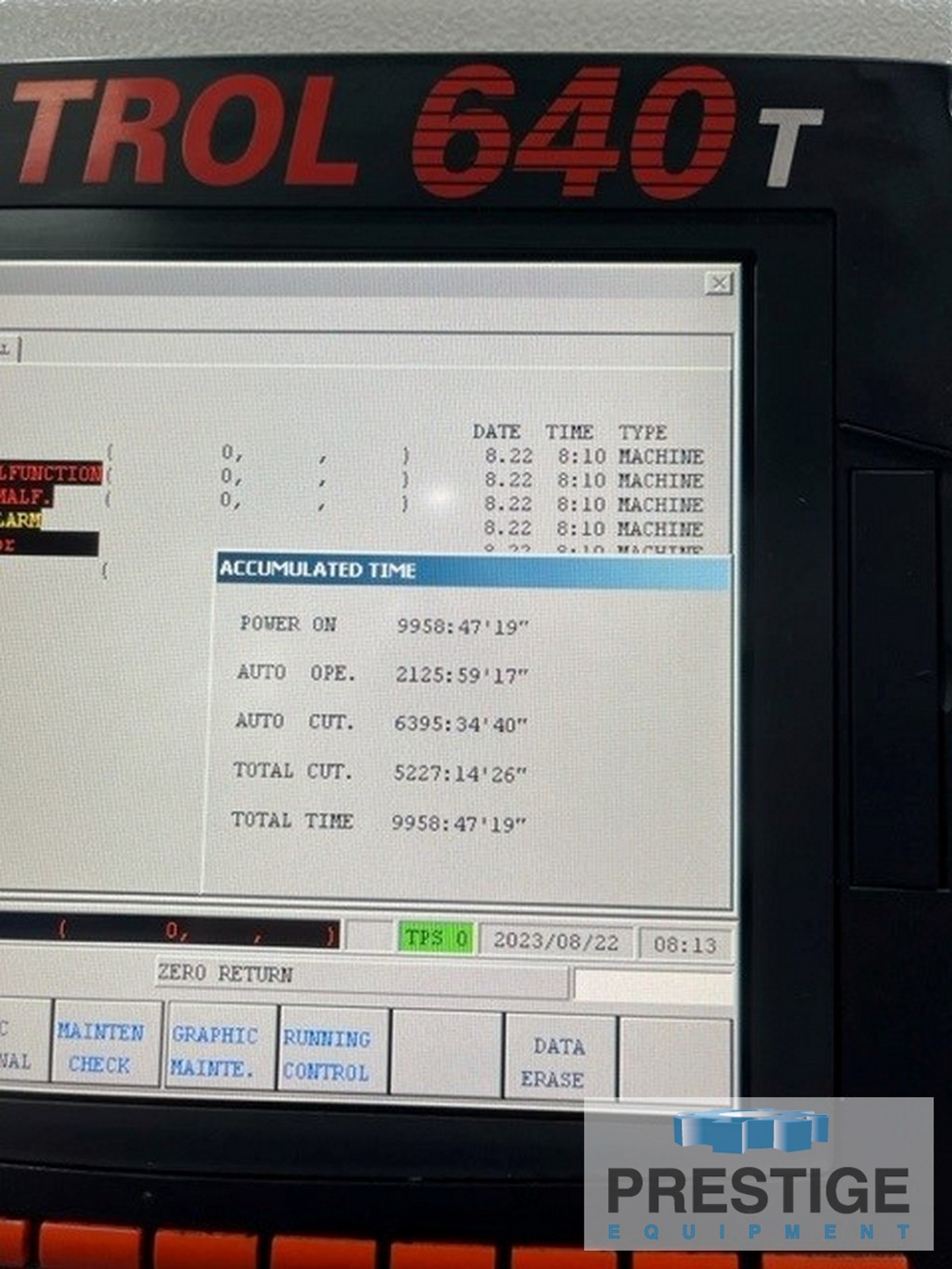

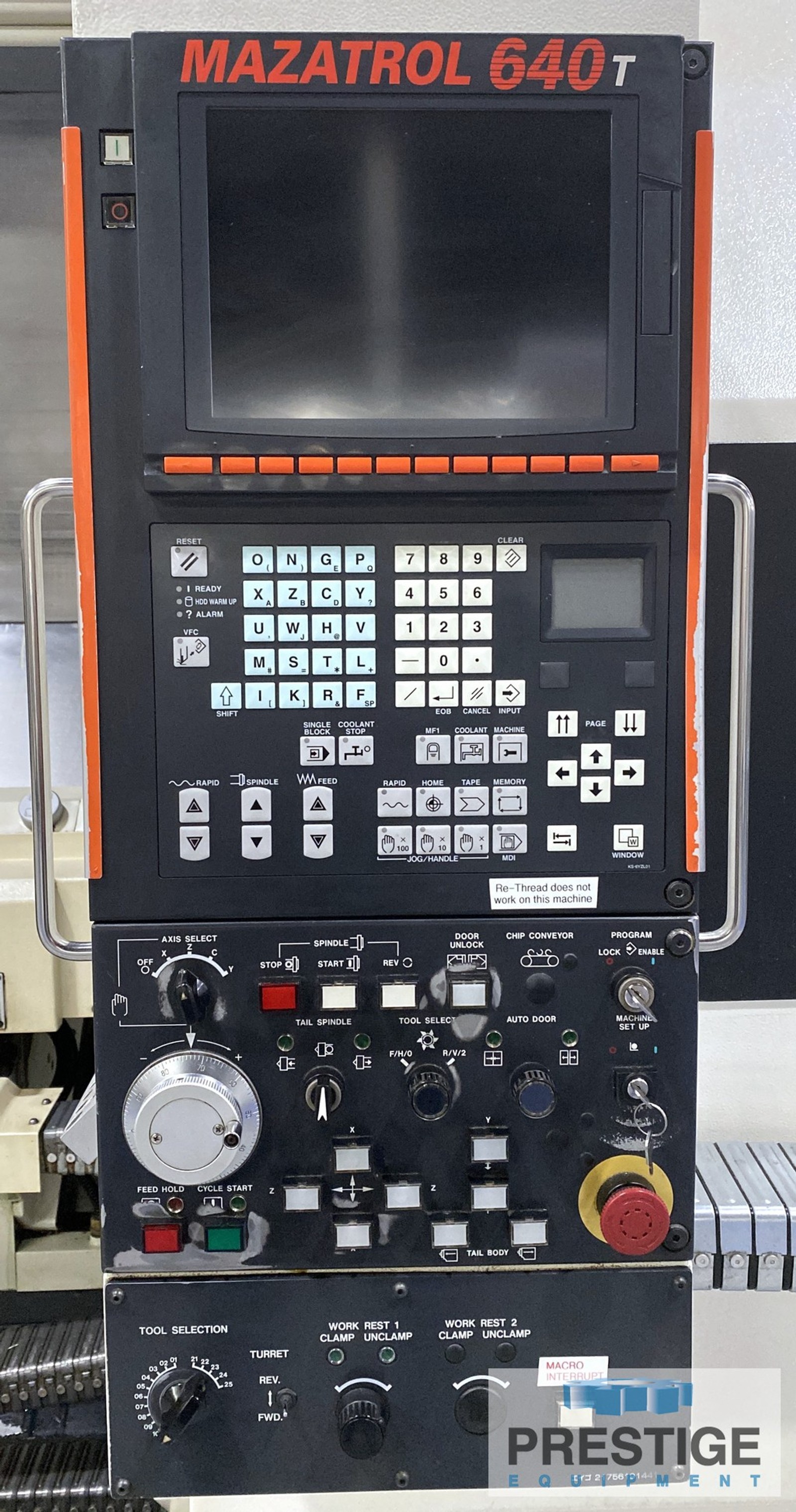

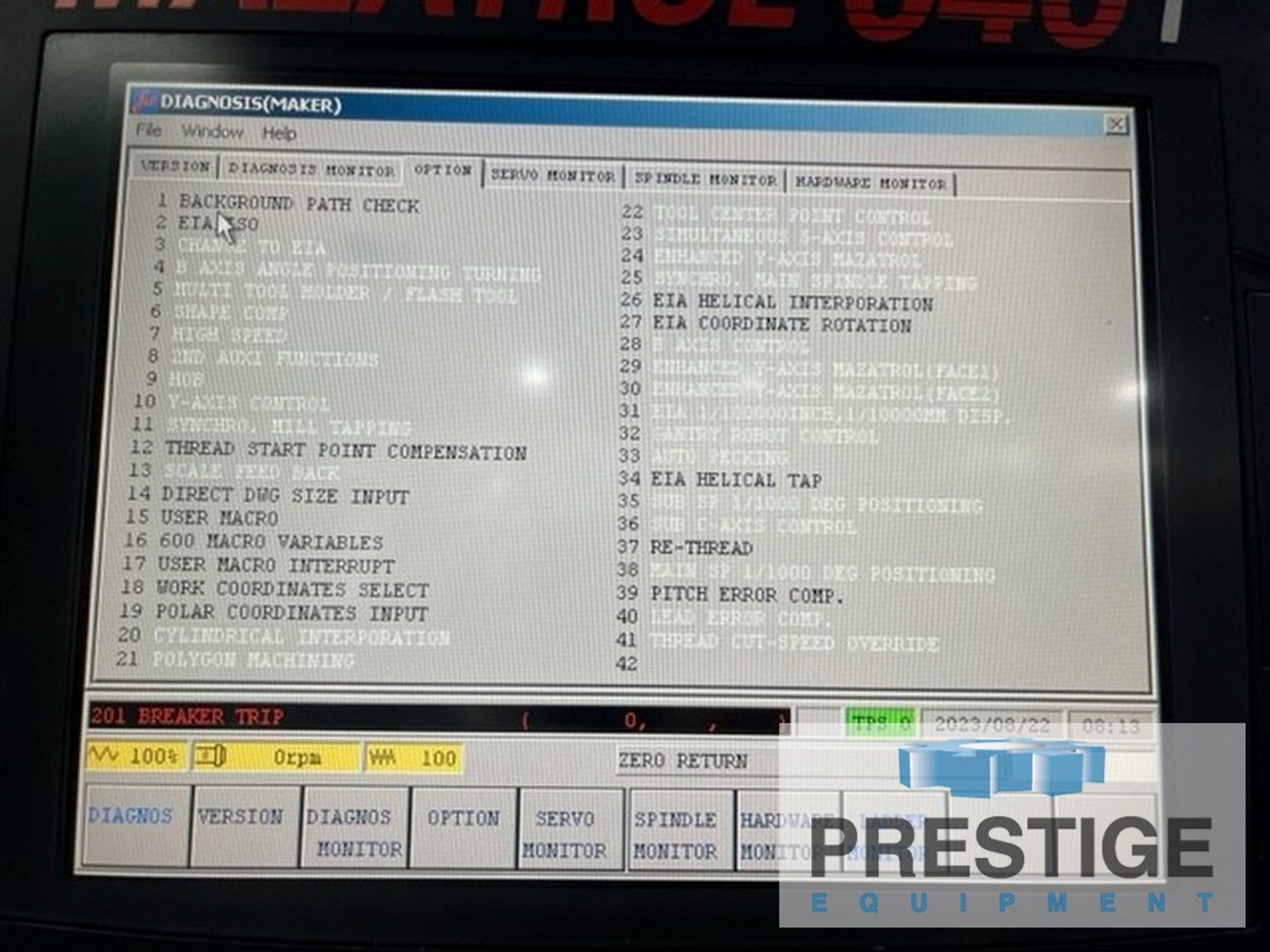

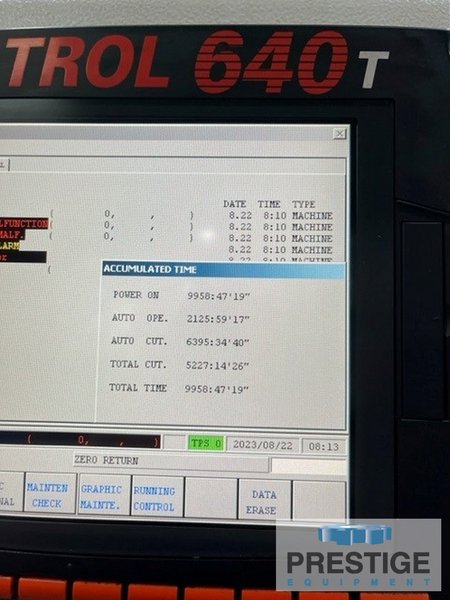

Mazatrol 640 T CNC Control

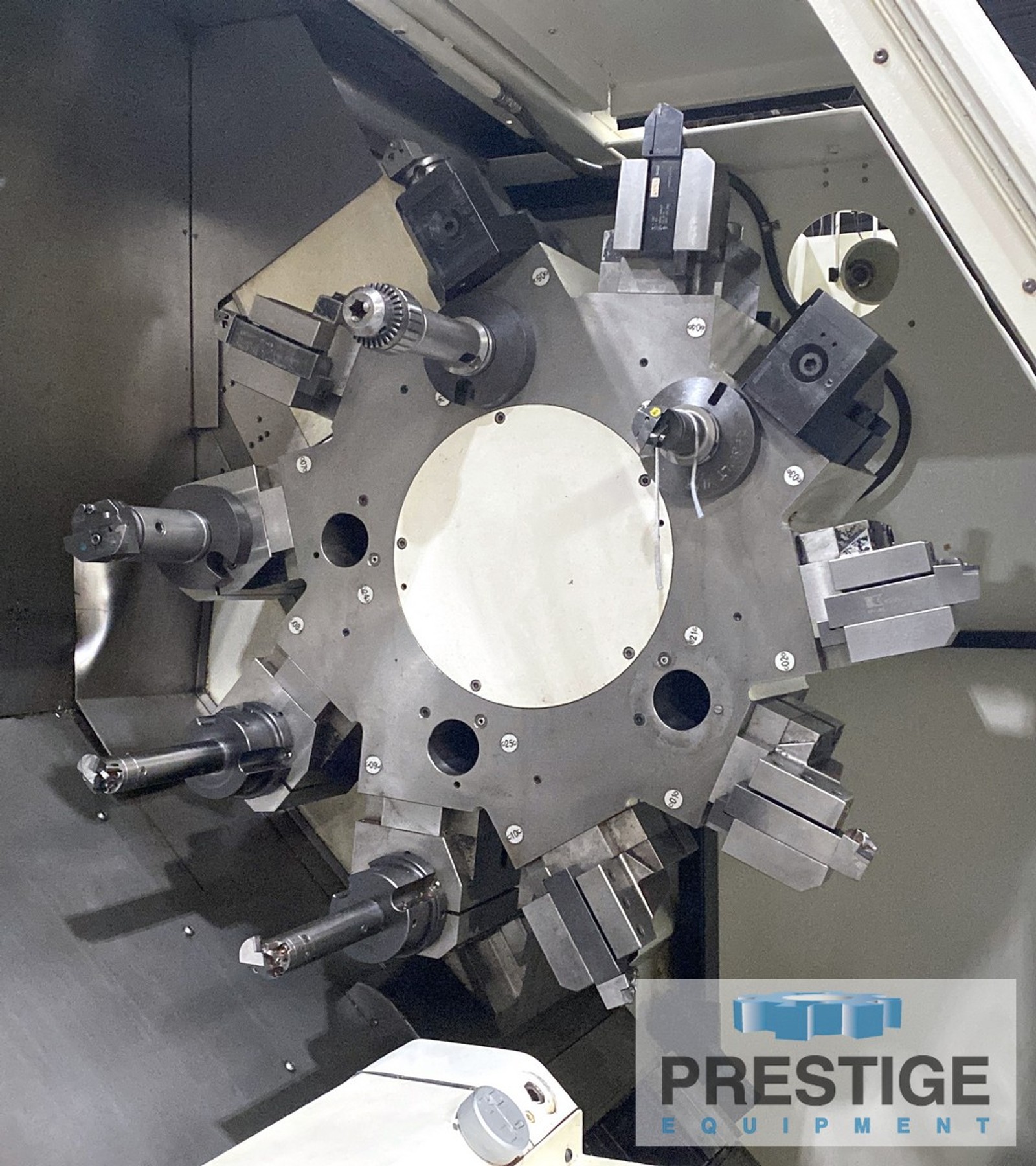

15-Position Turret

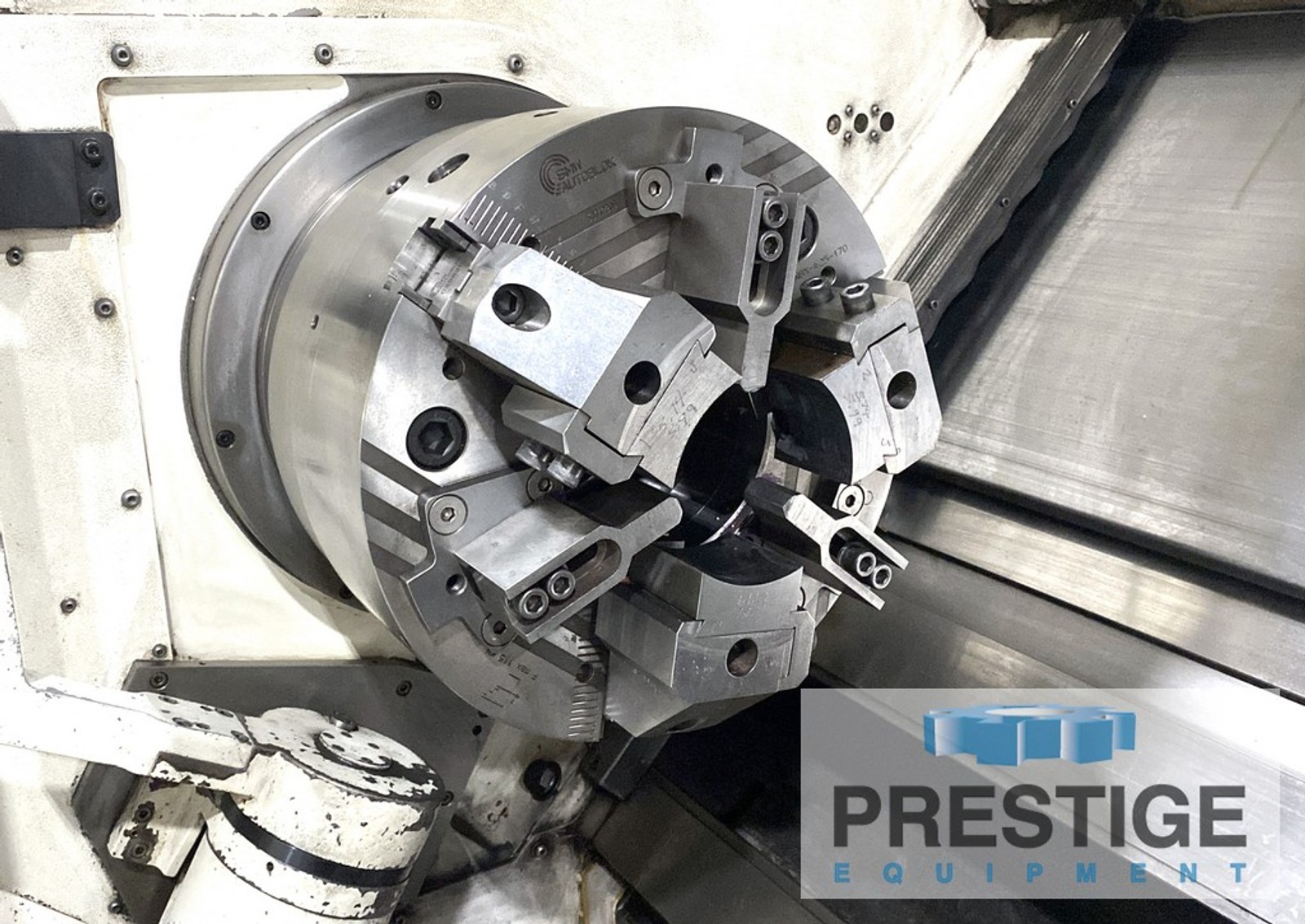

16" SMW 3-Jaw Chuck
Coolant System (High Pressure)
Chip Conveyor

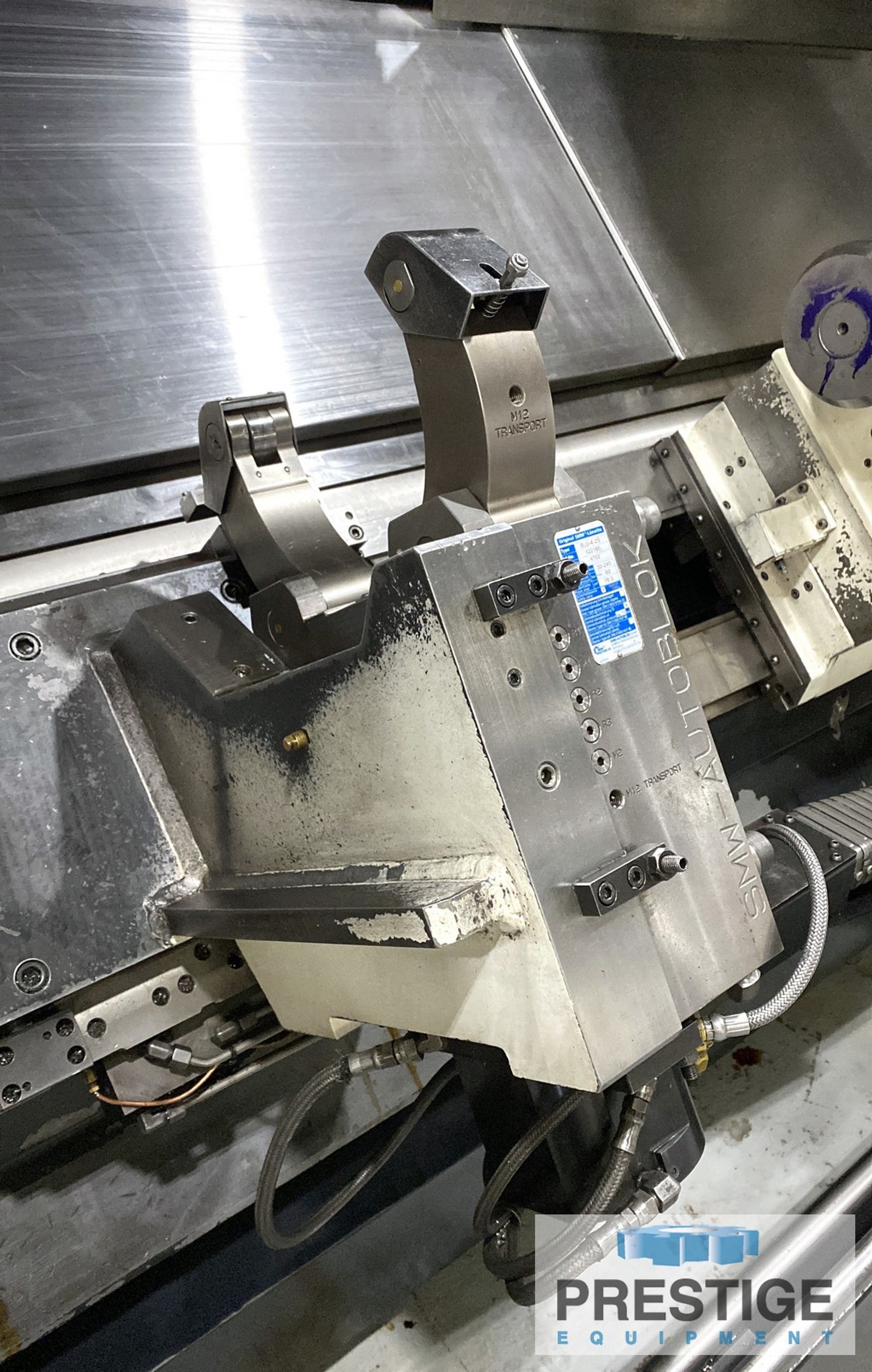

SMWSLU-4-ZS Powered Steady Rest 1.18" - 9.64" Cap
Automatic Tool Eye with clearance for 24" Chuck
Renishaw Radio Probing

SPECIFICATIONS:
Maximum Swing ......................... 31.7"
Maximum Cutting Diameter .............. 22.05"
Maximum Cutting Length ................ 118"
Spindle Speeds (Inf. Variable) ........ 2 - 1500 RPM
Spindle Nose .......................... A2-15
Spindle Bore .......................... 7.1"
Spindle Motor ......................... 50 HP
X-Axis Travel ......................... 22.64"
Z-Axis Travel ......................... 118"
X-Axis Rapid Traverse ................. 472 IPM
Z-Axis Rapid Traverse ................. 551 IPM
Number of Tool Positions .............. 15 (10 O.D., 5 I.D.)

Equipped With:
Programmable Tailstock
Mazatrol 640 T CNC Control
15-Position Turret
16" SMW 3-Jaw Chuck
Coolant System (High Pressure)
Chip Conveyor
SMWSLU-4-ZS Powered Steady Rest 1.18" - 9.64" Cap
Automatic Tool Eye with clearance for 24" Chuck
Renishaw Radio Probing
