Amada EMK3610NT, 33 Ton, 58 Sta., 4-Auto Index, 60" x 100", Brush Table, Fanuc AMNC PC, 2011 #43842

Manufacturer

AMADA

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

43842

Model

EMK3610NT

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43842

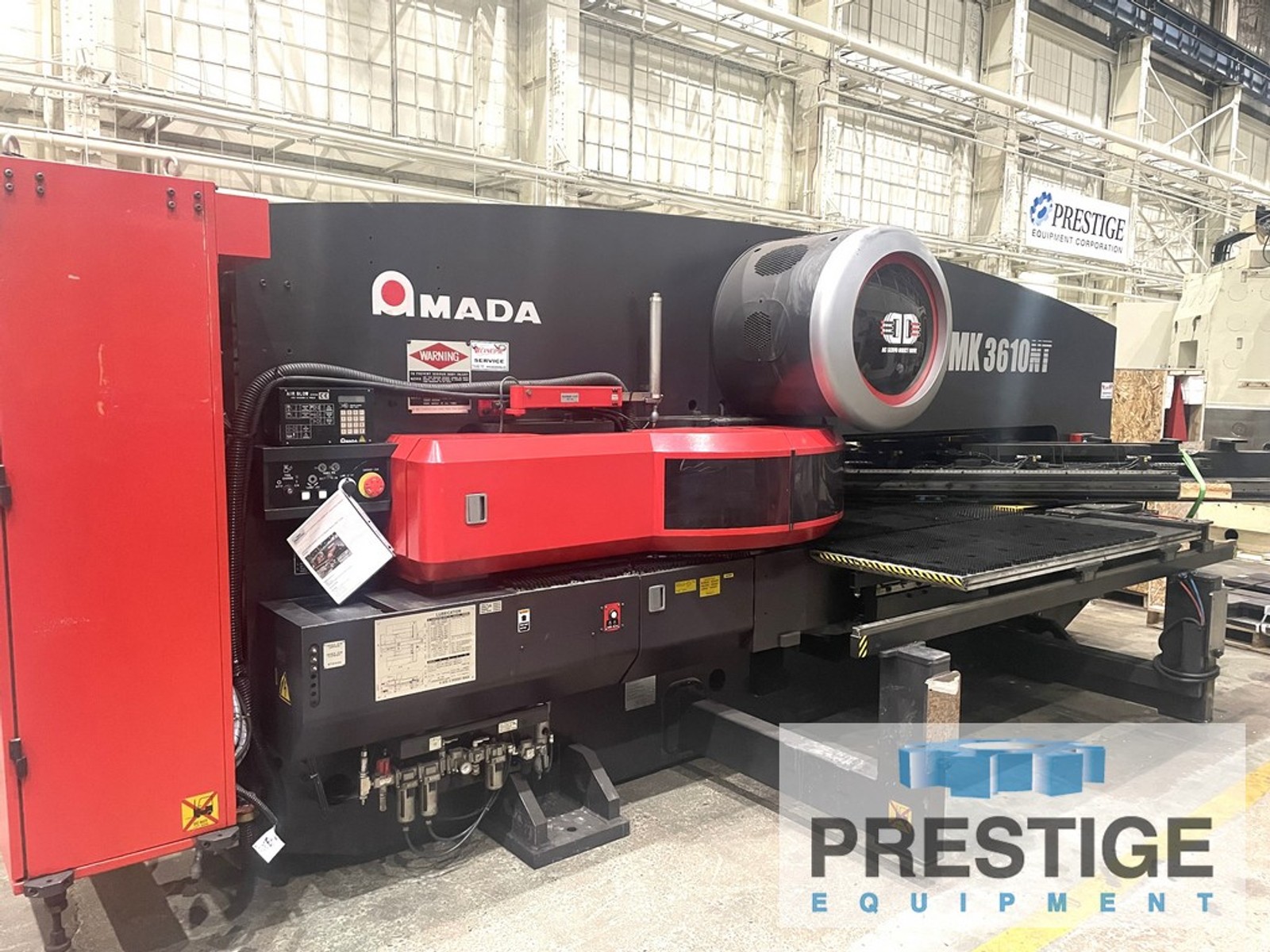

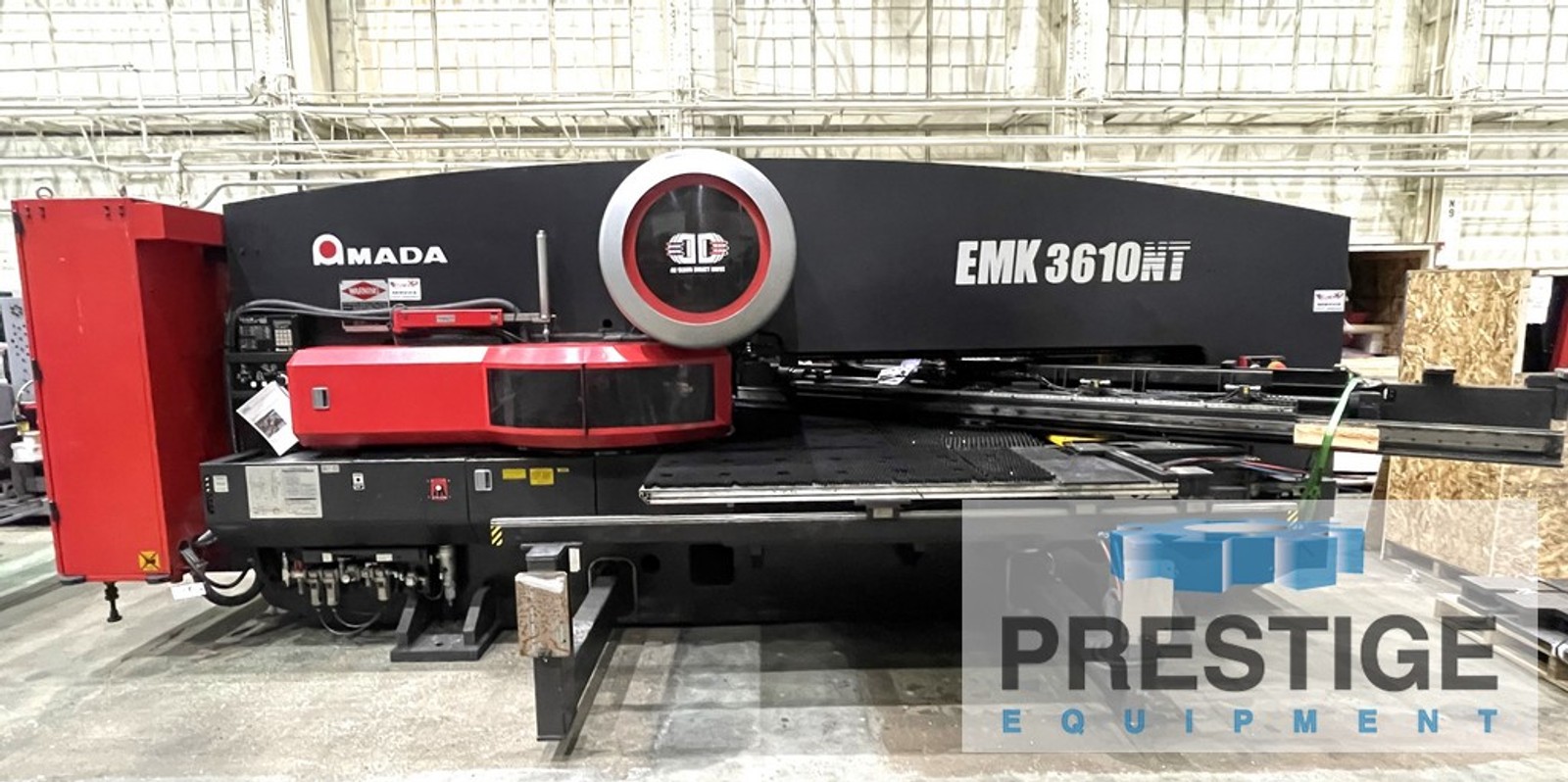

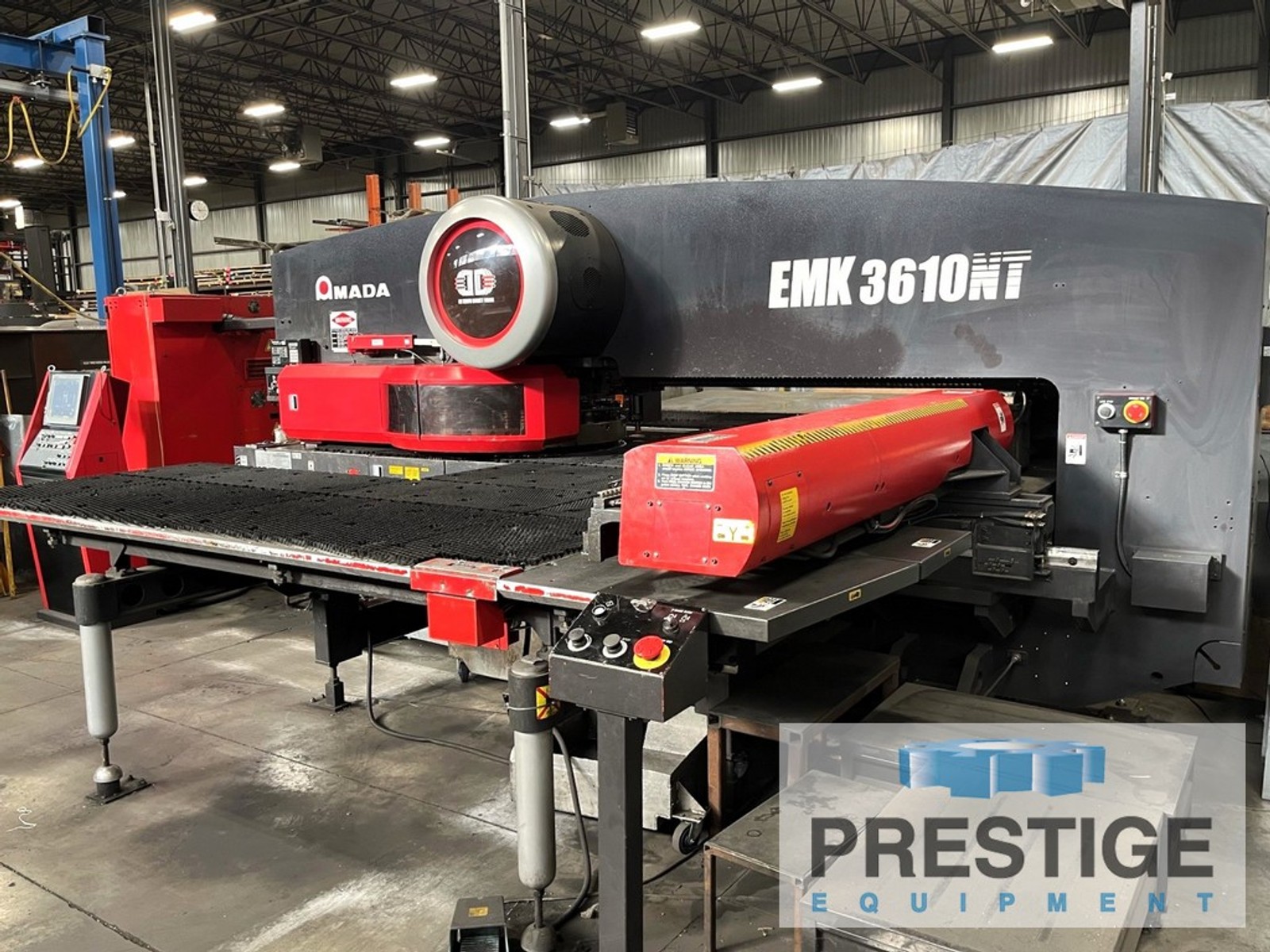

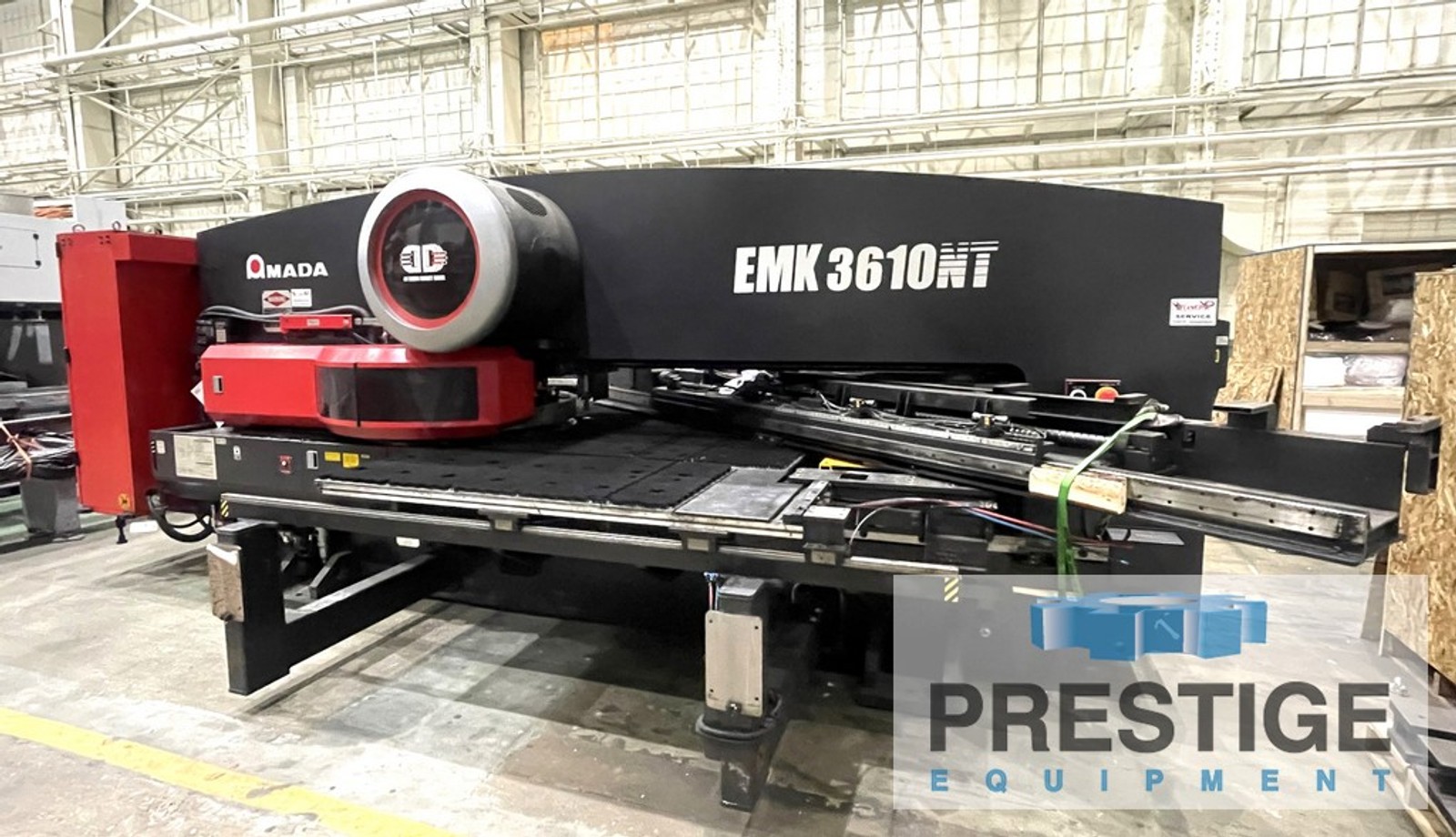

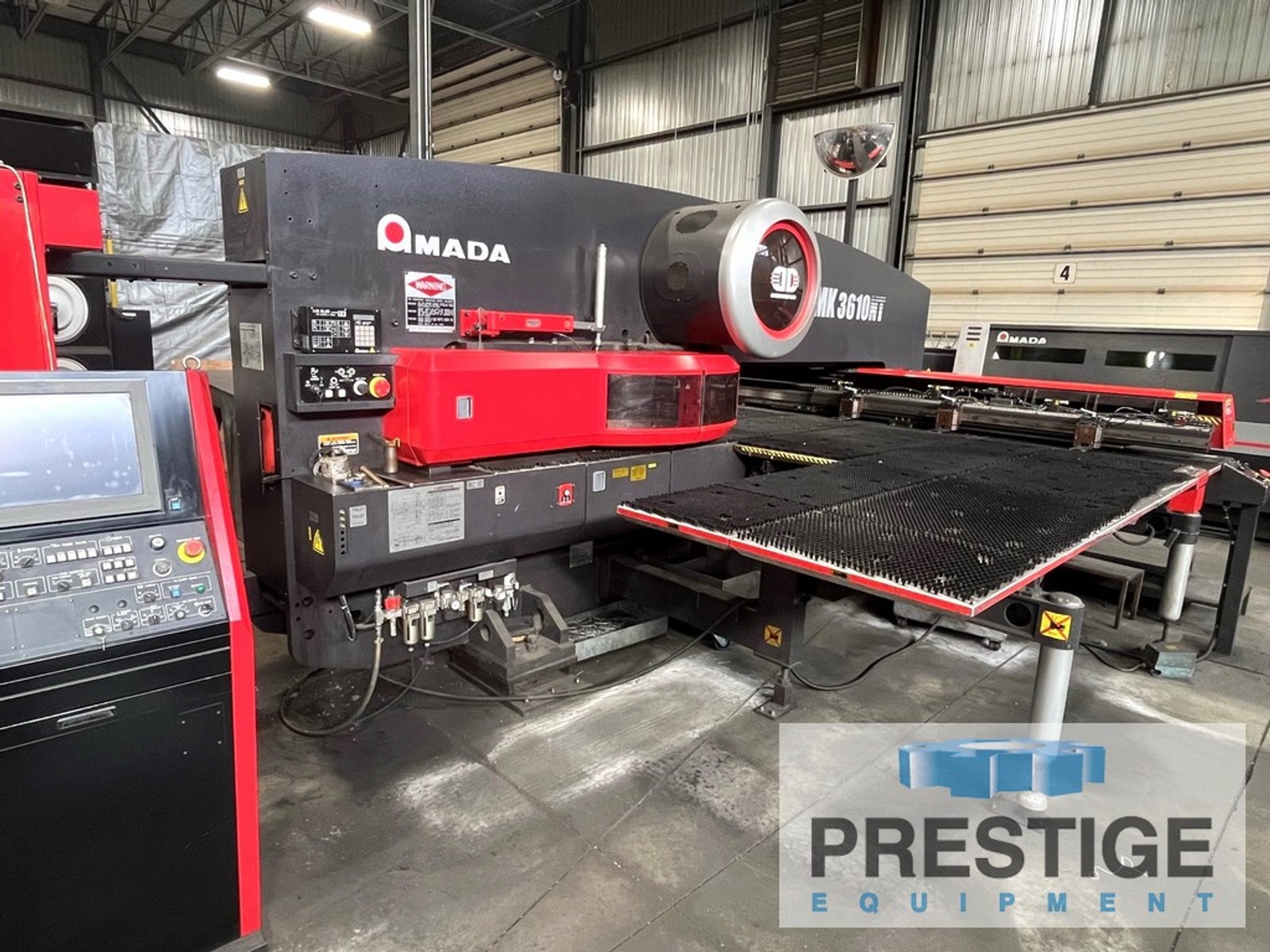

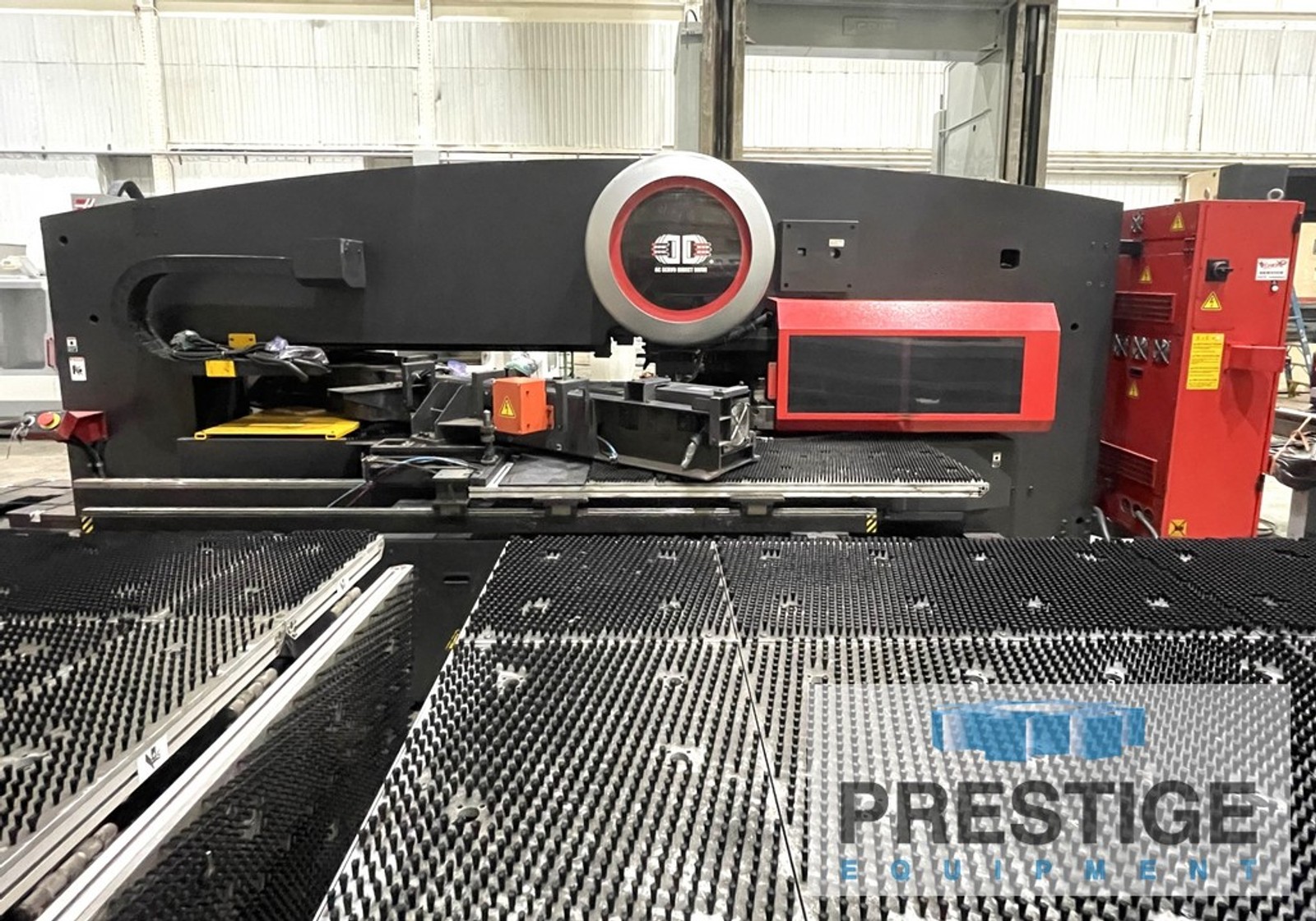

AMADA EMK 3610NT 33 Ton Electric Servo CNC Turret Punch

FEATURES:

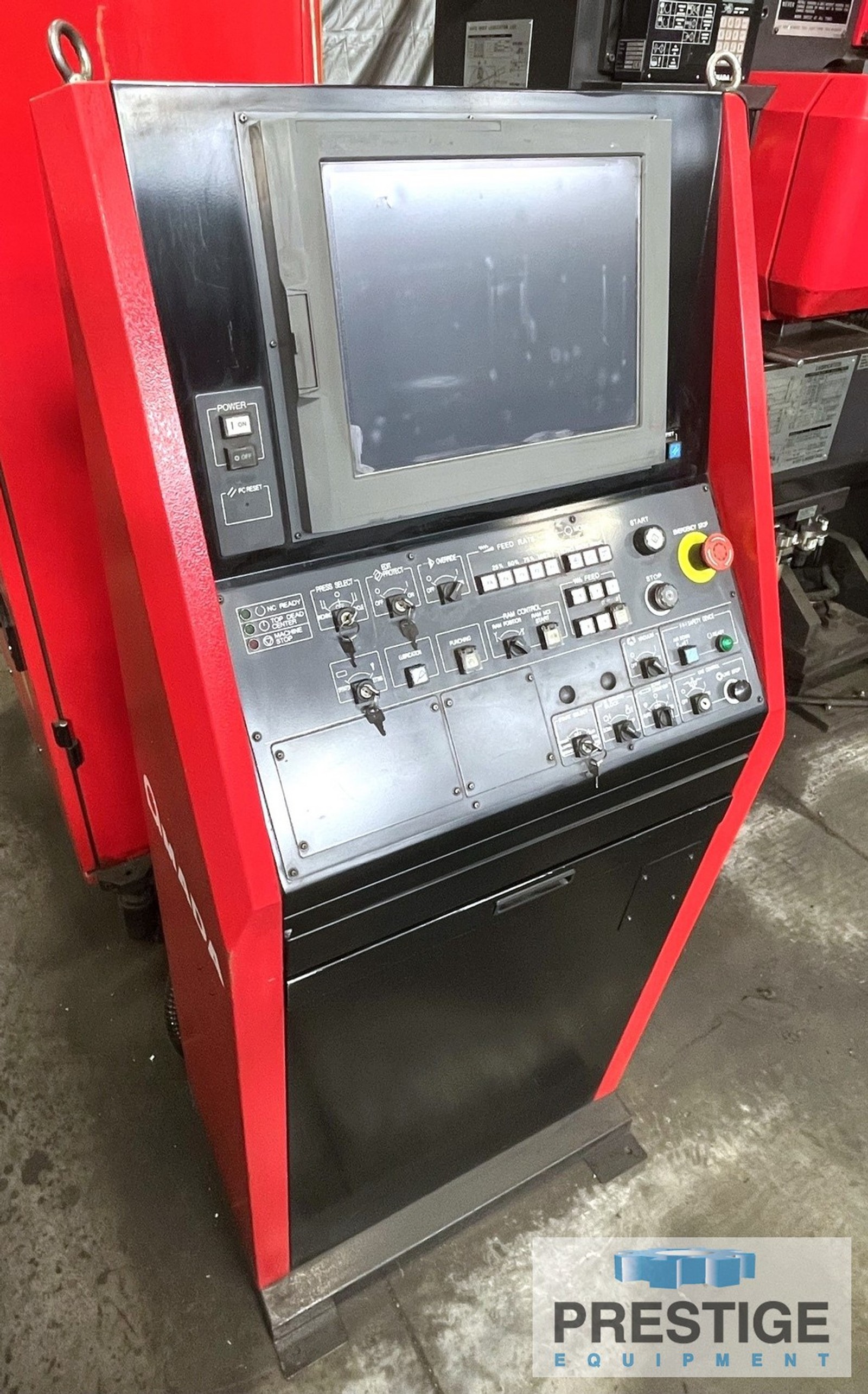

Fanuc AMNC PC Based CNC Control
AC Servo Driven Ram
Punch and Form Option
58 Station Thick Turret
(4) Auto Index Stations

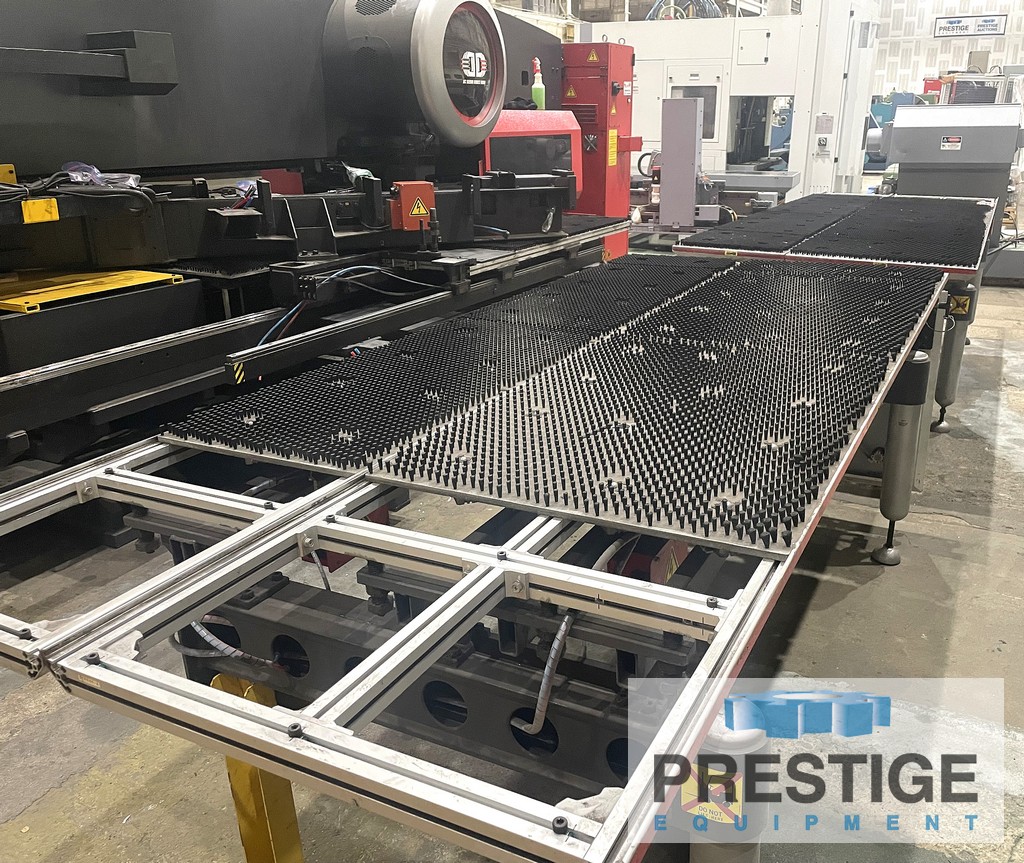

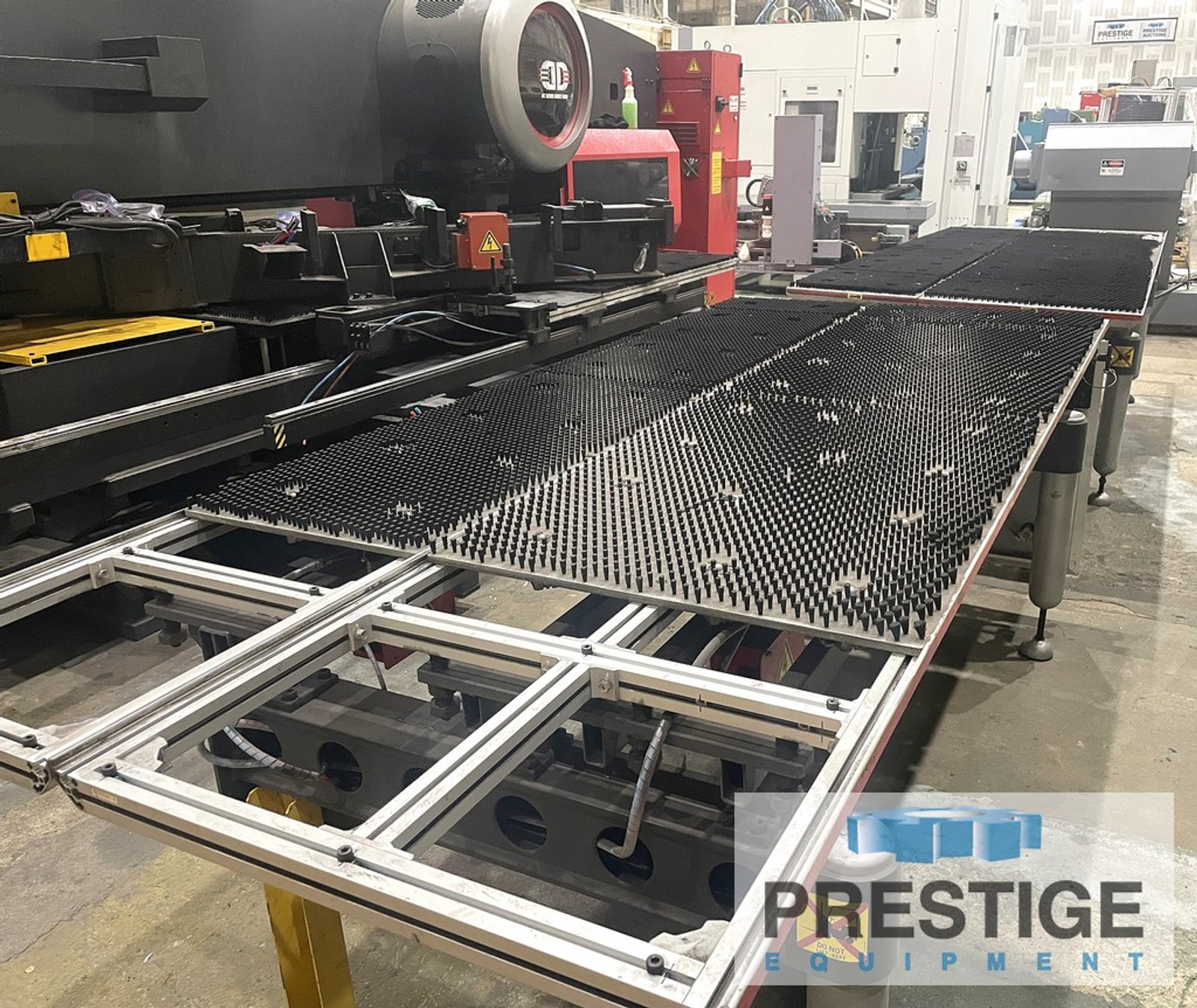

Brush Table

CAPACITY:
Press Capacity ........................ 33 Tons
X-Axis Travel ......................... 98.425"
Y-Axis Travel ......................... 60"
Maximum Sheet Size .................... 60" x 196.85"
Maximum Sheet Weight .................. 330 Lbs.
Maximum Sheet Thickness ............... .187"
Punching Accuracy ..................... +/- 0.004"
Rapid Traverse (X-Axis) ............... 3937 IPM
Rapid Traverse (Y-Axis) ............... 3150 IPM
Hit Rate 1" Pitch (X-Axis) ............ 500 HPM
Hot Rate 1" Pitch (Y-Axis) ............ 330 HPM
Work Cute Size (X & Y) ................ 17.32" x 50"
Approximate Shipping Weight ........... 44,000 Lbs

EQUIPPED WITH:
Fanuc AMNC PC Based CNC Control
AC Servo Driven Ram
Punch and Form Option
58 Station Thick Turret
(4) Auto Index Stations
Brush Table

NOTE:
Inspect In Our Philadelphia PA Warehouse
