63" Giddings & Lewis, VTC-1600, 26 ATC, 78" Turning Diam., 85" U/RF, 69" Ram Stroke, 400 RPM, 100 HP, Fanuc 160i, #43312

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43312

Model

VTC-1600

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43312

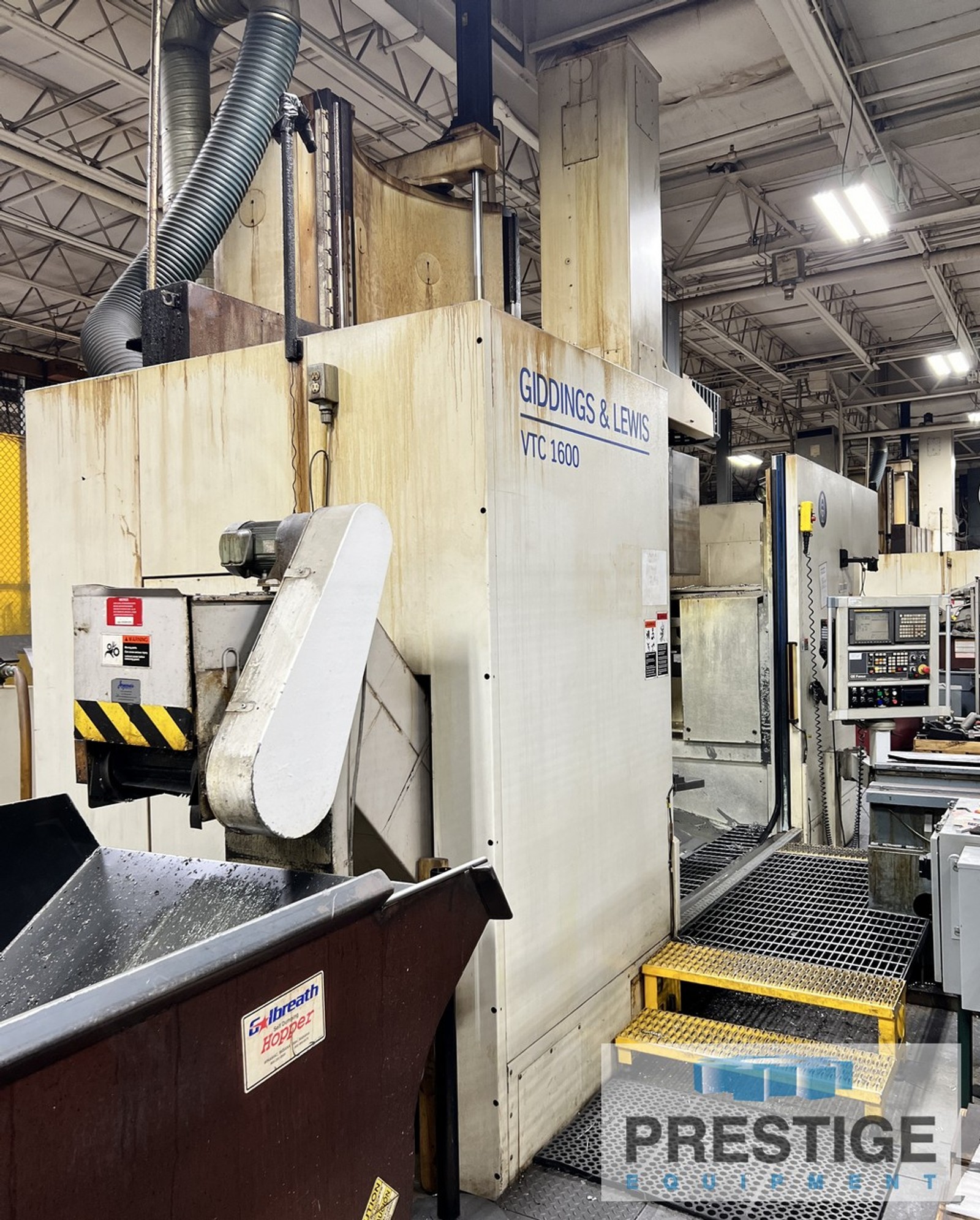

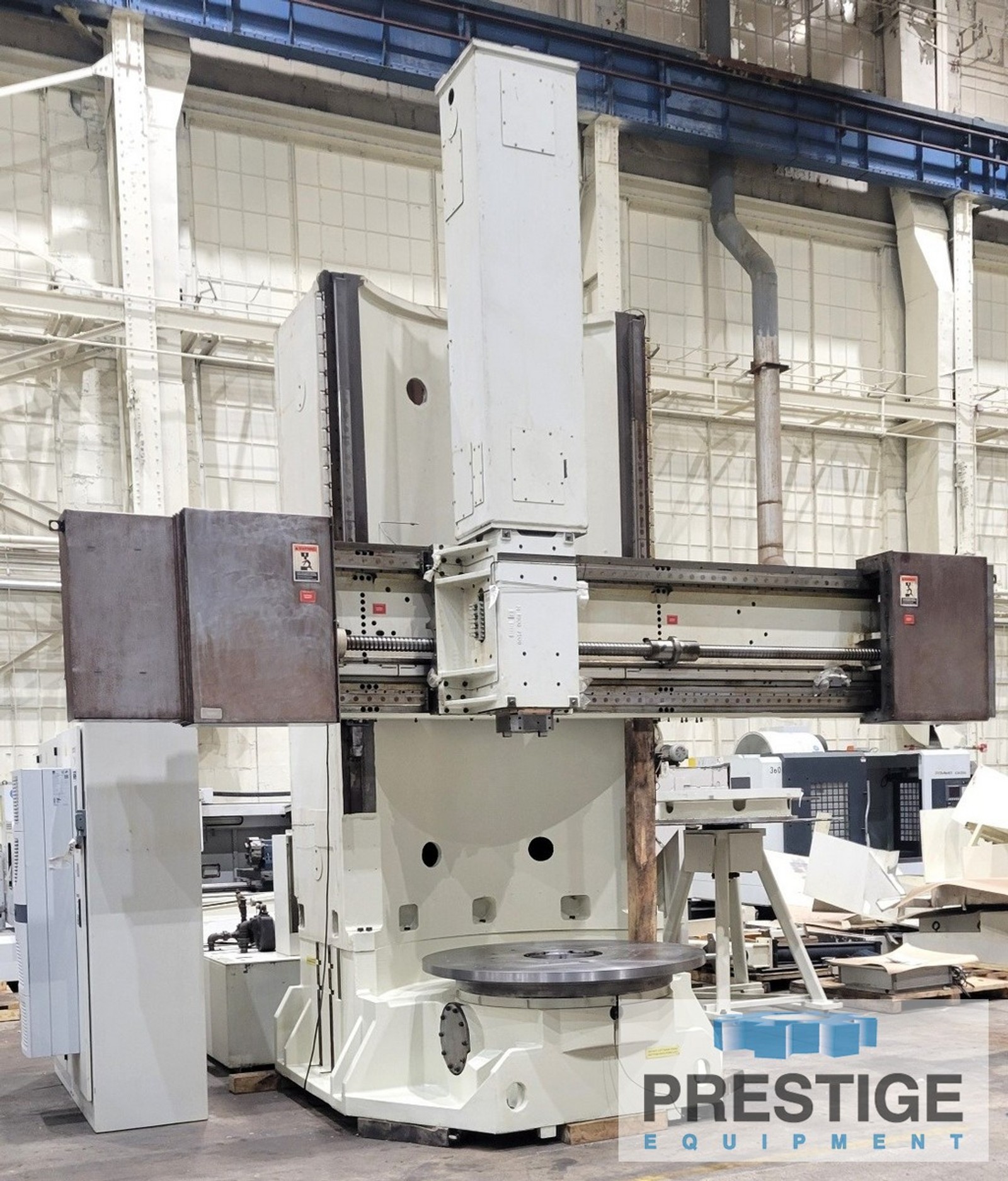

Giddings & Lewis VTC-1600 63" CNC Vertical Boring Mill

FEATURES:

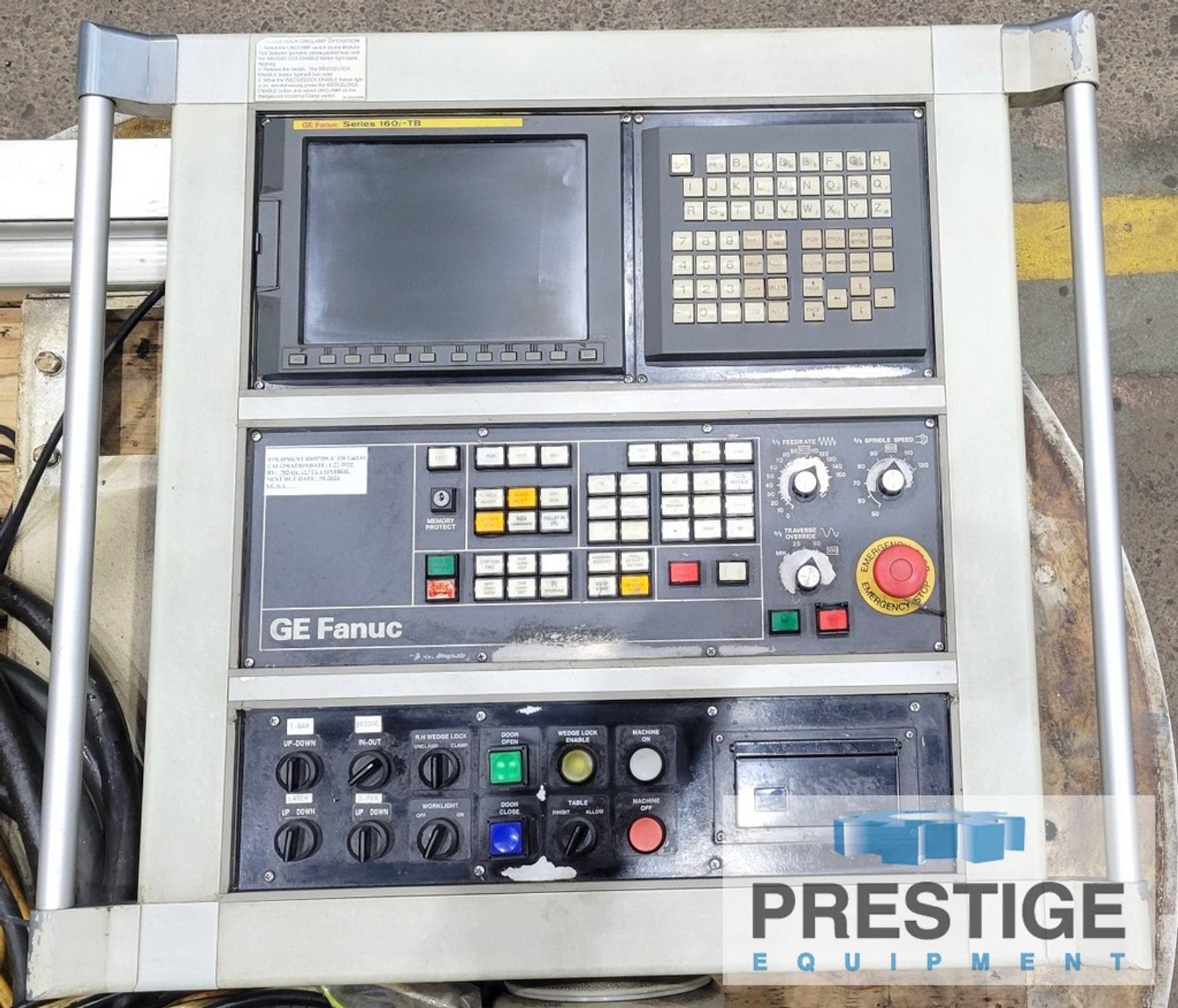

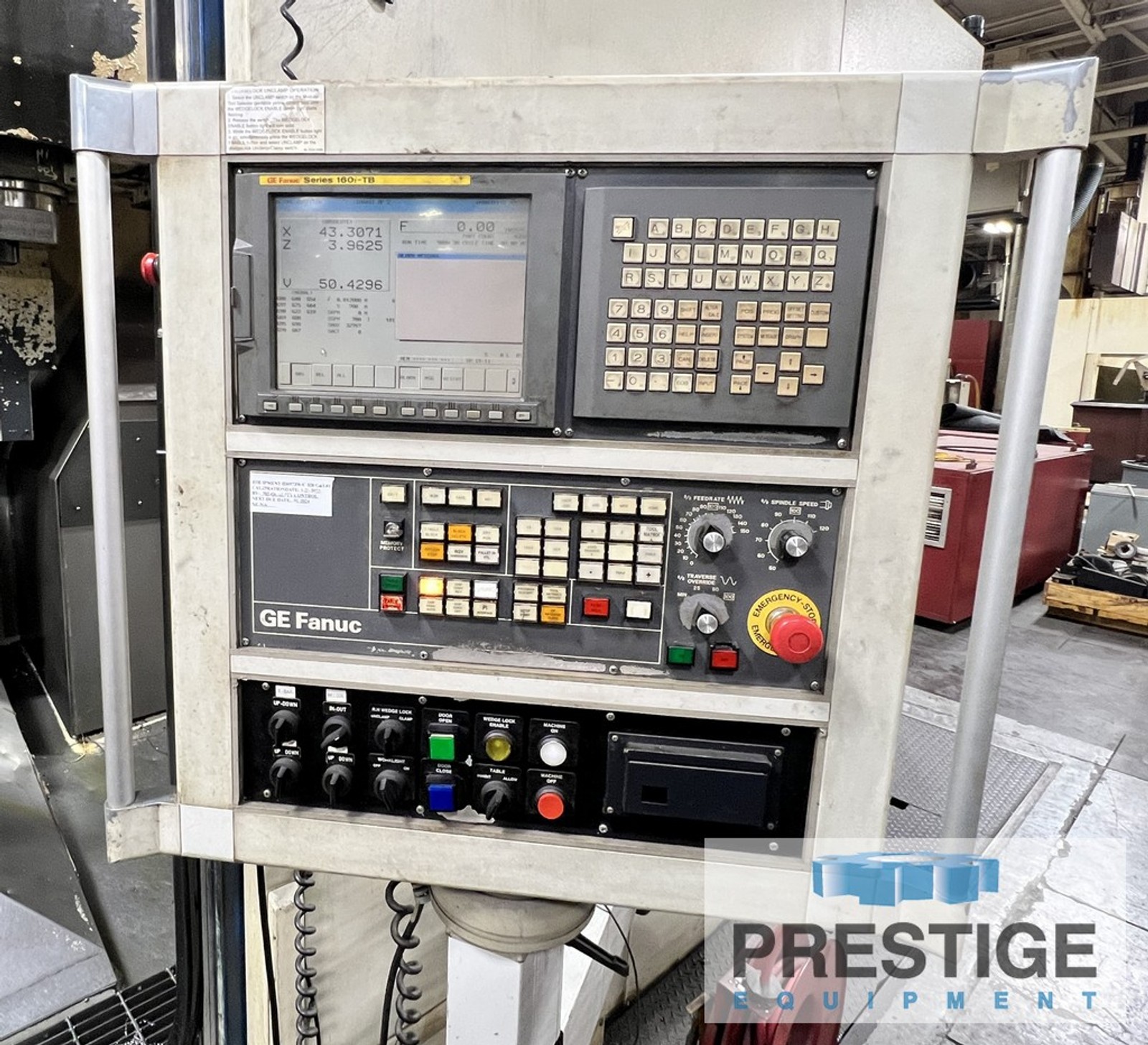

Fanuc 160i-TB CNC Control
26-Station Automatic Tool Change
6-Wedge Lock & 20 Kennametal KM80 Station

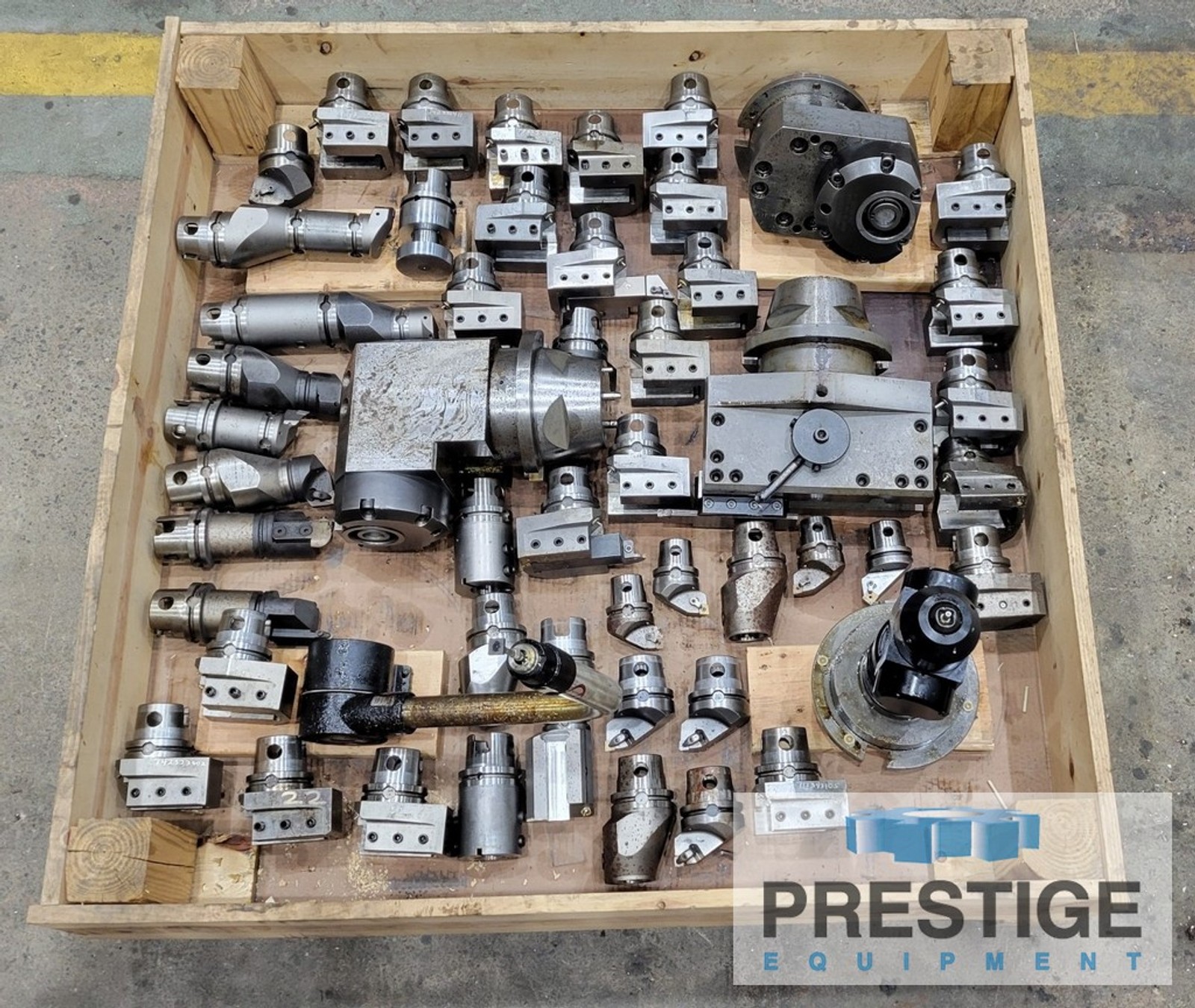

Misc. Tooling
Thru Ram Coolant
Renishaw Part Probe System
Renishaw Tool Probe System
Linear Scales on X, Z & V

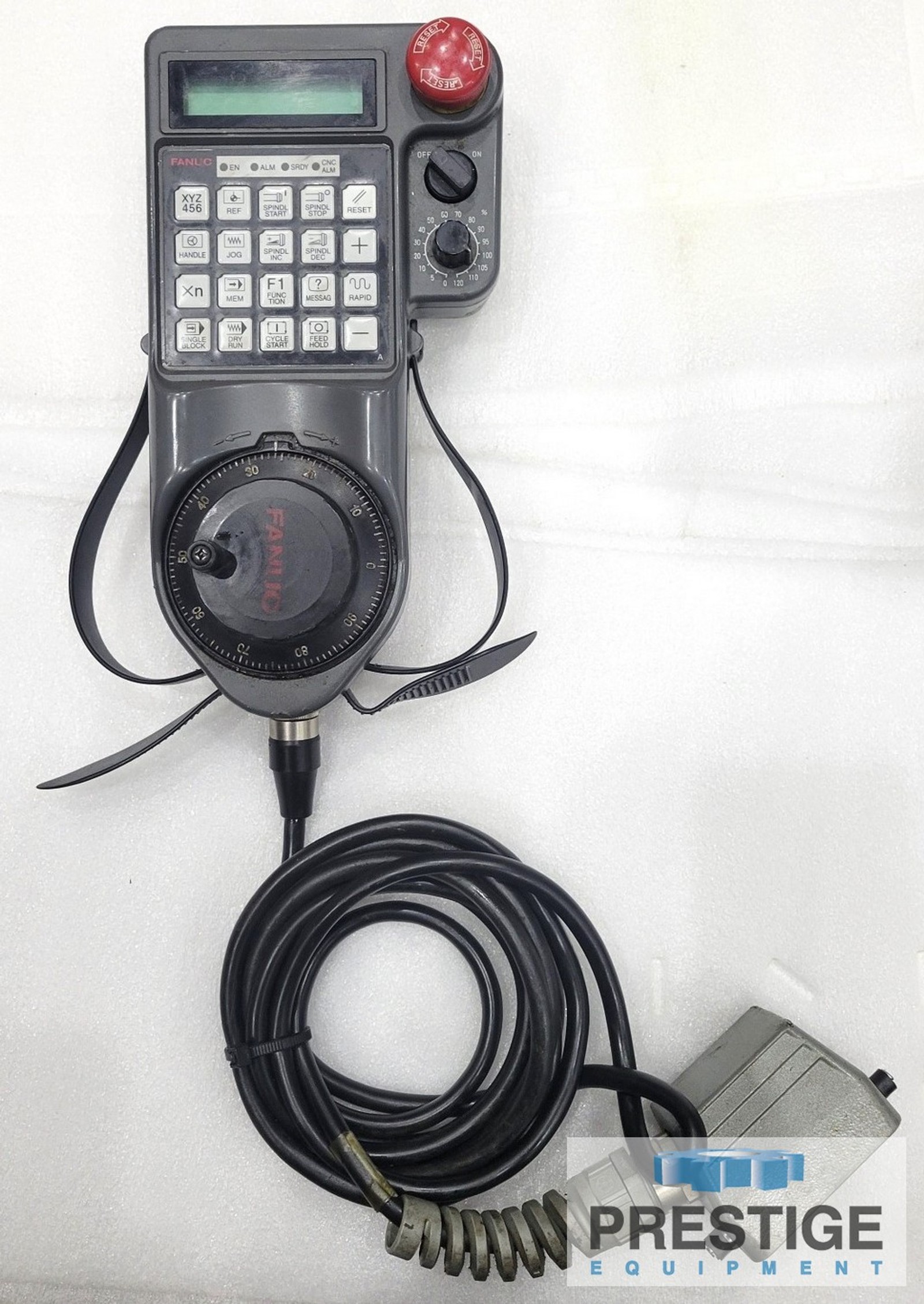

Hand Held Pendant With E-Stop

Specifications:

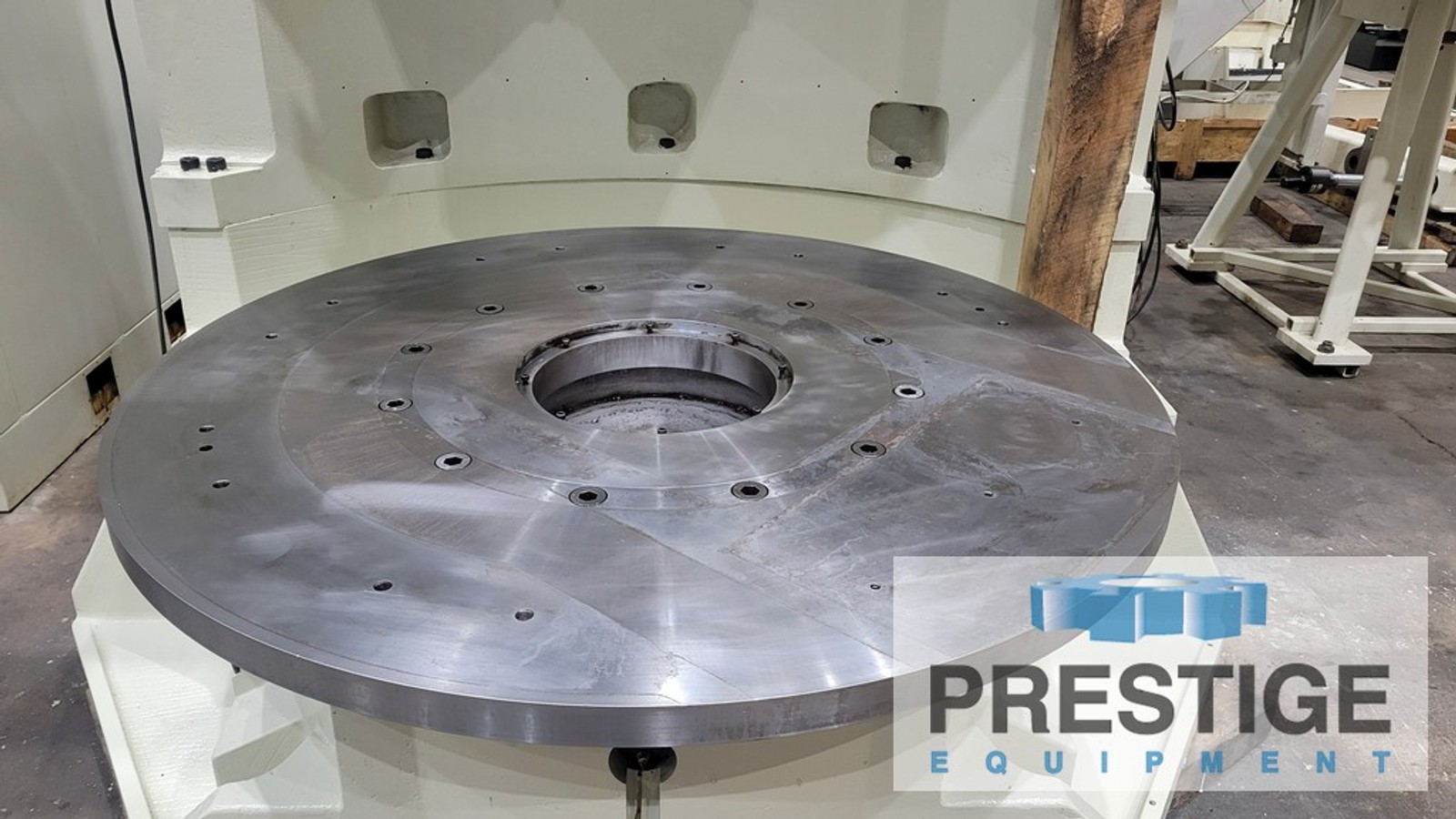

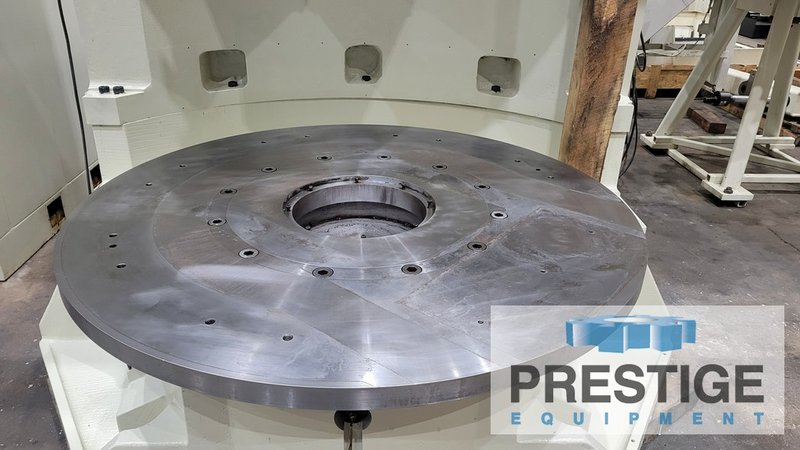

Table Diameter ........................ 62.99"
Maximum Swing ......................... 78.74"
Maximum Facing Capacity ............... 78.74"
Maximum Height Under Ram Face ......... 85.24"
Vertical Ram Travel ................... 68.89"
Left & Right X-Axis Ram Travel ........ +/- 47.63"
Ram Cross Section ..................... 9.8" x 9.8"
Rapid Traverse, X & Z Axes ............ 787 IPM
Feeds Rates X & Y Axes ................ .004-787 IPM
Feed Thrust X & Z Axes ................ 34,000 Nm
Table Speeds .......................... 1-400 RPM
Table Speed Ranges .................... 2
Table Constant Torque ................. 25,000 Nm
Floor Space ........................... 275" x 181"
Overall Height ........................ 264"
Machine Weight ........................ 76,000 Lbs

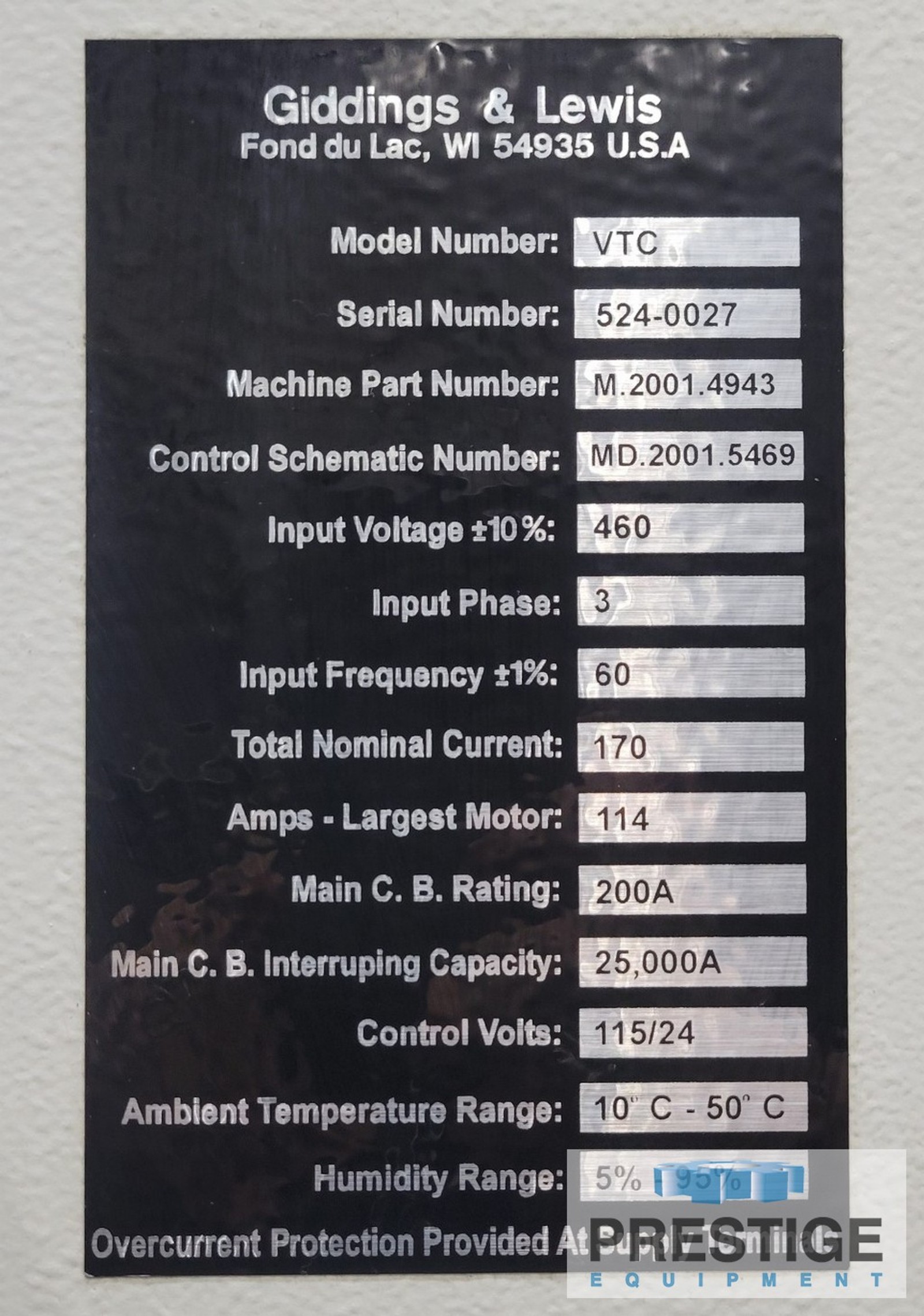

Lectrics ............................. 480/3/60

EQUIPPED WITH:
Fanuc 160i-TB CNC Control
26-Station Automatic Tool Change
6-Wedge Lock & 20 Kennametal KM80 Station
Misc. Tooling
Thru Ram Coolant
Renishaw Part Probe System
Renishaw Tool Probe System
Linear Scales on X, Z & V
Hand Held Pendant With E-Stop
Steel Sliding Way Covers

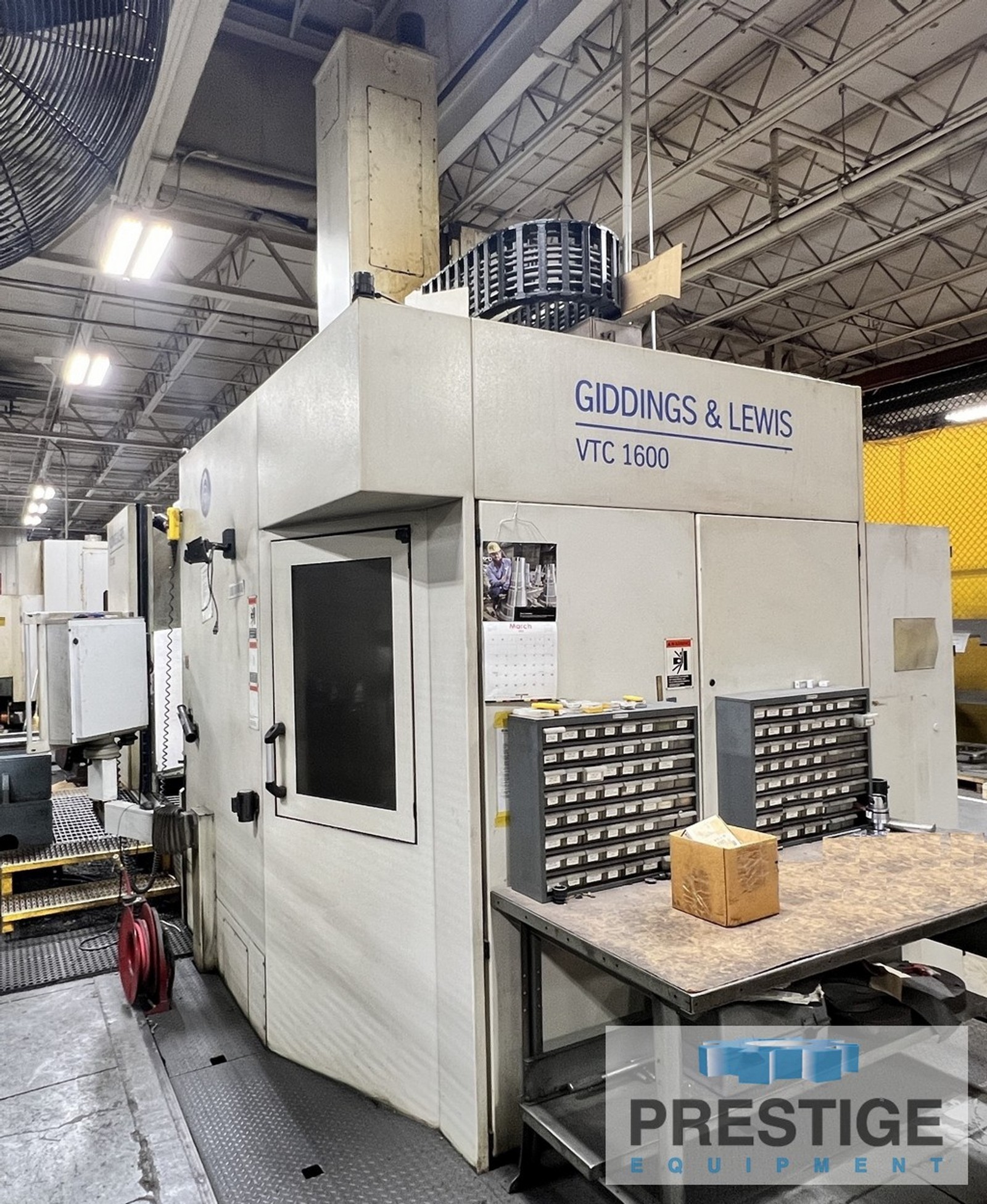

Full Chip and Splash Enclosure
Chip Conveyor
100 HP Table Drive

Control Options:
Tool Offsets – 99
Tool Life Management
Additional Tool Pair for Tool Life Management - 128 pairs
Continuous Thread Cutting
Variable Lead Thread Cutting
Circular Thread Cutting
Multiple Repetitive Cycles for Turning
Chamfer and Corner R
Program Restart
Reader/Punch Interface RS232
Additional Reader/Punch Interface
Remote Handy Operator Station
Addition of a five (5) slot I/O Rack for customer use
Includes one (1) 16-point Digital Input Card (AID16D)
and one(1) 16-point relay output card (AOR16G)
