Okuma Genos M560-V, X-41", Y-22", OSP-300M, 32 ATC, Part/Tool Probe, 4th Axis Table, Chip Blaser, 2015, #43983

Manufacturer

OKUMA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43983

Model

Genos M560-V

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43983

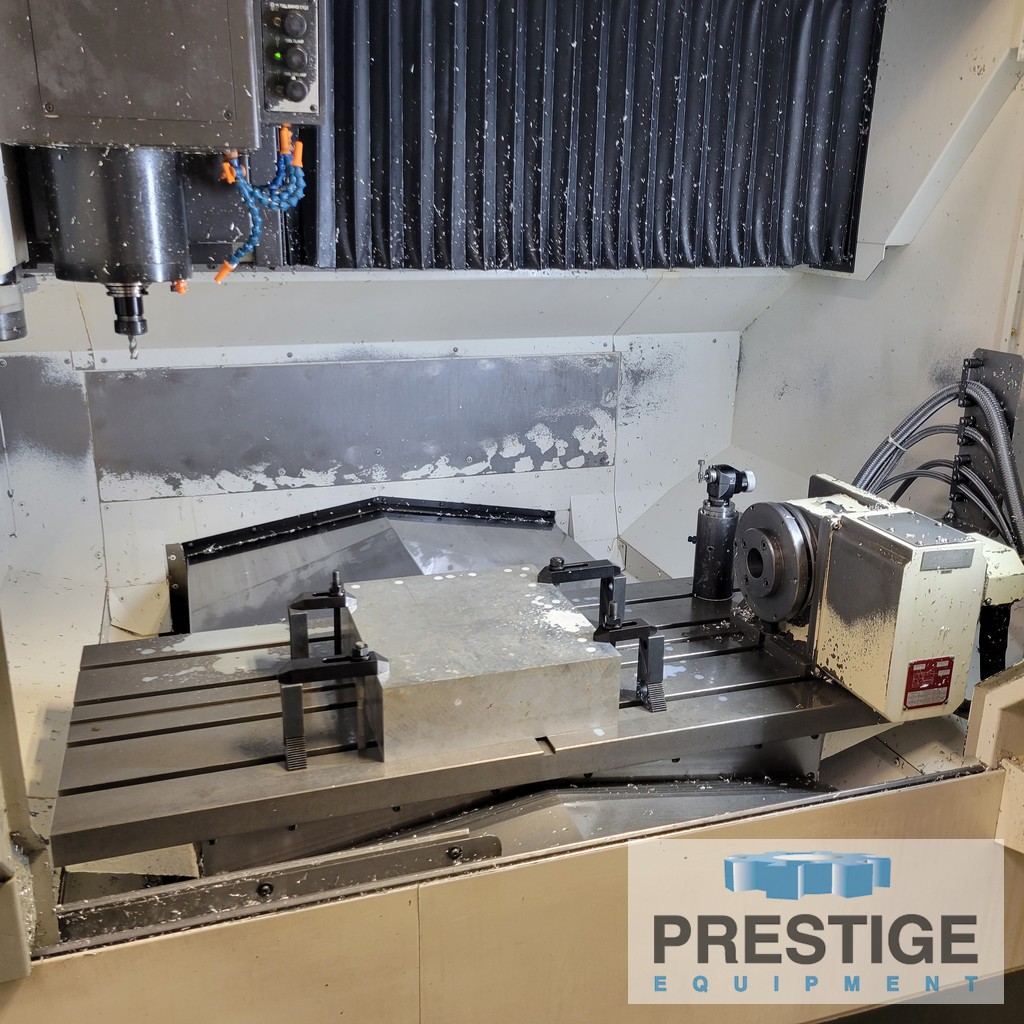

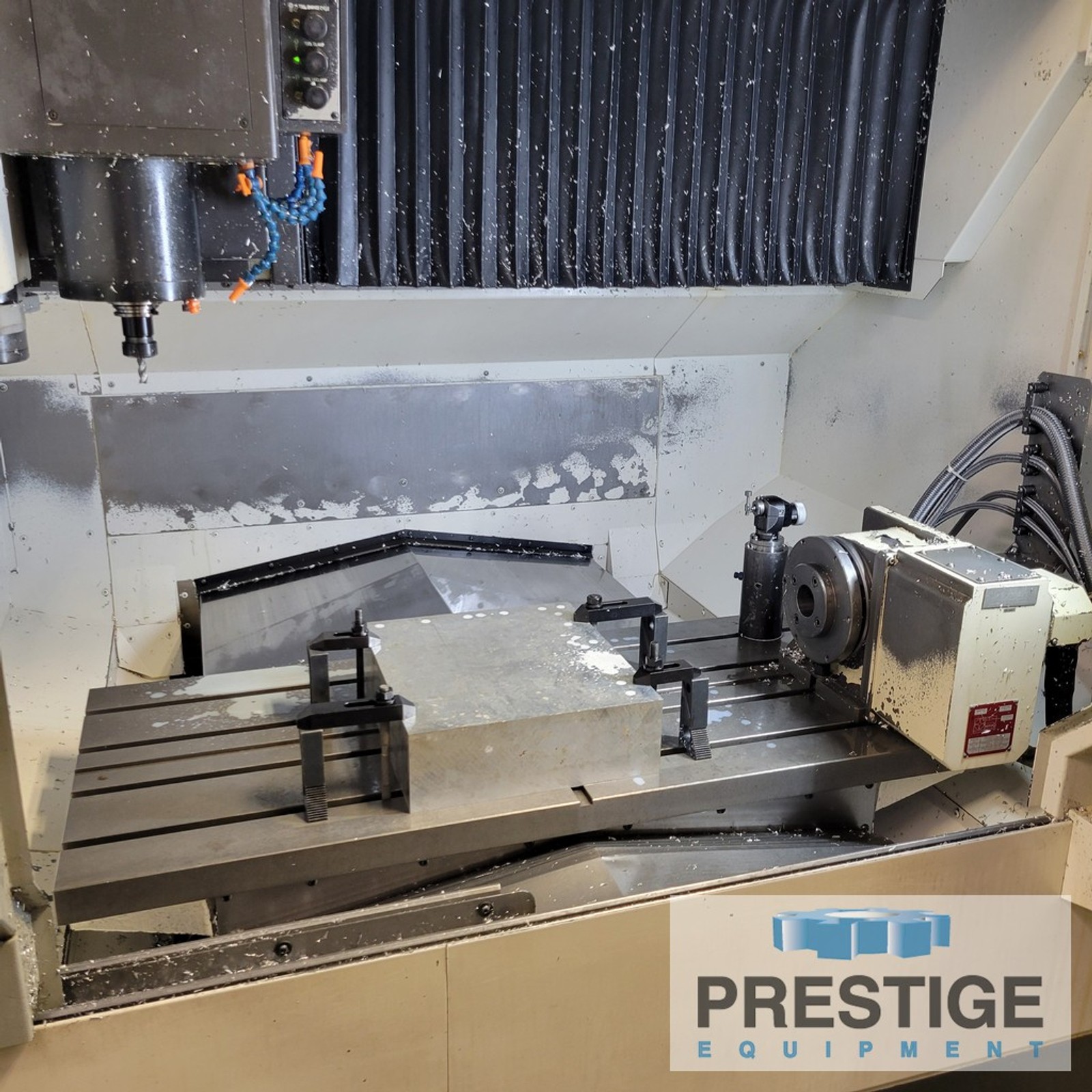

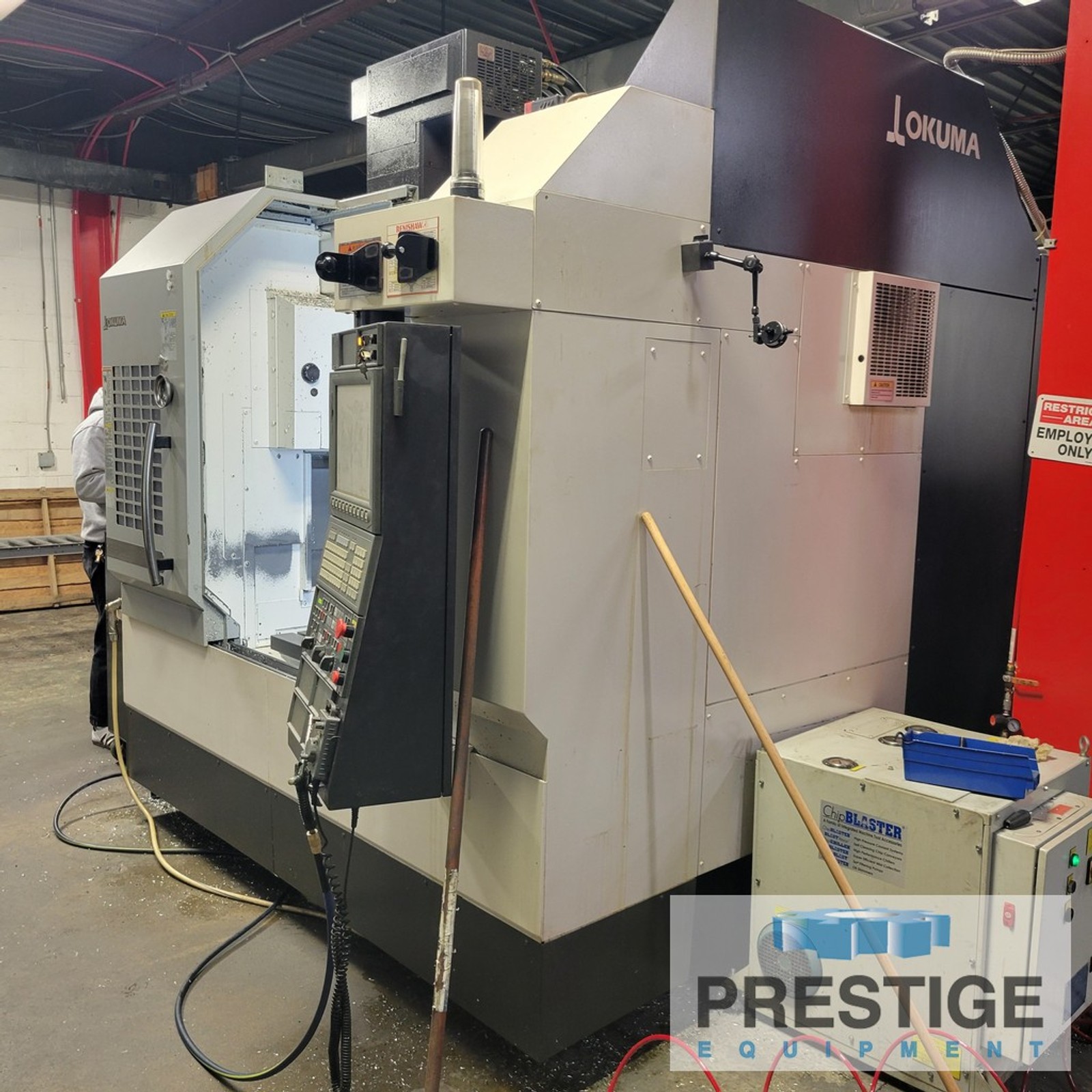

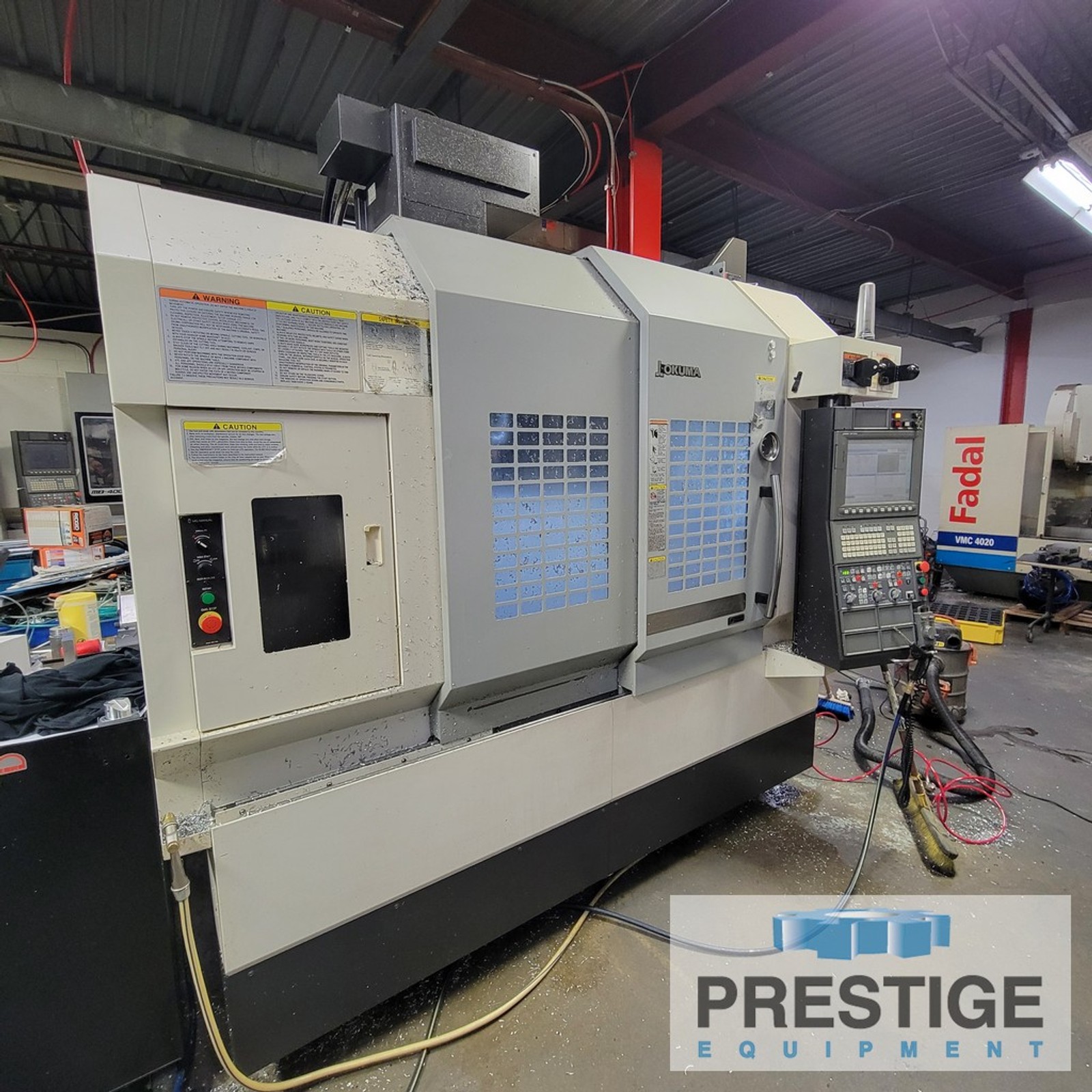

Okuma Genos M560-V Vertical Machining Center

FEATURES:

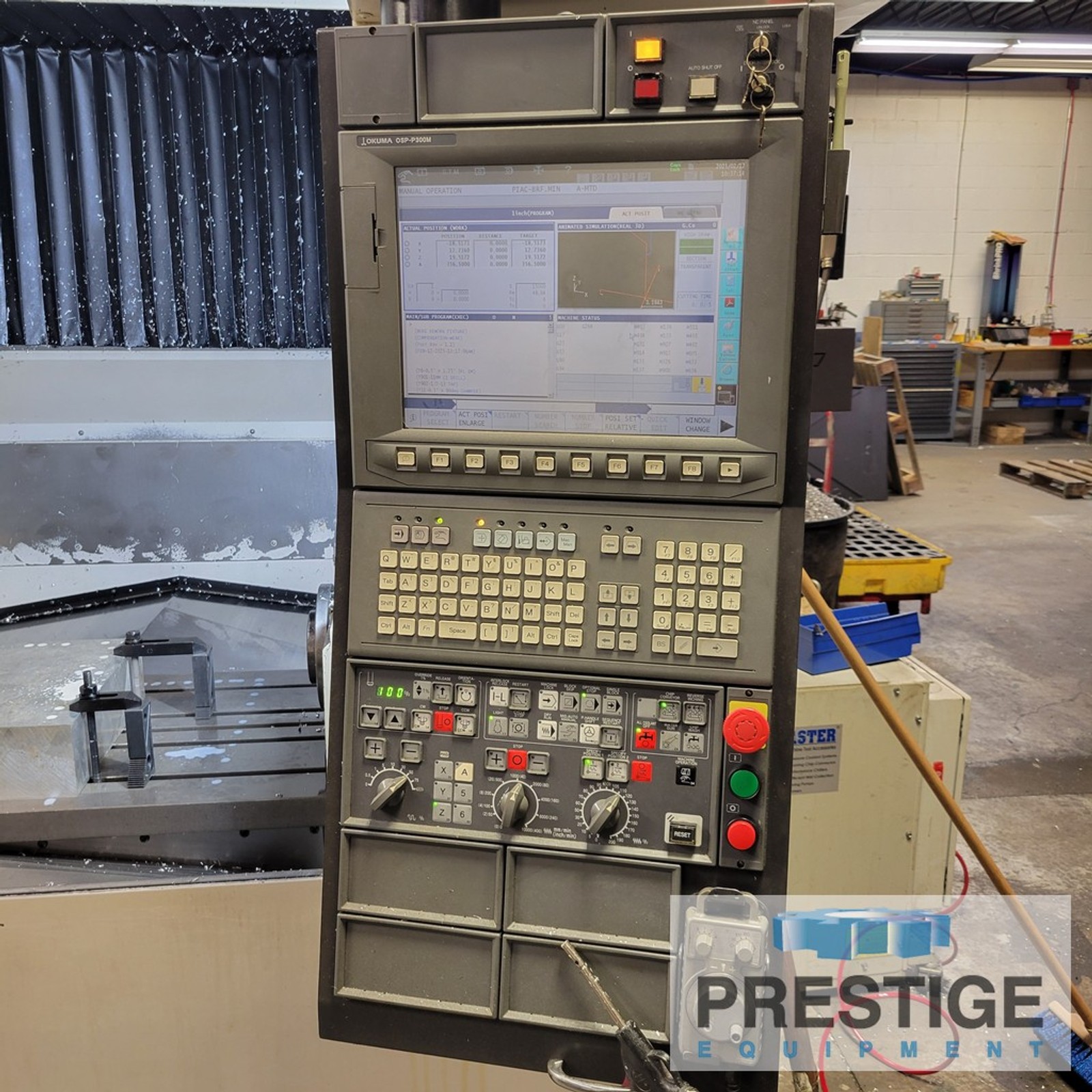

OKUMA OSP-P300M CNC Control with 15" Multi-Touch Color Display

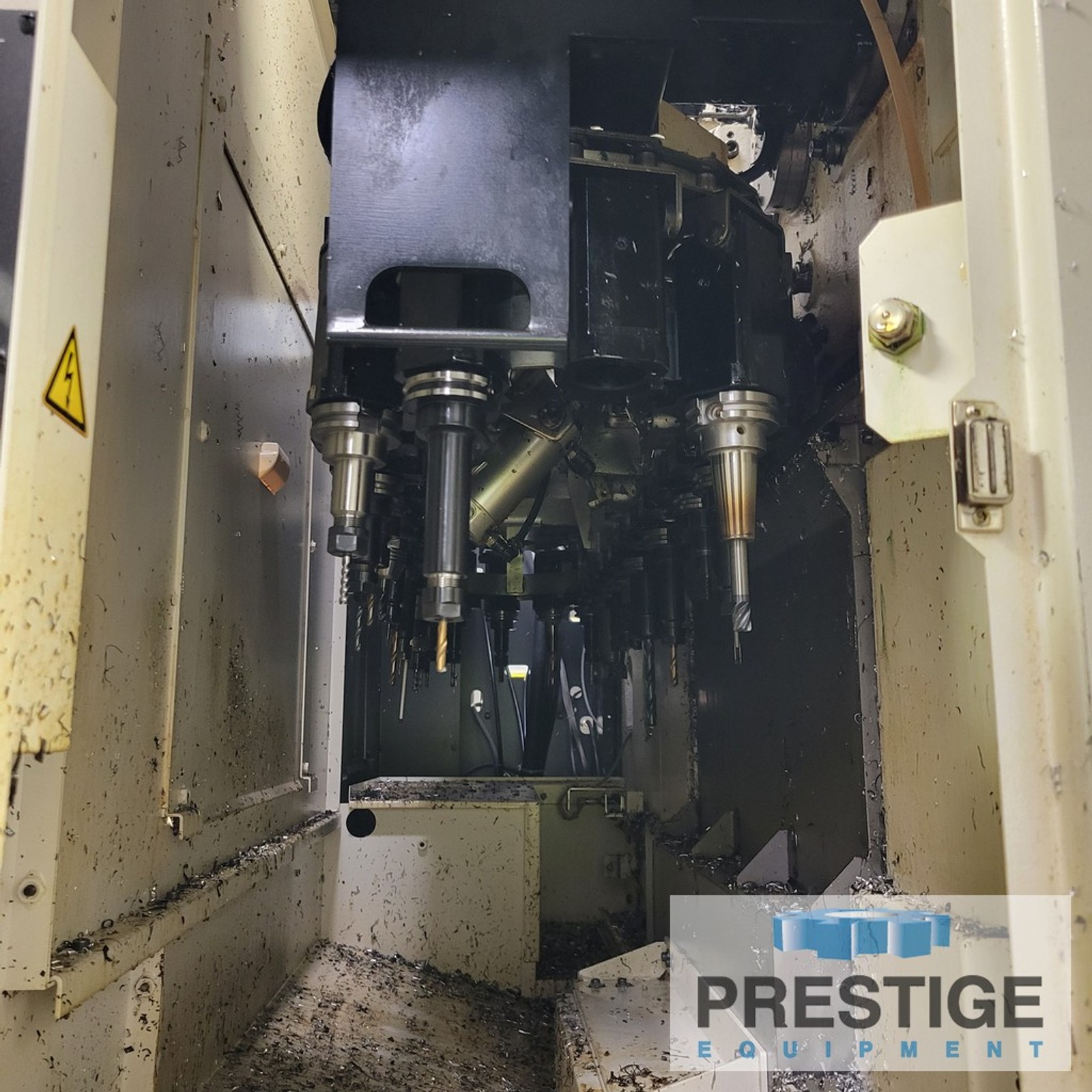

32-Position Automatic Tool Changer
Renishaw Tool Probe and Part Probe

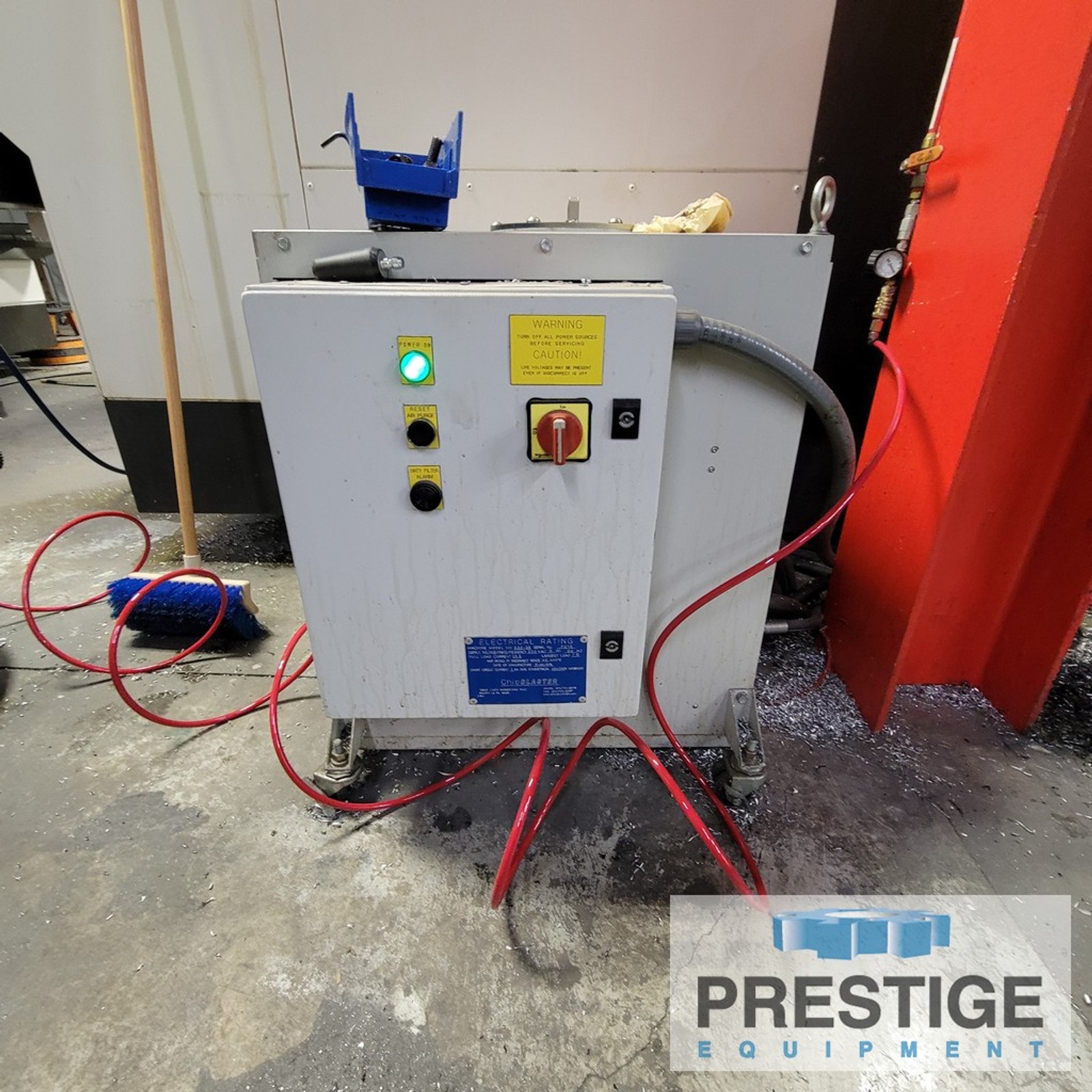

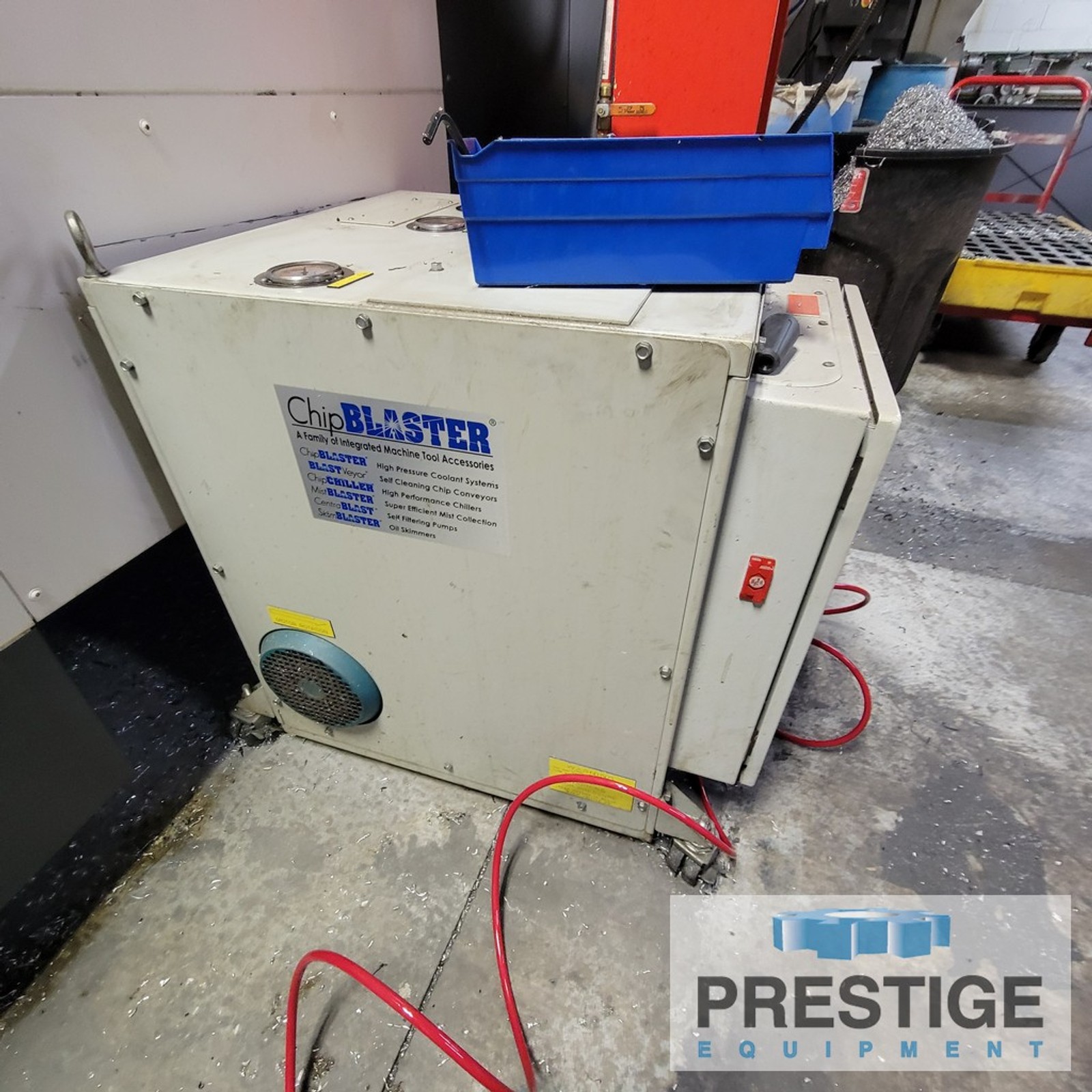

Chip Blaster

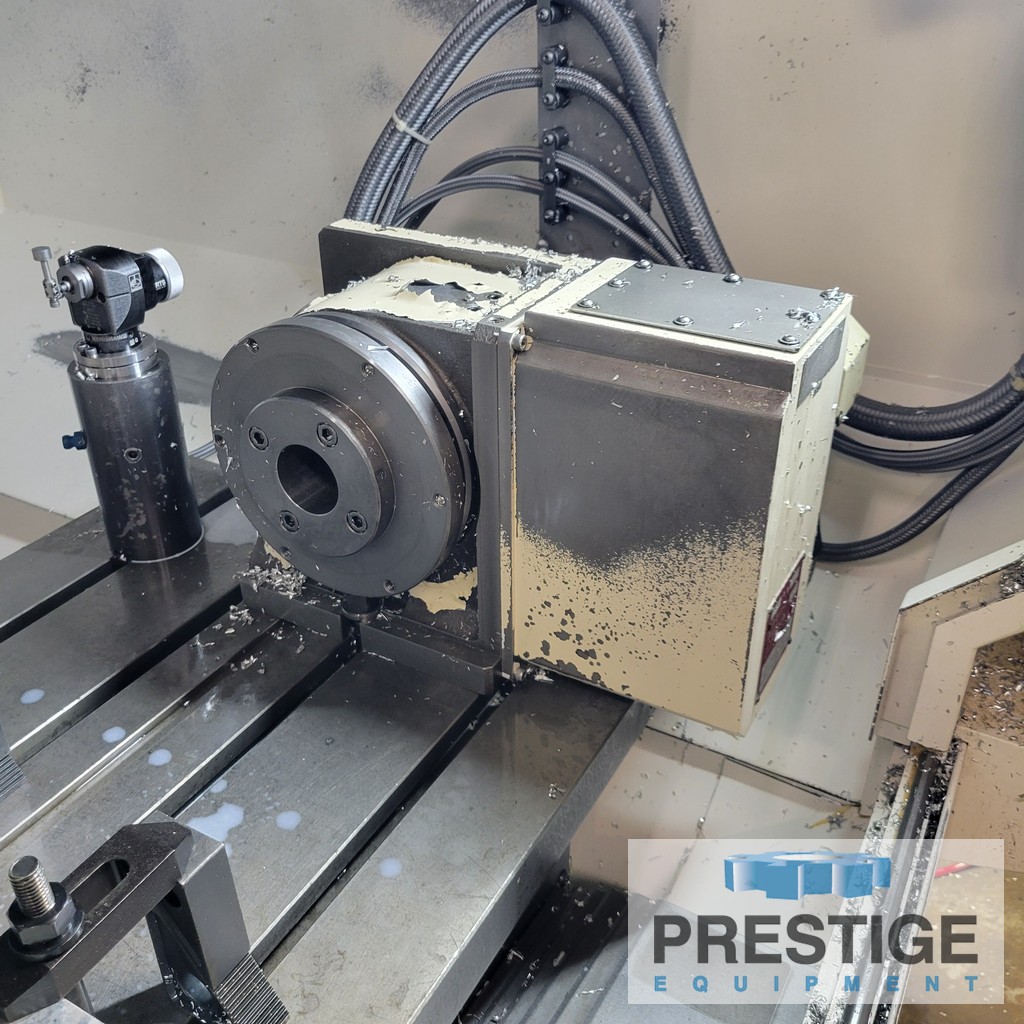

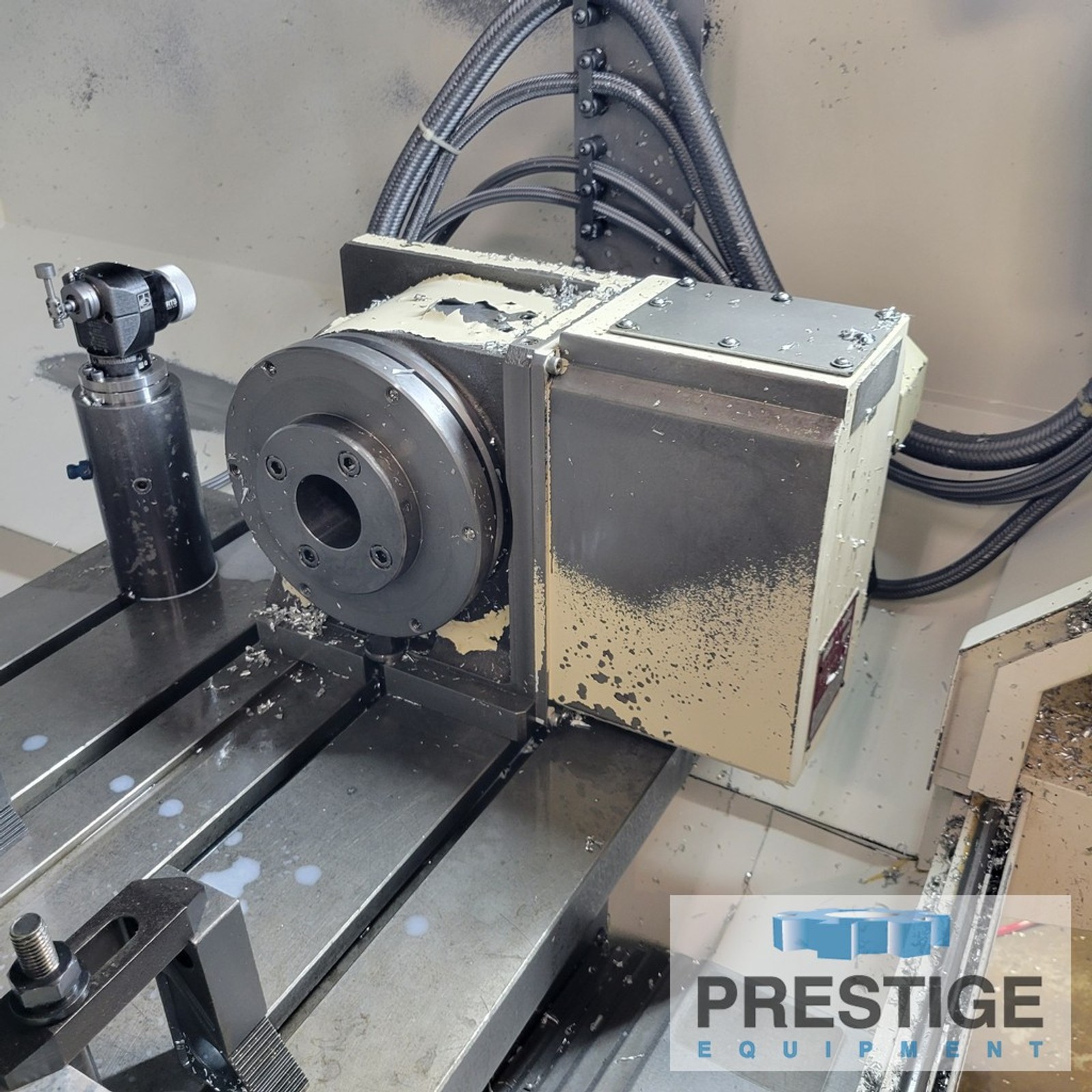

4th-Axis Table

CAPACITIES:
X-Axis Travel ......................... 41.34"
Y-Axis Travel ......................... 22.05"
Z-Axis Travel ......................... 18.11"
Spindle Nose to Table Top ............. 5.91"-24.02"
Table Size ............................ 51.18" x 22.05"
Table Load Capacity ................... 1,980 Lbs.

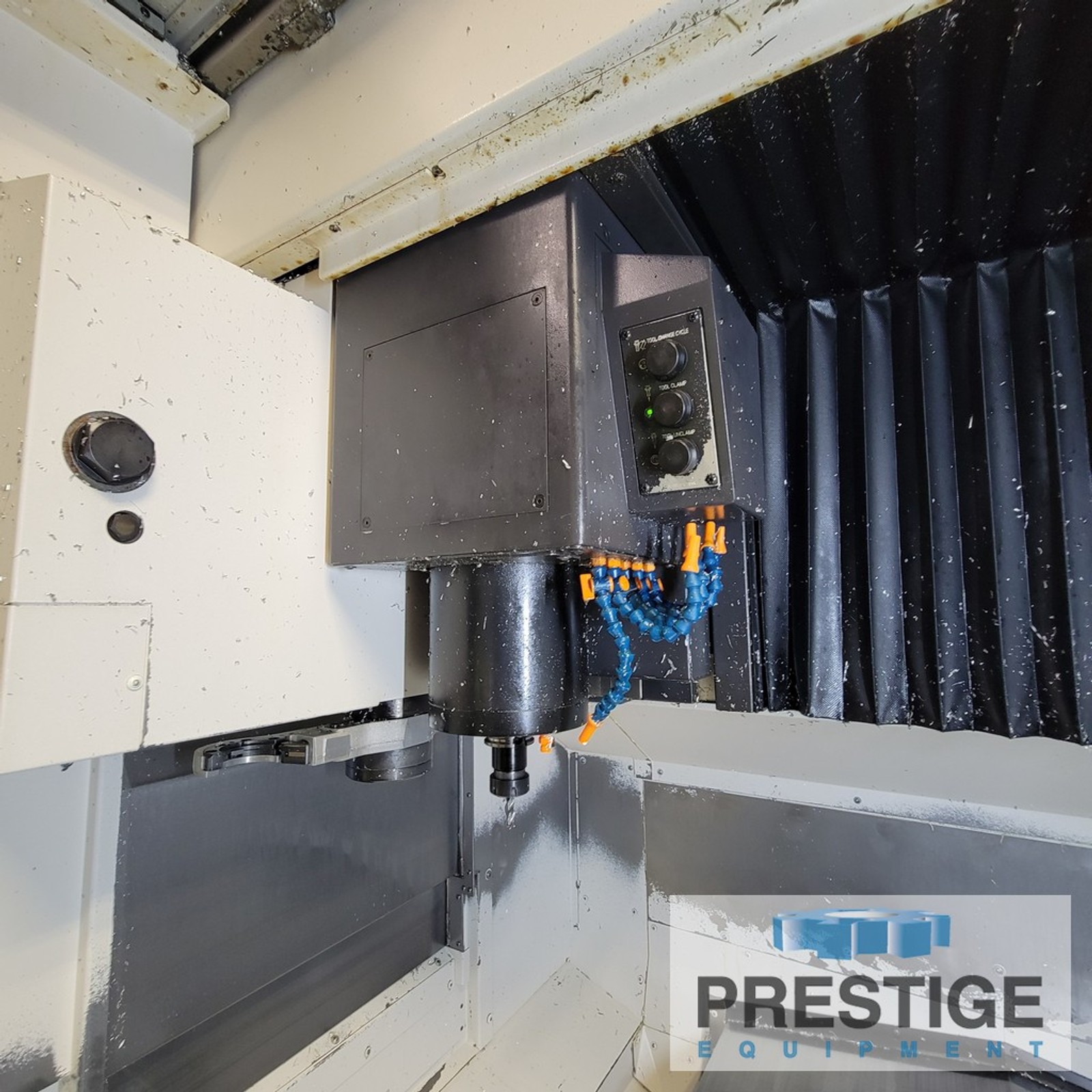

Spindle Speeds ........................ 15,000 RPM
Spindle Taper ......................... CAT 40 Big Plus
Main Motor ............................ 30 HP/25 HP
Rapid Traverse Rate, X/Y-Axes ......... 1,575 IPM
Rapid Traverse Rate, Z-Axis ........... 1,259 IPM
Approx. Dimensions w/o Chip Conveyor .. 101" x 126" x 108.11"
Approx. Weight ........................ 17,820 Lbs.

EQUIPPED WITH:
OKUMA OSP-P300M CNC Control with 15" Multi-Touch Color Display
32-Position Automatic Tool Changer
Renishaw Tool Probe and Part Probe
Chip Blaster
4th-Axis Table

NOTE:
Inspect In Plant Under Power
