Apec G3060-5L 5-Axis Double Column Gantry Mill, X-236", Y-118", 15,000 RPM, Blum Tool/Work Probe, TSC, 2022, #43969

Manufacturer

Apec

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

43969

Model

G3060-5L

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43969

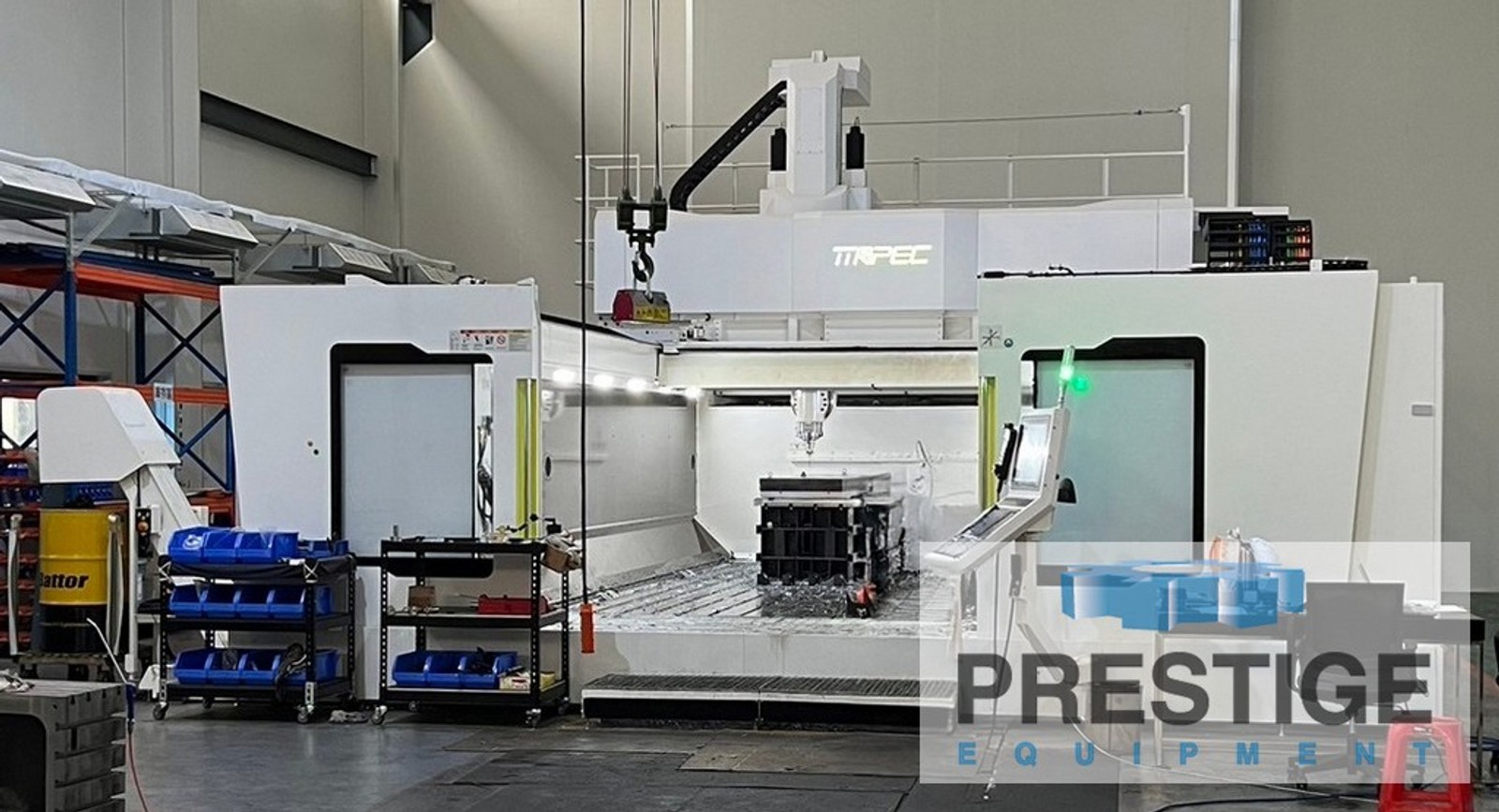

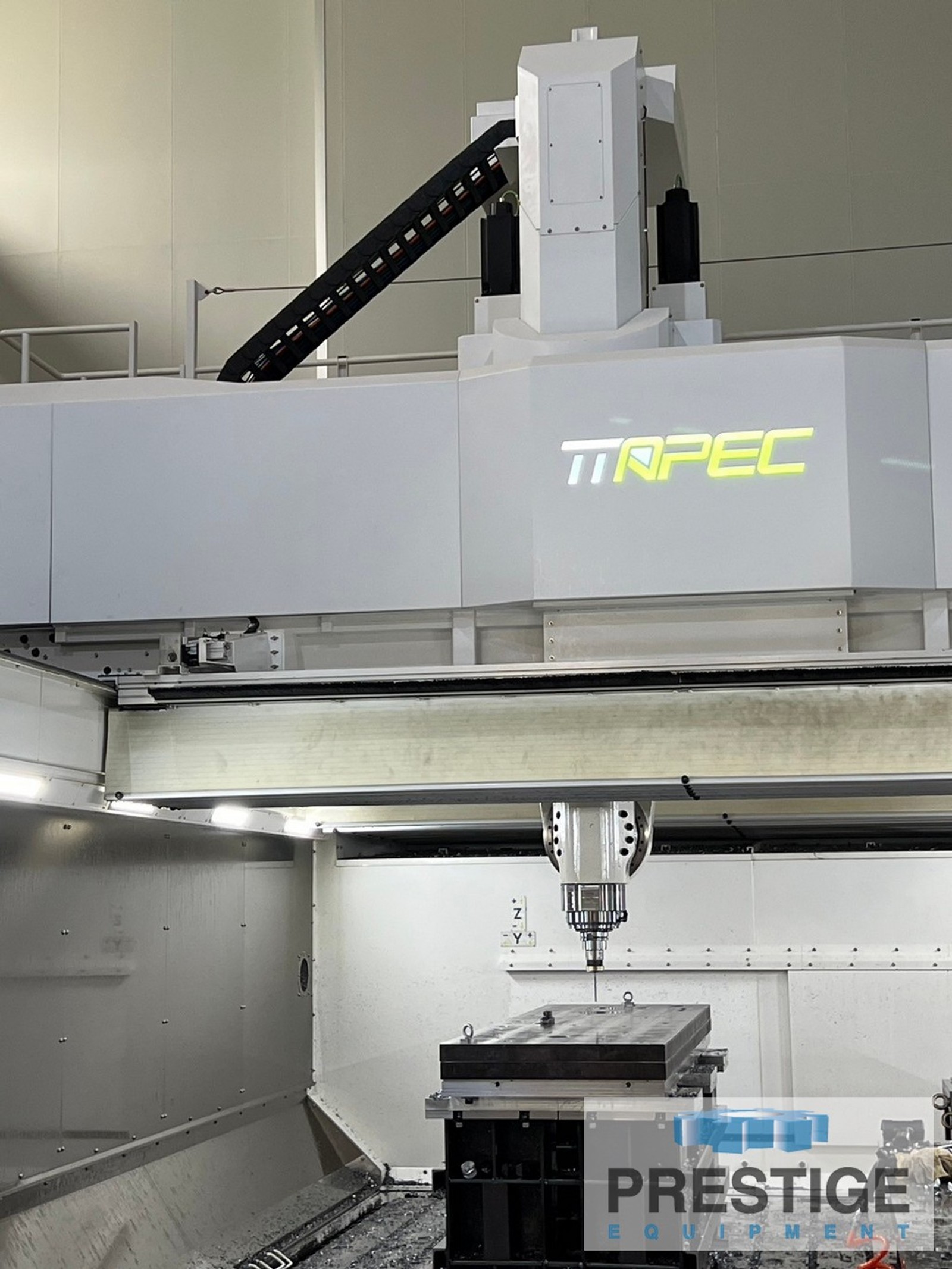

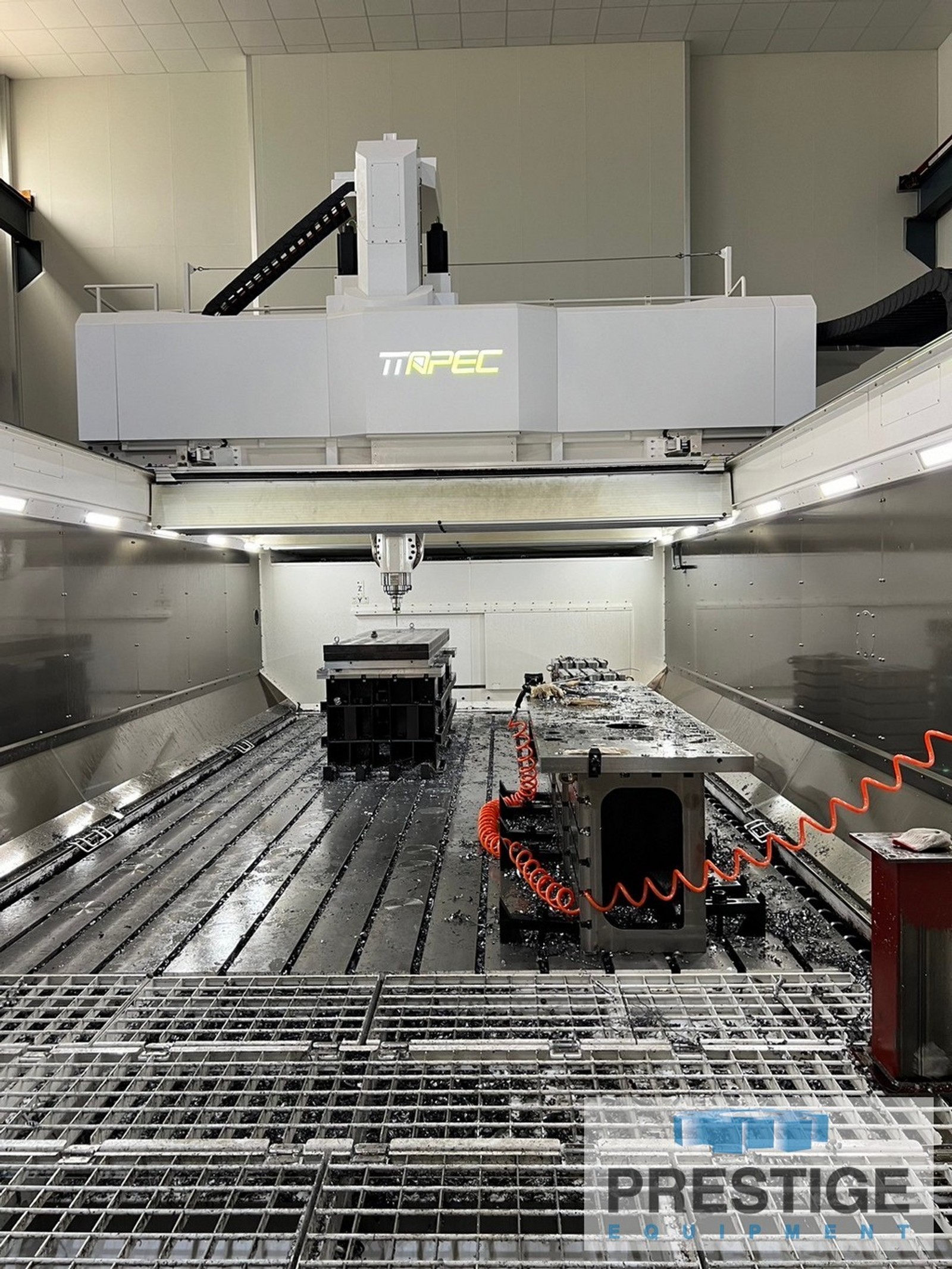

Apec G3060-5L 5-Axis Double Column Gantry Mill

FEATURES:

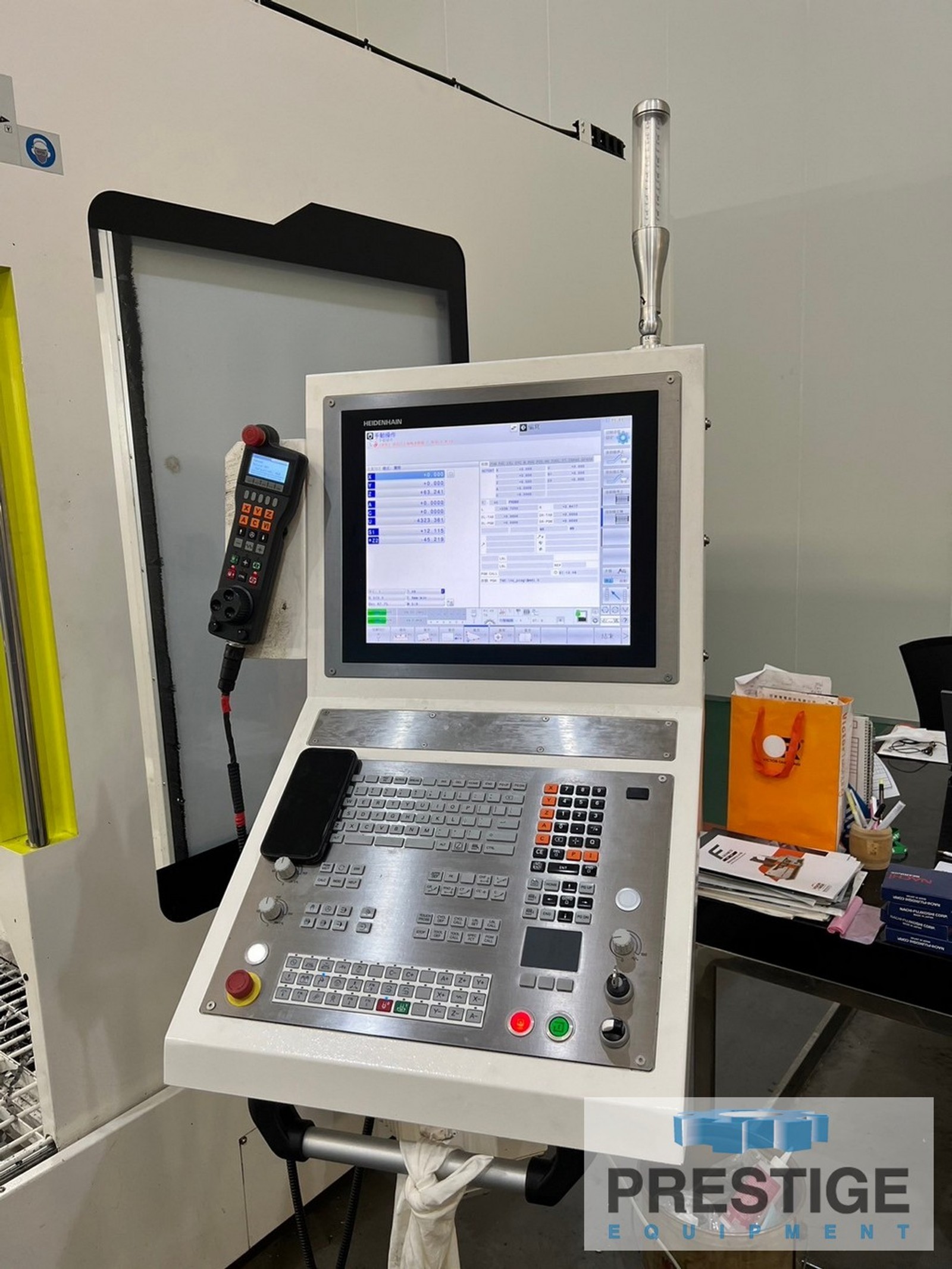

Heidenhain TNC640 CNC Control

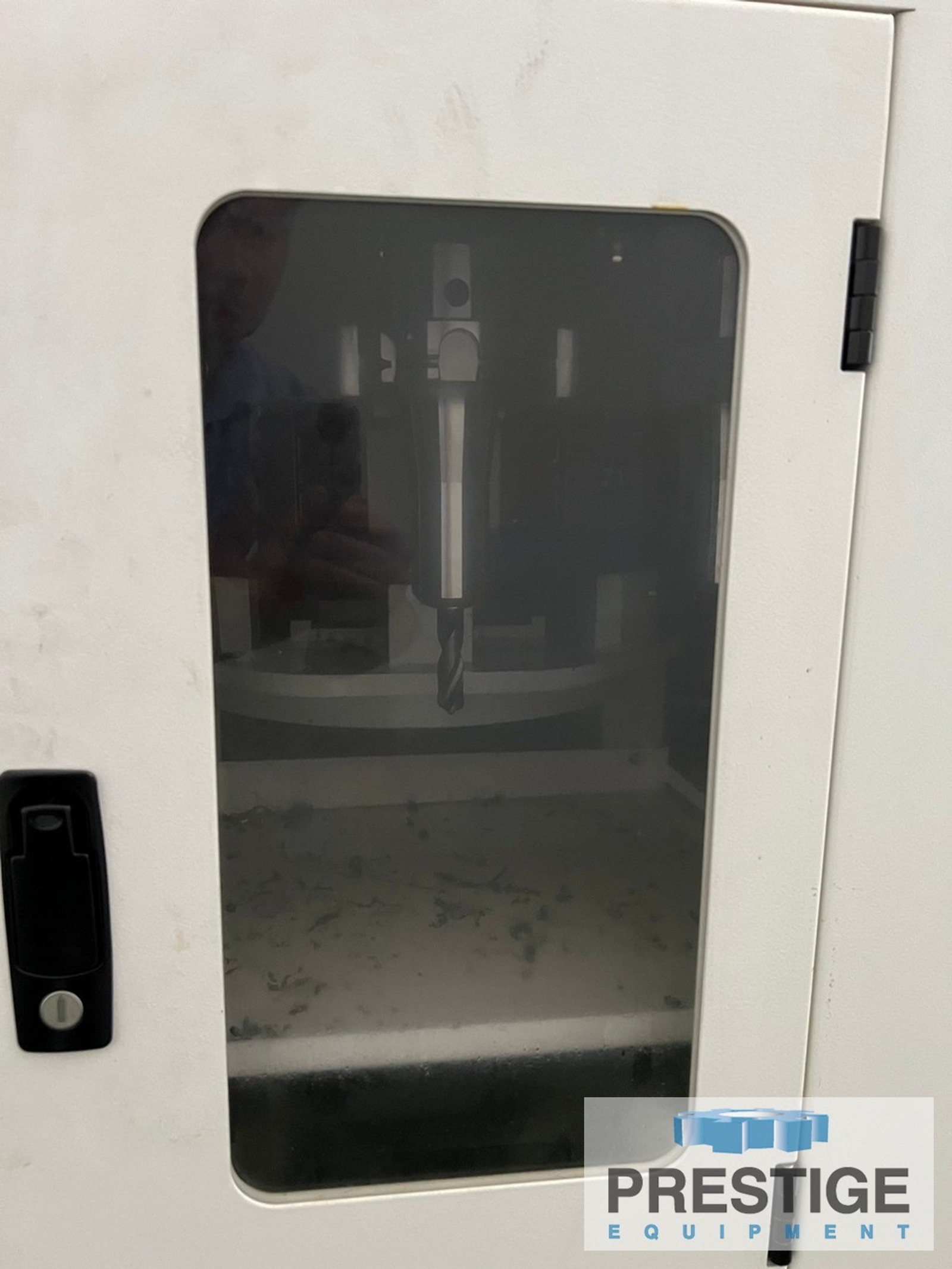

40-Position Automatic Tool Changer

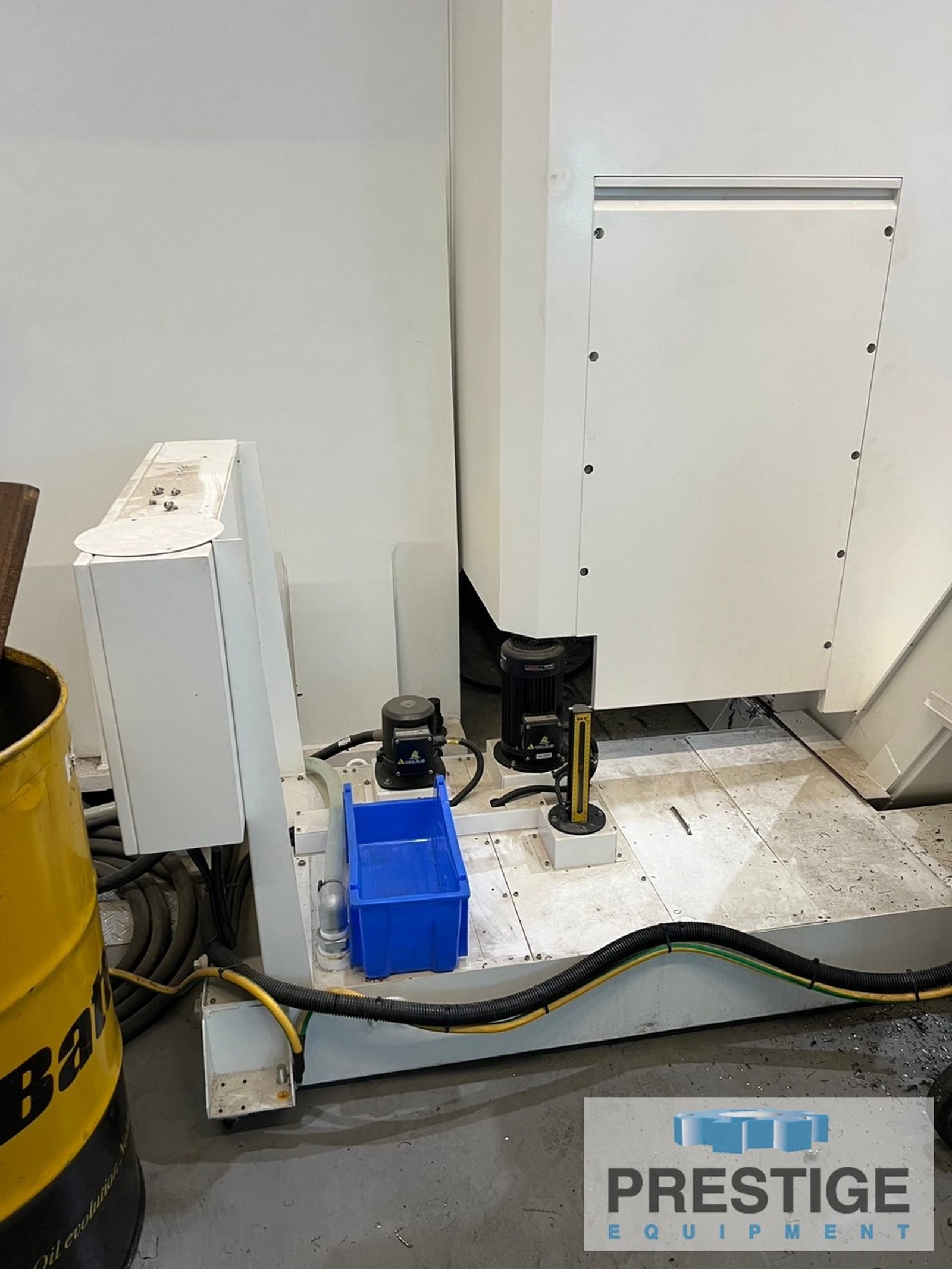

BLUM Tool Length Measuring System
BLUM Work Piece Measuring System
Through Spindle Coolant System
5-Axis Auto Compensation System

CAPACITIES:
X-Axis Travel ......................... 236.66"
Y-Axis Travel ......................... 118.11"
Z-Axis Travel ......................... 39.37"
A-Axis Head Swivel .................... +/-125 Degree
C-Axis Head Rotation .................. 360 Degree
Table Dimensions ...................... 236.66" x 118.11"
Table Capacity ........................ 17,600 Lbs.
Spindle Nose to Table Surface ......... 11.02"-50.39"
Spindle Taper ......................... HSK-100A
Spindle Speeds ........................ 15,000 RPM

EQUIPPED WITH:
Heidenhain TNC640 CNC Control
40-Position Automatic Tool Changer
BLUM Tool Length Measuring System
BLUM Work Piece Measuring System

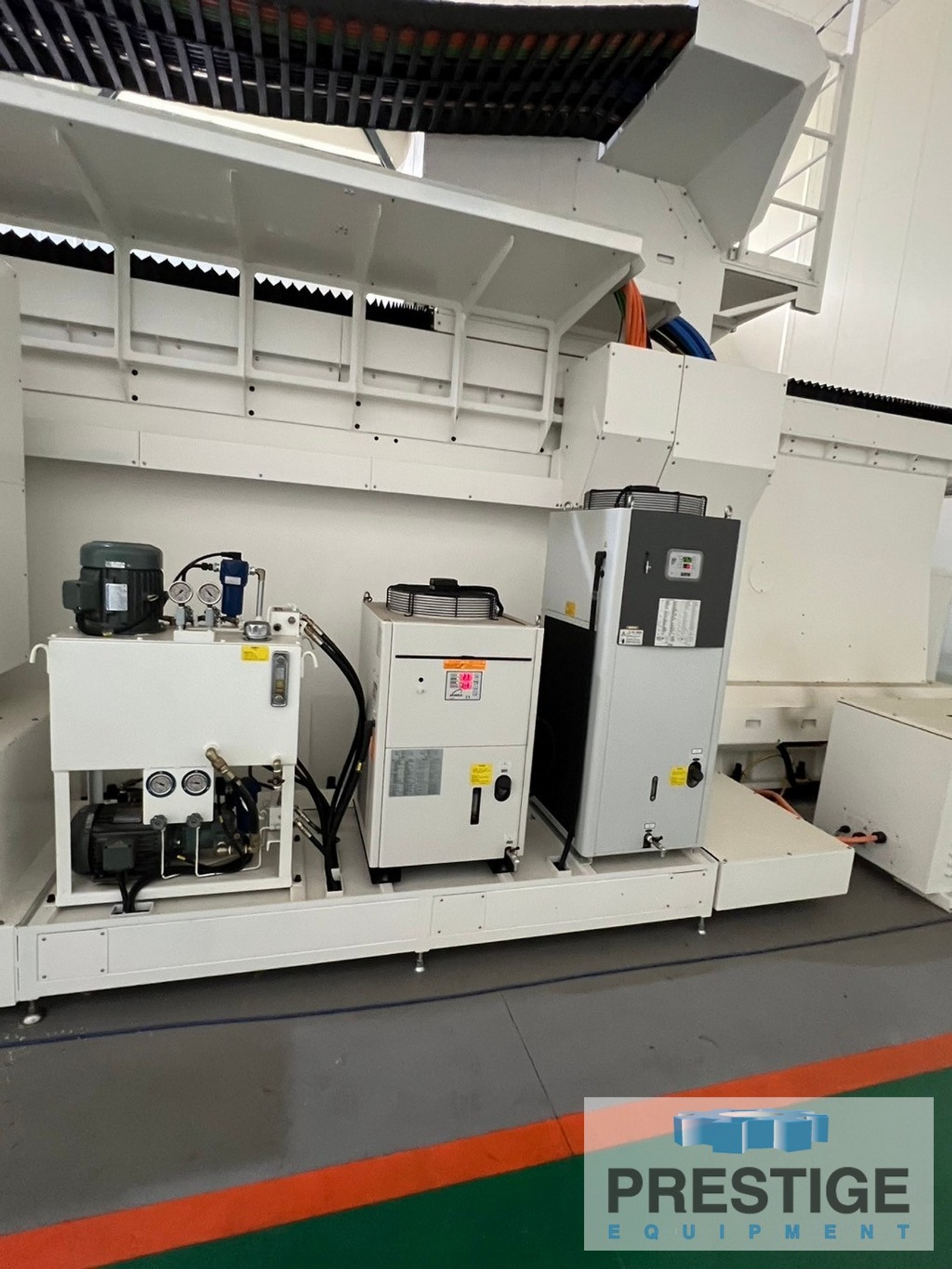

Through Spindle Coolant System
X/Y/Z Linear Guide Ways
Spindle Coolant System

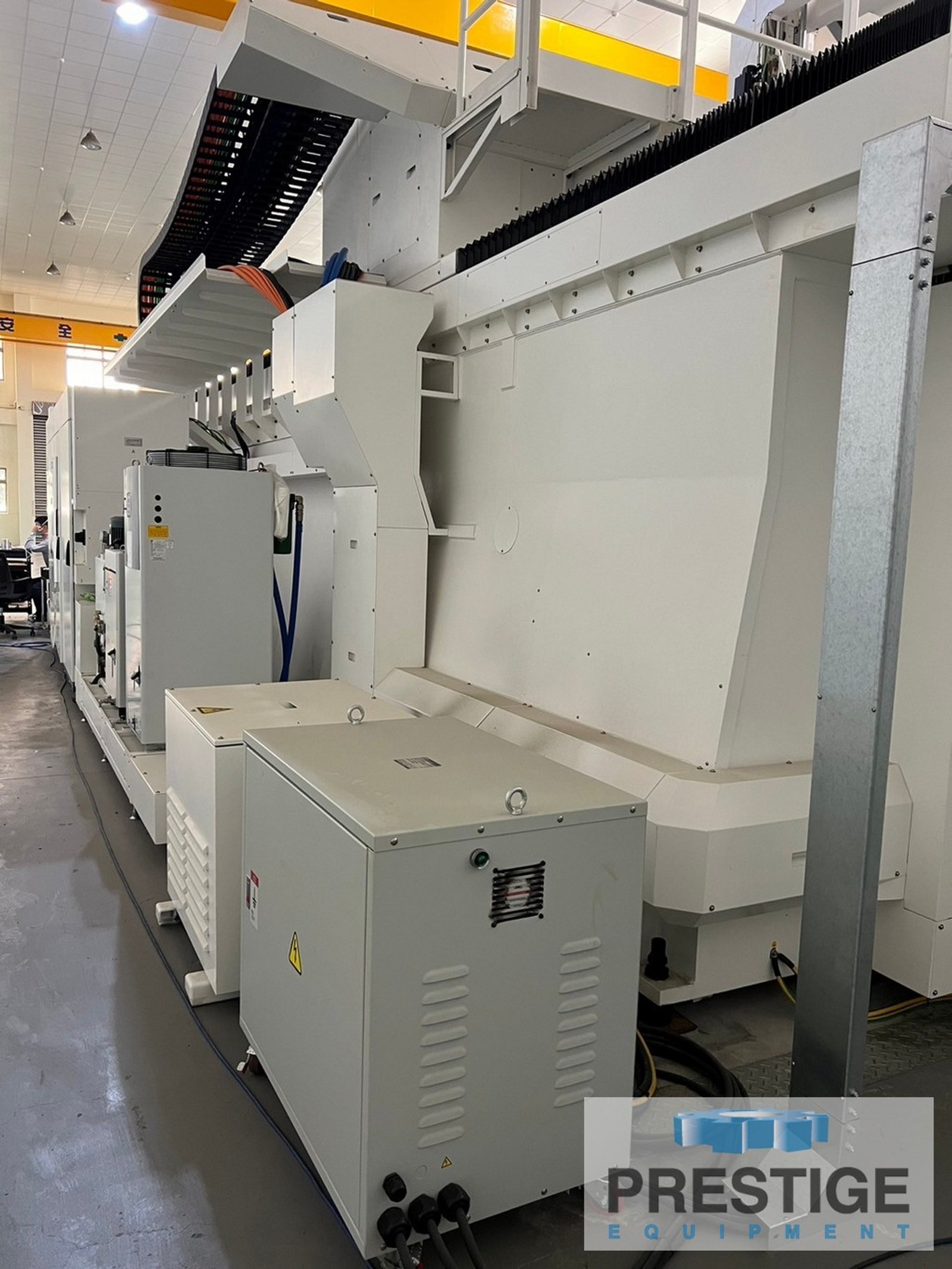

Air Conditioner for Electrical Cabinet
Heidenhain Linear Scales
Chip Conveyor
5-Axis Auto Compensation System
