Niigata NX5000, X-31.5", Y-29.5", Z-33", 19.6" x 19.6" Pallet, 2-APC, 60-ATC, Fanuc 31iB CNC, 2021, #43953

Manufacturer

NIIGATA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43953

Model

NX5000

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43953

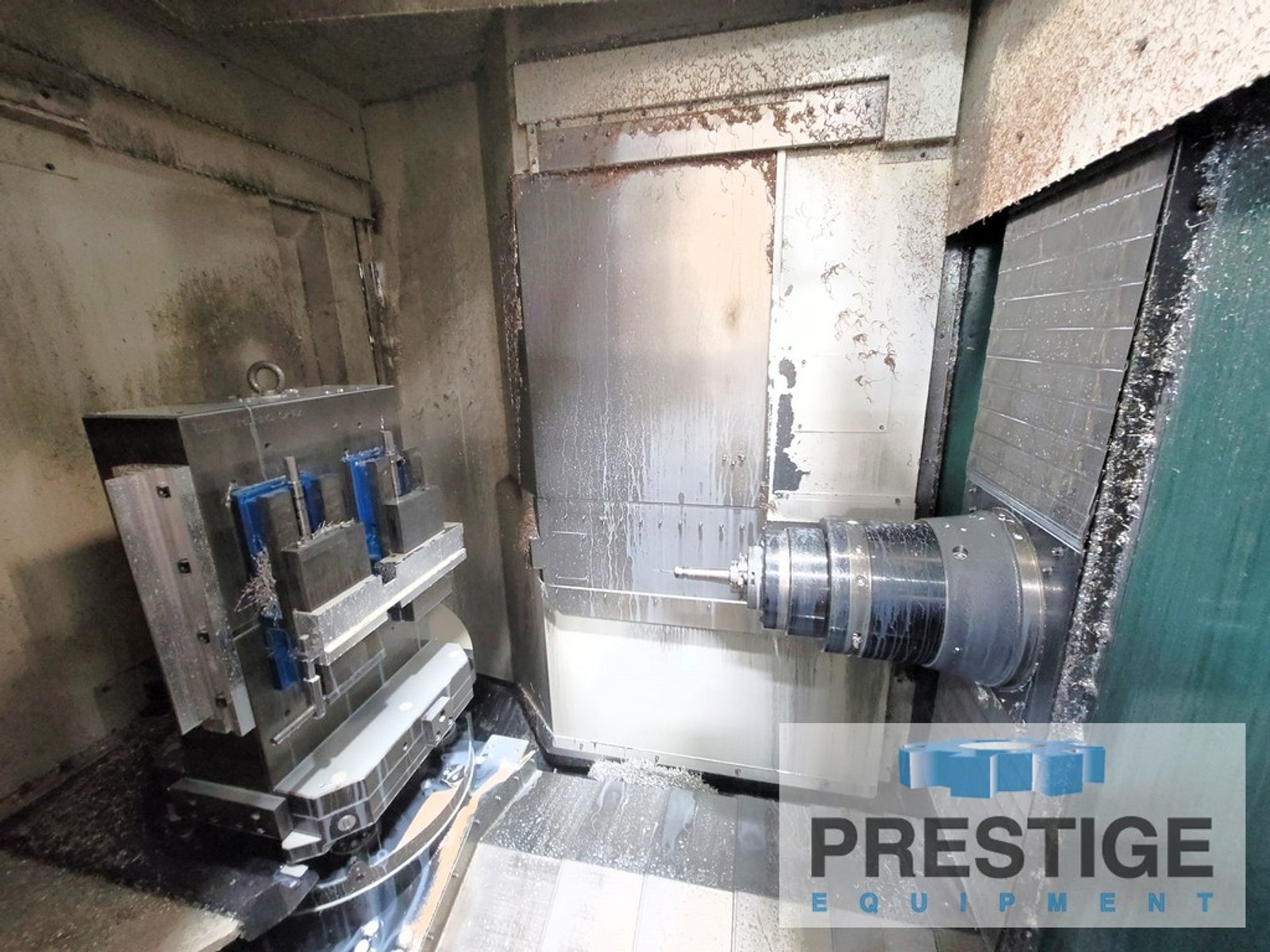

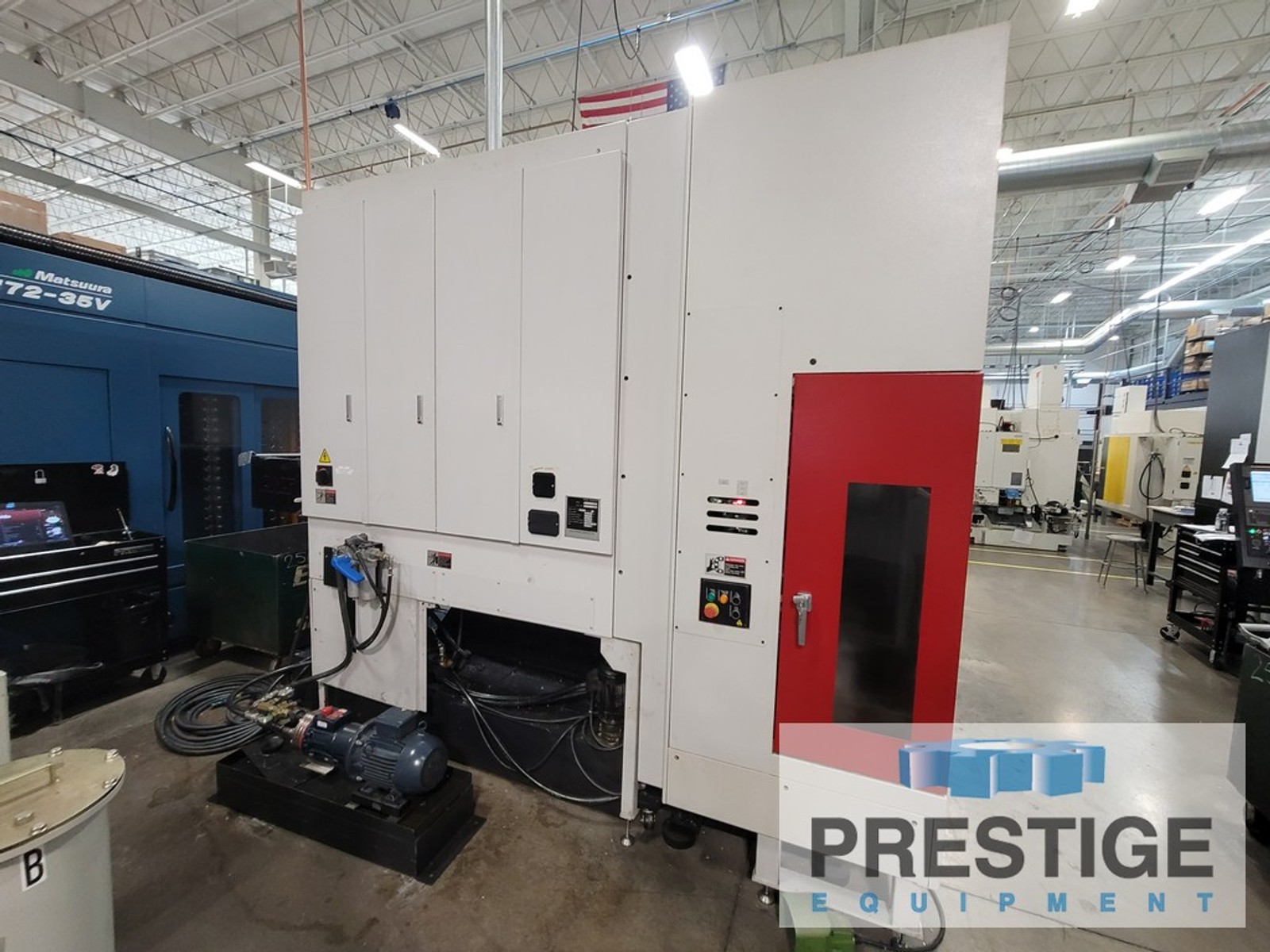

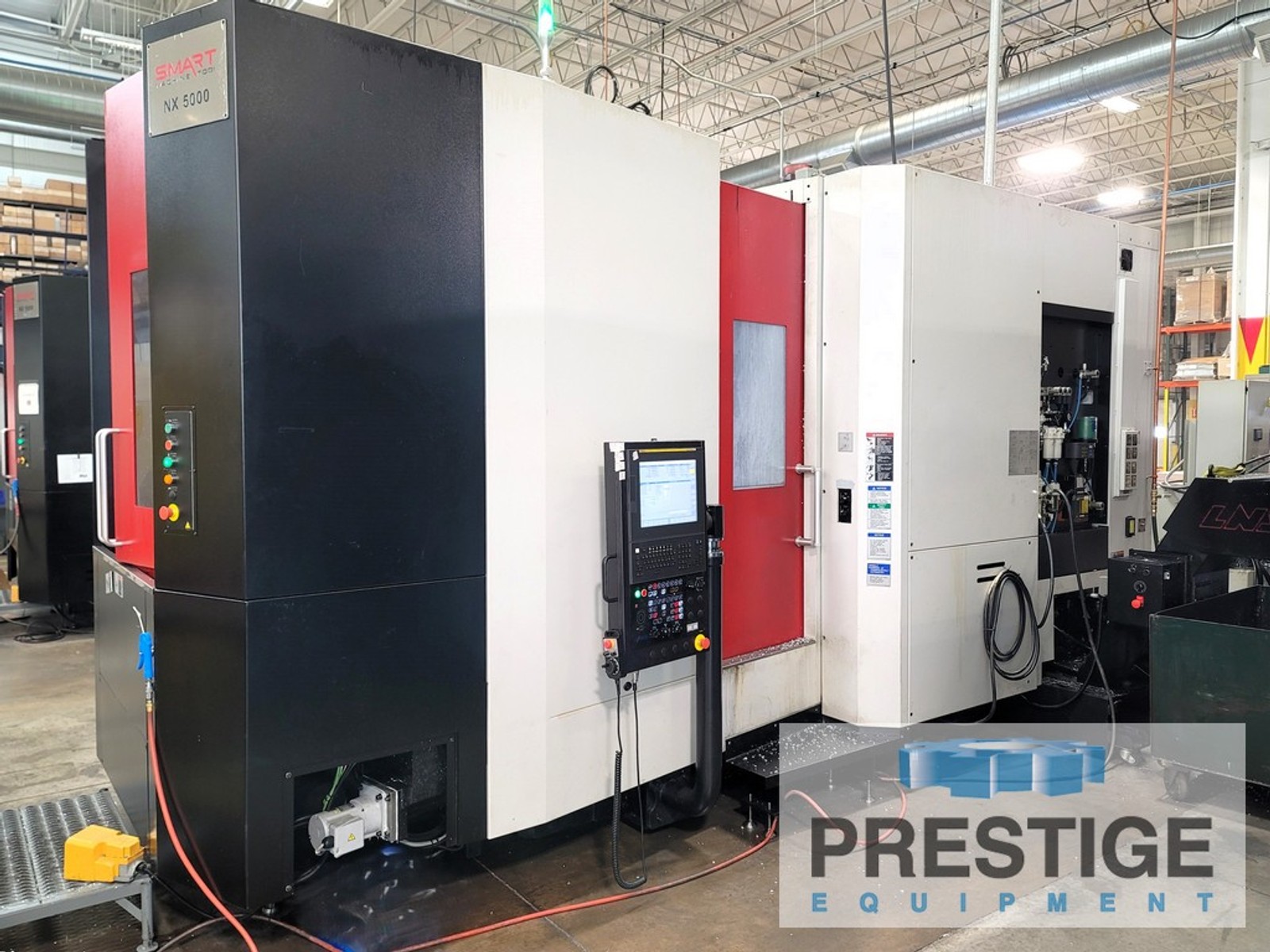

Niigata Smart NX5000 CNC Horizontal Machining Center

FEATURES:

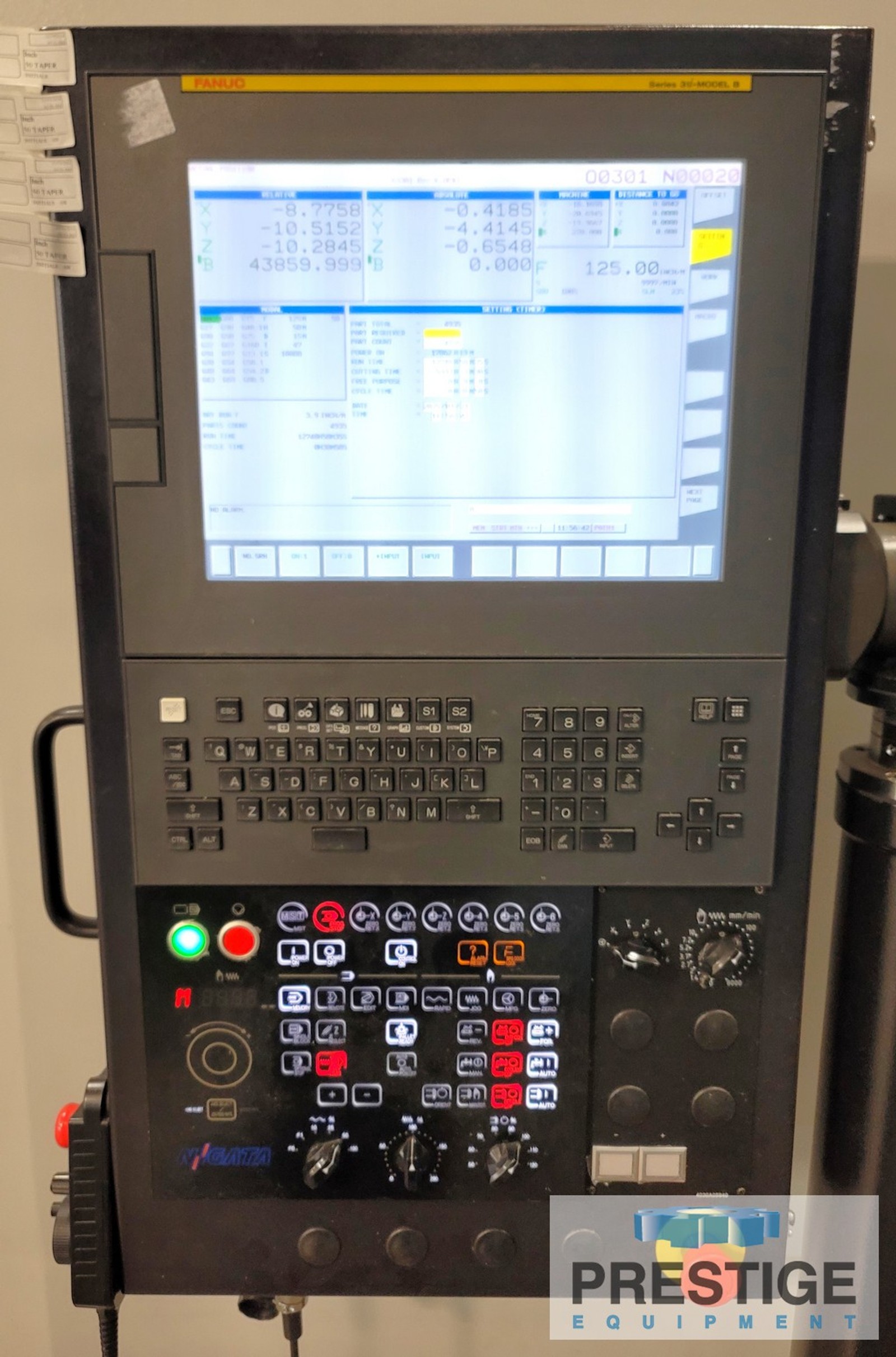

Fanuc 31i-B CNC Control

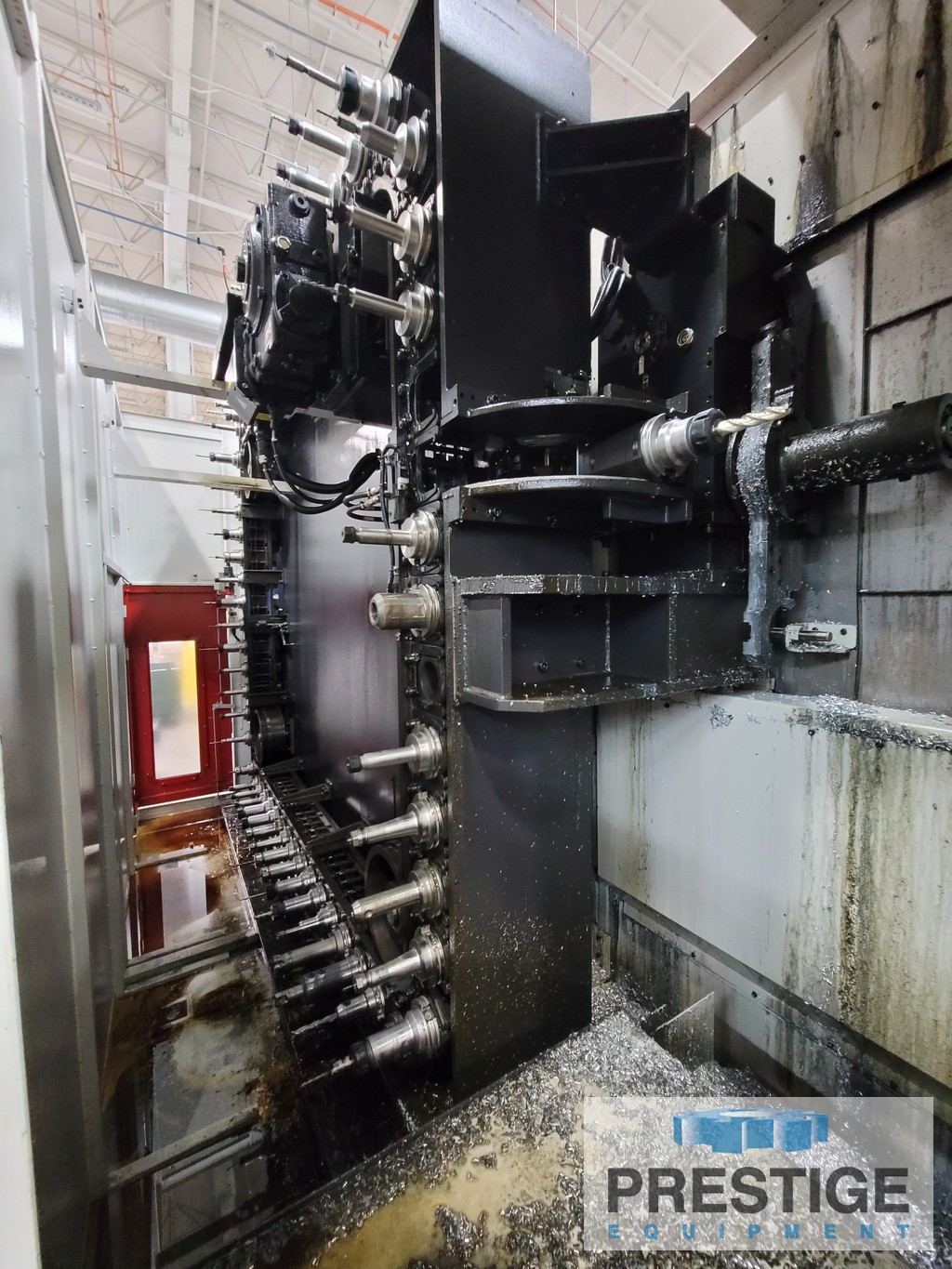

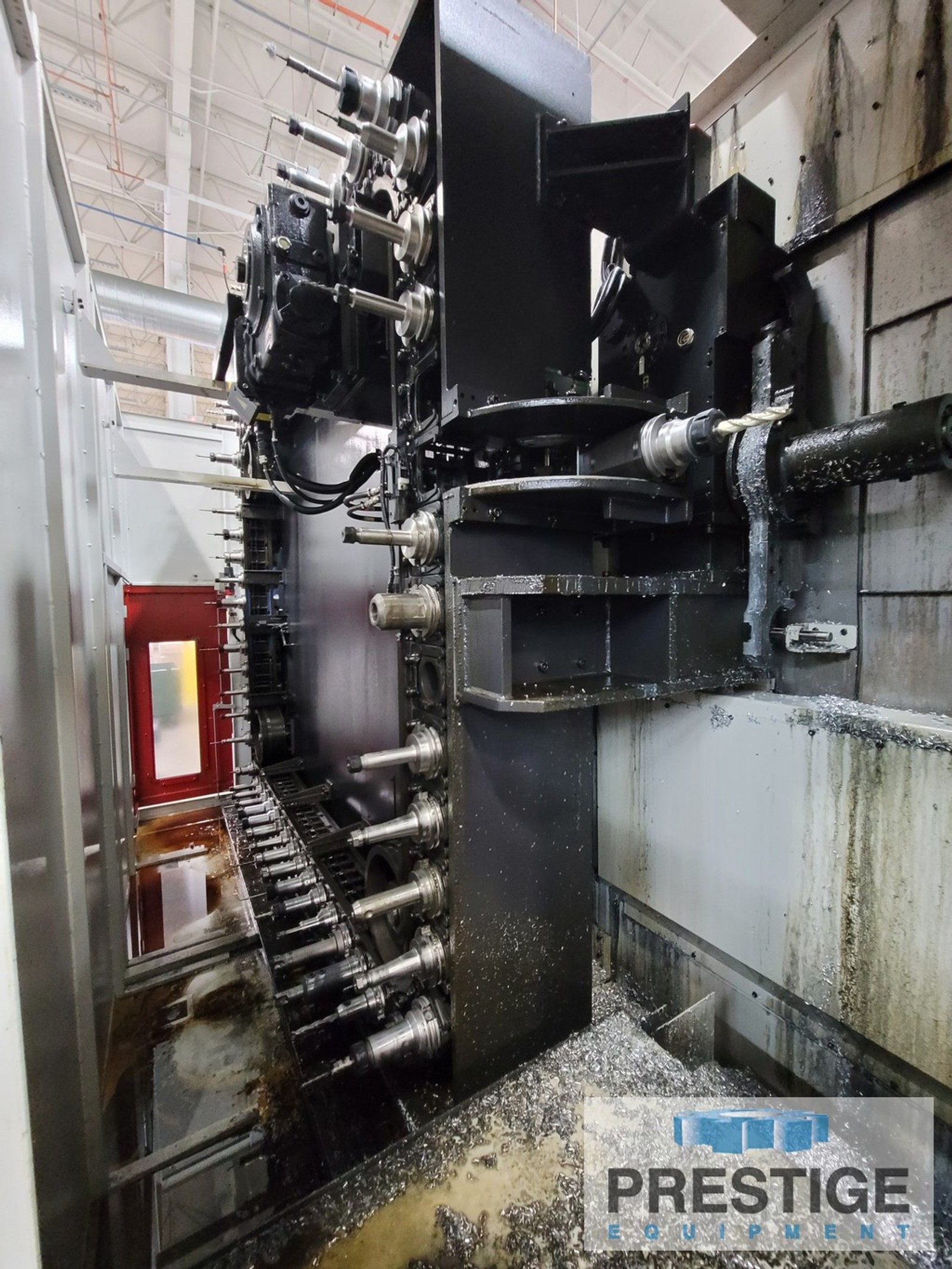

60-Station Automatic Tool Changer
2-Station Automatic Pallet Changer
12,000 RPM Spindle Speed
Coolant Thru Spindle
Niigata Hi-Contour
Pre-Wired for 5th Axis

SPECIFICATION:
X-Axis Travel ......................... 31.49"
Y-Axis Travel ......................... 29.52"
Z-Axis Travel ......................... 33.46"
B-Axis Rotation ....................... .001°
Spindle Speed ......................... 50 - 12,000 RPM
Spindle Taper ......................... CAT 50 Big Plus
Pallet Dimensions ..................... 19.68 x 19.68"
Pallet Weight Capacity ................ 1,760 Lbs
Rapid Traverse, X/Y/Z ................. 2362.20 IPM
Feedrate, X/Y/Z ....................... .039 - 1574.80 IPM
Feedrate, B-Axis ...................... 1 - 720°/Min
Spindle Motor ......................... 40 HP

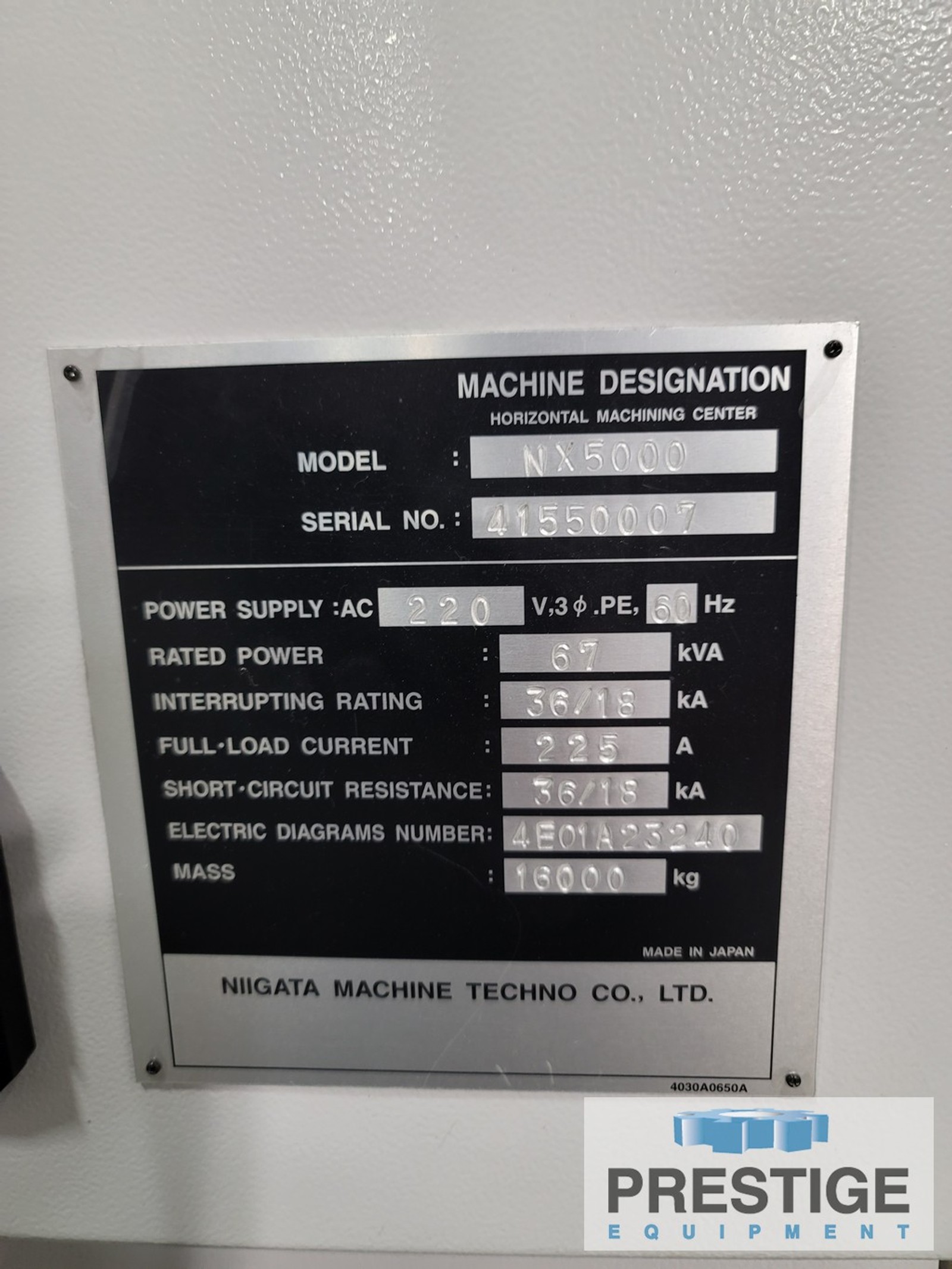

Electrics ............................. 220V/3Ph/60Hz
Approx. Machine Dimensions ............ 118" x 214" x 128"
Approx. Machine Weight ................ 35,200 Lbs

EQUIPPED WITH:
Fanuc 31i-B CNC Control
60-Station Automatic Tool Changer
2-Station Automatic Pallet Changer
12,000 RPM Spindle Speed
Coolant Thru Spindle
Niigata Hi-Contour
Pre-Wired for 5th Axis

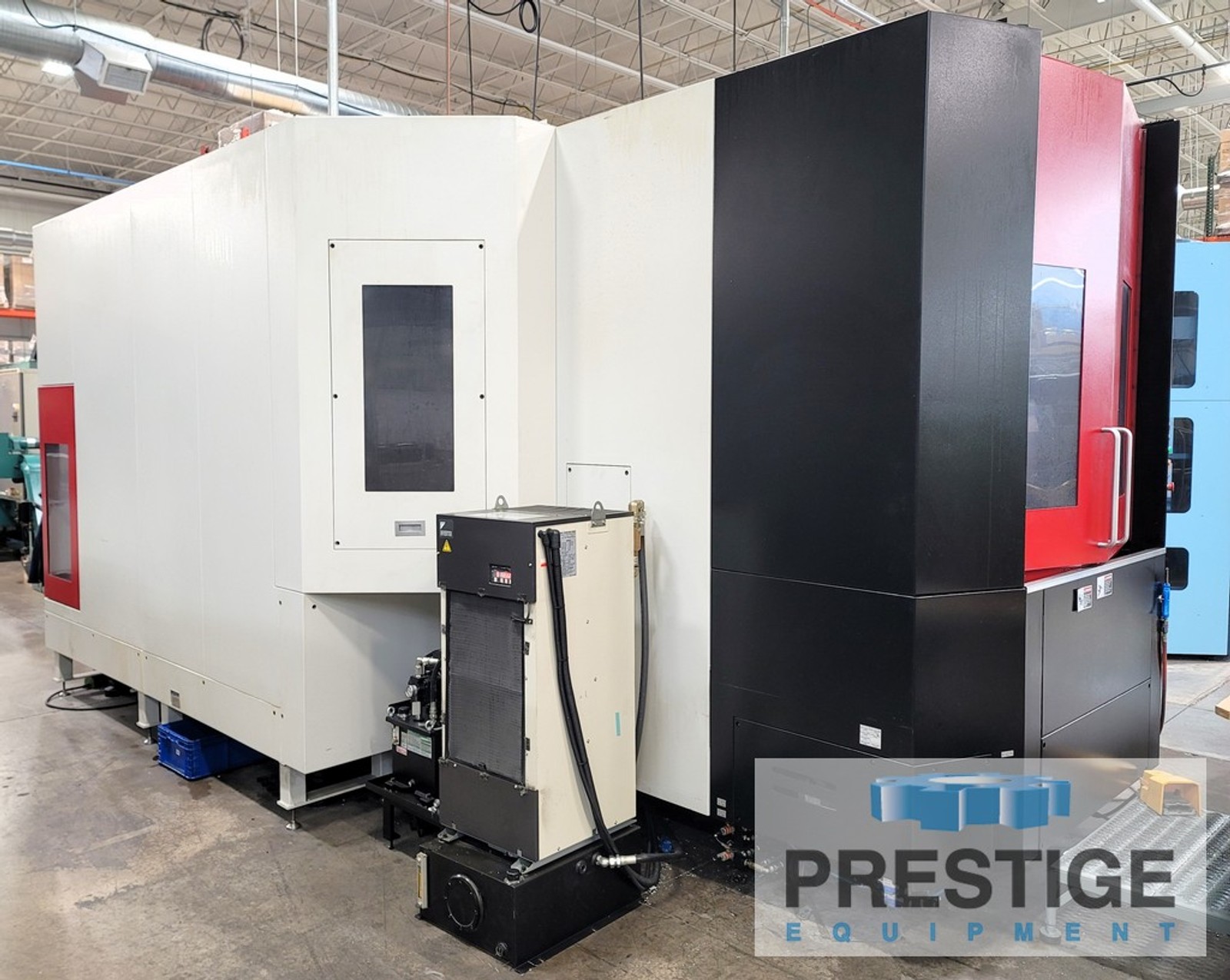

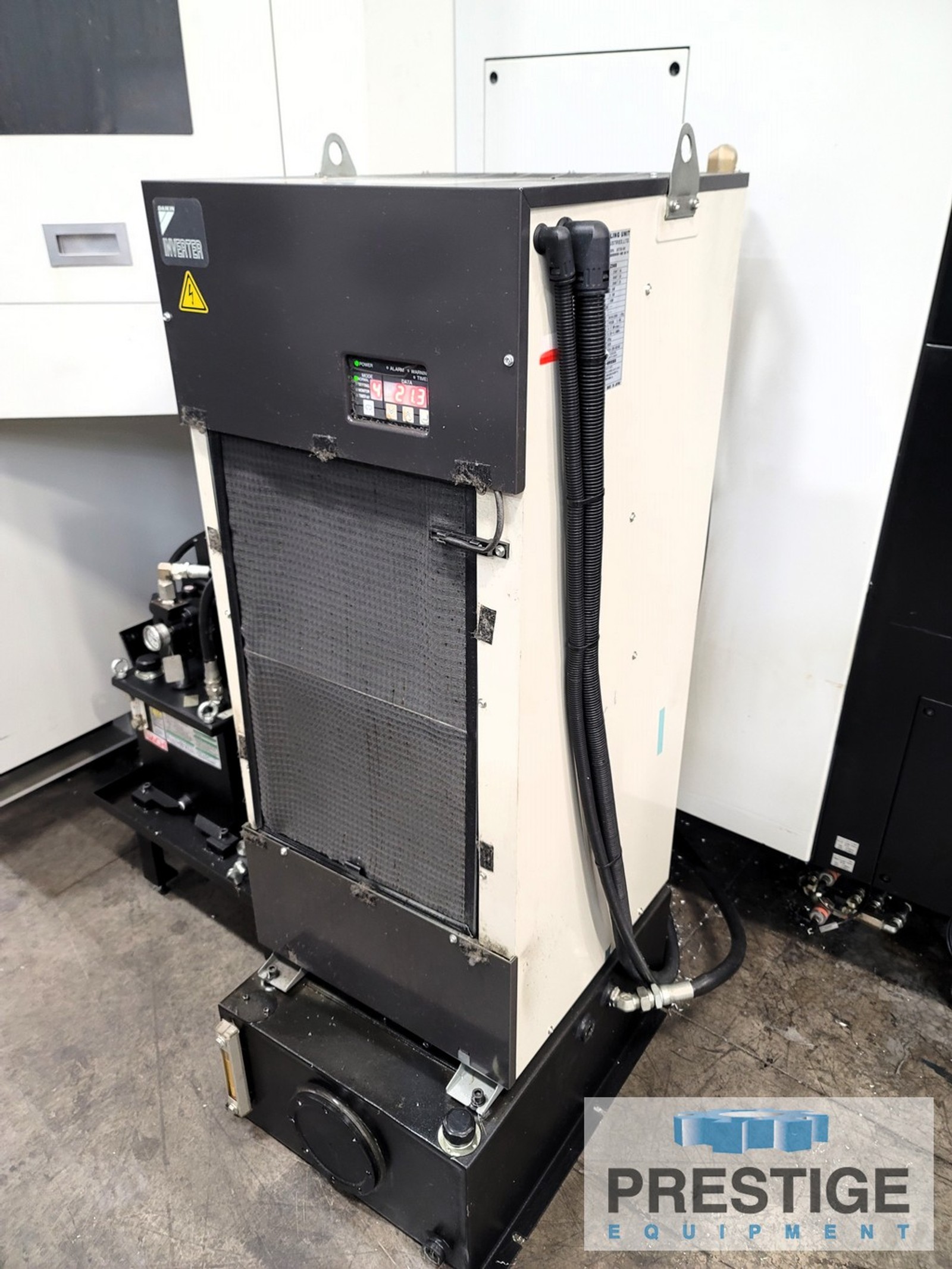

Chiller Unit
LNS Chip Conveyor

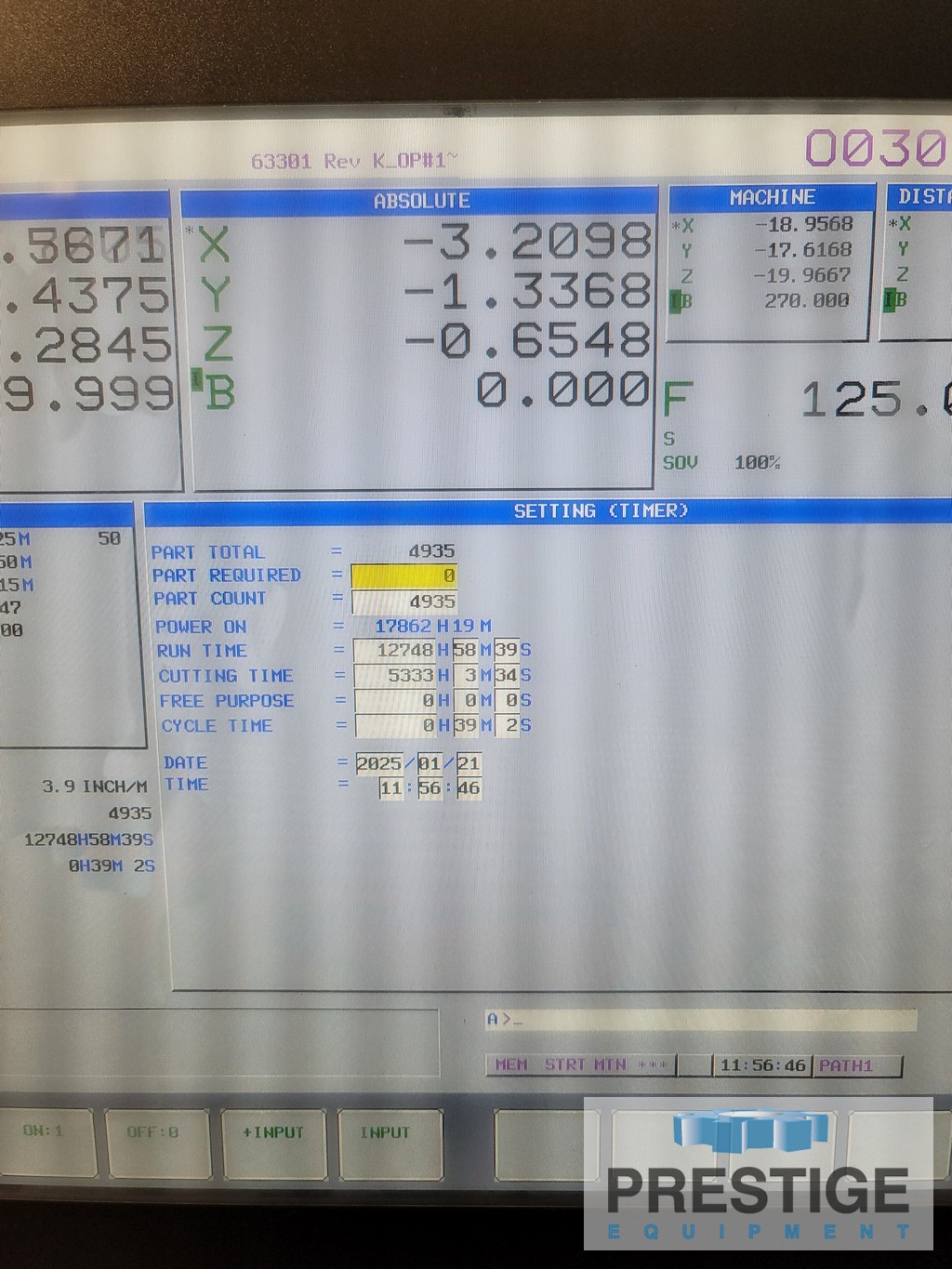

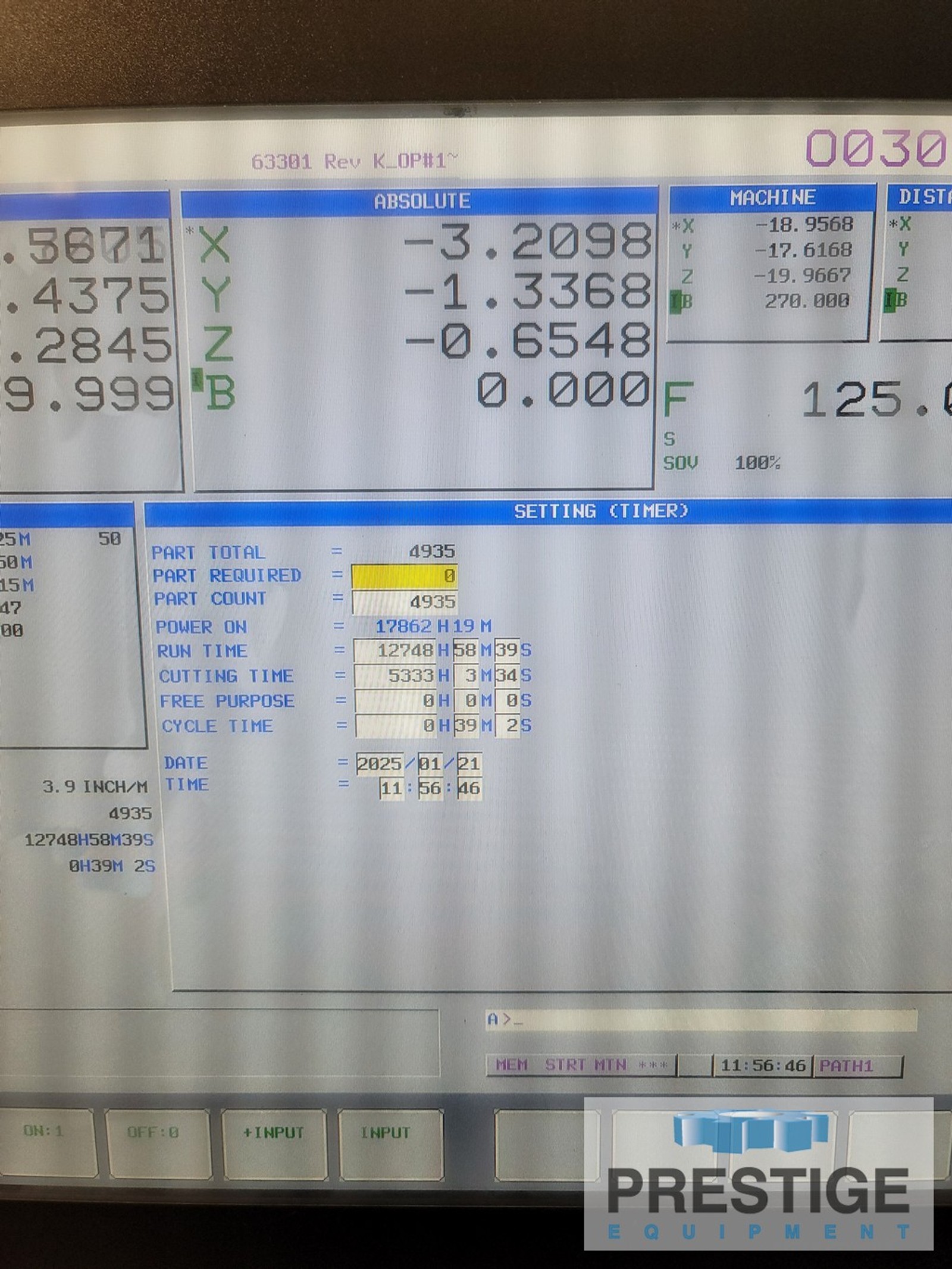

CUTTING TIME:
5,333 Hours

NOTE:
Inspect in Plant Under Power

NOTE:
Fixtures on Machine Not Included
